Cardinal 205 User manual

8200-M024-O1 Rev G y205 Installation & Technical 1
205
WEIGHT INDICATOR
INSTALLATION and TECHNICAL MANUAL
8200-M024-O1 Rev G PO BOX 151
•
WEBB CITY, MO 64870 Printed in USA
10/09 PH [phone]
•
FAX [phone]
www.cardinalscale.com
Technical Support: Ph: 866-254-8261 y[email protected]

8200-M024-O1 Rev G y205 Installation & Technical
2

8200-M024-O1 Rev G y205 Installation & Technical I
TABLE OF CONTENTS
SPECIFICATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 1
Standard Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 2
Optional Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 2
Certifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -Page 2
EUROPEAN DECLARATION OF CONFORMITY - - - - - - - - - - - - - - - - - - - - - - - - - - Page 3
PRECAUTIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -Page 4
SITE PREPARATION REQUIREMENTS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 4
INSTALLATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 6
MOUNTING - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -Page 6
LOAD CELL CONNECTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 7
LOAD CELL CONNECTIONS WITH OVER 30 FEET OF CABLE - - - - - - - - - - - - -Page 8
SERIAL I/O CABLE INSTALLATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -Page 9
OPTICALLY ISOLATED INPUTS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 9
MAIN PCB (Figure No. 7) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 10
MAIN PCB JUMPERS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 11
RE-INSTALLING THE REAR PANEL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 11
KEYPAD FUNCTIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 12
ANNUNCIATORS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 15
SETUP AND CALIBRATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -Page 16
SETUP REVIEW - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 33
CALIBRATION "C" NUMBERS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -Page 33
ACCUMULATORS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -Page 34
BEFORE YOU CALL SERVICE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 35
ERROR CODES - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 36
CALIBRATION SEAL INSTALLATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 38
PART IDENTIFICATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -Page 39
APPENDIX A: MODEL 205DC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Page 43
SERIAL NUMBER _____________________
DATE OF PURCHASE _________________
PURCHASED FROM __________________
____________________________________
____________________________________
____________________________________
RETAIN THIS INFORMATION FOR FUTURE USE
PRECAUTIONS
Before using this indicator, read this manual and pay special attention to all
"WARNING" symbols:
IMPORTANT
ELECTRICAL
WARNING
STATIC
SENSITVE
I

8200-M024-O1 Rev G y205 Installation & Technical
II
FCC COMPLIANCE STATEMENT
WARNING! This equipment generates uses and can radiate radio frequency and if not
installed and used in accordance with the instruction manual, may cause interference to radio
communications. It has been tested and found to comply with the limits for a Class A
computing device pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide
reasonable protection against such interference when operated in a commercial environment.
Operation of this equipment in a residential area may cause interference in which case the
user will be responsible to take whatever measures necessary to correct the interference.
You may find the booklet “How to Identify and Resolve Radio TV Interference Problems”
prepared by the Federal Communications Commission helpful. It is available from the U.S.
Government Printing Office, Washington, D.C. 20402. Stock No. 001-000-00315-4.
PROPER DISPOSAL
When this device reaches the end of its useful life, it must be properly disposed of. It must not
be disposed of as unsorted municipal waste. Within the European Union, this device should
be returned to the distributor from where it was purchased for proper disposal. This is in
accordance with EU Directive 2002/96/EC. Within North America, the device should be
disposed of in accordance with the local laws regarding the disposal of waste electrical and
electronic equipment.
It is everyone’s responsibility to help maintain the environment and to reduce the effects of
hazardous substances contained in electrical and electronic equipment on human health.
Please do your part by making certain that this device is properly disposed of. The symbol
shown below indicates that this device must not be disposed of in unsorted municipal waste
programs.
All rights reserved. Reproduction or use, without expressed written permission, of editorial or
pictorial content, in any manner, is prohibited. No patent liability is assumed with respect to
the use of the information contained herein. While every precaution has been taken in the
preparation of this manual, the Seller assumes no responsibility for errors or omissions.
Neither is any liability assumed for damages resulting from use of the information contained
herein. All instructions and diagrams have been checked for accuracy and ease of application;
however, success and safety in working with tools depend to a great extent upon the individual
accuracy, skill and caution. For this reason the Seller is not able to guarantee the result of any
procedure contained herein. Nor can they assume responsibility for any damage to property or
injury to persons occasioned from the procedures. Persons engaging the procedures do so
entirely at their own risk.
II

8200-M024-O1 Rev G y205 Installation & Technical 1
SPECIFICATIONS
Power Requirements: 90 to 264 VAC (50/60 Hz) at 0.4A
Enclosure Type: NEMA 4X/IP66
Enclosure Size: 9 3/16" W x 7 1/2" H x 3 1/8" D
(233mm W x 191mm H x 79mm D)
Weight: 8.2lbs - (9.6lb with battery)
Operating Environment: Temperature: 14 to 104 ºF (-10 to +40 ºC)
Humidity: 90% non-condensing (maximum)
Display: Six digit, seven segment, 0.6" high LED
Transducer Excitation:
(Jumper selectable)
12 VDC
8 VDC with battery operation (jumper selectable)
Signal Input Range: 1.0 mV min. to 40 mV max. (with dead load boost)
Number of Load Cells: 8 each, 350 OHM minimum resistance
Load Cell Cable Length: 1500 feet maximum. Consult factory for other requirements
30 feet maximum without sense lines
Division Value: 1, 2, or 5 x 10, 1, 0.1, 0.01, 0.001 commercial
0 to 99, non-commercial
Sensitivity:
NON-COMMERCIAL
NTEP
CANADA
OIML
0.15 uV/e
0.3uV/e (Class III/IIIL)
0.3uV/e (Class III/IIIHD)
0.7 uV/e (Class III)
Scale Divisions:
NON-COMMERCIAL
NTEP
CANADA
OIML
100 to 240,000
100 to 10,000 (Class III/IIIL)
100 to 10,000 (Class III/IIIHD)
100 to 10,000 (Class III)
Internal Resolution: 1 part in 16,777,216
Tare Capacity: Scale Capacity
Sample Rate: 1 to 100 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Weighing Units: Tons, Pounds, Pounds-Ounces, Ounces,
Metric Tons, Kilograms, Grams
Keypad: Color coded Membrane type, 7 keys
Standard I/O: (1) bi-directional RS232 (20mA)
(1) output only RS232 (20mA)
Battery Operation: 205EU - CAM-350 Type, 12V 2Ah
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
ATTENTION: RISQUE D'EXPLOSION SI LA BATTERIES EST REMPLACE'E PAR UN
TYPE INCORRECT. REJETEZ LES BATTERIES UTILISE'ES SELON LES
INSTRUCTIONS.

8200-M024-O1 Rev G y205 Installation & Technical
2
SPECIFICATIONS, CONT.
Standard Features:
• Push button tare function
• Gross, tare, net conversion
• Selectable key lockout
• Hi-Resolution mode
• Adjustable filtering
• Gross and Net accumulators
• Dual serial ports
• Remote input lines for Zero, Tare, Gross and Print (1000 feet maximum)
• Programmable print format using Visual Print or nControl (2 Visual Tickets available)
• SMA level 2 compliant serial communications
(For more information see http://www.scalemanufacturers.org)
• Field re-programmable via PC interconnection
• Test feature (performs display and internal tests)
• Auto Shutoff and Sleep modes
• Battery operation
(Requires additional hardware and includes additional documentation)
Optional Features:
Analog Output*, Allen-Bradley Interface*, 10/100 mbps Ethernet Adapter*, Additional Serial
Port*, Internal Relay Box*, External Relay Box*, Special Filtering, and Column Mounting
*This feature requires additional hardware and includes additional documentation.
Certifications:
This equipment is certified to comply with the requirements for a Class III/IIIL device by the
•National Conference on Weights and Measurements (Certificate No. 01-011)
•Measurement Canada (Approval No. AM-5397)
•And for a Class III device by OIML R-76 (Certificate No. DK 0199.47).

8200-M024-O1 Rev G y205 Installation & Technical 3
EUROPEAN DECLARATION OF CONFORMITY
Manufacturer: Cardinal Scale Manufacturing Company
PO Box 151
203 East Daugherty
Webb City, Missouri 64870 USA
Telephone No. [phone]
Fax No. [phone]
Product: Non-automatic Weight Indicating Instrument
Model Numbers 200, 205, 210, 210FE, 215, 220 and 225
Serial Number EXXXYY-ZZZ
where XXX = day of year
YY = last two digits of year
ZZZ = sequential number
The undersigned hereby declares, on behalf of Cardinal Scale Manufacturing Company of
Webb City, Missouri, that the above-referenced product, to which this declaration relates, is in
conformity with the provisions of:
European Standard EN 45501: 1992 and equivalent International
Recommendation OIML R76, edition 1992
EU Type Approval Certificate Number DK 0199.159
Report No. DANAK-1910304
Council Directive 2006/95/EC Low Voltage Directive
as amended by Council Directive 93/68/EEC (22 July, 1993)
Council Directive 90/384/EEC (20 June, 1990) on the Harmonization
Of the Laws of Member States relating to non-automatic weighing
Systems as amended by:
Council Directive 93/68/EEC (22 July, 1993)
European Standard EN50082: 1995 for radiated emissions and
European Standard EN50082-2: 1995 Class B for EMC immunity.
The Technical Construction File required by this Directive is maintained at the corporate
headquarters of Cardinal Scale Manufacturing Company, 203 East Daugherty, Webb City,
Missouri.
____________________
Ginger Harper
Director, Quality Assurance

8200-M024-O1 Rev G y205 Installation & Technical
4
PRECAUTIONS
Static Electricity
CAUTION! This device contains static sensitive circuit cards and components.
Improper handling of these devices or printed circuit cards can result in damage to or
destruction of the component or card. Such actual and/or consequential damage IS
NOT covered under warranty and is the responsibility of the device owner. Electronic
components must be handled only by qualified electronic technicians who follow the
guidelines listed below.
ATTENTION! ALWAYS use a properly grounded wrist strap when handling,
removing or installing electronic circuit cards or components. Make certain that the
wrist strap ground lead is securely attached to an adequate ground. If you are
uncertain of the quality of the ground, you should consult a licensed electrician.
ALWAYS handle printed circuit card assemblies by the outermost edges. NEVER
touch the components, component leads or connectors. ALWAYS observe warning
labels on static protective bags and packaging and never remove the card or
component from the packaging until ready for use. ALWAYS store and transport
electronic printed circuit cards and components in anti-static protective bags or
packaging.
SITE PREPARATION REQUIREMENTS
The Cardinal 205 indicator is a precision weight-measuring instrument. As with any precision
instrument, it requires an acceptable environment to operate at peak performance and
reliability. This section is provided to assist you in obtaining such an environment.

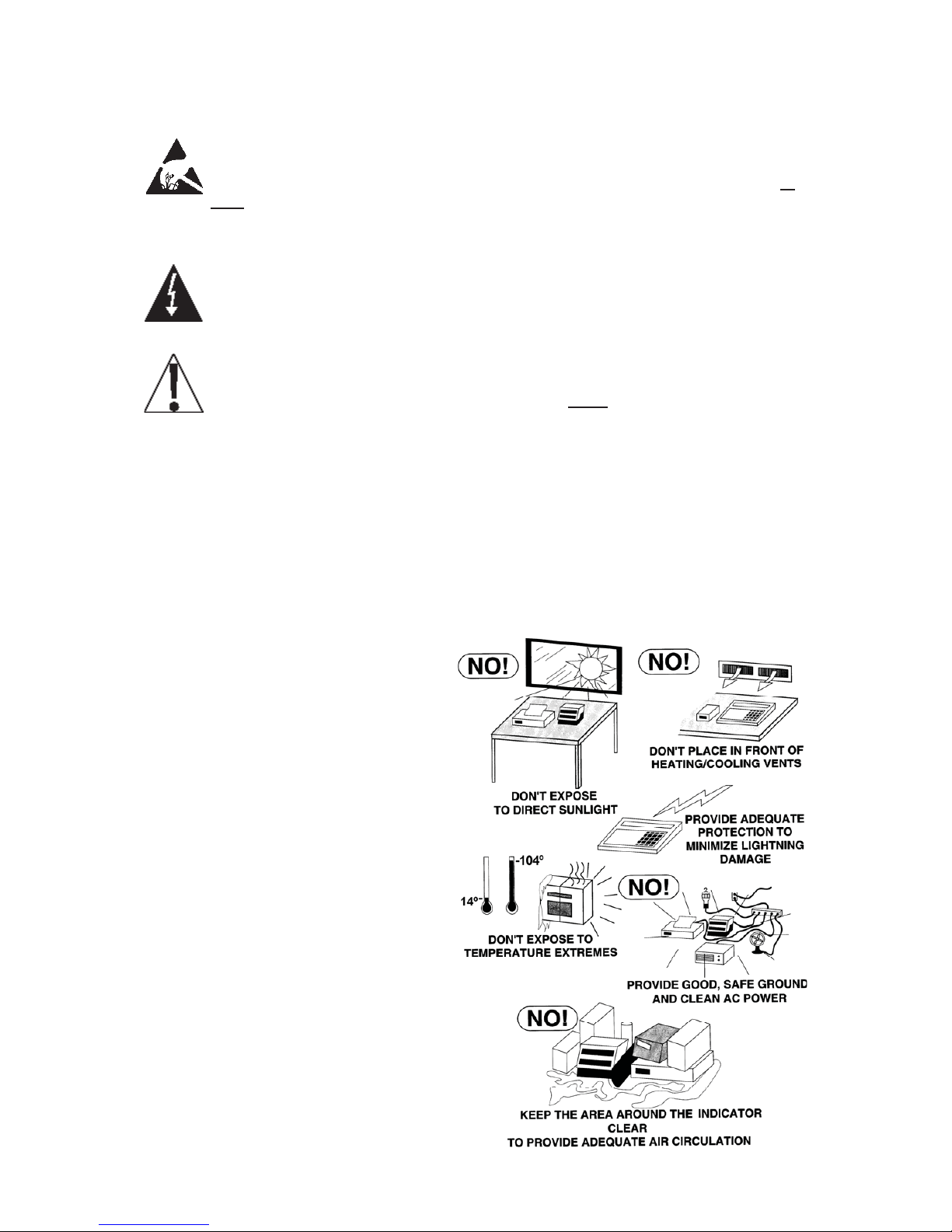

Environmental
The Model 205 indicator meets or
exceeds all certification requirements
within a temperature range of 14 to 104 °F
(-10 to +40 °C).
In order to keep cooling requirements to a
minimum, the indicator should be placed
out of direct sunlight and to provide
adequate air circulation, keep the area
around the indicator clear.
Make certain the indicator is not directly in
front of a heating or cooling vent. Such a
location will subject the indicator to
sudden temperature changes, which may
result in unstable weight readings.
Insure that the indicator has good, clean
AC power and is properly grounded.
In areas subject to lightning strikes,
additional protection to minimize lightning
damage, such as surge suppressors,
should be installed.

8200-M024-O1 Rev G y205 Installation & Technical 5
SITE PREPARATION REQUIREMENTS
Electrical Power
The 205 indicator has been designed to operate from 90 to 264 VAC at 50/60 Hz. Note that a
special order is not required for operation at 230 VAC.
CAUTION! - To avoid electrical hazard and possible damage to the indicator,
DO NOT, under any circumstance, cut, remove, alter, or in any way bypass the
power cord grounding prong.
The socket-outlet supplying power to the indicator should be on a separate circuit from the
distribution panel and dedicated to the exclusive use of the indicator.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Note that the power cord on the 205 (without the Battery Option) serves as the power
disconnect.
The wiring should conform to national and local electrical codes and ordinances and should
be approved by the local inspector to assure compliance.
On installations requiring 230 VAC power, it is the responsibility of the customer to have
a qualified electrician install the proper power cord plug that conforms to national electrical
codes and local codes and ordinances.
Electrical Noise Interference
To prevent electrical noise interference, make certain all other wall outlets for use with air
conditioning and heating equipment, lighting or other equipment with heavily inductive loads,
such as welders, motors and solenoids are on circuits separate from the indicator. Many of
these disturbances originate within the building itself and can seriously affect the operation of
the indicator. These sources of disturbances must be identified and steps must be taken to
prevent possible adverse effects on the indicator. Examples of available alternatives include
isolation transformers, power regulators, uninterruptible power supplies, or simple line filters.
Transient Suppression
The following recommendations will help to reduce transients:
yAlways use shielded cables to connect signal wires to the weight indicator.
ySecure the cables in the cable clips provided inside the indicator.
yConnect the cable shield (indicator end only) to a ground point inside the indicator. Keep
wires that extend beyond the shield as short as possible.
yDo not run load cell or signal cables from the weight indicator along side or parallel to
wiring carrying AC power. If unavoidable, position the load cell and signal cables a
minimum of 24" away from all AC wiring.
yAlways use arc suppressors across all AC power relay contacts (see recommendations at
http://www.paktron.com/pdf/Quencharch_QRL.pdf).
yUse zero voltage switching relays, optically isolated if possible.

8200-M024-O1 Rev G y205 Installation & Technical
6
INSTALLATION
Before beginning installation of your Model 205 Weight Indicator, make certain that the
indicator has been received in good condition. Carefully remove the indicator from the
shipping carton and inspect it for any evidence of damage (such as exterior dents or
scratches) that may have taken place during shipment. Keep the carton and packing material
for return shipment if it should become necessary. It is the responsibility of the purchaser to
file all claims for any damages or loss incurred during transit.
Mounting
NOTE! Should your 205 indicator come already installed on a scale, the following information
describing the installation of the indicator does not apply.
The Model 205 indicator is housed in a NEMA 4X/IP66 stainless steel wall or desk-mount
enclosure. The gimbal may be mounted on a desktop or other smooth, flat, horizontal surface

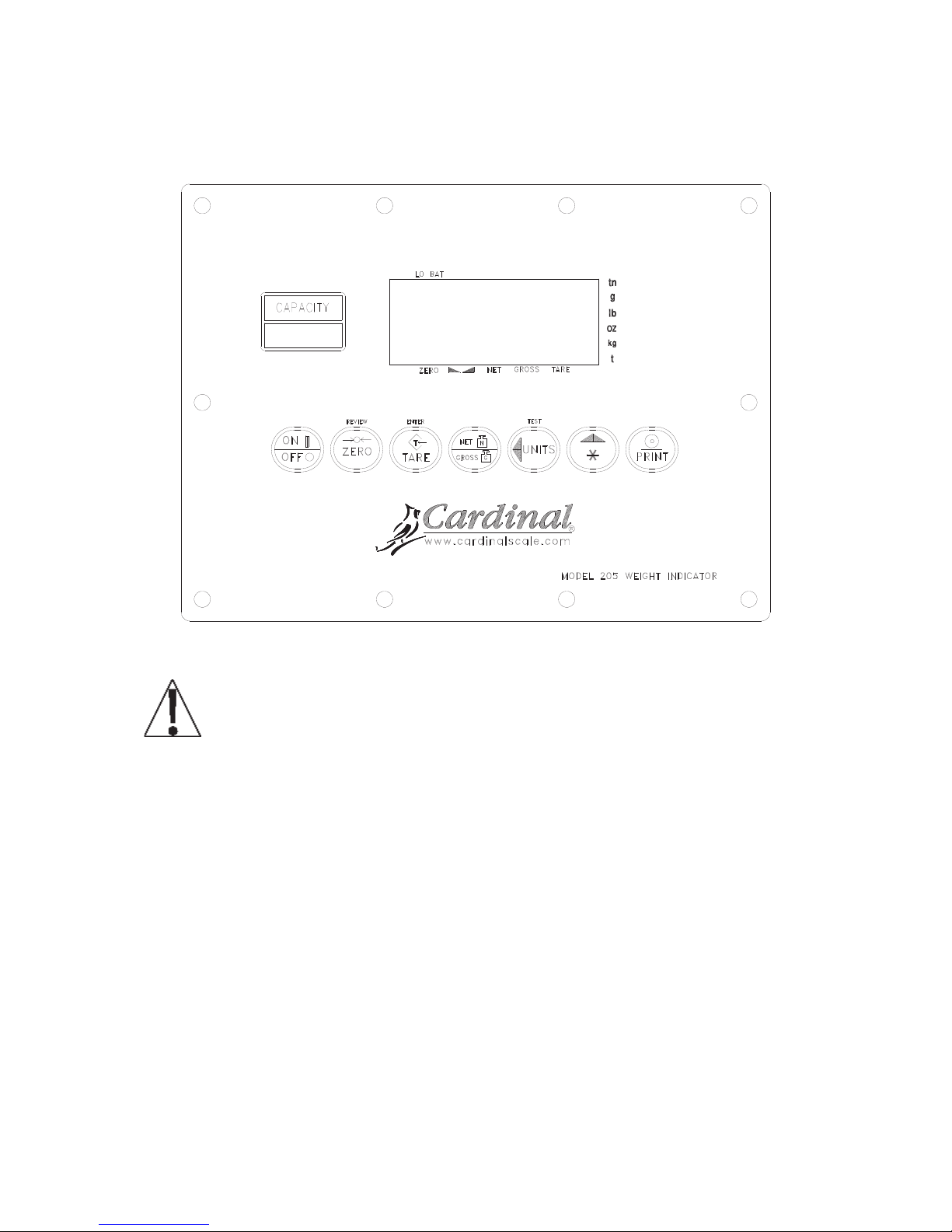

or may be mounted on a wall. Refer to Figure No. 1 for a layout of wall-mounting bolts.
If wall mounted, make certain the mounting surface is strong enough to support the indicator.
The mounting location should be where the display is easily viewed while being close enough
to provide the operator easy access to the keypad. Carefully lay out the mounting hole
locations, then drill and install the anchor bolts. Attach the gimbal to the wall and securely
tighten the retaining bolts.
+
Clearance for
#10 size screw
+
6.00"
Figure No. 1
Figure No. 2
Battery Access Cover
Load Cells

8200-M024-O1 Rev G y205 Installation & Technical 7
CAUTION! Disconnect any external load cell power supply before connecting
load cells to the indicator. Failure to do so will result in permanent damage to the
indicator.
INSTALLATION, CONT.
Load Cell Connection
Load Cell Cable Connection for RFI Suppression
The load cell cable should be routed through the special metallic gland connector and the
shield wire must be connected to this gland connector for grounding and to eliminate RFI.
Refer to Figure No. 2 and Figure No. 3 for the appropriate gland connector.
1. If using a battery, remove the three acorn
nuts securing the Battery Access Cover to
the bottom of the indicator and remove the
battery.
2. After removing the battery, remove the 12
acorn nuts securing the back panel to main
housing.
3. Loosen and remove the metal gland
connector nut and remove the plastic insert.
4. Route the load cell cable through the nut and
plastic insert and into the enclosure.
5. With the load cell cable routed into the
enclosure, remove approximately 18 to 20
inches of the outer insulating jacket from the
cable exposing the internal wires.
6. Cut the shield wire so that it extends past the
outer jacket approximately 3/4 inch.
7. Remove 1/4" of insulation from the end of
each of the 4 wires (without sense leads) or 6
wires with sense leads (refer to figure No. 4).
8. Connect each of the wires to terminal block
P1 referring to labels on circuit board for
terminal connections. Refer to Figure No. 7
for terminal block location.
9. To terminate a wire, press down on release
bar for the terminal, insert wire into terminal
opening then allow release bar to return to its
original position, locking wire in place.
Repeat procedure until all wires are in place.
10.Route load cell cable wires through the two
cable clips provided on upper and left sides
of enclosure interior.
LOAD CELL TERMINAL BLOCK P1
TERMINAL NO. Function TERMINAL NO. Function
1 + EXCITATION 5 - SIGNAL
2 + SENSE 6 - SENSE
3 + SIGNAL 7 - EXCITATION
NOTE! If the sense leads are NOT used, you must install plug-in jumpers at J4 and J5
adjacent to the terminal block. These jumpers attach the sense leads to the excitation leads.
If sense leads ARE used (as in motor truck scales), these plug-in jumpers should be positioned
on one plug-in pin only or removed and stored for later use (see Figure No. 8).
Figure No. 3
Figure No. 4

8200-M024-O1 Rev G y205 Installation & Technical
8
INSTALLATION, CONT.
Load Cell Cable Shield Wire Connection for RFI Suppression

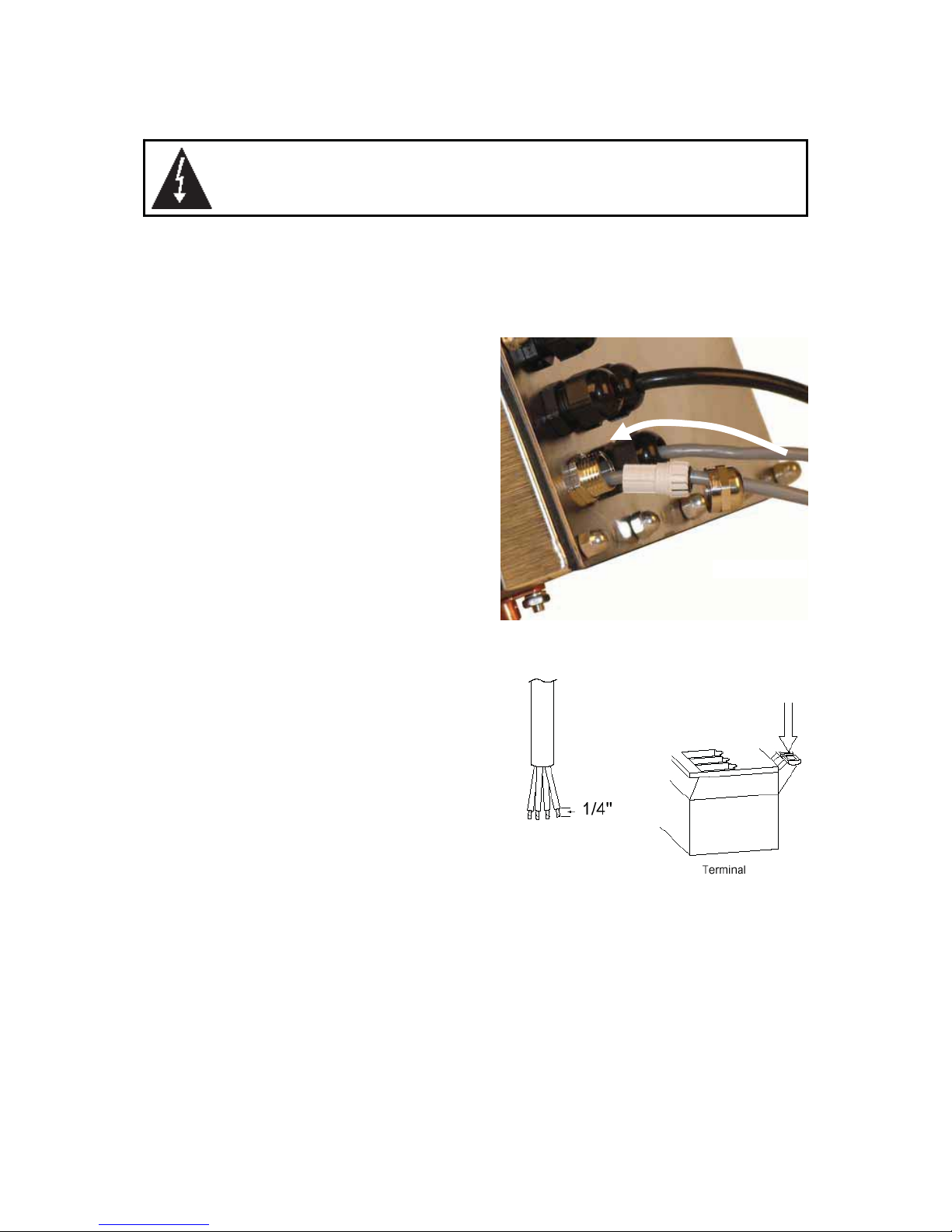

1. After all terminations have been made, remove
the excess cable from the enclosure.
2. Referring to Figure No. 5, fold the shield wire
back over the plastic insert and then insert the
plastic insert (with the shield wire) into the gland
connector.
3. The shield wire is secured when tightening the
gland connector nut.
4. Do not over-tighten the connector but make
certain it is snug.
5. DO NOT USE TOOLS! Finger tighten only!
Load Cell Cable Connection (Standard Gland Connector)
The following instructions describe the load cell connection should it be desired to route the
load cell cable through a standard gland connector. If a standard gland connector is used, the
shield wire should be connected to the threaded stud inside the indicator enclosure.
1. Remove the 12 acorn nuts securing the back panel to main housing, then loosen a gland
connector for the load cell cable. Refer to Figure No. 2 for illustration of connector layout.
2. Slip the single cable from the load cell or load cell junction box through the gland connector
and into the enclosure.
3. Remove 3" of the outer insulation jacket then remove 1/4" of insulation from each of the 4
wires and shield (without sense leads) or 6 wires and shield (with sense leads). Refer to
Figure No. 4.
4. Connect each of the wires to terminal block P1 referring to labels on circuit board for
terminal connections. Refer to Figure No. 7 for terminal block location.
5. To terminate a wire, first press down on release bar for the terminal, insert wire into
terminal opening then allow release bar to return to its original position, locking wire in
place. Repeat procedure until all of wires are in place.
6. Route load cell cable through the two cable clips provided on upper and left sides of
enclosure interior.

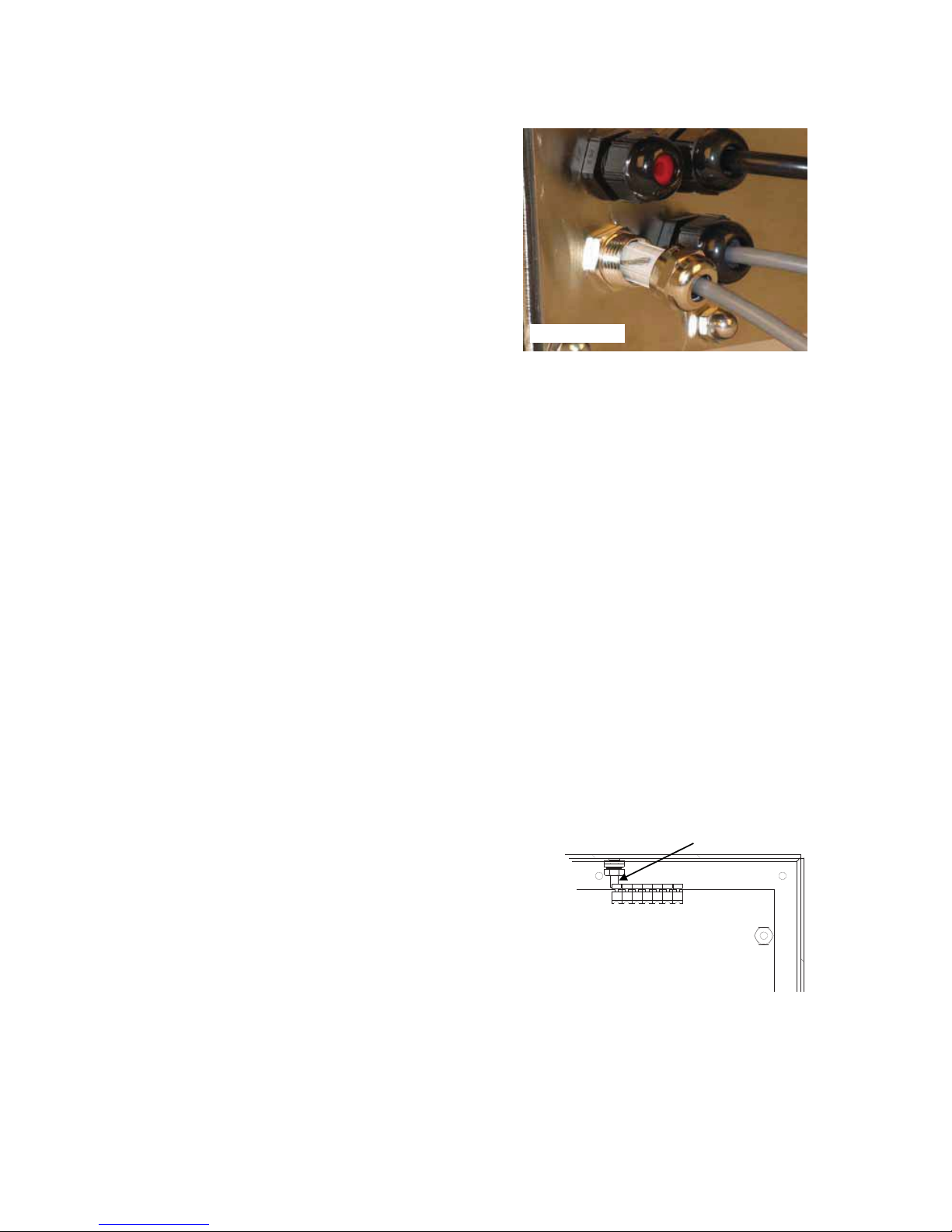

Load Cell Cable Shield Wire Connection (Standard Gland Connector)
The load cell cable shield wire should be connected to the
threaded stud inside the indicator. This stud is located on
the top inside of the indicator near the load cell connector
P1. See Figure No.6.
The shield wire should be wrapped around the stud
between the 2 flat washers and secured using hex nut.
Load Cell Connections With Over 30 Feet Of Cable
For installations with over 30 feet of cable between the indicator and the load cells, sense
wires should be used. The sense wires must be connected between the +SENS, -SENS
terminals on the indicator and the +EXCITATION, -EXCITATION wires of the load cells or the
+SENS, -SENS terminals of the load cell trim board or the section seal trim board.
Figure No. 6
P1 Load Cell
Threaded Stud
Figure No. 5

8200-M024-O1 Rev G y205 Installation & Technical 9
INSTALLATION, CONT.
Serial I/O Cable Installation
The 205 indicator may be connected to a printer to record weight and associated data or it may
be connected to a remote display or even to a computer for transmission of weight data. The
weight data may be transmitted on demand (pressing the PRINT key or on receipt of a
command from the computer). Refer to the Setup, SIO Serial I/O section of this manual.
1. Remove the 12 acorn nuts securing the back panel to main housing, then loosen a gland
connector for the serial cable. Refer to Figure No. 2 for illustration of connector layout.
2. Slip the serial cable through the gland connector and into the enclosure.
3. Remove 2" of the outer insulation jacket then remove 1/4" of insulation from each of the
wires (refer to Figure No. 4).
4. Connect each of the wires to the Serial Data terminal block (P11) referring to Figure No. 7
for terminal block locations.
5. To terminate, first press down on the release bar for the terminal, insert the wire into the
opening then allow the release bar to return to its original position, locking the wire in place.
Repeat the procedure until all of the wires are in place.
BI-DIRECTIONAL SERIAL INTERFACE SERIAL OUTPUT
TERMINAL NO. Function TERMINAL NO. Function
1 TXD 1 - RS232 5 TXD 2 - RS232
2 RXD 1 - RS232 6 TXD 2 – 20 mA Active
3 TXD 1 – 20 mA Active 7 GROUND
4 GROUND
Optically Isolated Inputs
Included with the I/O are 4 programmable inputs that may be used to remotely (up to 100 feet)
initiate various functions within the indicator. These inputs are accessed via a terminal block
(P9) on the back of the PC board (see Figure No. 7). The 4 inputs are defined as follows:
TERMINAL NO. Function
1 Gross
2 Print
3 Zero
4 Tare
5 Common
NOTE! The input must be connected to Gnd to initiate the function.

8200-M024-O1 Rev G y205 Installation & Technical
10
INSTALLATION, CONT.
Main PCB
Figure No. 7

8200-M024-O1 Rev G y205 Installation & Technical 11
INSTALLATION, CONT.
Main PCB Jumpers
J1 – BATTERY CHARGE MODE
Place jumper J1 in the Full position when operating the indicator totally from battery power and
only recharging the battery pack when it is low. Place jumper J1 in the Trickle position when
operating the indicator from commercial power and using the battery pack to supply power only
in the event of a power loss.
J2 – AUTO-ON JUMPER
The AUTO-ON jumper J2, when connected, will cause the indicator to power on automatically
whenever power is applied to the power input connector. If power is lost momentarily and then
reapplied, the indicator will turn on without pressing the ON key.
J3 – 8V EXCITATION JUMPER
The 8V EXCITATION jumper J3, when connected, sets the load cell excitation voltage to 8V
for operation with the 12 VDC battery. To operate from the 12 VDC battery, the load cell
excitation voltage MUST be set to 8 VDC (J3 closed). Battery operation with the load cell
excitation voltage set to 12V will result in an unstable weight display.
J4 AND J5 – SENSE JUMPERS
If the sense leads are NOT used, you must install plug-in jumpers at J4 and J5 adjacent to the
terminal block. These jumpers attach the sense leads to the excitation leads. If sense leads
ARE used (as in motor truck scales), these plug-in jumpers should be positioned on one plug-
in pin only or removed and stored for later use.
J10 – DEAD LOAD BOOST JUMPER
For very low dead loads (less than 10% of the combined load cell capacity) connect the dead
load boost jumper J10 on the printed circuit board.
J11 – 12V PWC SRC (SOURCE)
The J11 jumper, when connected (CLOSED) supplies 12 VDC @ 25mA from the 205 indicator
to a solid-state relay or other load of 200 ohms or greater. When J11 is OPEN (positioned on
one plug-in pin only or removed), the 12 to 24 VDC must be provided from an external source
to P10-6. The load must still be 200 ohms or greater.
Re-Installing The Rear Panel
After all terminations have been made, remove the excess cable from the indicator enclosure
and securely tighten each of the cable gland connectors. Do not over-tighten these connectors
but make certain they are snug. DO NOT USE TOOLS! Finger tighten only! Insure any
unused gland connectors are plugged.
1. Make certain no cables or wires are exposed between the main housing and rear panel and
then place the rear panel onto the main housing.
2. Secure with the 12 acorn nuts removed earlier. Follow a diagonal pattern when tightening
the acorn nuts.
3. If using a battery, slide the battery into the opening, until you feel resistance and the edge
of the battery is flush with the bottom of the indicator.
4. Replace the Battery Access Cover and install the three acorn nuts removed earlier,
securing the battery in place.

8200-M024-O1 Rev G y205 Installation & Technical
12
KEYPAD FUNCTIONS
The Model 205 is equipped with a 7-key keypad. The keypad is used to enter commands and
data into the indicator. This section describes each key along with its normal function. It is
helpful to refer to the actual indicator while reading this section.
Figure No. 8
DO NOT operate the keypad with pointed objects (pencils, pens, etc).
Damage to keypad resulting from this practice is NOT covered under warranty.
ON/OFF KEY
This key performs two functions. Pressing it when the indicator is off will apply power to the
indicator. If the indicator is already on, pressing this key will turn the indicator off.
ZERO KEY/REVIEW
Pressing this key will cause an immediate zeroing of the weight display up to the selected limit
of 4% or 100% of the scale’s capacity. This selection is made during the setup and calibration
of the indicator. Note the indicator will not respond to this command unless the weight display
is stable.
Pressing the ASTERISK key before the ZERO KEY/REVIEW key will enter the Review
mode of Setup and Calibration. Refer to the Setup Review section of this manual.
TARE/ENTER
Pressing the TARE key alone will store the current gross weight as the new tare weight and
the weight display will change to the net weight display mode (Net annunciator will turn on).
Pressing the ASTERISK key before the TARE/ENTER key serves two purposes. First,
when reviewing setup parameters, pressing the TARE/ENTER key will display the
current setting of the parameter. Second, the TARE/ENTER key is used to signal
completion of the entry of data and causes the indicator to process the data entered.

8200-M024-O1 Rev G y205 Installation & Technical 13
KEYPAD FUNCTIONS, CONT.
NET/GROSS KEY
This key is used to toggle between Net and Gross weight modes. The selected mode is
indicated by turning on the appropriate annunciator on the display. Note that if no valid tare
weight has been entered, pressing this key will cause a momentary “notArE” display error and
the indicator will remain in the Gross weight mode.
UNITS / WLEFT ARROW KEY/TEST
This key is used for several functions. In normal operation, this key is used to select the units
in which the weight is to be displayed. The available units of measure ("unit1" and "unit2") are
selected in setup. The available units include tons, pounds only, pound-ounces, ounces only,
Tonnes (metric tons), kilograms, and grams. Note that not all combinations are supported.
During setup, this key is used to advance the cursor left to the next position when
inputting setup parameters.
Pressing the ASTERISK key before the UNITS/LEFT ARROW KEY/TEST key will enter
the Test mode. Refer to the description of the ASTERISK key below for details.
ASTERISK / SUP ARROW KEY
This key is used for several functions. During setup, when a setup parameter (not a parameter
value) is displayed, pressing this key will "backup" to the previous prompt. Also during setup,
when a parameter value is displayed, pressing this key will "toggle" between the different
available values for the setup parameter. In normal operation, this key is used in conjunction
with the other keys on the keypad to access additional indicator features. These features and
their associated key combinations are as follows:
ASTERISK, ZERO KEY
This combination will enter the Review mode of Setup and Calibration. Refer to
Setup Review section of this manual for details.
ASTERISK, TARE KEY
This combination will display the current tare weight for three (3) seconds.
ASTERISK, NET/GROSS KEY
This combination will display the Net accumulator.
ASTERISK, NET/GROSS KEY, PRINT KEY
This combination will print the Net accumulator.
ASTERISK, NET/GROSS KEY, ZERO KEY
This combination will zero (clear) the Net accumulator.
ASTERISK, NET/GROSS KEY, NET/GROSS KEY
This combination will display the Gross accumulator.
ASTERISK, NET/GROSS KEY, NET/GROSS KEY, PRINT KEY
This combination will print the Gross accumulator.
ASTERISK, NET/GROSS KEY, NET/GROSS KEY, ZERO KEY
This combination will zero (clear) the Gross accumulator.

8200-M024-O1 Rev G y205 Installation & Technical
14
KEYPAD FUNCTIONS, CONT.
ASTERISK, UNITS KEY
This combination will enter the Test mode. The Test mode is used to conduct a test
of all display elements. The test consists of 5 cycles, each lasting about one second:
1. All horizontal segments will turn on (no annunciators).
2. All vertical segments and decimal points will turn on (no annunciators).
3. All annunciators will turn on.
4. All display elements off.
5. The model number (205) and the software version X.X.
6. The calibration numbers (C1 to C4).
ASTERISK, PRINT KEY
This combination is used to change the selected print ticket format. Pressing the
ASTERISK then the PRINT key will display a prompt "Prt=". Press the TARE/ENTER
key to show the current value. If the setting displayed is acceptable, press the
TARE/ENTER key again to save it. Otherwise, press the ASTERISK/UP ARROW key
to "toggle" between the different available values, then press the TARE/ENTER key to
save it. Allowable values are:
0 = print tab settings 1 = visual ticket format 1 2 = visual ticket format 2
NOTE! When a print format is selected, it will remain active until changed
by the operator.
PRINT KEY
Pressing this key will add the displayed gross or net weight to the associated accumulator and
initiate the transmission of weight and other data depending on the Print Tab Settings (see
example) via the selected printer output port (see Port= under Print menu) unless the
continuous data feature of this port was enabled during setup and calibration. Note that the
indicator will not respond to this command unless the weight display is stable. If displaying
gross weight, the only weight printed is gross weight. If displaying net weight, the gross, tare,
and net weights will print.
The 205 includes support for visual tickets. Visual
tickets are designed by the PC based programs
Visual Print or n Control, then downloaded to the
indicator. The 205 allows two programmable formats
in addition to the standard print tab settings format.
Print formats are selected by using the ASTERISK and
PRINT keys in combination (refer to the next section
for details). NOTE! When the PRINT key is pressed
the indicator looks for the selected format. If no visual
ticket is found it reverts to the print tab settings. TICKET EXAMPLE
#2
100.00 lb G
20.00 lb T
80.00 lb N
0.00 lb GROSS ACCUM
272.00 lb NET ACCUM

8200-M024-O1 Rev G y205 Installation & Technical 15
ANNUNCIATORS
Annunciators are turned on to indicate that the display is in the mode corresponding to the
annunciator label or that the status indicated by the label is active. The annunciators flash on
and off to indicate that the indicator is waiting for input from the keypad for the mode indicated
by the flashing annunciator. Refer to Figure No. 9 for the location of the annunciators.
ZERO
This annunciator is turned on to indicate that the weight displayed is within +/- 1/4 division of
the center of zero.
[\ (STABLE)
This annunciator is turned on when the weight display is stable. When off, it means that the
change in successive weight samples is greater than the motion limits selected during setup.
NET
This annunciator is turned on to show that the displayed weight is the net weight (gross
weight less tare weight).
GROSS
This annunciator is turned on to show that gross weight is displayed. Gross weight will be
displayed when no tare weight is stored.
TARE
This annunciator is turned on to show that the displayed weight is the tare weight.
LO BAT
This annunciator is used with the battery operation and will turn ON to indicate the battery
has less than one hour useful life before recharging will be required. If continued use furthers
drains the battery, no change in operation will occur until just before the battery voltage drops
to a level where operation is affected. At this level, the indicator will automatically turn off.
T
This annunciator is located to the right of the weight display and is turned on to show that the
displayed weight unit is tons.
g
This annunciator is located to the right of the weight display and is used to indicate that the
displayed unit of weight measurement is grams.
lb
This annunciator is located to the left of the weight display and is turned on to show that the
displayed weight unit is pounds.
oz
This annunciator is located to the right of the weight display and is turned on to show that the
displayed weight unit is ounces.
kg
This annunciator is located to the left of the weight display and is used to indicate that the
displayed unit of weight measurement is kilograms.
t
This annunciator is located to the right of the weight display and is used to indicate that the
displayed unit of weight measurement is Tonnes (metric tons).

8200-M024-O1 Rev G y205 Installation & Technical
16
SETUP AND CALIBRATION
Your Model 205 indicator has been
thoroughly tested and calibrated before
being shipped to you. If you received the
indicator attached to a scale, calibration
is not necessary. If the indicator is being
connected to a scale for the first time or
recalibration is necessary for other
reasons, proceed as indicated.
The calibration switch is located on a
bracket on the inside of the enclosure
rear panel. You may gain access to this
switch simply by removing the calibration
switch access screw on the rear panel.
Refer to Figure No. 9.
During the setup and calibration process it will be necessary to enter operational
parameters via the 205 keypad. Pressing the TARE/ENTER key will cause the data
entered or displayed to be retained and the 205 to advance to the next prompt. The
functions of numeric keys are replaced by using the UNITS/LEFT ARROW and the
ASTERISK/UP ARROW keys. The cursor location is identified by the blinking character
and can be advanced to the left to the next position by pressing the UNITS/LEFT ARROW
key. Pressing the ASTERISK/UP ARROW key will change the blinking character to the
next value. Continue to press this key to "toggle" between the different available values
for the setup parameter. Pressing the ASTERISK/UP ARROW key when a setup
parameter (not a parameter value) is displayed, will "backup" to the previous prompt.
DO NOT operate the keypad with pointed objects (pencils, pens, etc).
Damage to keypad resulting from this practice is NOT covered under warranty.
Enter Setup Mode
To enter the setup mode, with the indicator ON, insert a small screwdriver or other tool through
the calibration switch access hole on the rear panel. Press and release the calibration switch.
The menu *4;'$ will be displayed. Continue to press and release the switch to rotate
through the beginning point for entering the setup mode.
*;'$ Setup Mode (starts at '* prompt)
@3 Analog to Digital Filtering (starts at 3!t= prompt)
! Calibration (starts at ! prompt)
*-6 Serial Input/Output (starts at 2'3 prompt)
$9-0; Print Tab Settings (starts at $#9; prompt)
`*$0 Fine Span Adjustment
-`9*` Display high-resolution weight mode
!66';``Key lock out function
If you press the TARE/ENTER key at the *4;'$ prompt, you may proceed through to the next
section (up to and including 5`*$0 ) by pressing the TARE/ENTER key.
IMPORTANT! Setup may be interrupted at any time. ALL data previously
entered and finalized with the TARE/ENTER key will be retained in the non-
volatile memory.
Access
Screw
Figure No. 9
