CareCo LUXBURY FN01020028 User manual

USER MANUAL
Scan me on your
phone camera
to watch our
assembly video.
PRODUCT CODE: FN01020028
RISER RECLINER

PRODUCT CODE FN01020028
2
CareCo (UK) Limited, 1 Turing Court, Tel: [phone]
Great Notley, Braintree, CM77 7AT www.CareCo.co.uk
Thank you for choosing CareCo.
This manual can be viewed in PDF format at the
following URL: www.careco.co.uk
INTRODUCING YOUR NEW LUXBURY RISER RECLINER
The Luxbury Riser Recliner has been expertly crafted to provide you with optimum support and
customizable positions to suit your individual needs.
This user manual contains all of the necessary information you need to safely operate and care
for your Luxbury Riser Recliner, ensuring you’ll be able to enjoy all of its features for years to
come.
If any additional assembly, disassembly and/or operation assistance is required, please contact
CareCo.
PLEASE READ THIS USER MANUAL CAREFULLY.
WE RECOMMEND THAT YOU RETAIN THIS USER MANUAL FOR FUTURE REFERENCE

3
KEY DEFINITIONS
This user manual contains warnings and suggestions marked with the following symbols:
WARNING! Highlights a potentially hazardous condition/situation for the user and/or
product.
WARNING! Take care when assembling the chair’s heavier components. Ask for
assistance if required.
SUGGESTION General suggestions and advice for operating the product.
Need help with assembly?
We’ve put together a step-by-step assembly guide to help
you get your product set up safely and correctly. Just scan
the QR code with your phone camera to play the video.

PRODUCT CODE FN01020028
4
GETTING STARTED 6
CARTON CONTENTS
PRODUCT COMPONENTS
SETTING UP YOUR RISER RECLINER
HOW TO USE YOUR RISER RECLINER 9
USER INSTRUCTIONS
HANDSET CONTROLS
RISE & RECLINE HANDSET
HEAT & MASSAGE HANDSET
TRANSFORMER
BATTERY BACK-UP
OPTIONAL EXTRAS 12
DISASSEMBLY, TRANSPORTATION & CHAIR POSITIONING 13
DISASSEMBLY INSTRUCTIONS
TRANSPORTATION
CHAIR POSITIONING
LOOKING AFTER YOUR RISER RECLINER 15
FABRIC UPHOLSTERY CARE
SCISSOR MECHANISM CARE
ELECTRONICS CARE
MAINTENANCE
MAINTENANCE SCHEDULE
REPAIRS
TROUBLESHOOTING 18
CONTENTS

5
WARNINGS & TECHNICAL INFORMATION 19
RISER RECLINER SPECIFICATIONS
ELECTROMAGNETIC INTERFERENCE (EMI)
DEGREE OF PROTECTION AGAINST ELECTRIC SHOCK
STORAGE TEMPERATURE
OPERATING TEMPERATURE
PRODUCT RE-ISSUING
RECYCLING & DISPOSAL
INTENDED USE
INTENDED ENVIRONMENT
PRODUCT IDENTIFICATION
MODIFICATIONS
GENERAL WARNINGS
EXPECTED LIFETIME 23
WARRANTY 24
NOTES 25

PRODUCT CODE FN01020028
6
ITEM NUMBER DESCRIPTION QUANTITY
1 Seat Base 1
2 Backrest 1
3 LHS Backrest Wing 1
4 RHS Backrest Wing 1
5 Recliner Handset 1
6 Heat & Massage Handset 1
7 Transformer 1
8 Mains Plug 1
Contact CareCo immediately if any of the listed contents are missing. We strongly recommend
that you keep the box and internal packaging for the duration of your warranty period.
PRODUCT COMPONENTS
1. BACKREST
2. BACKREST WING
3. SEAT BASE
4. FOOTREST
5. RISE & RECLINE
HANDSET
6. HEAT & MASSAGE
HANDSET
1
2
3
4
GETTING STARTED
CARTON CONTENTS
65

7
SETTING UP YOUR RISER RECLINER

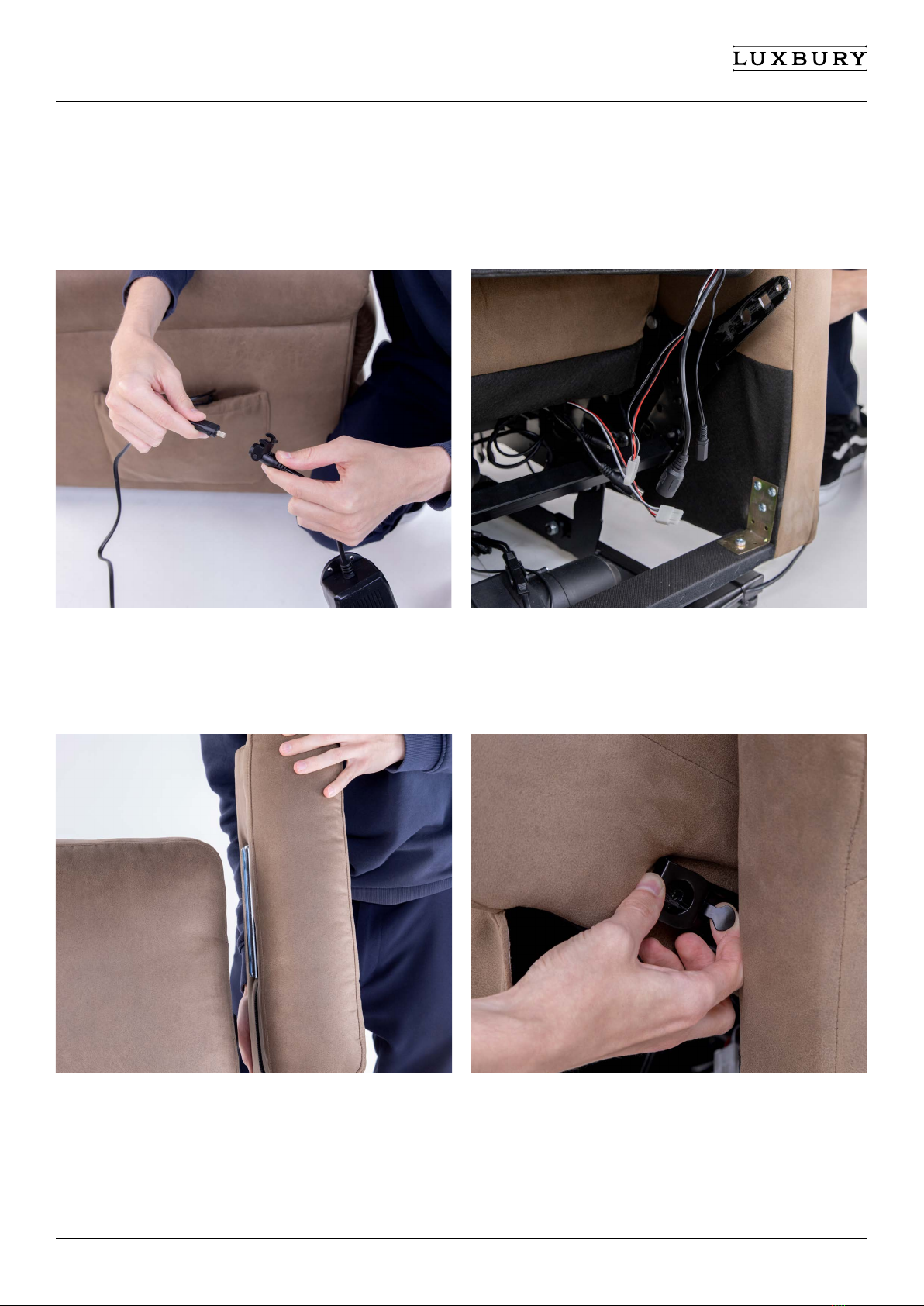

2. Lift the power cable away from the seat
base prong and place to one side.
3. Lower the backrest onto the seat base
prongs, then rmly push downwards.
An audible “click” will conrm the backrest
is secure.
4. Insert the backrest wings into the backrest’s
side xtures.
1. Remove all riser recliner components
from the outer packaging and place them
onto a level surface.

PRODUCT CODE FN01020028
8
7. Connect the plug to a nearby wall socket
and switch [ON].
6. Connect the power cable to the
transformer and mains plug.

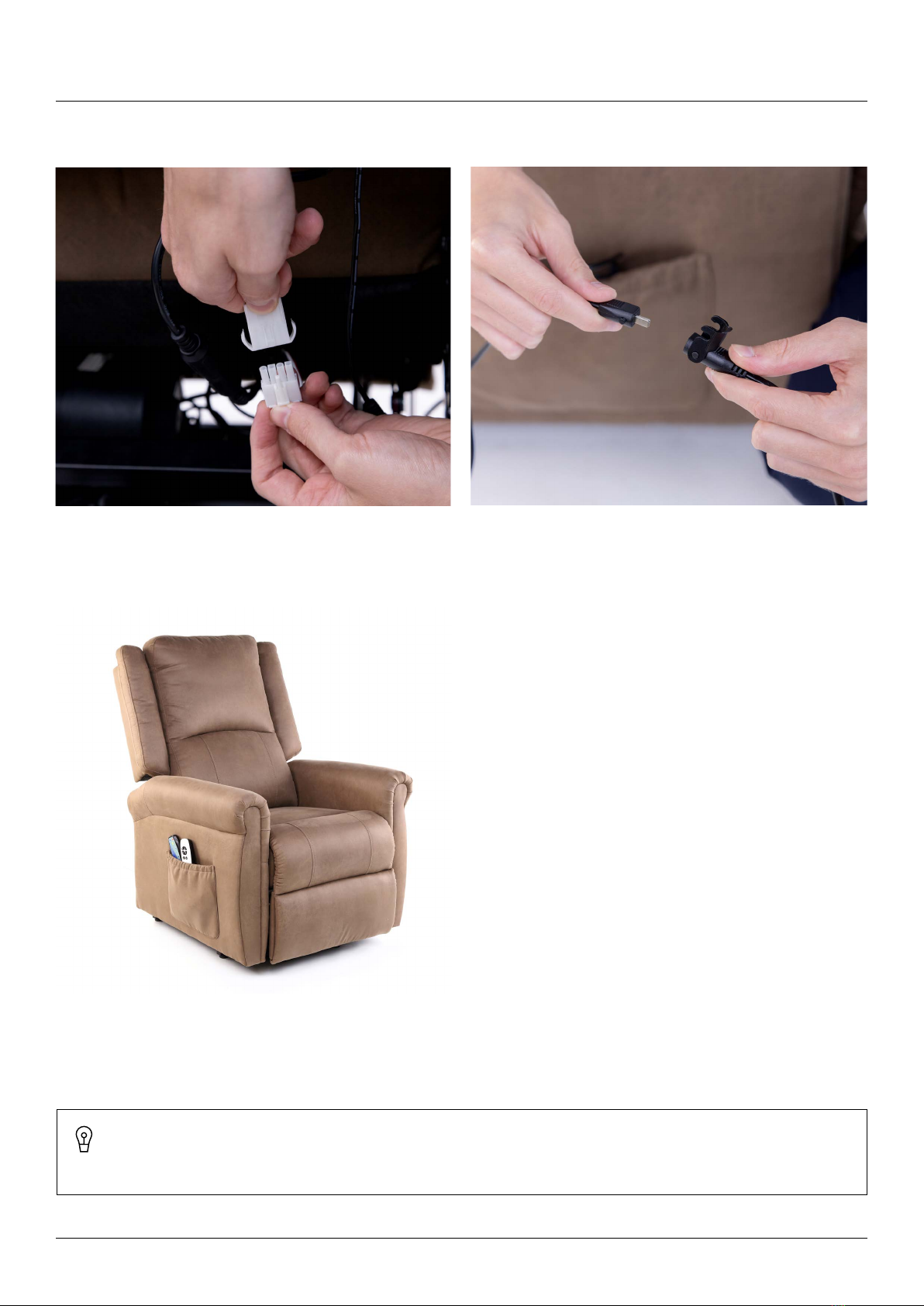

5. Lift the backrest ap to reveal the chairs
wiring, then connect the three cables.
SUGGESTION Continue reading this user manual before operating the chair
for the rst time.

9
HOW TO USE YOUR RISER RECLINER
USER INSTRUCTIONS
SITTING DOWN
Ensure the riser recliner chair’s backrest is in the upwards position and the footrest is in the
downwards position.
Gradually move backwards, using the armrests for support if needed before lowering into the
seat.
BODY POSITIONING
Sit centrally within the chair and maintain a neutral posture.
Avoid leaning forwards and sideways.
STANDING UP
Place feet at on the oor and use the chairs lift function to gradually rise.
Use the armrests for support if needed before lifting upwards to leave the chair.
USER CONTROL
Adjust the chairs angle using the Rise & Recline Handset.
Adjust the heat & massage settings using the Heat & Massage Handset.
CHILDREN & PETS
Keep children and pets away from all moving parts when operating the riser recliner.

PRODUCT CODE FN01020028
10
Press the appropriate button to complete
the desired action:
1. Lowers the footrest, then raises the chair
2. Lowers the chair, then raises the footrest
3. Raises the backrest
4. Reclines the backrest
5. Raises Chair (Lowers footrest, Raises
backrest, raises chair)
6. Reclines Chair (Raises Footrest, reclines
backrest, lowers chair)
Press the appropriate button to complete
the desired action:
POWER - Massage function [ON/OFF]
HEAT - Heat function [ON/OFF]
INTENSITY - Adjusts the massage intensity.
(High, Low)
MODE - Select between 5 dierent massage
modes (Pulse, Press, Wave, Auto, Normal).
BACK, LUMBAR, THIGHS, LEGS - Massage
zones
TIMER Press to activate a timer for (15, 30, 60
Minutes)
HEAT & MASSAGE HANDSET CONTROLS
RISE & RECLINE HANDSET CONTROLS
2
4
6
1
3
5
Return the chair to its original position after use.

11
TRANSFORMER
The riser recliner chair transformer is tted with an LED indicator that indicates when the
power is [ON] and when the power is [OFF].
LED Indicator Charging Status
Green ON
None OFF
INSTALLING THE BACK-UP BATTERY
Requirements:
2x 9V Batteries
1. Unplug the power lead from the wall socket.
2. Lift the plastic cover on the transformer.
3. Install 2x 9V Batteries
4. Replace the plastic cover
5. Plug the power lead into a wall socket.
WARNING! Unplugging the riser recliner chair for an extended period of time will draw
power from the back-up batteries.
If the chair is being unplugged for a long period of time, remove the back-up batteries
until plugging in the chair again.

PRODUCT CODE FN01020028
12
WATERPROOF CHAIR PROTECTOR
Protect your riser recliner from leaks and
spillages with the waterproof chair protector.
OPTIONAL EXTRAS
CARECO FABRIC CARE KIT
Remove stubborn stains and odours with the
CareCo Fabric Care Kit.

13
DISASSEMBLY, TRANSPORTATION & CHAIR POSITIONING

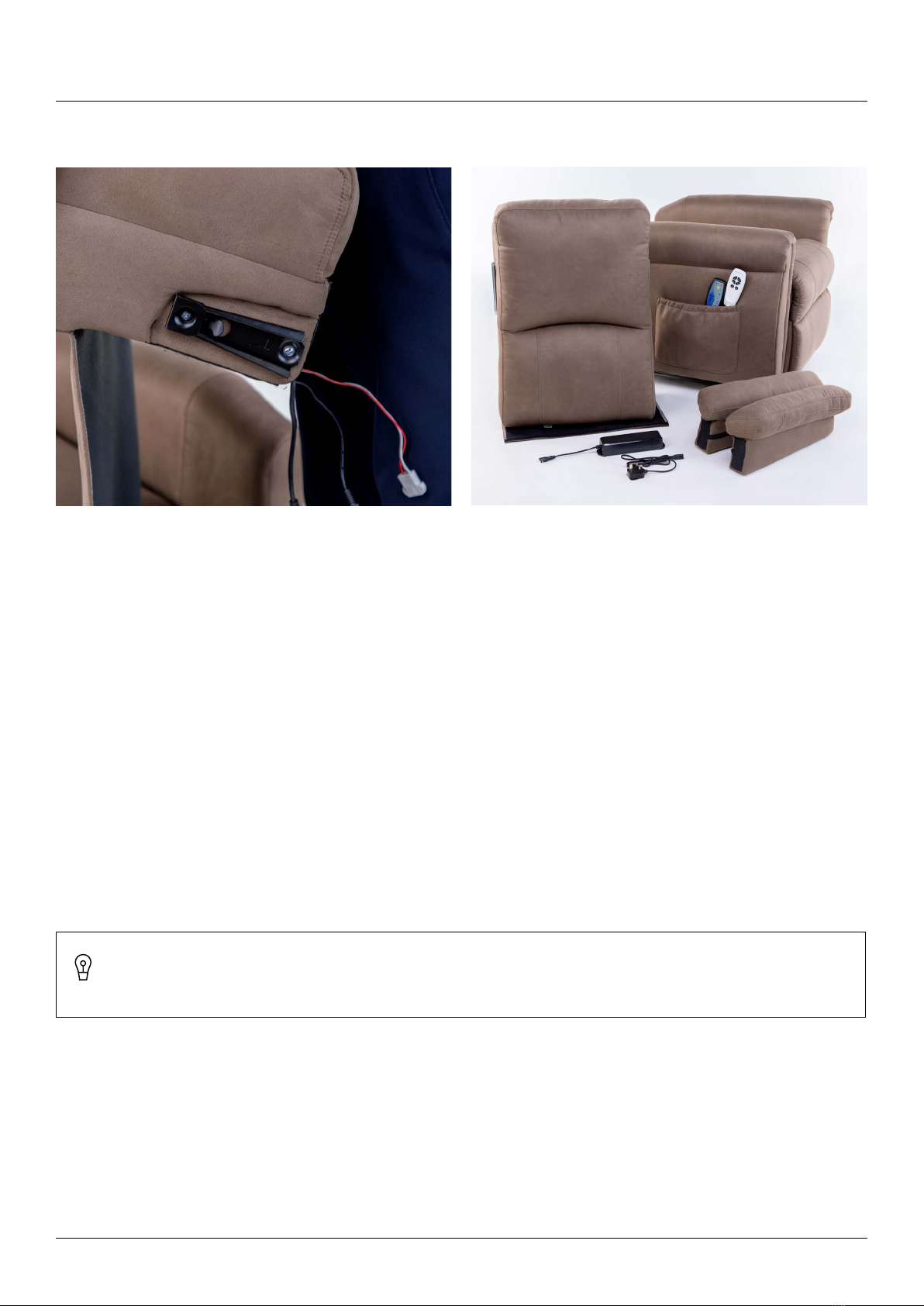

2. Lift the backrest ap to reveal the chairs
wiring, then disconnect the three cables.
3. Pull upwards on the backrest wings to
remove them from the backrest.
4. Release the locking clips on either side of
the backrest while pulling the backrest
upwards.
An audible “click” will conrm the backrest
is unlocked.
1. Disconnect the chair from the wall socket,
then place the transformer and power
cable into the side pocket.
DISASSEMBLY INSTRUCTIONS

PRODUCT CODE FN01020028
14
6. Place the disassembled components
together, ready for transport.
5. Lift the chair backrest away from the base.
TRANSPORTATION
If for any reason the riser recliner chair needs to be transported via motor vehicle, ensure the
disassembled components are properly secured before transport to avoid transit damage.
CHAIR POSITIONING
Position the chair on a level surface with enough space to rise & recline.
SUGGESTION Ask for assistance from an attendant when positioning the chair to avoid
personal injury and product damage.

15
LOOKING AFTER YOUR RISER RECLINER
FABRIC UPHOLSTERY CARE
GENERAL CLEANING
Use a vacuum cleaner or soft brush to remove dust and grime from the chair’s upholstery.
SPOT CLEANING
Blot the area with a clean absorbent cloth or sponge.
Pat dry with a towel or leave to air dry.
STUBBORN SPOT CLEANING
Use mild detergents or non-solvent upholstery shampoo when spot cleaning.
Apply shampoo foam to the area using a soft brush.
Use circular motions to cleanse the area.
Wait for the area to dry thoroughly.
Vacuum the area.
DEEP CLEANING
Contact a professional cleaning service if the chair becomes soiled.
WARNING! Do not use solvent-based cleaners.
Do not saturate the material in cleaning solution.

PRODUCT CODE FN01020028
16
WARNING! Personal injury or re damage can occur if the chair comes into direct
contact with a heat source. (e.g. cigarette, heater)
We recommend that the user does not smoke whilst using the riser recliner chair
however if the user wishes to do so, please adhere to the following safety guidelines:
• Never leave a cigarette unattended.
• Keep the ashtray a safe distance away from the riser recliner.
• Ensure the cigarette is extinguished before disposal.
SCISSOR MECHANISM CARE
Check for dirt and debris build-up regularly following the maintenance schedule found within this
user manual.
Avoid sitting or standing on the footrest or other moving parts of the scissor mechanism.
Ensure that the area around the scissor mechanism is clear of obstacles that could aect its
movement, including cables and other items.
If there are unusual grinding noises, jerky movements, or persistent problems with the recliner’s
scissor mechanism, contact CareCo.
Do not exceed the weight limit specied.
ELECTRONICS CARE
Check for damage regularly following the maintenance schedule found within this user manual.
If there is damage to the electronics, unplug the riser recliner from the wall socket and contact
CareCo.
Keep all electronics away from moisture and extreme temperatures.
Ensure any wires leading to the transformer are clear of pinch points and scissor mechanism
linkages.
Keep electrical connections away from sources of dampness, including direct exposure to water,
bodily uids, and incontinence.

17
MAINTENANCE
Your riser recliner is made up of components which over time will become susceptible to wear
and tear.
Knowing how to properly care and maintain your product will not only ensure peak performance
and safe operation but will also help maintain operation for years to come.
MAINTENANCE SCHEDULE
Carry out regular inspections to keep your riser recliner in optimum condition.
COMPONENT INSPECTION DESCRIPTION AT ANY TIME WEEKLY MONTHLY QUARTERLY
HANDSET
CONTROLS
Ensure the handset is
responsive and works as
intended.
FUNCTIONALITY
Ensure the riser recliner
moves and operates as
intended.
CONNECTIONS
Ensure the recliner’s
connections are free from
damage and are secure.
FRAMEWORK
Ensure the framework is clear
from debris and damage.
UPHOLSTERY
Check for wear and tear.
OVERALL
Overall check for wear and
residue build-up. Cleaning if
required
REPAIRS
Certain riser recliner components can be repaired by the user with guidance provided by CareCo.
Other components can only be repaired/replaced by a service technician.
If for any reason the riser recliner requires repair due to a defect, contact CareCo immediately.

PRODUCT CODE FN01020028
18
TROUBLESHOOTING
The below table is to be used as a guide to make the recliner chair operational again.
If after troubleshooting the recliner chair still does not operate, contact CareCo.
SYMPTOM POSSIBLE CAUSE POSSIBLE REMEDY
THE RISE/RECLINE
HANDSET WORKS
INTERMITTENTLY
The handset and/or its
associated wiring has a fault
Check for any loose connections and tighten if required.
Contact CareCo
THE HEAT
& MASSAGE
HANDSET WORKS
INTERMITTENTLY
The heat & massage handset
and/or its associated wiring has
a fault
Check for any loose connections and tighten if required.
Contact CareCo
NO POWER The mains plug is switched [OFF] Switch [ON] the mains plug.
The wall socket is not working. Connect the chair to an alternative wall socket.
The transformer and/or its
associated wiring has a fault.
Check for any loose connections and tighten if required.
Ensure the transformers LED indicator is lit GREEN, if there
is no LED indicator, contact CareCo.
Contact CareCo
The handset and/or its
associated wiring has a fault
Check for any loose connections and tighten if required.
Contact CareCo
JUDDERING / NOISY
WHEN OPERATING
The mechanism requires
lubricating.
Contact CareCo
The mechanism is being
obstructed.
Check for any obstructions and remove if required.
The mechanism has a fault. Contact CareCo
The motor(s) and/or their
associated wiring have a fault.
Check for any loose connections and tighten if required.
Contact CareCo
THE BACKREST DOES
NOT LIFT/LOWER
The backrest motor and/or its
associated wiring has a fault
Check for any loose connections and tighten if required.
Contact CareCo
THE FOOTPLATE/
SEAT DOES NOT
LIFT/LOWER
The lift motor and/or its
associated wiring has a fault.
Check for any loose connections and tighten if required.
Contact CareCo
THE HEAT/MASSAGE
FUNCTION HAS
STOPPED WORKING
The heat & massage handset
and/or its associated wiring has
a fault.
Check for any loose connections and tighten if required.
Contact CareCo
SUGGESTION It is normal for the Riser Recliner to make audible noise during action. If
you notice an unusual noise, please contact CareCo.

19
WARNINGS & TECHNICAL INFORMATION
SPECIFICATIONS
SEAT WIDTH 48CM
SEAT DEPTH 48CM
SEAT HEIGHT 48CM
CHAIR WIDTH 75CM
BACKREST HEIGHT 65CM
CHAIR HEIGHT (SITTING) 106CM
CHAIR HEIGHT (LIFTED) 130CM
ARMREST HEIGHT (SITTING) 18CM
CHAIR LENGTH (RECLINED) 171CM
FOOTREST MAXIMUM HEIGHT 57CM
MAXIMUM USER WEIGHT 135KGS
MAXIMUM LEGREST WEIGHT 30KGS
CHAIR MAXIMUM RISE DEGREE 30°

PRODUCT CODE FN01020028
20
ELECTROMAGNETIC INTERFERENCE (EMI
Riser Recliner chairs may be susceptible to electromagnetic interference (EMI).
Electromagnetic energy (EM) is emitted from sources such a radio stations, TV stations,
amateur radio (HAM) transmitters, two-way radios, and cellular phones.
The interference (from radio wave sources) can cause the riser recliner to move by itself or
cause permanent damage to the riser recliner’s internals.
The user can help to prevent electromagnetic interference by maintaining a minimum
distance between portable and mobile RF communications equipment.
It is recommended that at least 3 metres (9 feet) of distance be maintained between the riser
recliner chair and any hand-held equipment emitting 10W or more of output power.
This product has passed immunity testing and is rated as a Group 1, Class B product.
Therefore, its RF emissions are very low and are not likely to cause any interference in nearby
electronic equipment making the riser recliner chair suitable for use in all establishments,
including domestic, and hospitals.
Be aware that mobile phones, two-way radios, laptops, and other types of radio transmitters
may cause unintended movement of your electrically powered device due to EMI. Exercise
caution when using any of these items while operating your riser recliner chair.
The addition of accessories or components to the riser recliner chair can increase the
susceptibility of the chair to EMI. Do not modify your lift chair in any way.
DEGREE OF PROTECTION AGAINST ELECTRIC SHOCK
CLASS III
STORAGE TEMPERATURE
-5°C to 45°C
OPERATION TEMPERATURE
0°C to 40°C
