S ERVICE M ANUAL
MANUALLY OPERATED PATIO AWNING
FIESTA,FIESTA LITE,SPIRITFX AND SIMPLICITY AWNINGS
RV
These instructions apply to all models
listed. Details and procedures unique to
a specific model are labeled
appropriately. For optional equipment,
refer to the instructions included with
the option.
TABLE OF CONTENTS
Product Overview..........................................................................................................................1
Canopy Replacement....................................................................................................................2
Removing the Old Canopy......................................................................................................................2
Installing the New Canopy......................................................................................................................3
Positioning the Canopy: .................................................................................................................4
Installing the Tractioners.........................................................................................................................5
Spring Replacement......................................................................................................................6
Replacing the Left Spring Assembly.......................................................................................................6
Replacing the Right Spring Assembly ....................................................................................................7

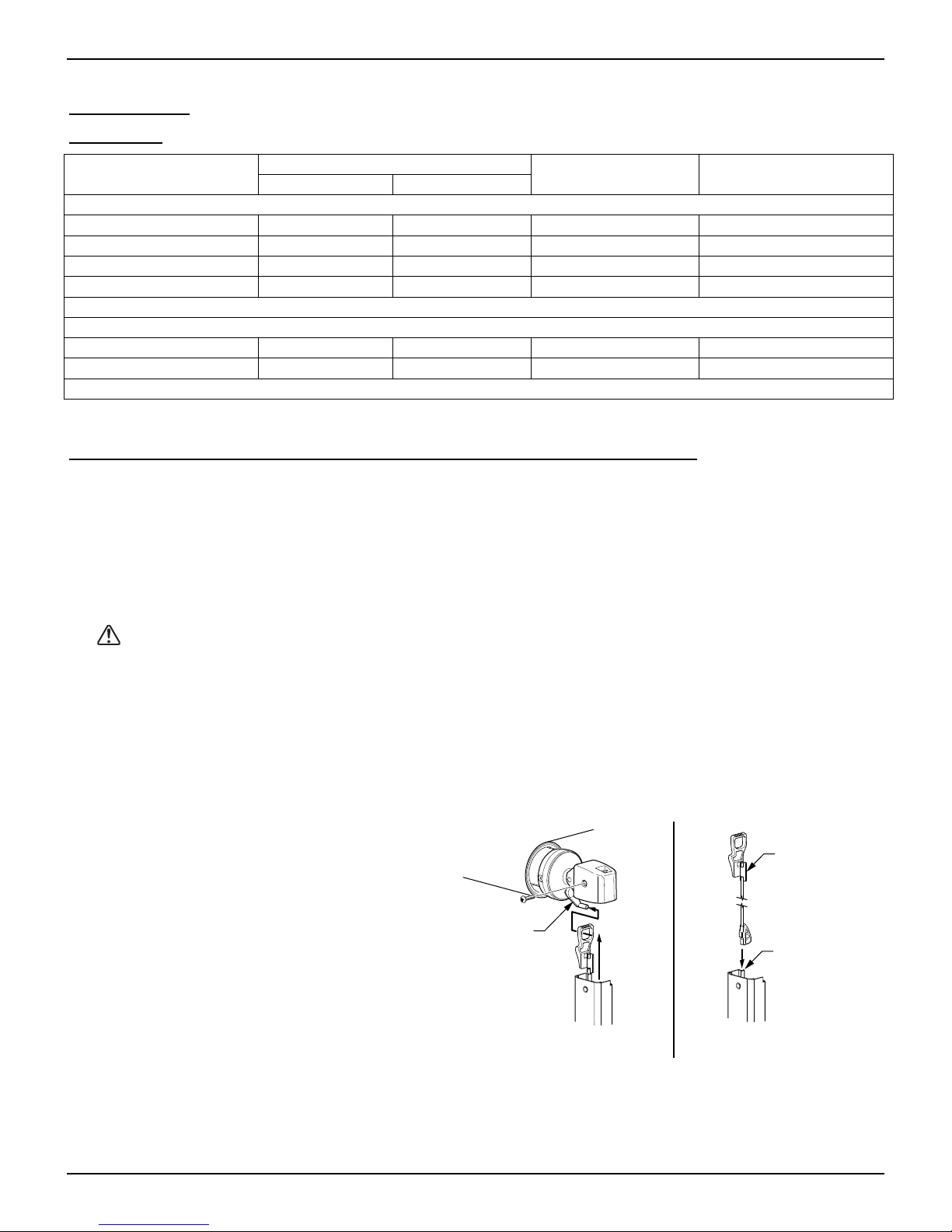

Spring Wind Chart ..................................................................................................................................8
Remote Lock Replacement (Spirit and Fiesta Only) ..................................................................8
LED Lighting..................................................................................................................................9
Switch Installation...................................................................................................................................9
Replacing the LED Strip .......................................................................................................................10
Canopy Harness Replacement.............................................................................................................11
Attaching the Harness to Fabric Wrap..................................................................................................12
Standard Maintenance................................................................................................................13
Fabric Care...........................................................................................................................................13
Arm Care ..............................................................................................................................................13
Part Number Listing....................................................................................................................14
Spirit FX & Fiesta Part Number Configuration......................................................................................14
Simplicity Part Number Configuration...................................................................................................15
Part Number/Serial Number Location...................................................................................................15

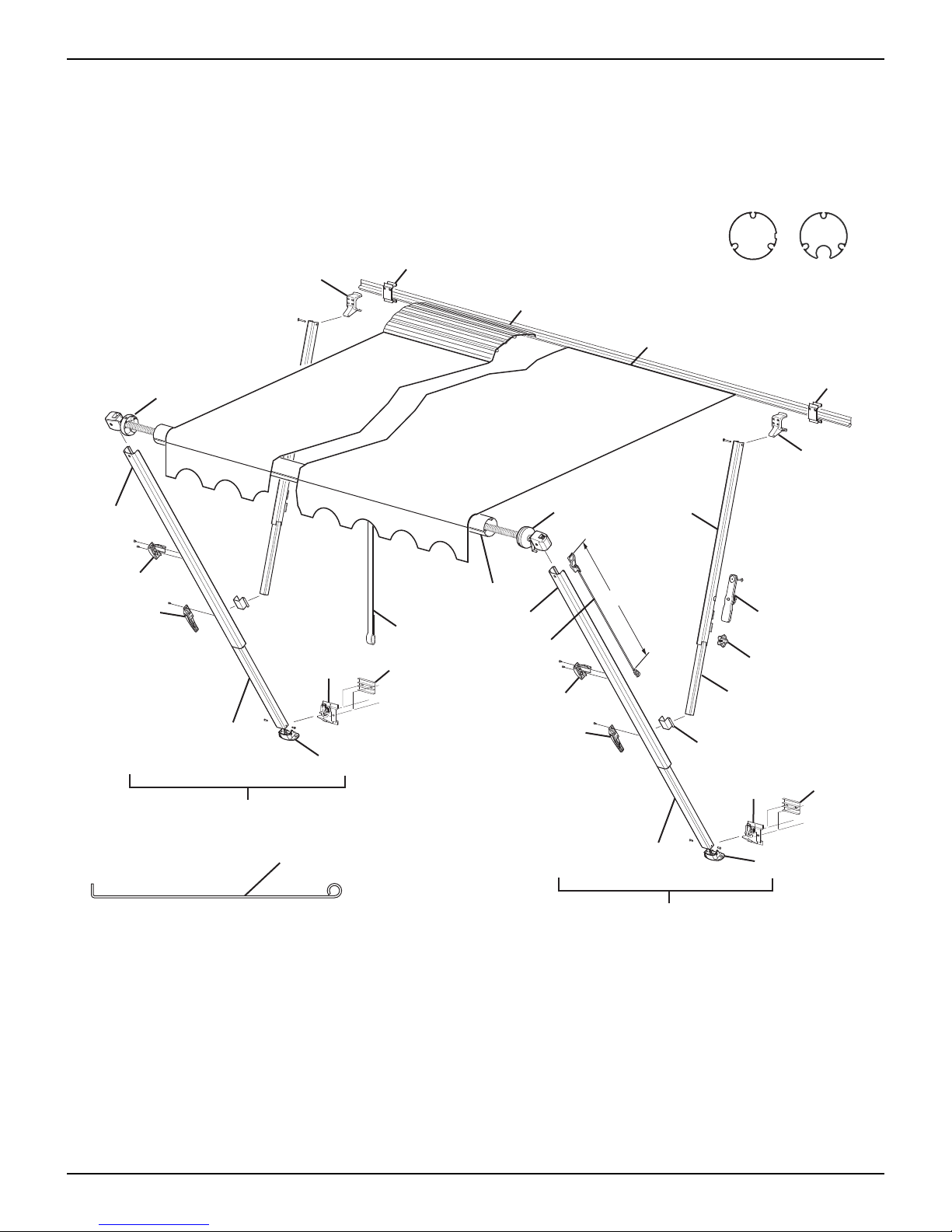

Spirit FX and Fiesta Illustrated Parts List..............................................................................................16
Simplicity Illustrated Parts List..............................................................................................................18
Fiesta Lite Illustrated Parts List.............................................................................................................20
Roller Tube LED...................................................................................................................................22

PROPRIETARY STATEMENT
The manual Patio Awning is a product of Carefree of Colorado, located in Broomfield, Colorado, USA. The
information contained in or disclosed in this document is considered proprietary to Carefree of Colorado.
Every effort has been made to ensure that the information presented in the document is accurate and
complete. However, Carefree of Colorado assumes no liability for errors or for any damages that result
from the use of this document.
The information contained in this manual pertains to the current configuration of the models listed on the
title page. Earlier model configurations may differ from the information given. Carefree of Colorado
reserves the right to cancel, change, alter or add any parts and assemblies, described in this manual,
without prior notice.
Carefree of Colorado agrees to allow the reproduction of this document for use with Carefree of Colorado
products only. Any other reproduction or translation of this document in whole or part is strictly prohibited
without prior written approval from Carefree of Colorado.
SAFETY INFORMATION
WARNING A WARNING INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH,IF NOT AVOIDED,
COULD RESULT IN DEATH OR SERIOUS INJURY AND/OR MAJOR PROPERTY DAMAGE.
CAUTION A caution indicates a potentially hazardous situation that may cause minor to moderate
personal injury and/or property damage. It may also be used to alert against unsafe practices.
NOTE: A note indicates further information about a product, part, or step.
Tip: A tip provides helpful suggestions.
Safety Notes:
To avoid shock hazard and/or accidental system shorting, always disconnect battery or power source
before working on or around the electrical system.
Always wear appropriate safety equipment (i.e. goggles).
Awnings have significant weight. Always use appropriate lifting devices and/or helpers when lifting or
holding heavy objects.
When using fasteners, use care to not over tighten. Soft materials such as fiberglass and aluminum
can be "stripped out" and lose the ability to grip and hold.
Use extreme care when working with the roller springs. Springs are under tremendous tension and will
quickly unwind if released. Possible injury and/or damage may occur.

Carefree of Colorado Service Manual MANUAL PATIO AWNINGS
052876-301r5 1
PRODUCT OVERVIEW
Carefree’s line of traditional manual awnings provide the RV owner with choices of multiple fabrics and
options while having some of the strongest and longest lasting hardware in the industry.
Fiesta – The adjustable arms allow the user to adjust the pitch of the awning or can be placed in the
carport position when desired. Additional refinements include a remote lock, storage travel locks and
canopy clamps to help tension the fabric.
Fiesta Lite – The adjustable arms allow the user to adjust the pitch of the awning or can be placed in
the carport position when desired. Additional refinements include a remote lock and storage travel
straps and canopy clamps to help tension the fabric. The Fiesta Lite has 16% less weight than the
Fiesta (weight comparison based on 14' model, other sizes may vary).
Additional fabrics with Weatherguard or Alumaguard (Fiesta Only) are available.
NOTE: The Simplicity and Spirit FX Models have been discontinued as of January, 2013. These
products are no longer available for new product installation. References to the Spirit and Simplicity are
for service only.
FEATURES
EXTENSION 1AVAILABLE
LENGTHS BRAKE LEVER RELEASE ARM TRAVEL LOCK METHOD ROLLER TUBE SERIES CANOPY CLAMP
Fiesta 8' 18' to 25' Remote Lock Storage Lock 3.5" (4-slot) Standard
Fiesta Lite 8' 10' to 21' Remote Lock Arm Strap 3.5" (4-slot) n/a
HARDWARE COLOR:
White w/ White Castings; Black w/ Black Castings; Satin w/ Black Castings (Fiesta Only)
FABRIC OPTIONS 2
VINYL W/WEATHERGUARD,FLXGUARD OR ALUMAGUARD ACRYLIC W/FLXGUARD OR ALUMAGUARD
ADDITIONAL OPTIONS 2TIE DOWN STRAPS CURVED HARDWARE 5CENTER RAFTER 3,4ADD-A-ROOM 3,4LEDLIGHTING
Notes: 1. Optional Hi-Lo Awnings have an extension of 6’ 6".
2. Some options may not be available through Original Equipment Manufacturer Installations.
3. Consult the sales and order information for specific application availability.
4. Options are ordered separately.
5. Curved Hardware is not available for Simplicity or Fiesta Lite. Limited styles for Spirit/Fiesta.

MANUAL PATIO AWNINGS Service Manual Carefree of Colorado
2 052876-301r5
CANOPY REPLACEMENT
WARNING THIS PROCEDURE REQUIRES WORKING WITH THE ROLLER SPRINGS.WHEN REMOVED FROM THE
ARM,THE SPRING IS UNDER EXTREME TENSION AND WILL UNWIND QUICKLY.KEEP HANDS AND CLOTHING CLEAR WHILE
FIRMLY HOLDING THE VICE GRIPS!DO NOT TRY TO HOLD THE END PLUG BY HAND. FAILURE TO FOLLOW THE
INSTRUCTIONS CAN RESULT IN PERSONAL INJURY AND PROPERTY DAMAGE.

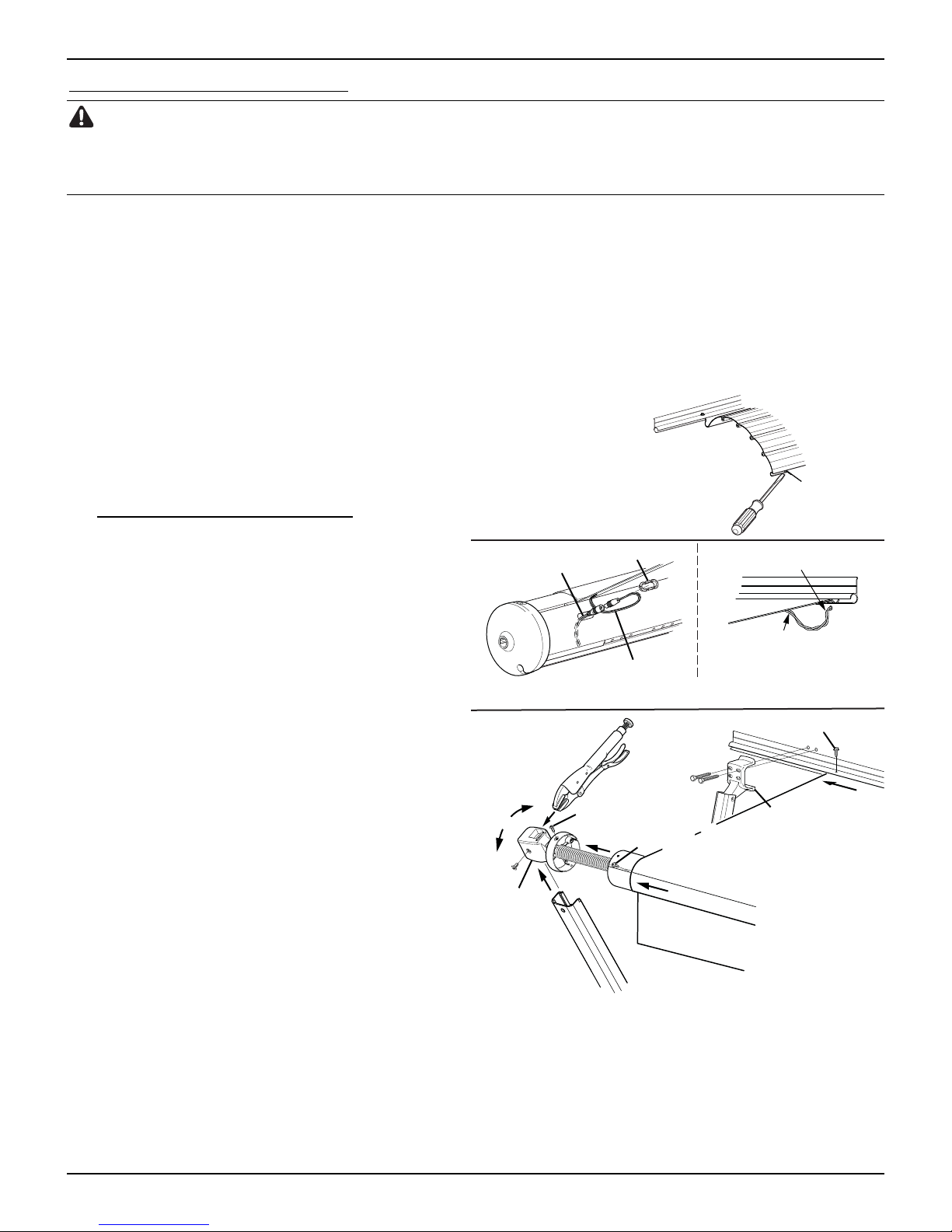

REMOVING THE OLD CANOPY
1. Remove the fabric retaining screws located in the roller tube and the awning rail (4 in total). Set screws aside.
2. Extend the awning out completely.
3. On the right side, lift and lock the upper brace in position. Tape the roller lock in the OPEN position.
4. Remove the fabric retaining screws in the roller tube.
5. For full fabric canopy with Weatherguard of FLXguard or canopies complete with Alumaguard: Remove
the fabric retaining screws from the awning rail.
6. (Detail A) For canopy only replacement for units
with Alumaguard. The fabric is crimped into the
aluminum slat. Use a large flat screw driver or
similar tool to spread open the crimp on both sides
of the fabric.
7. (Detail B) For awnings with LEDs:
7.1. Remove the split grommet in the roller tube.
7.2. Carefully pull out the LED harness
connectors. Use care that the connectors do
not separate while pulling out of the slot.
7.3. Disconnect the harness connectors.
7.4. Clamp or tape the wire and connector from
the LED strip so that it does not slip back into
the roller tube.
7.5. At the awning rail, clip the harness close to
the canopy. Clamp the harness to prevent it
from falling inside the wall.
8. On the left side of the awning, remove the
upper mounting bracket from the coach wall.
Allow the brace to pivot out of the way.
9. On the left arm, grasp the end plug firmly with
vice grips. Pad the grip teeth to prevent
damage or marring on the end plug.
10. Remove the attaching screw and remove the end
plug from the arm while firmly holding onto the
vice grips.
11. Hold onto the arm and move it out of the way
when the end plug is removed.
12. Support the roller tube.
13. Carefully count the number of turns while unwinding the spring. To unwind, rotate the end plug over the
top and towards the coach.
14. Remove the screws attaching the end cap to the roller tube.
15. Remove the spring from the roller tube and set aside.
16. Mark the slots that the canopy is mounted in then slide the old canopy out from the roller tube and awning rail.
SF015
Split Grommet
Canopy Harness
LED Wires Clamp Wires
Clip Wires
Close to Canopy
Alumaguard
Retaining Screw
Retaining Screw
End
Plug
Upper Mounting
Bracket
Subtract
Add
ViceGrips
Detail
A
Screw (x2)
Detail B
LED Connector/Wiring
Winds
Detail C

Carefree of Colorado Service Manual MANUAL PATIO AWNINGS
052876-301r5 3

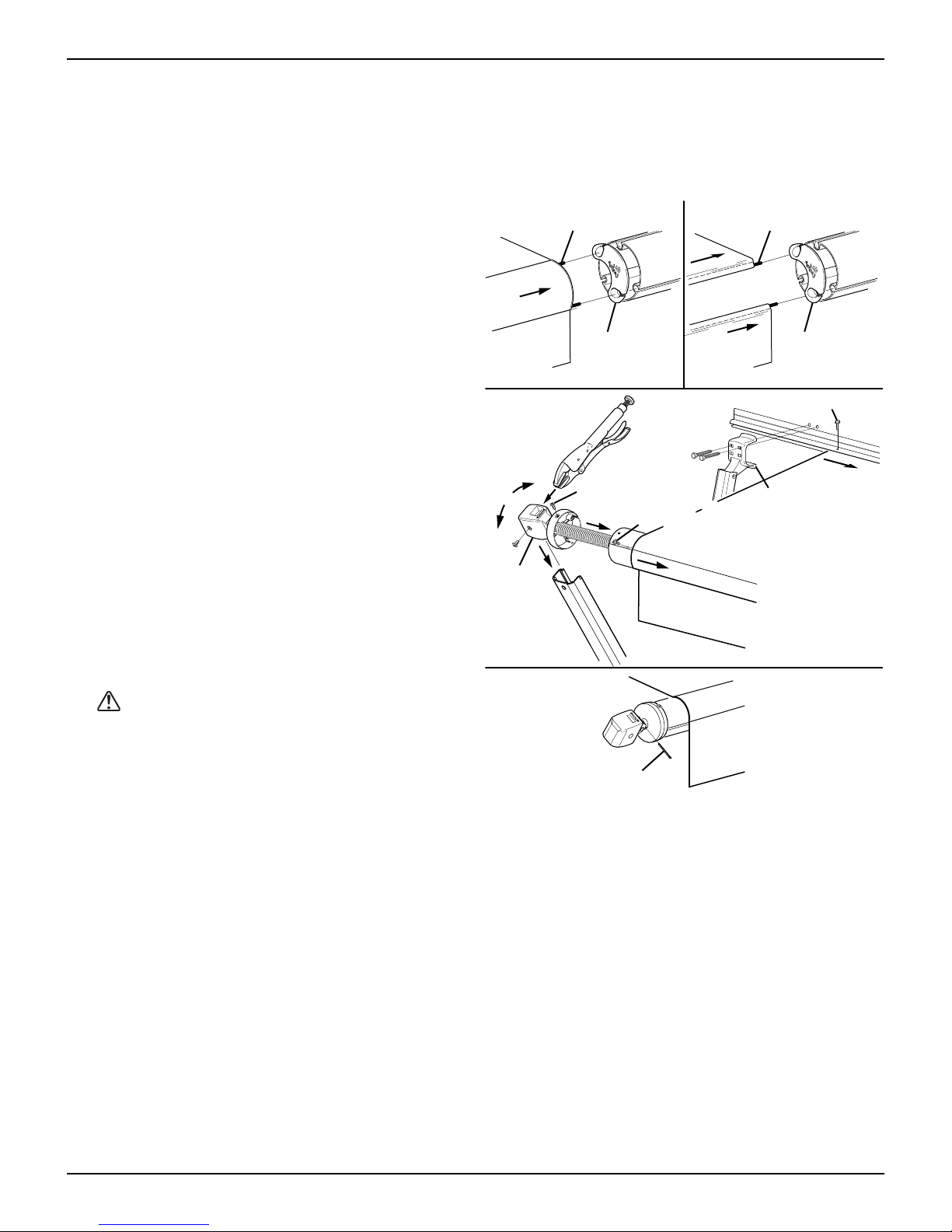

INSTALLING THE NEW CANOPY
1. Clean and deburr the roller tube slots and awning rail/Alumaguard as required. If not previously done,
spread open the awning rail track to facilitate inserting the new fabric.
Tip: Lightly spraying the slots with a dry silicone lubricant will help the fabric slide into the slot without
staining the material.
2. Position the fabric feeders on the roller tube. Be
sure to use the same slots as the old canopy.
3. Slide the new canopy into the awning rail and roller
tube simultaneously.
3.1. For a one piece canopy it will be necessary to
slide the canopy and valance at the same time.
3.2. For two piece replacements, slide the canopy in
first then slide the valance in the second slot.
4. Remove the feeders.
5. Attach the upper mounting bracket to the coach.
6. Slide the spring into the roller tube. Align the end
cap on the roller tube then press onto the roller
tube completely. The roller tube should bottom
out inside the cap.
7. Attach the end cap to the roller tube with the
screws removed previously.
8. Grasp the end plug with vice grips and turn the
spring to add winds. To wind, rotate the end plug
over the top and away from the vehicle. One
complete turn equals one wind. The number of
turns must equal the same as the number
removed previously.
CAUTION The spring is under extreme
tension; when the end plug is not attached to
the arm channel the spring will unwind
quickly. Keep hands and clothing clear while
FIRMLY holding the vice grips! Do not try to
hold the end plug by hand.
9. Temporarily insert a cotter pin through the cap and spring.
10. Slide the end plug over arm channel. Align the holes and secure using the screw removed previously.
SF015b
Retaining Screw
Retaining Screw
End
Plug
Upper Mounting
Bracket
Subtract
Add
ViceGrips
Feeder
Trim Polycord
1" From Fabric
1-Piece Fabric 2-Piece Fabric
Feeder
Trim Polycord
1" From Fabric
Screw (x2)
Winds
Spring
Lock Pin

MANUAL PATIO AWNINGS Service Manual Carefree of Colorado
4 052876-301r5

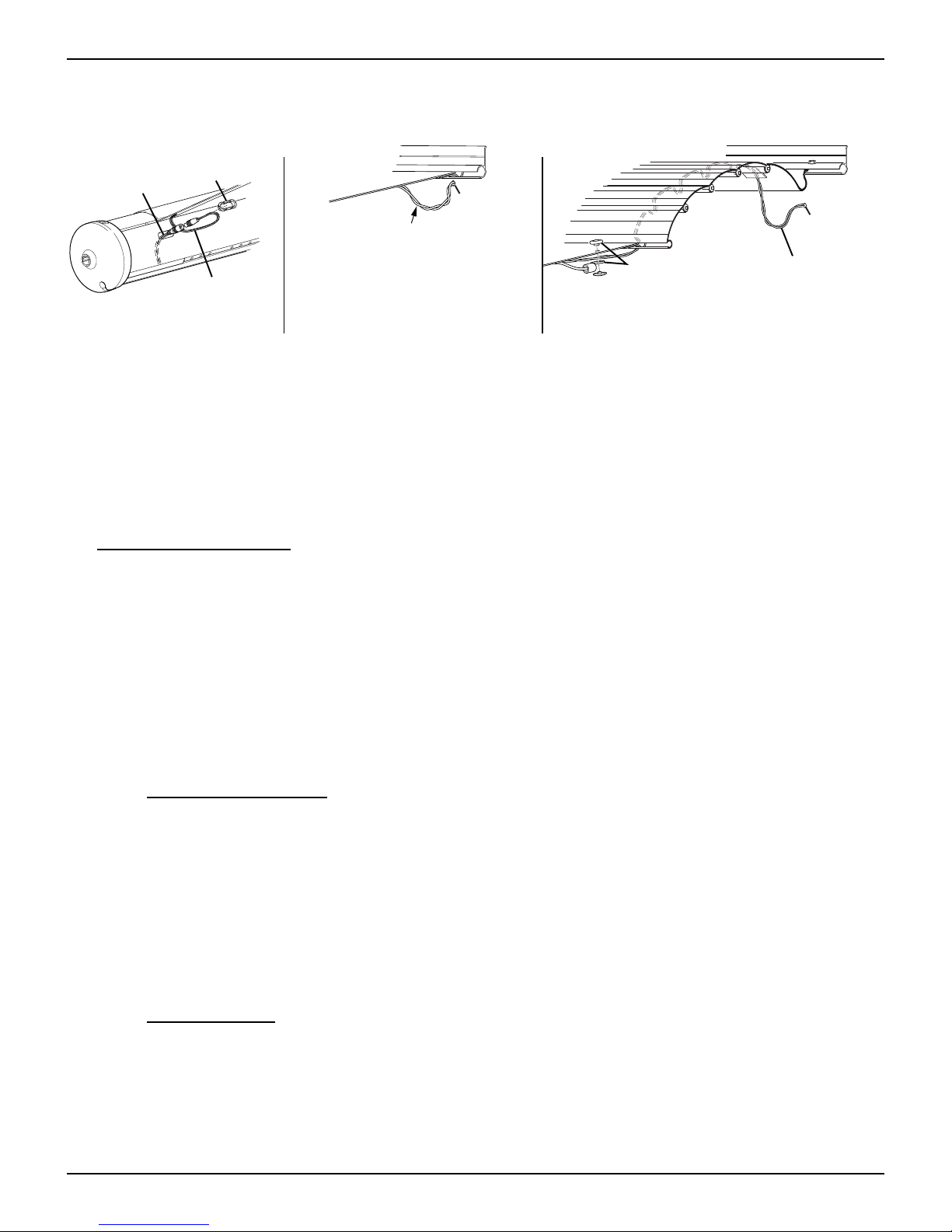

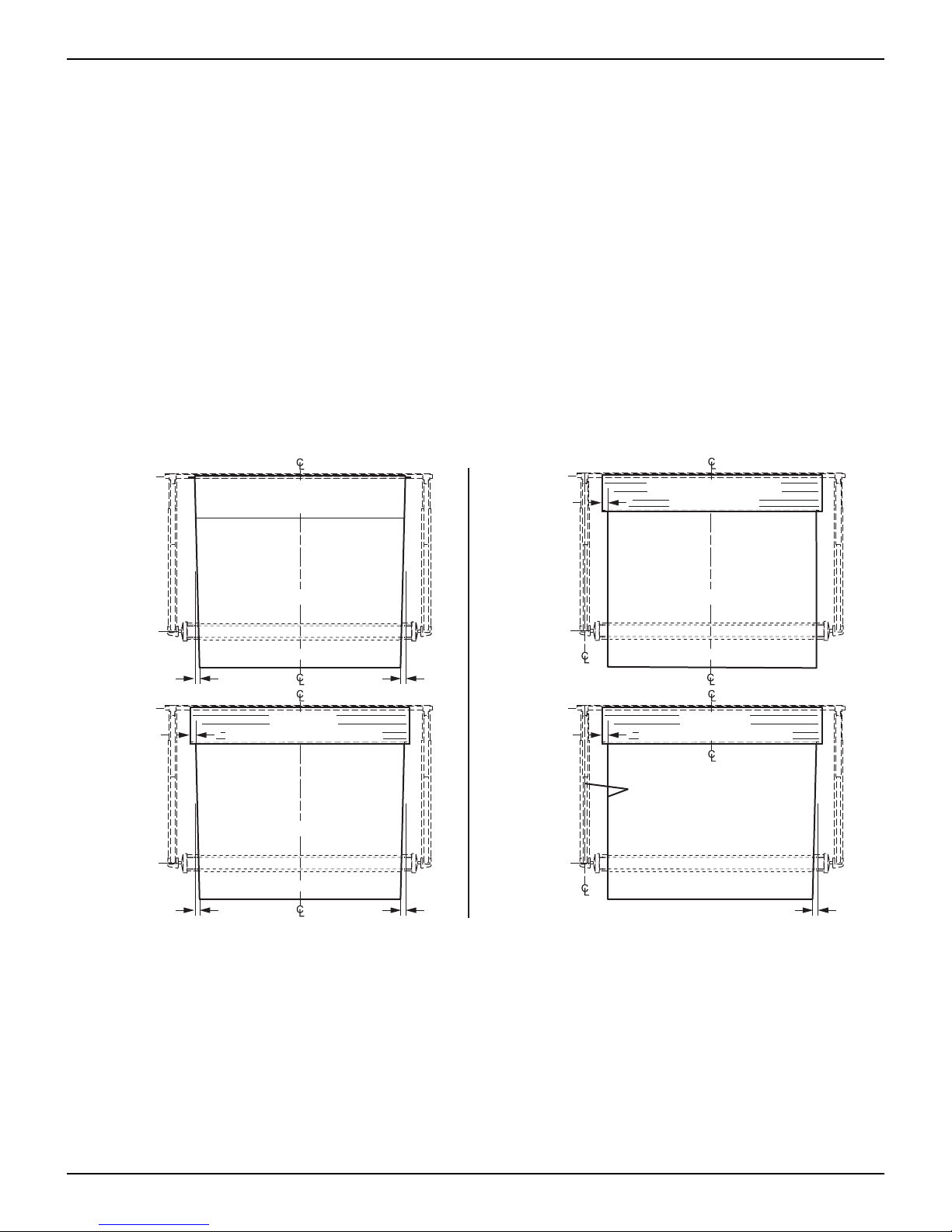

Positioning the Canopy:
11. Alumaguard applications:
11.1. The Alumaguard should be centered between the arms.
11.2. Center the fabric in the Alumaguard. Once positioned, use a pair of side cutters or similar tool and
crimp the aluminum over the polyrod. Use care to not bend or distort the aluminum slats.
12.FLXguard and Weatherguard: Center the fabric in the awning rail between the arms.
13.Vinyl Canopies: Vinyl canopies are flared (tapered) on both sides. Center the fabric on the roller tube.
Install the fabric retaining screws outside the fabric through the polyrod and into the roller tube.
14.Acrylic Canopies:
14.1. Square cut canopies used without LEDs: Center the fabric on the roller tube. Install the fabric
retaining screws outside the fabric through the polyrod and into the roller tube.
14.2. Canopies used with LEDs: Acrylic canopies used with LEDs are flared on the right side only. The
canopy is NOT centered in the roller tube.
14.2.1. The LH edge of the canopy should be parallel to the centerline of the LH arm leaving a larger
space between the roller tube end cap and fabric on the RH side (approximately 1.5").
14.2.2. Install the fabric retaining screws outside the fabric through the polyrod and into the roller
tube.
15. Remove the cotter pin and tape from the roller lock then release the brace(s).
16. Slowly roll up the awning and observe that the braces and arms nestle together correctly. If necessary,
loosen the screws holding the upper mounting bracket then use the slots in the bracket to adjust the
brace position so that the brace and arm nestle together properly.
17. Tighten the upper mounting bracket screws.
CA006d
Vinyl w/
Weatherguard or FLXguard
Vinyl w/
Alumaguard
Dimensions are approximate and may vary based on installation and fabric tolerances.
Valance
Canopy
Awning Rail
A
lumaguard .5"
(typ. both sides)
2.5"2.5"
Flared Acrylic w/
Alumaguard
Valance
Canopy
2.5"2.5"
Awning Rail
Valance
Canopy
Awning Rail
Alumaguard .5"
(typ. both sides)
LH Canopy Edge Parallel
w/ Centerline of Arm
1.5"
Roller Tube
Roller Tube
Roller Tube
Squared Acrylic w/
Alumaguard
Valance
Canopy
Awning Rail
Alumaguard .5"
(typ. both sides)
Roller Tube

Carefree of Colorado Service Manual MANUAL PATIO AWNINGS
052876-301r5 5
18. Extend and retract the awning to confirm that the canopy is rolling up straight. Then secure the fabric in
the awning rail using the fabric retaining screws removed previously.
18.1. For vinyl awnings, place screw
through awning rail, polyrod
and canopy approximately 1”
in from the end of the fabric.
18.2. For Alumaguard awnings,
place screw on the outer edge
of the Alumaguard (not
through the Alumaguard).
19. The roller tube screws go into the slot and through the polycord on the outside edge of the fabric.

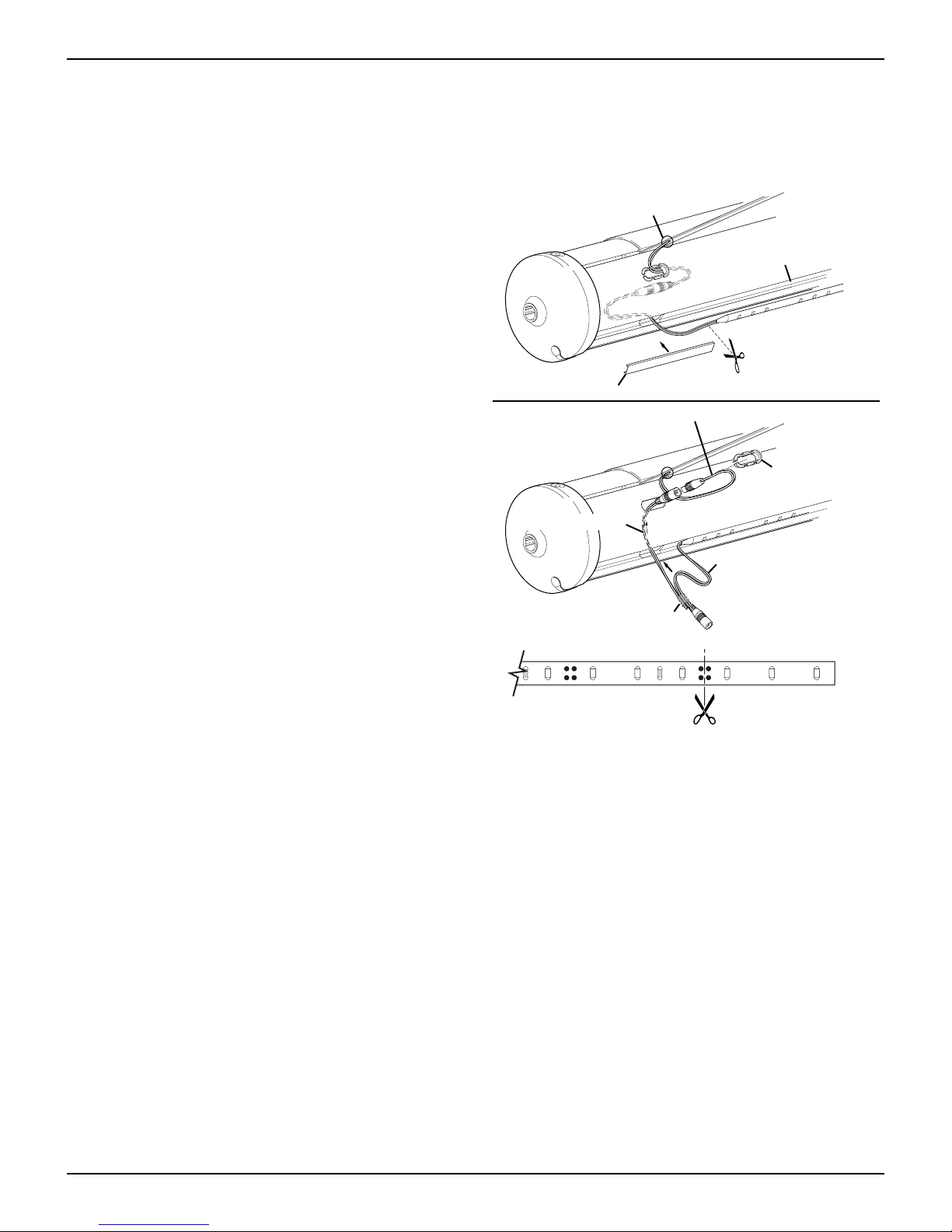

20. For awnings with LEDs in the roller tube:
20.1. Connect the canopy harness connector and LED connector. Then carefully push the
connectors into the roller tube.
20.2. Place the split grommet around the canopy harness and press the grommet into the roller tube hole.
20.3. If the canopy has a metal wrap, attach the wire to the inside of the wrap (see page ) then proceed with
the next step.
20.4. At the vehicle wall, route the new canopy harness through the wall to the switch.
Tip: Tie the new harness to the old harness that was cut previously. Use the old harness to pull the
new harness through the wall to the desired location.
20.5. At the vehicle wall, provide a 3" loop of harness between the canopy and wall. Seal the wall entrance
hole and harness with a quality silicone sealant.
20.6. Connect the new harness to the switch. Two (2) .187, 18-24 awg female disconnects are provided
if connecting to a switch.
20.7. Alternate method: At the wall, splice the new harness to the existing harness using 24 awg butt
connectors. Push the connectors into the vehicle wall. Seal the wall entrance hole and wires with a
quality silicone sealant.
NOTE: Be sure to allow enough harness from the canopy to provide a 3" loop of harness and
adequate length for the connectors to be pushed inside the wall before sealing the hole and harness
with a quality silicone sealant.

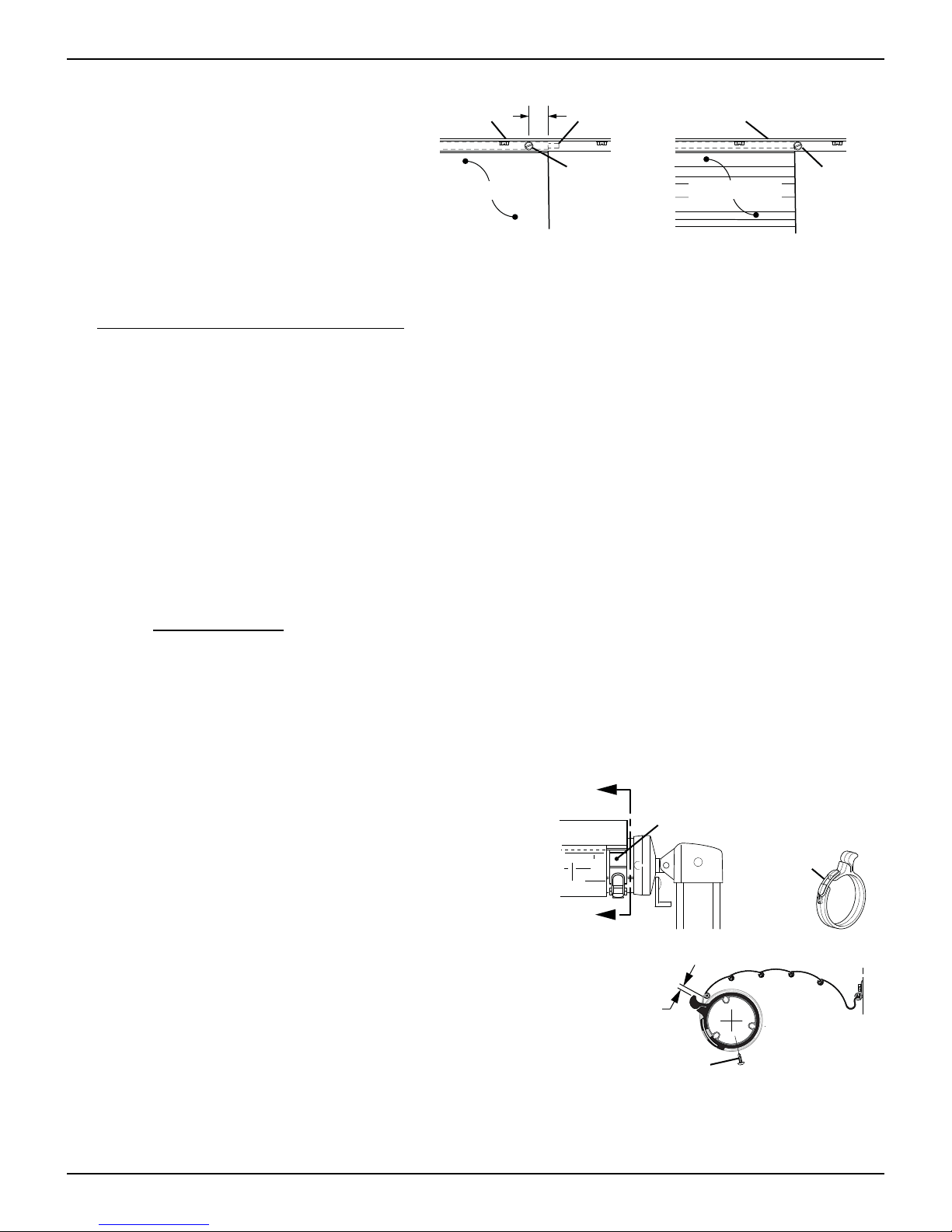

INSTALLING THE TRACTIONERS
The tractioners are used with Alumaguard.
1. Partially extend the awning until the Alumaguard is
extended as shown.
2. Unlock the keeper and wrap the tractioner around the
roller tube.
3. Position the tractioner under the Alumaguard with a 1/4”
gap between Alumaguard and tractioner. Lock the
keeper.
4. Repeat for the other end of the roller tube.
5. Extend the awning to verify that the tractioners are lifting
the metal wrap up and over the roller assembly.
6. To secure the tractioner, drill a 1/8” hole through the
tractioner and roller tube, roughly center the hole
between two slots of the roller tube.
7. Secure with one (1) #10 square drive screw.
Fabric Alumaguard
1"
#6 x 3/8
Screw
Polyrod
SF022
Awning Rail
A wning Rail
#6 x 3/8
Screw
1/4" Gap
A
A
Position Tractioner
under Alumaguard
Keeper
SF023
Alumaguard
View A-A
Place Screw Between
Slots on Roller

MANUAL PATIO AWNINGS Service Manual Carefree of Colorado
6 052876-301r5
SPRING REPLACEMENT
WARNING THIS PROCEDURE REQUIRES WORKING WITH THE ROLLER SPRINGS.WHEN REMOVED FROM THE
ARM,THE SPRING IS UNDER EXTREME TENSION AND WILL UNWIND QUICKLY.KEEP HANDS AND CLOTHING CLEAR WHILE
FIRMLY HOLDING THE VICE GRIPS!DO NOT TRY TO HOLD THE END PLUG BY HAND. FAILURE TO FOLLOW THE
INSTRUCTIONS CAN RESULT IN PERSONAL INJURY AND PROPERTY DAMAGE.

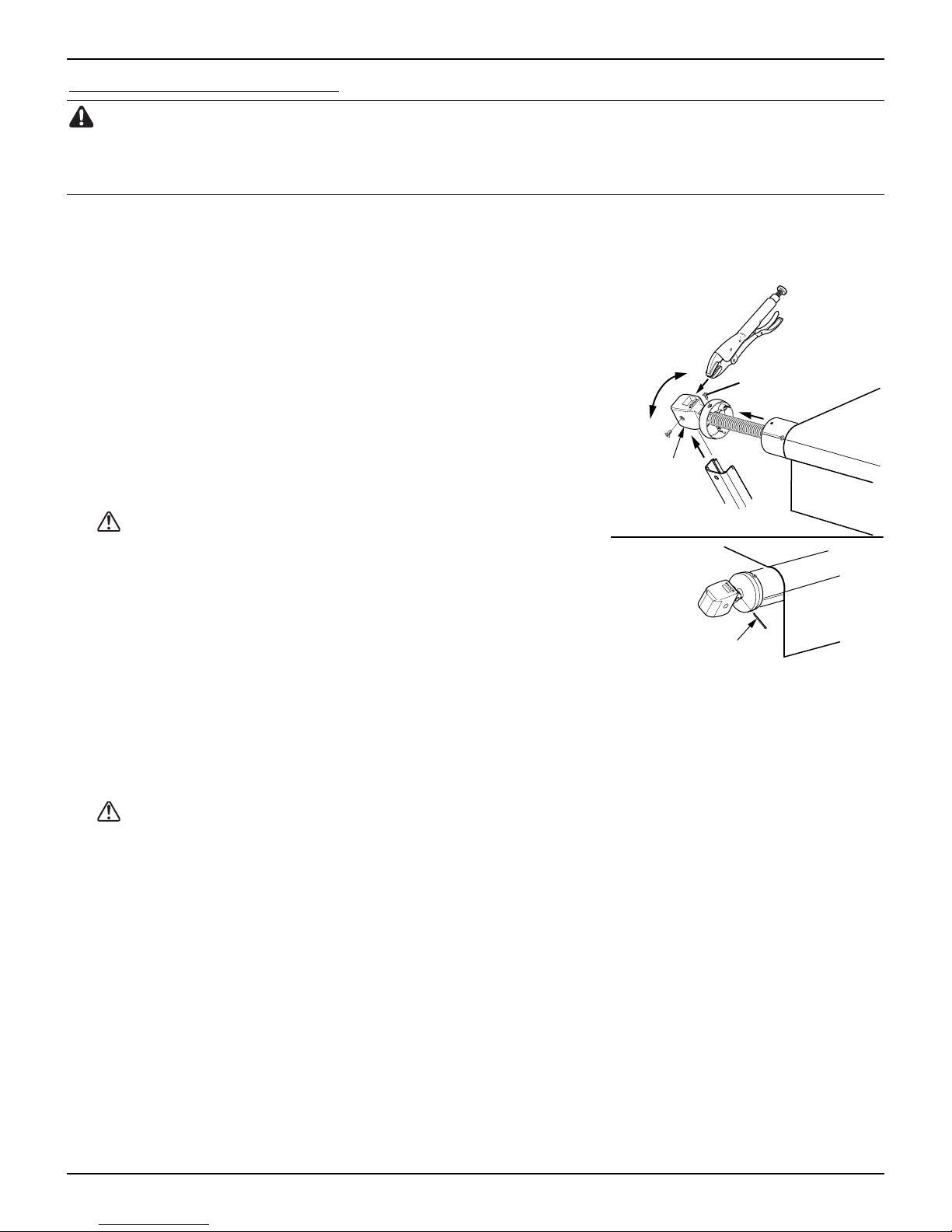

REPLACING THE LEFT SPRING ASSEMBLY
1. Extend the awning out completely.
2. On the right side, lift and lock the upper brace in position. Tape the roller lock in the OPEN position.
3. On the left arm, grasp the end plug firmly with vice grips. Pad the
grip teeth to prevent damage or marring on the end plug.
4. Remove the attaching screw and remove the end plug from the arm
while firmly holding onto the vice grips.
It will be necessary to hold onto the arm and move it out of the
way when the end plug is removed.
It will be necessary to support or hold the roller tube during
the rest of the procedures.
5. Unwind the spring. To unwind, rotate the end plug over the top
and towards the coach.
CAUTION A broken spring can still retain winds under
tension.
6. Remove the screws attaching the end cap to the roller tube. Set
screws aside.
7. Remove the spring from the roller tube and set aside.
8. Slide the new spring into the roller tube. Align the end cap on the
roller tube then press onto the roller tube completely. The roller
tube should bottom out inside the cap.
9. Attach the end cap to the roller tube with the screws removed previously.
10. Grasp the end plug with vice grips and turn the spring to add winds. To wind, rotate the end plug over
the top and away from the coach. One complete turn equals one wind. Use the spring wind chart on
page 8 for the correct number of winds.
CAUTION While the end plug is not attached to the arm channel, the wound spring is
under extreme tension and will unwind quickly. Keep hands and clothing clear while FIRMLY
holding the vice grips! Do not try to hold the end plug by hand.
11. Temporarily insert a cotter pin through the cap and spring (refer to Detail B).
12. Slide the end plug over arm channel. Align the holes and secure using one (1) 1/4-20 x 7/16 Quadrex
Drive screw.
13. Remove the cotter pin and tape from the roller lock then release the upper brace.
14. Slowly roll up the awning and observe that the braces and arms nestle together correctly. If necessary,
loosen the screws holding the upper mounting bracket then use the slots in the bracket to adjust the
brace position so that the brace and arm nestle together properly.
SF017
End
Plug
ViceGrips
Subtract
Add
Winds
Spring
Lock Pin
Detail B
Detail A
Screw (x2)

Carefree of Colorado Service Manual MANUAL PATIO AWNINGS
052876-301r5 7
REPLACING THE RIGHT SPRING ASSEMBLY
1. Extend the awning out completely.
2. On the left side, lift and lock the upper brace in position. Insert a cotter pin through the cap and spring
(Detail A).
3. On the right arm, grasp the end plug firmly with vice grips.
Pad the grip teeth to prevent damage or marring on the end plug.
CAUTION When removed from the arm, the spring
is under extreme tension and will unwind quickly. Keep
hands and clothing clear while FIRMLY holding the vice
grips! Do not try to holdthe end plug by hand.
4. Remove the attaching screw and remove the end plug from the
arm while firmly holding onto the vice grips.
It will be necessary to hold onto the arm and move it out
of the way when the end plug is removed.
It will be necessary to support or hold the roller tube
during the rest of the procedures.
5. Place the roller lock in the CLOSE position then unwind the
spring. To unwind, rotate the end plug over the top and
towards the coach.
CAUTION A broken spring can still retain winds
under tension.
6. Remove the screws attaching the end cap to the roller tube. Set screws aside.
7. Remove the spring from the roller tube and set aside.
NOTE: For patio awnings with LED: Partially pull the spring out. Slide the
wire guard out from the roller tube and hold the LED wires out of the way.
Finish pulling out the spring.
8. Slide the new spring into the roller tube. Align the end cap then press onto the
roller tube completely. The roller tube should bottom out inside the cap.
NOTE: For patio awnings with LED: Partially push the spring in. Slide the wire guard into the roller
tube and tuck the LED wires between the guard and roller tube. Finish pushing in the spring.
9. Attach the end cap to the roller tube with the screws removed previously.
10. Place the roller lock in the OPEN position then grasp the end plug with vice grips and turn the spring to add
winds. To wind, rotate the end plug over the top and away from the coach. One complete turn equals one
wind. Use the chart on page 8 for the correct number of winds.
CAUTION While the end plug is not attached to the arm channel, the wound spring is
under extreme tension and will unwind quickly. Keep hands and clothing clear while FIRMLY
holding the vice grips! Do not try to hold the end plug by hand.
1. For Simplicity Slide the end plug over arm channel. Align the holes and secure using one (1) 1/4-20 x
7/16 Quadrex Drive screw.
2. For Spirit and Fiesta: Hook the remote lock over the brake lever while sliding the end plug over the arm. Align
the holes in the arm and end plug and secure using one (1) 1/4-20 x 7/16 Quadrex Drive screw.
Tip: Slide the remote lock up until it protrudes over the arm. Hook the remote over the brake lever.
Allow the remote lock to slide back into the channel while sliding the end plug over the arm channel.
11. Slowly roll up the awning and observe that the braces and arms nestle together correctly. If necessary,
loosen the screws holding the upper mounting bracket then use the slots in the bracket to adjust the
brace position so that the brace and arm nestle together properly.
SF018
Subtract
Add
Winds
ViceGrips
Spring
Lock Pin
Detail A
Remote Lock
(Spirit & Fiesta Only)
Detail B
Screw (x2)
End Plug
Roller Lock
(Patio Only)
LED Connector/Wiring
Wire Guard
LED Harness
Connector
LED011

MANUAL PATIO AWNINGS Service Manual Carefree of Colorado
8 052876-301r5
SPRING WIND CHART
To Add Winds: Rotate the end plug over the top and away from the vehicle.
To Unwind: Rotate the end plug over the top and towards the vehicle.
LENGTH OF AWNING REPLACEMENT SPRING WINDS W/AWNING
CLOSED WINDS W/AWNING OPEN
RH LH
SPIRIT,FIESTA &SIMPLICITY
7' 11" or less R00926XXX-A n/a 6 14
8' - 12' R00925XXX-A R00923XXX-A 5 13
12' 1" - 18' R00925XXX-A R00923XXX-A 7 15
18' 1" and longer R00926XXX-A R00924XXX-A 8 16
FIESTA LITE
16' or less R001703XXX-A n/a 8 16
16' 1" and longer R001704XXX-A R001706XXX-A 7 15
REMOTE LOCK REPLACEMENT (SPIRIT AND FIESTA ONLY)
1. Open the awning. On the left arm, raise and lock the upper brace in position. Do not forget to tighten
the black lock knob.
NOTE: As an additional safety, align the cotter pin holes in the LH cap and spring and temporarily
insert a lock pin through the hole (reference Detail A in Error! Reference source not found. on
page Error! Bookmark not defined.). This will prevent the awning from closing if the upper
brace is not adequately tightened.
2. On the right side, tape the roller lock lever in the OPEN position.
CAUTION The roller lock MUST stay in the open position. If the lever is pushed to the
close position while the end plug is not attached to the arm channel, the wound spring will
unwind quickly with significant force. Personal injury and/or property damage could occur.
3. (Detail A) Detach the end plug and lift off of the arm channel. Unhook the old remote lock stirrup from the
lock lever while lifting the roller tube.
It will be necessary to hold onto the arm when the end plug is removed.
It will be necessary to support or hold the roller tube during the next two steps.
4. Slide the old remote lock out of the round groove of the right arm.
5. Clean the groove then slide the new remote
lock in. Allow the lock to protrude over the
arm channel.
6. Lift the roller tube over the arm channel and
hook the remote lock stirrup over the lever.
Slide the remote lock into the channel while
sliding the end plug onto the arm.
7. Align the holes and secure the end plug with
the screw removed previously.
8. Remove cotter pin (if installed) and the tape
used to hold the lock lever in place.
Remote Lock
SF020
Roller Lock
Lever
DETAIL
A
Right Arm Assy
Round Groove
DETAIL
B
Remote Lock

Carefree of Colorado Service Manual MANUAL PATIO AWNINGS
052876-301r5 9
LED LIGHTING
SWITCH INSTALLATION
NOTE:Installers may choose to furnish the control switch. The installation requires that the power line
(+12VDC) be attached to a dedicated 2A circuit breaker or a 2A in-line fuse must be installed
between the switch and power source. For easy access, locate the fuse close to the switch.
1. Determine the location of the switch.
2. At the switch location, cut a 1 1/8" x 1 1/2" hole.
3. Wire the switch as shown below.
Wire terminals at the switch are .187,
18-24 awg female disconnects.
NOTE:Allow adequate slack in the
12VDC power line so that the
in-line fuse (installed in step 4)
can be accessed from behind
the switch.
4. Install the in-line fuse:
4.1. Near the switch, cut the red
12VDC power line to the switch.
Do not strip the insulation.
4.2. Insert a wire end into one of the
wire channels until it butts up
against the stop.
4.3. Fold that half of the connector
body over until the element
contacts the wire. Use pliers to
crimp the connector closed.
4.4. Repeat for the second wire end.
4.5. Slide the fuse into the fuse port.
Ensure that is firmly seated.
5. Press the in-line fuse, wires and
switch into the mounting hole. Secure
the switch using two (2) #6 x 1/2"
screws.
6. Snap the switch bezel over the switch
frame.
LED002b
Vehicle Wall
Red
+12VDC
GND
Single Pole
Single Throw Switch
18awg Wire
(minimum)
Connector in
Roller Tube
LED Strip in Roller Tube
Red Black
Wire Sewn in
Canopy Hem
18-24awg
Female Disconnect (x2)
ON
OFF
1.13"
1.5"
1.88"
2.9"
#6 x 1/2” Screw (x2)
2A
In-line Fuse
2A In-line Fuse
(+12VDC Line)

MANUAL PATIO AWNINGS Service Manual Carefree of Colorado
10 052876-301r5
REPLACING THE LED STRIP
1. Extend the awning out completely.
2. Disconnect power.
3. Use a non-permanent marker to mark the location of the ends of the LED strip.
4. Clamp the canopy harness in the canopy to prevent
the wire from pulling up into the seam of the canopy.
This can be done with a paper clip or similar device
that will not damage the wires or canopy.
5. Remove the slot covers from the ends of the LED
strip and set aside.
6. Remove the existing LED strip from the LED slot.
7. Cut the old LED wires close to the LED strip. Tape or
secure the wires on the outside of the roller tube.
8. Clean the slot to remove any dirt and tape residue.
9. Starting with the wire leads at the reference mark
made previously, remove the release paper from the
back of the new strip and press the strip into the LED
slot.
10. At the end of the roller tube, cut the LED strip to
match the mark made previously. To trim the
LED strip, always cut between the 4-pad cluster
as shown.
11. Tape the old LED wires to the new LED wires and
connector.
12. Locate and remove the split grommet from the
roller tube.
13. Carefully pull the wires and connectors out of the
roller tube. Disconnect the connectors.
14. Carefully feed the new LED connector through the hole in the slot
15. Use the old LED wire to pull the new connector out of the grommet hole. Remove the tape and old wire
and discard.
16. Connect the canopy harness connector and new LED connector. Then carefully push the connectors
back into the roller tube.
17. Place the split grommet around the canopy harness and press the grommet into the hole of the roller tube.
18. Press the slot covers into the LED slot.
19. Restore power and test.
Cut Between Pads
to Adjust Length
LED005b
Slot Cover
Old LED Strip
LED Slot
Clamp the Canopy
Harness in this locaion
Split Grommet
Canopy Harness
Old LED Wires
New LED Wires
Tape Wires
Together
Cut LED Wires
Close to LED Strip

Carefree of Colorado Service Manual MANUAL PATIO AWNINGS
052876-301r5 11
CANOPY HARNESS REPLACEMENT
NOTE: Acrylic canopies uses a soft rivet in the hem next to the awning rail to hold the harness in place. Dual
tapered canopies do not use the rivet. If replacing a harness in a tapered canopy, skip steps 6 and 11.1.
1. Extend the awning out completely.
2. Locate and remove the split grommet from the roller tube.
3. Carefully pull the wires and connectors out of the roller tube. Disconnect the connectors.
4. Clamp the LED harness connector outside the roller tube to prevent it from falling back into the roller
tube. This can be done with a paper clip or similar device that will not damage the wires.
5. At the awning rail, clip the harness close to the canopy. Clamp the harness going into the vehicle to
prevent it from falling in the vehicle wall.
6. For acrylic canopies only: Remove the rivet from the canopy. This is a soft rivet and can be cut off with
side cutters.
7. At the roller tube, cut off the connector from the old canopy harness.
8. Securely tape the new harness to the old harness.
9. Carefully use the old harness to pull the new harness through the hem of the canopy.
10. After the new harness has been routed in the canopy hem:
10.1. Connect the canopy harness connector and LED connector. Then carefully push the connectors
into the roller tube.
10.2. Place the split grommet over the canopy harness and press the grommet into the hole of the roller tube.
11. At the vehicle wall:
11.1. For acrylic canopies only: Attach the new harness terminal ring to the canopy using a new rivet.
11.2. If the canopy has a metal wrap, attach the wire to the inside of the wrap (see page Attaching the
Harness to Fabric Wrap) then proceed with the next step.
11.3. At the vehicle wall, route the new canopy harness through the wall to the switch.
Tip: Tie the new harness to the old harness that was cut previously. Use the old harness to pull the
new harness through the wall to the desired location.
11.4. At the vehicle wall, provide a 3" loop of harness between the canopy and wall. Seal the wall entrance
hole and harness with a quality silicone sealant.
11.5. Connect the new harness to the switch. Two (2) .187, 18-24 awg female disconnects are provided if
connecting to a switch.
11.6. Alternate method: At the wall, splice the new harness to the existing harness using 24 awg butt
connectors. Push the connectors into the vehicle wall. Seal the wall entrance hole and wires
with a quality silicone sealant.
NOTE: Be sure to allow enough harness from the canopy to provide a 3" loop of harness and
adequate length for the connectors to be pushed inside the wall before sealing the hole and
harness with a quality silicone sealant.
LED007a
Acrylic Canopy
(shown with Alumaguard)
Vinyl Canopy
(shown with Weatherguard)
Route Wire With
3" Loop
Split Grommet
Canopy Harness
LED Wires
Seal
Harness
Route Wire
With 3" Loop
Attach Ring Terminal
with Soft Rivet
Seal
Harness

MANUAL PATIO AWNINGS Service Manual Carefree of Colorado
12 052876-301r5
ATTACHING THE HARNESS TO FABRIC WRAP
When replacing the canopy only or replacing the canopy harness, it is necessary to attach the cable to the
inside of the wrap.
For vinyl canopies with Weatherguard, the harness is routed in the seam of the Weatherguard, no
additional attachment is necessary.
For other wraps follow the directions below:
1. Open the awning to access the inside surface of the wrap.
2. Clean the inside surface of the wrap.
3. Attach the harness to the inside surface.
3.1. For Alumaguard: Use 1" by 2" pieces of Velcro (loop) taping
the harness on each slat between the joints.
3.2. For FLXguard: Position the harness approximately 3/8" from
the edge of the material. Attach using a 1" x 6" piece of clear
tape (the tape is a special bond tape available from Carefree).
1" x 2" Velcro "Loop"
ALUMAGUARD
LED008a
FLXguard
1" x 6" Clear Tape
Position Wire
3/8" From Edge

Carefree of Colorado Service Manual MANUAL PATIO AWNINGS
052876-301r5 13
STANDARD MAINTENANCE
Maintaining the Carefree Manual Patio Awning is easy. Just follow these basic steps:
Always operate the awning according to the instructions.
Periodically check that the fasteners are tight. Tighten if necessary.
Keep the awning fabric and arms clean.
FABRIC CARE
CAUTION DO NOT USE OIL BASED CLEANERS OR ANY CAUSTIC,GRANULATED,OR ABRASIVE TYPE
CLEANERS ON YOUR CAREFREE PRODUCT.
1. One of the best ways to keep the fabric looking good and to delay the need for deep or vigorous
cleanings is to hose fabrics off on a monthly basis with clear water. This practice will help prevent dirt
from becoming deeply imbedded in the fabric. In most environments, a thorough cleaning will be
needed every two to three years.
2. When it’s time for a thorough cleaning, the fabric can be cleaned while still on an awning frame.
For Vinyl Fabric – Use a soft brush and warm water with soap.
For Acrylic Fabric – Use a stiff brush and warm water with soap.
3. When cleaning the fabric, it is important to observe the following:
Always use a natural soap, never detergent.
Water should be cold to lukewarm, never more than 100F.
Air-dry only. Never apply heat to the fabric.
Always allow the fabric to dry thoroughly before rolling up the awning.
Mildew
Mildew is a fungus growth that looks like dirt. Vinyl coated polyester fabrics are mildew resistant because
of a chemical biocide in the vinyl coating. Under ordinary conditions, mildew will not appear. However, in
areas where high temperature and humidity are common, mildew can be a problem and required the
material to be washed more frequently. Thoroughly rinse the fabric with clean water and allow to air dry
completely before rolling up the awning.
Pooling
When water collects on the top of the fabric, this is known as "pooling". This can occur during inclement
weather or if a running air conditioner discharges over the awning. The water is dumped when the awning
is retracted. It is recommended that if water accumulates on the top, briefly retract the awning to dump the
water. This will help prevent the fabric from stretching or distorting.
Leaking
On vinyl canopies, side hems and poly cords are stitched in with a sewing machine. On occasion, this stitching may
allow water to seep or leak through the stitches. This is normal and not a defect covered by warranty. Treat the
seams with a quality seam sealer.
ARM CARE
The best method of keeping the arms and braces operating smoothly is to clean them. Dirt and debris can
cause the channels not to slide easily.
Periodically wash out the channels with running water (i.e. a hose) to keep them clean. If the channels still
do not slide easily, lightly spray the inside of the channels with a dry silicone lubricant, after the arms have
been cleaned and dried thoroughly.
Hardware Maintenance
Replace any parts that become damaged.
Periodically check all mounting hardware, screws, lags, etc., and re-tighten when necessary.
Locking knobs should be periodically loosened and removed then sprayed with a dry lubricant to
prevent binding and locking.

MANUAL PATIO AWNINGS Service Manual Carefree of Colorado
14 052876-301r5
PART NUMBER LISTING
SPIRIT FX &FIESTA PART NUMBER CONFIGURATION
Example: Part Number: 2 5 1 8 7 9 7 9
STYLE CODE SIZE CANOPY COLOR FABRIC WRAP TYPE/COLOR
25 18 79 79
SPIRIT FX Vinyl w/ Black Castings 18’ Length Ocean Blue Vinyl Ocean Blue/Cream Weatherguard
SPIRIT FX
25 = Vinyl or Polyweave
w/ Black Castings
DV = Vinyl or Polyweave
w/ White Castings
26 = Acrylic w/ Alumaguard Ltd
w/ Black Castings
DW= Acrylic w/ Alumaguard Ltd
w/ White Castings
FIESTA
86 = Vinyl or Polyweave
w/ Black Castings Up To 21’
EP = Vinyl or Polyweave
w/ Black Castings Over 21’
EA = Vinyl or Polyweave
w/ White Castings Up To 21’
ER = Vinyl or Polyweave w/
White Castings Over 21’
SA = Vinyl or Polyweave
w/ Alumaguard
w/ Black Castings Up To 21’
SB = Vinyl or Polyweave
w/ Alumaguard
w/ Black Castings Over 21’
SE = Vinyl or Polyweave
w/ Alumaguard
w/ White Castings Up To 21’
SF = Vinyl or Polyweave. With
Alumaguard
/White Castings Over 21’
AB = Acrylic w/ Alumaguard Ltd
W /Black Castings Up To 21’
ET = Acrylic w/ Alumaguard Ltd
w/ Black Castings Over 21’
EB = Acrylic w/ Alumaguard Ltd
w/ White Castings Up To 21’
EU = Acrylic w/ Alumaguard Ltd
w/ White Castings Over 21’
8’
9’
10’
11’
12’
13’
14’
15’
16’
17’
18’
19’
20’
21’
22’
23’
24’
25’
VINYL
Refer to Sales and Order
Information for Color Availability
and Color Codes
CUSTOM GRAPHICS
Refer to Sales and Order
Information for Color Availability
and Color Codes
ACRYLIC
Refer to Sales and Order
Information for Color Availability
and Color Codes
AVAILABLE IN HORIZONTAL
OR VERTICAL STRIPE OR
SOLID.
CUSTOM ACRYLIC
140 custom colors are available
Refer to Sales and Order
Information for Color Availability
and Color Codes
VINYL
Refer to Sales and Order Information for Color
Availability and Color Codes
ALUMAGUARD
Refer to Sales and Order Information for Color
Availability and Color Codes

Carefree of Colorado Service Manual MANUAL PATIO AWNINGS
052876-301r5 15
SIMPLICITY PART NUMBER CONFIGURATION
Example: Part Number: 77217900
STYLE CODE SIZE CANOPY COLOR FABRIC WRAP TYPE/COLOR
77 21 79 00
Simplicity Awning 21' Length Ocean Blue White Weatherguard
77 =
Simplicity Awning - All 8’ 9’
10’
11’
12’
13’
14’
15’
16’
17’
18’
19’
20’
21’
VINYL
Refer to Sales and Order
Information for specific color
availability and color codes
VINYL
00 = WHITE
(xx) = MATCHING COLOR
PART NUMBER/SERIAL NUMBER LOCATION
The arm part numbers/serial numbers are located on the inside of the lower arm channel.
The roller tube part numbers/serial numbers are located on the roller tube and the valance care
label.
Left Arm
Right Arm
SF014

MANUAL PATIO AWNINGS Service Manual Carefree of Colorado
16 052876-301r5
SPIRIT FX AND FIESTA ILLUSTRATED PARTS LIST
19
24
23
19
14
11
10
13
12
15
7
6
20
5
3
9
8
25
6
2
5
4
9
8
21
22
SF501sm
18
18
16
15 16
1
26
“L”
Standard
Roll Bar
Utility
Roll Bar
22a 22b

Carefree of Colorado Service Manual MANUAL PATIO AWNINGS
052876-301r5 17
Item Part Number Description Notes
1 R00415-3nn-XX 1/2 Set Hardware Right 1,3
2 R00416-3nn-XX 1/2 Set Hardware Left 1,3
3 R00410-3nn-XX Upper Main Arm (includes items 8, 9) Right 1,3
4 R00411-3nn-XX Upper Main Arm (includes items 8, 9) Left 1,3
5 R00412-3nn-XX Lower Main Arm (includes Item 6) 1,3
6 901020 Carport Foot Black
901020W Carport Foot White
7 R012803-005 Remote Lock, White L = 38.5" Universal
R012803-006 Remote Lock, Black L = 38.5" Universal
R012803-105 Remote Lock, White L = 25.4" Hi-Lo
R012803-106 Remote Lock, Black L = 25.4" Hi-Lo
R012803-405 Remote Lock, White L = 41.5" Monaco
R012803-406 Remote Lock, Black L = 41.5" Monaco
R012803-505 Remote Lock, White L = 51.8" Teton
R012803-506 Remote Lock, Black L = 51.8" Teton
R012803-205 Remote Lock, White L = 34.4" Short
R012803-206 Remote Lock, Black L = 34.4" Short
8 901017 Travel Lock, Black
901017W Travel Lock, White
9 901015W Handle, White
901015 Handle, Black
10 R00414-3nn-XX Lower Brace (includes item 12) 1,3
11 R00413-3nn-XX Upper Brace (includes items 13, 14, 18) 1,3
12 R00405 Brace Slider
R00405-2 Brace Slider, Curved Hardware
R00549 Brace Slider Pre 1997
13 901022 Locking Knob
14 902801W Canopy Clamp, White
902801 Canopy Clamp, Black
15 901019W Bottom Bracket, White
901019 Bottom Bracket, Black
16 R00716 Bottom Bracket, Shim, Optional pkg of 2
17 169037 Bottom Bracket Stand-Off, Optional Airstream
18 901018W Top Bracket, White
901018 Top Bracket, Black
19 249153 Top Bracket Stand-Off Optional
20 R00926XXX-A Spring Assy, RH 7' 11" or less 2,4,5
R00925XXX-A Spring Assy, RH 8’-18’ 2,4,5
R00926XXX-A Spring Assy, RH 18' 1" and longer 2,4,5
21 R00923XXX-A Spring Assy, LH 8'-18' Width 2,4,5
R00924XXX-A Spring Assy, LH 18' 1" and longer 2,4,5
R098226-005 Idler End Cap, White (Does Not Include a Spring) 7' 11" or less 2
R098226-006 Idler End Cap, Black (Does Not Include a Spring) 7' 11" or less 2
22a 19xx00 Roller Tube, 4-slot 3 1/2" Dia
22b 15xx00A Roller Tube, w/ Utility Slot 3 1/2" Dia
23 Canopy Only Refer to Canopy Order Form
24 20xx36XXX Alumaguard Only
25 901011 Pull Strap
26 901035 Pull Wand 43"
901035XL Pull Wand 61"
The following items are not shown
R012479-006 Hardware Pack Black Castings
R012479-005 Hardware Pack White Arms w/ White Castings
030573 Slider Set Screw
Notes: 1. XX = Color -06 = Satin w/ Black Castings -55 = White w/ White Castings
2. Awnings 7'11" and shorter use only one RH spring, no left hand spring.
3. nn = Arm style.
4. For springs used with a utility slot roller tube, add a "U" at the end of the part number.
5. XXX = Color BLK=Black; WHT=White

MANUAL PATIO AWNINGS Service Manual Carefree of Colorado
18 052876-301r5
SIMPLICITY ILLUSTRATED PARTS LIST
16
20
16
9
8
11
10
12
5
17
1
4
3
7
21
5
1
4
7
18
19
SF502sm
15
15
13
12 13
3
6
6
2
22
