Carefree LED Lighting User manual

070013-301r2 Printed in USA June, 2017
S ERVICE M ANUAL
BOX AWNING LED
RV
Read this manual before installing or servicing this product. Failure to follow the
instructions and safety precautions in this manual can result in personal injury and/or
cause the product to not operate properly.
SPECIFICATIONS
Mounting
Options: a) LED light strip is mounted in the roller tube. The power harness is concealed in the canopy hem.
b) LED light strip is mounted at the awning rail. Requires special canopy with integrated strip holder
Length: Available for awnings 10' – 21'
White LED: Color LED:
Power: 1A, 12Vdc 2A 12Vdc
Colors: a) Bright White 6000K (standard) RGB (with variable color control)
b) Warm White 3000K (OEM option)
Controls: a) Single pole, single throw switch (SR0101) IR (infrared) Remote and Controller Kit
(SR0109)
b) Lighted single throw switch (SR0111)
Note: For an installer furnished switch, see notes in
"Switch Installation " on page Error! Bookmark not
defined..
Note: Aftermarket upgrade kits from Carefree use RF remotes and controllers for white and RGB
installations. These controls are not interchangeable with the factory installed controls.
TABLE OF CONTENTS
Switch and Power Installation......................................................................................................1
White LED...............................................................................................................................................1
RGB LED (OEM Option).........................................................................................................................2
Awning LED Layouts.....................................................................................................................3
Small Box and Marquee LED Layouts....................................................................................................3
Big Box LED Layouts..............................................................................................................................4
Replacing the LED Strip................................................................................................................5
Wire Harness Replacement..........................................................................................................6
LED Components ..........................................................................................................................7
This manual covers LED lighting applications used with box awnings. For vertical arm awning
applications, refer to 052584-301 “LED Service Manual for Vertical Arms” available on-line at
www.carefreeofcolorado.com

P ROPRIETARY S TATEMENT
The LED Lighting is a product of Carefree of Colorado, located in Broomfield, Colorado, USA. The
information contained in or disclosed in this document is considered proprietary to Carefree of Colorado.
Every effort has been made to ensure that the information presented in the document is accurate and
complete. However, Carefree of Colorado assumes no liability for errors or for any damages that result
from the use of this document.
The information contained in this manual pertains to the current configuration of the models listed on the
title page. Earlier model configurations may differ from the information given. Carefree of Colorado
reserves the right to cancel, change, alter or add any parts and assemblies, described in this manual,
without prior notice.
Carefree of Colorado agrees to allow the reproduction of this document for use with Carefree of Colorado
products only. Any other reproduction or translation of this document in whole or part is strictly prohibited
without prior written approval from Carefree of Colorado.
S AFETY I NFORMATION
This is the safety alert symbol. It is used to alert individuals to potential
personal injury hazards. Obey all safety messages that follow this sysmbol
to avoid possible personal injury or death.
WARNING
Indicates a hazardous situation, which if not avoided, could result in death or
serious bodily injury.
CAUTION
Indicates a hazardous situation, which if not avoided, may result in minor or
moderate bodily injury.
NOTICE
Indicates a situation that may result in equipment-related damage.
General Safety:
WARNING Shock Hazard. Always disconnect battery or power source before
working on or around the electrical system.
WARNING Always wear appropriate safety equipment (i.e. goggles).
CAUTION Always use appropriate lifting devices and/or helpers when lifting or
holding heavy objects.
NOTICE When using fasteners, do not over tighten. Soft materials such as fiberglass and
aluminum can be "stripped out" and lose the ability to grip and hold.
CALIFORNIA PROPOSITION 65
WARNING This product contains chemicals known to the state of California to cause
cancer or birth defects or other reproductive harm. California’s Proposition 65 requires this
warning to be given to customers in the state of California.
Carefree of Colorado 2145 W. 6
th
Avenue Broomfield, CO 80020 a Scott Fetzer company

Carefree of Colorado Service Manual Box Awning LED LIGHTING
070013-301r2 1
SWITCH AND POWER INSTALLATION
WHITE LED
NOTE: Installers may choose to furnish the control switch. The installation requires that the power line
(+12VDC) be attached to a dedicated 2A circuit breaker or a 2A in-line fuse must be installed between the
switch and power source. For easy access, locate the fuse close to the switch.
The following steps describe the switch and fuse installation using the switch and fuse kit available from Carefree.
1. Determine the location of the switch.
2. At the switch location, cut a 1 1/8" x 1 1/2" hole.
3. Wire the switch as shown below. Wire
terminals at the switch are .187, 18-24 awg
female disconnects.
NOTE:Allow adequate slack in the 12VDC
power line so that the in-line fuse
(installed in step 4) can be accessed
from behind the switch.
4. Install the in-line fuse:
4.1. Near the switch, cut the red 12VDC power
line to the switch. Do not strip the
insulation.
4.2. Insert a wire end into one of the wire
channels until it butts up against the stop.
4.3. Fold that half of the connector body over
until the element contacts the wire. Use
pliers to crimp the connector closed.
4.4. Repeat for the second wire end.
4.5. Slide the fuse into the fuse port. Ensure
that is firmly seated.
5. Press the in-line fuse, wires and switch into the
mounting hole. Secure the switch using two (2) #6 x 1/2" screws.
6. Snap the switch bezel over the switch frame.
LED002d
Individual Strip Double Strip
LED Strip
Vehicle Wall
Red
+12VDC
GND
Switch
18awg Wire
(minimum)
Red Black
2A In-line Fuse
LED Strip
Vehicle Wall
Red
+12VDC
GND
Switch
18awg Wire
(minimum)
Red Black
2A In-line Fuse
LED Strip
Red Black
See Switch Detail See Switch Detail
ON
OFF
1.13"
1.5"
1.88"
2.9"
#6 x 1/2 " Screw (x2)
2A In-line Fuse
(+12VDC Line)
LED002b
Red
+12VDC
GND
Single Pole, Single Throw Switch
18awg Wire
(minimum)
Red (from power harness)
18-24awg
Female Disconnect (x2)
2A In-line Fuse
Red
+12VDC
Lighted Single Throw Switch
18awg Wire
(minimum)
Red (from power harness)
18-24awg
Female Disconnect (x3)
2A In-line Fuse

BOX AWNING LED LIGHTING Service Manual Carefree of Colorado
2 070013-301r2
RGB LED (OEM OPTION)
arLED002b
LED Strip
Power Harness
Route Power Harness
w/ Sensor Cable
Slot Cover
Wire Channel
Control Module
IR Sensor
OFF ON
WRGB
FLASH
STROBE
FADE
SMOOTH
Vehicle Wall
Red
+12VDC
GND
18awg Wire
(minimum)
Red Black
2A In-line Fuse
LED Strip
Polarity Alignment:
Align Arrows
on Connectors
Remote
Control Module
(mounted in lead rail)
Infrared Sensor
(mounted in lead rail)
(sample installation on Apex Lead Rail)

Carefree of Colorado Service Manual Box Awning LED LIGHTING
070013-301r2 3
AWNING LED LAYOUTS
SMALL BOX AND MARQUEE LED LAYOUTS
These illustrations show the basic LED layout for the Freedom WM, Freestyle WM, Freedom RM and
Marquee. Refer to the next page for big box awnings.
Marquee
Slot Cover
LED Strip
Harness
LED Slot in
Bottom of Lead Rail
Freedom WM
LED Slot
LED Strip Connector
Wire Channel
Freedom RM
Wire Channel Wire Channel
LED Inside Lead Rail
LED Strip
Harness
Tie Strap
Connector Attached w/
Double Sided Tape
Wire Channel
LED Slot
LED Outside Lead Rail
LED Strip
HarnessTie Strap Connector
Slot Cover
LED Slot in
Bottom of Lead Rail
Wire Channel
HarnessTie Strap Connector
LED Slot
LED Strip
Wire Channel
LED Strip
HarnessTie Strap Connector
LED Slot in
Bottom of Lead Rail
Slot Cover
Wire Channel
Freestyle WM
LED Inside Lead Rail
LED Outside Lead Rail
LED012a

BOX AWNING LED LIGHTING Service Manual Carefree of Colorado
4 070013-301r2
BIG BOX LED LAYOUTS
These illustrations show the basic LED layout for the Mirage, Mirage 2-Stage, Apex and Paramount. Refer
to the previous page for small box awnings.
Apex & Paramount Lead Rail
Wire Channel
Route LED Harness
w/ Sensor Cable
Connector
(place behind sensor)
LED Strip Slot Cover
Route Harness
with Sensor Cable Wire
Channel
Wire Channel LED Slot
LED Strip
Connector
(place behind sensor)
Route Harness
with Sensor Cable Slot Cover
LED Inside Lead Rail
LED Outside Lead Rail
Mirage & Mirage 2-Stage
Connector Route LED Harness
w/ Sensor Cable
LED Strip
LED Slot
Paramount Case LED
LED Slot LED Strip
Connector
Route LED Harness
w/ Sensor Cable
Slot Cover
Wire Channel
Case Detail
LED Slot in
Bottom of Lead Rail
LED012b

Carefree of Colorado Service Manual Box Awning LED LIGHTING
070013-301r2 5
REPLACING THE LED STRIP
Refer to the appropriate awning LED layout illustrations on pages 2 and 3.
1. Extend the awning out completely.
2. Disconnect power to the awning and LED strip.
3. Use a non-permanent marker to mark the location of the ends of the LED strip.
4. If installed, remove the slot covers from the ends of the LED strip and set aside.
5. For Freedom WM with LED's inside the lead rail: Remove the lead rail end plate and support leg.
6. Disconnect the LED strip connector.
7. Remove the existing LED strip.
8. Clean the slot to remove any dirt and tape residue.
9. For LED's inside the lead rail: Thread the LED strip behind the arm/lead rail connectors before pressing the
strip into the slot.
10. Starting at the reference mark made previously, remove the release paper from the back of the new strip and
press the strip into the LED slot.
11. At the end of the LED slot, cut the LED strip to match the mark made
previously. To trim the LED strip, always cut between the 4-pad cluster
as shown.
CAUTION Ensure that power is off to the LED strip. Cutting the strip with power on can short
the LED strip.
12. Route the wires as shown and connect LED and harness connectors.
13. Install the slot covers and other parts that were removed previously.
14. Restore power and test.
Cut Between Pads
to Adjust Length
LED013

BOX AWNING LED LIGHTING Service Manual Carefree of Colorado
6 070013-301r2
WIRE HARNESS REPLACEMENT
(refer to the illustrations on pages 2 and 3)
1. Extend the awning out to access the inside of the case or lead rail as required.
2. Disconnect power to the awning and LED.
3. Separate the LED connectors.
4. For lead rail LEDs:
4.1. The wire is routed along the top of the arm. Remove the harness from the arm channels.
4.2. At the case, clip the harness and clamp the harness at the case to prevent it from falling in the
vehicle wall.
4.3. Connect the new harness to the LED strip.
4.4. Route the harness through the wire channel in the arms. At the arm joints, arch the cable slightly
to avoid binding.
5. For all LEDs:
5.1. Route the new harness through the case and vehicle wall to the switch.
Tip: Tie the new harness to the old harness that was cut previously. Use the old harness to pull the new
harness through the wall to the desired location.
5.2. Seal the entrance hole and harness with a quality silicone sealant.
5.3. Connect the new harness to the switch. Two (2) .187, 18-24 awg female disconnects are provided if
connecting to a switch.
5.4. Alternate method: At the wall, splice the new harness to the existing harness using 24 awg butt
connectors. Push the connectors into the vehicle wall. Seal the entrance hole and wires with a quality
silicone sealant.
NOTE: Be sure to allow enough harness from the arm to provide a slack in the harness and adequate
length for the connectors to be pushed inside before sealing the hole and harness with a quality silicone
sealant.

Carefree of Colorado Service Manual Box Awning LED LIGHTING
070013-301r2 7

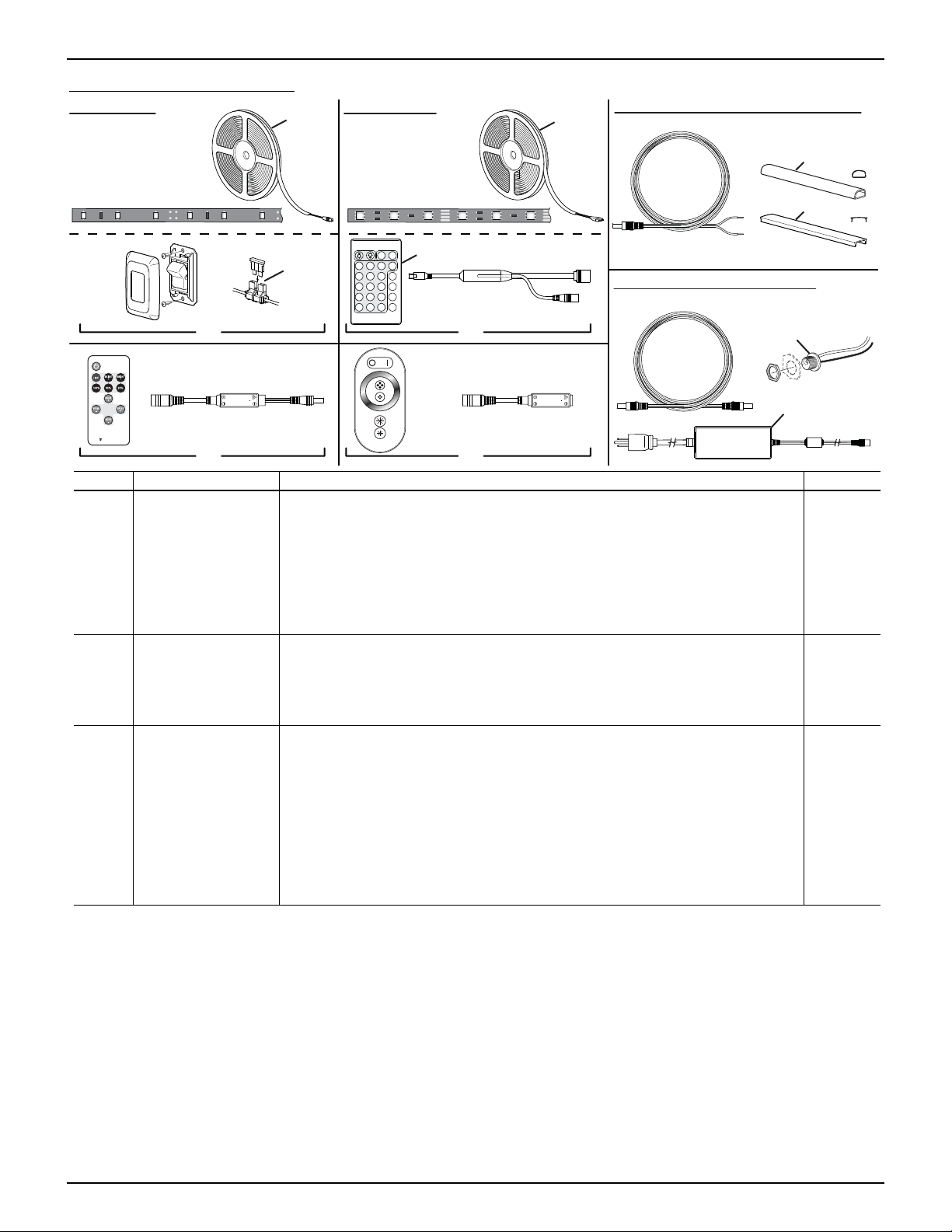

LED COMPONENTS
Item Part Number Description Notes
1a R001714 LED Strip, Bright White 6000K 16' Length 8" Lead 30 LPM 7
1b R001715 LED Strip, Bright White 6000K 16' Length 26" Lead 30 LPM 6,7
1c R001736 LED Strip, Bright White 6000K 49" Length 8" Lead 30 LPM 2
1d R001735 LED Strip, Bright White 6000K 20' Length 8" Lead 30 LPM
2 SR0101 Switch and Fuse Kit
SR0111 Switch and Fuse Kit, Lighted
3 R019493-001 Fuse Kit (includes fuse holder and 2A fuse)
4 R001868 RF Remote and Controller Kit Used with Aftermarket Kit SR0113 3
5a R060733-001 LED Strip, RGB, 16' Length 8" Lead
5b R060733-002 LED Strip, RGB, 16' Length 26" Lead 6
6 SR0109 IR Remote and Controller Kit RGB
7 SR0114 IR Remote Used with SR0109 (item 6)
8 R001869 RF Remote and Controller Kit Used with Aftermarket Kit SR0112 3
9a R001718 Harness w/ Bungee used with canopy with metal wrap
9b R060740-001 Harness, Twisted, 24awg, 16' Length
9c R060718-001 Harness, Twisted, 24awg, 22' Length Used on Big Box Awnings
10 R040616-206 Wire Channel 43" Length
11 R001716 Slot Cover 24" Length
12 R060724-001 Power Cord, 12V External Power Supply
13 R060275 Power Socket, 12V External Power Supply
14 R060725-001 AC/DC Power Supply 110AC to 12Vdc External Power Supply
15 SR0113 White LED Upgrade Kit Not Shown 4
16 SR0112 RGB LED Upgrade Kit Not Shown 5
Notes: 1. LED strips (items 1 & 5) are sent on rolls and cut to length during installation.
2. Item 1c (LED Strip, White, 49" Length) is used for Marquee awnings 66" or shorter.
3. RF remotes are not available separately. It is necessary to replace the remote and controller.
4. White LED upgrade kit (SR0113) contains items 1b, 4, 12, 13 & 14.
5. RGB LED upgrade kit (SR0112) contains items 5b, 8, 12, 13 & 14.
6. LED strips with 26" leads are used for awnings 19' and longer to allow the strip to be centered.
7. Some OEMs may offer alternate white LED’s:
Warm White: R001883 3000K 16' Length 8" Lead 60 LPM
(Yellow) R001884 3000K 16' Length 26" Lead 60 LPM
Warm White R001885 2500K 16' Length 8" Lead 60 LPM
(Pink) R001886 2500K 16' Length 26" Lead 60 LPM
8. White and RGB components are NOT interchangeable.
9. IR and RF receivers and remotes are NOT interchangeable.
LED502a
ON
OFF
WHITE LED COLOR LED
OFF ON
WRGB
FLASH
STROBE
FADE
SMOOTH
Factory Installed Power Harness
External Power Harnesses
(used with Aftermarket kits SR0112 & SR0113)
LED CONTROLLER
RF Wireless
LED CONTROLLER
used with Aftermarket kit SR0113 used with Aftermarket kit SR0112
15
3
2
4
6
8
7
10
11
9
13
14
12
