Carepeutic KH296 User manual

Motorized Foot and Leg Spa Bath Massager
ATradition for Foot Reflexology
Instruction Manual
Model: KH296
This user manual provides both operation information of this product and its detailed
specifications. Read this manual and understand it thoroughly before operating.

2
*** Keep this manual for future reference ***
READ AND SAVE IMPORTANT SAFETY INSTRUCTIONS
SAFETY NOTE:
Attention: Never try to turn on the power or operate this device without having
water inside the container.
Attention: This device is designed for private use, not intended for medical or
commercial purpose. Children should be supervised to ensure that they do not use this
device as a toy.
CAUTION:
•Never try to turn on the power or operate this device without having water
inside the container.
•Do not immerse the device into water for cleaning.
•DO NOT attempt to stand up on this device or its water container or walk into
the foot bath container. Use it only when you are being seated on a chair or
sofa.
•Do NOT try to plug or unplug the power source if your hands are wet. Do not

3
try to touch the control panel if your hands are wet.
•Do not use the device if you are hungry, right after meal, drunk, or right after
extreme exercise.
•Do NOT use the device if you have wound or after surgery and not yet fully
recovered on legs or feet.
•Do NOT use this device continuously for more than 50 minutes at a time. The
device has preset working time of 50 minutes. It'll automatically turn off when
the time is up. It is recommended to take a 10 to 15 minutes break for every 50
minutes of use.
•Do not use this product while you are sleeping and avoid falling asleep while
the product is operating.
•Always remove the plug from the power outlet after use. Never leave this
device unattended while power is connected.
•Never use the device close to heater, fireplace, stove or heat source.
•Always escort and pay attention while children, patients, disabled and elderly
people are using this device.
•Never use the device if the plug or wire is damaged, not in a smooth operation
as it should be, broken or wet.
•People with heart disease or prohibited to have excited exercise should not use
this device unless you have consulted with your doctor.
•People with skin allergy, wounded or after surgery and not well recovered
should not use this device unless you have consulted with your doctor.
•Unauthorized person is not allowed to reconstruct or replace the component of
this device.
•Do not use this device in sauna room or bath room, or in area where has high
humidity.
•Close supervision is necessary when this appliance is used by, close or next to
children, invalids, or disabled person.
•Never let children, mental retarded and people with difficulty in action to
operate this device and to reach the power source.
•If the device was not used for a long time, check it first before use again.
•Extensive use could lead to the product’s excessive heating and shorter life.
Should this occur, discontinue use, unplug the power source and allow the unit
to cool before operating again.
•DO NOT use this product as a substitute for medical attention or treatment.
•This product is designed for home use only.
MEDICAL NOTES:
1. To avoid excessive stimulation of skin, the massage time should not exceed
the recommended 50 minutes at a time (its default time).
2. If your doctor / orthopedist does not particularly forbidden foot spa massage,
you can enjoy the massage following your doctor's instruction.
3. A massage should never feel unpleasant. Should pain or discomfort result,
discontinue use and consult your doctor.

4
4. Over exaggerated massage can also harm the body.
5. People who are unable to feel normal temperature, the ill persons undergoing
medical treatment and children should not use this device. In case of injuries
to legs and feet, a massage can be dangerous. If in doubt, talk to your doctor
beforehand.
WARNING 一TO REDUCE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS:
1. This device should never be left unattended when plugged in. Unplug from
outlet when not in use.
2. Close supervision is necessary when this device is used by, on, or near
children, invalids, or disabled persons. THIS DEVICE IS NOTATOY.
3. Use device only for its intended use as described in this manual.
4. Never operate this unit if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Return the
product to service center for examination and repair. Never try to repair this
device by yourselves.
5. Do not carry this unit by the supply power cord or use the power cord as a
handle.
6. Turn all controls to OFF position, before removing plug from outlet.
7. Use only the original adaptor that comes with the device.
8. It is recommended not to use any electronic devices while using the foot spa
massager, avoid possibly dropping electronic devices into water container.
NOTICE: this massager should not be used in the following cases:
•Massage should be comfortable and pleasant. Should pain or discomfort result,
discontinue use and consult your doctor.
•Avoid the use of an extension cord because the extension cord may overheat
and cause a risk of fire.
•This product should never be used by an individual with a medical condition
that would limit the user capability to operate the controls.
•Never use this product directly on swollen or inflamed areas of the skin or on
areas where skin eruptions are present.
•Do not operate after taking pain killers, sedatives or alcohol. Consult your
doctor if under these medications.
•Always unplug the power cord from the electrical outlet after using it and
before cleaning it.
•Keep power cord away from heat or wet sources.
•DO NOT immerse this device in water or with any other liquid.
•DO NOT use attachments that are not recommended by manufacturer with this
device.
•Do not use it when you have insensitive skin in your targeted areas or in the
environment of poor air circulation. The unattended use of heat by children or

5
incapacitated persons may be dangerous.
•It is recommended not to use the device 30 minutes before or after meal.

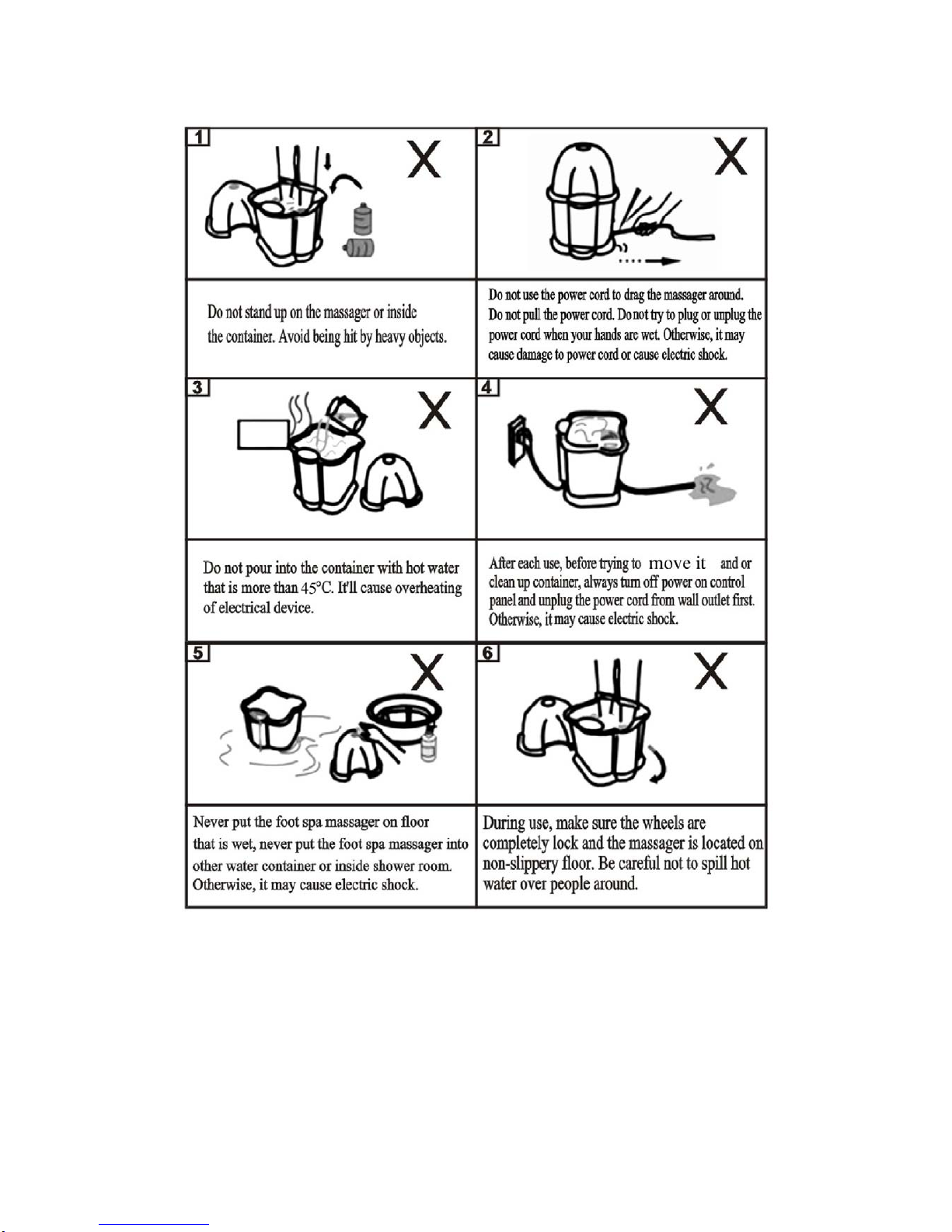

SPECIALWARNING:
•DO NOT place or store this device where it can fall or be pulled into a tub or
sink.
•DO NOT place in or drop into water or other liquid.
•DO NOT attempt to plug or unplug the power source while your feet are in the
water container.
•Use the device on a dry sturdy level surface.
•Always unplug the power source when loading water or moving the unit.
•Consult your doctor before using this device if you have diabetes, as diabetes
can contribute to foot problems including decreased feeling or circulation to the
feet.
•If you take foot spa everyday, you should rub lotion or skin moisturizer and wear
socks for keeping warm after taking foot bath.
ATTENTION:
•This device is being tested with water at factory, if there is any water drops left
inside water container, it is normal.
•To speed up water heating time and save electricity, it is fine to put warm
water into water container, but the warm water temperature should be less than
40℃Celsius degrees.
•Do not leave water inside the water container if the room temperature is lower
than 0℃. Frozen water inside the device may cause damage to its components.

6

7
1Main Parameters
•Rated voltage: 110VAC
•Rated frequency: 60HZ
•Rated power: 900W (KH296)
2Operation Instruction:
NOTE: You must fill in water before turning on the foot bath massager. Never try to
operate this device without having water inside the container.

8
1 Stabilize the
Device Allocate the appliance on the flat floor where you want to use, LOCK the Mobile Caster (4 wheels on bottom) so that the appliance will not
move during use. (Do Not plug in power cord to wall outlet now).
4 wheels on bottom of massager:
For easy transport, these 4 wheels are not assembled in factory. Gently
slide in the wheels and lock it once the massager is ready to use.
Note: once you assemble the wheels, do NOT try to pull it out again;
otherwise, it'll cause damage to the wheel lock.
2 Filling in Water You must fill in water before turning on the foot bath massager. Never
try to operate this device without having water inside the container.
There is marking of maximum water level inside water container.
Never filling in water that is more than its maximum water level.
After filling in water, plug in power cord to wall outlet.
3 ON/OFF Press ON/OFF button once, “ON/OFF” indicator light is on in red, the
two-digit LED display shows the current water temperature; Press the
ON/OFF button again to turn off power completely.
4 Heating
/water wave Press the Heat/Water Wave button once (first time), the water bump starts operating under water jet mode. When the water temperature is
lower than the preset minimum of 35°C, the Heat/Water Wave
indicator light is on in yellow and the heat function will automatically
turn on, and then the heat function stops when the water temperature
reaches its preset maximum of 47°C and its Heat/Water Wave
indicator light is on in green.

9
By now, the Temp+/- button is ready to use. You can press Temp+/-
button to adjust the water temperature you like (35°C - 47°C). After
you press the Temp+/- button to adjust the water temperature, its
indicator light is on in yellow, after 3 seconds, the screen will display
the current water temperature in container. The heat function will
automatically turn on and stop when the water temperature reaches
the temperature you just set.
Now, if you press the Heat/Water Wave button second time, the
Auto-Temperature-Balance Heating system will stop working, and the
screen will only display the current water temperature, the Temp+/-
button cannot be used, its indicator light is off.
5 Temp+/- The Temp+/- button can be used ONLY when you turn on the
Heating/Water Wave button. If you do not press the Temp+/- button to
adjust the temperature, the water temperature will stay between
35°C/95°F - 47°C/116°F (default setting). The Auto Temperature
Balance Heating system will turn on/off the heat function
automatically.
6 Rolling Massage Press the Rolling Massage button once, the motorized rolling
massaging starts, its indicator light is on in yellow. Press the Rolling
Massage Button once again, it stops and its indicator light is off.
7 Two-Digit display When the power is turned on, the LED screen displays current water
temperature.
8 Timer The device has preset working time of 60 minutes. It'll stop working
when the time is up. If you want to use it for longer time, turn on the
power again. It is recommended to take a 10 to 15 minutes break for
every 30 minutes of use.
9 Water Drainage After each use, before trying to drain out water, always turn off power on
control panel and unplug the power cord from wall outlet first.
Move the water container to where you want to drain out water and then
lower down the water valve from water container wall and release the
lock on valve to drain out water.
Remember to close the valve lock after drainage.
10 Clean up After each use, before trying to clean up the container with dry towel,
always turn off power on control panel and unplug the power cord from
wall outlet first.
3Features
•Motorized rolling massage with four massage rollers.
•Temperature control: Set the temperature according to your need.
•Digital Heating with automatic balancing system: Adjustable heating temperature with LED
display, 35°C (95°F minimum) - 47°C (116°F maximum). The heat function will be turned

10
on/off automatically when the water temperature is lower than 35°C or higher than 47°C. But
you can also set the water temperature you like (35°C - 47°C).
•Two water jets surfing water cycle with 300 massage burls simulating foot reflex zones.
•Mobile Caster: the dexterous caster makes it easy to move around for storage or transit.
•Static drainage function: the unit has built in drain valve that makes it easy to drain water.
•With transparent cover, avoid water spilling out.
•Water volume: 20 liters

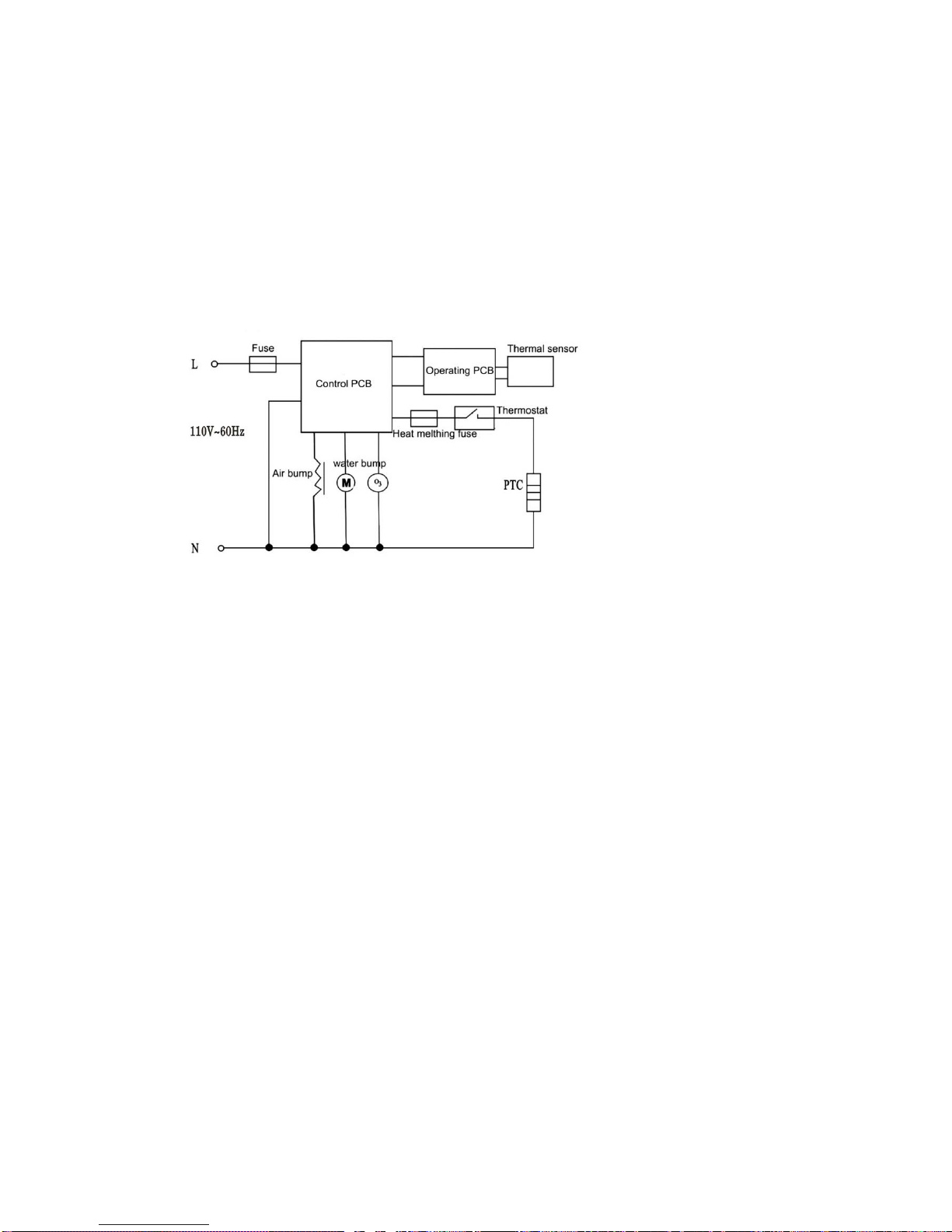

4Circuit board diagram
5Cleaning and Maintenance
•Before draining out the water from the water container or cleaning the appliance,
you must turn off the device and unplug the power cord from the electric outlet..
•It is recommended to always drain out water along the drain valve; do not pour
water over the control panel.
•Clean the device only with a soft cloth and mild cleansing agent. (Never use strong
abrasives, detergents or cleaning agents.)
•DO NOT immerse the appliance in water or under shower.
•Gently wrap the power cord around the cord wrap storage on the bottom of device.
•It is not recommended to put in tea bag, salt or other detergents; if you do, try to
clean up right after use so as to avoid leaving anything inside water valve. To clean
up, you can put in some clean water and turn it on for 1 minute and follow the water
drainage procedure to drain out water.
6Storage
Unplug the appliance from the electric outlet and allow it to cool down and get dried.
•Store it in its box or in a clean, dry place.
•DO NOT hang the unit with the power cord.
•This appliance is designed for indoor use only.

11
Correct Disposal of this product
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this
product for environmental safe recycling.
Troubleshooting:
Problem Cause Solutions
Water Jet not working check the water filter clean up the water filter if necessary
Heating not working it may reach the preset maximum water temperature Press the Temp+/- to adjust the preset water temperature.
preset working time is up
(max. is one hour).
Try to turn off the power source
completely for a while and turn
on the power again
Device stops working
the water temperature is too
high.
try to put in some cold water to
cool down the water
temperature
Note: This product is not intended to diagnose, treat, cure, or prevent any disease.
Limited Warranty
Please contact seller for warranty. Limited warranty from manufacturer only for original purchaser
against manufacturing or workmanship defect under normal use. Due to the hygiene or rehabilitation
nature of this product, it is non-returnable.
Carepeutic® is a registered trademark, all rights reserved, © Q.L.M.
www.ideatomorrow.com
Powered by Carepeutic® Global Lab
