Carestream DENTAL CS 8200 3D User manual

User Guide
CS 8200 3D Scan Ceph
English

Notice
Congratulations on your purchase of the Cephalometric Modality for the CS 8200 3D. Thank
you for your confidence in our products. We will do everything we can to ensure your complete
satisfaction.
The Cephalometric Modality User Guide includes information on the Cephalometric modality
for the CS 8200 3D. We recommend that you thoroughly familiarize yourself with this Guide
in order to make the most effective use of your system.
For Panoramic and 3D Modalities, see the Panoramic and 3D Modalities for CS 8200 3D
User Guide (SMA65).
The CS 8200 3D comprises the panoramic modality and the dental volumetric reconstruction modality
(3D focused teeth acquisition and 3D full upper and lower jaw acquisition).
The CS 8200 3D can be upgraded to the cephalometric modality with the Scan Ceph module option.
The system has the capability to expand the cephalometric 26x24 FoV with license upgrade.
The information contained in this Guide may be subject to modification without notice,
justification or notification to the persons concerned.
No part of this Guide may be reproduced without the express permission of Carestream Dental
LLC.
The US Federal law restricts this device to sale by or on the order of a physician.
This document is originally written in English.
Manual Name: Cephalometric Modality User Guide for CS 8200 3D
Part Number: SMA82
Revision Number: 01
Print Date: 2022-01
The CS 8200 3D complies with Medical Device Directive 93/42/EEC until September 14th,
2022. After this date, the products will be certified according to Medical Device Regulation
(EU) 2017/745 and Medical Devices Regulations 2002 (SI618) as subsequently amended
by the EU Exit Regulations of 2019 (SI 791) and 2020 (SI 1478).
WARNING: We recommend that you consult the “Safety, Regulatory and
Technical Specifications User Guide” (SMA67) before using the
Cephalometric Modality for the CS 8200 3D.

iii
Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01
Contents
Chapter 1
Conventions in This
Guide
Conventions in this Guide. . . . . . . . . . . . . . . . . . . . . . 1
Chapter 2
Cephalometric
Modality Overview
Mobile Components. . . . . . . . . . . . . . . . . . . . . . . . . 3
General Functional Components . . . . . . . . . . . . . . . . . . 4
Digital Sensor Locations . . . . . . . . . . . . . . . . . . . . . . 5
Head and Chin Rest . . . . . . . . . . . . . . . . . . . . . . 6
Positioning Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cephalometric Modality Positioning Accessories . . . . . . 8
X-ray Remote Control Overview . . . . . . . . . . . . . . . . . . 9
Chapter 3
Imaging Software
Overview
Computer System Requirements . . . . . . . . . . . . . . . . . . 11
General Software Overview. . . . . . . . . . . . . . . . . . . . . 11
CS Imaging Software . . . . . . . . . . . . . . . . . . . . . 11
Cephalometric Acquisition Interface . . . . . . . . . . . . . 11
CS Acquisition Software . . . . . . . . . . . . . . . . . . . 11
Cephalometric Acquisition Interface Overview. . . . . . . . . . . 12
Chapter 4
Getting Started
Switching on the Unit . . . . . . . . . . . . . . . . . . . . . . . . 15
Increasing the operating life of the X-ray tube . . . . . . . . 15
Firewall or Network Settings . . . . . . . . . . . . . . . . . . . . 16
Accessing the Cephalometric Acquisition Interface . . . . . . . . 17
Displaying the User Preferences . . . . . . . . . . . . . . . . . . 17
Chapter 5
Pediatric Use:
Summary of Safety
Instructions
Device Specific Features and Instructions . . . . . . . . . . . . . 20
Patient Size Selection . . . . . . . . . . . . . . . . . . . . . 20
Imaging Mode Selection . . . . . . . . . . . . . . . . . . . . 20
Field of View Selection . . . . . . . . . . . . . . . . . . . . 20
X-ray Dose Information. . . . . . . . . . . . . . . . . . . . . 20
Additional Features to Simplify X-ray Imaging of Children
and Adolescents . . . . . . . . . . . . . . . . . . . . . . . . 21
References for pediatric dose optimization. . . . . . . . . . . . . 21
Quality Control Testing . . . . . . . . . . . . . . . . . . . . . . . 21
Chapter 6
Acquiring Images
using the
Cephalometric
Modality
Acquiring a Lateral Image for the Adult and Pediatric Patient . . . 23
Setting the Acquisition Parameters . . . . . . . . . . . . . . 23
Preparing and Positioning the Adult and Pediatric Patient . . 24
Launching the X-ray . . . . . . . . . . . . . . . . . . . . . . 26
X-Ray Dose Emission Information. . . . . . . . . . . . . . . . . . 27

iv
Acquiring a Frontal AP and PA Image for the Adult and Pediatric
Patient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Setting the Acquisition Parameters . . . . . . . . . . . . . 28
Preparing and Positioning the Adult and Pediatric Patient . 29
Launching the X-ray. . . . . . . . . . . . . . . . . . . . . . 31
X-Ray Dose Emission Information . . . . . . . . . . . . . . . . . 32
Acquiring an Oblique Image for the Adult and Pediatric Patient . 33
Preparing the Unit and Setting the Acquisition Parameters . 33
Preparing and Positioning the Adult and Pediatric Patient . 34
Launching the X-ray. . . . . . . . . . . . . . . . . . . . . . 35
X-Ray Dose Emission Information . . . . . . . . . . . . . . . . . 36
Acquiring a Submento-Vertex Image for the Adult and Pediatric
Patient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Preparing the Unit and Setting the Acquisition Parameters . 37
Preparing and Positioning the Adult and Pediatric Patient . 38
Launching the X-ray. . . . . . . . . . . . . . . . . . . . . . 39
X-Ray Dose Emission Information . . . . . . . . . . . . . . . . . 40
Acquiring a Carpus Image for the Adult and Pediatric Patient
(available as an option) . . . . . . . . . . . . . . . . . . . . . . . 41
Preparing the Unit and Setting the Acquisition Parameters . 41
Preparing and Positioning the Adult and Pediatric Patient . 43
Launching the X-ray. . . . . . . . . . . . . . . . . . . . . . 44
X-Ray Dose Emission Information . . . . . . . . . . . . . . . . . 45
Chapter 7
Maintenance
Maintenance actions . . . . . . . . . . . . . . . . . . . . . . . . 47
Monthly maintenance . . . . . . . . . . . . . . . . . . . . . 47
Annual maintenance . . . . . . . . . . . . . . . . . . . . . 47
Controlling the Image Quality . . . . . . . . . . . . . . . . . . . 47
Chapter 8
Troubleshooting
Quick Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 51
Chapter 9
Contact Information
Manufacturer’s Address . . . . . . . . . . . . . . . . . . . . . . 53
Factory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Authorized Representatives . . . . . . . . . . . . . . . . . . . . 53
Authorized Representative in the European Union . . . . . 53
Responsible Person in the United Kingdom . . . . . . . . . 53
Authorized Representative in Brazil . . . . . . . . . . . . . 53
List of Importers for European Union according to
MDR 2017/745 . . . . . . . . . . . . . . . . . . . . . . . . . . 53
List of Importers for Switzerland . . . . . . . . . . . . . . . . . . 54

1
Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01
1 Conventions in This Guide
Conventions in this Guide
The following special messages emphasize information or indicate potential risk to personnel or
equipment:
WARNING: Warns you to avoid injury to yourself or others by following
the safety instructions precisely.
CAUTION: Alerts you to a condition that might cause serious damage.
Important: Alerts you to a condition that might cause problems.
Note: Emphasizes important information.
Tip: Provides extra information and hints.

Chapter 1 Conventions in This Guide
2

3
Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01
2 Cephalometric Modality Overview
Mobile Components
Figure 1 illustrates the:
Up and down movement of the unit mobile components
Rotation and translation movement of the rotative arm and the cephalostat
Figure 1 Unit Mobile Components
Important: The patient can enter either the left side or the right side
of the unit.

Chapter 2 Cephalometric Modality Overview
4
General Functional Components
The following figure illustrates the general functional components of the unit.
Figure 2 Unit Functional Components
1 Unit rotative arm 11 Unit column
2 Unit head 12 Frankfort positioning indicator
3 Emergency stop knob 13 Secondary collimator
4 ON/OFF button 14 Nasion support
5 Cephalostat arm 15 Head clamps and ear cones
6 Cephalostat head 16 Cephalometric digital sensor
7 X-ray source assembly 17 X-ray remote control
8 Head and chin rest 18 Carpus panel (optional)
9 Chin rest and bite block 19 Computer hosting the imaging and the acquisition
software
10 Panoramic/3D digital sensor
17
19
4
12
5
13
3
14 15 16
78910
1
11
6
2
18

5
Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01
Digital Sensor Locations
The following figure illustrates the locations of the digital sensors and cephalometric sensors of the
unit.
Figure 3 Unit Digital Sensor and Cephalometric Sensor locations

Chapter 2 Cephalometric Modality Overview
6
Head and Chin Rest
The following figure illustrates the functional components of the head and chin rest.
Figure 4 Head and Chin Rest Functional Components
1 Positioning Panel 4 Bite block support
2 Temple support adjustment knob 5 Chin rest
3 Temple supports 6 Hand grips
3
5
4
1
6
2

7
Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01
Positioning Panel
The positioning panel is a console on the head and chin rest that enables you to correctly position and
align a patient before you acquire an image.
Figure 5 Unit Positioning Panel
1:
Height Adjustment buttons: Adjusts the height of the unit to the height of the patient.
When the unit is not in use, places the rotative arm in a parallel position to the unit head,
leaving more free space around the unit. To do so:
press and hold both buttons until the Ready Indicator LED switches off.
When you release both buttons, the Ready Indicator LED will flash before the rotative arm
turns to the parallel position.
2: Ready Indicator LED: Green indicates that the unit is ready for acquisition.
3: Temple support adjustment knob: Opens and closes the temple supports when you turn
the knob.
11 2 3

Chapter 2 Cephalometric Modality Overview
8
Cephalometric Modality Positioning Accessories

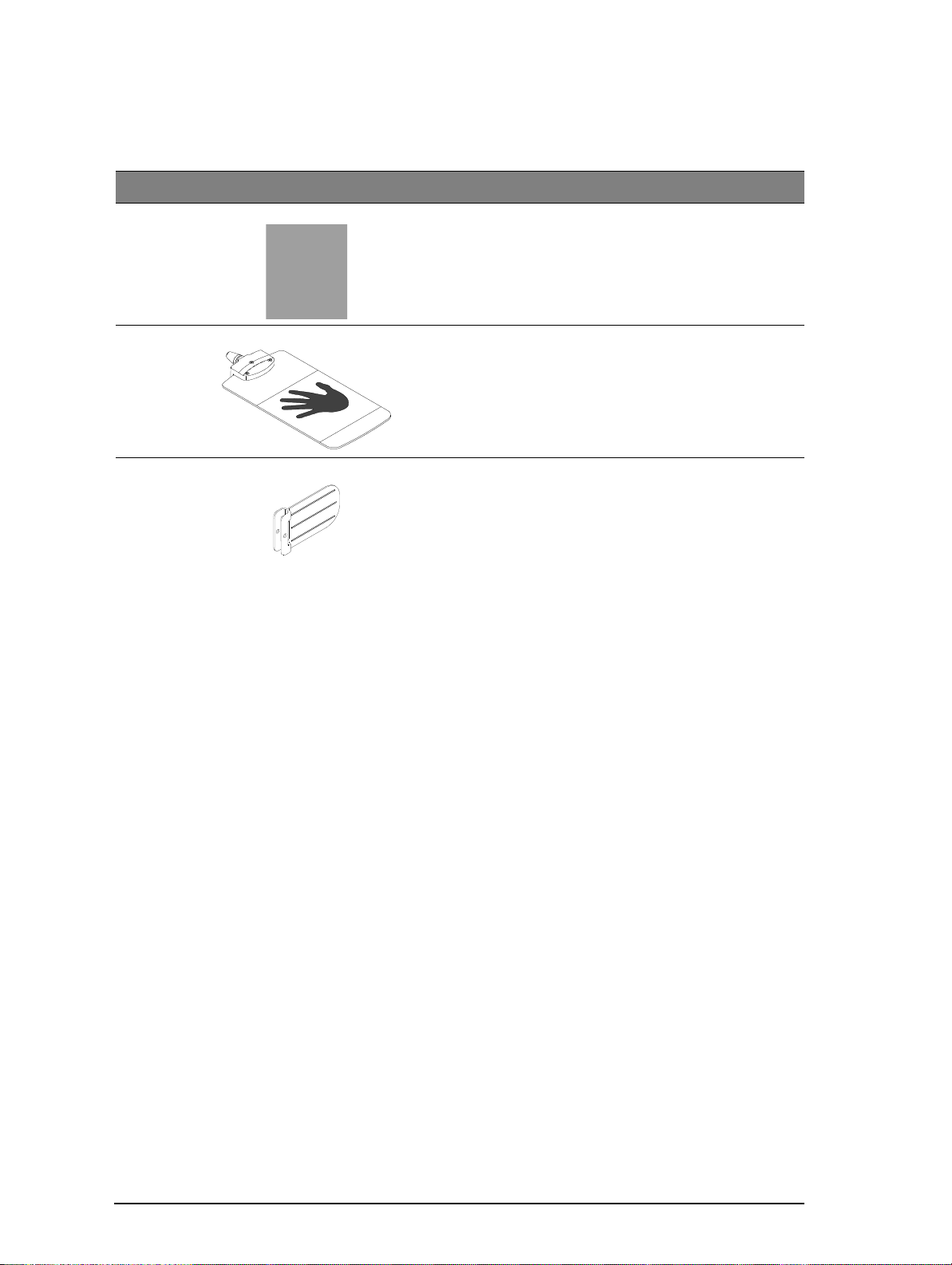

The following accessories are used when positioning a patient using the Cephalometric Modality.
Table 1 Cephalometric Modality Positioning Accessories
Accessory Description
Single use sheaths for ear cones
Carpus panel (optional)
Frankfort positioning indicator

9
Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01
X-ray Remote Control Overview
The X-ray remote control enables you to launch a radiological image acquisition via the exposure button
from outside the X-ray room. You must press and hold the exposure button until the end of acquisition.
Premature release of the exposure button interrupts the acquisition.
Figure 6 X-ray Remote Control
1Exposure button: launches image acquisition.
1
WARNING: X-rays can be harmful and dangerous if not used properly.
The instructions and warnings contained in this guide must be followed
carefully.

Chapter 2 Cephalometric Modality Overview
10

11
Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01
3 Imaging Software Overview
Computer System Requirements
For minimum computer system requirements and configuration for the CS Imaging Software,
see the CS 8200 3D Safety, Regulatory and Technical Specifications User Guide
(SMA67).
General Software Overview
The Cephalometric Modality operates with the following software:
In the Dental environment:
CS Imaging Software (version 8 minimum)
Cephalometric Acquisition interface
In Digital Imaging and Communication in Medicine (DICOM) environment:
CS Acquisition software
Cephalometric Acquisition interface
CS Imaging Software
The CS Imaging Software is a user-friendly working interface designed and developed
specifically to support image diagnosis.
Cephalometric Acquisition Interface
The Cephalometric Acquisition interface is a user-friendly interface specifically designed
and developed for the CS 8200 3D Cephalometric Modality.
CS Acquisition Software
The CS Acquisition software is recommended for the DICOM environment instead of the CS
Imaging software. For more information, see the CS Acquisition User Guide.
WARNING: It is MANDATORY to check that the computer system
configuration is compatible with the computer system requirements
for the CS 8200 3D software. If necessary you MUST update your
computer system configuration.
The CS 8200 3D MUST be connected to the computer via a
point-to-point Ethernet link and not via a LAN.

Chapter 3 Imaging Software Overview
12
Cephalometric Acquisition Interface Overview
The Cephalometric Acquisition interface provides you with imaging acquisition functions.
Figure 1 Cephalometric Acquisition Interface
1Program pane and Preview screen: Displays the choice of programs and enables you
to choose different radiological exams according to the unit edition that you have.
2Selected parameter display: Displays the current acquisition parameter settings:
Patient type: Child, Adult (small, medium, large).
3 Exits the acquisition interface.
4Exposure parameter panel: Enables you to choose and save exposure parameters for
the radiological image acquisition.
5Imaging mode: Imaging mode that you can select before doing an exam (Fast or High
Resolution).
6Parallel position button: Leaves more free space around the unit when it is not in use
by placing the rotative arm in a parallel position to the unit head.
7Reset button: Resets the unit to the patient-entry position to enable you to position a
patient in the unit.
8Demo: Enables you to demonstrate the acquisition procedures to a patient without the
X-ray.
9
Accessory pop-up and patient head position: Will appear on the interface when you
click to choose a radiological exam, showing you how place the head clamp and
correctly position the patient head.
Important: See the CS 8200 3D Safety, Regulatory and Technical Specifications User
Guide (SMA67) for information on radiation protection and recommendations when you
select a patient type, especially the pediatric patient.

13
Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01
10
Ready Indicator LED
Black indicates the unit is not ready to start acquisition.
Orange indicates the unit preparing for acquisition.
Green indicates the unit is ready to start acquisition.
11 Warning: Indicates that you must consult the accompanying document.
12
Ionizing radiation:
Warns you about radiation dangers.
Blue indicates the X-ray is enabled.
Grey indicates the X-ray is not enabled.
13
Menu: Provides access to the following sub-menus: General Settings, Reset to factory,
About, Help. You can select the settings that you want as default settings for the
acquisition interface. See “Displaying the User Preferences” .

Chapter 3 Imaging Software Overview
14

15
Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01
4 Getting Started
Switching on the Unit
Before switching on the unit, check that:
The installation of the unit is complete.
The computer is switched on.
The imaging software is not opened.
To switch on the unit, follow these steps:
1. On the unit column, press the ON button.
2. You must wait for a minute for the connection between the unit and the computer to be
established. If you start the imaging software before the connection is established an error
message is displayed. Click OK, close the imaging software and wait for the connection to be
established.
3. You can now proceed to start the CS Imaging Software.
Increasing the operating life of the X-ray tube
To increase the operating life of the X-ray tube, follow these steps:
1. In the Panoramic Acquisition Window, select the Parameter pane.
2. Select the following parameter setting: 70 kV - 6.3 mA
3. Leave the X-ray room and close the door.
4Launch an X-ray for the parameter setting by pressing and holding the X-ray remote control
exposure button.
5Repeat Steps 2 to 4 for the following parameters:
80 kV - 10 mA
85 kV - 10 mA
The unit is now ready to be used for acquisition.
Important: You must switch on the computer and wait for it to
be ready for the connection before switching on the unit.
Important: To increase the operating life of the X-ray tube, on
first loading and if the unit has not been used for a month, you
must follow the following procedures before use.

Chapter 4 Getting Started
16
Firewall or Network Settings
You will not be able to access the Cephalometric Acquisition interface if you did not configured the
firewall or network settings.
To configure the firewall or network settings, follow these steps:
1On your desktop, double-click to open the CS Imaging Software.
The Windows Security Alert dialog box displays. Select Private networks, Public networks, and
click Allow access.
2Click Quit on the following dialog box:
3Close the imaging software.
4On your desktop, double-click to re-open the imaging software.
Note: See your firewall documentation for information on how to
configure the firewall or network settings.
