Carlisle DeVILBISS GFC-501 User manual

INSTALLING THE LID
Place plastic lid on the top of the cup, and hand tighten.
Fold vent cap and push onto center portion of lid
(if vent cap is not already assembled).
PAINTING
This disposable liner allows you to spray
in any position, even upside down. To spray upside
down, you must first purge the air from the cup liner.
To purge air from cup liner:
1. Connect to proper air supply (minimum of 30 PSI)
2. Turn cup upside down (See Figure below)
3. Trigger gun until a constant paint flow is observed.
CLEANING
Note
For routine cleaning, it is not necessary to
remove cup from gun. Do not remove washer
(3) from gun. If washer (3) is removed, it
must be replaced.
Remove lid and properly dispose of any excess paint.
Pour in a small amount of clean solvent. The amount
will vary with different coatings and solvents. Reinstall
lid. Shake cup to wash down the inside surfaces. Pull
trigger to allow some solvent to be flushed through
gun. Remove lid and pour out dirty solvent. Add a
small amount of clean solvent and repeat procedure.
Wipe exterior of cup and lid with a clean cloth and
clean solvent.
If a paint filter was used in the bottom of the cup
outlet, it should be removed and cleaned or replaced
at this time.
Important: Before using this equipment, read all safe-
ty precautions and instructions. Keep for future use.
Note
This cup is compatible for use with Haloge-
nated Hydrocarbon solvents such as 1, 1,
1 Trichloroethane and Methylene chloride.
DESCRIPTION
GFC-501 (acetal) 20 Oz. Cup
This gravity feed cup is designed to work with the
GFG, GFHV, GTI and FLG gravity feed spray guns
and with or without the DeVilbiss disposable cup
liner. The cup liner allows painting in any position
and simplifies clean up. The cup is constructed from
acetal which is easier to clean and resists stains better
than nylon. This cup has a unique drip check lid to
prevent paint from dripping out of the vent in the lid. It
has a high grade stainless steel connector, compatible
with waterbornes and all common coating materials.
INSTALLATION
Protective coatings have been used to protect the cup
after manufacture. Flush all equipment with a suitable
solvent before use to remove these coatings from the
material passages.
ASSEMBLY OF CUP TO GUN
1. Remove the cup gasket (3) from the poly bag.
2. Place this cup gasket in the fluid inlet of the gun
body. See Cup Drawings.
3. Store remaining cup gasket in a safe place for
future use.
4. Place filter (4) in cup outlet at this time if desired.
See Cup Drawings.
5. Assemble cup to gun and tighten
hand tight.
FILLING WITH PAINT
Fill the cup with paint to the bottom of the threads.
Do not overfill.
Ref. Replacement
No. Part No. Description
1 GFC-501 Cup Assembly,
20 oz. Acetal
2 GFC-402 Cup Lid Assembly
3 KGP-13-K5 Cup Gasket (Blue)
(Kit of 5)
4 KGP-5-K5 Filter (Kit of 5)

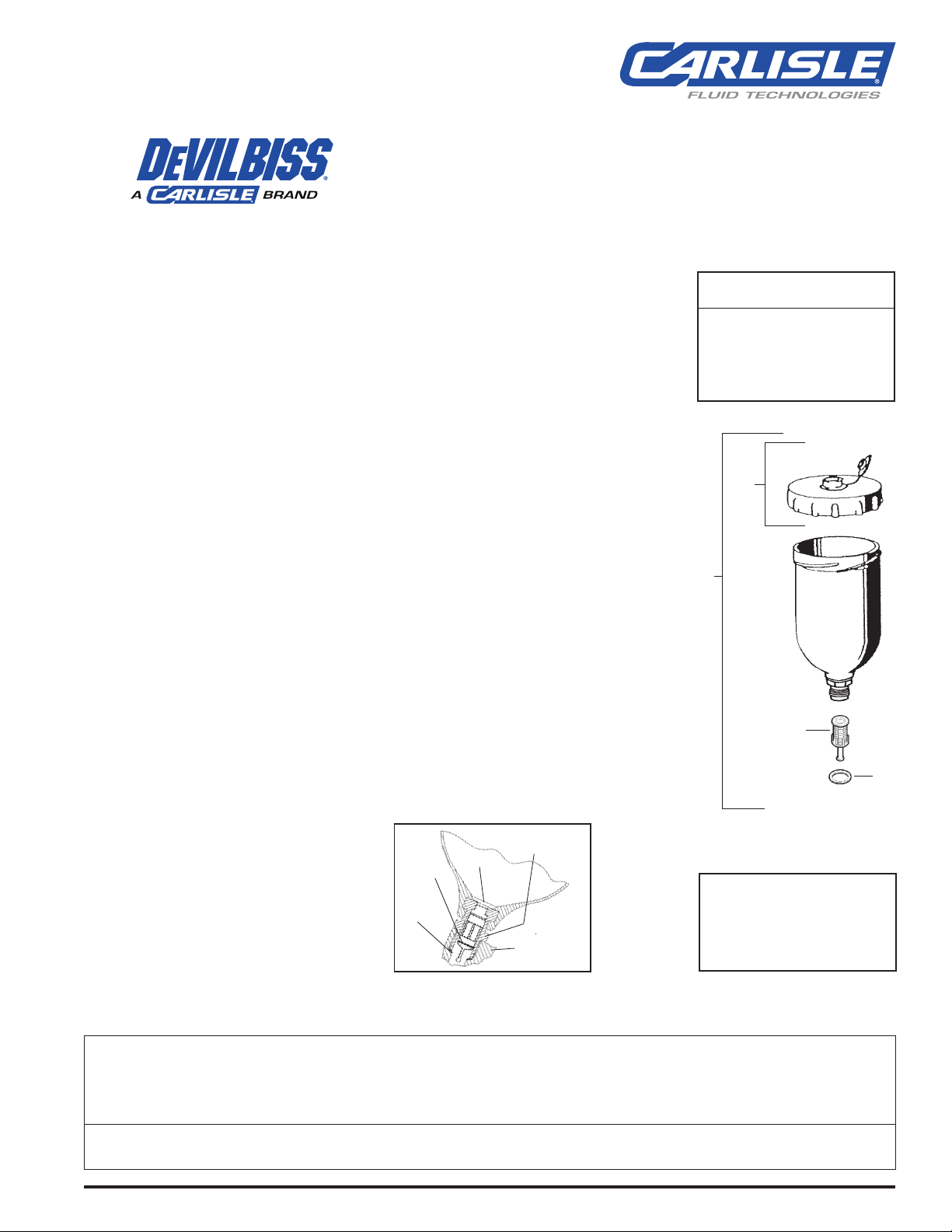

PARTS LIST
1
2
4
3
CUP DRAWINGS
Cup Fitting
Gun Body
Filter (4)
Cup
Gasket
(3)
Drain Hole ACCESSORIES
OMX-70-K48 PAINT CUP LINER KIT
(Not for use with GFC-503 cups)
Allows quick and easy clean-up.
Consists of :
1 - Piercing Tool
48 - Disposable Liners
48 - Drain Bushings
