Carlisle BINKS 183S2 User manual

Important: Read and
follow all instructions
and SAFETY
PRECAUTIONS before
using this equipment.
Retain for future
reference.
DESCRIPTION
Binks pressure feed tanks are intended
for use as a pressure container to supply
material at a constant preset pressure up
to a maximum of 110 psi. The tanks are
built to ASME specifications, and also
certified for vacuum operation.
ACTUAL CAPACITIES
15-Gallon holds 19.8 gallons
STAINLESS STEEL 15-GALLON MODELS
WITH 2 INCH BOTTOM OUTLET
Tank Model Regulation Agitation
183S2-1500 None None
183S2-1510 Single (Regulated air to tank only) None
183S2-1513 Single (Regulated air to tank only) Gear-reduced (Heavy-duty)
183S2-1520 Double (Regulated air to tank and gun) None
183S2-1523 Double (Regulated air to tank and gun) Gear-reduced (Heavy-duty)
183S2-1530 Extra Sensitive (Single) None
183S2-1533 Extra Sensitive (Single) Gear-reduced (Heavy-duty)
183S2-1540 Extra Sensitive w/ gun regulation None
183S2-1543 Extra Sensitive w/ gun regulation Gear-reduced (Heavy-duty)
183S2 (STAINLESS STEEL) 15 GALLON ASME TANKS
2" NPT BOTTOM OUTLET TANKS
77-3137-R2 (12/2018) 1 / 12 www.carlisleft.com
EN
SERVICE MANUAL

LOCK OUT / TAG-OUT
Failure to de-energize, disconnect, lock out and tag-out all power
sources before performing equipment maintenance could cause
serious injury or death.
OPERATOR TRAINING
All personnel must be trained before operating finishing
equipment.
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture,
malfunction, or start unexpectedly and result in serious injury.
PROJECTILE HAZARD
You may be injured by venting liquids or gases that are released
under pressure, or flying debris.
PINCH POINT HAZARD
Moving parts can crush and cut. Pinch points are basically any
areas where there are moving parts.
INSPECT THE EQUIPMENT DAILY
Inspect the equipment for worn or broken parts on a daily basis.
Do not operate the equipment if you are uncertain about its
condition.

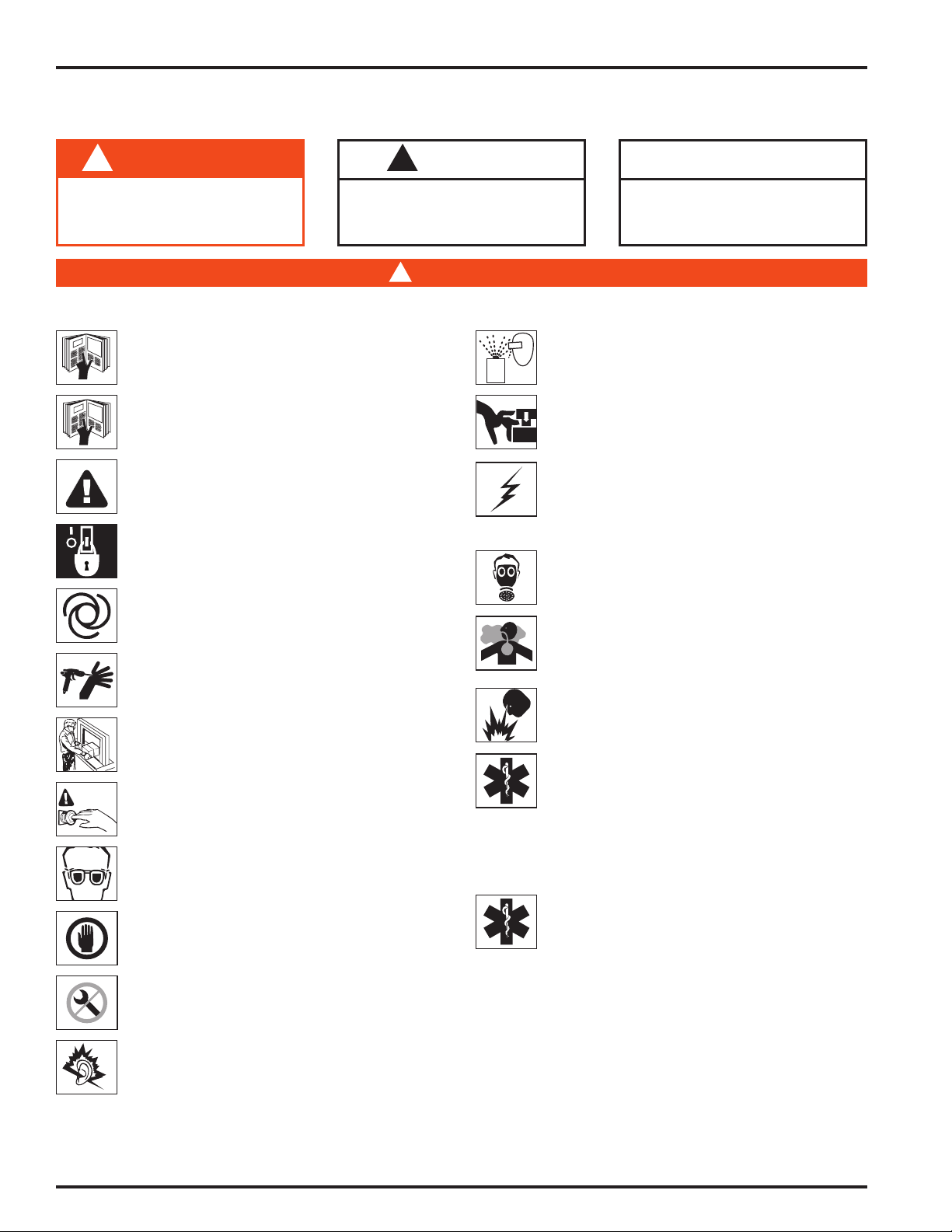

In this part sheet, the words WARNING, CAUTION and NOTE are used to
emphasize important safety information as follows:
Hazards or unsafe practices which
could result in minor personal injury,
product or property damage.
!
CAUTION
Hazards or unsafe practices which
could result in severe personal
injury, death or substantial property
damage.
!
WARNING
Important installation, operation or
maintenance information.
NOTE
Read the following warnings before using this equipment.
READ THE MANUAL
Before operating finishing equipment, read and understand all
safety, operation and maintenance information provided in the
operation manual.
WEAR SAFETY GLASSES
Failure to wear safety glasses with side shields could result in
serious eye injury or blindness.
NEVER MODIFY THE EQUIPMENT
Do not modify the equipment unless the manufacturer provides
written approval.
IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PROVIDE THIS INFORMATION TO THE OPERATOR OF THE EQUIPMENT.
FOR FURTHER SAFETY INFORMATION REGARDING THIS EQUIPMENT, SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300).
KNOW WHERE AND HOW TO SHUT OFF THE EQUIPMENT
IN CASE OF AN EMERGENCY
PRESSURE RELIEF PROCEDURE
Always follow the pressure relief procedure in the equipment
instruction manual.
NOISE HAZARD
You may be injured by loud noise. Hearing protection may be
required when using this equipment.
STATIC CHARGE
Fluid may develop a static charge that must be dissipated through
proper grounding of the equipment, objects to be sprayed and all
other electrically conductive objects in the dispensing area. Improper
grounding or sparks can cause a hazardous condition and result in
fire, explosion or electric shock and other serious injury.
WEAR RESPIRATOR
Toxic fumes can cause serious injury or death if inhaled.
Wear a respirator as recommended by the fluid and solvent
manufacturer’s Safety Data Sheet.
TOXIC FLUID & FUMES
Hazardous fluid or toxic fumes can cause serious injury or death if
splashed in the eyes or on the skin, inhaled, injected or
swallowed. LEARN and KNOW the specific hazards or the fluids
you are using.
KEEP EQUIPMENT GUARDS IN PLACE
Do not operate the equipment if the safety devices have been
removed.
!
WARNING
AUTOMATIC EQUIPMENT
Automatic equipment may start suddenly without warning.
FIRE AND EXPLOSION HAZARD
Improper equipment grounding, poor ventilation, open flame or
sparks can cause a hazardous condition and result in fire or
explosion and serious injury.
MEDICAL ALERT
Any injury caused by high pressure liquid can be serious. If you
are injured or even suspect an injury:
• Go to an emergency room immediately.
• Tell the doctor you suspect an injection injury.
• Show the doctor this medical information or the medical alert
card provided with your airless spray equipment.
• Tell the doctor what kind of fluid you were spraying or
dispensing.
GET IMMEDIATE MEDICAL ATTENTION
To prevent contact with the fluid, please note the following:
• Never point the gun/valve at anyone or any part of the body.
• Never put hand or fingers over the spray tip.
• Never attempt to stop or deflect fluid leaks with your hand,
body, glove or rag.
• Always have the tip guard on the spray gun before spraying.
• Always ensure that the gun trigger safety operates before
spraying.
EN
77-3137-R2 (12/2018)2 / 12www.carlisleft.com

5/10/15-GALLON STAINLESS STEEL TANK ASSEMBLIES – SAFEGUARDS
HAZARD CAUSE SAFEGUARDS
Fire
Solvents and coatings can be highly
ammable or combustible, especially
when sprayed.
1. Adequate exhaust must be provided to keep the air free
of accumulations of ammable vapors.
2. Smoking must never be allowed in the spray area.
3. Fire extinguishing equipment must be present in the
spray area.
Fire – Pressure tank
Vapors from ammable liquids can
catch re or explode. Keep tank at least 10 feet away from sources of ignition. Ignition sources include hot objects, mechanical sparks, and
arcing (non -explosion proof) electrical equipment.
Explosion Hazard –
Pressure Tank –
Static Electricity
Static electricity is created by the
ow of uid through the pressure
tank and hose. If all parts are not
properly grounded, sparking may
occur. Sparks can ignite vapors from
solvents and the uid being sprayed.
1. Ground the pressure tank by connecting one end of 12
gauge (minimum) ground wire to the pressure tank and
the other end to a true earth ground. Local codes may
have additional grounding requirements.

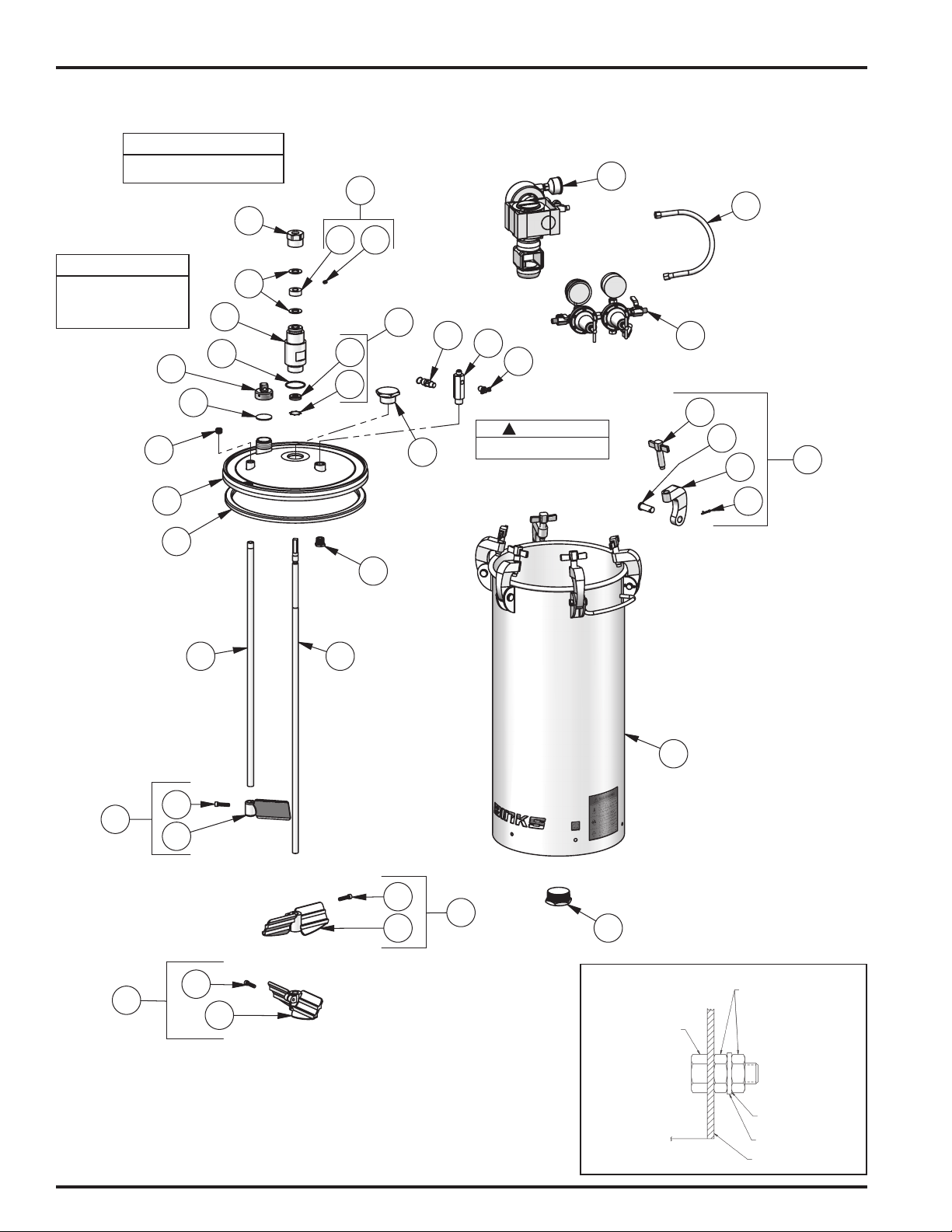

2. See illustration on page 6 for grounding and grounding
hardware required.
Explosion Hazard –
Pressure Tank –
Rupture
Making changes to a pressure tank
will weaken it.
1. Never drill into, weld, or modify the tank in any way.
2. Do not adjust, remove, or tamper with the safety valve.
If replacement is necessary, use the same type and rating
of valve.
Explosion Hazard –
Galvanized Tanks –
Material Compatibility
Halogenated hydrocarbon solvents
– for example 1-1-1 Trichloroethane
and methylene chloride – can
chemically react with aluminum
parts and components and cause an
explosion hazard. These solvents
will also corrode the galvanized tank
coating.
1. Read the label or data sheet for the material. Do not
use materials containing these solvents with galvanized
pressure tanks. Stainless steel tank models may be used
with halogenated solvents.
2. Refer to specications chart to ensure that uids are
chemically compatible with the tank wetted parts.
Before placing uids or solvents in tank, always read
accompanying manufacturer’s literature.
General Safety
Improper operation or maintenance
may create a hazard.
Operators should be given adequate training in the safe
use and maintenance of the equipment (in accordance with
the requirements of NFPA-33, Chapter 15 in U.S.) Users
must comply with all local and national codes governing
ventilation, re precautions, operation, maintenance, and
housekeeping (in the U.S., these are OSHA sections 1910.94
and 1910.107, and NFPA-33.
The following hazards may occur during the normal use of this equipment. Please read the following chart.
WARNING
High pressure can cause
serious injury.
Pressure is maintained in a
pressure tank after the
system has been shut
down.
Always follow this
procedure to relieve
pressure from the tank.
!
1. Turn off the main air supply to the tank.
2. Close the air inlet valve located on the tank air manifold.
3. Bleed off air in the tank by turning the air relief valve (5) thumb screw counterclockwise. Wait until all the
air has escaped through the valve before removing the pressure tank cover or fill port cap.
4. Leave the air relief valve open until you have reinstalled the tank cover or fill port cap.
PRESSURE RELIEF PROCEDURE
To reduce the risk of injury, follow the pressure relief procedure below
• Before checking or servicing any
part of the spray system
• Before attempting removal of fill
port cap or tank cover
• Whenever the tank is left
unattended
EN
77-3137-R2 (12/2018) 3 / 12 www.carlisleft.com

5/10/15-GALLON STAINLESS STEEL TANK ASSEMBLIES – SPECIFICATIONS & OPTIONS
SPECIFICATIONS
STAINLESS STEEL TANKS
Maximum Working Pressure 110 psi
Tank Shell 304 Stainless Steel
Tank Lid 304 Stainless Steel
2" NPT Fluid Outlet Bottom 304 Stainless Steel
Agitator Paddle/Propeller Nylon, Glass Filled
Agitator Shaft 303 Stainless Steel
Agitator Shaft Seal Engineered PTFE, Stainless Steel
Air Manifold Steel, Zinc Plate
Plug (Air Manifold Coupling) 18-8 Stainless Steel
AIR CONTROL OPTIONS
TYPE APPLICATION
No Regulation (Air inlet pressure gauge
only)
Holding tanks, Transfer tanks, Used where precision fluid pressure control is not
required.
Standard Single Regulation
Provides standard uid pressure control only. For use where precision control of
both uid and air pressures is not required. Also Used where atomization air can
be taken from lter/regulator air lines.
Standard Double Regulation
Precision control for use with materials that are best applied at low, closely
controlled, uid and atomization air pressures. Used with portable air compressors
or with air lines when no other means of air pressure regulation is available.
Extra Sensitive Regulation Provides extremely accurate, low pressure, uid pressure control
Extra Sensitive Regulation with
Standard Gun Regulation
Provides extremely accurate, low pressure, uid pressure control plus precision
control of spray gun atomizing air.
AGITATION OPTIONS
TYPE APPLICATION
No Agitation Materials that require minimal or no mixing and/or readily hold any solids in
suspension.
Gear-reduced Drive Agitation Heavy-duty agitator for medium to high viscosity materials that require mixing
and/or solids suspension.
TANK CAPACITIES
Nominal
Capacity Actual Capacity
15 US Gallons 19.8 US Gallons
EN
77-3137-R2 (12/2018)4 / 12www.carlisleft.com

5/10/15-GALLON STAINLESS STEEL TANK ASSEMBLIES – OPERATION & SERVICE CHECKS
PREPARATION
Mix and prepare material to be used
according to manufacturer’s instructions.
Strain material through a fine mesh
screen to remove lumps, skin, and
foreign matter that might enter and clog
fluid passages and/or spray equipment.
Follow pressure relief procedure above.
To add material to the tank, remove the
lid and pour directly into the tank or
container.
If desired, a U.S. or metric 1 gallon pail
of fluid can be placed directly into the
tank.
Replace the lid assembly and tighten
thumb screws (17) securely.
The air supply to the tank should include
a filter/water separator to filter dirt from
the air and remove water and oil.
Connect the material hose to the fluid
outlet ball valve (8).
OPERATION
1. Close the air inlet valve to tank. Turn
handle on regulator counterclockwise
until spring tension is relieved.
2. Turn on air supply to the tank.
3. Open the air inlet valve to the tank.
4. Open the fluid outlet valve.
5. Turn handle on tank pressure
regulator clockwise to pressurize tank.
6. Turn on atomization air to spray gun
at source of supply.
7. Test spray. For further instructions
consult literature provided with spray
gun.
8. If an air motor driven agitator is used,
start the agitator by slowly opening
up the needle valve. Air motor speed
should be regulated according to the
nature of the material being agitated.
MAINTENANCE
To clean equipment, proceed as follows:
1. Turn off the air supply.
2. Follow the pressure relief procedure.
3. Turn T-handle adjusting screw on tank
fluid pressure regulator
counterclockwise until no spring
pressure is felt.
4. Loosen thumb screws (17), tip clamps
(16) back and tip lid (11) to one side
of tank. Do not remove lid from tank.
5. Loosen spray gun air cap retaining
ring about three turns.
6. Turn on air supply.
7. Cup cloth over air cap on the gun and
pull trigger. This will force material
back through the hose into the tank.
8. Empty and clean tank and parts that
come into contact with material. Use
a solvent compatible with material
being used.
9. Pour solvent into tank.
10. Replace lid and tighten thumb
screws and clamps.
11. Spray until clean solvent appears.
12. Repeat steps 4 through 8.
LUBRICATION – Agitated Models
Refer to the service manual provided
with the air motor for lubrication
information.
The bearings in the agitator bearing
assembly are impregnated with special
non-gumming oil. Additional lubrication
is not required.
The agitator shaft seal does not require
lubrication.
WARNING
High pressure can cause serious injury.
Pressure is maintained in a pressure tank
after the system has been shut down.
Follow the pressure-relief procedure on
page 3 before opening the lid or fill port
or performing maintenance on the tank.
!
SERVICE CHECKS
CONDITION CAUSE CORRECTION
Air escaping from port on regulator cap. Broken or damaged diaphragm Replace diaphragm.
Pressure creepage registered on gauge. Dirty or worn valve seat in regulator. Clean or replace valve seat.
Material tends to settle out rapidly. Not enough agitation of material. Increase agitation.
Air leakage at agitator seal. Defective seal assembly. Replace.
Paint getting into bearing assembly of
agitator.
1. Paint level in tank too high.
2. Defective agitator shaft seal.
1. Keep uid level under bearing ass’y.
2. Replace
Fluid or air leak at lid gasket. 1. Thumb screw not tight.
2. Defective lid gasket.
1. Tighten.
2. Replace.
Fluid or air leak at ll port gasket. 1. Fill port cap not tight.
2. Defective ll port gasket.
1. Tighten.
2. Replace.
Air mixing with paint 1. Fluid tube not sealed to lid.
2. Excessive agitation.
1. Tighten uid tube into lid.
2. Reduce speed of agitator.
EN
77-3137-R2 (12/2018) 5 / 12 www.carlisleft.com

15-GALLON STAINLESS STEEL TANK ASSEMBLIES
39
13 3812
14
1
2
3
6
78
9
4
15
16
17 11
23
24
25
25
24
35
26
30
31
33
32
19
21
20
36
SOLD SEPERATLY
34
26
27
25
28
22
5
10
37
77-3045
PAGE 6
Grounding Diagram
Purchase hardware locally
5/16–18 x 3/4 Long
Hex Head Bolt
(1 Required)
2X
5/16–18 Hex Head Nut
(2 Required)
Sufficient Length
12 Gauge Wire
(Not Shown)
5/16 Lock Washer
(1 Required)
Tank Skirt (Ref)
NOTE
Use PTFE based thread sealant on
all air and fluid connections.
CAUTION
Use 40 PSI Safety Valve (12) with
an extra sensitive regulator.
!
NOTE
Open side of shaft seal (8)
faces downward.
Retainer (9) required only
for vacuum operation.
EN
77-3137-R2 (12/2018)6 / 12www.carlisleft.com

15-GALLON STAINLESS STEEL TANK ASSEMBLIES – PARTS LIST
ITEM
NO. PART NO. DESCRIPTION 15-GAL QTY.
1▲QMS-46 RETAINING NUT 1
2▲QMG-85 THRUST WASHER 2
3▲----- THRUST COLLAR 1
4▲•----- SET SCREW (5/16-18 X 3/8) 1
5 QMS-447 THRUST COLLAR KIT (INCL 4 & 5) 1
6▲QMS-407 BEARING ASSY 1
7▲SSG-8184-K2 O-RING (KIT OF 2) 1
8▲----- SHAFT SEAL 5/8 I.D. 1
9▲----- INTERNAL RETAINING RING 1
10 KK-5042 SHAFT SEAL KIT (INCL 8 & 9) 1
11 QMS-3 PLUG (NON-AGITATED MODELS ONLY) 1
12 TIA-4110 SAFETY VALVE ASSY, 110 PSI 1
TIA-5040 SAFETY VALVE ASSY, 40 PSI (EXTRA SENSTIVE ONLY) 1
13 QMG-21 AIR MANIFOLD 1
14 SS-2707 AIR RELIEF VALVE 1/4 NPT(M) 1
15 83-524-K FILL PORT CAP (INCL 16) 1
16 83-1207-K5 FILL PORT CAP GASKET 1
17 • ---- PIPE PLUG, 3/8" NPT S.S. 1
18
19 QMS-417-1 TANK LID, S.S. 1
20 QM-1458-1 TANK GASKET 1
21 • ----- PLUG, 1/2-14 NPT, S.S. 1
22 QMS-12-1 FLUID TUBE, S.S. 1
23 ▲QMS-8 AGITATOR SHAFT, S.S. 1
24 ▲----- AGITATOR PADDLE 2
25 ▲•----- SOC HEAD CAP SCREW, 5/16-18 X 1-1/4, S.S. 3
26 QMS-444 AGITATOR PADDLE KIT (INCL 24 & 25) 2
27 ▲----- STATIONARY PADDLE 1
28 QMS-445 STATIONARY PADDLE KIT (INCL 25 & 27) 1
29
30 QM-1352 THUMB SCREW (SEE ITEM 34) 6
31 • ----- COTTER PIN, 1/8 DIA. X 1" LG. (SEE ITEM 34) 6
32 ----- CLEVIS PIN (SEE ITEM 34) 6
33 ----- CLAMP (SEE ITEM 34) 6
34 + KK-5014 CLAMP, PIN, & SCREW KIT 6
35 QMS2-515-1 TANK & LUG ASSY 1
36 20-6940 BOTTOM PLUG (SOLD SEPERATLY)
37 HA-57011 AIR HOSE ASS'Y (INCL W/ ITEM 38) 1
38 SEE PAGES 8-9 AIR CONTROL 1
39 31-452 AIR MOTOR/GEARBOX DRIVE 1
• Purchase locally.
+ KK-5014 Clamp, Pin, and Screw Kit includes 1 each of items 30, 31, 32, and 33.
▲Items available separately or as a complete agitator assembly, QMS-434.
EN
77-3137-R2 (12/2018) 7 / 12 www.carlisleft.com

1
2
2
4
3
6
3
7*
5
8*
TO
TANK
AIR
IN
1
8
6
3
3
2
2
4
5
6
7
9
10*
11*
TO
TANK
AIR
IN

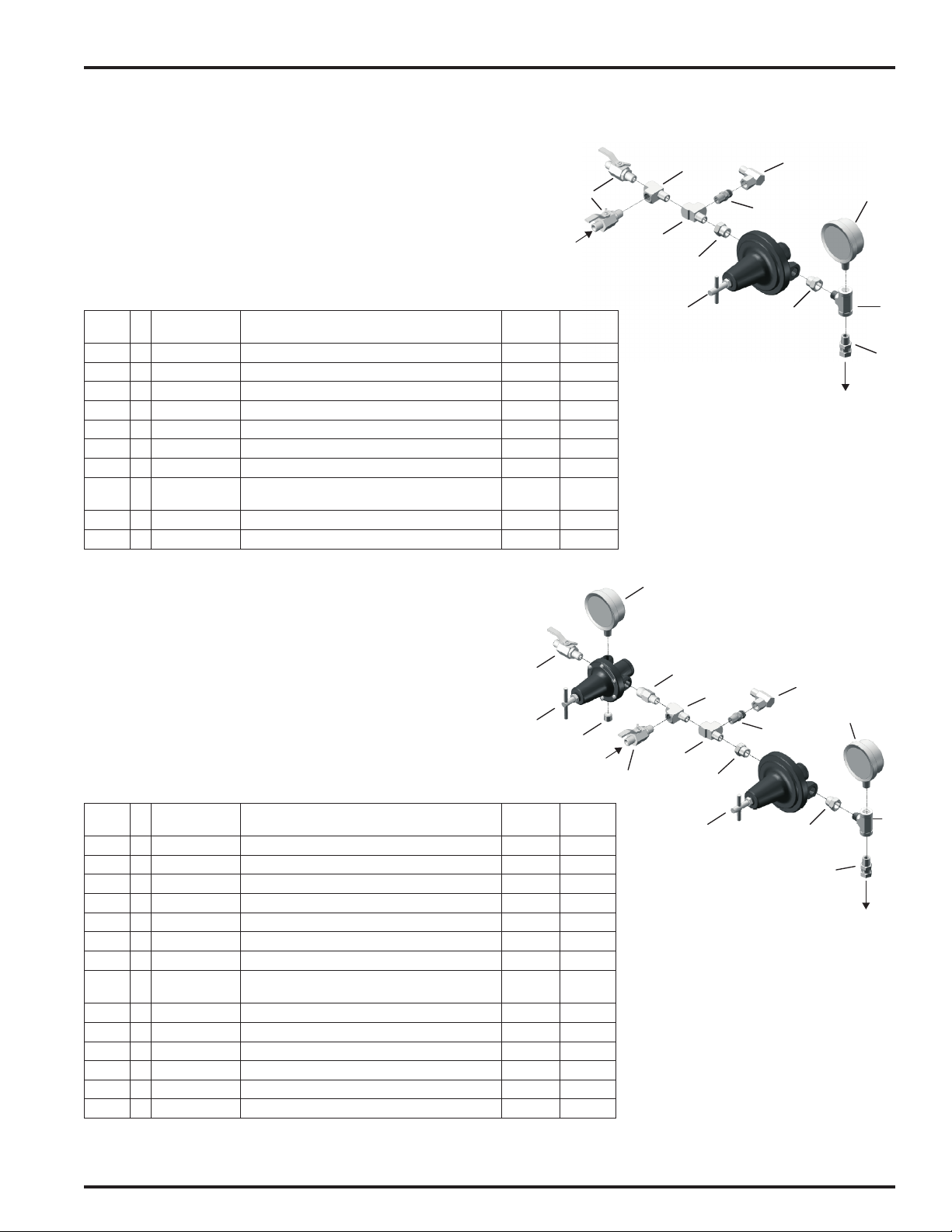

5/10/15-GALLON STAINLESS STEEL TANK ASSEMBLIES – AIR CONTROL
SINGLE REGULATOR AIR CONTROL
Control tank pressure only.
85-470 for non-agitated tanks
85-471 for agitated tanks
*Items with an asterisk are for use with an agitator.
ITEM
NO. PART NO. DESCRIPTION 85-470 85-471
1 + HAR-511 AIR REGULATOR 1 1
2 • --------- BUSHING-STL-PLTD – 3/8 (m) x 1/4 (f) 2 2
3 VA-542 BALL VALVE 2 2
4 83-1290 GAUGE – 150 PSI 1 1
5 SSP-8217-ZN SWIVEL ADAPTER 1 1
6 • --------- 1/4 NPT PLUG (SUPPLIED W/ REGULATOR) 1 —
7 H-2008 NIPPLE 1/4 NPS x 1/4 NPT — 1
8 SSP-30-ZN SWIVEL ELBOW – 1/4 NPS(m) x 1/4 NPS
(sw) — 1
• Purchase locally
+ Refer to 77-2781 for regulator service parts, Repair kit: KK-4977
DOUBLE REGULATOR AIR CONTROL
Control tank pressure and spray gun atomization pressure.
85-472 for non-agitated tanks
85-473 for agitated tanks
*Items with an asterisk are for use with an agitator.
ITEM
NO. PART NO. DESCRIPTION 85-472 85-473
1 + HAR-511 AIR REGULATOR 1 1
2 • --------- BUSHING-STL-PLTD – 3/8 (m) x 1/4 (f) 2 2
3 VA-542 BALL VALVE 2 2
4 83-1290 GAUGE - 150 PSI 1 1
5 SSP-8217-ZN SWIVEL ADAPTER 1 1
6 • --------- 1/4 NPT PLUG (SUPPLIED W/ REGULATOR) 2 1
7 83-4233 D.M. NIPPLE 1/4 x 3/8 1 1
8 # HAR-507 AIR REGULATOR 1 1
9 83-1355 GAUGE - 100 PSI 1 1
10 H-2008 NIPPLE 1/4 NPS x 1/4 NPT — 1
11 SSP-30-ZN SWIVEL ELBOW – 1/4 NPS(m) x 1/4 NPS
(sw) — 1
• Purchase locally
+ Refer to 77-2781 for regulator service parts, Repair kit: KK-4977
# Refer to SB-6-147 for regulator service parts, Repair kit: KK-4977
EN
77-3137-R2 (12/2018)8 / 12www.carlisleft.com

5
6
2
2
9
1
6*
3
4
7*
8*
TO
TANK
AIR
IN
5
11
2
6*
3
4
7*
8*
2
1
9
9
10
12
13
6
TO
TANK
AIR
IN
5/10/15-GALLON STAINLESS STEEL TANK ASSEMBLIES – EXTRA SENSITIVE AIR CONTROL
EXTRA SENSITIVE REGULATOR AIR CONTROL
SINGLE REGULATOR
Provides extremely high precision control of tank pressure (only)
from 0 – 30 PSI. Includes 40 PSI Safety Valve (not shown.)
85-490 for non-agitated tanks
85-491 for agitated tanks
*Items with an asterisk are for use with an agitator.
ITEM
NO. PART NO. DESCRIPTION 85-490 85-491
1 + HAR-501 EXTRA-SENSITIVE REGULATOR 1 1
2 • --------- BUSHING-STL-PLTD – 3/8 (m) x 1/4 (f) 2 2
3 SSP-2629-ZN MALE BRANCH TEE – 1/4NPT 1 1
4 SSP-8217-ZN SWIVEL ADAPTER 1 1
5 83-1414 GAUGE - 30 PSI 1 1
6 • --------- 1/4 NPT STREET TEE 1 2
7 H-2008 NIPPLE – 1/4 NPS x 1/4 NPT — 1
8 SSP-ZN-30 SWIVEL ELBOW – 1/4 NPS(m) x 1/4 NPS
(sw) — 1
9 VA-542 BALL VALVE 2 2
10 TIA-5040 SAFETY VALVE, 40 PSI (NOT SHOWN) 1 1
• Purchase locally
+ Refer to SB-6-131 for regulator service parts, Repair kit: KK-4200
EXTRA SENSITIVE REGULATOR AIR CONTROL
DOUBLE REGULATOR
Provides extremely high precision control of tank pressure plus
standard regulation for a spray gun. Includes 40 PSI Safety Valve
(Not shown.)
85-492 for non-agitated tanks
85-493 for agitated tanks
*Items with an asterisk are for use with an agitator.
ITEM
NO. PART NO. DESCRIPTION 85-492 85-493
1 + HAR-501 EXTRA-SENSITIVE REGULATOR 1 1
2 • --------- BUSHING-STL-PLTD – 3/8 (m) x 1/4 (f) 2 2
3 SSP-2629-ZN MALE BRANCH TEE – 1/4NPT 1 1
4 SSP-8217-ZN SWIVEL ADAPTER 1 1
5 83-1414 GAUGE - 30 PSI 1 1
6 • --------- 1/4 NPT STREET TEE 1 2
7 H-2008 NIPPLE – 1/4 NPS x 1/4 NPT — 1
8 SSP-ZN-30 SWIVEL ELBOW – 1/4 NPS(m) x 1/4 NPS
(sw) — 1
9 VA-542 BALL VALVE 2 2
10 • --------- 1/4 NPT PLUG (SUPPLIED W/ REGULATOR) 2 2
11 83-4233 D.M. NIPPLE 1/4 x 3/8 1 1
12 # HAR-507 AIR REGULATOR 1 1
13 83-1355 GAUGE – 100 PSI 1 1
14 TIA-5040 SAFETY VALVE, 40 PSI (NOT SHOWN) 1 1
• Purchase locally
+ Refer to SB-6-131 for regulator service parts, Repair kit: KK-4200
# Refer to SB-6-147 for regulator service parts, Repair kit: KK-4977
EN
77-3137-R2 (12/2018) 9 / 12 www.carlisleft.com

Use when fluid pressure in tank is regulated by some other, separate, method of control.
ITEM
NO. PART NO. DESCRIPTION QTY.
1• — ADAPTER, 1/4 NPT(F) X 1/4 NPS (SW) 1
2• — STREET TEE 1
3 83-1290 GAUGE, 150 PSI 1
4 VA-542 BALL VALVE 1
•Purchase locally
3
2
4
1
AIR IN
QMS-4003 NO REGULATION KIT
85-469 CONVERSION TO DOUBLE REGULATOR ASSEMBLY KIT
Convert standard single regulator or extra-sensitive air control to a double regulator air control.
ITEM
NO. PART NO. DESCRIPTION QTY.
6 • — 1/4 NPT PLUG (SUPPLIED W/ REGULATOR) 1
7 83-4233 D.M. NIPPLE 1/4 x 3/8 1
8 + HAR-507 AIR REGULATOR 1
9 83-1355 GAUGE – 100 PSI 1
•Purchase locally
+ Refer to SBBI-6-147 for regulator service parts, Repair kit: KK-4977
9
7
8
6
EXISTING
REGULATOR
AIR IN
EN
77-3137-R2 (12/2018)10 / 12www.carlisleft.com

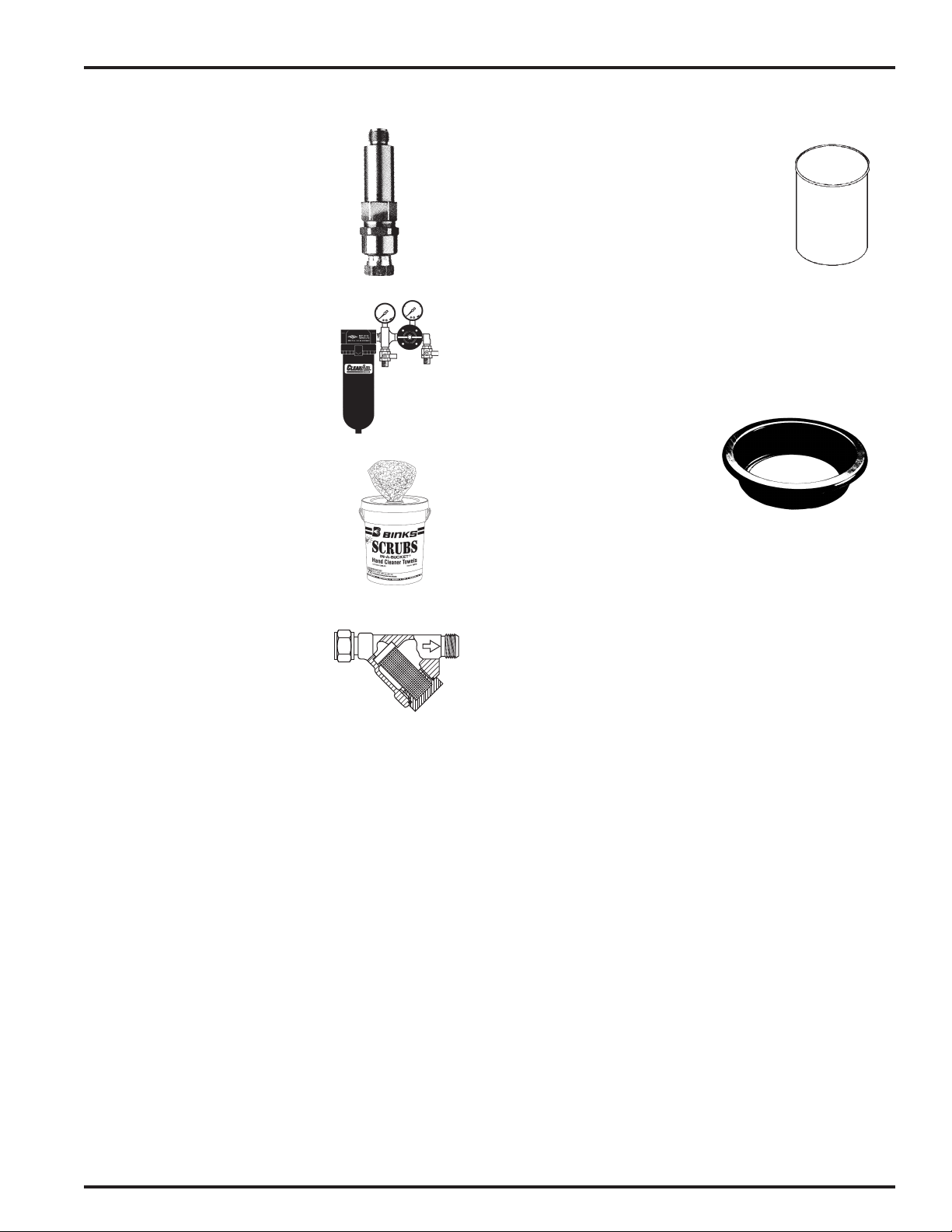

VS-534
FLUID STRAINER
Primary uid strainer that attaches between
uid outlet valve and uid hose to strain
material. Components made of stainless
steel with a nylon lter. Comes standard
with 100-mesh screen. For more information
see SBBI-7-072.
HFRL-508, HFRL-509
CLEAN AIR™ CONTROL UNITS
These units are designed to remove
dirt, pipe scale and most liquid aerosol.
Includes an automatic drain which expels
liquids which accumulate in the lter bowl.
29-3100 SCRUBS®
HAND CLEANER TOWELS
Scrubs®are a pre-moistened hand cleaner
towel for painters. No water is needed.
DISPOSABLE TANK LINERS
Molded polyethylene tank liners reduce solvent waste
and tank cleanup time. The liner is made of tough,
durable, leakproof poly-ethylene and can be used
with all compatible materials.
PTL-408-K20 Kit of 20 tank liners (9.8 gal.)
PTL-412-K8 Kit of 8 tank liners (11.8 gal.)
PTL-415-K10 Kit of 10 liners (19.8 gal.)
Inner Diameter .............. 11.75" (298.45mm)
Outer Diameter ............ 15.375" (390.52mm)
Height/Depth .................... 3.75" (95.25mm)
Case Qty..................................................20
PTS-5Gal-K20-200................... 200 micron
(approx. 65 wire mesh)
PTS-5Gal-K20-400................... 400 micron
(approx. 37 wire mesh)
PTS-5Gal-K20-600................... 600 micron
(approx. 28 wire mesh)
PROSPECTOR™PRESSURE TANK STRAINERS
FOR 5, 10, AND 15 GALLON TANKS
Prospector™ strainers are an economical way to remove foreign material
from paint, stain, lacquer and coatings.
ACCESSORIES
83-2924 FLUID Y-STRAINER
Attaches on uid outlet of tank. Includes
100-mesh lter screen. (Additional lter
screens in other mesh sizes available.)
EN
77-3137-R2 (12/2018) 11 / 12 www.carlisleft.com

EN
77-3137-R2 (12/2018)12 / 12www.carlisleft.com
POLÍTICA DE GARANTÍA
Este producto está cubierto por la garantía limitada sobre materiales y mano de obra de
Carlisle Fluid Technologies. El uso de cualquier pieza u accesorio que no sea de Carlisle Fluid Technologies
anulará todas las garantías. No cumplir razonablemente con las pautas de mantenimiento
proporcionadas podría invalidar cualquier garantía.
Si desea información especíca sobre garantías, comuníquese con Carlisle Fluid Technologies.
Para obtener asistencia técnica o localizar un distribuidor autorizado, comuníquese con uno de nuestros
centros internacionales de ventas y atención al cliente.
Región Industrial / Automotriz Repintado para la industria
América Teléfono gratuito: 1-800-992-4657 Teléfono gratuito: 1-800-445-3988
Fax gratuito: 1-888-246-5732 Fax gratuito: 1-800-445-6643
Europa, África,
Medio Oriente, India
Tel: [phone]
Fax: [phone]
China Tel: [phone]
Fax: [phone]
Japón Tel: [phone]
Fax: [phone]
Australia Tel: [phone]
Fax: [phone]
Carlisle Fluid Technologies es un líder global en tecnologías de acabado innovadoras.
Carlisle Fluid Technologies se reserva el derecho de modicar las especicaciones de los equipos sin previo aviso.
DeVilbiss®, Ransburg®, ms®, BGK®, y Binks®
son marcas registradas de Carlisle Fluid Technologies, Inc.
©2018 Carlisle Fluid Technologies, Inc.
Reservados todos los derechos.
Para obtener la información más reciente sobre nuestros productos, visite www.carlisleft.com
