Carman AUTO-i 100 User manual

AUTO-i 100
1
User Manual
Ver. 180719
CARMAN IT CO., LTD.

AUTO-i 100
2
Contents
Precautions for Use ...................................................................................................................4
Chapter 1: General
1. Product Feature...................................................................................................................7
2.Product Specification.........................................................................................................8
3. Component List......................................................................................................9
4. Component Pictures and Description ...............................................................................11
5. Name and Function of Each Part....................................................................................20
6. Power Supply.............................................................................................................22
Chapter 2: Menu Configuration
1. Menu Description..........................................................................................................23
2. Icons on Main Screen.....................................................................................................24
Chapter 3: Vehicle Diagnosis
1. How to Connect Diagnostic Connector and Select Diagnosis Program .....................25
2. Diagnostic Trouble Codes.................................................................................................29
3. Erase/Reset DTC...............................................................................................................32
4. Parameter Data................................................................................................................33
5. Actuator Test….........................................................................................................39
6. Resetting Adaptive Values.............................................................................................42
7. Evap. Leakage Test......................................................................................................43
8. PCM Lock(MEC) Setting......................................................................................44
9. Misfire Delay Reason...................................................................................................45
10.System Information........................................................................................................46
Chapter 4: OBD-II/EOBD Diagnosis Menu
1. OBD-II/EOBD Overview ....................................................................................................47
2. Readiness Test ............................................................................................................48
3. Parameter Data .................................................................................................................49
4. Diagnostic Trouble Codes..............................................................................................50
5. Erase/Reset DTC ..............................................................................................................51
6. Monitoring Test results....................................................................................................52
7. BI-Directional Control......................................................................................................54
8. Vehicle Information .........................................................................................................55

AUTO-i 100
3
Contents
Chapter 5: Stored Data
1. Parameter Record............................................................................................................56
2. Text Shot.......................................................................................................57
3. Image Shot..................................................................................................................58
4. Print....................................................................................................................59
Chapter 6: Repair Information
1. Repair Information Menu.................................................................................................60
2. Sorted By Parts..........................................................................................................61
3. Sorted By Troubles...............................................................................................65
4. Circuit Diagram....................................................................................................................67
5. Parts Description.................................................................................................................68
6. Parts Location..................................................................................................................69
7. Repair Data..........................................................................................................................70
8. Web Manual.......................................................................................................................71
Chapter 7: Configuration
1. System Configuration...................................................................................................72
2. Lock ...........................................................................................................................78
3. Graph Configuration.....................................................................................................80
4. System Information ............................................................................................................81
5. User Information ..................................................................................................................82
Chapter 8: Update
1. Update .......................................................................................................................83
FCC and CE Certificates...............................................................................................86

AUTO-i 100
4
Precautions for Use
Safety Regulations
1. Precautions for use
The AUTO-i 100 described in this guide was manufactured for those who have
the basic knowledge required for its use.
Users should follow the safety instructions described in this manual for safe and
efficient use of the product.
1-1. Safety precaution symbols
Failure to adhere to the instructions of this symbol may result in
serious property damage or bodily injuries.
Failure to adhere to the instructions of this symbol may result in
slight property damage or bodily injuries.
This symbol appears when references or information are provided for
user’s convenience.

AUTO-i 100
5
Precautions for Use
2. Before using the product
2-1. Confirm the power supply before using the product.
Note that power can be supplied through the vehicle’s diagnostic connectorif a module
is connected to a vehicle.
When power is not supplied through the vehicle diagnosticconnector,Connect cigar
cable for power supply beforecommunicating with the vehicle.
If voltage levels are not matchedbetween ECU and AUTO-i 100, it may disable
Communication.
2-2. Before using the product, make sure to download the latest diagnostic program.
Before using the product, confirm whether the diagnostic program is compatiblewith
the option purchased.
Latest diagnostic data can be updated through our homepage(www.carmanit.com)or
distributor.
3. Safety regulations for overall use are as follows
3-1. Power source
Do not touch power cords with wet hands.
It may result in an electric shock.
Do not use the product under electrically unstable conditions.
It may result in damage to a power supply unit.
Push down the plug until it clips securely into place.
Otherwise, it may result in a fire.
3-2. Wireless Communication
Avoid high tension currents or electronic jamming.
It could be affected by external environment.
Be cautious of wet-damage or loss of Bluetooth dongle.

AUTO-i 100
6
Precautionsfor Use
3-3. Usage
Do not drop the product.
It may cause damage to the product.
Do not put the product on a distributor.
Although manufactured to prevent interference of internal
electromagnetic wave, any strong interference beyond the setlimit
mayresult in damage to the product.
Do not attempt to repair, disassemble or alter the product yourself.
It may cause damage to the product.
3-4. Upgrade
Never attempt to disassemble the power supply unit or adaptor.
It may cause damage to the product.
3-5. Storage and carriage
Avoid storage in a humid place.
It may cause damage to the product.
Use the carrier bag provided with this product when carrying.
It will protect the product from external impacts.

AUTO-i 100
7
Chapter 1: General
1. Product Feature
AUTO-i 100 can detect malfunction in vehicle’s engine, automatic transmission,ABS, air bag,
immobilizer and other devices, confirm parameter data, and operate theactuator through
OBD-I, OBD-II, and MOBD communication.
Functions supported in AUTO-i 100
▶Diagnoses Korean, Japanese and European vehicles.
- Support OBD-II/EOBD, MOBD
- Support CAN,SAE-J1850,ISO9141-2/KWP2000,J1587
▶Supports vehicle troubleshooting and parameter data search.
- You can diagnose vehicles with their sensors and switches, and save and reload
theparameter data.
▶Supports automatic actuator inspection.
- This function runs/stops the actuator and switches forcibly in order to check if the
corresponding active device is normal.
▶Maintenance is possible during operation since maintenance informationis provided.
▶As a PC-based device with an unlimited data storage space, it can easilyupdate
the diagnostic program through internet.
▶You can change the sound effects and display unit of the AUTO-i 100.
▶Wireless communication provides more convenient vehicle diagnosis.

AUTO-i 100
8
Chapter 1: General
2. Product Specification
Item Specifications
OS
And Recommended
PC specification
Windows XP, Windows VISTA, Windows7 (32bit),
Windows8 (32bit), Windows10 (32bit)
Over 1GHz processor, 1GB RAM, Hard Disc. Space
16GB, DirectX 9 Graphic (WDDM 1.0 Driver)
Connecting Method
Bluetooth 2.0
USB USB 2.0 (Compliant)
Protocol
Protocols:
- Dual CAN(2.0A,2.0B), Singlewire CAN
- ISO9141-2, KWP2000, J1850P, J1587
- K/L-line High Speed Serial, Flashing Code
- Ethernet
J2534 Support
OperatingTemperature 0~45℃(32~113℉)
Operating Voltage -20~70℃(-4~158℉)
Please keep operating temperature to avoid shortening battery life or
abnormal voltage usage.

AUTO-i 100
9
Chapter 1: General
3. Component List
◈Basic kit(AUTO-i100)
NO Part No. Description
1 FE-MUDE-0052 USB Memory Stick
2 AY-ELPT-A100 AUTO-i100 Main Module
3 FE-MUDE-0051 Mini Bluetoothdongle
4 CB-CYAU-001A USB Cable(B Type)
5 CB-CYVG-0006 Cigarette Lighter Power Cable
6 CB-CYAU-010A OBD-II Extension Cable 1m
7 PK-BGTT-0007 AUTO-i100 Carrier Bag
◈Tablet Option
NO Part No. Description
1 TA-AUTO-100B TECLAST T book 10+
2 TA-AUTO-101B TABLET PC Boots
※The model and specifications of the tablet PC can be changed without notice.

AUTO-i 100
10
Chapter 1: General
◈Asian kit
NO Part No. Description
1 CB-AYVG-0008 SAMSUNG / NISSAN ADAPTOR (14P)
2 CB-AYHC-0018 KIA ADAPTOR 20P (BLUE)
3 CB-AYVG-0005 DAEWOO,GM ADAPTOR (12P)
4 CB-AYVG-0006 SSANGYONG ADAPTOR (14P)
5 CB-AYVG-0007 SSANGYONG ADAPTOR (20P)
6 CB-AYVG-0001 TOYOTA, LEXUS ADAPTOR (17P"R")
7 CB-AYVG-0002 TOYOTA, LEXUS ADAPTOR (17P"C")
8 CB-AYVG-0009 HONDA ADAPTOR (3P)
9 CB-AYVG-0012 HONDA ADAPTOR (5P)
10 CB-AYVG-0011 SUBARU ADAPTOR (16P-9P)
11 CB-AYVG-0010 MAZDA "C" ADAPTOR (17P)
12 CB-AYVG-0003 MAZDA ADAPTOR (6P + 1P)
13 CB-CYHC-0018 MITSUBISHI ADAPTOR (12P)
14 CB-CYVG-0007 MITSUBISHI CABLE (12P＋16P)
◈European kit
NO Part No. Description
1 CA-PSA1-0002 PSA CABLE (2P)
2 CB-CYHC-0022 AUDI / VW CABLE (2+2P)
3 CN-T005-AM06 FIATCABLE (3P)
4 CB-AYVG-0014 OPELADAPTOR (10P)
5 CB-AYVG-0013 BMW ADAPTOR (20P)
◈USA/Australian kit
NO Part No. Description
1 CB-CYHC-0031 FORDCABLE (20P)
2 CB-CYVG-0009 HOLDENCABLE (6P)

AUTO-i 100
11
Chapter 1: General
4. Component pictures and description
1-1.USB Memory Stick
1-2. AUTO-i100 Main Module

AUTO-i 100
12
Chapter 1: General

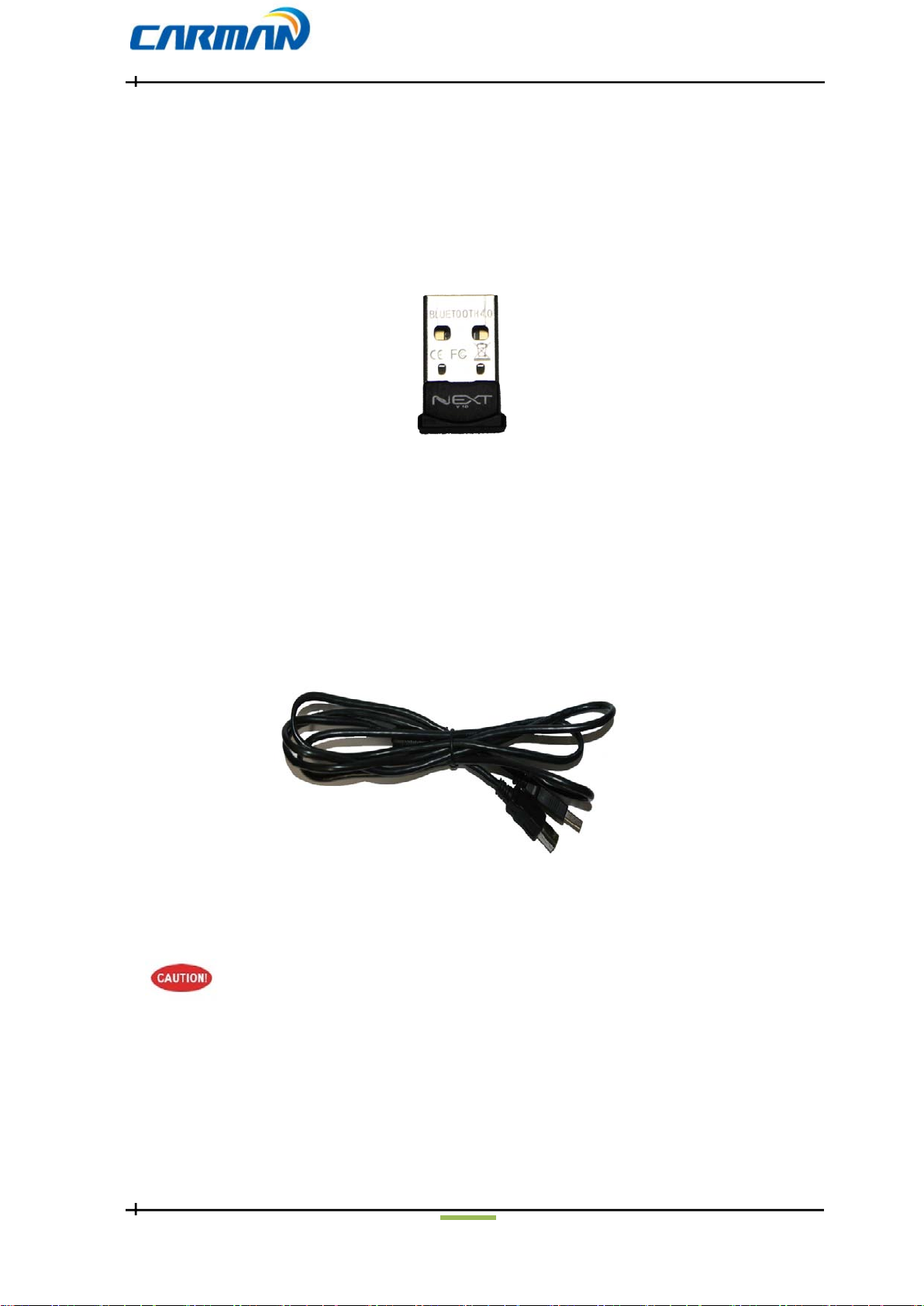

1-3. Mini Bluetooth Dongle
1-4. USB Cable
Be sure to use a dedicated USB cable only.
A dedicated USB cable of AUTO-i 100 is not allowed to use for other purpose.

AUTO-i 100
13
Chapter 1: General

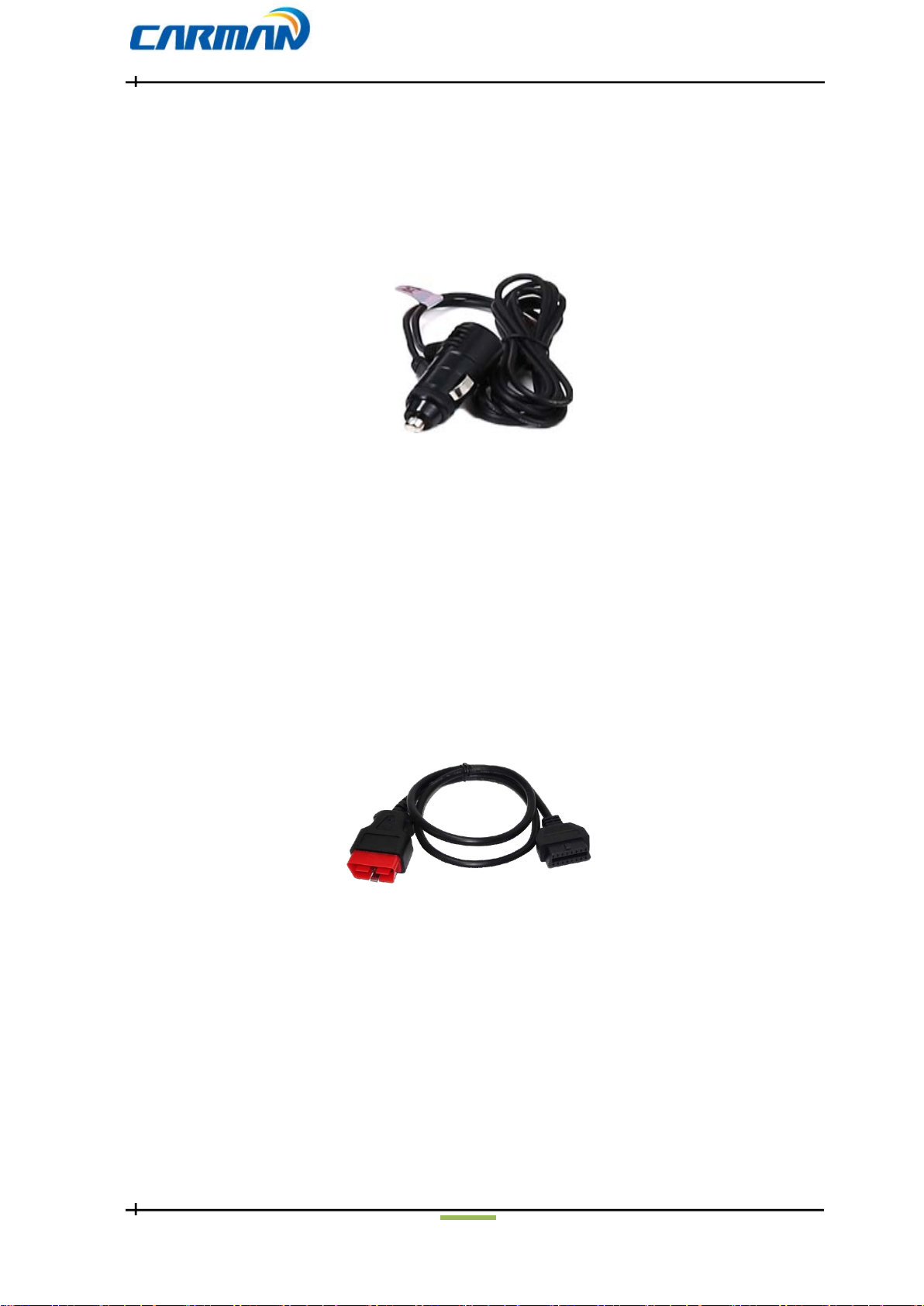

1-5. Cigar Light Power Cable
- Cigar Light Power Cable-
The Cigar Light Cable connects the AUTO-i 100 to the cigar jack for power supply.
1-6. OBD-II Extension Cable (1m)
-OBD-II Extension Cable-

AUTO-i 100
14
Chapter 1: General

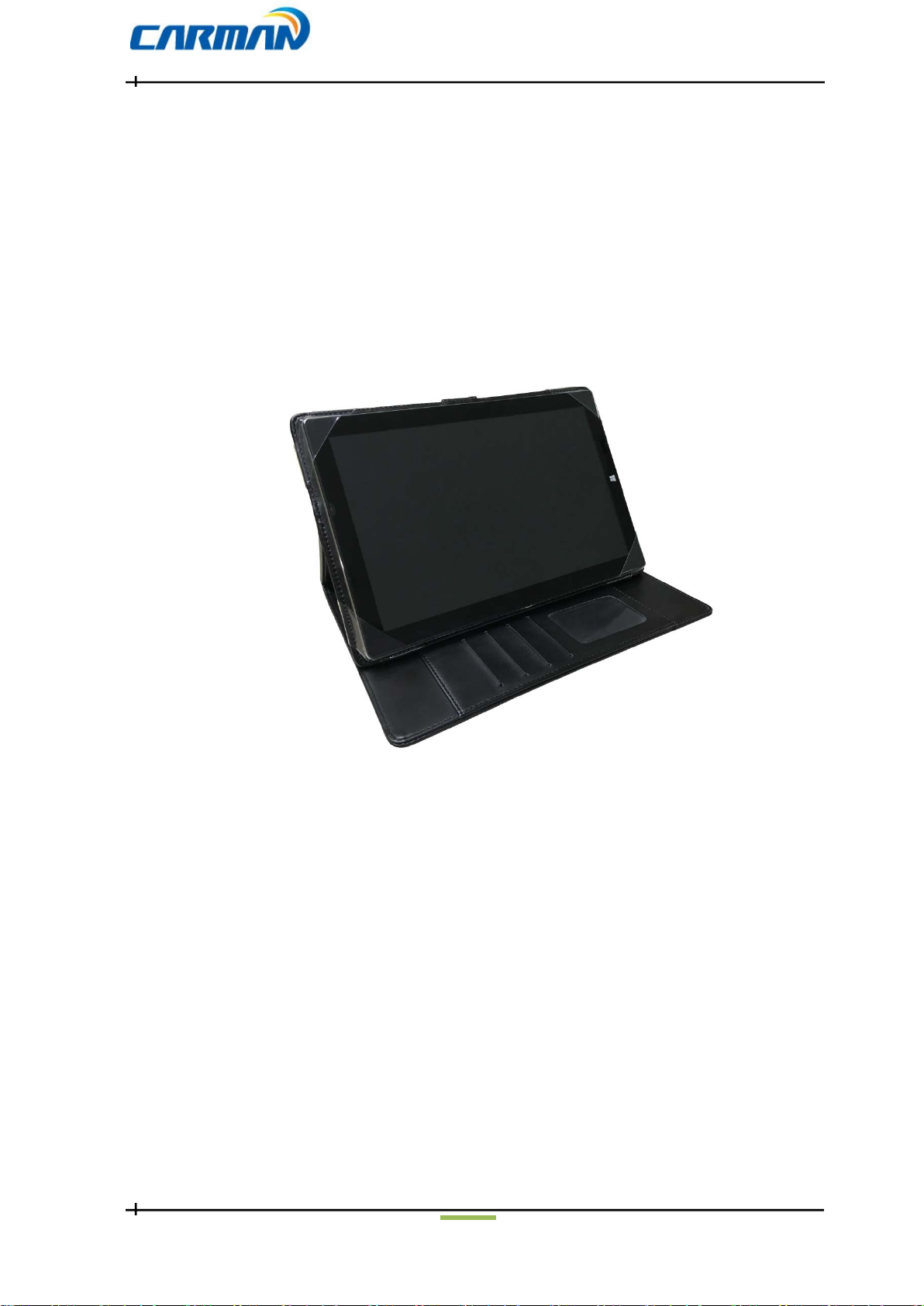

1-7. Tablet Option
- TECLAST T book 10+
- TABLET PC Boots
- Tablet Kit –
※The model and specifications of the tablet PC can be changed without notice.

AUTO-i 100
15
Chapter 1: General
1-8.DLC ADAPTER
The DLC Adapter is used to diagnose vehicles by connecting to the main connector. Do
check name of brand written on adapter before use since shape of DLC Adapters are
similar.
Some products of the same brand include more than one adapter. Therefore do check
form and number of pin of the diagnostic connector which is attached to the vehicle.
Some vehicles do not supply power through the diagnostic connector.
Do not connect any power supply if power can be supplied through the
diagnostic connector.
1) Asian kit
SAMSUNG / NISSAN ADAPTOR (14P)KIA ADAPTOR 20P (BLUE)
DAEWOO,GM ADAPTOR (12P) SSANGYONG ADAPTOR (14P)
SSANGYONG ADAPTOR (20P)

AUTO-i 100
16
Chapter 1: General
TOYOTA, LEXUS ADAPTOR (17P"R")TOYOTA, LEXUS ADAPTOR (17P"C")
HONDA ADAPTOR (3P)HONDA ADAPTOR (5P)
SUBARU ADAPTOR (16P-9P)MAZDA "C" ADAPTOR (17P)
MAZDA ADAPTOR (6P + 1P)

AUTO-i 100
17
Chapter 1: General
MITSUBISHI CABLE (12P) MITSUBISHI CABLE (12P＋16P)

AUTO-i 100
18
Chapter 1: General
2) European kit
MERCEDES BENZ BORAD (38P)MERCEDES BENZ CABLE (3 liners)
PSA CABLE(2P) AUDI / VW CABLE(2+2P)
FIATCABLE(3P) OPELADAPTOR (10P)
BMW ADAPTOR (20P)

AUTO-i 100
19
Chapter 1: General
3) USA/ Australian kit
FORDCABLE(20P) HOLDENCABLE(6P)

AUTO-i 100
20
Chapter 1: General
5. Name and function of each part
Front View of Main Module
1. DLC LED: Communication with a vehicle
2. Bluetooth LED: Bluetooth communication
3. USB LED: Communication with a USB port
4. PWR LED: External power supply. (12V DC, DLC power supply)
