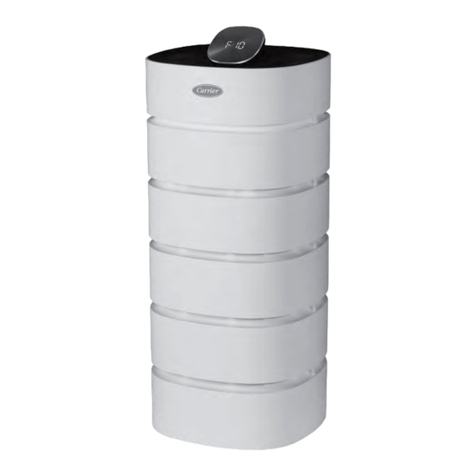

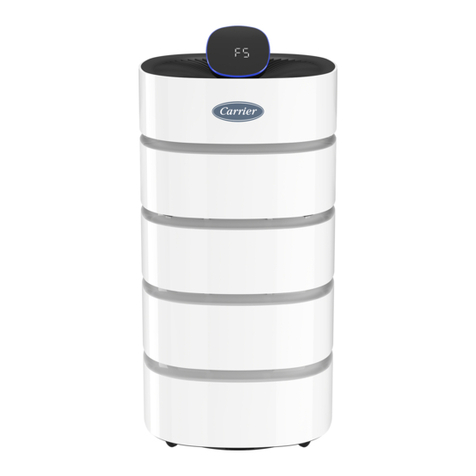

Carrier RMAP-ST User manual

Please read the contents carefully before use.
This user guide contains the product warranty.
| AIR PURIFIER |
ROOM AIR
PURIFIER
User Manual
RMAP-ST
RMAP-XL
RMAP-SST
RMAP-SXL

Features of the Room Air Purifier
Three level filter includes a pre-filter for large particles, a HEPA filter for
particles as small as 0.3 micron and an activated carbon filter for odors.
Advanced Filtration
Continuously samples incoming air, measures levels of pollution and indicates air
quality with an easy-to-read LED screen.
A powerful, 18-speed fan with 360-degree airflow pulls polluted air from below
and returns cleaner air in multiple directions.
Use Smart Auto mode to allow the air purifier to automatically adjust fan speeds
based on the air quality level.
Air Quality Monitoring
360-Degree Airflow
Easy Operation
Note Functions and specifications may differ depending on the model.
* Wi-Fi® connection required. Works with Alexa®, Google Home® and select Apple® and Android®
mobile devices. Free Carrier Home App download required. See User Guide at CarrierAtHome.com
for more details.
Connect Wi-Fi® models with the Carrier Home app so you can manage your air
purifier from anywhere by integrating with Alexa® or Google Home®.*
Smart Features

Table of Contents
How to Operate
Safety Precautions ......................................................................
Preparation Before Use ............................................................
Product Description ....................................................................
Product Operation .......................................................................
Indoor Air Quality Indicator ......................................................
Care and Maintenance ..............................................................
Troubleshooting ...........................................................................
Customer Support ......................................................................
Warranty ..........................................................................................
Legal Notice ................................................................................
3
5
7
12
16
17
19
20
21
22
Before Using
Things You
Should Know

USER MANUAL
3
Safety Precautions
Power Supply
Indication Description
Indicates that there is a possibility of injury or material damage in case of
violation of the instructions.
This product has a polarized plug (one blade is wider than the other).
To reduce the risk of electric shock, this plug is intended to fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.
If it still does not fit in the outlet, contact a qualified electrician. Do not
attempt to defeat this safety feature.
Indicates that there is a possibility of death or serious injury in case of
violation of the instructions.
WARNING
CAUTION
Read these instructions thoroughly for the safety of users and to prevent property damage.
This air purifier is for 120V use only.
Note
Be sure to plug your product into a 120V outlet.
►Do not turn off the product by unplugging the power plug while in use.
►Contact customer service if the power plug or the power cord is damaged.
►Connect the power plug firmly to the wall outlet and do not use a damaged
power plug, a damaged power cord, or loose outlet.
Unplug the product during thunder and lightning. Product can be damaged due
to electric shock.
►If the product is not used for long period of time, unplug the unit to prevent
unnecessary overheating and to save electricity consumption.

4
ROOM AIR PURIFIER
WARNING
Plug the product into an outlet. Do not press the product up against the wall plug.
• Do not extend the power cord at will.
• Do not use with a power strip as it may cause electric shock or fire.
Leave at least 12 inches (30 cm) between wall and product.
• If the air inlet and outlet space is crowded, it may impact the product's ability to filter
and recirculate the air.
Place on flat surface.
Initial Setup
►Do not use the product near flammable substances or a gas leak.
►Do not use the product in places exposed to high humidity, oil, grease, or water.
►Do not install the product in direct sunlight or near a heating vent.
PROHIBITED
When Using
CAUTION
Avoid installing the product within 3 feet (1 meter) of a television or other electronic device.
Turn off power immediately if water or other foreign matter enters the product. Dry the
product completely before turning on.
Using a dirty pre-filter or no filter will degrade product performance.
If there is a strange sound, burning smell or smoke coming from the product, unplug it
immediately and contact customer service.
►Do not replace the filter while the product is in use or plugged in.
►Do not use filters that are not recommended by the manufacturer.
►Do not move the product while in use.
PROHIBITED
►Do not clean when power is on as it may cause electric shock or malfunction.
CAUTION
When Cleaning
PROHIBITED
Safety Precautions

USER MANUAL
5
How to Prepare/Change the Filter
• An integrated filter is included with the new product.
• Remove the filter packaging before plugging in the product.
12
Hold the top cover of the product
with both hands and pull up.
Grasp the filter cover hole on the rear
and pull it forward.
3
Remove the filter from the product
and then remove the plastic
packaging from the filter.
►Failing to remove the packaging will
result in abnormal sounds and the
filter will not work properly; and it
may cause a fire or other damage to
the product.
CAUTION
• Remove the plastic packaging from the filter before use.
• Keep plastic packaging away from children as it may cause suffocation.
4
Slide the filter back into the unit.
Filter cover
hole
Plastic
packaging
You cannot return the filter once the plastic packaging is removed.
Note
Preparation Before Use

6
ROOM AIR PURIFIER
5
6
Replace filter cover.
►Insert the cover into the fixed groove
at the bottom of the product.
►Slide the cover forward so that the
cover fits into the top grooves.
Hold the top cover of the product with
both hands and slide it back in place,
making sure the logo appears in the front.
7
When the filter installation is complete,
press the +" " button on the
control panel for five seconds or more
to reset the filter indicator light.
►The red filter light will turn off when
the product is reset.
Sleep
Auto
Fixed groove
at bottom
Cover-positioning
groove at top
1
2
How to Install Casters (Optional)
3
4
Inside of the air purifier package, there is a small box containing four casters and eight screws.
Retain the removed bottom bases and screws for future use.
Replace each base with a caster, utilizing two screws per caster.
If there is no caster box inside the product box, please contact
customer service at 1-888-320-0909.
Remove the four bottom bases from the air purifier with a screw driver.
Preparation Before Use
Note

USER MANUAL
7

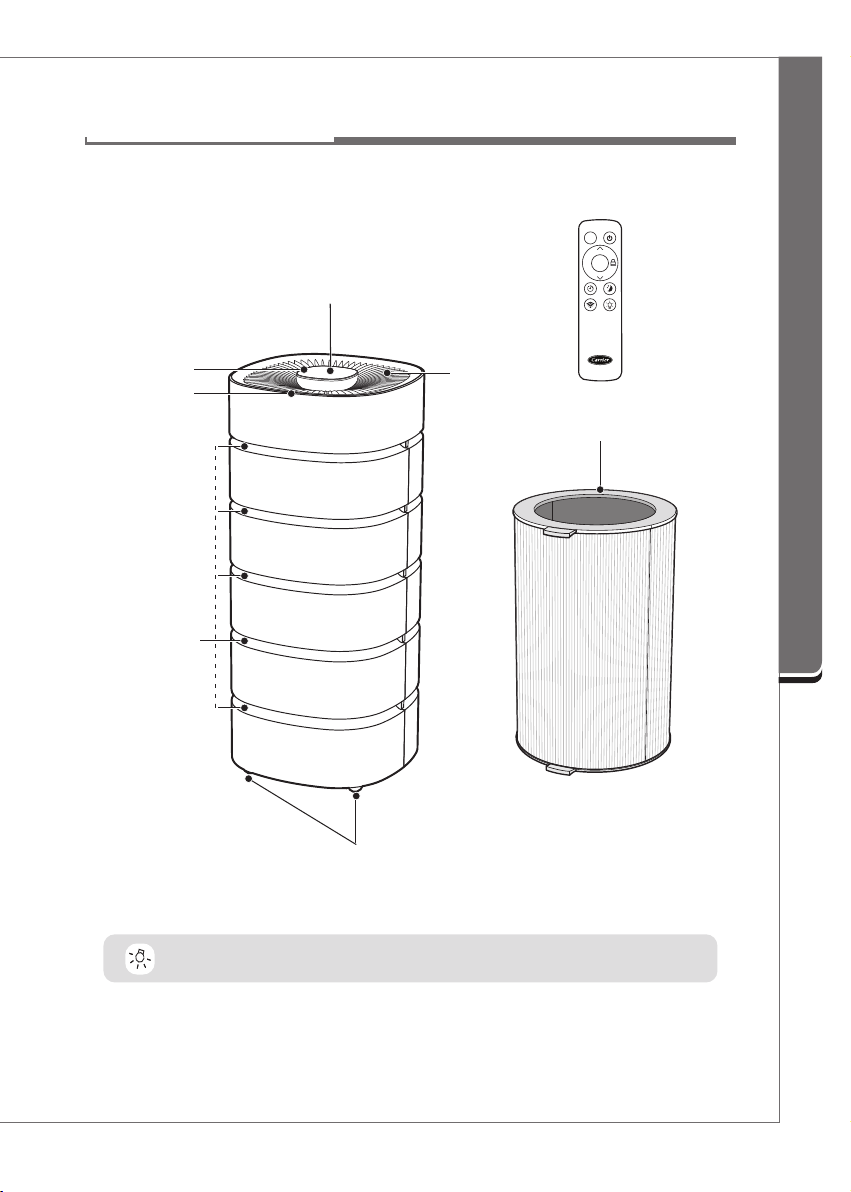

Product Description
Air Inlets
Bottom Base
Display
Air Outlet
Filter
Remote is only for
Wi-Fi® models
Carrier Room Air Purifier
Note Product features and specifications may vary depending on the model.
Control Panel
Indoor Air
Quality
Indicator
+
+
–
–
•
•
•
•
•
•
•
•
OK
AUTO

8
ROOM AIR PURIFIER
Product Specifications
Width
Height
Depth
Model Room Air Purifier
RMAP-ST
Room Air Purifier XL
RMAP-XL
Smart Room Air Purifier
RMAP-SST
Smart Room
Air Purifier XL
RMAP-SXL
Power 120V, 60Hz, 1-phase
Wi-Fi
® No No Yes Yes
Remote
Control No No Yes Yes
Dimensions
13.7" W x 13.7" D x 26.5" H
350mm W x 350mm D
x 675mm H
13.7" W x 13.7" D x 31.5" H
350mm W x 350mm D
x 800mm H
13.7" W x 13.7" D x 26.5" H
350mm W x 350mm D
x 675mm H
13.7" W x 13.7" D x 31.5" H
350mm W x 350mm D
x 800mm H
Room Size
Up to 430 sq. ft. Up to 560 sq. ft. Up to 430 sq. ft. Up to 560 sq. ft.
Filter
Replacement
Model
Number
RMAPFIL-ST RMAPFIL-XL RMAPFIL-ST RMAPFIL-XL
Product Description

USER MANUAL
9

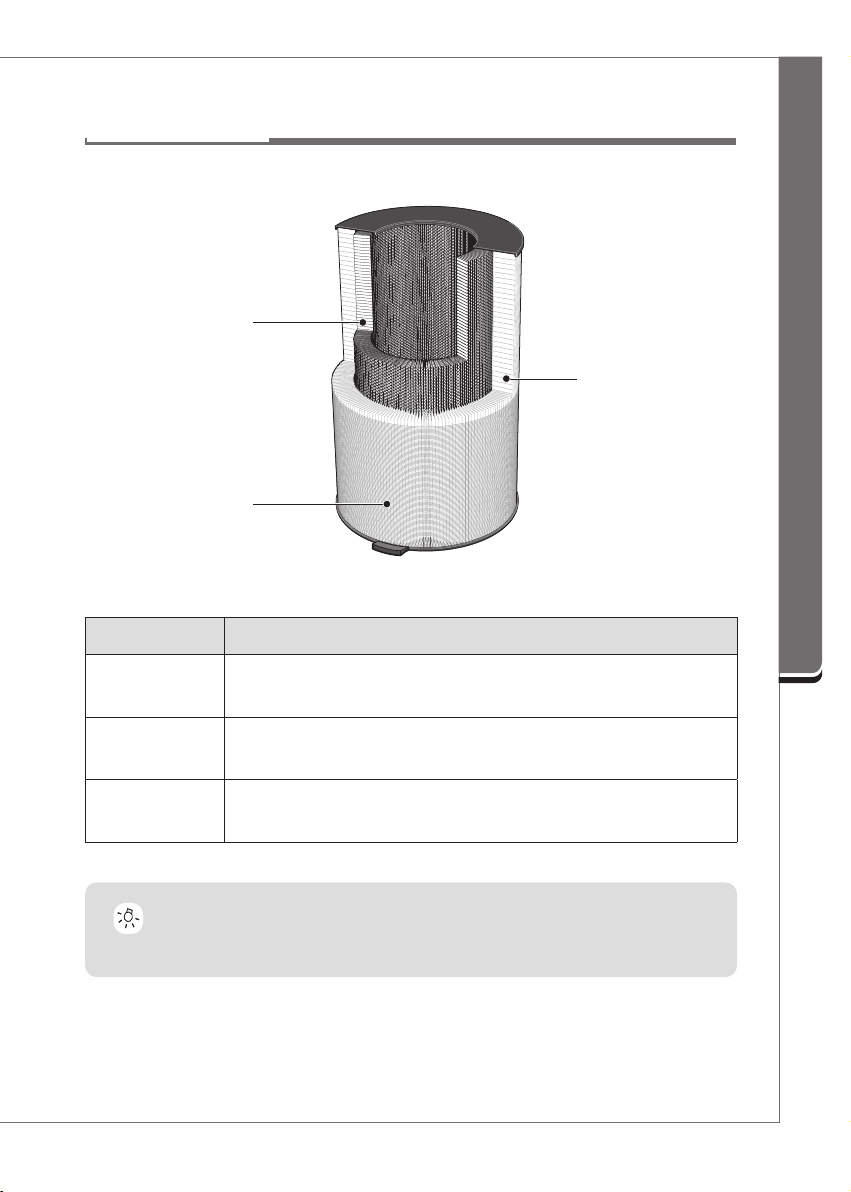

Filter Type Function
①
Pre-Filter
(microfiber net) Removes large dust particles and pollutants.
②
HEPA Filter Removes 99.97% of particles that are 0.3 microns in size.
③
Carbon Filter Removes odors, gases and VOCs not removed from the HEPA filter.
③
Carbon Filter
①
Pre-Filter
②
HEPA Filter
Filter Detail
Product Description
It is recomended that you replace the filter every 6-12 months. Replacement
period may vary depending on the product usage. Visit CarrierAtHome.com to
order your replacement filter.
Note

10
ROOM AIR PURIFIER
Display
Control Panel
Sleep mode / Timer Use the up arrow to set fan speed
as well as time for Auto-off mode
LED ON/OFF & Wi-Fi® connection Smart automatic operation
Use down arrow to set fan speed
as well as time for Auto-Off mode Power ON/OFF
Sleep
Smart Auto Mode
Sleep Mode
LED
Filter Replacement
Indicator
Wi-Fi Indicator
Timer
Auto
Control Panel Descriptions
Sleep
LED
Auto
Turbo
Product Description
Indoor Air Quality
Indicator
Note See page 12 for complete list of product operations.

USER MANUAL
11
Product Description
Remote Control
Remote Control Buttons
This product contains a lithium button/coin cell
battery. If a new or used lithium button/coin cell
battery is swallowed or enters the body, it can
cause severe internal burns and can lead to death
in as little as two hours.
Always completely secure the battery
compartment. If the battery compartment does
not close securely, stop using the product, remove
the battery, and keep it away from children.
1
2
3
If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate
medical attention.
Power ON/OFF Decrease the timer and
fan speed setting value Safety lock
Smart automatic
operation Timer Sleep mode
Increase the timer and
fan speed setting value
Confirm your timer
setting LED ON/OFF
•
+
–
Remote Control Battery
CAUTION
CAUTION
+
+
–
–
•
•
•
•
•
•
•
•
OK
AUTO
AUTO
OK

12
ROOM AIR PURIFIER
Product Operation
Connecting Wi-Fi Models to App
Download the free Carrier Home app to your device. Enable Bluetooth® on your mobile device.
Make sure the room air purifier is plugged into an outlet, and is powered on. Bluetooth will
automatically turn on.
1
2
3
4
On the app, tap " Add device " and select the device you want to add to your account.
Launch the app and sign up for a new account if you do not already have one.
Scan the QR code on the back of the air purifier. You will see a six digit pairing code on the
app and the unit. Confirm the pairing PIN by pressing on the unit.
Select your Wi-Fi® Network and enter your password.
5
6
LED
Your room air purifier is now connected to Wi-Fi. See the list of remote access
features below.
7
• In app account creation and Wi-Fi
provisioning
• View all devices in a dashboard
• View indoor PM2.5 concentration levels
• View indoor TVOC levels
• Control air purifier speed
• Set unit to AUTO mode
• View the remaining filter life
• Place order for new filter
• View outdoor air quality levels
• Alexa and Google Home integration
Remote Access Features from App

USER MANUAL
13
Product Operation
Normal Operation
Auto Operation
Press the button to turn on.
► The previously selected operation mode will
be displayed.
Press the button on the control panel (or
button on Remote Control) to select your desired fan speed.
► You can adjust the fan speed from level 1 (F1) to
level 18 (F18).
Note: The default home display on Wi-Fi models will show a
PM2.5 reading. Once the button is pushed, the
display will switch to show designated fan speed.
Auto Mode allows the system to determine the fan
speed depending on the air quality of the room.
Press the button to turn on.
► The previously selected operation mode will
be displayed.
Press the " " button (or button on the
Remote Control)to select Auto mode.
► Each time the button is pressed, it switches
between Auto Operation and Normal Operation.
• The fan speed cannot be adjusted during Auto Operation.
• In Auto mode, the Indoor Air Quality Monitor detects the indoor air
quality and the device automatically adjusts the fan speed to filter the
air accordingly.
Auto
Note
Note
1
1
2
2
When the air purifier turns on, the sensor is initialized and the display
shows during initialization.
+
–
Auto

14
ROOM AIR PURIFIER
1
2
3
4
Sleep mode allows the system to run normally but
the display panel will be dark. Press the button
to turn on.
During sleep mode, the entire display panel is turned
off, except for .
► The fan speed is set to level 1 by default. Press
the arrows to select preferred fan speed
Note: The maximum fan speed in sleep mode is
10 to limit excess noise.
If you press the sleep button again during sleep
mode, it will operate in the previously selected mode.
► Sleep mode will be cancelled if the unit is
turned off.
Press the button on the control panel (or button
on the Remote Control) to select the Sleep mode.
If you press the button on the control panel (or
on the Remote Control), the fan speed will change to
level 18, and Turbo Fan Operation will stop. You can
now set your fan speed to any preferred level.
3
Sleep Operation
Sleep
Product Operation
Turbo mode allows the room's air to be filtered
faster. Press the button to turn the product on.
1
Set Turbo Fan Operation by pressing the
buttons on the control panel simultaneously for
three seconds.
2
Turbo Fan Operation

USER MANUAL
15
Product Operation
1
2
You can set the safety lock function so that children
cannot operate the product.
If you press the + button (or the button on
the Remote Control) for more than three seconds while
the product is on, the display shows and the Safety
Lock function is set.
If you press a button on the control panel while this
function is on, will flash on the display five times
at one second intervals.
To cancel this function, press the + button
simultaneously for more than three seconds. Or press
the button on the Remote Control to cancel this function.
Safety Lock Function
LED
LED
Mute: Press and hold the button and the " " button simultaneously for three seconds to
turn on and off the beep sound.
Mute Function
Auto
1
2
3
While the product is on, press the button (or the
button on the Remote Control) for more than
three seconds.
► Initially, 1h is displayed.
Press the button on the control panel (or
the button on the Remote Control) to select the
desired run time.
► You can select from 1 hour to 12 hours. (If you do
not press the button for five seconds, it returns to
the previous display.)
After selecting the desired run time, press the
button on the control panel for three seconds
or longer (or the button on the Remote Control).
► You will hear the beep sound and the timer
symbol will be shown on the display.
• When in Auto-Off mode the room air purifier will automatically turn off
after the set run time.
• If the power is disconnected the scheduled auto-off time will be
canceled, and a new auto-off time will need to be set.
Auto-Off Function
Sleep
Note
Sleep
+
–
OK

16
ROOM AIR PURIFIER
• You can check the indoor air quality in real time by using the indoor air quality indicator.
This indicator appears as a light around the outer edge of the display monitor.
• The indoor air quality is displayed based on the density of fine particles and VOC density
being sensed by the unit.
• IAQ indicator may not react to some particles and its readings may
be different from that of other air quality measuring products and
instruments.
Indoor Air Quality (IAQ) Indicator
Note
Color Code
Color Air Quality PM2.5 Reading
(µg/m3)VOC Density
Level 1 Green Good 0-12 Low
Level 2 Yellow Moderate 13-35 Medium
Level 3 Orange Bad 36-55 High
Level 4 Red Very bad Equal or above 56 Very high
Indoor Air Quality Indicator

USER MANUAL
17
Care and Maintenance
Cleaning the Filter
Replacing the Filter
Using a damp cloth, clean the exterior of the room air purifier and wipe dry with a soft cloth.
Open the filter cover on the back and remove the filter. Clean the inside of the filter cabinet
with a vacuum cleaner and damp towel.
Clean the product and the pre-filter once or twice a month.
How to Clean the Product
1
2
3
If the filter is extremely dirty, replace it.
► Filter contamination may vary depending on your environment and the number of hours you
have run the air purifier. The timing of filter cleaning may vary accordingly.
In between filter replacements, clean the pre-filter with a vacuum cleaner or a soft brush.
► Never wash the filter with water.
1
2
The filter replacement indicator light will
turn red when it is time to replace the filter.
Replace the filter every 6-12 months.
(See pages 5-6 for details on installing filter
and see page 8 for filter by model information.)
After replacing the filter, reset the indicator
light. Press the + " " button on the
control panel for five seconds or longer to
reset the indicator light.
1
2
Sleep
Auto
• Unplug the product before cleaning.
• Clean the air purifier once or twice a month for optimal function.
• In areas with high levels of dust, it is recommended to clean the air
purifier more frequently.
Note
(Filter replacement
indicator light)
The life of the filter depends on your environment and use.
Note

18
ROOM AIR PURIFIER
Care and Maintenance
Cleaning the Dust Sensor
Remove the cover of the dust sensor
located on the right side of the
product.
Replace the cover of the dust sensor.
Replace the filter cover. Replace the
top cover of the product with the
logo facing the front.
Wipe the lens and inlet of the dust
sensor with a damp cotton swab.
Thoroughly dry with a clean, dry
cotton swab.
Cotton Swab
Lens
3
5
4
1 2
Hold the top cover of the product
with both hands and pull up.
Grasp the filter cover hole on the rear
and pull it forward.
Sensor
Cover
Long Term Storage
Run the product for one hour and then
disconnect from the power outlet.
Cover the product and store in a dry
space out of direct sunlight.
1 2
Filter cover
hole
CAUTION
Do not wipe sensor parts with
harsh cleaning chemicals, such as
acetone, alcohol, etc. It may cause
damage to the lens.
