Installation Manual
Accessories ..................................................................................................................02
Installation Summary - Indoor Unit.............................................................................03
Unit Parts.......................................................................................................................04
Indoor Unit Installation ................................................................................................05
1. Select installation location....................................................................................................................................05
2. Attach mounting plate to wall................................................................................................................................05
3. Drill wall hole for connective piping ......................................................................................................................06
4. Prepare refrigerant piping.....................................................................................................................................07
5. Connect drain hose ..............................................................................................................................................07
6. Connect signal cable............................................................................................................................................08
7. Wrap piping and cables........................................................................................................................................09
8. Mount indoor unit..................................................................................................................................................10
Outdoor Unit Installation .............................................................................................11
1. Select installation location....................................................................................................................................11
2. Install drain joint....................................................................................................................................................12
3. Anchor outdoor unit ..............................................................................................................................................12
4. Connect signal and power cables.........................................................................................................................14
Refrigerant Piping Connection....................................................................................15
A. Note on Pipe Length ............................................................................................................................................15
B. Connection Instructions –Refrigerant Piping........................................................................................................15
1. Cut pipe...........................................................................................................................................................15
2. Remove burrs..................................................................................................................................................16
3. Flare pipe ends................................................................................................................................................16
4. Connect pipes .................................................................................................................................................16
Air Evacuation ..............................................................................................................19
1. Evacuation Instructions ........................................................................................................................................19
2. Note on Adding Refrigerant..................................................................................................................................20
Electrical and Gas Leak Checks .................................................................................21
Test Run ........................................................................................................................22
Table of Contents
42QHG009D8SH 38QHG024D8S*
42QHG024D8S*
38QHG018D8S*
42QHG018D8S* 38QHG012D8S*
42QHG012D8S* 38QHG009D8S*42QHG009D8S*
38QHG022D8S*
42QHG022D8S*
Rated Voltage & Hz
220-240V~
50/60Hz
Indoor Unit Outdoor Unit
38QHG012D8SH
42QHG012D8SH 38QHG009D8SH

Accessories
The air conditioning system comes with the following accessories. Use all of the installation
parts and accessories to install the air conditioner. Improper installation may result in water
leakage, electrical shock and re, or cause the equipment to fail. The items are not included
with the air conditioner must be purchased separately.
Name of Accessories Q‘ty (pc) Shape Name of
Accessories Q’ty (pc) Shape
Manual 2~3 Remote controller 1
Drain joint
(for cooling &
heating models) 1Battery 2
Seal
(for cooling &
heating models) 1Remote controller
holder (optional) 1
Mounting plate 1Fixing screw for remote controller
holder (optional) 2
Anchor 5~8 (depending
on models)
Small Filter
(Need to be installed
on the back of main air
lter by the authorized
technician while
installing the machine)
1~2
(depending
on models)
Mounting plate
xing screw
5~8
(depending
on models)
Name Shape Quantity (PC)
Connecting pipe assembly
Liquid side ø6.35 (1/4 in)
Parts you must purchase
separately. Consult the dealer
about the proper pipe size of
the unit you purchased.
ø9.52 (3/8in)
Gas side
ø9.52 (3/8in)
ø12.7 (1/2in)
ø16 (5/8in)
ø19 (3/4in)
Magnetic ring and belt
(if supplied ,please refer
to the wiring diagram to
install it on the connective
cable.)
1 2 3
Pass the belt through the
hole of the Magnetic ring
to x it on the cable
Varies by model
Accessories
Page 02-GB

Installation Summary - Indoor Unit
1 2
3
4
12cm
(4.75in)
2.3m (90.55in)
12cm
(4.75in)
15cm (5.9in)
STEP
8
456
78
9
Select Installation Location
Drill Wall Hole
Prepare Drain Hose
Determine Wall Hole Position
Connect Piping
Mount Indoor Unit
Wrap Piping and Cable
(not applicable for some locations in the US)
Attach Mounting Plate
Connect Wiring
(not applicable for some
locations in the US)
Installation Summary
- Indoor Unit
12cm
(4.75in) 12cm
(4.75in)
15cm (5.9in)
2.3m (90.55in)
Page 03-GB

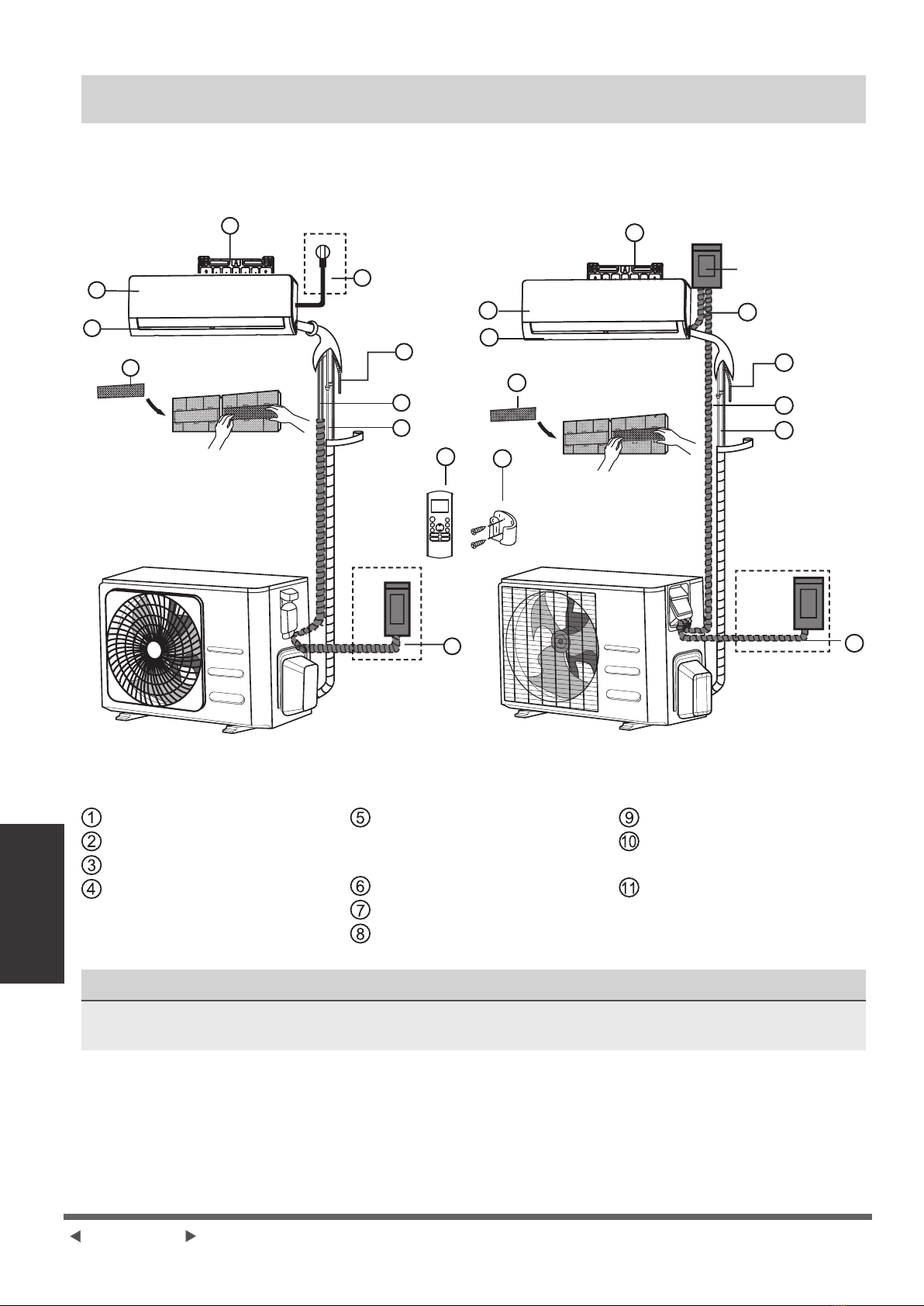

Unit Parts
Unit Parts
NOTE: The installation must be performed in accordance with the requirement of local and
national standards. The installation may be slightly different in different areas.
(1) (2)
1
23
4
6
7
8
9
10
11
3
1
2
4
56
7
8
11
5
Air-break switch
Wall Mounting Plate
Front Panel
Power Cable (Some Units)
Louver
Functional Filter (On Back
of Main Filter - Some
Units)
Drainage Pipe
Signal Cable
Refrigerant Piping
Remote Controller
Remote controller Holder
(Some Units)
Outdoor Unit Power Cable
(Some Units)
NOTE ON ILLUSTRATIONS
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit
may be slightly different. The actual shape shall prevail.
Page 04-GB

Indoor Unit
Installation
Indoor Unit Installation
Installation Instructions – Indoor unit
PRIOR TO INSTALLATION
Before installing the indoor unit, refer to the label
on the product box to make sure that the model
number of the indoor unit matches the model
number of the outdoor unit.
Step 1: Select installation location
Before installing the indoor unit, you must
choose an appropriate location. The
following are standards that will help you
choose an appropriate location for the unit.
Proper installation locations meet the
following standards:
Good air circulation
Convenient drainage
Noise from the unit will not disturb other
people
Firm and solid—the location will not
vibrate
Strong enough to support the weight of
the unit
A location at least one meter from all
other electrical devices (e.g., TV, radio,
computer)
DO NOT install unit in the following
locations:
Near any source of heat, steam, or
combustible gas
Near ammable items such as curtains or
clothing
Near any obstacle that might block air
circulation
Near the doorway
In a location subject to direct sunlight
NOTE ABOUT WALL HOLE:
If there is no xed refrigerant piping:
While choosing a location, be aware that you
should leave ample room for a wall hole (see
Drill wall hole for connective piping step)
for the signal cable and refrigerant piping that
connect the indoor and outdoor units. The default
position for all piping is the right side of the indoor
unit (while facing the unit). However, the unit can
accommodate piping to both the left and right.
Refer to the following diagram to ensure
proper distance from walls and ceiling:
15cm (5.9in) or more
2.3m (90.55in) or more
12cm (4.75in)
or more
12cm (4.75in)
or more
Step 2: Attach mounting plate to wall
The mounting plate is the device on which
you will mount the indoor unit.
● Remove the screw that attaches the
mounting plate to the back of the indoor
unit.
● Secure the mounting plate to the wall
with the screws provided. Make sure that
mounting plate is at against the wall.
NOTE FOR CONCRETE OR BRICK WALLS:
If the wall is made of brick, concrete, or
similar material, drill 5mm-diameter (0.2in-
diameter) holes in the wall and insert the
sleeve anchors provided. Then secure the
mounting plate to the wall by tightening the
screws directly into the clip anchors.
Page 05-GB

Indoor Unit
Installation
Step 3: Drill wall hole for connective
piping
1. Determine the location of the wall hole
based on the position of the mounting
plate. Refer to Mounting Plate
Dimensions.
2. Using a 65mm (2.5in) or 90mm (3.54in)
(depending on models )core drill, drill a
hole in the wall. Make sure that the hole
is drilled at a slight downward angle,
so that the outdoor end of the hole is
lower than the indoor end by about 5mm
to 7mm (0.2-0.275in). This will ensure
proper water drainage.
3. Place the protective wall cuff in the
hole. This protects the edges of the hole
and will help seal it when you nish the
installation process.
CAUTION
When drilling the wall hole, make sure
to avoid wires, plumbing, and other
sensitive components.
Wall
Indoor Outdoor
5-7mm (0.2-0.275in)

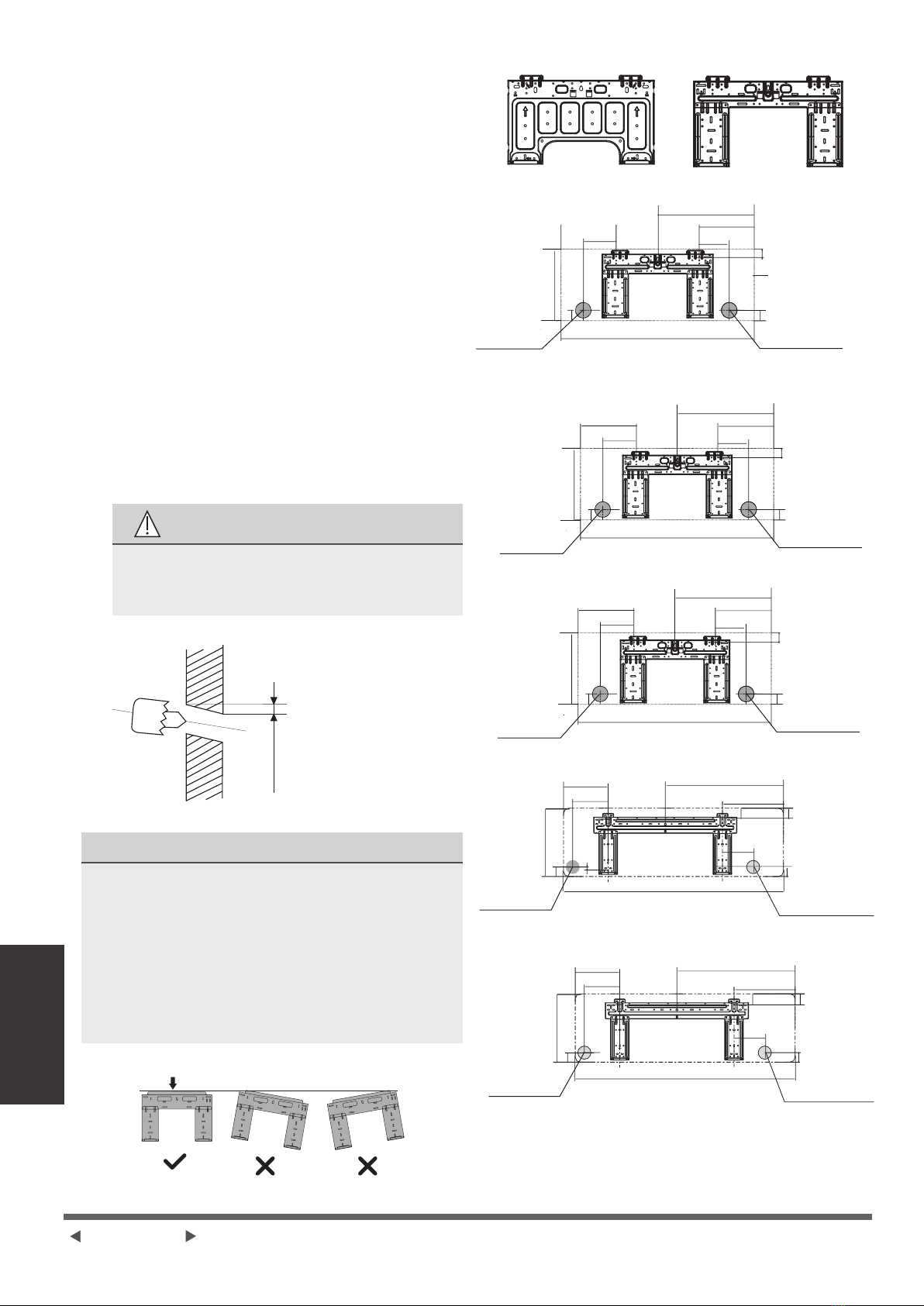

MOUNTING PLATE DIMENSIONS
Different models have different mounting
plates.
For the different customization
requirements, the shape of the mounting
plate may be slightly different. But the
installation dimensions are the same for the
same size of indoor unit.
See Type A and Type B for example:
Correct orientation of Mounting Plate
Type A Type B
348.4mm (13.7in)
403mm (15.9in)
418mm (16.5in)
527mm (20.7in)
603mm (23.7in)
247mm (9.7in)
322mm (12.7in)
139mm
(5.5in)
173mm
(6.8in)
165mm (6.5in)
199mm (7.8in)
106mm (4.2in)
129mm (5.1in)
973mm (38.3in)
1082mm (42.6in)
318mm (12.5in)
338mm (13.3in)
48mm (1.9in)
29mm (1.1in)
54mm (2.1in)
835mm (32.9in)
246mm (9.7in)
121mm (4.8in)
244mm (9.6in)
190mm (7.5in)
297mm (11.7in)
47mm (1.8in)
231mm (9.1in)
121mm (4.8in)
Left rear wall hole
65mm (2.5in)
Left rear
wall hole
65mm (2.5in)
Left rear
wall hole
65mm (2.5in)
Left rear wall hole
65mm (2.5in)
Left rear wall hole
90mm (3.54in)
Indoor unit outline
Right rear wall hole
65mm (2.5in)
Right rear wall
hole 65mm (2.5in)
Right rear wall hole
65mm (2.5in)
Right rear wall hole
65mm (2.5in)
Right rear wall hole
90mm (3.54in)
Model A
Model B
Model C
Model D
Model E
101mm (4.0in)
230mm (9.1in)
190mm (7.5in)
805mm (31.7in)
722mm (28.5in)
290mm (11.4in)
49mm (1.95in)
297mm (11.7in)
47mm (1.8in)
37mm
(1.45in)
49mm
(1.95in)
36mm
(1.4in)
53mm
(2.1in)
53mm
(2.1in)
37mm
(2.1in)
55mm
(2.1in)
48mm
(1.9in)
54mm
(2.1in)
36mm
(1.4in)
179mm (7.1in)
136mm (5.4in)
NOTE: When the gas side connective pipe
is ø16mm (5/8in) or more, the wall hole
should be 90mm (3.54in).
Page 06-GB

Indoor Unit
Installation
Step 4: Prepare refrigerant piping
The refrigerant piping is inside an insulating
sleeve attached to the back of the unit. You
must prepare the piping before passing it
through the hole in the wall.
1. Based on the position of the wall hole
relative to the mounting plate, choose the
side from which the piping will exit the unit.
2. If the wall hole is behind the unit, keep the
knock-out panel in place. If the wall hole
is to the side of the indoor unit, remove
the plastic knock-out panel from that side
of the unit. This will create a slot through
which your piping can exit the unit. Use
needle nose pliers if the plastic panel is
too difcult to remove by hand.
Knock-out Panel
3. If existing connective piping is already
embedded in the wall, proceed directly
to the Connect Drain Hose step. If
there is no embedded piping, connect
the indoor unit’s refrigerant piping to
the connective piping that will join the
indoor and outdoor units. Refer to the
Refrigerant Piping Connection section
of this manual for detailed instructions.
NOTE ON PIPING ANGLE
Refrigerant piping can exit the indoor
unit from four different angles: Left-
hand side, Right-hand side, Left rear,
Right rear.
CAUTION
Be extremely careful not to dent or damage
the piping while bending them away from
the unit. Any dents in the piping will affect
the unit’s performance.

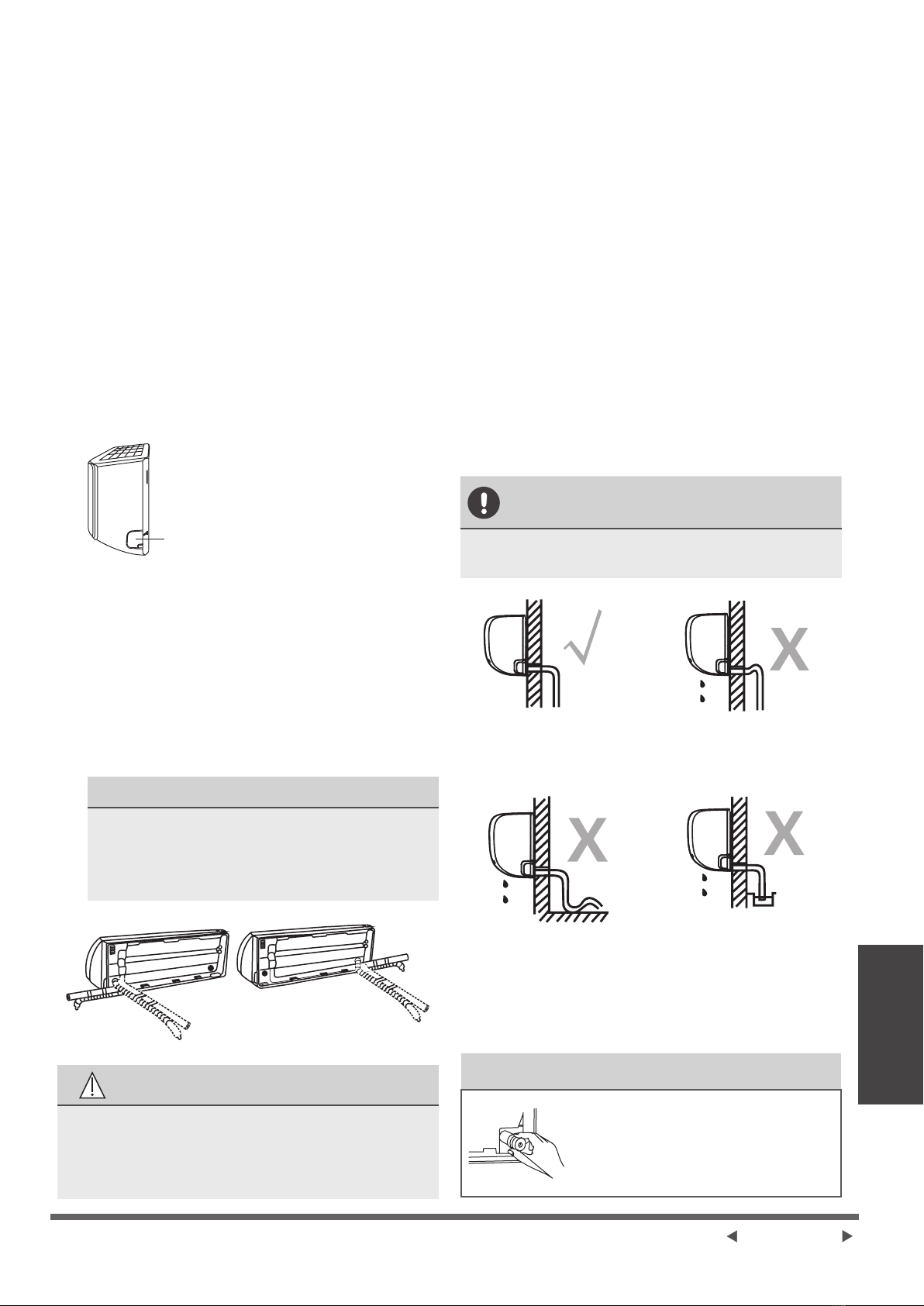

Step 5: Connect drain hose
By default, the drain hose is attached to the
lefthand side of unit (when you’re facing the
back of the unit). However, it can also be
attached to the right-hand side. To ensure
proper drainage, attach the drain hose on the
same side that your refrigerant piping exits the
unit. Attach drain hose extension (purchased
separately) to the end of drain hose.
● Wrap the connection point rmly with
Teon tape to ensure a good seal and to
prevent leaks.
● For the portion of the drain hose that will
remain indoors, wrap it with foam pipe
insulation to prevent condensation.
●Remove the air lter and pour a small
amount of water into the drain pan to make
sure that water ows from the unit smoothly.
NOTE ON DRAIN HOSE
PLACEMENT
Make sure to arrange the drain hose
according to the following gures.
CORRECT
Make sure there are no kinks
or dent in drain hose to ensure
proper drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.
NOT CORRECT
Kinks in the drain hose
will create water traps.
NOT CORRECT
Do not place the end of the
drain hose in water or in
containers that collect water.
This will prevent proper
drainage.
PLUG THE UNUSED DRAIN HOLE
To prevent unwanted leaks
you must plug the unused
drain hole with the rubber
plug provided.
Page 07-GB

BEFORE PERFORMING ANY
ELECTRICAL WORK, READ
THESE REGULATIONS
1. All wiring must comply with local and
national electrical codes, regulations
and must be installed by a licensed
electrician.
2. All electrical connections must be made
according to the Electrical Connection
Diagram located on the panels of the
indoor and outdoor units.
3. If there is a serious safety issue with the
power supply, stop work immediately.
Explain your reasoning to the client,
and refuse to install the unit until the
safety issue is properly resolved.
4. Power voltage should be within 90-
110% of rated voltage. Insufcient
power supply can cause malfunction,
electrical shock, or re.
5. 5. If connecting power to xed wiring,
install a surge protector and main power
switch with a capacity of 1.5 times the
maximum current of the unit.
6. If connecting power to xed wiring,
a switch or circuit breaker that
disconnects all poles and has a contact
separation of at least 1/8in (3mm) must
be incorporated in the xed wiring.
The qualied technician must use an
approved circuit breaker or switch.
7. Only connect the unit to an individual
branch circuit outlet. Do not connect
another appliance to that outlet.
8. Make sure to properly ground the air
conditioner.
9. Every wire must be rmly connected.
Loose wiring can cause the terminal
to overheat, resulting in product
malfunction and possible re.
10.Do not let wires touch or rest against
refrigerant tubing, the compressor, or
any moving parts within the unit.
11. If the unit has an auxiliary electric
heater, it must be installed at least 1
meter (40in) away from any combustible
materials.
12.To avoid getting an electric shock,
never touch the electrical components
soon after the power supply has been
turned off. After turning off the power,
always wait 10 minutes or more before
you touch the electrical components.
WARNING
BEFORE PERFORMING ANY
ELECTRICAL OR WIRING WORK,
TURN OFF THE MAIN POWER TO
THE SYSTEM.
Step 6: Connect signal cable
The signal cable enables communication
between the indoor and outdoor units. You
must rst choose the right cable size before
preparing it for connection.
Cable Types
●Indoor Power Cable (if applicable):
H05VV-F or H05V2V2-F
●Outdoor Power Cable: H07RN-F
●Signal Cable: H07RN-F
Minimum Cross-Sectional Area of Power
and Signal Cables (For reference)
Rated Current
of Appliance (A)
Nominal Cross-Sectional
Area (mm²)
> 3 and ≤ 6 0.75
> 6 and ≤ 10 1
> 10 and ≤ 16 1.5
> 16 and ≤ 25 2.5
> 25 and ≤ 32 4
> 32 and ≤ 40 6
CHOOSE THE RIGHT CABLE SIZE
The size of the power supply cable,
signal cable, fuse, and switch needed is
determined by the maximum current of the
unit. The maximum current is indicated on
the nameplate located on the side panel of
the unit. Refer to this nameplate to choose
the right cable, fuse, or switch.
WARNING
ALL WIRING MUST BE PERFORMED
STRICTLY IN ACCORDANCE WITH
THE WIRING DIAGRAM LOCATED ON
THE BACK OF THE INDOOR UNITʼS
FRONT PANEL.
Indoor Unit
Installation
Page 08-GB

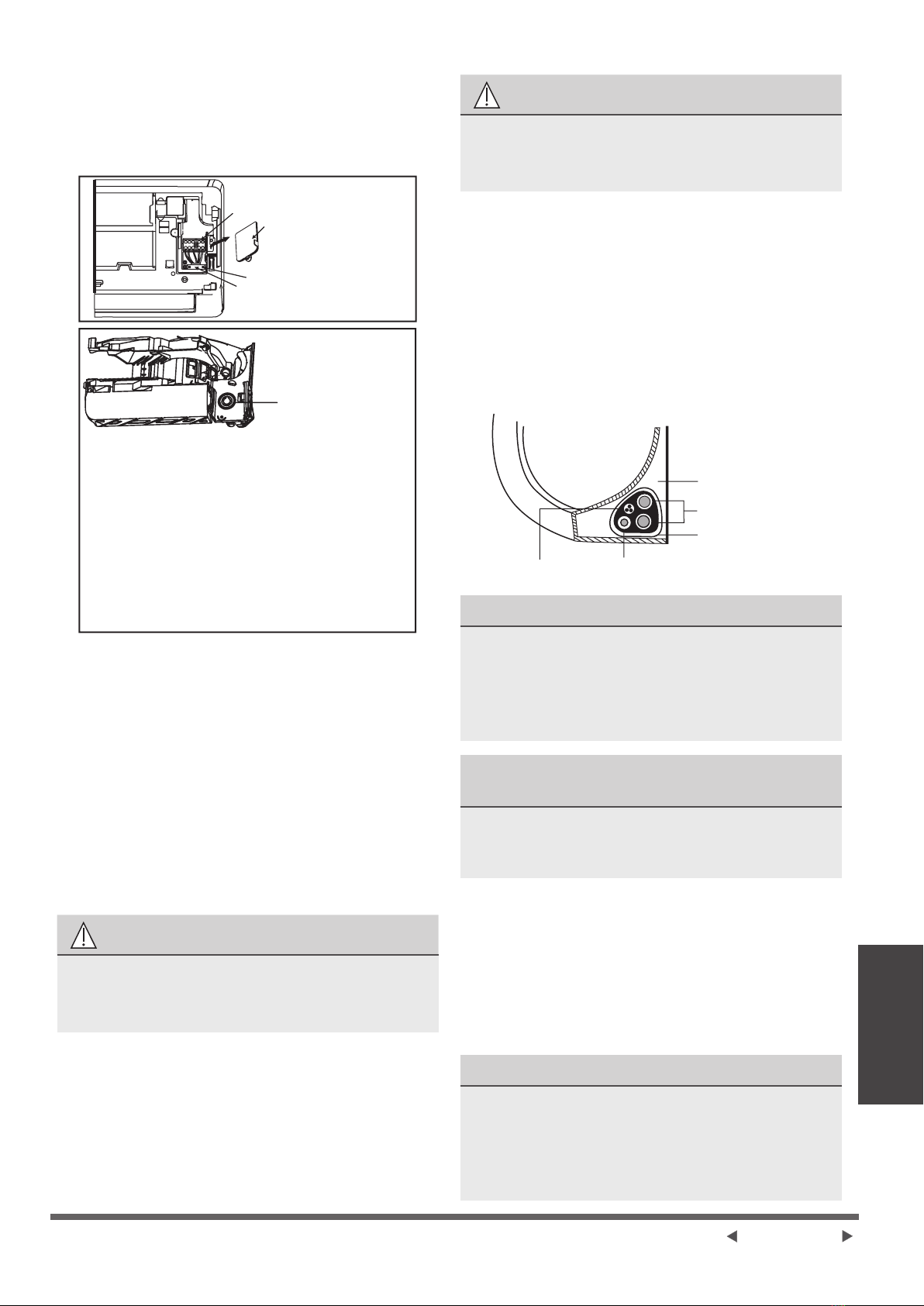

1. Open front panel of the indoor unit.
2. Using a screwdriver, open the wire box
cover on the right side of the unit. This will
reveal the terminal block.
Front view
Terminal block
Wire cover
Screw
Cable clamp
Knock-out panel
NOTE:
● For the units with conduit tube to connect
the cable, remove the big plastic konck-
out panel tocreate a slot through which the
conduit tube can be installed.
●For the units with ve-core cable, remove the
middle small plactic knock-out panel to create
a slot through which the cable can exit.
● Use needle nose pliers if the plastic panel is
tood ifcult to remove by hand.
Back view
(For some units only)
3. Unscrew the cable clamp below the
terminal block and place it to the side.
4. Facing the back of the unit, remove the
plastic panel on the bottom left-hand side.
5. Feed the signal wire through this slot,
from the back of the unit to the front.
6. Facing the front of the unit, connect the
wire according to the indoor unit’s wiring
diagram, connect the u-lug and rmly
screw each wire to its corresponding
terminal.
CAUTION
DO NOT MIX UP LIVE AND NULL WIRES
This is dangerous, and can cause the air
conditioning unit to malfunction.
7. After checking to make sure every
connection is secure, use the cable clamp
to fasten the signal cable to the unit.
Screw the cable clamp down tightly.
8. Replace the wire cover on the front of the
unit, and the plastic panel on the back.
NOTE ABOUT WIRING
THE WIRING CONNECTION
PROCESS MAY DIFFER SLIGHTLY
BETWEEN UNITS AND REGIONS.
Step 7: Wrappiping and cables
Before passing the piping, drain hose,
and the signal cable through the wall hole,
you must bundle them together to save
space, protect them, and insulate them (Not
applicable in North America).
1. Bundle the drain hose, refrigerant pipes,
and signal cable as shown below:
Indoor Unit
Space behind unit
Refrigerant piping
Insulation tape
Signal wire Drain hose
DRAIN HOSE MUST BE ON BOTTOM
Make sure that the drain hose is at the
bottom of the bundle. Putting the drain
hose at the top of the bundle can cause the
drain pan to overow, which can lead to re
or water damage.
DO NOT INTERTWINE SIGNAL CABLE
WITH OTHER WIRES
While bundling these items together, do not
intertwine or cross the signal cable with any
other wiring.
2. Using adhesive vinyl tape, attach the
drain hose to the underside of the
refrigerant pipes.
3. Using insulation tape, wrap the signal
wire, refrigerant pipes, and drain hose
tightly together. Double-check that all
items are bundled.
DO NOT WRAP ENDS OF PIPING
When wrapping the bundle, keep the ends of
the piping unwrapped. You need to access
them to test for leaks at the end of the
installation process (refer to Electrical Checks
and Leak Checks section of this manual).
Indoor Unit
Installation
Page 09-GB

Step 8: Mount indoor unit
If you installed new connective piping to
the outdoor unit, do the following:
1. If you have already passed the
refrigerant piping through the hole in the
wall, proceed to Step 4.
2. Otherwise, double-check that the ends
of the refrigerant pipes are sealed to
prevent dirt or foreign materials from
entering the pipes.
3. Slowly pass the wrapped bundle of
refrigerant pipes, drain hose, and signal
wire through the hole in the wall.
4. Hook the top of the indoor unit on the
upper hook of the mounting plate.
5. Check that unit is hooked rmly on
mounting by applying slight pressure to
the left and right-hand sides of the unit.
The unit should not jiggle or shift.
6. Using even pressure, push down on the
bottom half of the unit. Keep pushing
down until the unit snaps onto the hooks
along the bottom of the mounting plate.
7. Again, check that the unit is rmly
mounted by applying slight pressure to
the left and the right-hand sides of the
unit.
If refrigerant piping is already embedded
in the wall, do the following:
1. Hook the top of the indoor unit on the
upper hook of the mounting plate.
2. Use a bracket or wedge to prop up the
unit, giving you enough room to connect
the refrigerant piping, signal cable, and
drain hose.
Wedge
3. Connect drain hose and refrigerant
piping (refer to Refrigerant Piping
Connection section of this manual for
instructions).
4. Keep pipe connection point exposed to
perform the leak test (refer to Electrical
Checks and Leak Checks section of
this manual).
5. After the leak test, wrap the connection
point with insulation tape.
6. Remove the bracket or wedge that is
propping up the unit.
7. Using even pressure, push down on the
bottom half of the unit. Keep pushing
down until the unit snaps onto the hooks
along the bottom of the mounting plate.
UNIT IS ADJUSTABLE
Keep in mind that the hooks on the
mounting plate are smaller than the holes
on the back of the unit. If you nd that
you don’t have ample room to connect
embedded pipes to the indoor unit, the unit
can be adjusted left or right by about
30-50mm (1.25-1.95in), depending on the
model.
Move to left or right
30-50mm
(1.2-1.95in) 30-50mm
(1.2-1.95in)
Indoor Unit
Installation
Page 10-GB

Outdoor Unit
Installation

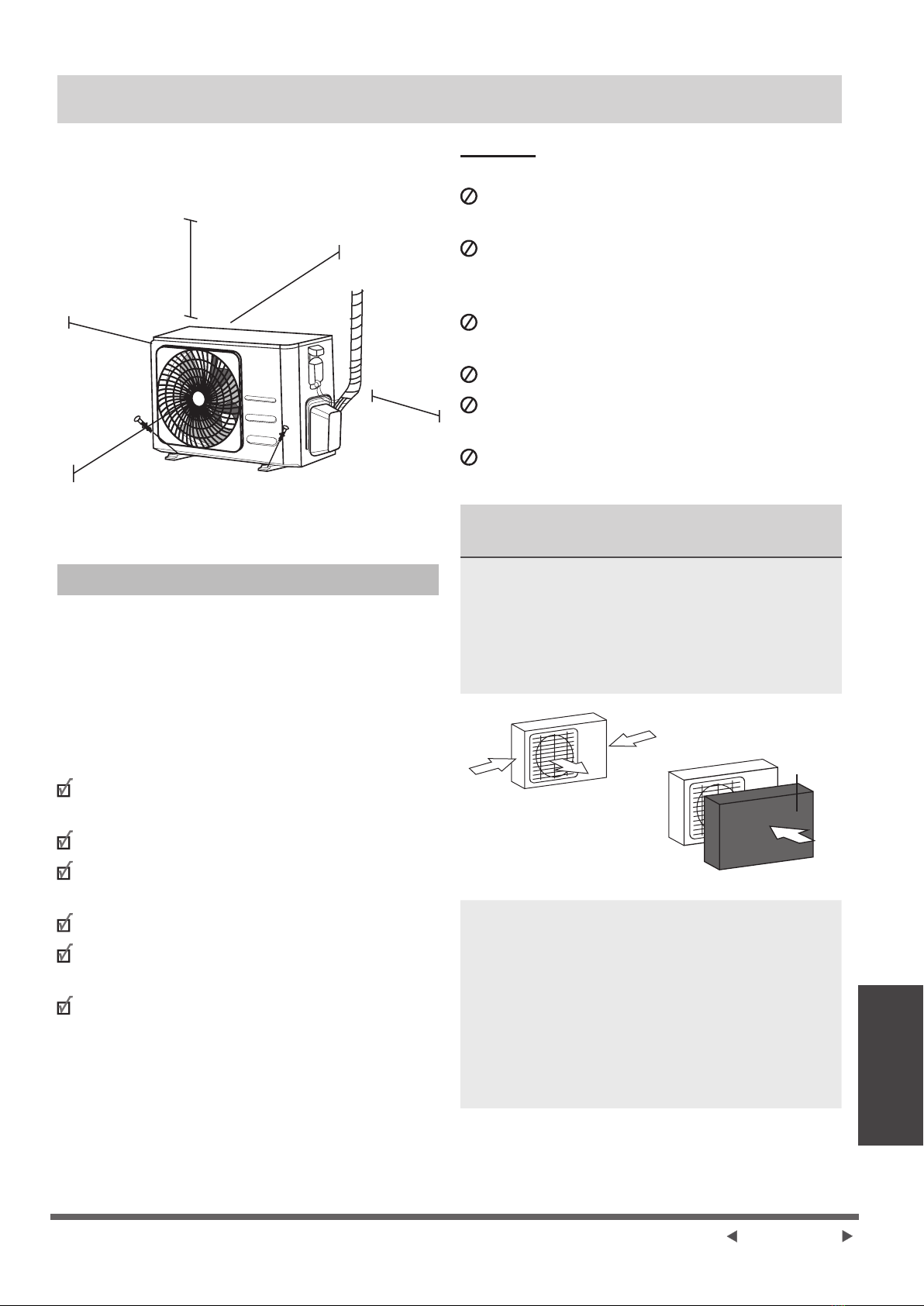

Outdoor Unit Installation
Install the unit by following local codes and
regulations , there may be differ slightly
between different regions.
t
60cm (24in) above
30cm (12in)
on left
30cm (12in)
from back wall
200cm (79in)
in front
60cm (24in)
on right
Installation Instructions – Outdoor unit
Step 1: Select installation location
Before installing the outdoor unit, you
must choose an appropriate location. The
following are standards that will help you
choose an appropriate location for the unit.
Proper installation locations meet the
following standards:
Meets all spatial requirements shown in
Installation Space Requirements above.
Good air circulation and ventilation
Firm and solid—the location can support
the unit and will not vibrate
Noise from the unit will not disturb others
Protected from prolonged periods of
direct sunlight or rain
Where snowfall is anticipated, raise the
unit above the base pad to prevent ice
buildup and coil damage. Mount the unit
high enough to be above the average
accumulated area snowfall. The minimum
height must be 18 inches
DO NOT install unit in the following
locations:
Near an obstacle that will block air inlets
and outlets
Near a public street, crowded areas, or
where noise from the unit will disturb
others
Near animals or plants that will be
harmed by hot air discharge
Near any source of combustible gas
In a location that is exposed to large
amounts of dust
In a location exposed to a excessive
amounts of salty air
SPECIAL CONSIDERATIONS FOR
EXTREME WEATHER
If the unit is exposed to heavy wind:
Install unit so that air outlet fan is at a
90° angle to the direction of the wind. If
needed, build a barrier in front of the unit to
protect it from extremely heavy winds.
See Figures below.
Strong wind
Strong
wind
Wind
Bafe
Strong wind
If the unit is frequently exposed to
heavy rain or snow:
Build a shelter above the unit to protect
it from the rain or snow. Be careful not to
obstruct air ow around the unit.
If the unit is frequently exposed to salty
air (seaside):
Use outdoor unit that is specially designed
to resist corrosion.
Page 11-GB

Outdoor Unit
Installation
Step 2: Install drain joint (Heat pump unit
only)
Before bolting the outdoor unit in place, you
must install the drain joint at the bottom of
the unit. Note that there are two different
types of drain joints depending on the type
of outdoor unit.
If the drain joint comes with a rubber seal
(see Fig. A), do the following:
1. Fit the rubber seal on the end of the
drain joint that will connect to the outdoor
unit.
2. Insert the drain joint into the hole in the
base pan of the unit.
3. Rotate the drain joint 90° until it clicks in
place facing the front of the unit.
4. Connect a drain hose extension (not
included) to the drain joint to redirect
water from the unit during heating mode.
If the drain joint doesn’t come with a
rubber seal (see Fig. B), do the following:
1. Insert the drain joint into the hole in the
base pan of the unit. The drain joint will
click in place.
2. Connect a drain hose extension (not
included) to the drain joint to redirect water
from the unit during heating mode.
Base pan hole of
outdoor unit
Seal Seal
Drain joint
(A) (B)
IN COLD CLIMATES
In cold climates, make sure that the drain
hose is as vertical as possible to ensure
swift water drainage. If water drains too
slowly, it can freeze in the hose and ood
the unit.
Step 3: Anchor outdoor unit
The outdoor unit can be anchored to the
ground or to a wall-mounted bracket with
bolt (M10). Prepare the installation base of
the unit according to the dimensions below.
UNIT MOUNTING DIMENSIONS
The following is a list of different outdoor
unit sizes and the distance between their
mounting feet. Prepare the installation base
of the unit according to the dimensions
below.
A
D
B
Air inlet
Air inlet
Air outlet
H
W
Rows of series installation
The relations between H, A and L are as
follows.
L A
L ≤ H L ≤ 1/2H 25 cm / 9.8” or more
1/2H < L ≤ H 30 cm / 11.8” or more
L > H Can not be installed
L
H
A
25 cm / 9.8” or
more 25 cm / 9.8” or
more
150 cm / 59”
or more
60 cm / 23.6”
or more 300 cm / 118” or more
Page 12-GB

Outdoor Unit
Installation
Outdoor Unit Dimensions (mm)
W × H × D
Mounting Dimensions
Distance A (mm) Distance B (mm)
681 × 434 × 285 (26.8” × 17.1” × 11.2”) 460 (18.1”) 292 (11.5”)
700 × 550 × 270 (27.5” × 21.6” × 10.6”) 450 (17.7”) 260 (10.2”)
700 × 550 × 275 (27.5” × 21.6” × 10.8”) 450 (17.7”) 260 (10.2”)
720 × 495 × 270 (28.3” × 19.5” × 10.6”) 452 (17.7”) 255 (10.0”)
728 × 555 × 300 (28.7” × 21.8” × 11.8”) 452 (17.8”) 302 (11.9”)
765 × 555 × 300 (30.1” × 21.8” × 11.8”) 452 (17.8”) 286 (11.3”)
770 × 555 × 300 (30.3” × 21.8” × 11.8”) 487 (19.2”) 298 (11.7”)
805 × 554 × 311 (31.7” × 21.8” × 12.2”) 511 (20.1”) 311 (12.2”)
800 × 554 × 333 (31.5” × 21.8” × 13.1”) 514 (20.2”) 340 (13.4”)
845 × 702 × 363 (33.3” × 27.6” × 14.3”) 540 (21.3”) 350 (13.8”)
890 × 673 × 342 (35.0” × 26.5” × 13.5”) 663 (26.1”) 354 (13.9”)
946 × 810 × 420 (37.2” × 31.9” × 16.5”) 673 (26.5”) 403 (15.9”)
946 × 810 × 410 (37.2” × 31.9” × 16.1”) 673 (26.5”) 403 (15.9”)
If you will install the unit on the ground
or on a concrete mounting platform, do
the following:
1. Mark the positions for four expansion bolts
based on dimensions chart.
2. Pre-drill holes for expansion bolts.
3. Place a nut on the end of each expansion
bolt.
4. Hammer expansion bolts into the pre-
drilled holes.
5. Remove the nuts from expansion bolts,
and place outdoor unit on bolts.
6. Put washer on each expansion bolt, then
replace the nuts.
7. Using a wrench, tighten each nut until
snug.
WARNING
WHEN DRILLING INTO
CONCRETE, EYE PROTECTION IS
RECOMMENDED AT ALL TIMES.
If you will install the unit on a wall-
mounted bracket, do the following:
CAUTION
Make sure that the wall is made of solid
brick, concrete, or of similarly strong
material. The wall must be able to support
at least four times the weight of the unit.
1. Mark the position of bracket holes based
on dimensions chart.
2. Pre-drill the holes for the expansion bolts.
3. Place a washer and nut on the end of
each expansion bolt.
4. Thread expansion bolts through holes in
mounting brackets, put mounting brackets
in position, and hammer expansion bolts
into the wall.
5. Check that the mounting brackets are
level.
6. Carefully lift unit and place its mounting
feet on brackets.
7. Bolt the unit rmly to the brackets.
8. If allowed, install the unit with rubber
gaskets to reduce vibrations and noise.
Page 13-GB

Outdoor Unit
Installation
Step 4: Connect signal and power cables
The outside unit’s terminal block is protected
by an electrical wiring cover on the side of
the unit. A comprehensive wiring diagram is
printed on the inside of the wiring cover.
WARNING
BEFORE PERFORMING ANY
ELECTRICAL OR WIRING WORK,
TURN OFF THE MAIN POWER TO
THE SYSTEM.
1. Prepare the cable for connection:
USE THE RIGHT CABLE
● Indoor Power Cable (if applicable):
H05VV-F or H05V2V2-F
● Outdoor Power Cable: H07RN-F
● Signal Cable: H07RN-F
CHOOSE THE RIGHT CABLE SIZE
The size of the power supply cable,
signal cable, fuse, and switch needed is
determined by the maximum current of the
unit. The maximum current is indicated on
the nameplate located on the side panel of
the unit. Refer to this nameplate to choose
the right cable, fuse, or switch.
a. Using wire strippers, strip the rubber
jacket from both ends of cable to reveal
about 40mm (1.57in) of the wires inside.
b. Strip the insulation from the ends of the
wires.
c. Using a wire crimper, crimp u-lugs on the
ends of the wires.
PAY ATTENTION TO LIVE WIRE
While crimping wires, make sure you
clearly distinguish the Live (“L”) Wire from
other wires.
WARNING
ALL WIRING WORK MUST BE
PERFORMED STRICTLY IN
ACCORDANCE WITH THE WIRING
DIAGRAM LOCATED INSIDE OF WIRE
COVER OF THE OUTDOOR UNIT.
2. Unscrew the electrical wiring cover and
remove it.
3. Unscrew the cable clamp below the
terminal block and place it to the side.
4. Connect the wire according to the wiring
diagram, and rmly screw the u-lug of
each wire to its corresponding terminal.
5. After checking to make sure every
connection is secure, loop the wires
around to prevent rain water from owing
into the terminal.
6. Using the cable clamp, fasten the cable
to the unit. Screw the cable clamp down
tightly.
7. Insulate unused wires with PVC electrical
tape. Arrange them so that they do not
touch any electrical or metal parts.
8. Replace the wire cover on the side of the
unit, and screw it in place.
Cover
Screw

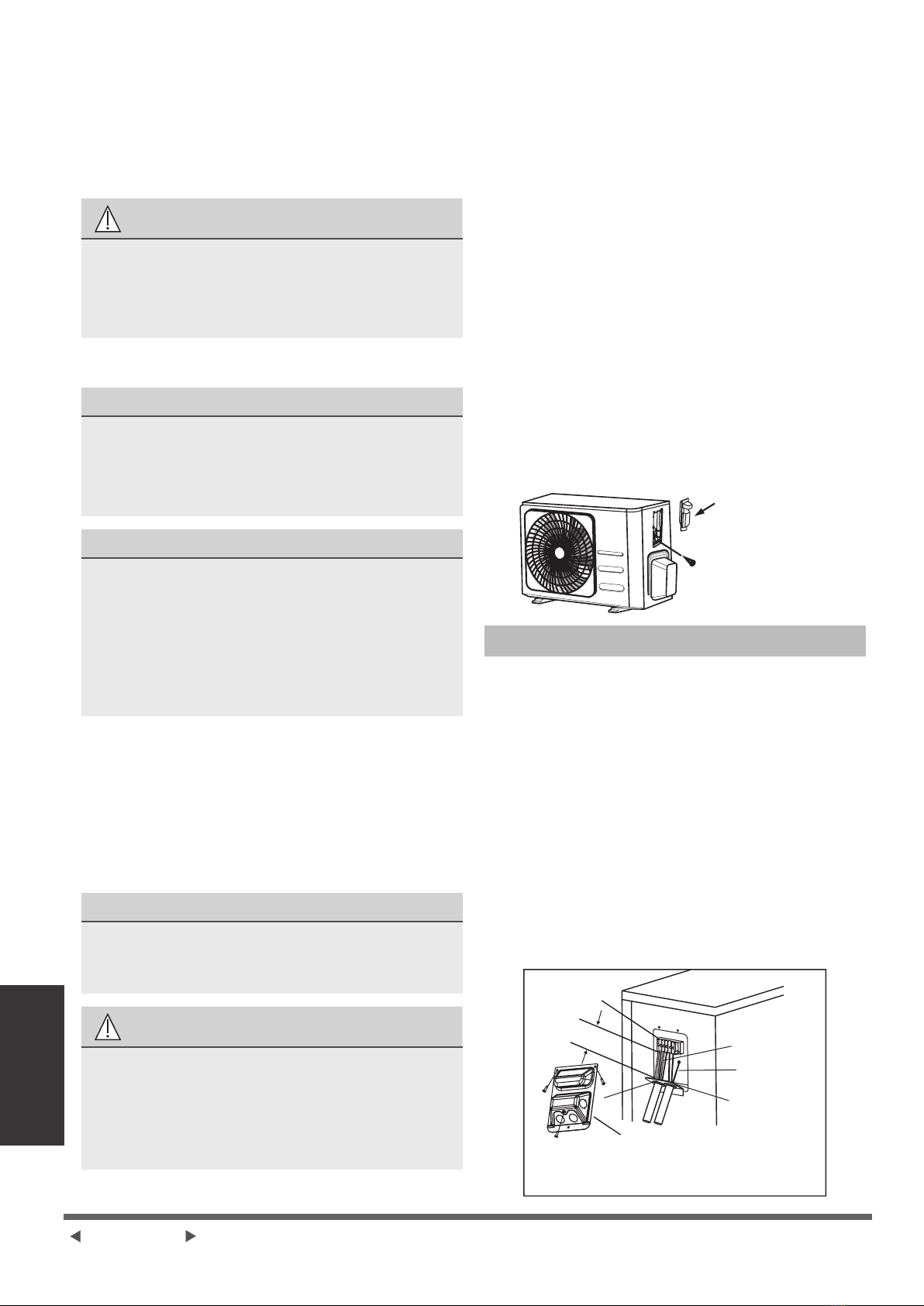

In North America
1. Remove the wire cover from the unit by
loosening the 3 screws.
2. Dismount caps on the conduit panel.
3. Temperarily mount the conduit tubes (not
included) on the conduit panel.
4. Properly connect both the power supply
and low voltage lines to the corresponding
terminals on the terminal block.
5. Ground the unit in accordance with local
codes.
6. Be sure to size each wire allowing
several inches longer than the required
length for wiring.
7. Use lock nuts to secure the conduit tubes.
G
Terminal block
Connecting cable
Power supply cord
Conduit panel
Wire Cover
Please select the appropriate through-hole
according to the diameter of the wire.
Over 1.57in. (40mm)
Page 14-GB

Refrigerant piping
Connection

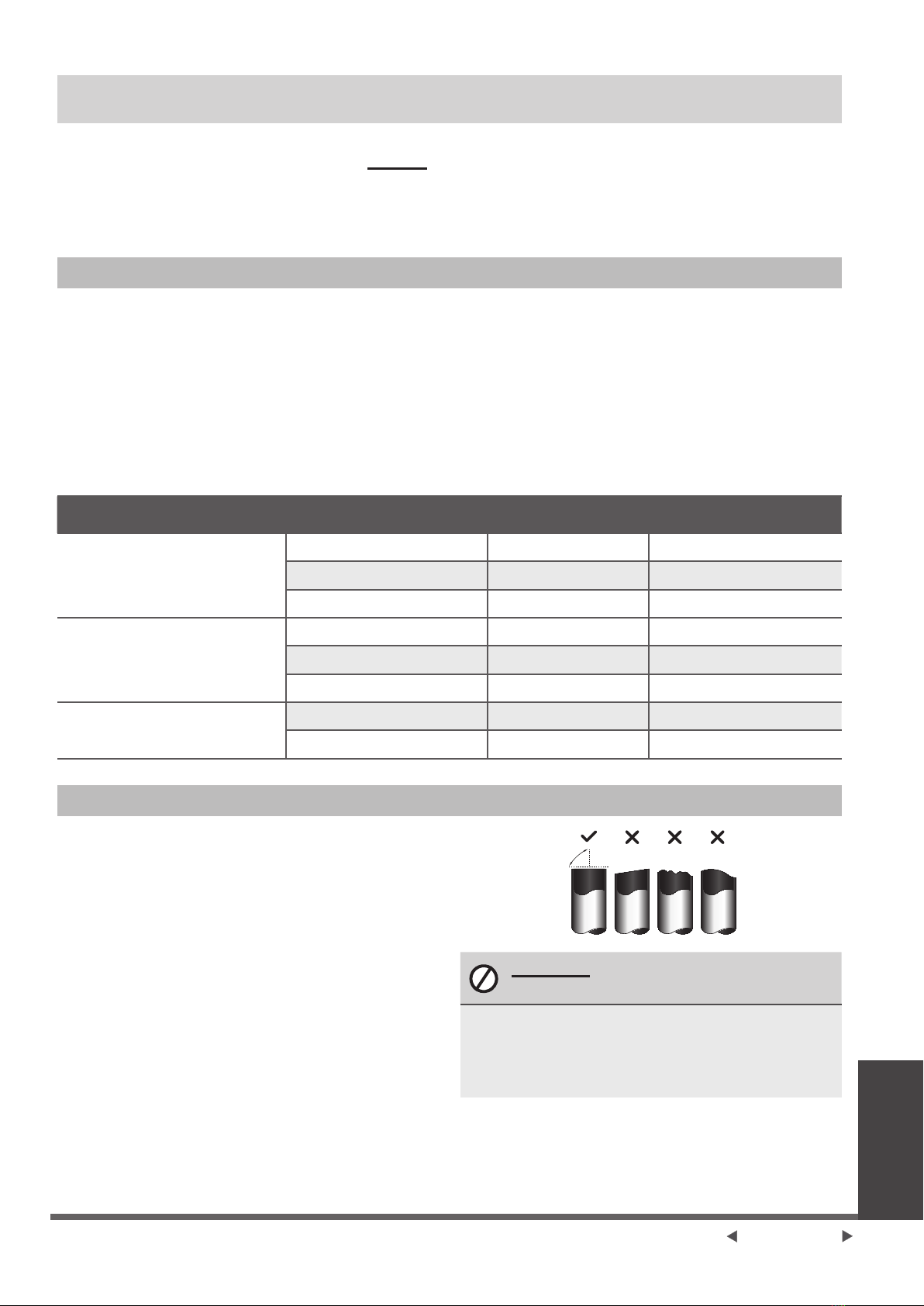

Refrigerant Piping Connection
When connecting refrigerant piping, do not let substances or gases other than the specied
refrigerant enter the unit. The presence of other gases or substances will lower the unit’s
capacity, and can cause abnormally high pressure in the refrigeration cycle. This can cause
explosion and injury.
Note on Pipe Length
The length of refrigerant piping will affect the performance and energy efciency of the
unit. Nominal efciency is tested on units with a pipe length of 5 meters (16.5ft) ( In North
America, the standard pipe length is 7.5m (25’)). A minimum pipe run of 3 metres is required
to minimise vibration & excessive noise. In special tropical area, for the R290 refrigerant
models, no refrigerant can be added and the maximum length of refrigerant pipe should not
exceed 10 meters (32.8ft).
Refer to the table below for specications on the maximum length and drop height of piping.
Maximum Length and Drop Height of Refrigerant Piping per Unit Model
Model Capacity (BTU/h) Max. Length (m) Max. Drop Height (m)
R410A,R32 Inverter
Split Air Conditioner
< 15,000 25 (82ft) 10 (33ft)
≥ 15,000 and < 24,000 30 (98.5ft) 20 (66ft)
≥ 24,000 and < 36,000 50 (164ft) 25 (82ft)
R22 Fixed-speed
Split Air Conditioner
< 18,000 10 (33ft) 5 (16ft)
≥ 18,000 and < 21,000 15 (49ft) 8 (26ft)
≥ 21,000 and < 35,000 20 (66ft) 10 (33ft)
R410A, R32 Fixed-speed
Split Air Conditioner < 18,000 20 (66ft) 8 (26ft)
≥ 18,000 and < 36,000 25 (82ft) 10 (33ft)
Connection Instructions – Refrigerant Piping
Step 1: Cut pipes
When preparing refrigerant pipes, take extra
care to cut and are them properly. This will
ensure efcient operation and minimize the
need for future maintenance.
1. Measure the distance between the indoor
and outdoor units.
2. Using a pipe cutter, cut the pipe a little
longer than the measured distance.
3. Make sure that the pipe is cut at a
perfect 90° angle.
90°
Oblique Rough Warped
DO NOT DEFORM PIPE WHILE
CUTTING
Be extra careful not to damage, dent, or
deform the pipe while cutting. This will
drastically reduce the heating efciency of
the unit.
Page 15-GB

Refrigerant piping
Connection

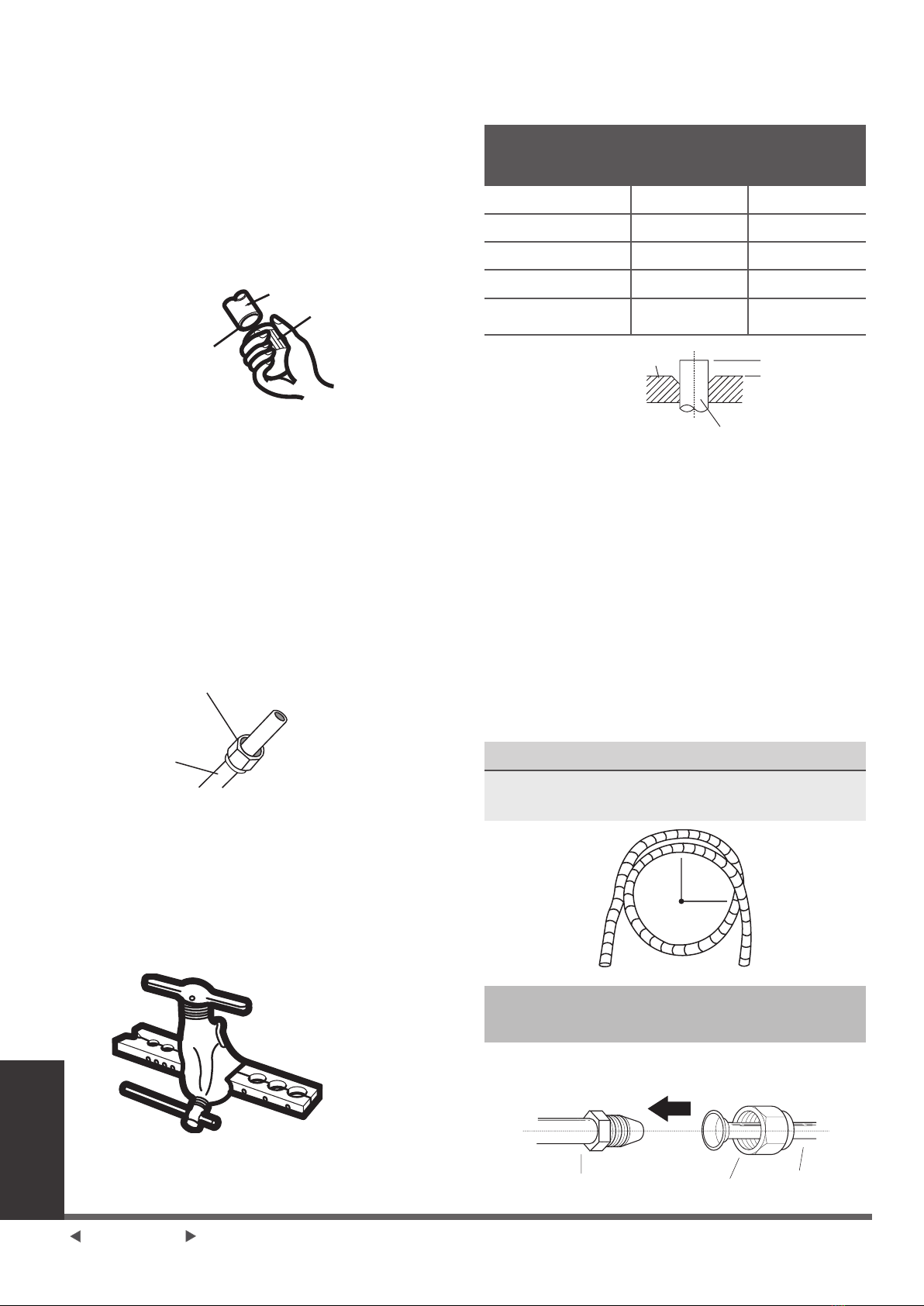

Step 2: Remove burrs
Burrs can affect the air-tight seal of
refrigerant piping connection. They must be
completely removed.
1. Hold the pipe at a downward angle to
prevent burrs from falling into the pipe.
2. Using a reamer or deburring tool,
remove all burrs from the cut section of
the pipe. PipeReamer
Point down
Step 3: Flare pipe ends
Proper aring is essential to achieve an
airtight seal.
1. After removing burrs from cut pipe,
seal the ends with PVC tape to prevent
foreign materials from entering the pipe.
2. Sheath the pipe with insulating material.
3. Place are nuts on both ends of pipe.
Make sure they are facing in the right
direction, because you can’t put them on
or change their direction after aring.
Flare nut
Copper pipe
4. Remove PVC tape from ends of pipe
when ready to perform aring work.
5. Clamp are form on the end of the pipe.
The end of the pipe must extend beyond
the edge of the are form in accordance
with the dimensions shown in the table
below.
PIPING EXTENSION BEYOND FLARE
FORM
Outer Diameter
of Pipe (mm)
A (mm)
Min. Max.
ø6.35 (ø0.25”) 0.7 (0.0275”) 1.3 (0.05”)
ø9.52 (ø0.375”) 1.0 (0.04”) 1.6 (0.063”)
ø12.7 (ø0.5”) 1.0 (0.04”) 1.8 (0.07”)
ø16 (ø0.63”) 2.0 (0.078”) 2.2 (0.086”)
ø19 (ø0.75”) 2.0 (0.078”) 2.4 (0.094”)
A
Flare form
Pipe
6. Place aring tool onto the form.
7. Turn the handle of the aring tool
clockwise until the pipe is fully ared.
8. Remove the aring tool and are form,
then inspect the end of the pipe for
cracks and even aring.
Step 4: Connect pipes
When connecting refrigerant pipes, be
careful not to use excessive torque or to
deform the piping in any way. You should
rst connect the low-pressure pipe, then the
high-pressure pipe.
MINIMUM BEND RADIUS
When bending connective refrigerant piping,
the minimum bending radius is 10cm.
Radius ≥10cm (4in)
Instructions for Connecting Piping to
Indoor Unit
1. Align the center of the two pipes that you
will connect.
Indoor unit tubing Flare nut Pipe
Page 16-GB

Refrigerant piping
Connection

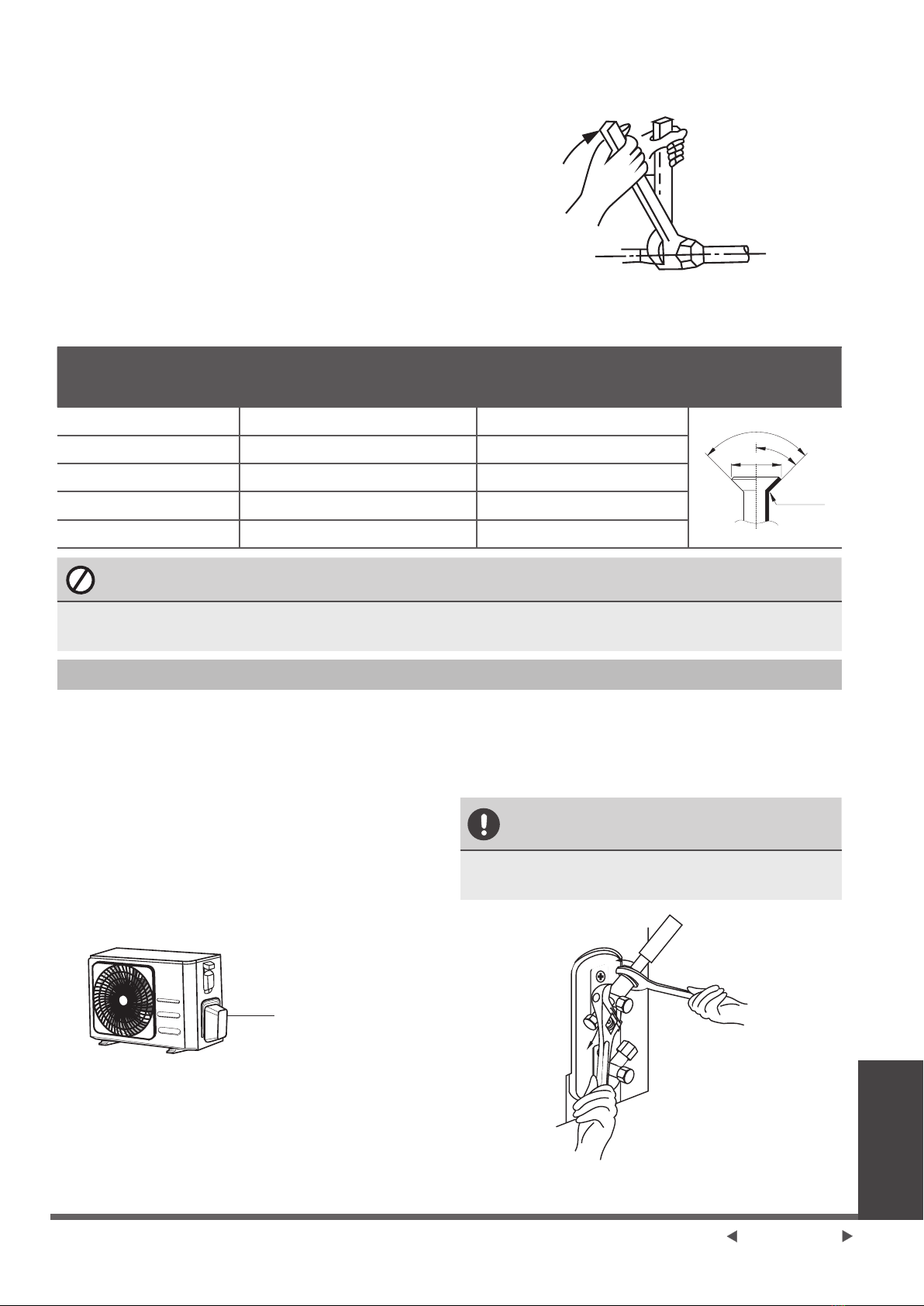

2. Tighten the are nut as tightly as
possible by hand.
3. Using a spanner, grip the nut on the unit
tubing.
4. While rmly gripping the nut on the unit
tubing, use a torque wrench to tighten
the are nut according to the torque
values in the Torque Requirements
table below. Loosen the aring nut
slightly, then tighten again.
1. Unscrew the cover from the packed
valve on the side of the outdoor unit.
2. Remove protective caps from ends of
valves.
3. Align ared pipe end with each valve,
and tighten the are nut as tightly as
possible by hand.
4. Using a spanner, grip the body of the
valve. Do not grip the nut that seals the
service valve.
Valve cover
5. While rmly gripping the body of the
valve, use a torque wrench to tighten the
are nut according to the correct torque
values.
6. Loosen the aring nut slightly, then
tighten again.
7. Repeat Steps 3 to 6 for the remaining
pipe.
USE SPANNER TO GRIP MAIN
BODY OF VALVE
Torque from tightening the are nut can
snap off other parts of valve.
TORQUE REQUIREMENTS
Outer Diameter of
Pipe (mm)
Tightening Torque
(N•m)
Flare dimension (B)
(mm) Flare shape
ø6.35 (ø0.25”) 18~20 (180~200kgf.cm) 8.4~8.7 (0.33~0.34”)
R0.4~0.8
45°±2
90°±4
B
R0.4~0.8
ø9.52 (ø0.375”) 32~39 (320~390kgf.cm) 13.2~13.5 (0.52~0.53”)
ø12.7 (ø0.5”) 49~59 (490~590kgf.cm) 16.2~16.5 (0.64~0.65”)
ø16 (ø0.63”) 57~71 (570~710kgf.cm) 19.2~19.7 (0.76~0.78”)
ø19 (ø0.75”) 67~101 (670~1010kgf.cm) 23.2~23.7 (0.91~0.93”)
DO NOT USE EXCESSIVE TORQUE
Excessive force can break the nut or damage the refrigerant piping. You must not exceed
torque requirements shown in the table above.
Instructions for Connecting Piping to Outdoor Unit
Page 17-GB

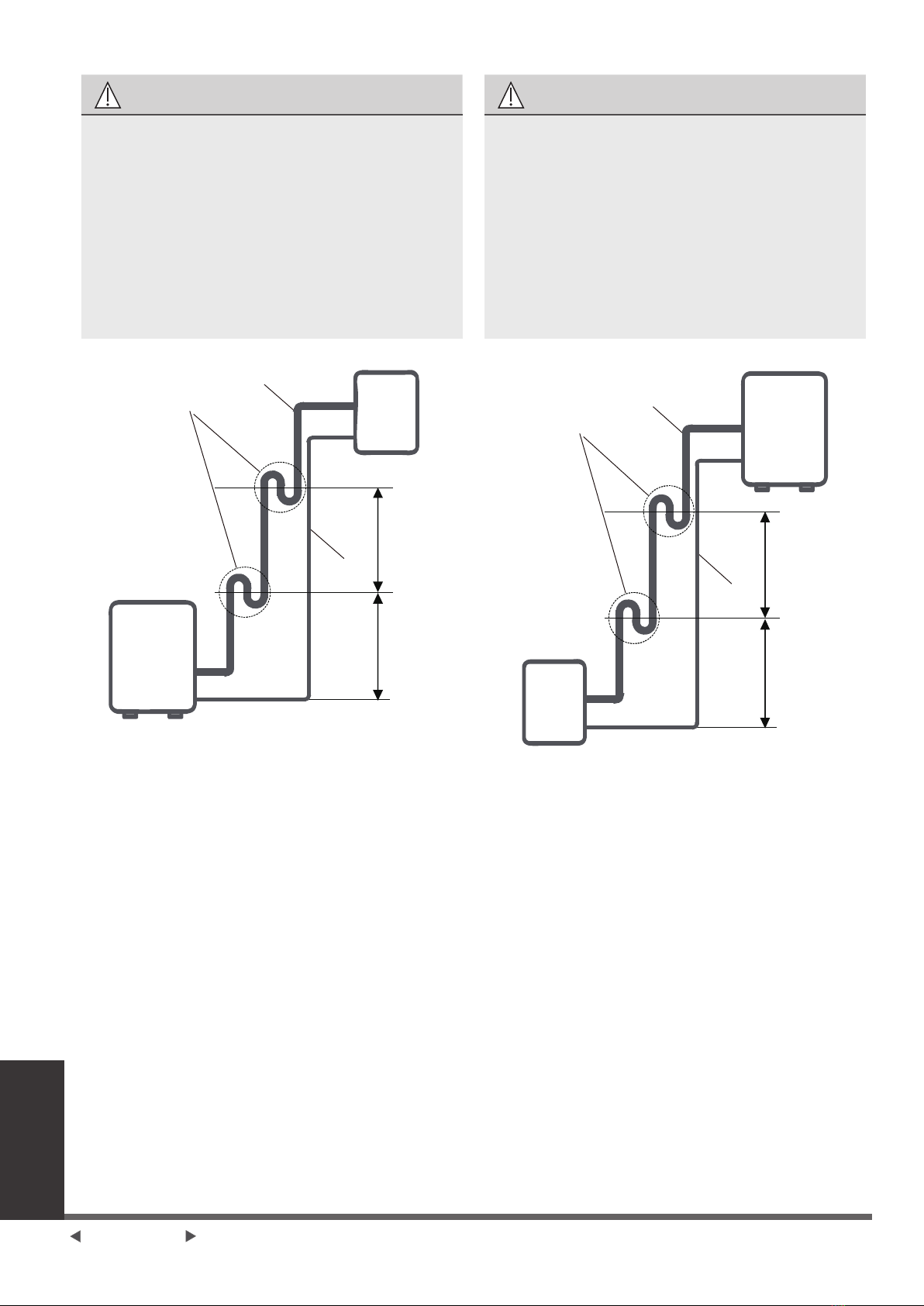

CAUTION
• Oil traps
If the indoor unit is installed higher than
the outdoor unit:
-If oil ows back into the outdoor unit’s
compressor, this might cause liquid
compression or deterioration of oil
return. Oil traps in the rising gas piping
can prevent this.
An oil trap should be installed every
10m (32.8ft) of vertical suction line riser.
Oil trap
Gas piping
Indoor unit
Outdoor unit
Liquid piping
10m/32.8ft
10m/32.8ft
The indoor unit is installed higher than the
outdoor unit
CAUTION
If the outdoor unit is installed higher
than the indoor unit:
-It is recommended that vertical suction
risers not be upsized. Proper oil return
to the compressor should be maintained
with suction gas velocity. If velocities
drop below7.62m/s (1500fpm (feet per
minute)), oil return will be decreased.
An oil trap should be installed every
6m(20ft) of vertical suction line riser.
Oil trap
Gas piping
Indoor unit
Outdoor unit
Liquid piping
6m/20ft
6m/20ft
The outdoor unit is installed higher than the
indoor unit
Refrigerant piping
Connection
Page 18-GB
