Carrier 42QZL018R8S Series User manual

For German/Dutch/Poland/Denmark/Estonia/Lithuania/Latvia/Norway/Sweden/
Portugees languages, please visit the website: www.beijerref-carrier.com

CONTENTS
3
3
4
6
6
8
10
11
11
11
12
12
12
13
13
13
14
14
14
15
15
16
18
18
18
18
19
1. PREPARING FOR INSTALLATION ·······································································
1.1 Safety Percautions ··························································································
1.2 Accessories ···································································································
2. INDOOR UNIT INSTALLATION ············································································
2.1 Installation Site Choosing ·················································································
2.2 Ceiling Installation ··························································································
2.3 Wall-mounted Installation ················································································

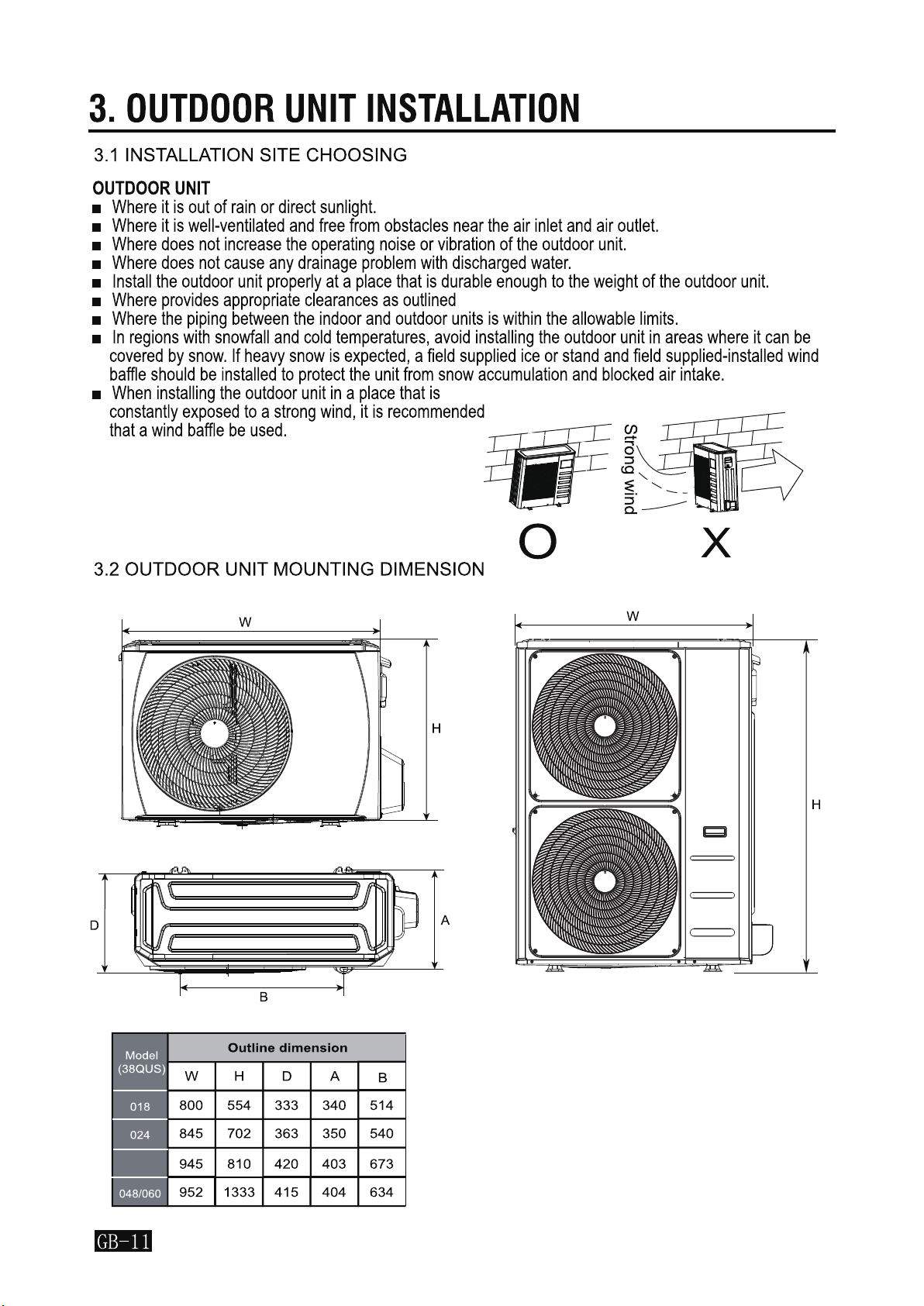

3. OUTDOOR UNIT INSTALLATION ······································································
3.1 Installation Site Choosing ················································································
3.2 Outdoor Unit Mounting Dimension ·····································································
3.3 Space Requirement For Outdoor Unit ·································································
3.4 Install The Outdoor Unit ················································································
3.5 Install The Drain Pipe For Outdoor Unit ······························································

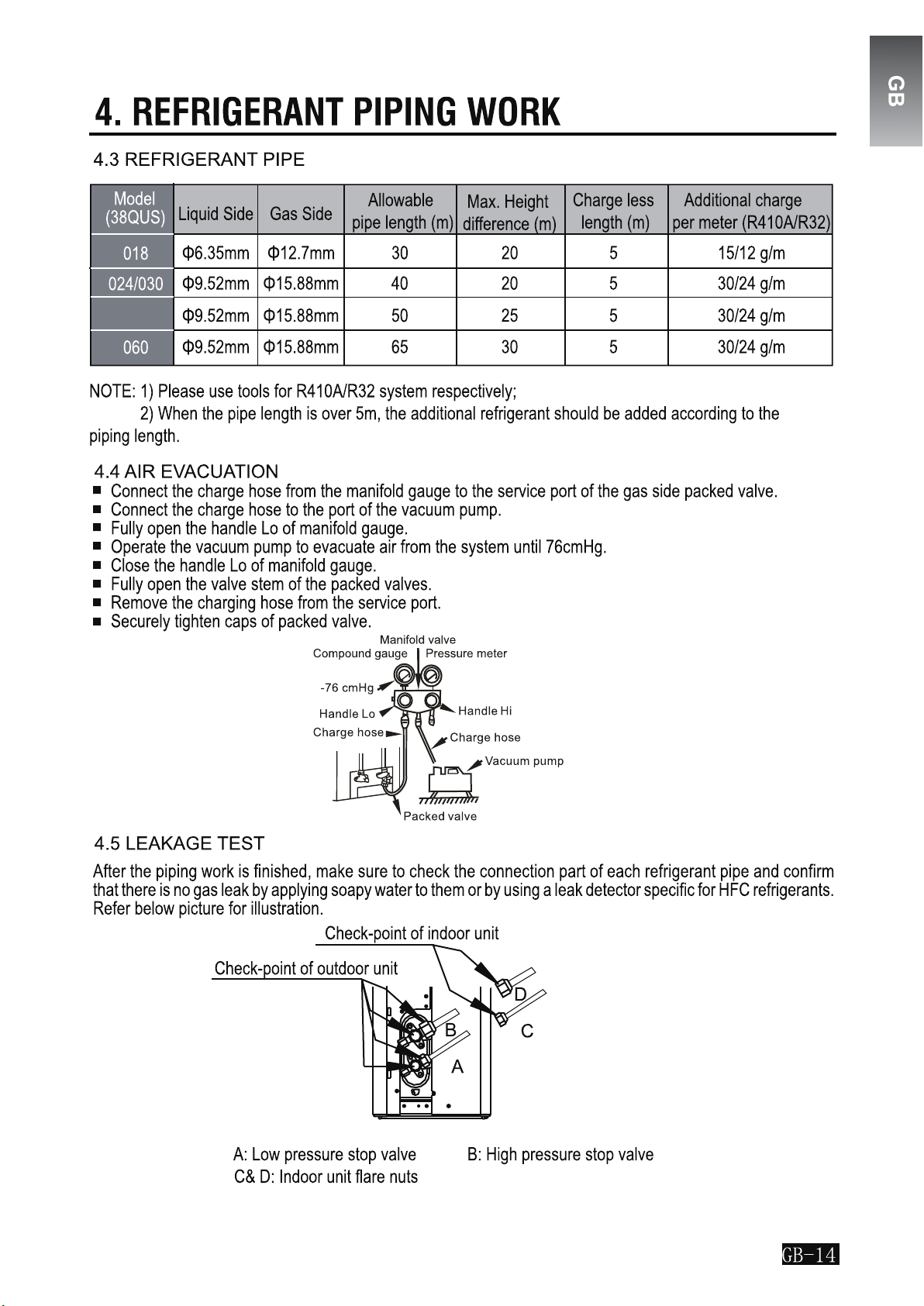

4. REFRIGERANT PIPING WORK ··········································································
4.1 Flaring ·······································································································
4.2 Piping Work ·································································································
4.3 Refrigerant Pipe ··························································································
4.4 Air Evacuation ····························································································
4.5 Leakage Test ······························································································

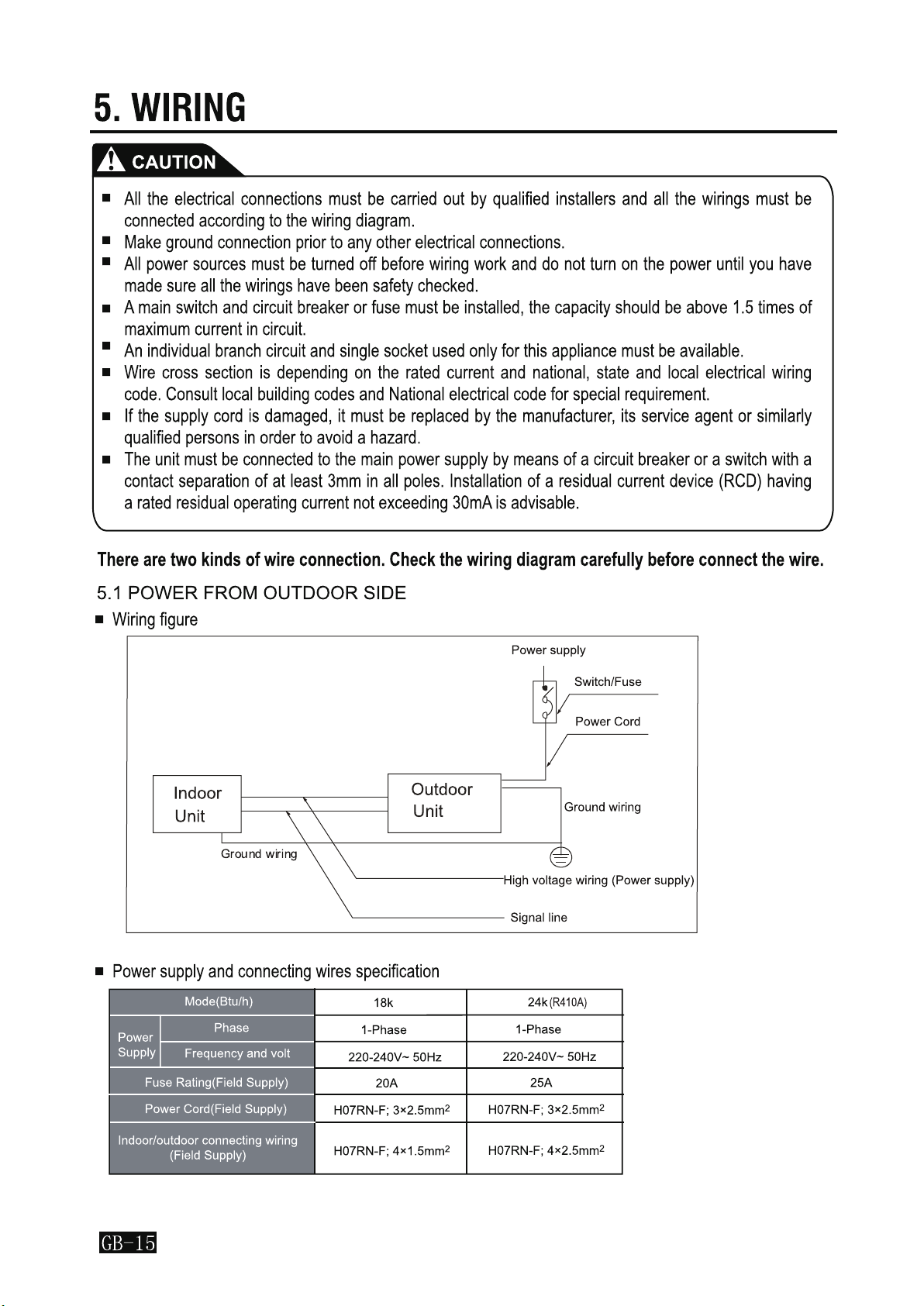

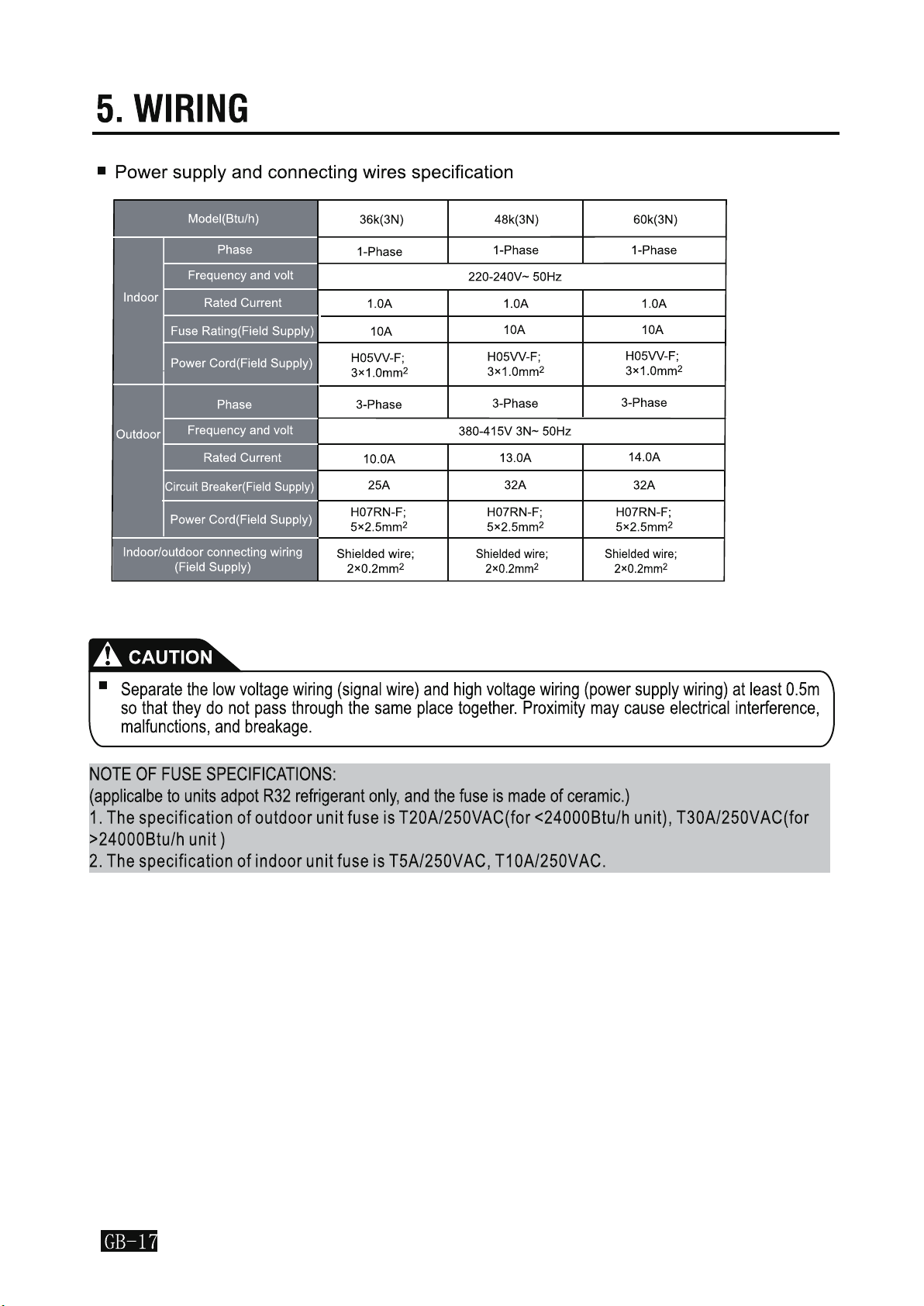

5. WIRING ··········································································································
5.1 Power From Outdoor Side ···············································································
5.2 Independence Power Supply ···········································································
6. FINAL CHECK AND TRIAL OPERATION ····························································
6.1 Final Check List ····························································································
6.2 Manual Operation ··························································································
6.3 Trial Operation ······························································································
7. INFORMATION SERVICING ··············································································
7
GB-2
Caution:Risk of fire
for R32/R290 refrigerant only
GB

GB-3
1. PREPARING FOR INSTALLATION
1.1 SAFETY PRECAUTIONS
WARNING
This symbol indicates the possibility of personnel injury or loss of life.
Installing, starting up, and servicing air-conditioning equipment can be hazardous due to system
ressures, electrical components, and equipment location (roofs, elevated structures, etc.).
Only trained, qualified installers and service mechanics should install, start-up, and serve this equipment.
When working on the equipment, observe precautions in the literature and on tags, stickers, and labels
attached to the equipment.
Follow all safety codes. Wear safety glasses and work gloves. Keep quenching cloth and fire extinguisher
nearby when brazing. Use care in handing, rigging, and setting bulky equipment.
Read these instructions thoroughly and follow all warnings or cautions included in literature and attached to
the unit. Consult local building codes and National Electrical Code for special requirement.
Refrigerant gas is heavier than air and replaces oxygen.Amassive leak could lead to oxygen
depletion, especially in basements, and an asphyxiation hazard could occur leading to serious
injury or death.
When the air conditioner is installed in a small room, provide appropriate measures to ensure that
the concentration of refrigerant leakage occur in the room does not exceed the critical level.
If the refrigerant gas leaks during installation, ventilate the area immediately.
Refrigerant gas may produce a toxic gas if it comes in contact with fire such as from a fan heater, stove or
cooking device.
Exposure to this gas could cause severe injury or death.
Disconnect from power source before attempting any electrical work. Connect the connective cable
correctly.
Wrongly connecting may result in electric parts damaged.
Use the specified cables for electrical connections and attach the wires firmly to the terminal block
connecting sections so that the external force is not exerted to the terminal.
Be sure to provide grounding.
Do not ground units to gas pipes, water pipes, lightning rods or telephone wires. Incomplete grounding
could cause a severe shock hazard resulting in injury or death.
Safely dispose of the packing materials.
Packing materials, such as nails and other matal or wooden parts, may cause stabs or other injuries. Tear
apart and throw away plastic pacaging bags so that children will not play with them. Children playing with
plastic bags face the danger of suffocation.
Do not install unit near concentrations of combustible gas or gas vapors.
Be sure to use the supplied or exact specified installation parts.
Use of other parts may cause the unit to come to lose, water leakage, electrical shock, fire or equipment
damage.
When installing or relocating the system, do not allow air or any substances other than the
specified refrigerant (R410A/R32) to enter the refrigeration cycle.
Never modify this unit by removing any of the safety guards or bypassing any of the safety
interlock switches.
Electrical work should be carried out in accordance with the installation manual and the national,
state and local electrical wiring codes.
Be sure to use a delicated power circuit. Never share the same power outlet with other appliance.

7
GB-4
1. PREPARING FOR INSTALLATION
WARNING
In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
Use the prescribed cables for electrical connection with insulation protected by insulation
sleeving having an appropriate temperature rating.
Unconformable cables can cause electric leak, anomalous heat prodcution or fire.
NOTE: The following information are required for the units adopt R32/R290 Refrigerant.
The appliance shall be stored in a room without continuously operating ignition sources.
(for example: open flames, and operating gas appliance or an operating electric heater).
Do not pierce or burn.
Be aware that refrigerants may not contain an odour.
Compliance with national gas regulations shall be observed.
Appliance shall be stored in a well-ventilated area where the room size corresponds to the room
area as specified for operation.
Appliance shall be installed, operated and stored in a room with a floor area larger than X m²,
installation of pipe-work shall be kept to a minimum X m²(Please see the following form ).
Appliance shall not be installed in an unventilated space, if that space is smaller than X m²
(Please see the following form ).Spaces where refrigerant pipes shall be compliance with
national gas regulations.
Amount of refrigerant
to be charged (kg)
maximum installation
height (m)
Minimum room
area (m²)
≤2.048 1.8m 4
0.6m 35
2.048-3.0 1.8m 8
0.6m 80
>3.0 1.8m 9
Model(Btu/h)
≤30000
30000-48000
>48000
0.6m 80
CAUTION
This symbol indicates the possibility of property damage or serious consequences.
To avoid personal injury, be careful when handling parts with sharp edges.
Do not install the indoor or outdoor units in a location with special environmental conditions.
Do not install in a place that can amplify the noise level of the unit or where noise and discharged
air might disturb neighbors.
Note about Fluorinated Gases
This air-conditioning unit contains fluorinated gases. For specific information on the type of gas
and the amount, please refer to the relevant label on the unit itself.
Installation, service, maintenance and repair of this unit must be performed by a certified technician.
Product uninstallation and recycling must be performed by a certified technician.
If the system has a leak-detection system installed, it must be checked for leaks at least every 12
months.
When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended.
GB

72GB-5
1. PREPARING FOR INSTALLATION

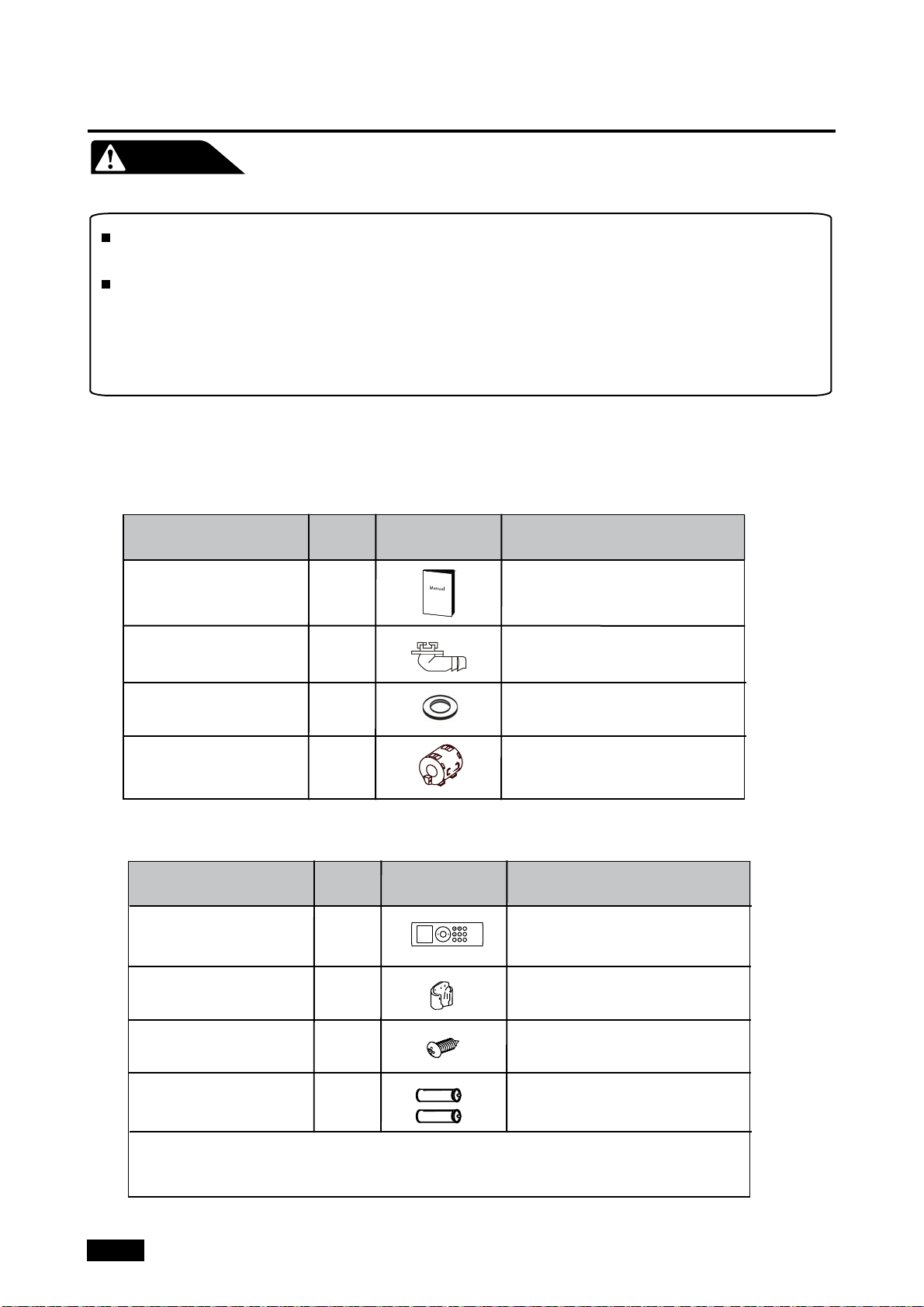

1.2 ACCESSORIES
The following accessories are supplied with the unit. The type and quantity may
differ depending on the specifications.
3
1
Name ofAccessories
Manual
Q‘ty(pc) Shape Use
2
1
<Installation manual>, <User manual>,
<Remote controller manual> (or
<Wired controller manual>)
Drain outlet Connect drainage hose for outdoor unit.
Gasket
Seal the drainage outlet for outdoor unit.
Clamp filte
For conforming to EMC standards
(Used for indoor power cord and
indoor/outdoor connecting wires)
CAUTION
This symbol indicates the possibility of property damage or serious consequences.
Perform the drainage/piping work securely according to the installation manual.
Improper drain piping may result in water leakage and property damage.
Do not instal the air conditioner in the following places.
-The place where there is mineral oil or arsenic acid.
-The place where corrosive gas (such as sulfurous acid gas) or combustible gas (such as thinner)
can accumulate or collect, or where volatile combustible substances are handled.
-The place there is equipment that generates electromagnetic fields or high frequencey harmonics.
The following accessories are related to remote controller.
1
Name of Accessories Q‘ty(pc)
1
Shape Use
To remote control the air conditioner
2
Battery
Tapped screw
Remote controller holder To hold the remote controller on the wall
For remote controller
2
Remote Controller
To fix the remote controller holder
Note: The accessories related to remote controller will be unavailable for the models with
wired controller. For wired controller accessories, please refer to attached manual of wired
controller.
Mode
Timer
Turbo ION
LED
ON/OFF Fan
Follow
me
Self
clean

GB-6
2.1 INSTALLATION SITE CHOOSING
INDOOR UNIT
■Where it is out of direct sunlight.
■Where the airflow is not blocked.
■Where an optimum air distribution is ensured.
■Where the condensate can drain correctly and safely.
■Install the indoor unit on a wall/ceiling that prevents vibration and is strong enough to hold the product
weight.
■Maintain sufficient clearance around the indoor unit for maintenance and servicing.
■Where the air filter can be removed and cleaned easily.
■Where the piping between the indoor and outdoor units is within the allowable limits.
■Install the indoor unit 1m or more away from the TV or radio to prevent the screen from being distorted or
noise from being generated.
■Install the indoor unit as far away as possible from fluorescent and incandescent lights so that the remote
control can be operated well.

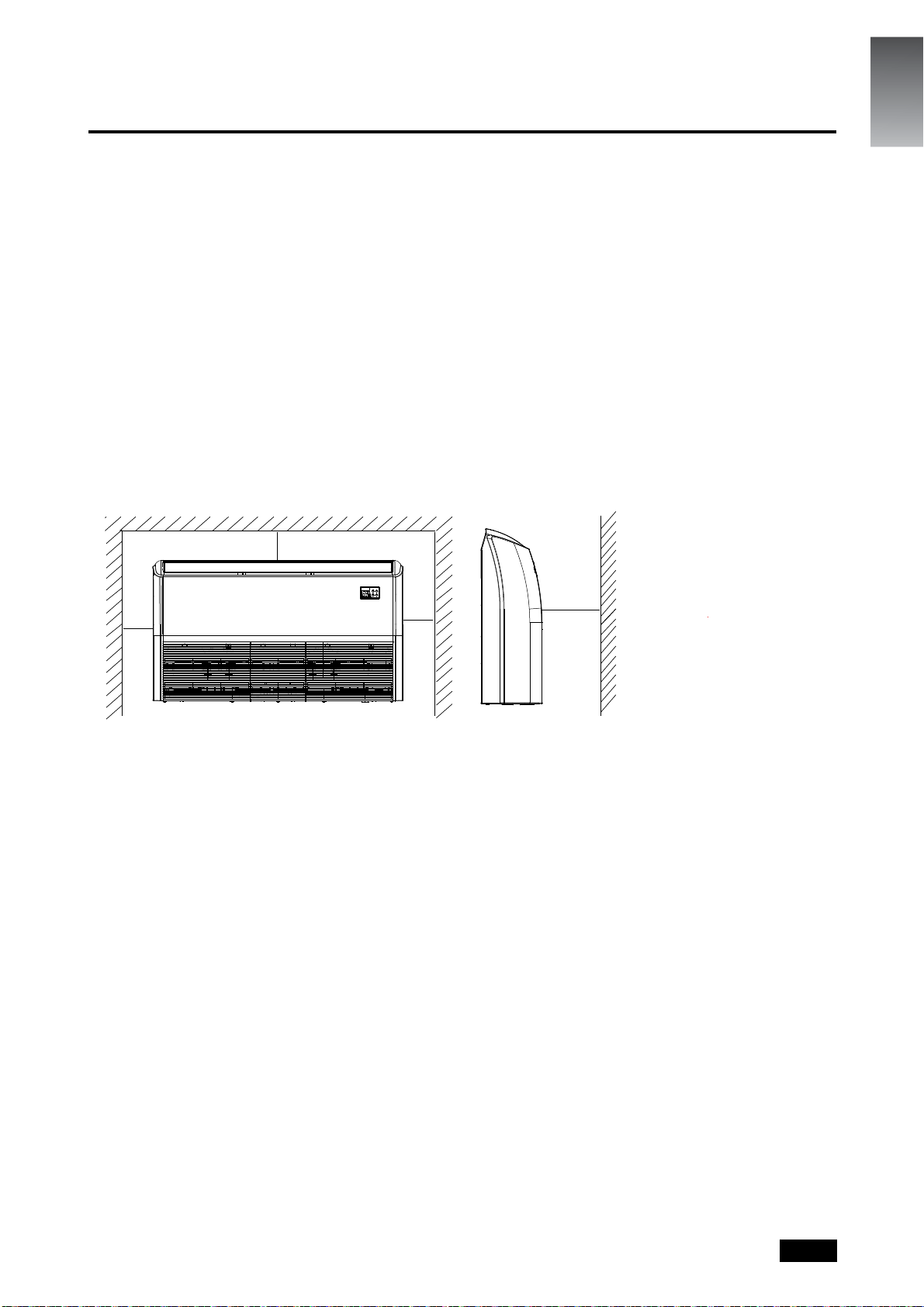

Confirm that there is enough room for installation and maintenance.
2. INDOOR UNIT INSTALLATION
≥35mm
≥1000mm
≥35mm ≥35mm
GB

7GB-7
SPACE REQUIREMENT FOR INDOOR UNIT
The size of Outline dimension
Unit: mm
2. INDOOR UNIT INSTALLATION
A
B
C
D
Hook
E
Remove the air inlet grille and side panel (installation part) before indoor installation.
Remove the screws to open the grille.
Remove the grill.Then remove the screws of side panel.
Pushthe sidepanel asthe arrowdirection todisassamble
them.
Outline Dimension
1285 675
AB
030
1068 675
018/024
Mode
（42QZL）l
Size of Hook
1200 220
DE
983 220
235
C
235
1650 675
036~060 1565 220235

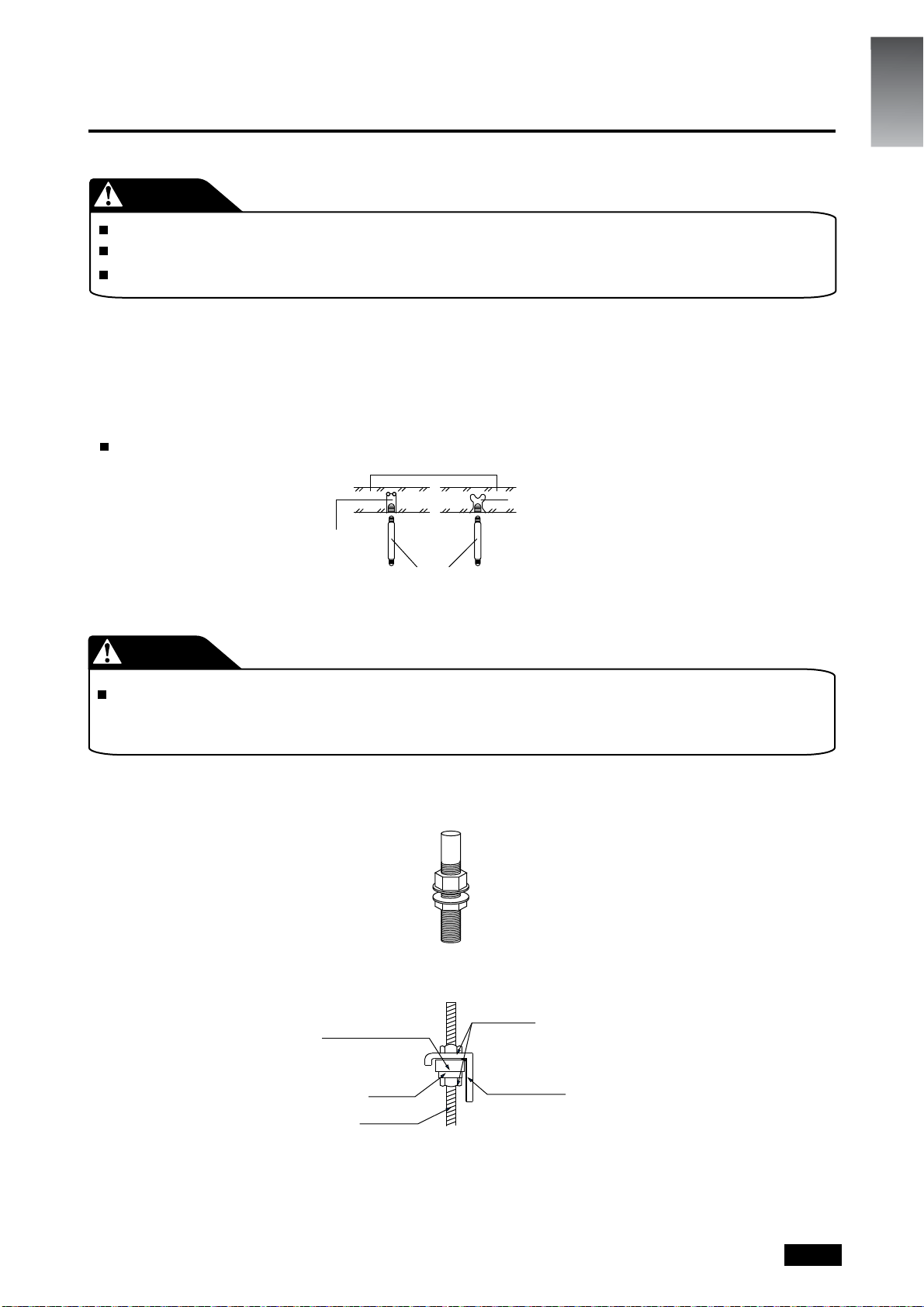

2.2.1.1 Mark the spots on the ceiling where you want to install the indoor unit.
2.2.1.2 Drill holes at the marking spots and then insert bolt anchors. Use existing ceiling supports or construct
a suitable support.
NOTE
Use a hole-in-anchor, sunken insert for existing ceilings.
2.2.1.3 Install the suspension bolts (use W3/8 or M10 suspension bolts, 4 pieces) depending on the ceiling
type.
2.2.1 Install the suspension bolts
2.2.2.2 Hang the indoor unit to the suspension bolts between two nuts.
2.2.2.3 Screw the nuts to suspend the unit
2.2.2.4 Adjust level of the unit by using level vial for all four sides.
GB-8
2.2.2 Hanging the indoor unit
2.2.2.1 Screw double nuts to each suspension bolts making space for hanging the indoor unit.
Screw nut
Washer
Hanging
screw bolt
Overhang part
Shockproof cushion
Concrete
Suspension bolt( 3/8” or M10)-field supply
Hole in anchor
Hole in plug
Insert
Ensure that the ceiling is strong enough to bear the weight of the unit. Before hanging the unit, test the
strength of each attached suspension bolt. It might be necessary to reinforce the ceiling frame to
prevent shaking. Consult an architect or carpenter for details
CAUTION
2. INDOOR UNIT INSTALLATION

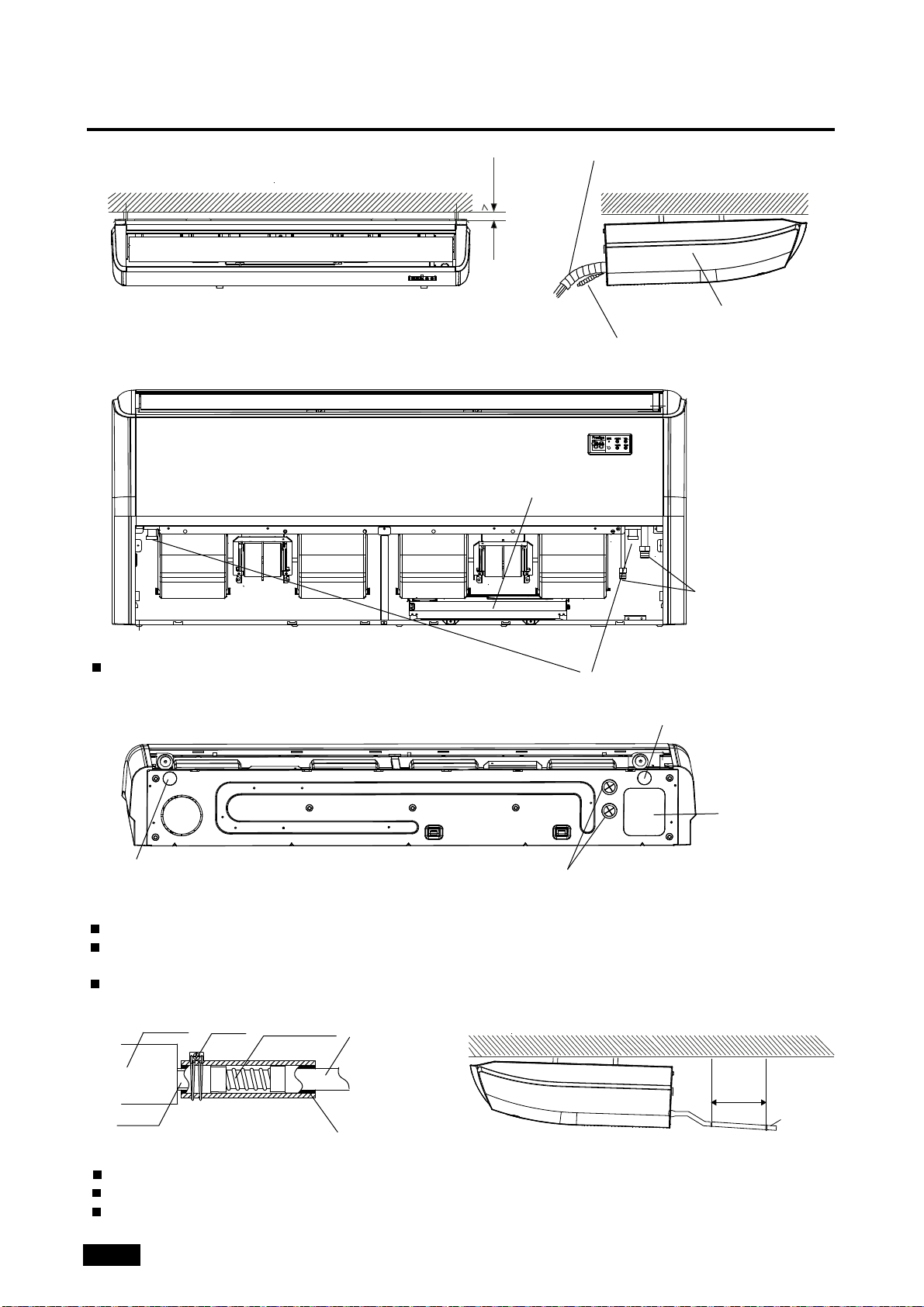

2.2 CEILING INSTALLATION
It is recommended to install the Y joint before installing the indoor unit
When moving the unit during or after unpacking, make sure to lift by holding its hooks.
Do not exert any pressure on other parts, especially the refrigerant piping and drain piping.
CAUTION
GB

2. INDOOR UNIT INSTALLATION
7GB-9
Pipe clamp
Indoor unit Flexible hose
Drain hose connection port
(O.D.:Φ25)
PVC water
pipe
PVC adhesive
Drainpipe connection
Install horizontal drainpipe with a slope of 1/100 or more and fix it by hanger space 1.0~1.5m.
Install U-trap at the end of the drainpipe to prevent a nasty smell to reach the indoor unit.
Do not install the drainpipe to upward position. It may cause water flow back to the unit.
If the unit has built-in drain pump, ceiling installation is requested.
Remove the cover of the drain hose connection port
Insert the flexible hose (field supply,I.D.: Φ25 ) to the drain hose port. Fix it to the indoor unit with pipe clamp
(field supply) securely.
Install the flexible hose to the PVC water pipe securely with PVC adhesive. Wrap the drain hose with the
insulation materials.
20mm
Lean over 1/100 ~ 2/100
Drain hose
Refrigeration pipes
2.2.3 Piping and drainage outlet for ceiling installation
Piping connection ports
(Gas side and liquid side)
Drain hose connection ports
NOTE:
The position of drain pipe interface can be selected
according to installation position. During the adjustment
of drain hose,the unsed interface should be sealed be
rubber plug.
Piping outlet
Cables outlet
Drain hose outlet
Drain hose outlet
2.2.4 Install the drain pipe for ceiling installation
Lean over 1/100
1.0-1.5m
Control box

2. INDOOR UNIT INSTALLATION
GB-10

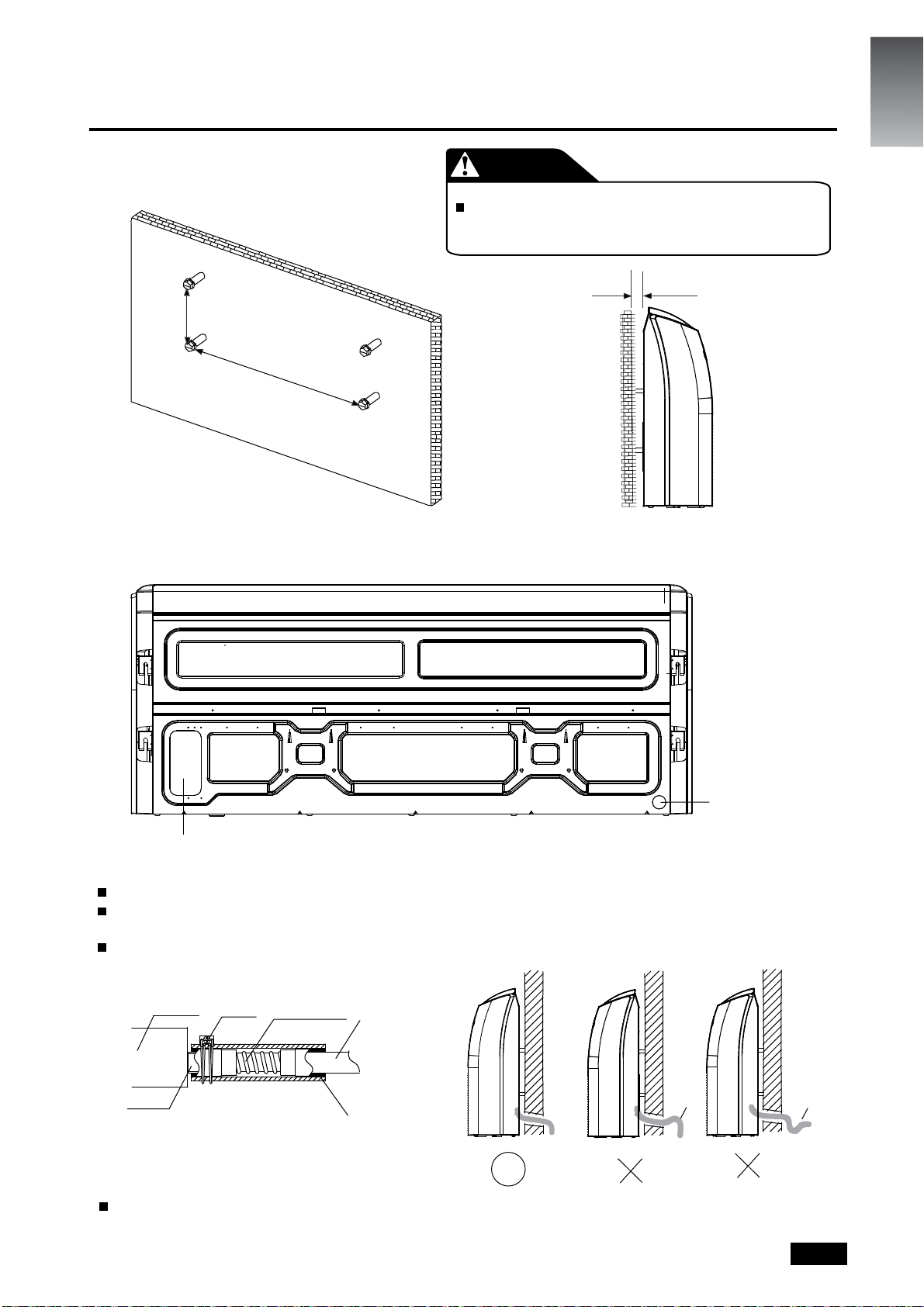

2.3 WALL-MOUNTED INSTALLATION
2.3.1 Hanging the indoor unit
D
E
Note: D & E-- Hook installation demansion
< 20mm
2.3.2 Piping and drainage outlet for wall-mounted installation
Piping and drain hose outlet
Drain hose outlet
Pipe clamp
Indoor unit Flexible hose
Drain hose connection port
(O.D.:Φ25)
PVC water
pipe
PVC adhesive
Drainpipe connection
The drain line must not have a trap anywhere in its length, must pitch downwards, and must be insulated up
to the outside wall.
Remove the cover of the drain hose connection port.
Insert the flexible hose (field supply,I.D.: Φ25 ) to the drain hose port. Fix it to the indoor unit with pipe clamp
(field supply) securely.
Install the flexible hose to the PVC water pipe securely with PVC adhesive. Wrap the drain hose with the
insulation materials.
2.3.3 Install the drain pipe for wall-mounted installation
Bend S shape
Follow the instruction to choose the piping and
draingage outlet according installation method.
CAUTION
GB

030~042

GB-12
3. OUTDOOR UNIT INSTALLATION
3.3 SPACE REQUIREMENT FOR OUTDOOR UNIT
>30cm
>30cm
>200cm
>60cm
(Wall or obstacle)
Maintain channel
Air outlet
Air inlet
M
P
Air inlet
N
>60cm
Fix with bolt
Single Unit Installation
Before installation, check strength and horizontality of the base so that abnormal
sound does not generate.
Fix the base firmly with anchor bolts (M10) to prevent it from collapsing.
Install the foundation and vibration-proof rubbers to directly support the bottom surface of the fixing
leg that is in contact with the bottom plate of the outdoor unit.
3.4 INSTALL THE OUTDOOR UNIT
≥100mm
100～300mm
Outdoor unit
Vibration-proof rubber
Anchor bolt (M10)
Drainage (Wide 100mm x Depth 150mm)Mortar Hole (Φ100mm x Depth 150mm)
>200 >50 >300 >300 >30
>60
>200
>30
Parallel connect the two units or above Parallel connect the front with rear sides.
Connect the drain outlet with an extension drain hose
Fit the gasket onto drain outlet.
Insert the drain outlet into the base pan hole of outdoor unit, and rotate 90 degree to securely assemble
them.
3.5 INSTALL THE DRAIN PIPE FOR OUTDOOR UNIT
unit:cm unit:cm
Base pan hole
of outdoor unit
Drain hose
(Field supply)
Gasket
Drain Outlet
GB

4.1 FLARING
NOTE
Tools required for flaring are pipe cutter, reamer,flaring
tool and pipe holder.
For R32 refrigerant models, the pipe connection points
must be placed outside of room.
90
Oblique Rough Burr
R0.4~0.8
45°±2
90 °
±4
A
In case of needing brazing, work with Nitrogen gas blowing.
Improper torque will cause flare damage or gas leaks.
CAUTION
Use separate thermal insulation pipes for gas &
liquid pipes.
The thickness above is a standard of the indoor
temperature of 27°C and humidity of 80%. If
installing in an unfavorable conditions such as
near bathrooms, kitchens, and other similar
locations, reinforce the insulation.
Insulation’s heat-resistance temperature should
be more than 120°C.
Usetheadhesivesontheconnectionpartofinsula-
tion to prevent moisture from entering.
Repairandcoveranypossiblecracksintheinsula-
tion specially check the bent part or hanger of
4.1.1 Using a pipe cutter to cut the pipe to the requested
length. Ensure that the cut edge remains at 90° with
the side of the pipe.
4.1.2 Use a reamer to remove burrs with the cut surface
downward so that the chips do not enter the pipe.
4.1.3 Carry out flaring work using flaring tools as below.
4.1.4 Check if the flaring is properly made. See incorrectly
flared pipes sample below.
4.2 PIPING WORK
4.2.1 Align the center to tighten the flare nut and
finish connection using two wrenches.
Flare nut
Wrench
Torque wrench
4.2.2 Select the appropriate insulation
material for refrigerant pipe. (Min. 10mm,
thermal insulating foam C)
Inclined Damaged Surface Cracked Uneven Thickness
TorqueTubing size
18 ~ 20 N.m
25 ~ 26 N.m
35 ~ 36 N.m
45 ~ 47 N.m
65 ~ 67 N.m
Φ6.35mm
Φ9.52mm
Φ12.7mm
Φ15.88mm
Φ19.05mm
Outside
diameter
A(mm)
Max
8.7
Φ6.35mm
Φ9.52mm
Φ12.7mm
Φ15.88mm
Φ19.05mm
12.4
15.8
19.0
23.3
8.3
12.0
15.4
18.6
22.9
Min
4. REFRIGERANT PIPING WORK
7GB-13
Check if the height difference between indoor unit & outdoor unit and the total length of refrigerant pipe
meet system requirement.
Refrigerant piping work follows the indoor unit and outdoor unit installation, connect the pipe at the indoor
side first, then the outdoor side.
Always keep ends of tubing sealed by placing a cap or covering with tape during installation and do NOT
remove them until you are ready to connect the piping.
Be sure to insulate any field piping all the way to the piping connection inside the unit. Any exposed piping
may cause condensation or burns if touched.
CAUTION

036~048

6. FINAL CHECK AND TRIAL OPERATION
To complete the installation, perform the following checks before the trial operation.
Strength of the installation site for both indoor and outdoor sides, confirm no obstruction of the unit air outlet
or return.
Tightness of Refrigerant piping connection and confirm no leakage
Electric wiring connections are correctly completed and unit has been grounding connected
Check the total length of the piping and record the volume of the additional charged refrigerant
The power supply should complying with the rated voltage of the air conditioner
Insulation of the pipe
Drainage
Remove the cushion for transportation between fan and control box. And re-assemble the side panel and
grille.
6.1 FINAL CHECK LIST
Set the air conditioning under the COOLING mode with the remote controller (or manual button) and check the
running status of both indoor unit and outdoor unit. In case of any malfunction, resolve it according to chapter
“Trouble shooting” in the “Service Manual”.
Indoor unit
Whether the buttons (such as ON/OFF, MODE, TEMPERATURE, FAN SPEED etc.) on the remote controller
work well.
Whether the louver moves normally.
Whether the room temperature is adjusted well.
Whether the indicator lights on the display panel are normal.
Whether the “manual” button works well.
Whether the drainage is normal.
Whether there is a vibration or abnormal noise during the operation.
Whether the indoor unit works well in COOLING or HEATING mode.
Outdoor unit
Whether there is a vibration or abnormal noise during the operation.
Whether the wind, noise or condensed generated by the air conditioner have disturb your neighborhood.
Whether there is any refrigerant leakage.
6.3 TRIAL OPERATION
When restart the unit, there will be approximately 3 minutes delay to run for protection.
CAUTION
6.2 MANUAL OPERATION
Manual operation can be accessed by pressing manual button on display panel.
Press the manual button repeatedly to change modes as follows:
Once = AUTO mode [heat, cool or fan, 24
°C and auto fan speed .
Twice = COOLING mode [switch to AUTO mode after 30 minutes (mainly used for trial operation)]
Three times = OFF
GB-18
GB

7.1 CHECKS TO THE AREA
Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure
that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be
complied with prior to conducting work on the system.
7.2 WORK PROCEDURE
Works shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour
being present while the work is being performed.
7.3 GENERAL WORK AREA
All mintenance staff and others working in the local area shall be instructed on the nature of work being carried
out. work in confined spaces shall be avoided. The area around the work space shall be sectioned off. Ensure
that the conditions within the area have been made safe by control of flammable material.
7.4 CHECKING FOR PRESENCE OF REFRIGERANT
The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the
technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used
is suitable for use with flammable refrigerants, i.e. no sparking, adequately sealed or intrinsically safe.
7.5 PRESENCE OF FIRE EXTINGUISHER
If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire
extinguishing equipment shall be available to hand. Have a dry power or CO2 fire extinguisher adjacent to the
charging area.
7.6 NO IGNITION SOURCES
No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that
contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may
lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept
sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable
refrigerant can possibly be released to the surroungding space. Prior to work taking place, the area around the
equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “NO SMOKING”
signs shall be displayed.
7.7 VENTILATED AREA
Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conduct-
ing any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventila-
tion should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.
7.8 CHECKS TO THE REFRIGERATION EQUIPMENT
Where electrical components are being changed, they shall be fit for the purpose and to the correct
specification. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt
consult the manufacturer’s technical department for assistance. The following checks shall be applied to
installations using flammable refrigerants:
7. INFORMATION SERVICING
7GB-19
