AIR CONDITIONER (SPLIT TYPE)
For general public use
Indoor unit
42TVCA010, 013, 018
Outdoor unit
38TVCA010, 013, 018
R32
OM_1129850204_EN - TH.indb 1OM_1129850204_EN - TH.indb 1 7/1/2564 BE 18:597/1/2564 BE 18:59

PRECAUTIONS FOR SAFETY
Read the precautions in
this manual carefully before
operating the unit.
This appliance is filled with R32.
●Keep this manual where the operator can easily find it.
●Read the precautions in this manual carefully before operating the unit.
●This appliance is intended to be used by expert or trained users in shops, in light
industry and on farms, or for commercial use by lay persons.
●The precautions described herein are classified as DANGER, WARNING and
CAUTION. They both contain important information regarding safety. Be sure to
observe all precautions without fail.
DANGER
●Do not install, repair, open or remove the cover. It may expose you to
dangerous voltages. Ask the dealer or the specialist to do this.
●Turning off the power supply will not prevent potential electric shock.
●The appliance shall be installed in accordance with national wiring regulation.
●Means for disconnection from the supply having a contact separation of at least
3 mm in all poles must be incorporated in the fixed wiring.
●The appliance must be stored in a room without continuously operating ignition
sources (for example, open flames, an operating gas appliance or an operating
electric heater).
●In order to avoid fire, explosion or injury, do not operate the unit when harmful
gases (e.g. flammable or corrosive) are detected near the unit.
WARNING
●Do not expose your body directly to cool or warm air for a long time.
●Do not insert your finger or any article into the air inlet/outlet.
●When an abnormality (burning smell, etc.) occurs, stop the air conditioner and
disconnect the power supply or turn off the breaker.
●This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
●This appliance is not intended for use by person (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
●The air conditioner must be installed, maintained, repaired and removed by a
qualified installer or qualified service person. When any of these jobs is to be
done, ask a qualified installer or qualified service person to do them for you.
●Children should be supervised to ensure that they do not play with the
appliance.
01_OM_1129850204_EN.indd 101_OM_1129850204_EN.indd 1 8/1/2564 BE 15:378/1/2564 BE 15:37

PRECAUTIONS FOR SAFETY
●Do not use any refrigerant different from the one specified (R32) for
complement or replacement. Otherwise, abnormally high pressure may be
generated in the refrigeration cycle, which may result in a failure or explosion of
the product or an injury to your body.
●Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacturer.
●The appliance shall be stored in a room without continuously operating ignition
sources (for example: open flames, an operating gas appliance or an operating
electric heater).
●Be aware that refrigerants may not contain an odour.
●Do not pierce or burn as the appliance is pressurized. Do not expose the
appliance to heat, flames, sparks, or other sources or ignition. Else, it may
explode and cause injury or death.
CAUTION
●Do not wash the unit with water. It may cause an electric shock.
●Do not use this air conditioner for other purposes such as preserving food,
breeding animal, etc.
●Do not step or put anything on the indoor/outdoor unit. It may cause an injury or
damage the unit.
●Do not touch aluminium fin because it may cause an injury.
●Before cleaning the unit, turn off the main switch or the circuit breaker.
●When the unit won’t be used for a long time, turn off the main switch or the
circuit breaker.
●It is recommended that maintenance be performed by a specialist when the unit
has been operated for a long time.
●The manufacturer shall not assume any liability for the damage caused by not
observing the description of this manual.
●Remote controller and Holder are contained with magnet please keep far from
product that effect with magnet (such as electronics appliance magnetic strip
card and etc.)
●High temperature, high magnet field and direct force collisions may effect to
magnet force down.
EN
01_OM_1129850204_EN.indd 201_OM_1129850204_EN.indd 2 8/1/2564 BE 15:378/1/2564 BE 15:37

INDOOR UNIT DISPLAY
1
AIR FLOW DIRECTION
3
AUTOMATIC OPERATION
6
To automatically select cooling or fan only operation
1. Press
MODE
MOD
: Select Auto A.
2. Press : Set the desired temperature. Min. 17°C, Max. 30°C.
3. Press FAN
FAN
: Select AUTO, LOW , LOW+ , MED ,
MED+ , HIGH or Quiet
1. Press
MODE
MOD
: Select Cool , or Fan only .
2. Press : Set the desired temperature. Min. 17°C, Max. 30°C.
Fan Only: No temperature indication
3. Press FAN
FAN
: Select AUTO, LOW , LOW+ , MED ,
MED+ , HIGH or Quiet
DRY OPERATION
7
For dehumidification, a moderate cooling performance is controlled
automatically.
1. Press
MODE
MOD
: Select Dry .
2. Press : Set the desired temperature. Min. 17°C, Max. 30°C.
Note: DRY mode fan speed is set to Auto only.
1
Press FIX
FIX
: Move the
louver in the desired vertical
direction.
2
Press FIX
FIX
: Move the
louver in the desired horizontal
direction.
3
V
V
H
H
H.DA
Swing off
Vertical
(Up-Down)
Swing
Vertical and
Horizontal
Swing
Horizontal
(Left-Right)
Swing
HADA CARE
FLOW
SWING operation can be
selected from MENU button
MENU
MEN
●Vertical (Up-Down) swing
●Horizontal (Left-Right) swing
●HADA Care flow
Note:
●Do not move the louver manually by hands or others.
●The louver may automation positioning by some operation mode.
●Display brightness can be adjusted, follow procedure on ".
1ECO (White)
2Wi-Fi access (White)
3PURE (White)
4Timer (White)
5Operation Mode
- Cool (Blue)
Preparing Filters
1. Open the air inlet grille and remove the air filters.
2. Attach the filters. (see detail in the Installation Manual).
Loading Batteries (when use wireless operation.)
1. Remove the slide cover.
2. Insert 2 new batteries (AAA type)
following the (+) and (–) positions.
Remote Control Reset
1. Remove the batteries.
2. Press .
3. Insert the batteries.
PREPARATION BEFORE USE
2
REMOTE CONTROL
4
1Infrared signal emitter
2Start/Stop button
3Mode select button
4Temperature button
5Fan speed button
6Menu select button
7Set louver Up-Down button
8
Set louver Left-Right button
9Check button*
*Check button under battery cover
FIX
MODE
FAN MENU
FIX
FIX
FIX
FAN
MEN
MOD
2
1
4
6
8
3
5
7
9
COOLING / FAN ONLY / OPERATION
5
01_OM_1129850204_EN.indd 301_OM_1129850204_EN.indd 3 8/1/2564 BE 15:378/1/2564 BE 15:37

MENU SETUP
8
For select more setting of Air conditioner such as Louver select
Hi Power, OFF Timer and other use MENU button MENU
MEN
FIX
MODE
FAN MENU
FIX
FIX
FIX
FAN
MEN
MOD

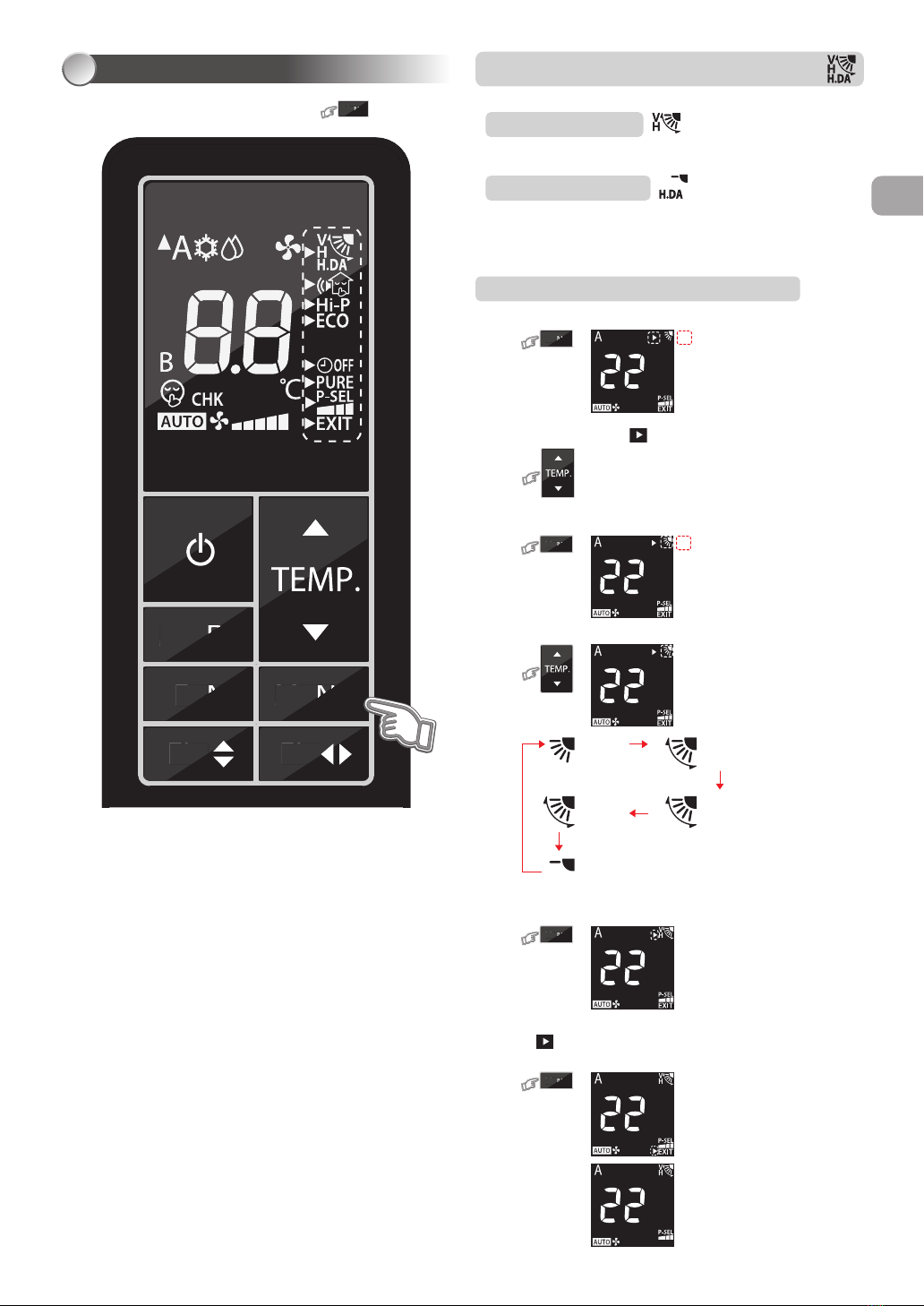

8.1 LOUVER SWING and HADA CARE FLOW OPERATION
Comfortable air flow can select from feature.
Louver swing opearation:
●To distribute air flow in both vertical and horizontal by swing the louver
automatically.
HADA care flow operation:
●Air flow upward to the ceiling, provide Indirect air flow to body and
homogenize room temperature.
Note:
●During HADA CARE FLOW mode, FIX button cannot active.
Louver Swing and HADA Care Flow Operation Setting
1. Press MENU button for enter menu selection
MENU
MEN
°C
Blink
During triangle mark blink can select menu by press TEMP. button.
2. Enter Louver set by press MENU button again.
triangle mark will stop blink and setting feature will be blink instead.
°C
Blink
MENU
MEN
3. Select Louver swing or HADA CARE FLOW by press TEMP. button.
°C
V
V
HH
H.DA
Swing off Vertical
(Up-Down)
Swing
Vertical and
Horizontal
Swing
Horizontal
(Left-Right)
Swing
HADA CARE FLOW
4. Confirm selected feature by press MENU button again.
MENU
MEN
°C
When feature had selected will return to menu selection display triangle mark
will blink .
5. Leave from menu setting display by select exit and press menu button
MENU
MEN
°C
°C
Leave from menu setting to normal display (no triangle and feature blink).
EN
01_OM_1129850204_EN.indd 401_OM_1129850204_EN.indd 4 8/1/2564 BE 15:388/1/2564 BE 15:38

8.2 SILENT OPERATION (Outdoor Unit)
Keep outdoor unit operating silently to ensure either yourself or neighborhood
will have a tight sleep in nighttime. By this feature, the cooling capacity will
be optimized to deliver such silent experience. The silent operation can be
selected from one of two purposes (Silent 1 and Silent 2).
There are three setting parameters: Standard level > Silent 1 > Silent 2
Silent 1:
●Though operating silently, the Cooling capacity is still prioritized to ensure
having sufficient comfort inside the room.
●This setting is a perfect balance between the Cooling capacity and the
Sound level of outdoor unit.
Silent 2:
●Compromising the Cooling capacity to the Sound level in any circumstance
where the outdoor unit’s sound level is highly prioritized.
●This setting has a purpose to reduce the maximum sound level of outdoor
unit.
Note:
●While activating of Silent operation, inadequate cooling capacity may occur.
Silent Operation Setting
1. Press MENU button for enter menu selection
MENU
MEN
°C
Blink
During triangle mark blink can select menu by press TEMP. button.
°C
Blink both triangle and
feature mark Feature not
yet set
2. Enter SILENT set by press MENU button.
triangle mark will stop blink and setting feature will be blink instead.
°C
MENU
MEN
3. Select SILENT operation by press TEMP. button.
°C
SILENT#1 SILENT#2 None
4. Confirm selected feature by press MENU button again.
MENU
MEN
°C
Blink only triangle
Feature already set
When feature had selected will return to menu selection display triangle mark
will blink
5. Leave from menu setting display by select EXIT.
MENU
MEN
°C

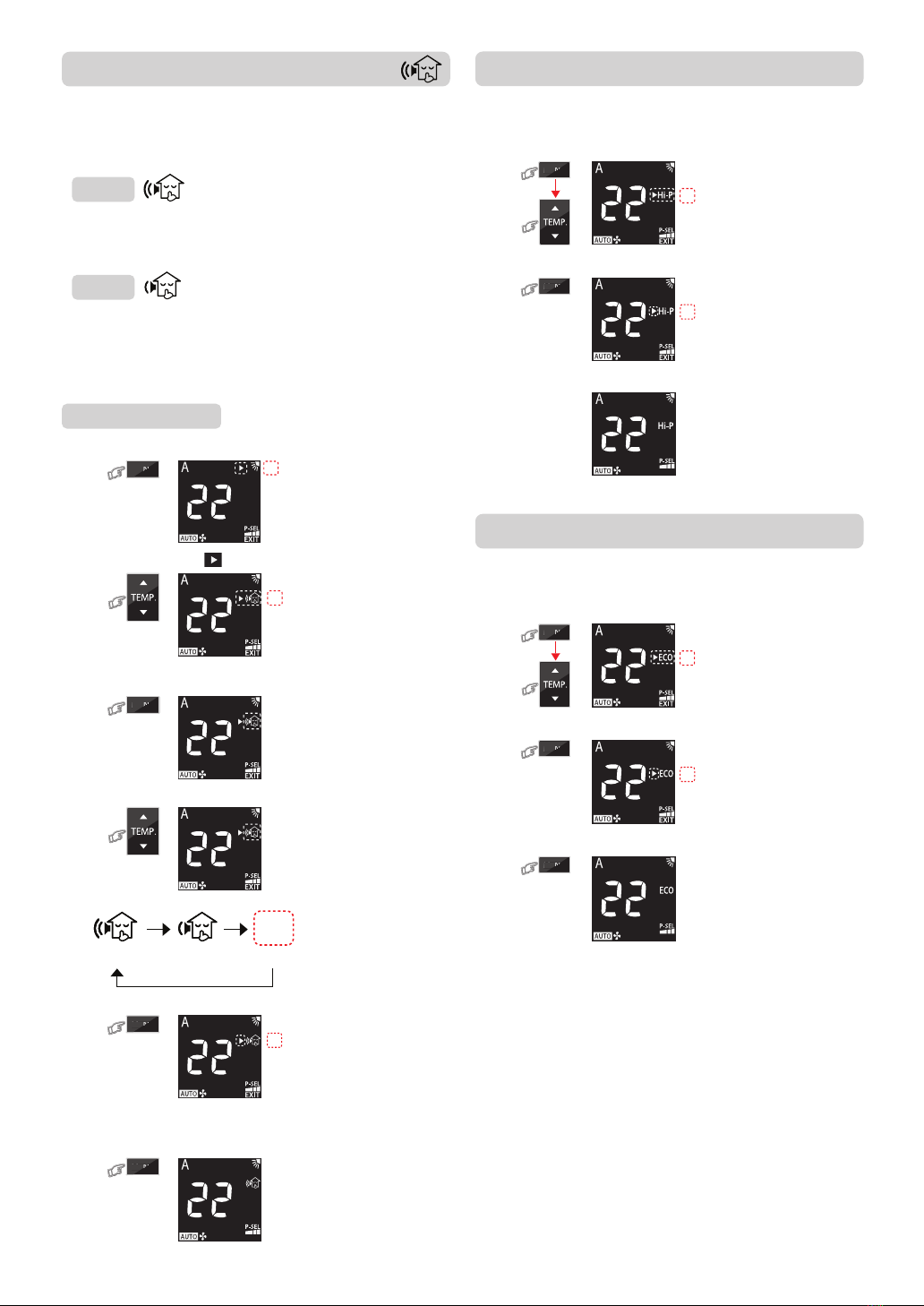

8.3 Hi POWER OPERATION Hi-P
To automatically control room temperature and airflow for faster cooling
operation (except in DRY and FAN ONLY mode)
1. Press MENU button for enter menu setting and press TEMP. button to
select Hi POWER
MENU
MEN
°C
Blink both triangle and
feature mark Feature not
yet set
2. Confirm selected feature by press MENU button again.
MENU
MEN
°C
Blink only triangle Feature
already set
3. Leave from menu setting display by select EXIT.
°C
8.4 ECO OPERATION
ECO
To automatically control room temperature to save energy
(except in DRY and FAN ONLY mode)
1. Press MENU button for enter menu setting and press TEMP. button to
select ECO
MENU
MEN
°C
Blink both triangle and
feature mark Feature not
yet set
2. Confirm selected feature by press MENU button again.
MENU
MEN
°C
Blink only triangle Feature
already set
3. Leave from menu setting display by select EXIT.
MENU
MEN
°C
Note:
●Cooling operation; the set temperture will increase automatically
1 degree/hour for 2 hours (maximum 2 degrees increase).
01_OM_1129850204_EN.indd 501_OM_1129850204_EN.indd 5 8/1/2564 BE 15:388/1/2564 BE 15:38

8.6 PLASMA ION OPERATION
PURE
Capture efficiency of floating impurities in the air is accelerated by plasma ion
contaminates such as bacteria, odor, smoke, dust and virus are caught and
deactivated by Plasma Ion.
1. Press MENU button for enter menu setting and press TEMP. button to
select PURE
MENU
MEN
°C
Blink both triangle and
feature mark Feature not
yet set
2. Confirm selected feature by press MENU button again.
MENU
MEN
°C
Blink only triangle Feature
already set
3. Leave from menu setting display by select EXIT.
MENU
MEN
°C
Note:
●Plasma Ion operation dose not remove harmful substances from cigarette
smoke (carbon monoxide etc.). Open a window occasionally for ventilation.

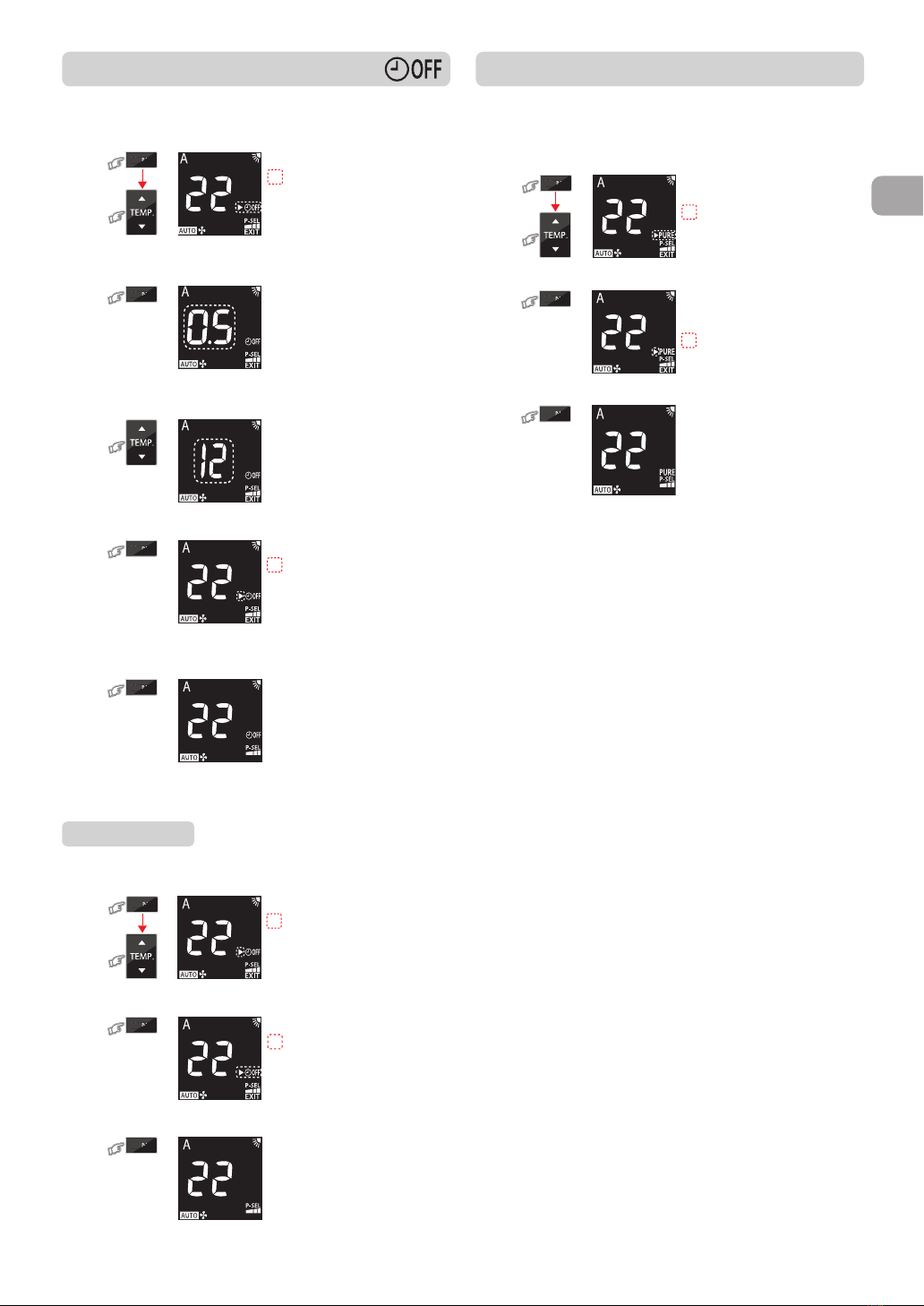

8.5 TIMER OFF OPERATION
To set the timer OFF when the air conditioner is operating.
1. Press MENU button for enter menu setting and press TEMP. button to
select TIMER OFF.
MENU
MEN
°C
Blink both triangle and
feature mark Feature not
yet set
2. Enter TIMER set by press MENU button.
triangle mark will stop blink and setting feature will be blink instead.
MENU
MEN
3. Select TIMER OFF by press TEMP. button.
Can select TIMER OFF from 0.5 - 12hrs.
4. Confirm TIMER OFF by press MENU button.
MENU
MEN
°C
Blink only triangle
Feature already set
5. Leave from menu setting display by select EXIT.
MENU
MEN
°C
Note:
●The setting will be saved for the next same operation.
Cancel TIMER OFF
6. During TIMER OFF already set (no.5) press MENU button and press
TEMP. button to select TIMER OFF.
MENU
MEN
°C
Blink only triangle
Feature already set
7. Press MENU button again will cancel TIMER OFF.
MENU
MEN
°C
Blink both triangle and feature
mark Feature not yet set
8. Leave from menu setting display by select EXIT.
MENU
MEN
°C
EN
01_OM_1129850204_EN.indd 601_OM_1129850204_EN.indd 6 8/1/2564 BE 15:388/1/2564 BE 15:38

8.7 POWER-SELECTION OPERATION
This function is used when the circuit breaker is shared with other electrical
appliances. It limits the maximum current and power consumption to 100%,
75%, or 50% and can be implemented by POWER-SELECTION. The lower
percentage, the higher saving and also longer compressor lifetime.)
1. Press MENU button for enter menu setting and press TEMP. button to select
POWER-SEL
Blink only triangle
MENU
MEN
°C
2. Enter POWER-SEL setting by press MENU button again.
MENU
MEN
°C
3. Select POWER-SEL level by press TEMP. button.
°C
100% 75% 50%
4. Confirm POWER-SEL level by press MENU button.
MENU
MEN
°C
5. Leave from menu setting display by select EXIT.
MENU
MEN
°C
Note:
●Due to the reason that POWER-SELECTION function limits the maximum
current, inadequate cooling capacity may occur.
DISPLAY LAMP BRIGHTNESS ADJUSTMENT
9
To decrease the display lamp brightness or turn it off.
1. Press and hold FAN
FAN
for 3 seconds until brightness level ( , ,
or ) is shown on remote control LCD then release the button.
2. Press Rise or
Decrease
to adjust brightness in 4 levels.
Remote control
LCD Operation display Brightness
Lamp illuminates full brightness.
100%
Lamp illuminates 50% brightness.
50%
Lamp illuminates 50% brightness and the
operation lamp is turned off.
50%
All lamps are turned off.
All turned off
●
In the examples of and , the lamp illuminates for 5 seconds before going off.
AUTO RESTART FUNCTION SETTING
10
This product is designed so that, after a power failure, it can restart automatically
in the same operating mode as before the power failure.
Information
The product is shipped with Auto Restart function in the ON position.
Turn it OFF if this function is not required.
How to turn OFF the Auto Restart Function
●Press and hold the [OPERATION] button on the indoor unit for 3 seconds
(3 beep sounds but OPERATION lamp does not blink).
How to turn ON the Auto Restart Function
●Press and hold the [OPERATION] button on the indoor unit for 3 seconds
(3 beep sounds and OPERATION lamp blink 5 time/sec for 5 seconds).
Notes :
●In case of ON timer or OFF timer are set, AUTO RESTART OPERATION
does not activate.
●Default setting of AUTO RESTART OPERATION is ON.
SELF CLEANING OPERATION
(COOL AND DRY OPERATION ONLY)
11
To protect bad smell caused by the humidity in the indoor unit.
1. If the button is pressed once during “Cool” or “Dry” mode,
the fan will continue to run for other 30 minutes, then it will turn off
automatically. This will reduce the moisture in the indoor unit.
2. To stop the unit immediately, press the more 2 times within 30
seconds.
01_OM_1129850204_EN.indd 701_OM_1129850204_EN.indd 7 8/1/2564 BE 15:388/1/2564 BE 15:38

Firstly, turn off the circuit breaker.
Indoor Unit and Remote Control
●
Clean the indoor unit and the remote control with a wet cloth when needed.
●No benzine, thinner, polishing powder or chemically-treated duster.
Air filters
Clean every 2 weeks.
1. Open the air inlet grille.
2. Remove the air filters.
3. Vacuum or wash and then dry them.
4. Reinstall the air filters and close the air inlet grille.
MAINTENANCE
15
The unit does not operate. Cooling or Heating is abnormally low.
●The power main switch is
turned off.
●The circuit breaker is activated
to cut off the power supply.
●Stoppage of electric current
●ON timer is set.
●The filters are blocked with dust.
●
The temperature has been set improperly.
●The windows or doors are opened.
●The air inlet or outlet of the outdoor
unit is blocked.
●The fan speed is too low.
●The operation mode is FAN or DRY.
●POWER SELECTION function is
set 75% or 50% (This function is
depend on remote controller).
TROUBLESHOOTING (CHECK POINT)
16
TEMPORARY OPERATION
12
In case of the misplaced or discharged remote control
●Pressing the RESET button, the unit can start
or stop without using the remote control.
●Operation mode is set on AUTOMATIC
operation, preset temperature is 24°C and fan
operation is automatic speed.
OPERATION / RESET Button
REMOTE CONTROL A-B SELECTION
13
To separate using of remote control for each indoor unit in case of 2 air
conditioners are installed nearly.
Remote Control B Setup.
1. Press RESET button on the indoor unit to turn the air conditioner ON.
2. Point the remote control at the indoor unit.
3. Push and hold button on the back side of Remote Control “00” will be
shown on the display. (Picture 1)
4. Press
MODE
MOD
during pushing . “B” will show on the display and
“00” will disappear and the air conditioner will turn OFF. The Remote
Control B is memorized. (Picture 2)
Note: 1. Repeat above step to reset Remote Control to be A.
2. Remote Control A has not “A” display.
3. Default setting of Remote Control from factory is A.
12
OPERATION AND PERFORMANCE
14
1. Three-minute protection feature: To prevent the unit from being activated
for 3 minutes when suddenly restarted or switched to ON.
2. Some minor cracking sound may occur when unit operating. This is normal
because the cracking sound may be caused by expansion/contraction of plastic.
Air conditioner operating conditions
Temp.
Operation
Outdoor Temperature Room Temperature
Cooling –15°C ~ 46°C 21°C ~ 32°C
Dry –15°C ~ 46°C 17°C ~ 32°C
EN
01_OM_1129850204_EN.indd 801_OM_1129850204_EN.indd 8 8/1/2564 BE 15:388/1/2564 BE 15:38

WIRELESS LAN CONNECTION
17
Carrier In The Air
Please visit the application store on your device to download and install Carrier
In The Air application.
Register process
Open an application and follow register for User registration.
1Tab Register
5Enter password by 6-10
characters, combination of
alphabet and number
2Enter email address
6Check for term and condition
3Select country
7Confirm information
4Enter user name
8Information will be submitted
to email, click link to confirm
Application
Keyword : Carrier In The Air Android : Version 5.0 or later.
iOS : 9.0 or later.
About Carrier In The Air
1. Carrier In The Air can control AC operation by Smartphone or
tablet (mobile device) via internet connection.
2. Everywhere control, control software run on Cloud system and mobile
device can set and monitor AC operation via internet connection.
3.
Everyone can control, 1 Wireless adapter maximum 5 User
(use 1 email register).
4. Multi AC system control, 1 user can control 10 AC.
5. Group control.
5.1 Can create and control 3 groups of AC.
5.2 Can control max 10 AC per group.
Note:
1. Adapter can register only 1 email address, if register with new email, current email will be invalid.
2.1 email address can use for register 5 devices for control same AC.
Carrier In The Air application support
01_OM_1129850204_EN.indd 901_OM_1129850204_EN.indd 9 8/1/2564 BE 15:388/1/2564 BE 15:38

1Select “Add AC (Adapter)” from both display above. 2Select AC (adapter) connection method.
Wireless adapter Build-in
Active Wireless adapter by
remote controller and Auto login.
*Note
1.In case of Wi-Fi router change or Email for register change need to re-process for add Wireless adapter again
(Build in type : Press MODE button at Remote controller 5 seconds for active AP mode).
2.In case of change Wireless adapter to use with other A/C need to factory reset and re-process for add Wireless adapter again
(Build in type : Press MODE button at Remote controller 5 seconds and select “rb”).
Build-in type , Wireless adapter already install with unit.
2Open application and select Log in. 3Enter user name and
password.
4Login successful.
1Connect Wireless adapter to A/C and turn on power supply.
Login to Carrier In The Air application.
Add Wireless adapter for control by Carrier In The Air application.
EN
01_OM_1129850204_EN.indd 1001_OM_1129850204_EN.indd 10 8/1/2564 BE 15:388/1/2564 BE 15:38

Wi-Fi Router SSID
Wi-Fi Router Password
FIX
MODE
FAN MENU
FIX
FIX
MEN
MOD
X
OD
A
AN
FA
A
FIX
FIX
FIX
FI
FA
FA
FAN
A
MO
3AC (adapter) connect
Press and hold
MODE button 5 seconds
WPS mode
Manual input
Wireless LED mark will blink
when AP mode active
4Active Wireless adapter by Remote controller
5Connect with Home Wi-Fi Router
6A/C add finished
7Connect successfully
Wireless LED lamp stop blink.
Add Wireless adapter for control by Carrier In The Air application.
01_OM_1129850204_EN.indd 1101_OM_1129850204_EN.indd 11 8/1/2564 BE 15:388/1/2564 BE 15:38

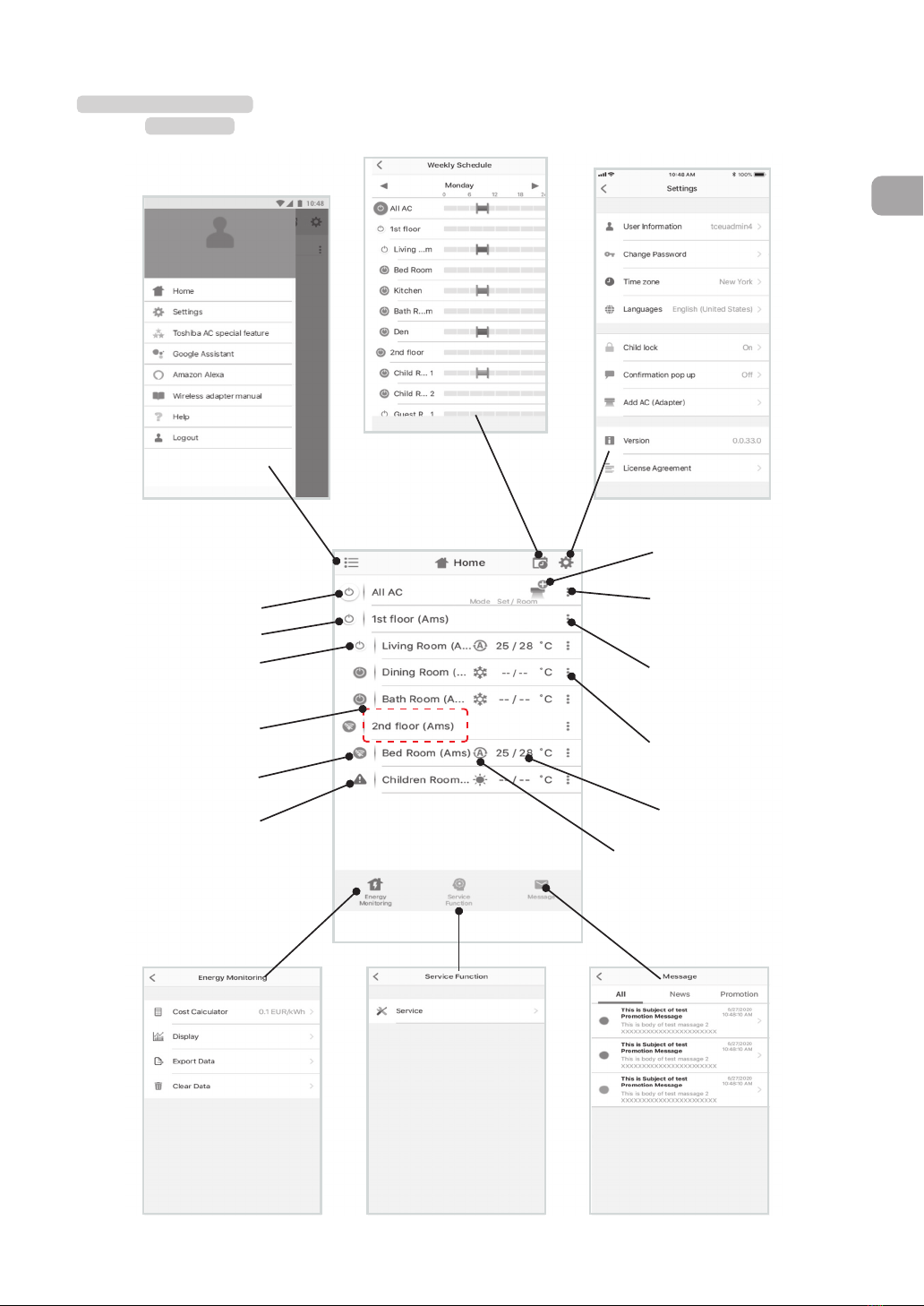

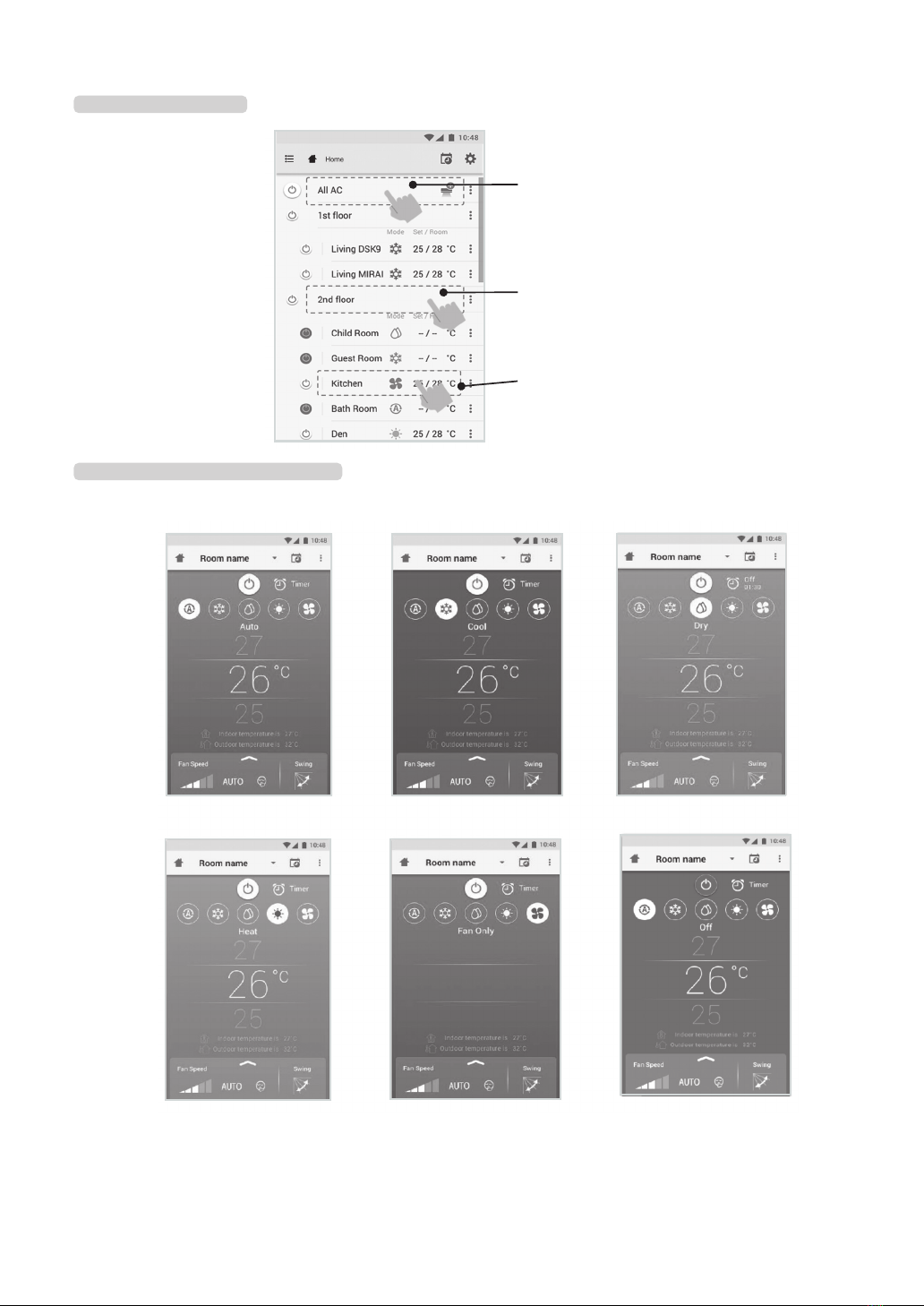

Menu
All AC On/Off
Group AC On/Off
Each AC On/Off
Group name
AC device is offline
Notification ERROR code
description (pop up)
Weekly schedule Setting
Sub menu all AC

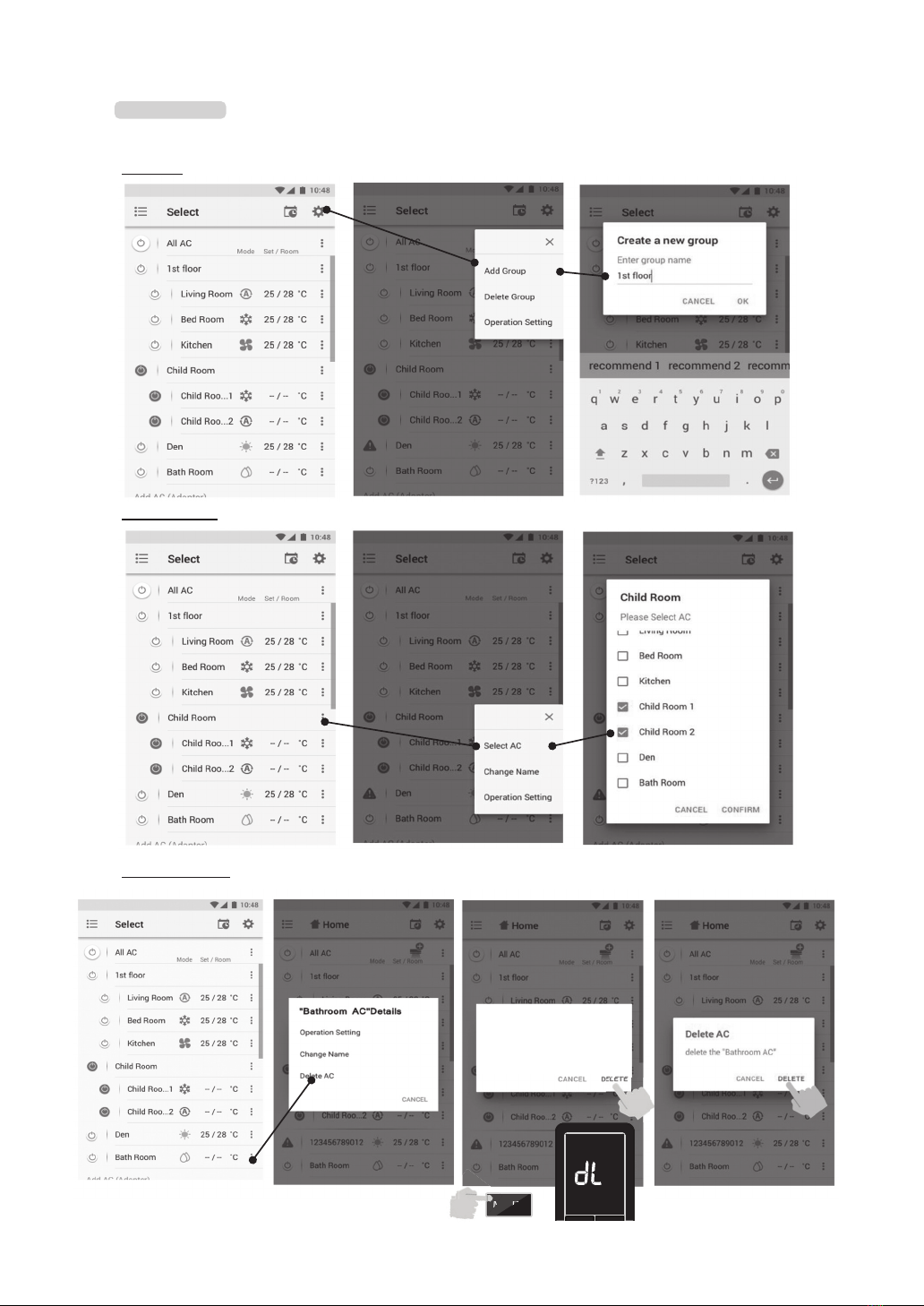

·Add Group
·Delete Group
·Operation Setting
Add AC
Sub menu group
·Select AC
·Change group name
·Group operation Setting
Sub menu AC
·Operation Setting
·Change name
·Delete AC
Setting temperature /
Actual room temp
Current operation mode
of each AC
Carrier In The Air application
Home screen
EN
01_OM_1129850204_EN.indd 1201_OM_1129850204_EN.indd 12 8/1/2564 BE 15:388/1/2564 BE 15:38

Auto
Heat
Cool
Fan only
Dry
Off
Enter operation mode of All AC
Enter operation mode of Group AC
Enter operation mode of each AC
Mode and Condition setting.
Mode select for Carrier In The Air application.
Provide for 5 operation modes
01_OM_1129850204_EN.indd 1301_OM_1129850204_EN.indd 13 8/1/2564 BE 15:388/1/2564 BE 15:38

Tab for select AC
Weekly schedule
OFF-ON Timer set
OFF-ON timer set 0.5-12hrs.
ON timer set from
Off mode only
Off mode
Mode select
Temperature set
Indoor temperature
Outdoor temperature
Fan speed set
Special feature
Louver set
Setting in operation mode.
EN
01_OM_1129850204_EN.indd 1401_OM_1129850204_EN.indd 14 8/1/2564 BE 15:388/1/2564 BE 15:38

Add AC in group
Delete AC in group
Maximum 3 groups
1 Group maximum = 10 units.
Add group
Group operation.
MODE
MOD
M
Please make sure Factory Reset is
performed before deleting AC from mobile
application.
(See owner manual ʺPress and hold MODE
button on remote control for 5 second and
active dL functionʺ)
01_OM_1129850204_EN.indd 1501_OM_1129850204_EN.indd 15 8/1/2564 BE 15:388/1/2564 BE 15:38

Time select Mode select
Select program for active by tick at select box
Weekly schedule
set and active
Weekly schedule
set but not active
Weekly schedule
not set
Weekly schedule set for each unit
Day select Monday - Sunday
Weekly schedule of all AC unit Weekly schedule of all AC unit
Weekly schedule set.
Weekly schedule cancel.
EN
01_OM_1129850204_EN.indd 1601_OM_1129850204_EN.indd 16 8/1/2564 BE 15:388/1/2564 BE 15:38

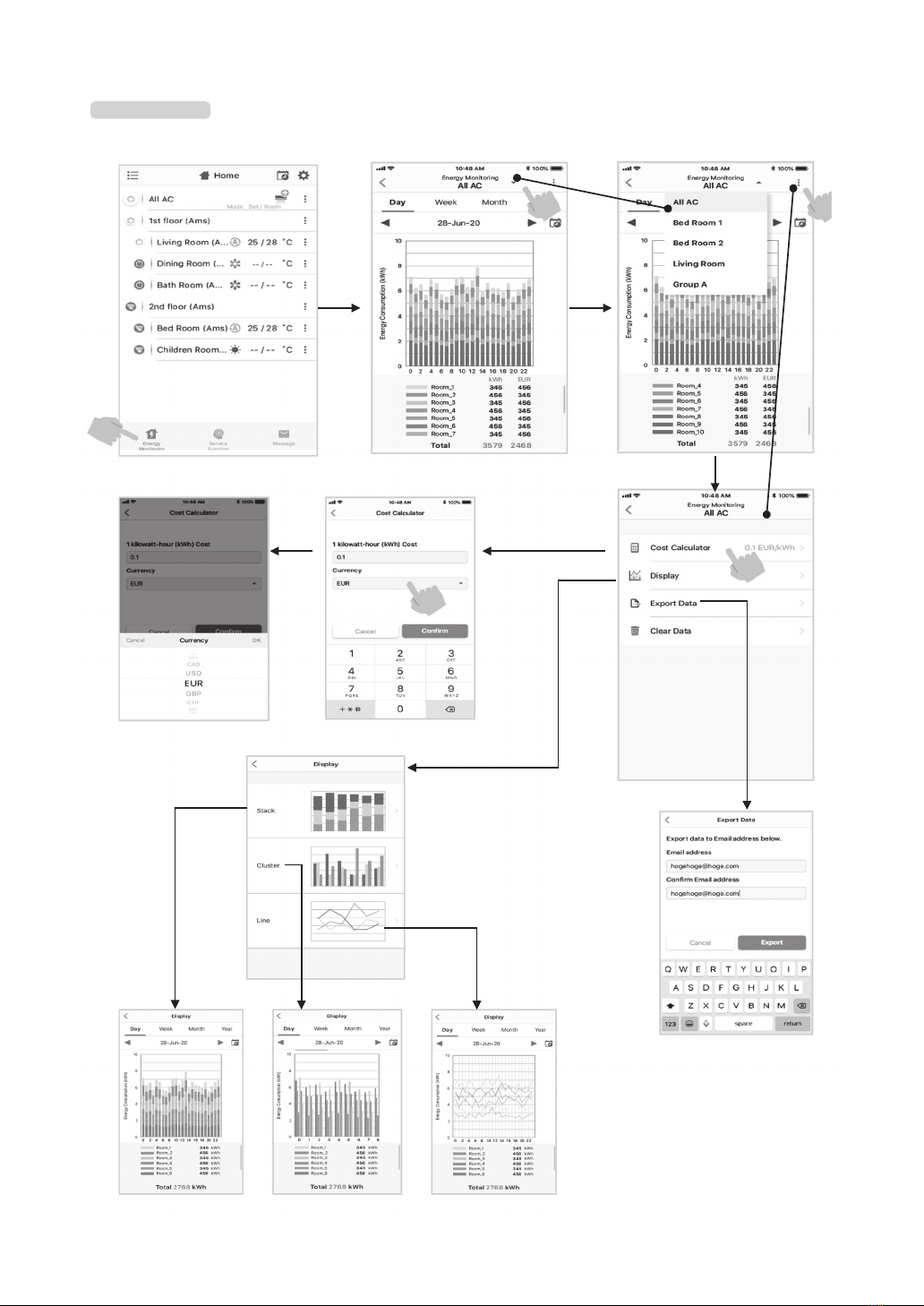

Select Room for Energy monitoring
1Select Energy monitoring 2Energy monitoring display
Set cost calculate and currency
Select Energy monitoring display
Export data and send by Email
Energy monitoring
●The power consumption displayed is just an estimate as it is calculated simply.
It may sometimes differ from the result measured by the power meter.
01_OM_1129850204_EN.indd 1701_OM_1129850204_EN.indd 17 8/1/2564 BE 15:388/1/2564 BE 15:38

In case of have some problem can check from Help menu.
The decorative fabric for cover on the air inlet grille of indoor unit was put in
the accessories. User can use it as required.
The method of installation is as follows.
1. Remove the air inlet grille.
Open the air inlet grille upward and pull it toward you.
As shown on figure as below.
Air inlet grille
2. Prepare the fabric that you choose for install.
3. Insert the fabric into the left and right side of the air inlet grille.
Attach the hook and loop of velcro tape fully together.
As shown on figure as below.
Fabric Decorative fabric
Velcro hook
Velcro loop
4. Insert the fabric into the top and bottom side of the air inlet grille.
Attach the hook and loop of velcro tape fully together.
As shown on figure as below.
Velcro loop Velcro Hook
Fabric
5. Reassembly the air inlet grille by reverse process of 1.
Note:
●The tightness of the fabric depends on attaching the hook and loop of
velcro around the air inlet grille, take appropriate action.
Maintenance & Shelf-life
●Clean when dust stuck or covers the decorative fabric.
●Take extra care when cleaning the decorative fabric.
●Vacuum the decorative fabric with soft brush nozzle that use for
cleaning on furniture or curtain.
Vacuum cleaner
●In case of getting heavy dirty on decorative fabric, please use dry
cleaning service or wash by hand with warm water separated from
other clothes (to avoid color staining), then line dry in the shade.
Note:
●Switch ‘OFF’ and unplug the air conditioner before removing the air
inlet grille and decorative fabric.
●Ensure decorative fabric are completely dry before refitting to the air
inlet grille.
●Do not put the decorative fabric in a dishwasher, washing machine,
tumble dryer, oven, microwave or near an open flame.
CAUTION
●If clean decorative fabric by washing, it may affect to appearance and
fitting of the decorative fabric.
●Recommend to use vacuum cleaner to removing the dusts from
decorative fabric.
Note :
●The Wireless Adapter must be installed, maintained, repaired and removed by a qualified installer or qualified service person.
●Contact dealer and/or service center when equipment is malfunction.
DECORATIVE FABRIC INSTALLATION
18
EN
01_OM_1129850204_EN.indd 1801_OM_1129850204_EN.indd 18 8/1/2564 BE 15:388/1/2564 BE 15:38

ขอควรระวังเพื่อความปลอดภัย
โปรดอานคําเตือนในคูมือนี้อยาง
ละเอียดกอนการใชงาน อุปกรณนี้เติมดวยสารทําความ เย็น R32
●โปรดเก็บคูมือฉบับนี้ไวในที่ๆ ผูใชงานสามารถหาไดโดยงาย
●โปรดอานคําเตือนในคูมือนี้อยางละเอียดกอนการใชงาน
●อุปกรณนี้จะตองใชโดยผูเชี่ยวชาญหรือผูไดรับการอบรมกับทางรานคาแลว ทั้งใน
อุตสาหกรรม และฟารม หรือเพื่อการพาณิชยโดยผูใชทั่วไป
●คําอธิบาย ณที่นี้ ถือวาเปน คําเตือน ขอควรปฎิบัติ และขอควรระวัง เพื่อไมใหเกิดอันตราย
โดยคําอธิบายมีขอมูลสําคัญเกี่ยวกับความปลอดภัย ควรตรวจสอบใหแนใจวาไดอานคํา
เตือนทั้งหมดครบถวนแลว
อันตราย
●หามประกอบ, ซอมแซม, เปด หรือถอดฝาครอบ อาจทําใหไดรับอันตรายจากแรงเคลื่อน
ไฟฟาสูง กรุณาติดตอตัวแทนจําหนายหรือผูชํานาญงานในการประกอบการดังกลาว
●การปดเครื่องปรับอากาศไมไดเปนการปองกันไฟฟาช็อตซึ่งอาจเกิดขึ้นได
●ควรติดตั้งเครื่องปรับอากาศตามขอกําหนดการเดินสายไฟ
●วิธีการตัดกระแสไฟจากตัวจายไฟหลักที่มีระยะหางหนาสัมผัสของขั้วตอทุกขั้วอยางนอย
3 มม ตองใชรวมในการเดินสายแบบตายตัว
●จะตองเก็บอุปกรณไวในหองที่ไมมีองคประกอบใหเกิดไฟ (เชน เปลวไฟ อุปกรณที่ใชกาซ
หรือเครื่องทําความรอน)
●เพื่อหลีกเลี่ยงไมใหเกิดอัคคีภัย การระเบิด หรือการบาดเจ็บ ควรใชเครื่องใหหางจากกาซ
ที่เปนอันตราย (กาซไวไฟ หรือกาซพิษ) หรือวัตถุที่กอใหเกิดอันตรายในบริเวณอุปกรณ
คําเตือน
●อยาใหรางกายรับลมเย็นหรือรอนโดยตรงจากเครื่องปรับอากาศเปนเวลานาน
●อยานํานิ้วหรือสิ่งของเขาไปในชองลมเขาหรือลมออก
●เมื่อเกิดความผิดปกติขึ้น (มีกลิ่นไหม ฯลฯ) ใหหยุดใชเครื่องปรับอากาศและหยุดการ
เชื่อมตอกับกระแสไฟฟา และปดอุปกรณตัดวงจร
●อุปกรณนี้สรางขึ้นมาเพื่อใหคนทั่วไปรวมทั้งเด็ก ที่มีอายุ 8 ปขึ้นไป ไดใช แมวาจะมีความ
ไมสมบูรณทางรางกาย การรับรู และทางจิต หรือไมมีประสบการณและความรู ยกเวนวา
บุคคลผูนั้นอยูในความควบคุมดูแลในการใชเครื่องโดยบุคคลที่รับผิดชอบความปลอดภัย
ของ
บุคคลเหลานี้โดยตรง
●เครื่องปรับอากาศจะตองไดรับการติดตั้ง การบํารุงรักษา และการซอมแซม และถอดออก
โดยผูติดตั้ง หรือผูใหบริการที่มีคุณสมบัติเหมาะสม เมื่อมีงานใดๆ ที่เกี่ยวของกับเครื่อง
ปรับอากาศนี้ ใหถามผูติดตั้ง หรือผูใหบริการที่มีคุณสมบัติเหมาะสม ใหดําเนินการตอไป
●
เด็กจะตองอยูในความควบคุม เพื่อใหแนใจวาเครื่องปรับอากาศนี้จะไมกอใหเกิดอันตรายกับเด็ก
02_OM_1129850204_TH.indd 102_OM_1129850204_TH.indd 1 8/1/2564 BE 16:488/1/2564 BE 16:48
