Carrier Elegant 53KFE60 User manual

Rev. (0) - 2013
Quality
Management System
ISO 9001 : 2008
Certicate No.: QS-5519HH
Enviromental
Management System
ISO 14001 : 2004
Certicate No : 12 104 30334 TMS
Safety
Management System
BS OHSAS 18001 : 2007
Certicate No : 12 116 30334 TMS
03500000
OWNER’S MANUAL
Carrier is committed to continuously improving its products according to national and international standards
to ensure the highest quality and reliability standards, and to meet market regulations and requirements.
All specications subject to change without prior notice according to Carrier policy of continuous development.
Elegant
Floor Standing Split Systems
53KFE60
Cool Only
R
2
2
380-420V ~, 50Hz

380V ~ 50Hz 1Ph
Floor Standing Split System
60K
Cool Only
R
2
2
Elegant
Refrigerant
Leak Detection
Timer
Functions
Efficient
Compressor
Fashion
Design
Efficient
Operation
Efficient
Anti-dust Filters
LCD
Display
LE
IAQ
Hydrophilic
Aluminum Fins
Auto Restart
Function
3 Minutes
Time Delay
Anti-Freezing
Protection
Self diagnostic
function
3
Min.
Anti
Freezing
Easy Flexible
Installation
Easy Fast Service
& Maintenance
Cleanable
Front Panel
Washable
Air Filter
Independent Dehu-
midication
Auto
Mode
Auto
Fan Speed
Auto
Temperature
Compensation
Horizontal Air Flow
Manual Direction
Smart LCD
Wireless Control
Super
Quiet
Smart
Airow
Vertical Air Flow
Auto Swing
Efficient
AMS
AMS
Efficient
Fans
Efficient
Coils
Inner Groove
Copper Tubing
Nano-Silver Ion
Filter

Thank you for selecting CarrierAir Conditioner
You can be justifiably of your purchase because the same pride
in craftsmanship and engineering know-how that goes into
Carrier equipment worldwide have been built into your unit.
One of the pleasant benefits awaiting you with room air
conditioning is that in addition to being cooled, the room air is
filtered and dehumidified.
This owner’s manual is designed to help you be familiar with the
many comfort and technological features your unit offers,
moreover, it contains vital information about maintenance,
service and economical operation.
Take the next few minutes to discover for you how to get the
most in personal comfort and economical operation from your
new Carrier room air conditioner.
CONTENTS
PAGE NO.
1. GENERAL INFORMATION 1
2. SAFETY PROTECIONS OF AIR CONDITIONER 2
3. TIPS OF ENERGY SAVING AND OPTIMUM COMFORT 3
4. SPLIT SYSTEM DESCRIPTION 5
5. CONSIDERATIONS FOR REMOTE CONTROL 6
6. OPERATING UNIT THROUGH REMOTE CONTROL 7
7. OPERATING UNIT THROUGH ELECTRONIC OPERATION PANEL 18
8. CARE AND CLEANING 27
9. PERIODICAL CHECKS 29
10. CONSIDERATIONS BEFORE A LONG SHUTDOWN PERIOD OF AIR CONDITIONER 30
11. OPERATION TIPS 31
12. TROUBLE SHOOTING 32

-١-
1. GENERAL INFORMATION
SAFETY CONSIDERATIONS
-Installation of air conditioning equipment can be hazardous due to system pressures and
electrical components.
-The installation of the air conditioner must be done by Carrier or one of Carrier authorized
dealers.
WARNINGS
•The operating voltage of electrical power supply should be within the voltage mentioned on unit
nameplate data.
•The capacity of electrical kWh counter should be larger than the operating currents required for
air conditioner(s) and any other electrical domestic appliances in use simultaneously from the
same supply.
•The installation of electrical distribution box after the electrical KWH counter is necessary to
properly distribute the electrical loads. The electrical distribution box should be equipped with
circuit breakers according to the electrical loads. For each installed air conditioner, a separate
circuit breaker with its own overload should be installed on the electrical distribution box.
•The installation of two-pole automatic circuit breaker is necessary to operate the air conditioner.
The circuit breaker must be installed to be far away from any flammable materials
(curtains…etc.). The circuit breaker must be suitable for air conditioner.
•Disconnect the electrical mains supply prior to any maintenance operations or prior
to handling any internal unit parts.
•The manufacturer declines any liability for damage resulting from modifications or errors in the
electrical or refrigerant connections, made during the installation, or from the improper use of
this equipment. This will void the unit warranty immediately.
•Failure to observe electrical safety codes may cause a fire hazard in case of short circuits.
•This system will only work safety and correctly, if installed and tested by qualified personnel.
•Do not open the electronic remote controller to avoid possible damage. In case of malfunction
contact a qualified service engineer.
•The unit contains rotating equipment (fan). Ensure that this is out of reach for children.
•Be conscious of the room temperature and general comfort, particularly when this is used near
children, senior or handicapped people.
•For correct use, the air conditioner must operate within the temperature limits indicated in the
table “Operating Limits” included in the installation manual. Incorrect use of the system outside
these limits may cause malfunction and dripping water.
•Controller batteries contain polluting elements. When exhausted, they must be disposed of in
accordance with local requirements.
•Do not switch off the split system by disconnecting the electric power supply.
The system must always be switched off using the remote control.

-٢-
2. SAFETY PROTECTION OF AIR CONDITIONER
The air conditioner is equipped with complete safety protections to ensure safe operation
of air conditioner.
These safety protections are:
Auto restart Feature. with backup memory.
When the power failure is happened during system operation, the micom of printed
circuit board will memorize the operation setting. After the power is recovered, the
system operates automatically ( without remote control after compressor time delay ),
according to the previous operation settings.
3 (Three) minutes time delay between compressor turning off and turning on.
Frost prevention of indoor coil when the system is operating in cool mode with
excessive dirt on the indoor coil and / or clogged air filters and when the system is
operating in cool mode at low ambient temperature.
Self-diagnostic function to detect malfunctions.
When the air conditioner is on and in a malfunction, the fault code will appear on the
display located on the electronic panel on the unit as follows:
Er Indicates a malfunction of the room air sensor.
En Indicates a malfunction of the indoor coil sensor.

-٣-
3. TIPS OF ENERGY SAVING AND OPTIMUM COMFORT
In Summer
•Keep room temperature to
comfort levels.
•Don’t remain in direct contact
with cold air for a long period.
This is harmful to health.
•Don’t wait until it is too hot.
Turn the air conditioner for
cooling before that.
•Don’t exaggerate on the
temperature intensity, too cold.
Extreme temperatures are harmful
to you health and waste energy.
In Winter
•Keep room temperature to
comfort levels.
•Don’t remain in direct contact
with warm air for a long period.
This is harmful to health.
•Don’t wait until it is too cold.
Turn the air conditioner for
heating before that.
•Don’t exaggerate on the
temperature intensity, too hot.
Extreme temperatures are harmful
to you health and waste energy.
Keep doors, windows and any other
openings closed to prevent the
conditioned air from escaping and to
prevent un conditioned air from entering
the space to be air conditioned.
When in cooling, avoid direct sun in the
room to be air-conditioned,
if possible shut curtains or shades.
Keep doors, furniture or any other
obstructions away from blocking return
air and / or supply air of the indoor unit
to assure maximum efficiency and
adequate air circulation.

-٤-
TIPS OF ENERGY SAVING AND OPTIMUM COMFORT (Cont.)

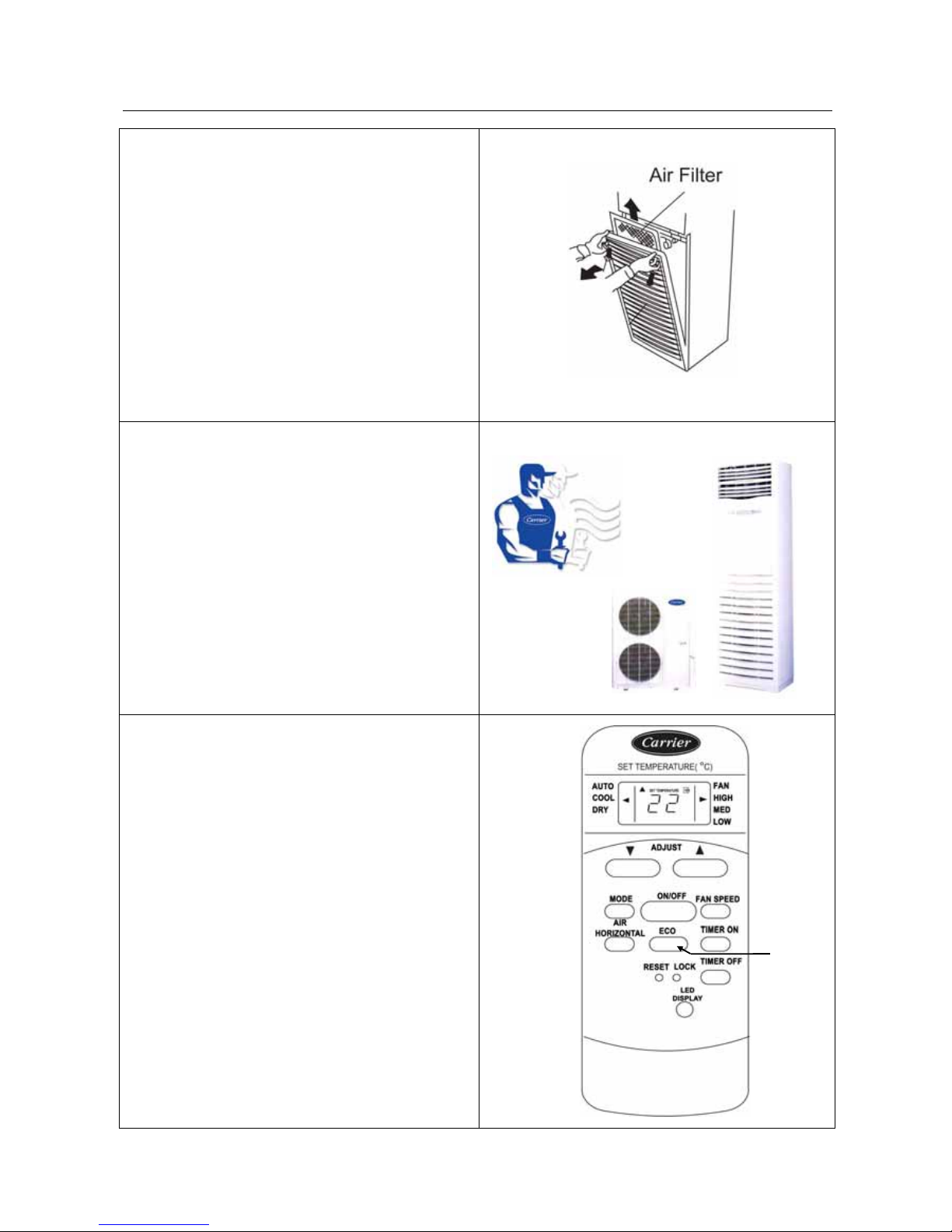

Clean periodically air filter of indoor
unit every month to assure adequate air
circulation and maximum efficiency.
Periodic service and maintenance of
the air conditioner or upon customer
request through carrier or carrier
authorized dealer service men.
Use ECO function for Energy Saving,
Comfortable and healthy operation.

-٥-
4. SPLIT SYSTEM DESCRIPTION
1: Supply Air From Indoor Unit
2: Operation Panel
3: Vertical Supply Air Louvers
automatically adjusted to right or left for horizontal airflow control
4: Horizontal Supply Air Louvers
manually adjusted to top or bottom for vertical airflow control
5: Return Air Grille
6: Air Filter (Inside return grille)
7: Condensate Drain Line
8: Electrical Cables
9: Refrigerant Piping Lines
10: Flare Valves
11: Outlet Air from Outdoor Unit
8
1
7
4
3
2
5
6
11
9 10
Outdoor Unit
Indoor Unit

-٦-
5. CONSIDERATIONS FOR REMOTE CONTROL
Handling the remote controller
Location of the remote controller.
•Keep the remote controller where its signals can reach the receiver
of the indoor unit. (a distance of 8m is allowed).
•When you select the timer operation, the remote controller automatically
transmits a signal to the indoor unit at the specified time.
•If you keep the remote controller in a position that hinders proper signal
transmission, a time lag of up to 15 minutes may occur.
CAUTIONS
•The air conditioner will not operate if curtains, doors or other materials block
the signals from the remote controller to the indoor unit.
•Prevent any liquid from falling into the remote controller. Do not expose the
remote controller to direct sunlight or heat.
•If the infrared signal receiver on the indoor unit is exposed to direct sunlight, the air conditioner
may not function properly. Use curtains to prevent the sunlight from falling on the receiver.
•If other electrical appliances react to the remote controller. Either move these appliances or
consult your local dealer.
Replacing batteries
The remote controller uses two dry batteries (R03/LR03X2)
(1) Slide the cover of the battery compartment off
according to the arrow direction, then replace
the old batteries with new ones.
(2) Insert the new batteries making sure
that the(+) and (-) of battery are installed correctly.
(3) Reattach the cover by sliding it back into position.
Note:
Do not use old batteries or different type batteries or
rechargeable batteries, otherwise it may cause the remote controller malfunction.
Remote Controller Specification
Rated Voltage 3.0V(Dry batteries R03/LR03-2)
Lowest Voltage of CPU Emitting Signal 2.0V
Signal Receiving Range 8m (when using 3.0 voltage, it Gets 11m)
Environment -5°C to 60°C
Performance Features
1. Operating Mode: AUTO, COOL, DRY, and FAN.
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)

-٧-
Signals Transmitter
1
23
5
4
67
8
11
9
12
10

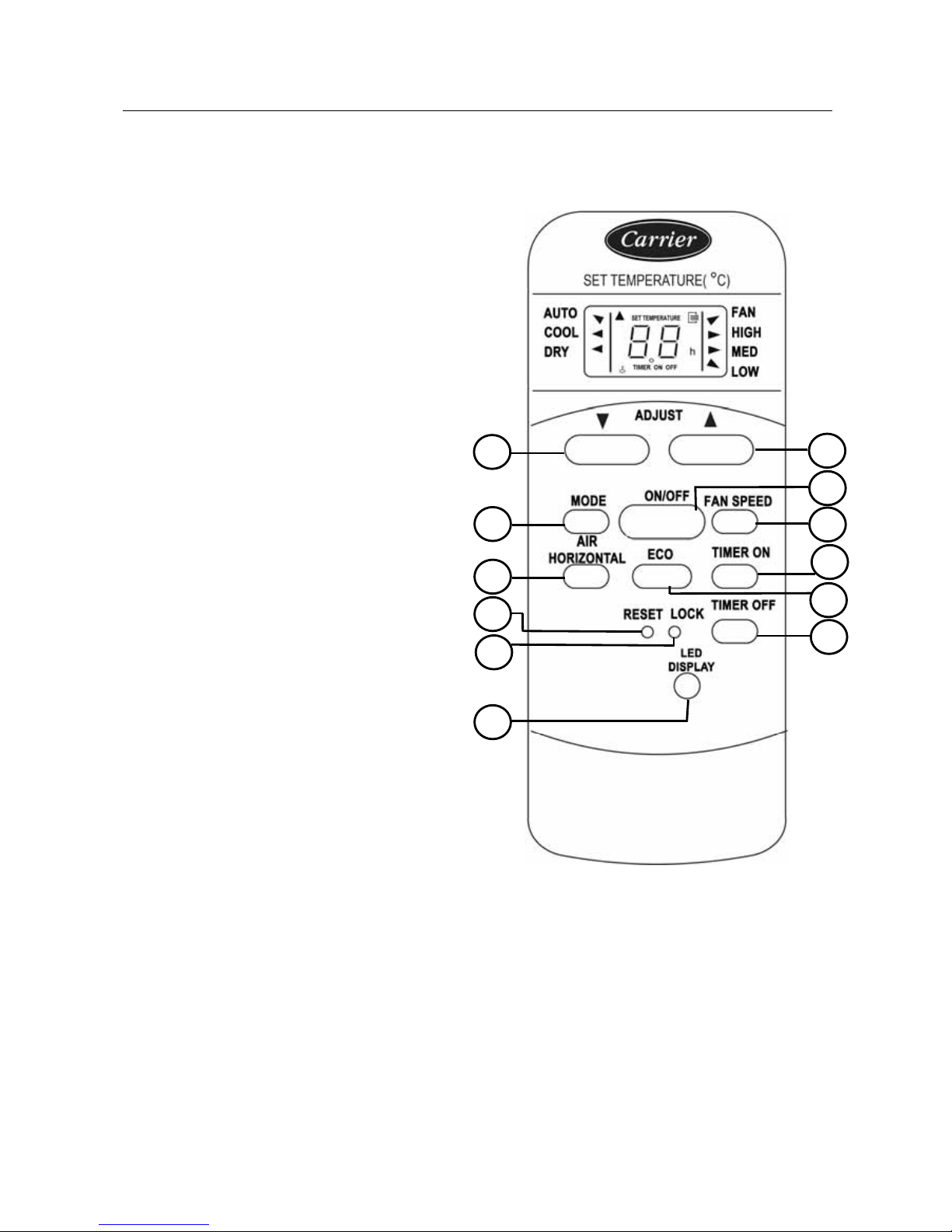

6. OPERATING UNIT THROUGH REMOTE CONTROL
6.1 DESCRIPTION OF REMOTE CONTROL BUTTONS
1. ON/OFF Button
Press this button to start the operation
of the air conditioner.
Press this button again to stop
the operation of the air conditioner.
2. MODE Button
Press this button to select operation
mode in the sequence :
AUTO - COOL – DRY – FAN
3. FAN SPEED Button
Press this button to select fan speed
in the sequence :
HIGH, MED, LOW and AUTO.
Each time the button is pressed,
the fan speed selection is shifted.
4. ADJUST Button ▼
Press this button to decrease the
temperature setting in 1ºC step down to 17ºC
5. ADJUST Button ▲
Press this button to increase the temperature
setting in 1ºC step up to 30ºC

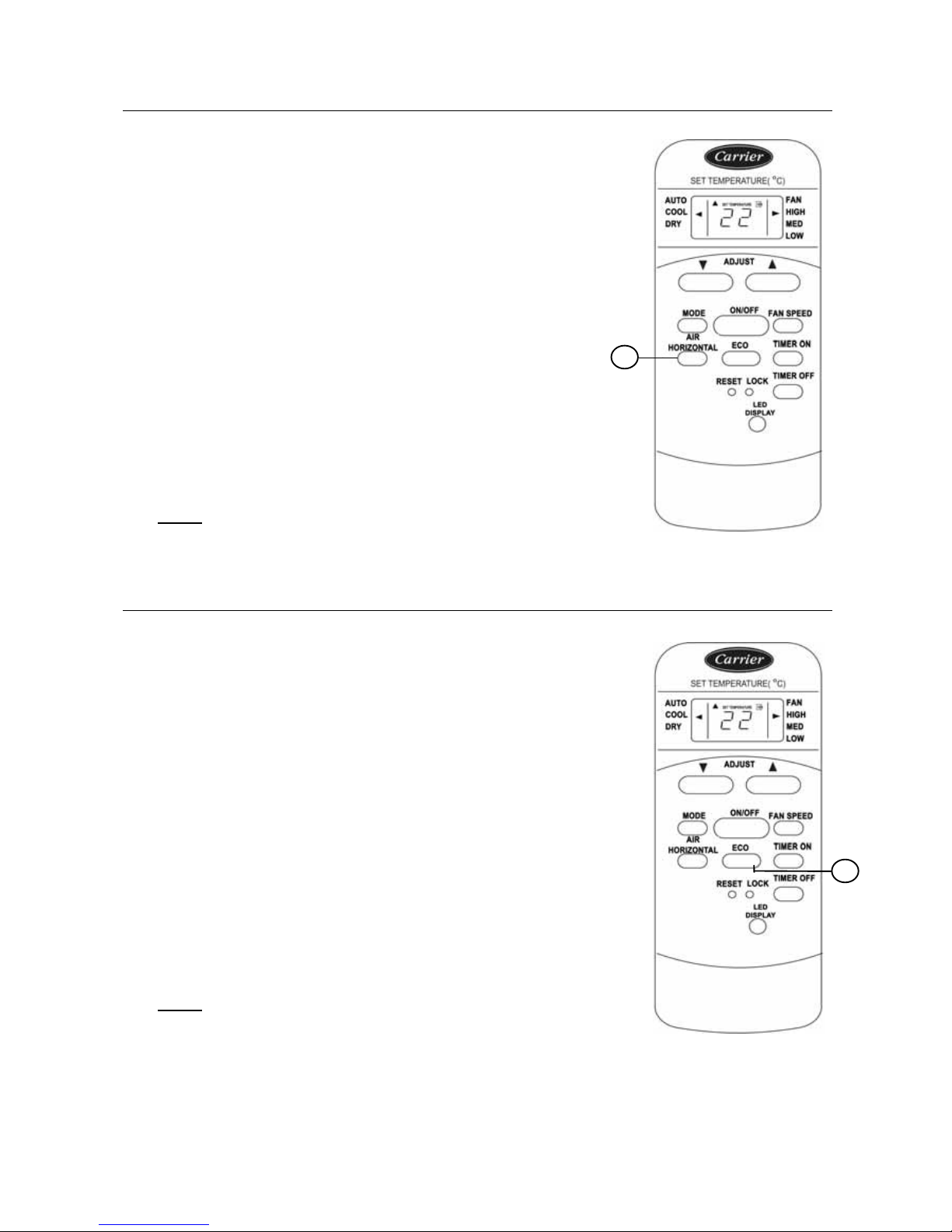

6. AIR HORIZONTAL Button
Press this button to activate auto swing function
of vertical louvers left and right for horizontal
airflow direction.

-٨-
Signals Transmitter
1
23
5
4
67
8
11
9
12
10
OPERATING UNIT THROUGH REMOTE CONTROL (Cont.)
DESCRIPTION OF REMOTE CONTROL BUTTONS (Cont.)
7. TIMER ON Button
Press this button to activate the
auto – on time setting.
Each press will increase the time setting
in 30 minutes increments, up to 10 hours,
then at 1 hour increments up to 24 hours.
To cancel the auto-on time settings, just
press the button until the time setting is 0.0
8. TIMER OFF Button
Press this button to activate the
auto – off time setting.
Each press will increase the time
setting in 30 minutes increments, up
to 10 hours, then at 1 hour increments
up to 24 hours.
To cancel the auto-off time settings,
just press the button until the time
setting is 0.0
9. ECO Button
Press this button to activate ECO
function for energy saving and
economical running.
To cancel ECO function, Press any
other button.
10. LED DISPLAY Button
Press this button to clear the display of
the operation panel on the indoor unit.
Press this button again to light the display
of the operation panel on the indoor unit.
11. LOCK Button
Press this recessed button to lock all current settings, and the remote control will not accept
any operation expect that of the LOCK.
LOCK symbol will appear on the remote control display when LOCK function is activated.
Use LOCK function when you want to prevent settings from being changed accidentally.
Press LOCK button again to cancel LOCK function.
12. RESET Button
Press this recessed button to cancel all of the current settings and the remote will return to the
initial settings.

-٩-
OPERATING UNIT THROUGH REMOTE CONTROL (Cont.)
6.2 DESCRIPTION OF REMOTE CONTROL DISPLAY
1. ON / OFF display
This indicator will be displayed when the air conditioner is operating.
2. Transmission Indicator
This transmission indicator will light when remote controller transmits signals to the indoor unit.
3. Mode display
Displays the current selected mode.
including AUTO, COOL, DRY and FAN
4. Mode display (FAN mode)
5. Fan Speed display:
Displays the selected fan speed: HIGH and LOW.
Nothing displays when the fan speed is selected in AUTO speed.
When AUTO or DRY Mode is selected, there will be no signals displayed.
6. Temp. / Timer display
The temperature setting (from 17°C to 30°C) or timer setting (0~24h) will be displayed.
If ECO mode is selected, there will be no display.
7. Timer display
This display area shows the settings of the TIMER. That is, if only the Auto-on time function is set,
it will display TIMER ON. If only the Auto-off time function is set, it will display TIMER OFF. If both
functions are set, it will display TIMER ON OFF which indicates you have chosen both the Auto-on
time and Auto-off time.
8. Lock indicator
LOCK display is displayed when pushing the LOCK button. Push the LOCK button to clear display.
4
1
6
7
8
2
3
5

-١٠-
OPERATING UNIT THROUGH REMOTE CONTROL (Cont.)

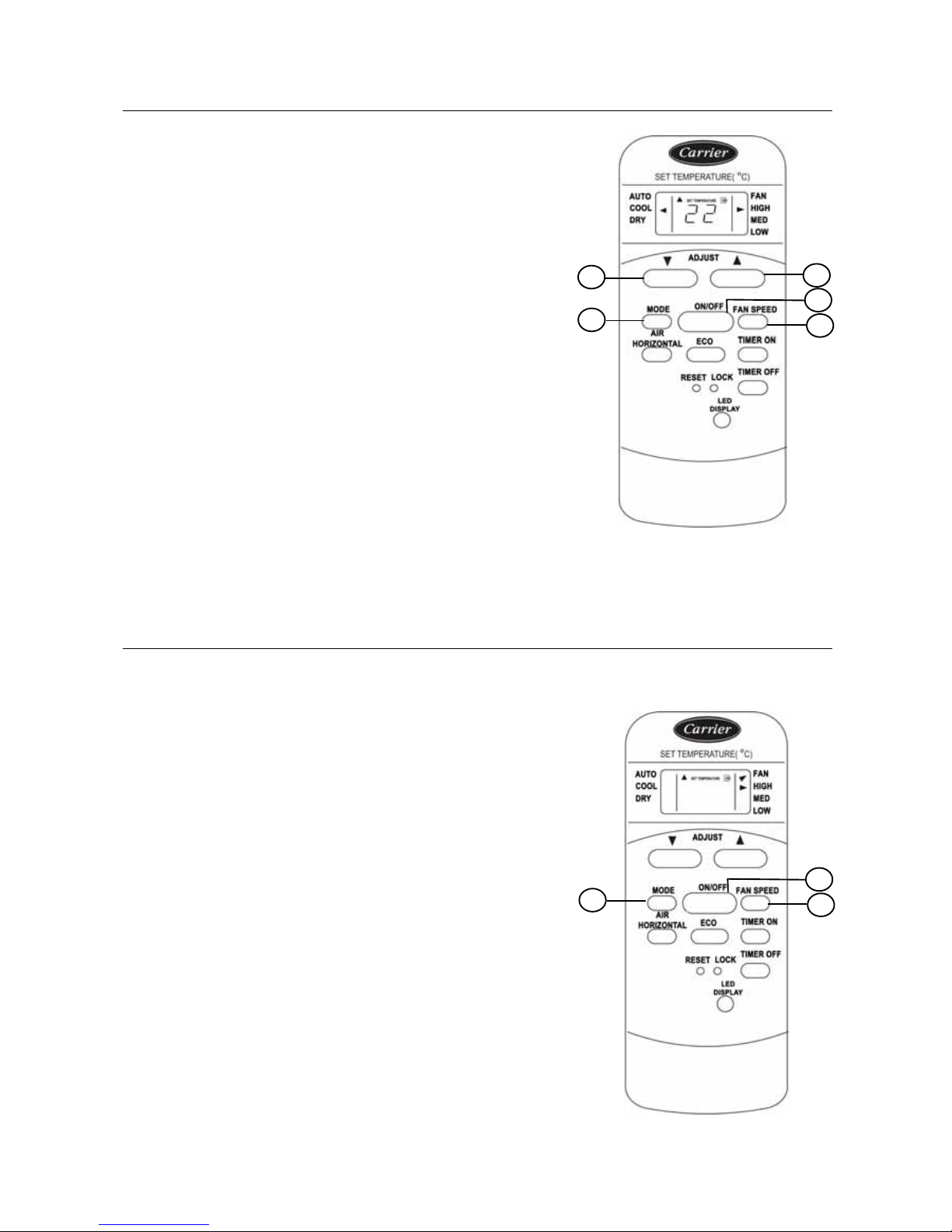

6.3 COOL Mode
Start:
1. Press ON/OFF button to start the air conditioner.
2. Press MODE button to select COOL mode.
The selected COOL mode will appear on the display
of the operation panel of indoor unit.
3. Press FAN SPEED button to select the desired
fan speed : HIGH, MED, LOW or AUTO.
The selected FAN SPEED appear on the display
of the operation panel of the indoor unit.
4. Press ADJUST ▼or ▲button to set the desired
temperature. The temperature can be set within a range
of 17°C ~ 30°C in 1°C increments.
Stop: If you want to stop the air conditioner,
Press ON/OFF button again.
NOTE:
In the Cool mode, cooling begins automatically when the room temperature is 1°C above the set point,
and stops when the room temperature is 1°C below the set point. The fans will not stop running.
6.4 FAN (Ventilation) Mode
Start:
1. Press ON/OFF button to start the air conditioner.
2. Press MODE button to select FAN mode.
The selected of FAN mode appear on the display of the
operation panel of indoor unit.
3. Press FAN SPEED button to select the desired
fan speed : HIGH, MED, LOW or AUTO.
The selected FAN SPEED will appear
on the display of the operation panel of the indoor unit.
Stop: If you want to stop the air conditioner,
Press ON/OFF button again.
NOTE:
In the Fan mode, the setting temperature is not displayed in the
remote controller and you are not able to control the room
temperature either.
1
2 3
1
4
3
3
2

-١١-
OPERATING UNIT THROUGH REMOTE CONTROL (Cont.)

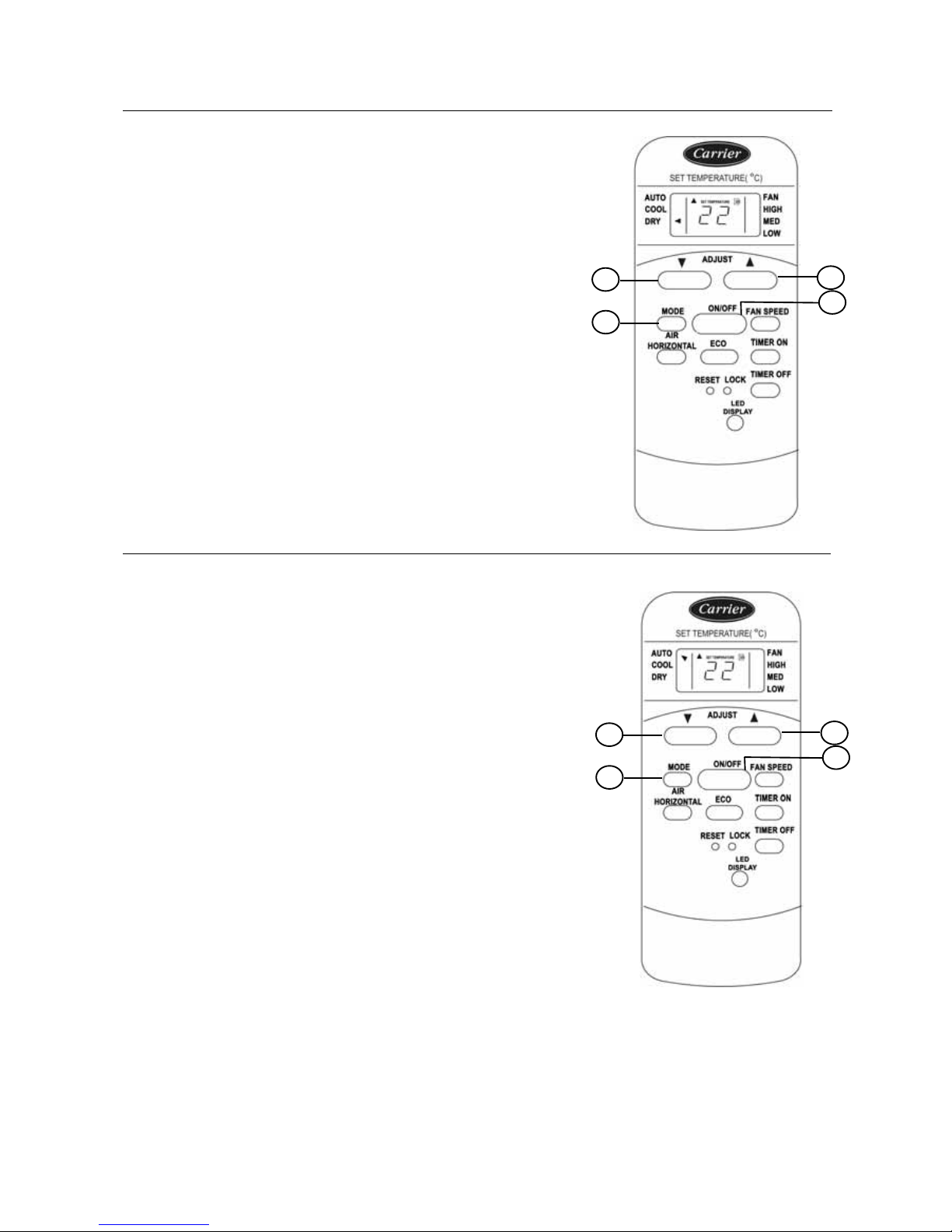

6.5 DRY Mode
Use DRY mode to set the desired temperature at low fan speed
which provides you with the dehumidifying surroundings.
Start:
1. Press ON/OFF button to start the air conditioner.
2. Press MODE button to select DRY mode.
The selected DRY mode will appear on the display of the
operation panel of the indoor unit.
3. Press ADJUST ▼or ▲button to set the desired
temperature. The temperature can be set within a range
of 17°C ~ 30°C in 1°C increments.
Stop: If you want to stop the air conditioner,
Press ON/OFF button again.
NOTE:
In DRY mode, you can not select the fan speed.
6.6 AUTO Mode
Start:
1. Press ON/OFF button to start the air conditioner.
2. Press MODE button to select AUTO mode.
The selected AUTO mode will appear on the display of the
operation panel of the indoor unit.
3. Press ADJUST ▼or ▲button to set the desired
temperature. The temperature can be set within a range
of 17°C ~ 30°C in 1°C increments.
Stop: If you want to stop the air conditioner,
Press ON/OFF button again.
NOTES:
1. In the Auto mode, the air conditioner can logically choose the mode
of Cooling, and Fan by sensing the difference between the actual
room temperature and the set temperature on the unit control panel.
If the actual room temperature is 2°C above the set point, the unit
operates in cooling mode. When the actual room temperature is 1°C
higher above the set point but 2°C lower below the set point, the unit
will select the Fan mode.
2. In the Auto mode, you can not switch the fan speed.
It has already been automatically controlled.
3. If the Auto mode is not comfortable for you , the desired mode can be selected manually.
4. If the Eco mode is activated when the unit is operating in Auto mode, the fan speed will change into
Low speed mode immediately.
1
3
3
2
1
3
3
2

-١٢-
OPERATING UNIT THROUGH REMOTE CONTROL (Cont.)
6.7 AIR HORIZONTAL Function
1. Press AIR HORIZONTAL button to activate the air flow
direction left / right automatically.
a- When press AIR HORIZONTAL button once and quickly,
the air flow direction setting feature of the louver is activated.
The moving angle of the louver is 6° for each press.
Keep pressing AIR HORIZONTAL button to move
the louver to the desired position.
b- If press AIR HORIZONTAL button without releasing for 2
more seconds, the auto swing feature of the louver is activated.
The horizontal louver would swing (Left / Right) automatically.
Notes:
When the louvers swing or move to a position which would affect the cooling and heating
effect of the air conditioner, it would automatically change the swing / moving direction.
To Cancel AIR HORIZONTAL operation, press again on AIR HORIZONTAL button.
6.8 ECO Mode
The ECO operation can maintain the most comfortable
temperature and save energy.
1. Press ECO button for 2 Seconds to activate ECO mode.
•The led of ECO mode will light on
•The set temperature will be automatically increased by
1°C after 1 hour after the operation mode is selected.
•Then the set temperature will be automatically increased
by another 1°C after additional 1 hour.
•This new temperature will be maintained and the fan
speed will automatically change to low speed.
Notes:
When activating ECO mode in Auto mode,
the set temperature will not change over time.
To cancel ECO mode, press any other button.
1
1

-١٣-
OPERATING UNIT THROUGH REMOTE CONTROL (Cont.)
6.9 TIMER ON (Auto-Start) Function
If you want to start automatically the air conditioner at the
desired time ( between 0 ~ 24 hrs ), use TIMER ON function
TIMER ON function is useful when you wake up in the
morning or when you return home.
•To set TIMER ON (Auto-start) time, perform the
following steps:
1. Press the TIMER ON button. The remote control shows
TIMER ON, the last Auto-on setting time and the signal "h"
will be shown on the LCD display area. Now it is ready to
reset the Auto-on time.
2. Press the TIMER ON button again to set desired Auto-on
time. Each time you press the button, the time increases
by half an hour between 0 and 10 hours and by one hour
between 10 and 24 hours.
3. After setting the TIMER ON, there will be a one half second
delay before the remote control transmits the signal to the
air conditioner. Then after approximately another
4 seconds, the signal "h" will disappear and the set
temperature will re-appear on the LCD display of the remote
control.
Example:
To start automatically the air conditioner in 6 hours, apply
the following steps :
1. Press the TIMER ON button, the last setting of starting
operation time and the signal “h” will show on the
display of the remote control.
2. Press the TIMER ON button to display "6:0h" on the
TIMER ON display of the remote control.
3. After setting the TIMER there will be a one-half second
delay before the remote control transmits the signal to
the Air Conditioner. Then, after approximately another
4 seconds, the set temperature will re-appear on the
digital display of the remote control.
NOTES:
•When you select the timer operation, the remote control automatically transmits the TIMER
ON signal to the indoor unit for the specified time.
•The effective operation time set by the remote control for the TIMER ON function is limited
to the following settings: 0.0, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5,
8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, and 24.
•To cancel the TIMER ON setting, just press TIMER ON button until the time setting is 0.0
1

-١٤-
OPERATING UNIT THROUGH REMOTE CONTROL (Cont.)
6.10 TIMER OFF (Auto-Stop) Function
If you want to stop automatically the air conditioner at the
desired time ( between 0 ~ 24 hrs ), use TIMER OFF function
TIMER OFF function is useful when you go to sleep.
•To set TIMER OFF (Auto-Stop) time, perform the
following steps:
1. Press the TIMER OFF button. The remote control shows
TIMER OFF, the last Auto-off setting time and the signal "h"
will be shown on the LCD display area. Now it is ready to
reset the Auto-off time.
2. Press the TIMER OFF button again to set desired Auto-off
time. Each time you press the button, the time increases
by half an hour between 0 and 10 hours and by one hour
between 10 and 24 hours.
3. After setting the TIMER OFF, there will be a one half
second delay before the remote control transmits the
signal to the air conditioner. Then, after approximately
another 4 seconds, the signal "h" will disappear and
the set temperature will re-appear on the LCD display
of the remote control.
Example:
To stop automatically the air conditioner in 10 hours.
1. Press the TIMER OFF button, the last setting of
stopping operation time and the signal "h" will show
on the display of the remote control.
2. Press the TIMER OFF button to display 10h on the
TIMER OFF display of the remote controller.
3. After setting the TIMER there will be a one-half second
delay before the remote control transmits the signal to
the Air Conditioner. Then, after approximately another
4 seconds, the set temperature will re-appear on the
digital display of the remote control.
NOTES:
•When you select the timer operation, the remote control automatically transmits the TIMER
OFF signal to the indoor unit for the specified time.
•The effective operation time set by the remote control for the TIMER OFF function is limited
to the following settings: 0.0, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5,
8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, and 24.
•To cancel the TIMER OFF setting, just press TIMER OFF button until the time setting is 0.0
1

-١٥-
OPERATING UNIT THROUGH REMOTE CONTROL (Cont.)
6.11 Combined TIMER OFF and TIMER ON function respectively
( On →Stop →Start operation )
This function is useful when you want to stop automatically the air conditioner after you go to
bed, and start it automatically again in the morning when you wake up or when you return
home.
Example:
To stop automatically the air conditioner 2 hours after setting
and start it automatically again 10 hours after setting. apply the following steps :
1. Press TIMER OFF button
2. Press TIMER OFF button again
to display 2.0h on the TIMER OFF display.
3. Press TIMER ON button.
4. Press TIMER ON button again
to display 10h on the TIMER ON display.
5. Wait for 4 seconds and the remote control
will display the setting temperature again.
CAUTION
The timer setting (TIMER OFF or TIMER ON) that in sequence occurs directly after the set timer
will be activated first.
TIMER ON OFF
10 hours later
after setting
2 hours later
after setting
Set
On
Start
Stop

-١٦-
OPERATING UNIT THROUGH REMOTE CONTROL (Cont.)

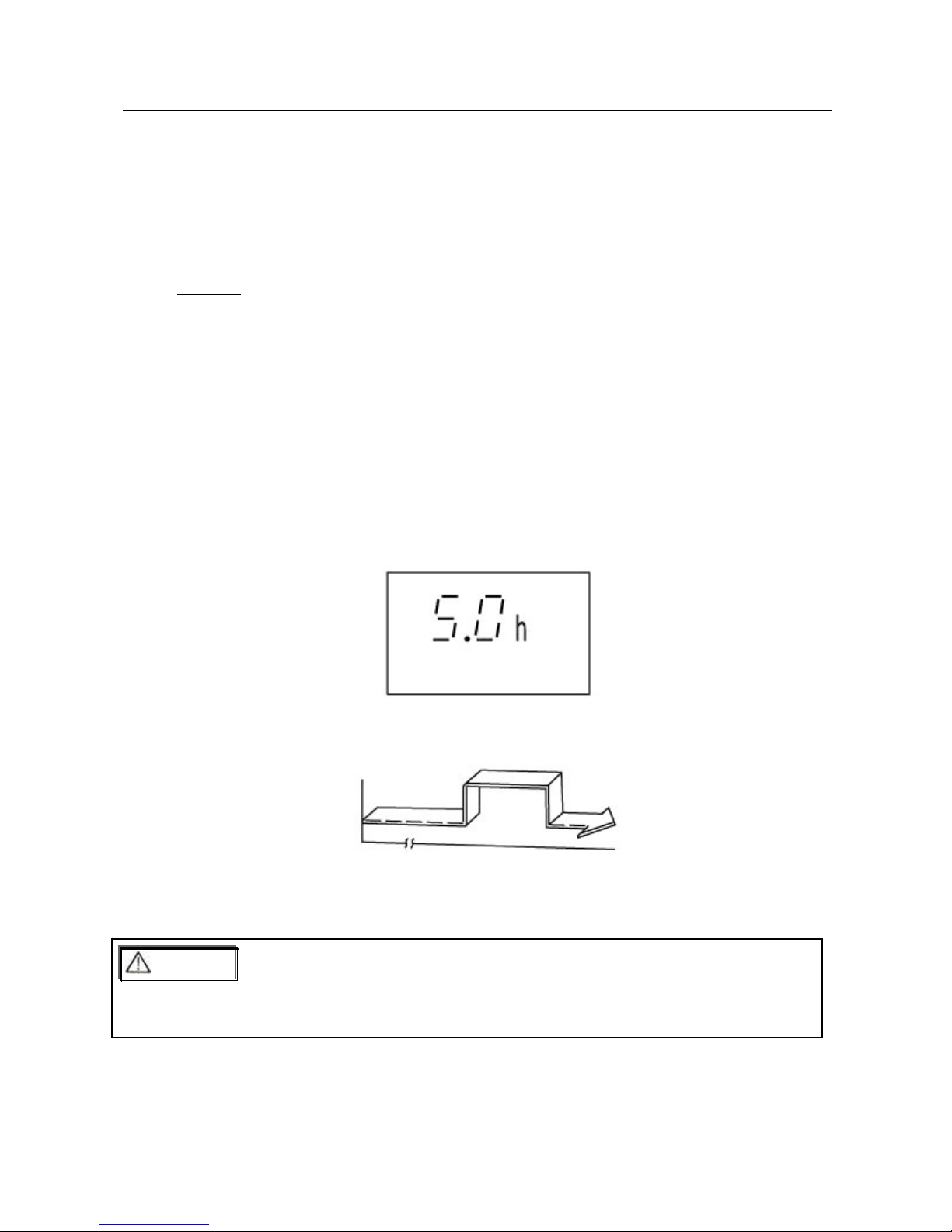

6.12 Combined TIMER ON and TIMER OFF functions respectively
( Off →Start →Stop operation )
This feature is useful when you want to start the air conditioner before you wake up and stop
it after you leave the house.
Example:
To start the air conditioner 2 hours after setting,
and stop it 5 hours after setting.
1. Press the TIMER ON button.
2. Press the TIMER ON button again
to display 2.0h on the TIMER ON display.
3. Press the TIMER OFF button.
4. Press the TIMER OFF button again to display 5.0h on the TIMER OFF display.
5. Wait for 4 seconds and the remote control will display the setting temperature again.
CAUTION
The timer setting (TIMER ON or TIMER OFF) that in sequence occurs directly after the set timer
will be activated first.
TIMER ON OFF
5 hours later
after setting
2 hours later
after setting
Set
Off
Start
Stop

-١٧-
OPERATING UNIT THROUGH REMOTE CONTROL (Cont.)
6.13 LOCK and RESET Functions
1. When you press the recessed LOCK button, all current settings are locked in and remote
controller does not accept any operation except that of the LOCK.
Use the LOCK mode when you want to prevent settings from being changed accidentally.
Press the LOCK button again when you want to cancel the LOCK mode.
A lock symbol will appear on the bottom right hand side of the remote controller display
when the LOCK function is activated.
2. When you press the recessed RESET button, all current settings are cancelled and
return to original factory settings.
2
1
