Carrier equipment touch User manual

User Guide
CARRIER CORPORATION @2015
A member of the United Technologies Corporation family- Stock symbol UTX- Catalog No. 11-808-516-01- 5/7/2015

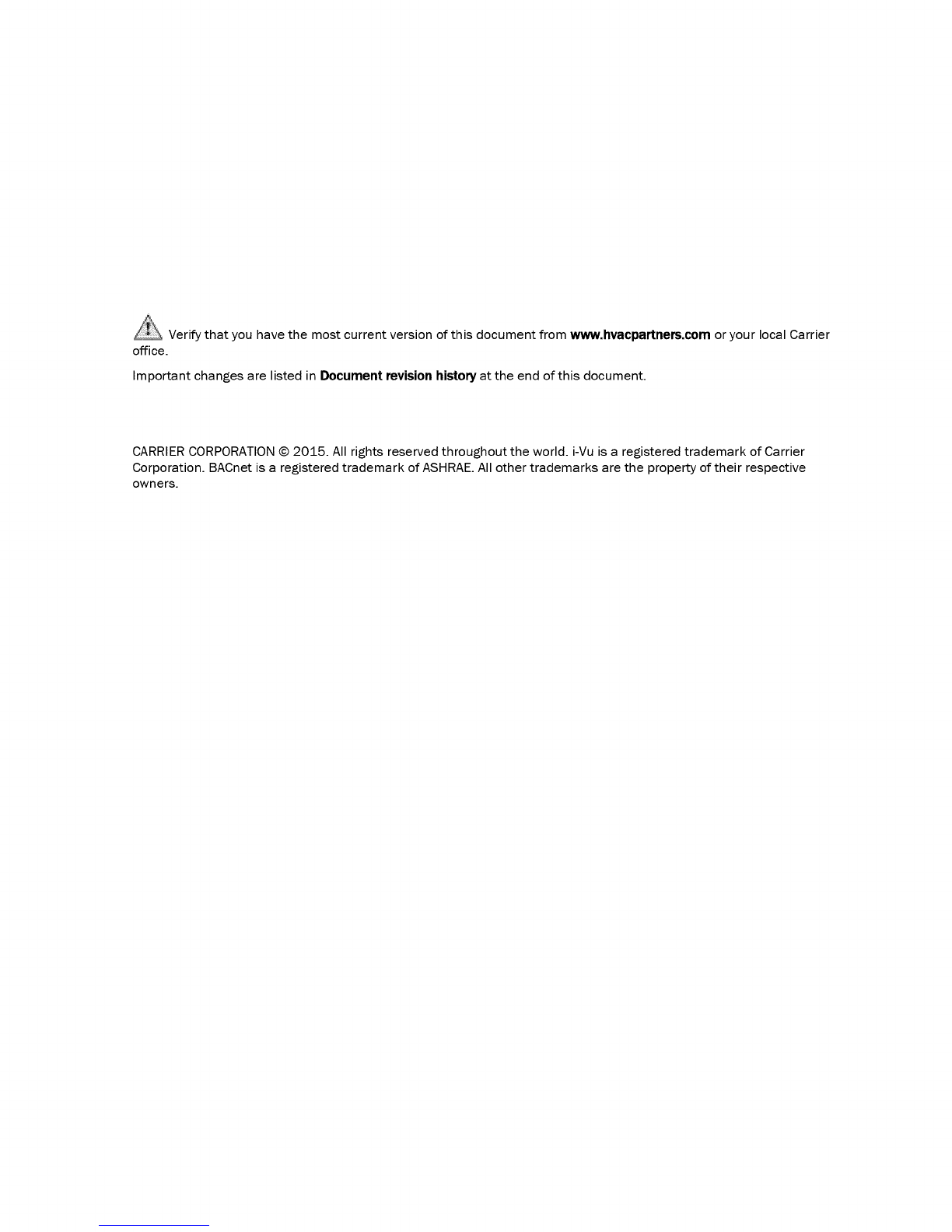

_ Verify that you have the most current version of this document from www.hvacpartners.com or your local Carrier
office.
Important changes are listed in Document revision history at the end of this document.
CARRIER CORPORATION © 2015. All rights reserved throughout the world, i-Vu is a registered trademark of Carrier
Corporation. BACnet is a registered trademark of ASHRAE. All other trademarks are the property of their respective
owners.

Contents
What is the Equipment Touch? .................................................................................................................................. 1
Equipment Touch screens ........................................................................................................................................... 2
Viewing alarms .......................................................................................................................................................... 12
Viewing trends ........................................................................................................................................................... 13
To view trends .................................................................................................................................................... 13
Viewing or creating schedules .................................................................................................................................. 14
To view schedules .............................................................................................................................................. 14
To create a schedule ......................................................................................................................................... 15
To edit touchscreen settings ..................................................................................................................................... 18
Document revision history ........................................................................................................................................ 20

The Equipment Touch is a touchscreen device that you can attach to a controller to view or change its property
values, schedule equipment, view trends, and more, without having to access the system's server.
Touch to display:
Home screen
Previous screen
Alarms screen
Touch abutton to
display that screen
Carrier Proprietary and Confidential
1
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

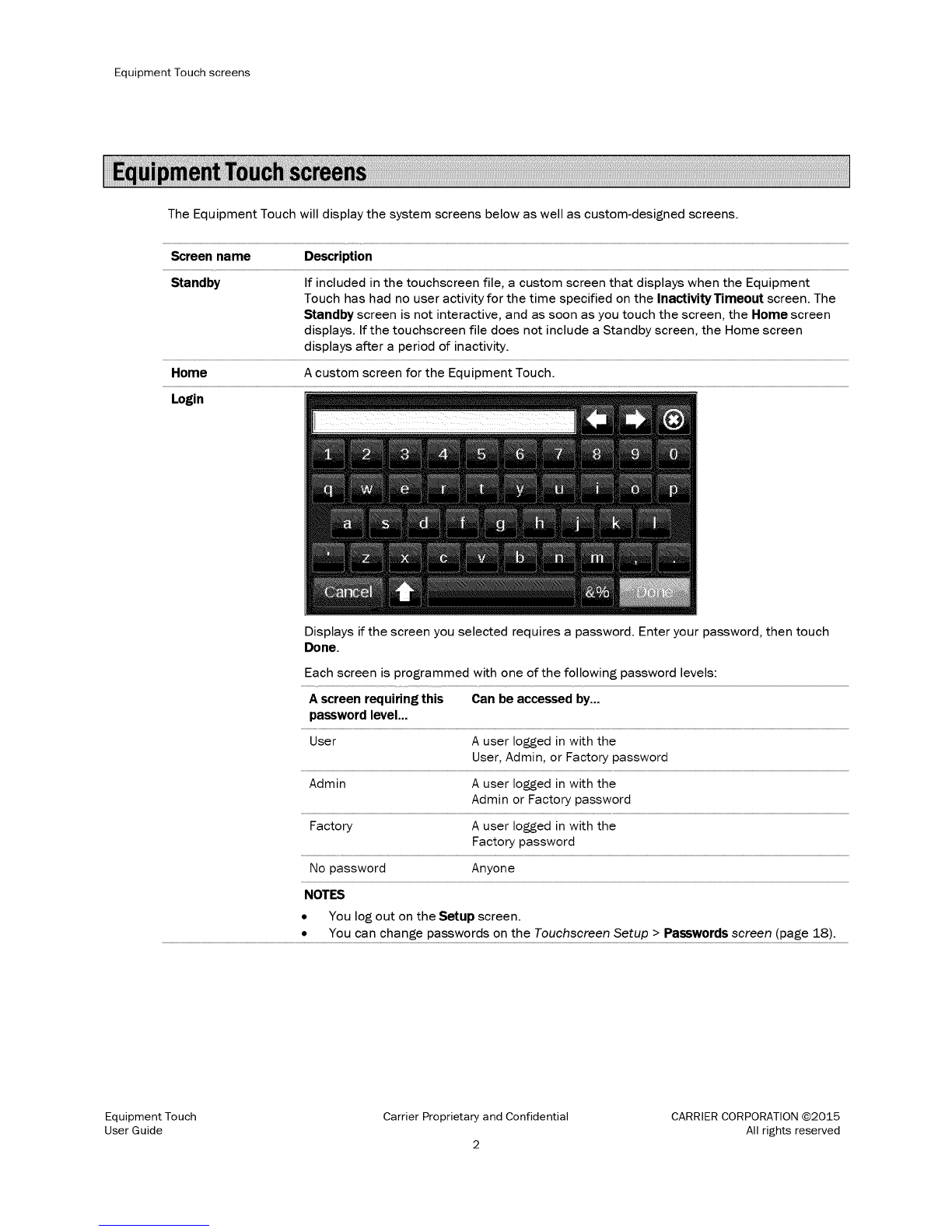

EquipmentTouchscreens
The Equipment Touch will display the system screens below as well as custom-designed screens.
Screen name Description
Standby If included in the touchscreen file, a custom screen that displays when the Equipment
Touch has had no user activity for the time specified on the Inactivity Timeout screen. The
Standby screen is not interactive, and as soon as you touch the screen, the Home screen
displays. If the touchscreen file does not include a Standby screen, the Home screen
displays after a period of inactivity.
Home A custom screen for the Equipment Touch.
Login
Displays if the screen you selected requires a password. Enter your password, then touch
Done.
Each screen is programmed with one of the following password levels:
A screen requiring this Can be accessed by...
password level...
User A user logged in with the
User, Admin, or Factory password
Admin A user logged in with the
Admin or Factory password
Factory A user logged in with the
Factory password
No password Anyone
NOTES
•You log out on the Setup screen.
• You can change passwords on the Touchscreen Setup > Passwords screen (page 18).
Carrier Proprietary and Confidential
2
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

EquipmentTouchscreens
Screen name Description
System
Displays the BACnet device instance number, the controller's time, temperature read from
the controller's prime variable, and zone color. Touch a button to jump to the Module
Status, Alarms, Trends, Schedules, Setup, or Browser screen.
Module Status
Touch a button to see one of the following sections of a Module Status report: Device
Data, Driver Data, Reset Counters, System Errors, Warnings, Information, Hardware,
Database, Network.
For example, the screens below show examples of the Driver Data and Reset Counters
information.
Carrier Proprietary and Confidential
3
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

EquipmentTouchscreens
Screen name Description
Alarms
Lets you view alarms from the controller. See Viewing alarms (page 12).
Trends
Lets you view trends for points that have trending enabled. See Viewing trends (page 13).
Carrier Proprietary and Confidential
4
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

EquipmentTouchscreens
Screen name Description
Schedules
Setup
Lets you view, add, edit, or delete BACnet schedules in the controller. See Setting up
schedules (page 14).
Touch a button to jump to the Module Setup, Touchscreen Setup, or Login screen.
Carrier Proprietary and Confidential
5
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

EquipmentTouchscreens
Screen name Description
Browser
Touch a button to see that type of BACnet objects found in the controller. Each screen
shows a list of network-visible BACnet objects with BACnet Object Name, Current Value,
and BACnet Object Instance number.
Below is an example of AV BACnet objects in a controller.
Touch an object in the above screen to see the details shown below.
Carrier Proprietary and Confidential
6
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

EquipmentTouchscreens
Screen name Description
Module Setup
Touch a button to jump to the Set Time and Date, Communication, Router, IP, or Time
Master screen.
NOTE A yellow value on a Module Setup screen indicates the value has been changed.
Set Time and Date
Touch the time or date field to edit it.
Carrier Proprietary and Confidential
7
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

EquipmentTouchscreens
Screen name Description
Communication
Lets you edit the information below for the controller. Touch a field to tap in new
information.
BACnet Device Instance number
Auto Generate Device ID-Enter No or Yes
You can edit the following fields that pertain to the controller's MS/TP network:
Max Masters - Set this to the highest MAC address (up to 127) on the MS/TP network. If
you later add a device with a higher address, you must change this field to that new
address.
Max Info Frames - Specifies the maximum number of information messages a controller
may transmit before it must pass the token to the next controller.
CAUTION Increasing this number allows the controller to transmit more messages while it
has the token, but it also increases the overall time it takes for the token to pass through
the network.
• Fora router, set this value to a high number such as 200.
• In non-router controllers, use the following formula to calculate this value:
[2 - (devices *(.002 + (80/baud))] /[(600/baud) *devices] = Max Info Frames
For example, if the network has 15 devices at 19200 baud, Max Info Frames would be
4.
NOTE You may need to increase the result of the formula for controllers that need to
communicate many values to other devices.
Carrier Proprietary and Confidential
8
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

EquipmentTouchscreens
Screen name Description
Router
Lets you view or edit the router's ARC156 or MS/TP network number. Touch a field to tap in
the new number on the keypad.
NOTE BACnet Ethernet network support will be adeed in a future release.
IP
Lets you view or edit network addresses and the UDP Port. Touch a field to tap in the new
number on the keypad.
Carrier Proprietary and Confidential
9
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

EquipmentTouchscreens
Screen name Description
Time Master
If the Equipment Touch is serving as the front-end for your system, you should designate a
controller to be the BACnet Time Master. If a controller will be the BACnet Time Master, this
screen lets you configure how it sends time synchronization broadcasts.
Time Sync Mode - Tap in the number below that represents your selection:
•0=No Broadcast - The controller will not act as Time Master.
1=Local Broadcast - If it doesn't already exist, a BACnet address with network number
and MAC address length both set to zero is added to the controller's Time
Synchronization Recipients list found on the driver's Device page in i-Vu®. The
controller will then send time broadcasts only to controllers on its ARCnet or MS/TP
network.
2=Global Broadcast - If it doesn't already exist, a global address with network number
set to 65535 and MAC address length set to zero isadded to the controller's Time
Synchronization Recipients list found on the driver's Device page in i-Vu®. The
controller will then send time broadcasts to all its connected networks.
Time Sync Interval - Enter how often local or global time broadcast should be sent (1-9999
minutes). If Time Sync Interval is set to zero, no time sync messages are sent.
NOTE If the controller looks through its Time Synchronization Recipient List and finds an
entry with MAC address length set to zero and network number set to 65535, the
controller's BACnet Time Master mode is set for Global Broadcast. If there is no global
broadcast entry in the recipient list, the controller then looks for a local broadcast address
(MAC address length set to zero and network number set to zero or to the same network
number as the module's). If such an entry is found, the BACnet Time Master mode is set for
Local Broadcast. Otherwise, the mode defaults to Disabled/None.
Carrier Proprietary and Confidential
10
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

EquipmentTouchscreens
Screen name Description
TouchscreenSetup
Lets you edit the touchscreen settings (page 18).
Carrier Proprietary and Confidential
11
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

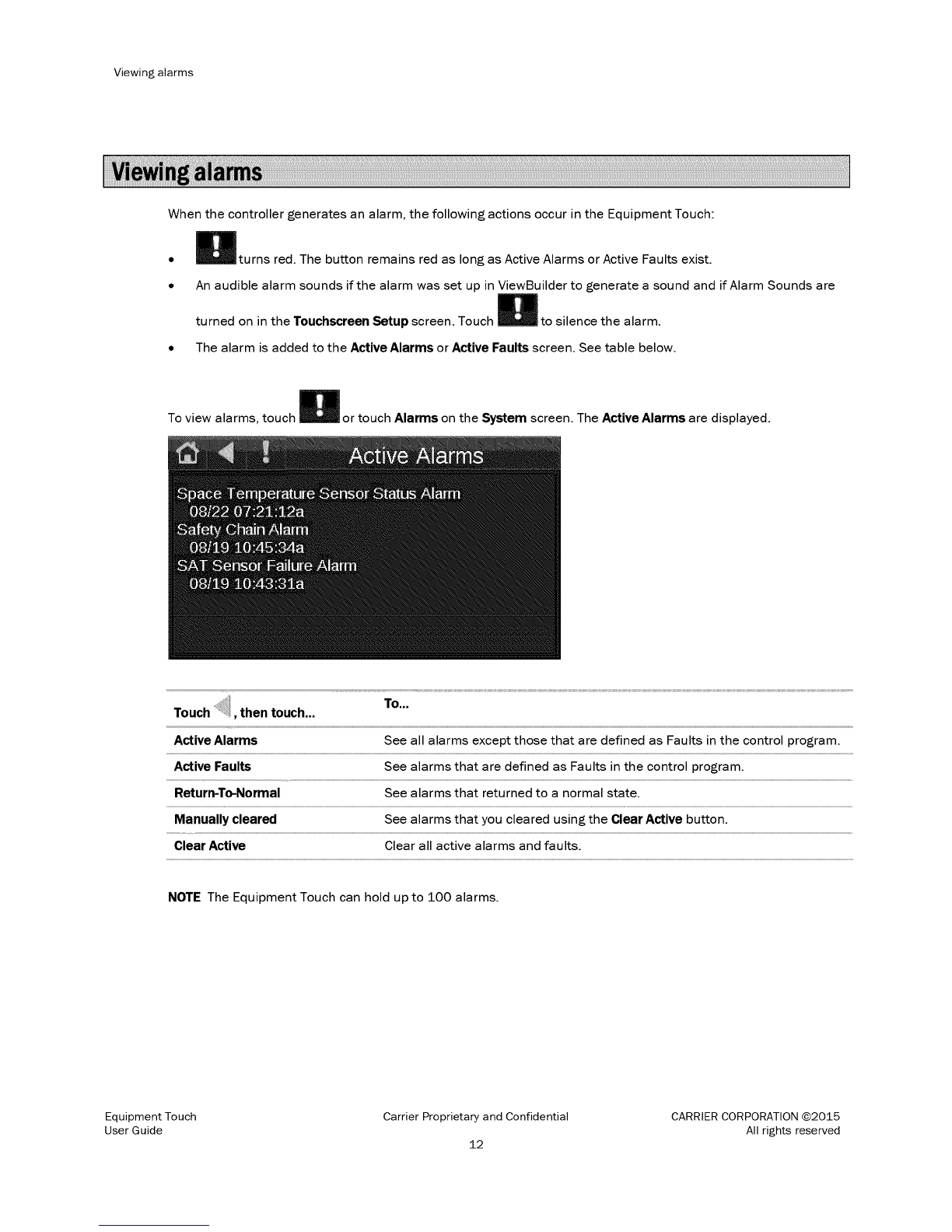

Viewingalarms
When the controller generates an alarm, the following actions occur in the Equipment Touch:
• turns red. The button remains red as long as Active Alarms or Active Faults exist.
• An audible alarm sounds if the alarm was set up in ViewBuilder to generate a sound and if Alarm Sounds are
turned on in the Touchscreen Setup screen. Touch to silence the alarm.
The alarm is added to the Active Alarms or Active Faults screen. See table below.
To view alarms, touch or touch Alarms on the System screen. The Active Alarms are displayed.
TO***
Active Alarms See all alarms except those that are defined as Faults in the control program.
Active Faults See alarms that are defined as Faults in the control program.
Return-To-Normal See alarms that returned to a normal state.
Manually cleared See alarms that you cleared using the Clear Active button.
Clear Active Clear all active alarms and faults.
NOTE The Equipment Touch can hold up to 100 alarms.
Carrier Proprietary and Confidential
12
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

Viewingtrends
Acontroller can read and store point values for any point in the control program that has trending enabled. On the
Equipment Touch, you can view trend data for up to 4 points on a trend graph.
To view
1
2
3
4
trends
On the System screen, touch Trends.
The Trend Selector screen shows any points in the control program that have trending enabled. To select the
points you want to see on a trend graph (up to 4 points), touch the appropriate box for the point. For example,
for the zone_temp_l analog point, touch the Analog box.
Touch Next.
The Trend Scaling screen displays the Date/Time of the oldest and newest trend samples in the controller for
the selected point(s). Touch a field to enter a new date or time.
Analog points only: The Min Y and Max Y fields show the range of the Y axis based on the lowest and highest
trend sample values for the selected point(s). Touch either field and edit the value to define a new range for
the Y axis.
6Touch DisplayTrends.
Carrier Proprietary and Confidential
13
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

Viewingorcreatingschedules
To view schedules
1On the System screen, touch Schedules.
2If the controller has multiple control programs that have a time clock microblock, touch the schedule object
that you want to see.
3 Touch View Schedule, then:
Select... To see...
Month View Which days in the current month have schedules (indicated by green boxes).
(default view)
Touch day to see schedule(s)
Week View Which days of the week shown have schedules (indicated by green bars).
TOuch day to see schedule(s)
NOTE If you see Schedule editing disabled at the bottom of the screen instead of Add Schedule, scheduling
is being done through another application and is disabled for the Equipment Touch.
Carrier Proprietary and Confidential
14
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

Viewingorcreatingschedules
4 Touch a day to see the schedule(s) for that day.
5In the screen below, touch a schedule's name or green bar (not the Effective Schedule bar) to edit or delete
the schedule. See To create a schedule (page 15) for field descriptions.
NOTES
©
©
The Effective Schedule is the combined result of the day's schedule(s).
You cannot edit a schedule's Type (Dated, Weekly, Continuous), its Priority (Normal or Override), or
whether the schedule is an ON Schedule or Off Schedule. If you need to change any of these settings,
delete the schedule, and then make a new one.
To create a schedule
1On the System screen, touch Schedules.
2 If the controller has multiple control programs that have a time clock microblock, touch the schedule object
that you want to add a schedule to.
3Touch the plus sign to the right of Add Schedule.
4 Touch the Schedule Name field, and enter a unique name.
5Select one of the following:
• ON Schedule for an occupied period
• OFF Schedule for an unoccupied period that is to override an ON schedule. For example, a holiday
schedule that is to override a weekly schedule.
6 Touch the Type field, then select one of the following:
Select... To use the schedule...
Dated For a specified period of time between a start and end date. For example, 7:00 am to
7:00 pm every day between July 1st and July 22.
Weekly Every week on the specified days. For example, every Monday through Friday, 8:00 am
to 5:00 pm.
Continuous Continuously between 2 specified dates/times, For example, a non-stop schedule that
starts June 1st at 12:00 am and ends August 31st at 11:50 pm.
Carrier Proprietary and Confidential
15
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

Viewingorcreatingschedules
7ON Schedule only-Select one of the following:
• Normal for a typical occupied period
• Override for a occupied period that is to override an OFF schedule.
8Touch Next to define the criteria for the type of schedule you selected in step 6.
9Touch Save when finished.
To add multiple periodsto a weekly schedule
A weekly schedule can have multiple periods. For example, the first period could be every Monday through Friday,
8:00 am to 5:00 pm. The second period could be every Monday through Wednesday, 6:00 pm to 8:00 pm.
NOTE You can create up to 4 periods for a day, and up to 28 periods in a week.
1Following the instructions above, create a weekly schedule for the first period.
2In the screen below, touch the green bar for the schedule that you want to add a period to.
3In the screen below, touch the schedule's name or green bar (not the Effective Schedule bar).
4Touch Next.
5Touch +Period.
Carrier Proprietary and Confidential
16
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved

Viewingorcreatingschedules
6 Set the times and days for the new period. For example, Monday through Wednesday, 6:00 pm to 800 pm.
7 Touch Save. The screen below now shows both periods.
Carrier Proprietary and Confidential
17
Equipment Touch CARRIER CORPORATION @2015
User Guide All rights reserved
