Carrier KSAIF0101AAA User manual

OG-KSAIF-04 Specifications subject to change without notice. 1
Owner’s Manual
TABLE OF CONTENTS
PAGE
SAFETY CONSIDERATIONS...........................................................................................2
OVERVIEW ........................................................................................................................4
WIRELESS NETWORK TYPE ..........................................................................................5
DOWNLOAD AND INSTALL APP (APPLICATION) ....................................................5
NETWORK CONFIGURATION........................................................................................6
USER REGISTRATION .....................................................................................................7
MULTIPLE SMART PHONE DEVICE CONTROL .........................................................9
CONFIGURATION PROCESS ..........................................................................................9
USING THE APP ..............................................................................................................18
MAIN CONTROL INTERFACE ......................................................................................20
MODES .............................................................................................................................23
FUNCTIONS .....................................................................................................................29
FAN COIL DELETION FROM APP................................................................................36
GROUP CONTROL (SCENES) .......................................................................................37
SHARED DEVICE............................................................................................................43
CAUTIONS .......................................................................................................................50
TROUBLESHOOTING.....................................................................................................51
KSAIF0101AAA, KSAIF0201AAA, KSAIF0301AAA,
KSAIF0401AAA, KSAIF0501AAA, KSAIF0601AAA
Wi-Fi Interface Kit for Smart Phone Control for Ductless Systems

2 Specifications subject to change without notice. OG-KSAIF-04
SAFETY CONSIDERATIONS
Installing, starting up, and servicing air-conditioning equipment can be hazardous due to
system pressures, electrical components, and equipment location (roofs, elevated structures,
etc.). Only trained, qualified installers and service mechanics should install, start-up, and
service this equipment. Untrained personnel can perform basic maintenance functions such as
cleaning coils.
When working on the equipment, observe precautions in the literature and on tags, stickers, and
labels attached to the equipment. Follow all safety codes. Wear safety glasses and work gloves.
Keep a quenching cloth and fire extinguisher nearby when brazing. Use care in handling,
rigging, and setting bulky equipment.
Read these instructions thoroughly and follow all warnings or cautions included in the literature
and attached to the unit. Consult the local building codes and National Electrical Code (NEC)
for special requirements. Recognize safety information.
This is the safety-alert symbol . When you see this symbol on the unit and in instructions
or manuals, be alert to the potential for personal injury. Understand these signal words:
DANGER, WARNING, and CAUTION.
These words are used with the safety-alert symbol. DANGER identifies the most serious
hazards which will result in severe personal injury or death. WARNING signifies hazards
which could result in personal injury or death. CAUTION is used to identify unsafe
practices which may result in minor personal injury or product and property damage. NOTE
is used to highlight suggestions which will result in enhanced installation, reliability, or
operation.
NOTE is used to highlight suggestions which results in enhanced installation,
reliability, or operation.

OG-KSAIF-04 Specifications subject to change without notice. 3
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury or death. Before installing,
modifying, or servicing system, main electrical disconnect switch must be in the OFF position.
There may be more than 1 disconnect switch. Lock out and tag switch with a suitable warning
label.
CAUTION
EQUIPMENT DAMAGE HAZARD
Failure to follow this caution may result in equipment damage or improper operation.
CAUTION
EXPLOSION HAZARD
Failure to follow this warning could result in death, serious personal injury, and/or
property damage. Never use air or gases containing oxygen for leak testing or
operating refrigerant compressors. Pressurized mixtures of air or gases containing
oxygen can lead to an explosion.
WARNING

4 Specifications subject to change without notice. OG-KSAIF-04
OVERVIEW
For the utilization of the hardware provided in the Wi-Fi kits (KSAIF0101AAA,
KSAIF0201AAA, KSAIF0301AAA, KSAIF0401AAA, KSAIF0501AAA, and
KSAIF0601AAA), the homeowner/end user needs to download the mobile application.
Applicable Systems: iOS, ANDROID
Important: We recommended iOS 9.0, Android 4.4 or later.
NOTES:
• APP supports the latest software versions of the Android and iOS systems.
• Due to special situations that may occur, the manufacturer explicitly claims:
NOTE: Not all Android and iOS systems are compatible with the application. The
manufacturer does not bear any responsibility for any issue that may result due
to incompatibility.

OG-KSAIF-04 Specifications subject to change without notice. 5
WIRELESS NETWORK TYPE
The Wi-Fi kits are only supported by WPA-PSK/WPA2-PSK encryption and no
encryption. WPA-PSK/WPA2-PSK encryption is recommended.
NOTE: The manufacturer is not liable for any issues and problems caused by the
Internet, Wi-Fi Router and smart devices. Please contact the original provider
for additional support.
DOWNLOAD AND INSTALL APP (APPLICATION)
Android Users: Go to Google PlayTM, search for the Carrier CliMate, Bryant ControlBox,
Ductless Panel, or Midea Air app depending on the type of equipment installed and
download it.
iPhone Users: Go to the App Store
TM
, search for the Carrier CliMate , Bryant ControlBox ,
Ductless Panel , or Midea Air application and download.
Check the router website for more information. Due to different network configurations, the
control process may occasionally return a time-out. If this situation occurs, attempt to use the app
or function inside the app again.
NOTE: Try using the app or function within the app 2-3 times before reconfiguring the app.
If unsuccessful, reconfiguring the app may be necessary. Additionally, it may be necessary to
configure the network again. If the time-out error continues, reinstall the APP and check your
network connection. See “TROUBLESHOOTING” on page 51 for more support. If this situation
occurs, the display between the board and app may differ.
CAUTION

6 Specifications subject to change without notice. OG-KSAIF-04
NETWORK CONFIGURATION
Important: During the network configuration process (‘AP’ mode), the air
conditioning remote controller is unable to control the system. It is necessary to finish
network configuration, cycle power, or wait eight (8) minutes for the system to time out
to regain control.
Prior to starting the network configuration process, verify your Android or iOS device is
connected to the Wi-Fi network you want to configure. Ensure the Android or iOS device Wi-Fi
function is turned on and auto-connects to your Wi-Fi network.
CAUTION

OG-KSAIF-04 Specifications subject to change without notice. 7
USER REGISTRATION
CREATE AN ACCOUNT

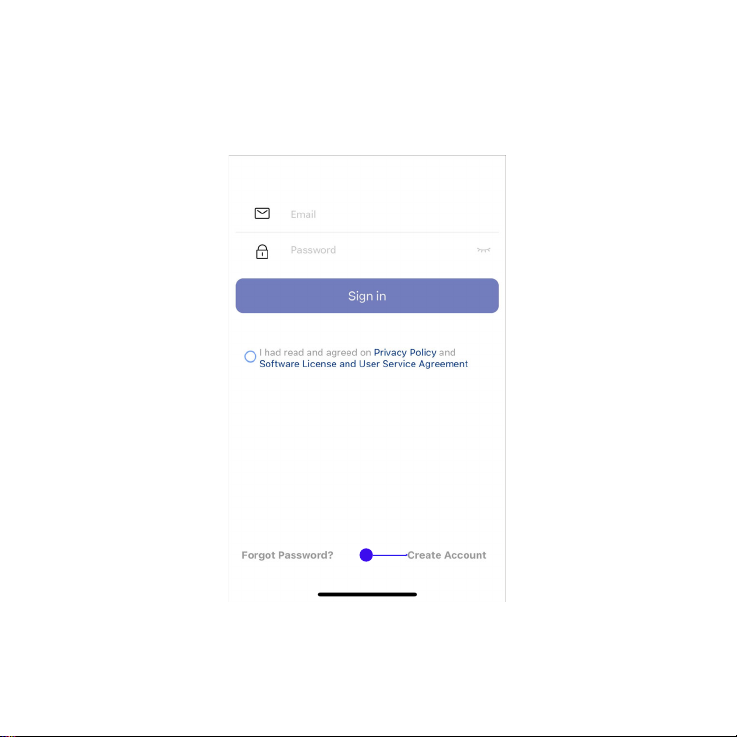

1. Tap Create Account on the first screen when the app is launched for the first time (Fig. 1).
Fig. 1 — Create Account
NOTE: Fig. 1 illustrates the generic app interface. The interface may vary depending
upon the selected app.
1

8 Specifications subject to change without notice. OG-KSAIF-04
2. Enter your Email (Fig. 2). Create and enter a Password.
3. Tap Registration.
4. Read and agree to the Terms of Serv i c e.
Fig. 2 — Tap Registration
2
3
4

OG-KSAIF-04 Specifications subject to change without notice. 9
MULTIPLE SMART PHONE DEVICE CONTROL
The app can run on multiple devices in a household. See “SHARED DEVICE” on page 43.
NOTE: Setting up the system again in a different smart phone with a different user
name will remove the unit from the first smart phone.
CONFIGURATION PROCESS
1. Ensure your mobile device has already been connected to the Wi-Fi network you choose. It is
recommended to select FORGET ALL NETWORKS except the one used to connect the fan coil to
prevent configuration errors.
2. Disconnect the power supply from the ductless system and wait thirty (30) seconds.
3. Reconnect the power supply to the ductless system.
4. Open the app on your smart phone and log in using the previously configured email and password.

10 Specifications subject to change without notice. OG-KSAIF-04
5. Select Add Device
Fig. 3 — Add Device
5

OG-KSAIF-04 Specifications subject to change without notice. 11

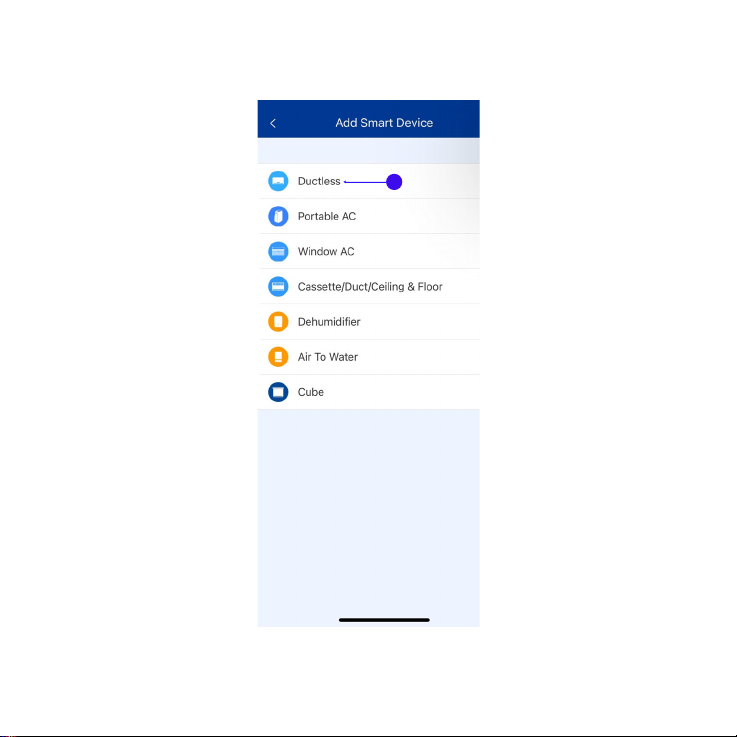

6. On the screen’s menu, select Ductless and follow the steps on the screen. Use this method to eliminate
the need to scan the QR code to complete the configuration.
Fig. 4 — Add Smart Device
6

12 Specifications subject to change without notice. OG-KSAIF-04

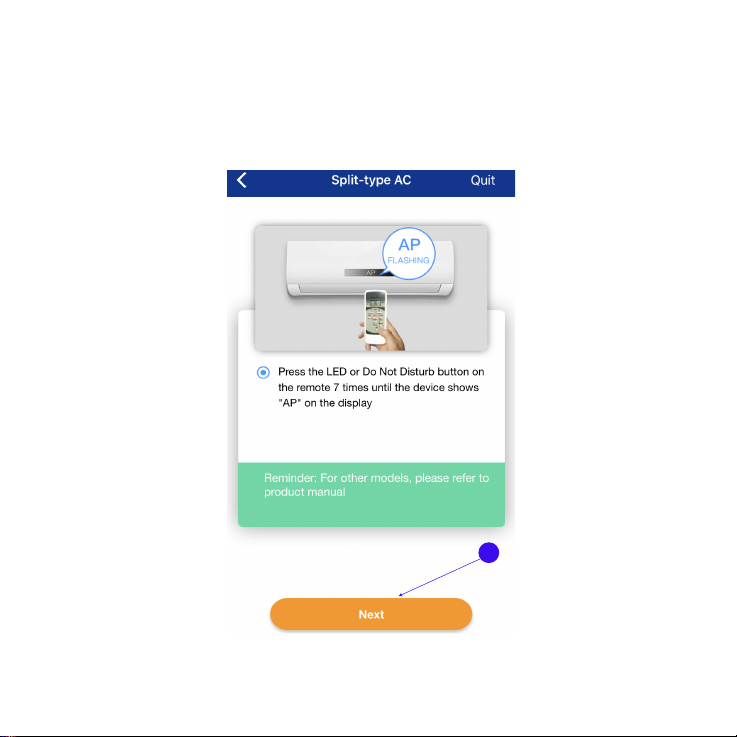

7. Use the Wireless Remote Controller to press LED or DO NOT DISTURB 7 times within 3 minutes.
When the display shows ‘AP’, the ductless system is ready for network configuration. Once the indoor
unit displays ‘AP’ or the indoor unit beeps, tap Next.
NOTE: The ducted, cassette, and floor console displays do NOT display ‘AP’ during
the network configuration.
Fig. 5 — Split-type AC
6 7

OG-KSAIF-04 Specifications subject to change without notice. 13
8. On the mobile device go to Settings > Wi-Fi, and ensure the Wi-Fi function is turned on. Tap the
name of the secure Wi-Fi network (net_ac_XXXX). Enter the password 12345678 then tap Join. Go
back to the app and tap Next.
Fig. 6 — Select ‘net_ac_XXXX’
8

14 Specifications subject to change without notice. OG-KSAIF-04
9. Select the desired home Wi-Fi name and enter the Wi-Fi password. Press Start Configuration.
Fig. 7 — Select the Wi-Fi network
9

OG-KSAIF-04 Specifications subject to change without notice. 15
The system starts the configuration process based on the user’s input. Once the connection is
complete, a screen appears which allows the user to select the unit’s name or to customize it.
Fig. 8 — Configuration

16 Specifications subject to change without notice. OG-KSAIF-04

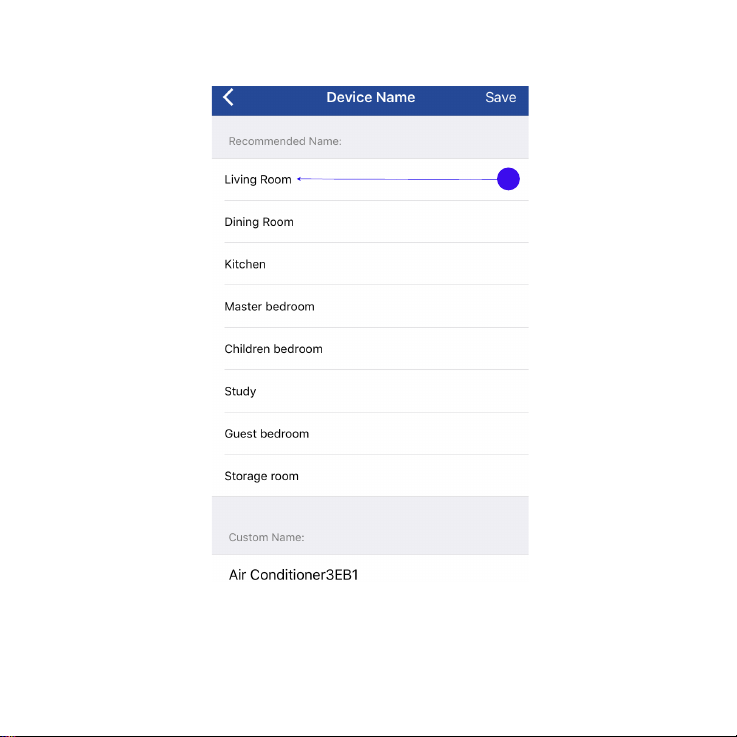

10. Select the Device Name.
Fig. 9 — Select a Device Name
10

OG-KSAIF-04 Specifications subject to change without notice. 17
NOTE: The app may take up to 3 minutes to configure the Wi-Fi kit for connectivity to
your Wi-Fi network.
NOTES:
• When the network configuration is complete, the app confirms whether the connection was
successful or not.
•Due to different LAN configurations, it is possible that the device’s status will display
“OFFLINE”. Should this occur, refresh the device list by pulling down on the list shown on the app
home screen so the ductless system power can by cycled. The device status should change to
“ONLINE” after a few minutes.

18 Specifications subject to change without notice. OG-KSAIF-04
USING THE APP
BASIC FUNCTIONS
Important: Prior to using the app, verify your mobile device and ductless system are
connected to the Internet.
1. Log into the app using the previously configured email and password (See “USER REGISTRATION”
on page 7).
Fig. 10 — Log into the app
1
Email

OG-KSAIF-04 Specifications subject to change without notice. 19
2. Select the desired device previously configured to enter the main control interface. To add a new
device, tap + Add Device and follow the instructions.
Fig. 11 — Add Device
2

20 Specifications subject to change without notice. OG-KSAIF-04
MAIN CONTROL INTERFACE
3. Use the Main Control Interface to control the ductless system’s ON/OFF status, operation mode,
temperature, fan speed, and other functions with the buttons at the bottom of the screen.
NOTE: Feature availability depends on the indoor unit type.
Fig. 12 — Main Control Interface Fig. 13 — Main Control Interface
