ZS Sensors are thermistor-based temperature sensors that may optionally sense humidity, CO2, or VOC. ZS
Sensors are wired to the Rnet on Open controllers:

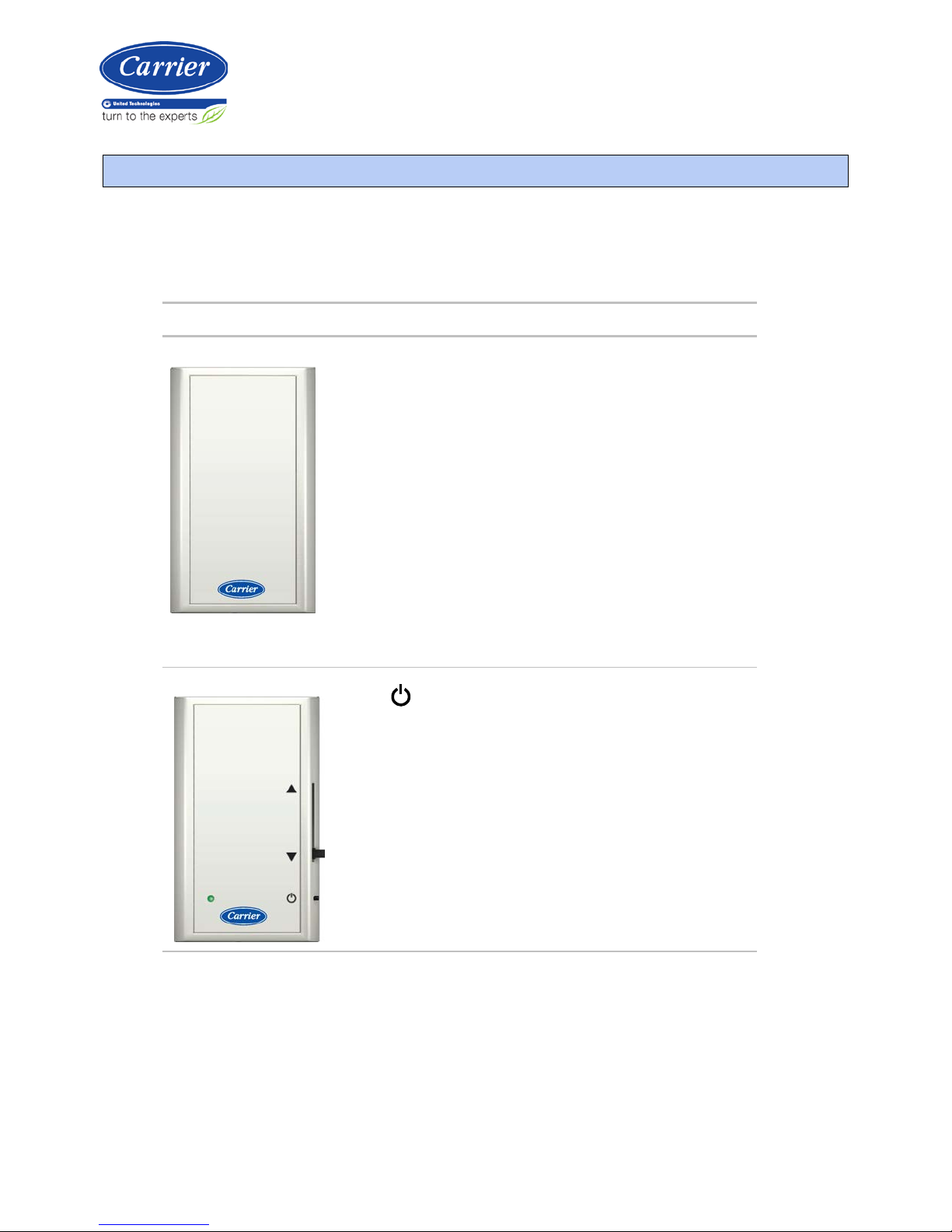

The following table shows the 4 ZS Sensor models and their features.
Sensor
Features
ZS Standard
•Local access port
•No user control
ZS Plus
•Slide potentiometer to make the zone warmer or cooler
•button to override the schedule and put the zone in an
occupied state, or force the zone to an unoccupied state
•Green LED to indicate occupied state
•Local access port
What are ZS Sensors?
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2013
Rev. 11/14/2013 All rights reserved
1

What are ZS Sensors?
Sensor
Features
ZS Pro
•LCD display
•button to override the schedule and put the zone in an
occupied state, or force the zone to an unoccupied state
•and buttons to change any editable property, such as
the setpoint temperature
•button to cycle through information defined in the control
program
•Green LED to indicate occupied state
•Local access port
ZS Pro-F
All of the ZS Pro's features plus:
•button to turn on heating, cooling, or fan only, or set to
auto control.
•button to adjust fan speed
•
F/C
button to set temperatures to Fahrenheit or Celsius
To configure the control program for the desired user interaction with the sensor, see the ZS Sensor Application
Guide.
For basic user instructions, see the ZS Sensor User Guide.
Rnet Configuration
An Rnet can consist of the following devices wired in a daisy-chain or star configuration:
•Up to 15 ZS Sensors
•Up to 2 BACview®devices
NOTES
•Although an Rnet can have 15 ZS Sensors, you can have no more than 5 sensors per control program.
•You cannot have SPT sensors and ZS sensors on the same Rnet.
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2013
Rev. 11/14/2013 All rights reserved
2

What are ZS Sensors?
Specifications
Sensing element
range and accuracy
Temperature only
Range:
Accuracy:
32 to 122°F (0 to 50°C)
±0.35°F (0.2°C)
Temperature if humidity
is included
Range:
Accuracy:
50 to 104°F (10 to 40°C)
0.5°F (0.3°C)
Options:
Humidity
Range:
Accuracy:
10 to 90%
2% typical
CO2
Range:
Accuracy:
0 to 2000 PPM
±75 PPM typical
VOC
Range:
Accuracy:
0 to 2000 ppm
1 PPM
Power requirements Temperature only
ZS Standard or ZS Plus:
ZS Pro or Pro-F:
12 Vdc @ 6 mA
12 Vdc @ 7 mA
Temperature with humidity
ZS Standard or ZS Plus:
ZS Pro or Pro-F:
12 Vdc @ 7 mA
12 Vdc @ 8 mA
Temperature with humidity
and VOC - All models
12 Vdc @ 60 mA
Temperature with humidity
and CO2- All models
12 Vdc @ 15 mA (idle) to
190 mA (CO2measurement cycle)
Temperature and CO2-
All models
12 Vdc @ 14 mA (idle) to
189 mA (CO2measurement cycle)
Power supply The 4-conductor Rnet cable from a controller supplies +12 Vdc @ 210
mA. For additional power, use an external power supply. Use the above
power requirements to calculate the size of the external power supply.
Communication 115 kbps
Local access
port
For local access to start up and troubleshoot the system
Environmental
operating range
-4 to 122°F (-20 to 50°C), 10 to 90% relative humidity, non-condensing
Mounting Standard 4x2-in. electrical box using the 6-32 x 1/2" mounting screws
provided
Overall dimensions Temperature sensor
or temperature with
humidity sensor
Sensor with CO2or VOC
Width:
Height:
Depth:
Width:
Height:
Depth:
3 in. (7.62 cm)
4-13/16 in. (12.22 cm)
13/16 in. (2.01 cm)
2-7/8 in. (7.3 cm)
4-13/16 in. (12.22 cm)
1-1/4 in. (3.18 cm)
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2013
Rev. 11/14/2013 All rights reserved
3

What are ZS Sensors?
Listed by FCC Part 15-Subpart B-Class A, CE
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2013
Rev. 11/14/2013 All rights reserved
4

To address a ZS Sensor
Each ZS Sensor on an Rnet must have a unique address, but addresses do not have to be sequential.
Use the DIP switches on the back of the ZS Sensor to set an address from 0 to 14. (0 is factory default.) Each DIP
switch has the value shown in the figure below. Turn on as many DIP switches as you need so that their total value
equals the address.
DIP
Switch
value
1
ON
2
4
8
1 2 3 4
EXAMPLE
DIP switches 1 and 4 above are on. Their values (1 + 8) total 9, so the sensor's address is 9.
To address a ZS Sensor
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2013
Rev. 11/14/2013 All rights reserved
5

Wiring and mounting a ZS Sensor
The Rnet communicates at a rate of 115 kbps and should be wired in a daisy-chain, star, or hybrid configuration.
Power requirements
Power requirements Temperature only
ZS Standard or ZS Plus:
ZS Pro or Pro-F:
12 Vdc @ 6 mA
12 Vdc @ 7 mA
Temperature with humidity
ZS Standard or ZS Plus:
ZS Pro or Pro-F:
12 Vdc @ 7 mA
12 Vdc @ 8 mA
Temperature with humidity
and VOC - All models
12 Vdc @ 60 mA
Temperature with humidity
and CO2- All models
12 Vdc @ 15 mA (idle) to
190 mA (CO2 measurement cycle)
Power supply The 4-conductor Rnet cable from a controller supplies +12 Vdc @ 210
mA. For additional power, use an external power supply. Use the above
power requirements to calculate the size of the external power supply.
The controller and the external power supply must share a common
ground.
Wiring and mounting a ZS Sensor
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2013
Rev. 11/14/2013 All rights reserved
6

Wiring and mounting a ZS Sensor
CAUTION
Do not share power between controller's power and external 12 Vdc unless both devices are half
wave.
Rnet wiring specifications
NOTE
Use the specified type of wire and cable for maximum signal integrity.
Description 4 conductor, shielded or unshielded, CMP, plenum rated cable
Conductor 22 AWG (7x0096) bare copper if Rnet has only sensors
18 AWG (7x0152) bare copper if Rnet has a BACview® device
Maximum length 500 feet (152 meters)
Insulation Low-smoke PVC (or equivalent)
Color Code Black, white, green, red
Shielding If shielded, Aluminum/Mylar shield (100% coverage) with TC drain
wire, terminated at controller
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2013
Rev. 11/14/2013 All rights reserved
7

Wiring and mounting a ZS Sensor
UL temperature rating 32–167°F (0–75°C)
Voltage 300 Vac, power limited
Listing UL: NEC CL2P, or better
To wire and mount a ZS Sensor
PREREQUISITE
The Rnet cable is wired to the controller. The shield wire and the ground wire should be inserted
into the controller's GND terminal.
1 Turn off the controller's power.
2 Pull the backplate off the ZS Sensor. You may need to turn the setscrews in the bottom of the sensor
clockwise until you can remove the backplate.
3 Pull the Rnet communication cable through the slit in the insulated backing material.
3.30 in.
(8.38 cm)
4 Use 2 screws to mount the backplate to the wall or outlet box.
5 Partially cut, then bend and pull off the outer jacket of the Rnet cable(s). Do not nick the inner insulation.
Inner insulation
Outer jacket
Foil shield
.25 in.
(.6 cm)
Shield wire
6 Strip about .25 inch (.6 cm) of the inner insulation from each wire.
7 If wiring 1 cable to the ZS Sensor, cut the shield wire off at the outer jacket, then wrap the cable with tape at
the outer jacket to cover the end of the shield wire.
If wiring 2 cables in a daisy-chain configuration, twist together the shield wires, then wrap the shield wires
with tape.
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2013
Rev. 11/14/2013 All rights reserved
8

Wiring and mounting a ZS Sensor
8 Insert the other 4 wires into the ZS Sensor's screw terminal connector. If wiring 2 cables, insert like-colored
wires into each terminal.
Carrier recommends that you use the
following Rnet wiring scheme:
Connect this
wire...
Red
Black
White
Green
To this
terminal...
+12V
Rnet-
Rnet+
Gnd
CAUTION

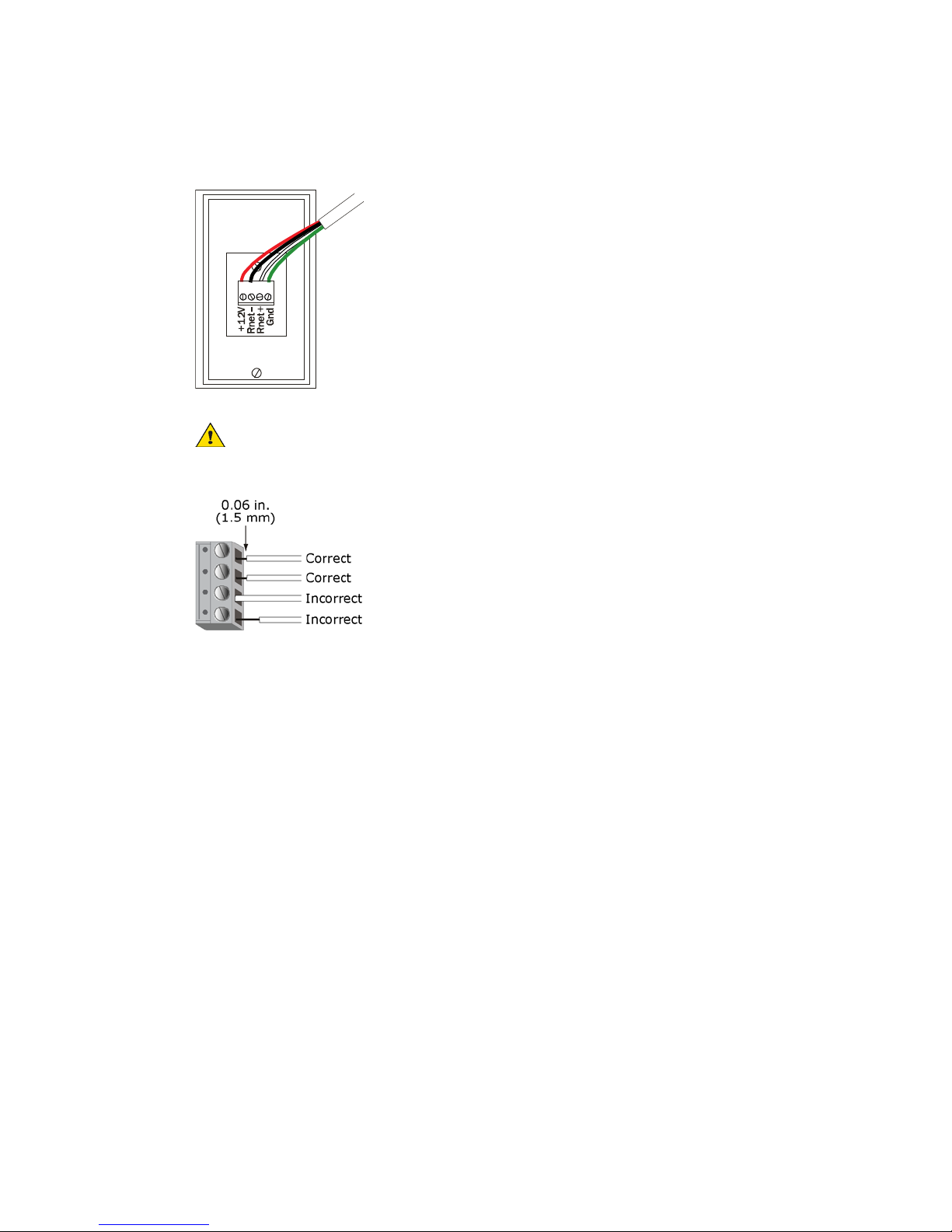

Allow no more than 0.06 inch (1.5 mm) bare communication wire to protrude. If bare
communication wire contacts the cable's foil shield, shield wire, or a metal surface other than the terminal
block, the device may not communicate correctly.
9 Attach the sensor's cover and circuit board to the mounted backplate, inserting the top first.
10 Turn the setscrews one full turn counterclockwise so that the cover cannot be removed.
11 Turn on the controller's power.
NOTE
Use the same polarity throughout the Rnet.
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2013
Rev. 11/14/2013 All rights reserved
9

To communicate through the local access port
You can connect to the Local Access port of the ZS Sensor to perform test and balance or to make changes to any
device on the network.
PREREQUISITES
•A computer with a USB port
•A USB Link (Part #USB-L)
CAUTION
If multiple controllers share power but polarity was not maintained when they were wired, the
difference between the controller's ground and the computer's AC power ground could damage the USB Link and
the controller. If you are not sure of the wiring polarity, use a USB isolator between the computer and the USB
Link. Purchase a USB isolator online from a third-party manufacturer.

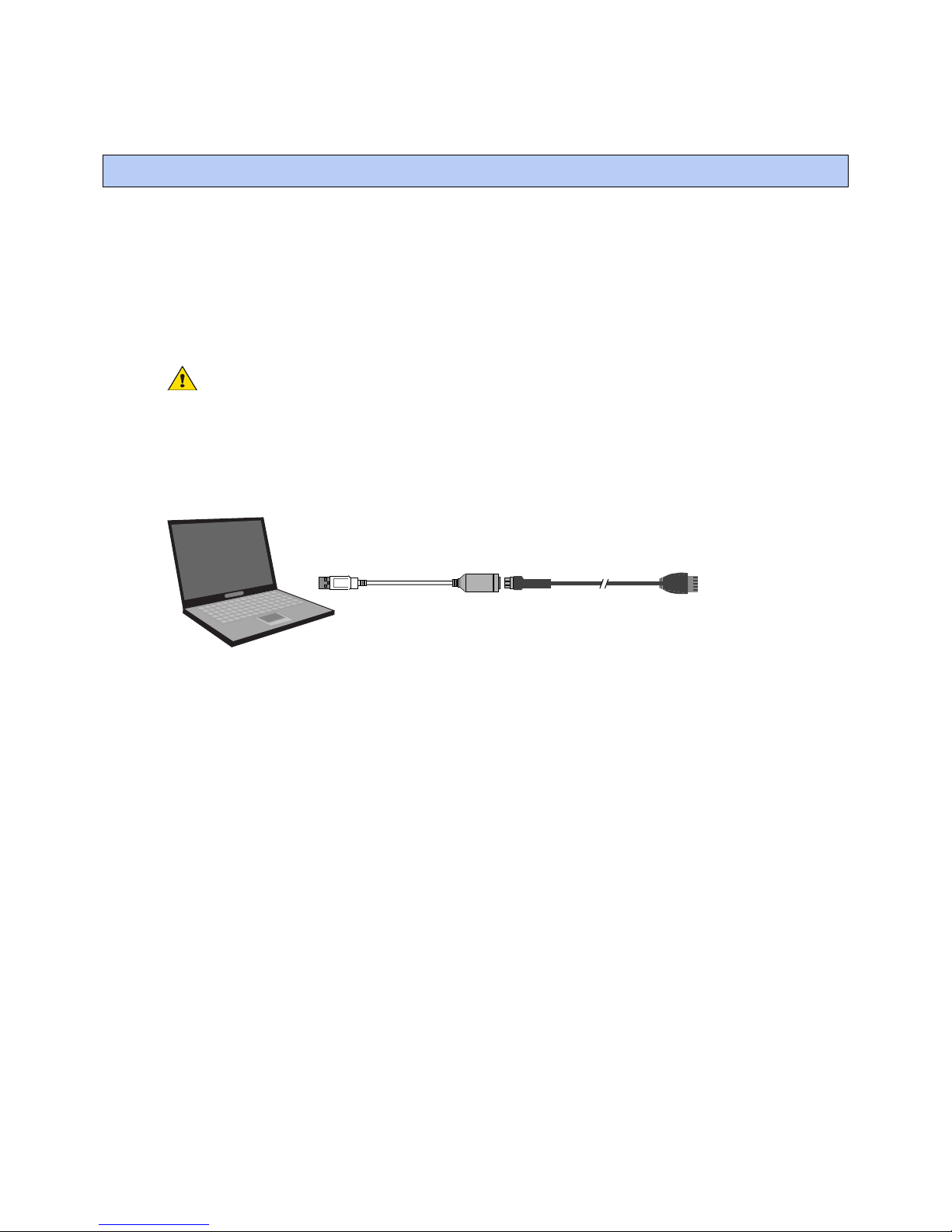

Connect the USB Link to the computer and to the ZS Sensor's Local Access port.
Connect to
computer’s
USB port
Connect to
the Local
Access port
USB Link Kit
NOTE
If using a USB isolator, plug the isolator into your computer's USB port, and then plug the USB Link cable
into the isolator.
To communicate through the local access port
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2013
Rev. 11/14/2013 All rights reserved
10

Troubleshooting
ZS Pro or ZS Pro-F
If display shows...
Then...
Incorrect or missing
values
Check for errors in the i-Vu® application and Snap.
On the control program's
Properties
page, select the
Rnet Points
tab.
Verify that values coming in from the sensors and those going out to the
sensors are expected values.
In the i-Vu® application, double-click the Sensor Binder and ASVI
microblocks to check for problems in the
Status
and/or
Error
columns.
If the
Error
column shows
Resource Allocation
, try formatting the
sensor (page 12). If the error is not corrected by formatting, the control
program engineer should reduce the number of items that the sensor is
trying to display.
Nothing The sensor has no power.
The sensor is not communicating with the network. Check:
•Software/addressing setup
•Wiring connections
•Controller operating status
Characters that
seem out
of place
The sensor may have a memory problem. Try formatting the sensor
(page 12).
Troubleshooting
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2013
Rev. 11/14/2013 All rights reserved
11

Troubleshooting
To format a ZS Sensor
Formatting a sensor clears its flash memory. Do either of the following to format a sensor:
•Download the controller that the sensor is connected to.
•Do the following:
a) Remove the wiring connector from the sensor.
b) Note the current position of the DIP switches.
c) Set all DIP switches to the ON position.
d) Reattach the wiring connector to format.
e) After approximately 3 seconds, remove the wiring connector.
f) Set the DIP switches back to their original position.
g) Reattach the wiring connector.
NOTE
If you move a sensor from one controller to another controller that has a different control program, format
the sensor.
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2013
Rev. 11/14/2013 All rights reserved
12

CARRIER CORPORATION ©2013
A member of the United Technologies Corporation family · Stock symbol UTX · Catalog No. 11-808-503-01 · 11/12/2013
