Case IH FARMALL 30B User manual

Operator’sManual
CaseIHAustralia 52112704
31‐53KurrajongRoad
StMarysNSW2760
T:0296737700
FARMALL30B,35B
FARMALL30B,35B

Contents
1. General Notices for Safety
1-1. Before using the tractor ······································1-1
1-2. Safety Precautions (Read this for safety before using)
(1)Noticesbeforeusingthetractor·································1-4
(2)NoticeswhenstartingEngine ··································1-7
(3)Noticeswhileoperating/usingthetractor··························1-8
(4) Notices when connecting Implement · · · ·························1-10
(5) Notices when towing the tractor · · · ·····························1-11
(6)Noticeswhentransportingthetractor···························1-11
(7)Noticeswhenservicingthetractorafterwork ·····················1-12
(8) Notices when handling Diesel Fuel · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1-13
(9)Noticeswhenleavingthetractor······························1-14
(10)NoticesrelatingtoToxicsubstances···························1-14
1-3. Long-term storage
(1) Preparation for storage ······································1-15
(2) Check & Maintenance during storage · · · ························1-16
(3)PreparationforReuse······································1-16
1-4. Notices for “Use & Disposal” related to the environment ··········1-17
1-5. Symbols ··················································1-18
1-6. Safety Decals
(1) Handling and Maintenance of Safety Decals · · ····················1-19
(2)SafetyDecalsandattachingposition····························1-19
2. Instruction for Safe operation
(1)Thenameofeachpart········································2-1
2-1. Boarding and Exiting the tractor
(1)Boardingthetractor··········································2-2
(2)Driver’sseat(HSTtype)·······································2-2
(3)Seatadjustment·············································2-3
(4)Tiltsteeringwheel············································2-3
(5)Seatbelt···················································2-4
(6)Exitingthetractor············································2-4
2-2. Safety device
(1) Hood (Bonnet) ··············································2-5
(2) Fender · · ··················································2-5
(3) PTO safety cover and protection cap ·····························2-5
(4) Foldable Safety frame (ROPS) (Optional) ·························2-6

Contents
3. Instruments and Controls
3-1. Instrument panel and Front controls
(1) Instrument panel ········································3-2
(2)Keyswitch··················································3-5
(3)Turnsignallightswitch········································3-5
(4)Lightswitch···········································3-5
(5)Hornswitch··········· ···································3-6
(6)Hazardwarninglightswitch···································3-6
(7)Cruisecontrolswitch(HSTtype)·······························3-6
(8)PTOswitch··········· ····································3-7
(9) Grille work light switch (if fitted) · · · ······························3-7
(10) Clutch pedal (Mechanical) · · ·······························3-8
(11)Shuttlelever(Mechanical) ····································3-8
(12)Throttlelever··············································3-8
(13) Throttle pedal (mechanical) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3-9
(14) Brake pedals ···············································3-9
(15) HST forward/reverse pedal (HST type) ·························3-10
3-2. Left / Right-hand Controls
(1)Maingearshiftlever(Mechanical)······························3-12
(2) Differential lock pedal · ······································3-12
(3)Rearworklightswitch······································3-13
(4) Range gear shift lever · ··································3-13
(5)PTOgearlever(iffitted)····································3-13
(6)MiddlePTOlever(iffitted)·································3-14
(7)4WDlever·············································3-14
(8)Parkingbrakelever······································3-15
3-3. Hydraulic System
(1)Safetyprecautions··········································3-16
(2) Steering system ···········································3-17
(3)HydraulicliftControl·······································3-17
(4) Down speed control knob ·····································3-18
(5) Remote control lever and Quick coupler (optional) · · · · · · · · · · · · · · · · · 3-18
(6)Joysticklever(optional)··································3-20
(7)HydraulicSystemDiagram··································3-21

Contents
4. Operation and Work
4-1. Engine start and stop
(1)Enginestart···············································4-1
(2)Startincoldweather········································4-3
(3)Enginestop···············································4-3
4-2. How to Drive and how to Stop
(1)Howtodrive············································· 4-4
(2) Changing speed · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-6
(3)EmergencyStop···········································4-7
(4)Stoppingtractor···········································4-8
(5) Driving tractor on the road ··································4-9
(6)Parking··················································4-10
4-3. How to handle new tractor
(1)Checkpoints··············································4-11
(2) Notices in handling new Tractor · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-11
4-4. Attaching Implement
(1) 3-point linkage ·············································4-12
(2)Powertake-off(PTO)shaft····································4-16
(3) Hitch and Drawbar (optional) · ·································4-18
(4) 7-Pole connector (optional) ·································4-19
(5)Technicallymaximumpermissiblemass ·························4-20
(6) Tires and Load capacity ·····································4-21
(7) Adjusting wheel tracks and tire replacement · · ····················4-22
(8) Using Front-end loader (optional) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-24
(9)Adjustingsteeringangle····································4-26
(10) Recommended maximum specification of implements · · · · · · · · · · · · · 4-27
4-5. Driving Speed·············································4-28
5. Lubrication and Maintenance
5-1. Access for Maintenance ······································5-1
5-2. Maintenance chart ··········································5-2
5-3. Lubricants and Capacity ····································5-6
5-4. First 50 hour check ····································5-7
5-5. Check before Starting (Daily check)
(1)Engineoil··················································5-8
(2)Fueltank················································· 5-9
(3) Instrument panel & Indicators · ·································5-9
(4) Turn signal lights, Lights and Horn · ·····························5-10
(5)Enginecoolant·············································5-11
(6) Air cleaner (Dry type) ········································5-11

Contents
(7)CleaningofRadiatorandRadiatorscreen······················· 5-12
(8)Tireairpressureanddamage·································5-12
(9) Tightening state of Bolts and Nuts of each part · · · · · · · · · · · · · · · · · · · 5-13
(10) Adjustment of Clutch pedal play ······························5-13
(11) Adjusting HST control linkage (HST type) · · ·····················5-14
(12) Adjustment of Brake pedal play · · · ········· ··················5-15
5-6. First 50 hour check
(1)Lubricatinggreasenipple·····································5-16
(2) Cleaning of Radiator and Radiator screen ························5-16
(3)CheckingTransmissionoil····································5-17
(4)CheckingFrontaxleoil ······································5-17
(5)Batterycheck··············································5-17
(6) Air cleaner (Dry type) ········································5-17
(7) Hydraulic hoses and Leakage · ································5-17
5-7. Every 300 hour check
(1)ReplacingEngineoilandFilter································5-18
(2)ReplacingHydraulicoilfilter···································5-19
(3)TensionadjustmentofFanbelt·······························5-20
(4) Replacing Air cleaner element (Dry type) ·························5-20
(5)Toe-in···················································5-21
5-8. Every 600 hour check
(1) Changing Front axle oil · · ····································5-22
(2) Changing Transmission oil ···································5-22
(3)ReplacingFuelfiltercartridge································5-23
(4)AdjustingEngineValveclearance·····························5-23
(5)CheckingNozzleinjectionpressure····························5-23
5-9. Every 2-year check
(1)ReplacementofEnginecoolant································5-24
5-10. General maintenance (When required)
(1)Air-bleedingfromFuelsystem ·································5-25
(2)Fuse&Mainfuse···········································5-26
(3) Battery handling and Notices ··································5-28
5-11. Troubleshooting ··········································5-32
6. Dimension and Specification ·························6-1

1 -1
1. General Notices for Safety
1-1. Before using the tractor
※Have to read and understand this Operator’s manual carefully
and always refer to information and prescriptions outlined in this
manual to prevent all potential health and safety risks.

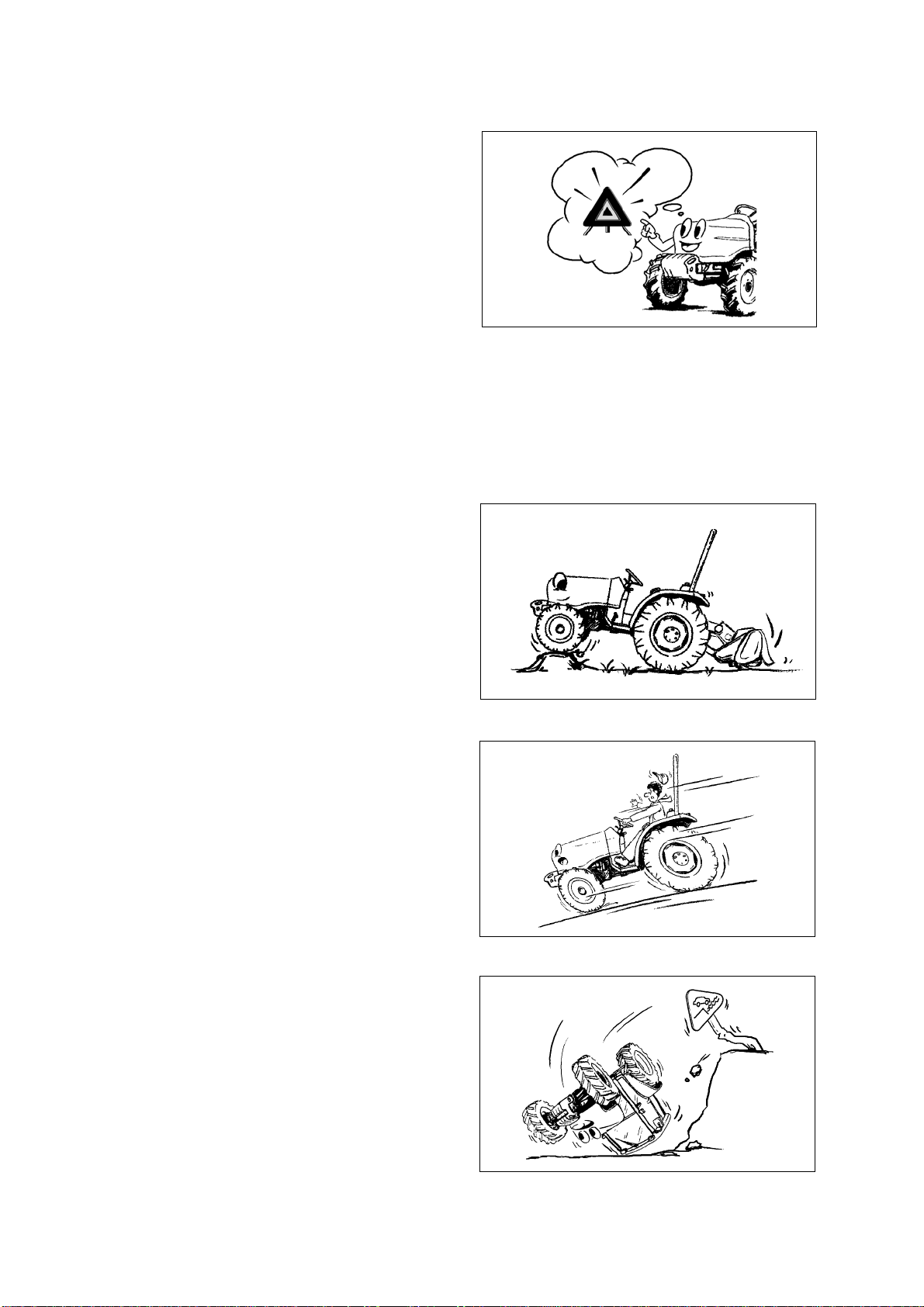

◆General information for intended use
zYour tractor is designed and manufactured to pull, to carry, to supply the power a variety of mounted
or towed equipment for agriculture. Do not use the product for other purposes than intended by the
manufacturer and outlined in this manual. Do not use this tractor for light/heavy forestry applications.
zDo not use the product beyond its limits of terrain gradient and stability than outlined in this manual.
Using the tractor beyond these limits may cause a overturning accident.
zDo not use the tractor on higher speeds than allowed by the load of the tractor and road condition.
Always choice a suitable driving speed to maintain the stability of the tractor.
zDo not use the tractor near or on soft verges of canals and brooks or banks and verges that are
undermined by rodents. The tractor may sink sideways and roll-over.
zDo not use the tractor on brittle bridge heads and poor bridge floors, These constructions may
collapse and cause overturning of the tractor. Always check out the condition and carrying
capacity of bridges and ramps prior to engage.
zDo not use the tractor without wearing the seat belt and Roll-Over Protective Structure
(ROPS) during operations where roll-over or tip-over hazards exist. The ROPS will only be fully
effective when the driver remains attached to his seat.
zDo not use equipment mounted on the tractor which is not correctly matching and firmly fixed.
Such equipment may increase the risk for roll-over and hit the tractor when coming loose.
zDo not use the tractor in combination with equipment arbitrary, without having consulted the
specific operator’s manual provided with the equipment. This manual alone cannot provide you
with all the information about safety operation of the combination.
zDo not use the tractor beyond its limits of dynamic stability. High speed, abrupt maneuvers, and
fast and short cornering will increase the risk of roll-over.
zDo not use the tractor for overloaded pulling work, in cases where you don’t know if the load will
yield, for instance when pulling stumps. The tractor may flip over when the stump is not yielding.
zBe extremely cautious when working with the tractor on forage silos without lateral concrete walls.
A wide track setting may improve the lateral stability of the tractor.
zBe cautious that the center of gravity of the tractor may increase when the front-end loader is
loaded or the three-point linkage are raised. In these conditions, the tractor may roll-over earlier than
expected.
zDo not step down from the tractor without shutting down the PTO, shifting the transmission
to neutral and applying the parking brake.

1 -2
◆Safety Mark Description
- In the places where the cautions in usage are required, the marks such as “DANGER”, “WARNING”,
“CAUTION” are found.
- You should comply with the description marked on the decals attached on the product or the contents
marked with safety mark in this Operator's Manual..
Warning – This indicates a potential dangerous situation that may cause a serious
injury or death if not avoided.
Caution – This indicates a potential dangerous situation that may cause a light
injury or damage to the properties if not avoided.
Notice – This indicates the instructions for right use for the safety of persons or
products.
Danger – This indicates a fatal dangerous situation that may cause a serious injury
or death if not avoided.
Notice
Caution
Warning
Danger
zNever remove or modify or change the driver’s protection device or safety device arbitrary.
zYou must take the necessary precautions to always be aware of the possible presence of
bystanders, certainly when maneuvering in confined areas. Keep people away from the tractor during
work. Pay the necessary attention while operating next to public roads or footpaths. Thrown objects
can get projected outside the field and hit unprotected people like bikers or pedestrians. Wait until it is
clear of bystanders.
zDo not violate the local traffic rules related to public roads and highways
zDo not allow riders on the tractor; do not allow people standing on the access way or step to the
cab when the tractor is moving. Your view to the left will be obstructed and a rider risks to fall from the
tractor during unforeseen or abrupt movements.
zThis tractor has only one operator station and is a one man operated vehicle. Other people on or
around the tractor during normal operation are not allowed.
zAlways stay clear from implements operating area and especially do not stand between tractor
and trailed vehicle either three-point linkage when operating lift controls; ensure no bystanders
are near these operating areas.
zThis tractor may be equipped with a number of sensors to control safety functions. Do not attempt
to bypass any function on the tractor. You will be exposed to serious hazards, and moreover, the
behavior of the tractor may become unpredictable.
zThe manufacturer will not be responsible for the damage or safety problems caused by maintenance
or repair with non-genuine parts. It must be requested to use the genuine parts.
zWhen cleaning the tractor by using high pressurized water, do not inject water directly to the
electronic parts, wiring, air intake pipe, hot engine or muffler inside the bonnet.
zMaintenance and repair of the tractor is performed by skilled technical experts with the proper
tools authorized by the manufacturer.
zFor damage or accidents caused by the miss use or operation in violation of these rules, the
manufacturer and its distributors will not have any responsibility and warranty.
zKeep this Operator’s manual for future reference at hand (on the tractor).

1 -3

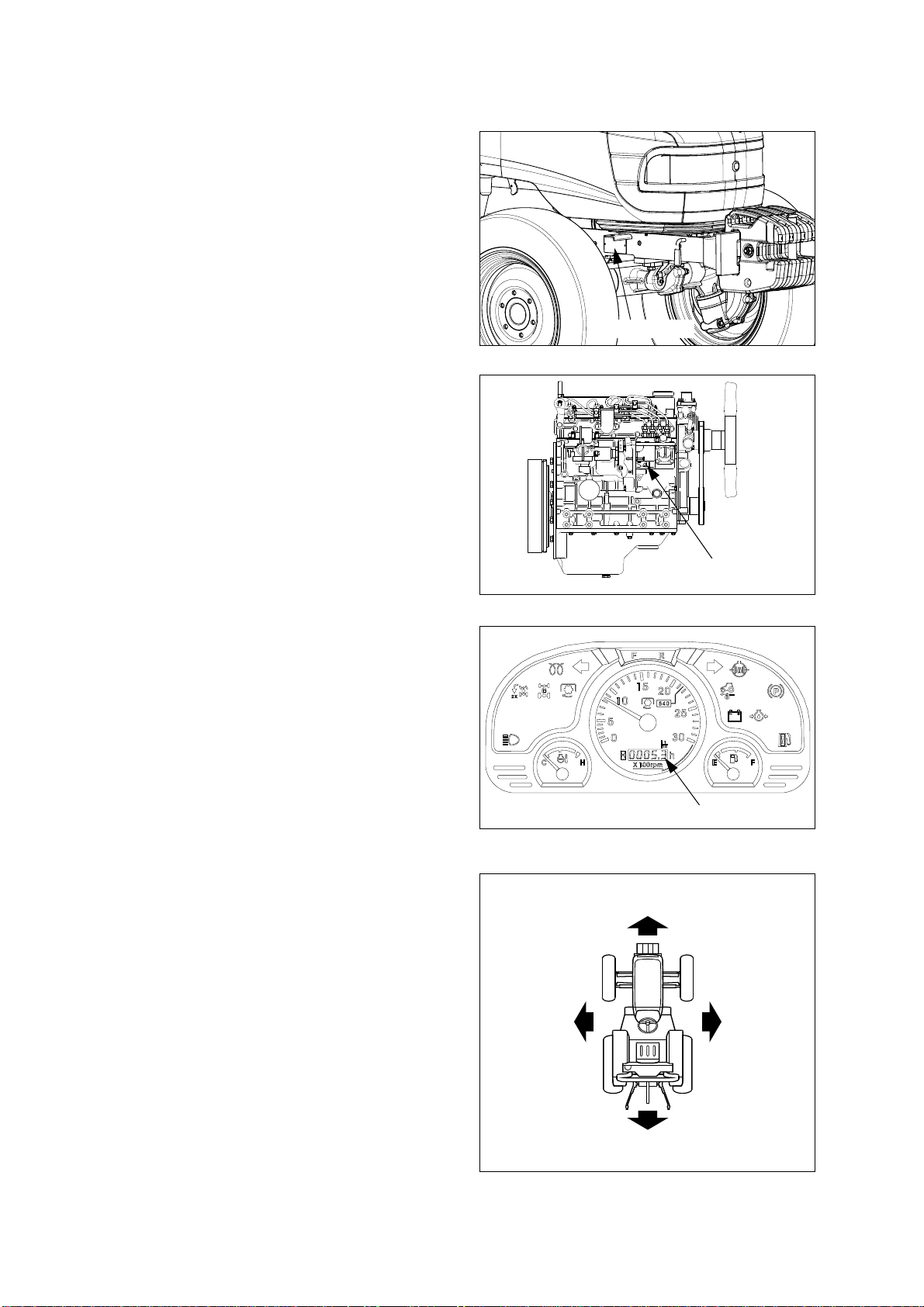

Running hour
Front
Rear
RightLeft
Fig.1-1
Fig.1-2
Fig.1-3
Chassis No.
Engine No.
◆Terminology
When reading this Operator's Manual, refer to
the right figure for the discrimination of the front/
rear/ left/ right direction.
◆Product Identification
Your tractor has a exclusive chassis number and
engine number marked with product serial number
tag to identify the product. (See Fig.1-1)
In case of requesting service or parts from your
dealer
Dealer will need chassis serial number, engine
serial number, and also running hours displayed on
the instrument panel. (See Fig. 1-3)

1 -4
1-2. Safety Precautions - read this for safety before using.
(1) Notices before using the tractor
zFor Safety Instruction : Before using the tractor,
read this Operator's Manual carefully and
understand the instructions fully for the safety
prevention and right usage of the tractor and then
use the tractor safely according to the instructions.
Read Operator’s
Manual.
▶Additional seat (where fitted) is used for driver training or instruction. Do not permit
anyone to ride on the tractor.
Warning
zOperator’s condition : The persons such as
patients, drunks, people on drugs, etc. are never
allowed to operate this tractor.
Only educated operators can use the tractor after
learning the usage of controls for moving, stopping,
turning and other operating.
zSuitable Clothes & Protect Entanglement :
When checking or operating the tractor, wear tight
fitting clothes and safety equipment instead of
loose or long clothes. Also, slippers, high heel
shoes are not suitable for operation. Wear the low
shoes or work shoes or boots.
Warning ▶Do not approach the rotating shaft such as PTO shaft or cooling fan, especially,
with loose clothing and long clothes. The entanglement in rotating shaft can cause
serious injury or death.
▶Stop the engine and be sure PTO shaft is stopped before getting near it.
zKeep Riders off : Riders on the tractor or implements obstruct the operator’s view and can be
thrown off the tractor. It can cause a serious injury or death. Riders should not be carried on the
tractor at any time.
zSafety Decals : For right use and personal safety of the operator, the safety decals are attached to
the parts related with safety operation. Before using the tractor, comply with the safety instructions.
(For further information, refer to “1-6 Safety Decals”, See page 1-19)
Especially, special cares must be taken for using the tractor in the places where the safety
signs such as Danger, Warning, Caution etc. are marked. (See page 1-2)

1 -5
zProtect Children : Pay special attention to children (or a child) while using the tractor or during
storage.
- Make sure children keep a safe distance from the tractor and all implements before using the
tractor. Be alert to the presence of children.
- Do not let children or an untrained person operate the tractor.
- Do not allow children to approach the tractor while the engine is running.
- When parking the tractor, remove the ignition key and lower implements to the ground for
children’s safety.
▶As children are very curious, they may do unexpected movements or actions.
Special care must be taken, when operating tractor or equipment.
Warning
zPeriodical Check : “Lubrication and Maintenance” must be performed periodically. If necessary,
do it immediately and if not, it may cause the failure, reduction of product life or physical injury.
* Periodic Lubrication and Maintenance
Fuel, Oil, Filter, Air cleaner, Battery, Belt, Cable, Grease, Pedals such as clutch and brake pedal,
Tire air pressure, Wheel bolts, Toe-in, Electrical wirings, other items related to safety.
zGenuine Parts : When replacing parts, you must use “Genuine Parts” of LS tractor. Contact your
authorized dealer. If not, it may cause a reduction of product life, failure and serious injury.
zRestrict Maintenance : If you repair or change some components and settings arbitrary, the
performance of the tractor can NOT be guaranteed, and may void the warranty And also,
maintenance of the heavy weighted parts without special tools can cause serious injury.
If it is required to check or repair the tractor due to trouble, or if you have any questions for the
usage or operation of the tractor, contact your authorized dealer.
* The items that are not allowed to be modified or changed or removed arbitrarily by user are
below :
- Protection structures such as PTO cover, Guards, Safety frame (Roll-bar), Cab, etc.
- Engine components, Fuel injection control and setting, etc.
- Automatic control equipment, Lamps, Transmission, Hydraulic valve and pressure settings.
- Other parts that detail and where complicated adjustments are needed.
▶Skilled professional technology is needed for the repair.
▶For derail maintenance or repair, contact your authorized dealer.
Warning
zLamps : Do not modify the lamps or change the bulb capacity arbitrarily.
▶Modified lamps or change bulb capacity may cause the traffic accident by
disturbing approaching driver’s views.
▶If the lamp is blown out, replace it immediately with a genuine part. In case of
driving at night, it may cause a traffic accident.
Warning

1 -6
zProtective Structures : For the operator’s safety, various protective structures, i.e. Bonnet (Hood),
Fan cover, PTO safety cover, PTO shaft protection cap, Roll-bar or another Roll-over Protective
Structure, etc are attached on the tractor. If these structures are modified or removed by user
arbitrarily, it may cause serious accident. Such behaviors are prohibited strictly.
▶The Protective Structure and interconnecting components are a certified system.
Any damage, Fire, corrosion or modification will weaken the structure and reduce
your protection. If this occurs, the Protective Structure MUST be replaced with a
new one. Contact your authorized dealer for Protective Structure inspection and
replacement.
▶In case of an accident, fire, tip or roll-over, the following MUST be performed by a
qualified technician before operating the tractor again.
- The Protective Structure MUST be replaced.
- The mounting or suspension for the Protective Structure , operator seat and
suspension, seat belt and mounting components and wiring within the operator’s
protective system MUST be carefully inspected for damage.
- All damaged parts MUST be replaced.
▶DO NOT attach any device to the Protective Structure for pulling purposes.
▶DO NOT weld, drill holes, attempt to straighten or repair the protective
structure. The modification can reduce the structural integrity of the
structure which can cause death or serious injury in the event of fire, tip, roll
over, collision or accident and void the warranty.
Warning
zLevel of protection of the FOPS (Falling Objects Protective Structure) : This tractor does NOT
provide protection against falling objects according to OECD code 10 standard. It is recommended
to use a certified FOPS structure when working with front-end loaders.
zLevel of protection against hazardous substances : This tractor does NOT provide protection
against hazardous substances. Do not use the tractor with crop sprayers in hazardous area.
zLevel of protection of the OPS (Operators Protection Structure) : This tractor does NOT
provide protection against
- low hanging wires and branches in the forest, orchard or construction area, etc
- toppling trees, primarily in case a rear-mounted tree grab-crane is mounted at the rear of the
tractor
- penetrating objects in the operator’s enclosure, primarily in case a winch is mounted at the rear of
the tractor.
- potential risks by using any optional equipment that might be available to deal with those hazards.
NEVER enter or operate these hazardous area without certified Operator Protective Structure
installed.

1 -7
(2) Notices when starting Engine
zCheck each part with reference of “5. Lubrication
and Maintenance” in this manual. If necessary,
repair or replace it immediately. Especially,
check if safety protection structures or covers
are attached originally and the bolts and nuts
are tightened well.
zBefore starting, check again if there are other
workers or children around the tractor and
implements and keep a safe distance.
zStart engine and operate the tractor after sitting
on the driver’s seat correctly with seat belt
fastened.
zPlace the shuttle lever, transmission gear lever in
NEUTRAL and especially check if parking brake
is applied.
zLower the implements on the ground.
zEnsure that rear view mirrors and the other
mirrors (if fitted) are adjusted correctly, and check
the operation of the headlights and other lights
zPut PTO switch to “OFF” position. If the PTO
switch is “INDEP” or “MANUAL”, the engine can
NOT be started. (See Fig.1-4 )
zDepress the clutch pedal fully (if fitted). If not, the
start safety switch does not contacted enough and
the engine can NOT start.
Warning
▶Do not start the engine in a closed area. The poisonous exhaust gas can cause
fatal damage to the driver or persons around.
Fig.1-4
PTO switch

1 -8
zConnect left and right brake pedals while driving
on the road. (if fitted)
zDO NOT use differential lock device while driving
on the road or turning in the field.
zDO NOT ride your foot on the brake pedal or
clutch pedal.
zLower the driving speed enough before turning a
sharp curve. Especially, when you drive the tractor
with implements, make the turning radius wider.
zDO NOT start or stop the tractor suddenly. Engage
the clutch and brake softly. If not, front wheels can
be lifted up and it is very dangerous.
zDo not jump up and down while tractor is moving.
When getting off or on the tractor, use the grip or
handrail and sub step to prevent falls.
(3) Notices while operating/using the tractor
zVentilation
Warning ▶It is very dangerous to work in
a closed area. The poisonous
exhaust gas may cause serious
damage to the human body. If
you should work in this area,
make sure to ventilate well and
put on the protective mask.
zWhen driving the tractor in reverse, lower the
engine speed. Make sure to check if there is any
obstacle or person in the rear.
zDO NOT permit other people and especially
children approach within working area while
operating tractor and equipment.
zNoise and Vibration : When working between buildings or in confined spaces, the sound pressure
level can be increased. Wear suitable ear protectors in high noise level conditions. When working
with equipment in the field, Vibration may intensity from the equipment may be increased. To reduce
the harm to the body, take a rest periodically.

1 -9
zWhen working at the edge of steep slope, take
special care about a turn-over.
zWhen working, wear the protection equipment and
tighten the seat belt.
zIf the authorized passenger seat are not installed,
keep riders off.
zOn a downhill, operate the throttle pedal and brake
pedal slowly and DO NOT drive while the
transmission gear is in NEUTRAL.
zTo climb a steep slope, drive tractor slowly in
reverse up the slope rather than forward. It is much
safer.
zWhen turning the tractor on a slope, pay attention
to safety especially.
zWhen crossing a high ridge, let down the
implement and go straight across the ridge at low
speed.
zWhen connecting the implements to the front/rear
of the tractor, install the proper additional weights
in the rear/front of the tractor to keep the balance
of the tractor.
zObey the traffic rules while driving on public roads.
Do not exceed the local legal speed limit.
Use a sing beacon or slow moving vehicle (SMV)
to indicate that the vehicle is slow moving.
zIf you can not drive the tractor due to a failure,
move the tractor to a safe place and install
troubled vehicle (safety tripod).
(Day : backward 100m ( 328 ft )
Night : backward 200m ( 656 ft))
zDo not overuse the fuel, oil, etc and pay attention not to contact the skin directly. Generally, these
materials contain harmful materials to the human body. When you work in a area where hazardous
chemicals are sprayed, check the cabin filter (if fitted) and replace the filter with suitable one for the
purpose being used. To protect the body completely from these harmful materials, wear a safe
protection equipment such as mask, and clean the body after working.

Our support email:
[e-mail]
