Cateye Padrone Smart + CC-SC100B Setup guide

Usage Instructions
For troubleshooting related to the smart computers or to Cateye Cycling™, see "Frequently
Asked Questions".
* For explanatory purposes, in this manual red text/icons on the smart computer screen
represent flashing items.
* The display screens and illustrations used in this manual are provided for instructional
purposes only. Actual screens and illustrations may differ depending on devices used.
* The online manual and YouTube videos for this product are subject to change without
notice.
To use Padrone Smart+, the “Cateye Cycling™” smartphone application (free of charge) is
required.
For the latest information on the smartphones that are compatible with Cateye Cycling™
operations, see “Cateye Cycling™ Recommended Devices”.

Setup Flowchart
Usage Instructions
5. Mounting the bracket
6. Mounting the speed (cadence) sensor
(ISC-12) (Optional)
7. Wearing the heart rate sensor (HR-12)
(Optional)
3. Pairing with smart computer
4. Pairing with a sensor
(If you have sensors)
2. Install Cateye Cycling™
1. Checking package contents
The setup procedure is as follows.
After setup is complete, please see How to Use.

1. Checking package contents
Setup Flowchart

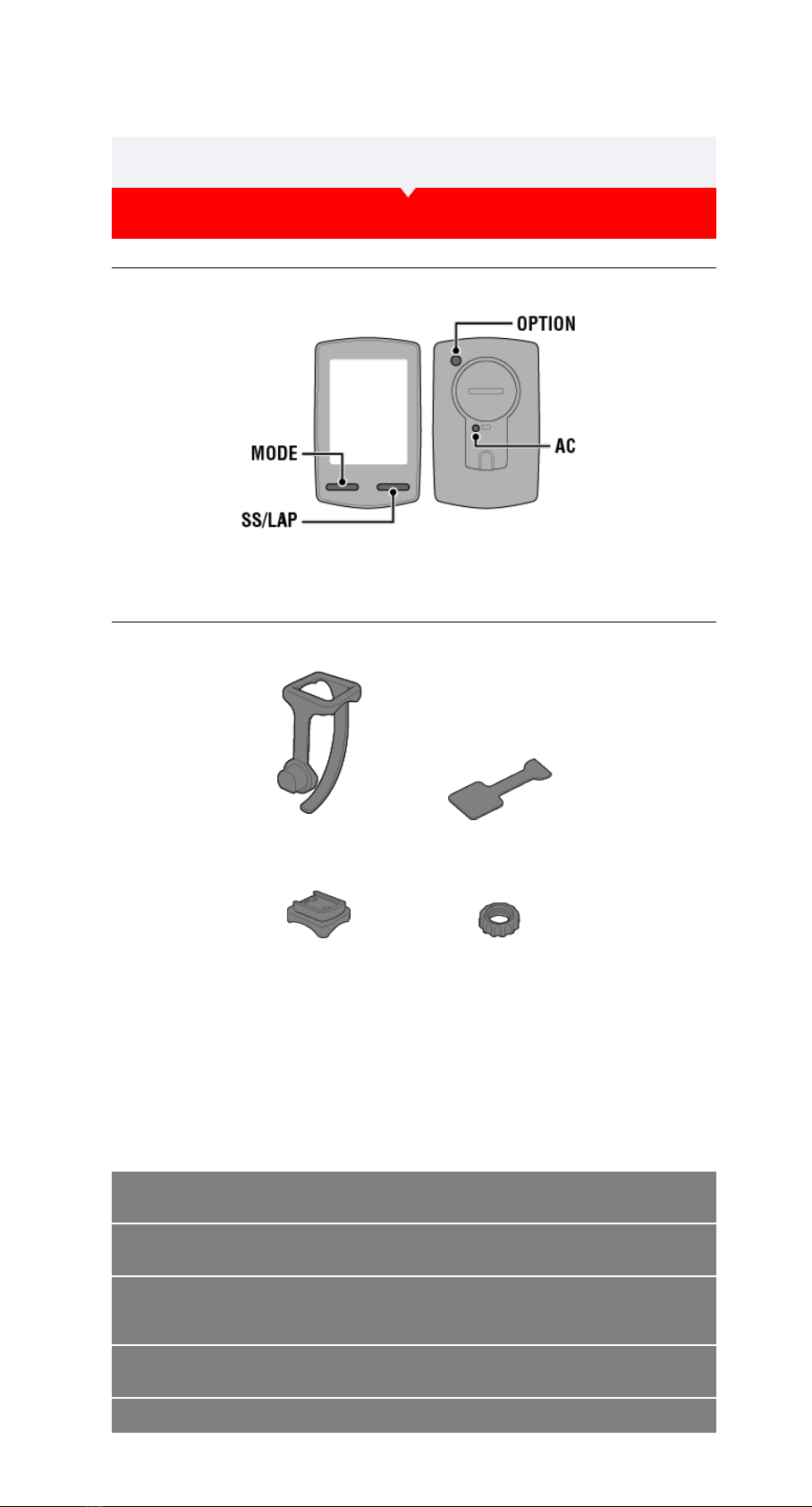

!Smart computer unit
!Accessories
Bracket band
Bracket
Bracket rubber pad
Dial
* The Speed + Cadence Kit includes an integrated speed (cadence) sensor (ISC-12) in
addition to the items above.
* The Triple Wireless Kit includes an integrated speed (cadence) sensor (ISC-12) and a heart
rate sensor (HR-12).
* Check button locations before starting set up.
5. Mounting the bracket
3. Pairing with smart computer
4. Pairing with a sensor
(If you have sensors)
2. Install Cateye Cycling™

Usage Instructions
6. Mounting the speed (cadence) sensor
(ISC-12) (Optional)
7. Wearing the heart rate sensor (HR-12)
(Optional)

5. Mounting the bracket
3. Pairing with smart computer
4. Pairing with a sensor
(If you have sensors)
2. Install Cateye Cycling™
1. Checking package contents
Setup Flowchart
1. Install Cateye Cycling™.
If using an iPhone
If using an Android smartphone
* See Cateye Cycling Recommended Devices for the latest information about
smartphones recommended for use with Cateye Cycling™.
2. Launch Cateye Cycling™.
Follow the on-screen instructions and allow the use of GPS and Bluetooth® devices.
Once basic settings are complete the Trip screen appears.
To continue, refer to "Pairing with smart computer".
When the smartphone's Bluetooth settings are turned on, it will search for devices, but
do not configure settings at this stage. Switch to Cateye Cycling™ and follow the
procedure below.
Important
Smartphone
Install the Cateye Cycling™ smartphone app (free) on the smartphone to be used.

Usage Instructions
6. Mounting the speed (cadence) sensor
(ISC-12) (Optional)
7. Wearing the heart rate sensor (HR-12)
(Optional)

3. Pairing with smart computer
2. Install Cateye Cycling™
1. Checking package contents
Setup Flowchart
• Pairing is necessary to use a smart computer or a sensor.
• Do not pair sensors at a race venue or in similar locations where there are a lot of other
users.
Doing so may cause the smart computer to be paired with another device.
Important
The following section explains how to format (initialize) the smart computer and then pair with
a smartphone.
Smart computer

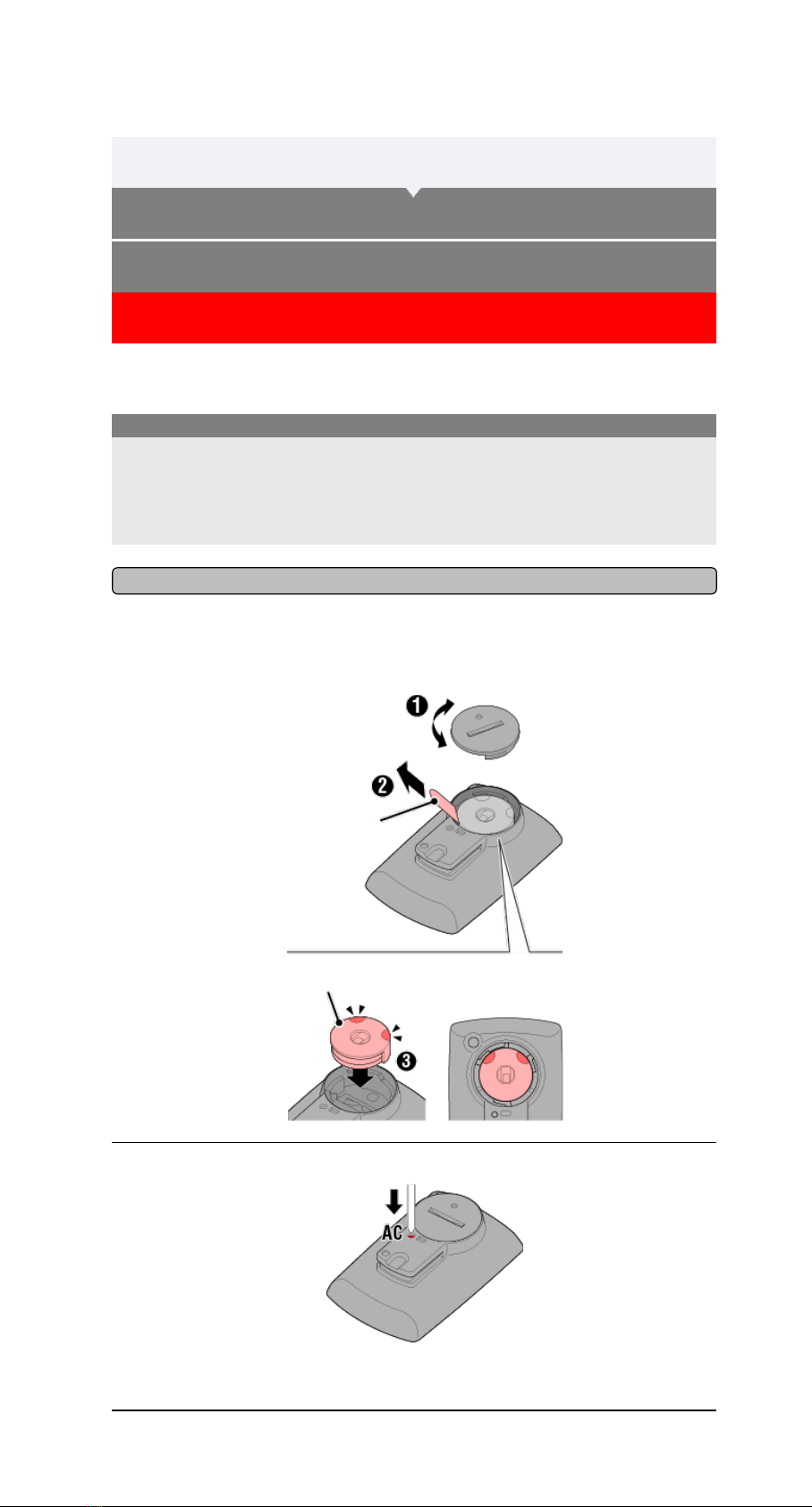

1. Pull free the smart computer's insulation sheet.
After pulling out the insulation sheet, return the battery holder and battery cover to their
previous locations.
2. Press the AC button on the smart computer.
The initialization screen is displayed.
Open
Close
Insulation
sheet
Battery holder

The display switches to the smartphone search screen.
Smartphone

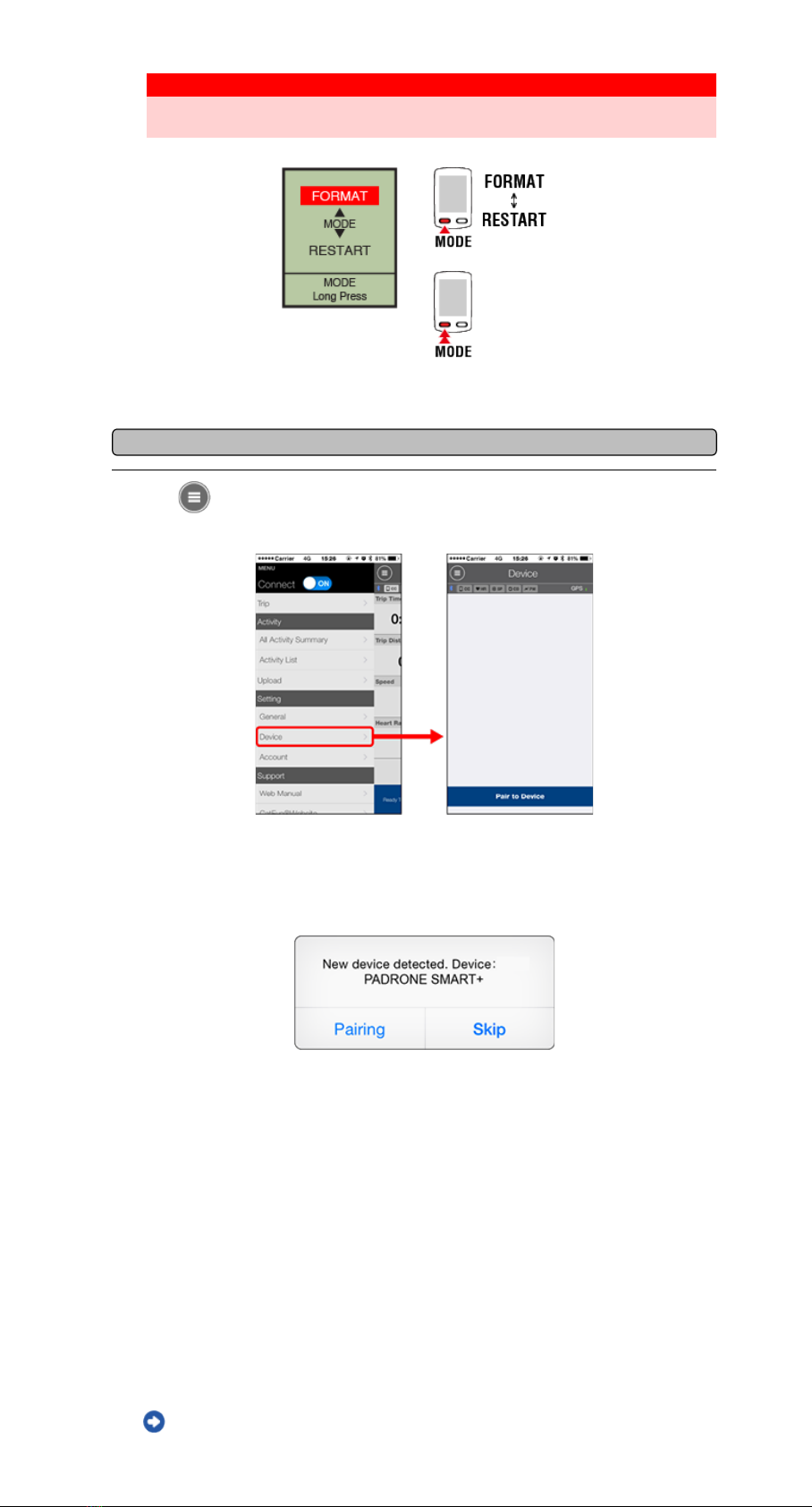

4. From (MENU) at the top left of the screen, turn on [Connect] and tap
[Device].
Tap [Pair to Device] to start pairing.
When Cateye Cycling™ detects smart computer, a message is displayed on the
smartphone.
Tap [Pairing] to complete pairing.
* If you are using an iPhone, a subsequent message will be displayed.
Tap [Pair] again.
* Tap [Smart computer name] to display the settings configuration screen for the various
smart computer settings.
Device
Confirm
3. Verify that [FORMAT] is flashing, and press MODE for 1 second.
All data will be deleted and smart computer will be reset to factory default settings.
Caution

Usage Instructions
5. Mounting the bracket
6. Mounting the speed (cadence) sensor
(ISC-12) (Optional)
7. Wearing the heart rate sensor (HR-12)
(Optional)
4. Pairing with a sensor
(If you have sensors)
Smart computer pairing is now complete.
If you have sensors, proceed to "Pairing with a sensor". If you do not have sensors, skip to
"Mounting the bracket".

3. Pairing with smart computer
4. Pairing with a sensor
(If you have sensors)
2. Install Cateye Cycling™
1. Checking package contents
Setup Flowchart
Tap [Pair to Device] to start pairing.
2. Activate the sensor.
Activating the sensor
When Cateye Cycling™ detects the sensor signal, a message is displayed on the
smartphone.
Tap [Pair]. The synchronized sensor is displayed on the [Device] screen and pairing is
completed.
* When pairing a sensor with Cateye Cycling™, an "A" is displayed after the sensor name.
* If you have paired a sensor capable of speed measurement, proceed to step 3.
• Pair all sensors that you intend to use.
• When using an iPhone, you cannot sync settings of commercial sensors.
When measuring in Sensor Direct Mode, it is necessary to configure sensor settings
separately via smart computer.
1. Switching to Sensor Direct Mode
2. Pairing a smart computer with a sensor
3. Tire circumference setting
Important
Smartphone

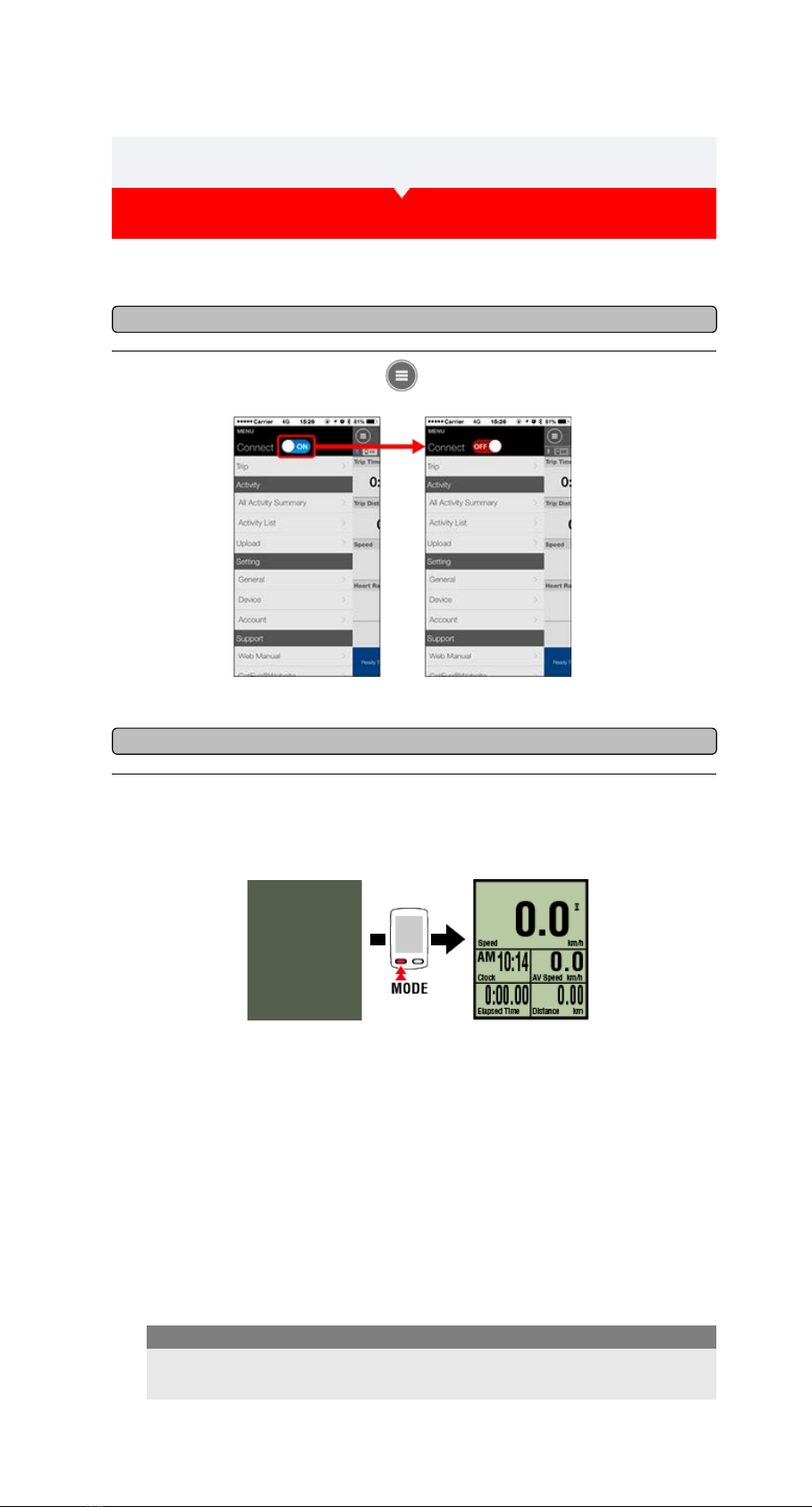

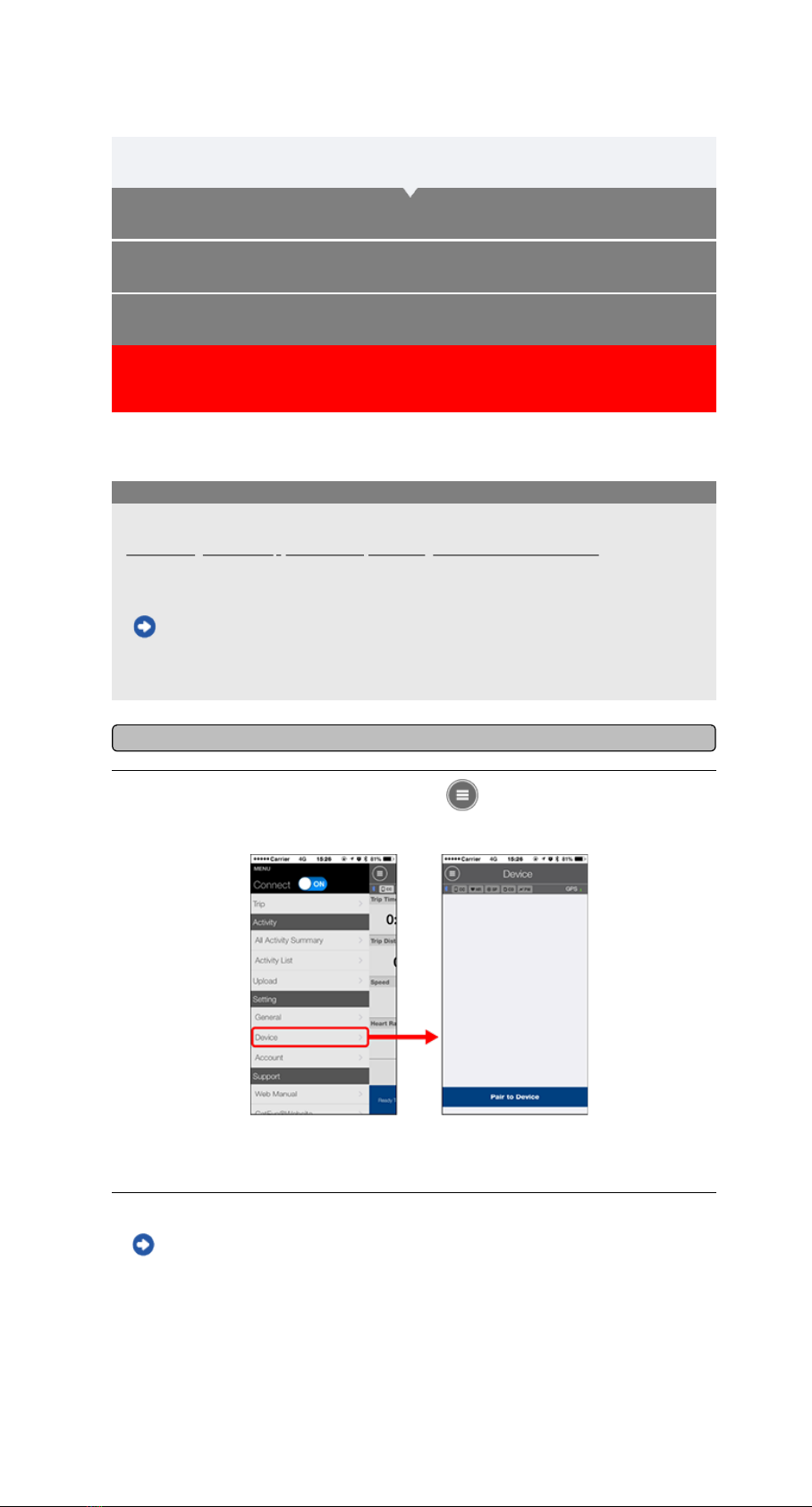

1. Verify that [Connect] is set to ON in the (MENU), and then tap
[Device].
Smart computer can be used with sensors compatible with Bluetooth 4.0. Pair it with optional
accessories or commercial sensors as required.

3. Set the tire circumference for a sensor capable of speed measurement.
Tap [Device], and then tap [Sensor name] > [Tire Circumference] (the length of the outer
circumference of the tire).
Select the tire circumference according to the tire size written on the side of the tire.
Determining tire circumference
* Default value: 2096 mm (700x23c)
* Requires to set tire circumference for each sensor.
* You can also change sensor names and cancel pairing from this screen.
Sensor pairing is now complete.
* If you want to pair another sensor, repeat the same procedure again.
Usage Instructions
5. Mounting the bracket
6. Mounting the speed (cadence) sensor
(ISC-12) (Optional)
7. Wearing the heart rate sensor (HR-12)
(Optional)
Cadence, heart rate, and power data will not be displayed under the initial configuration.
Change the measurement screen to be able to display measured values from paired
sensors.
Changing the measurement screen
Important

Switching to Sensor Direct Mode
Pairing with a sensor
Switch from Mirror Mode to Sensor Direct Mode.
Smartphone
1. Close Cateye Cycling™ or from (MENU), turn off [Connect].
Smart computer
2. From the smartphone search screen, press MODE for 1 second to switch
to Sensor Direct Mode.
* Smart computer will search for a sensor instead of your smartphone. In this mode, the
sensor icon flashes to indicate sensor reception status.
• S(Flash): When the speed signal is received
• C(Flash): When the cadence signal is received
• S/C(S and C flash simultaneously): When the speed/cadence (ISC) sensor signal is
received
• H(Flash): When the heart rate signal is received
• P(Flash): When the power signal is received
Sensor Direct Mode and Mirror Mode measure independently and data has no
continuity.
Important
(1 second)
Smartphone search
screen
Measurement
screen

Pairing a smart computer with a sensor
Tire circumference setting

Switching to Sensor Direct Mode
Pairing a smart computer with a sensor

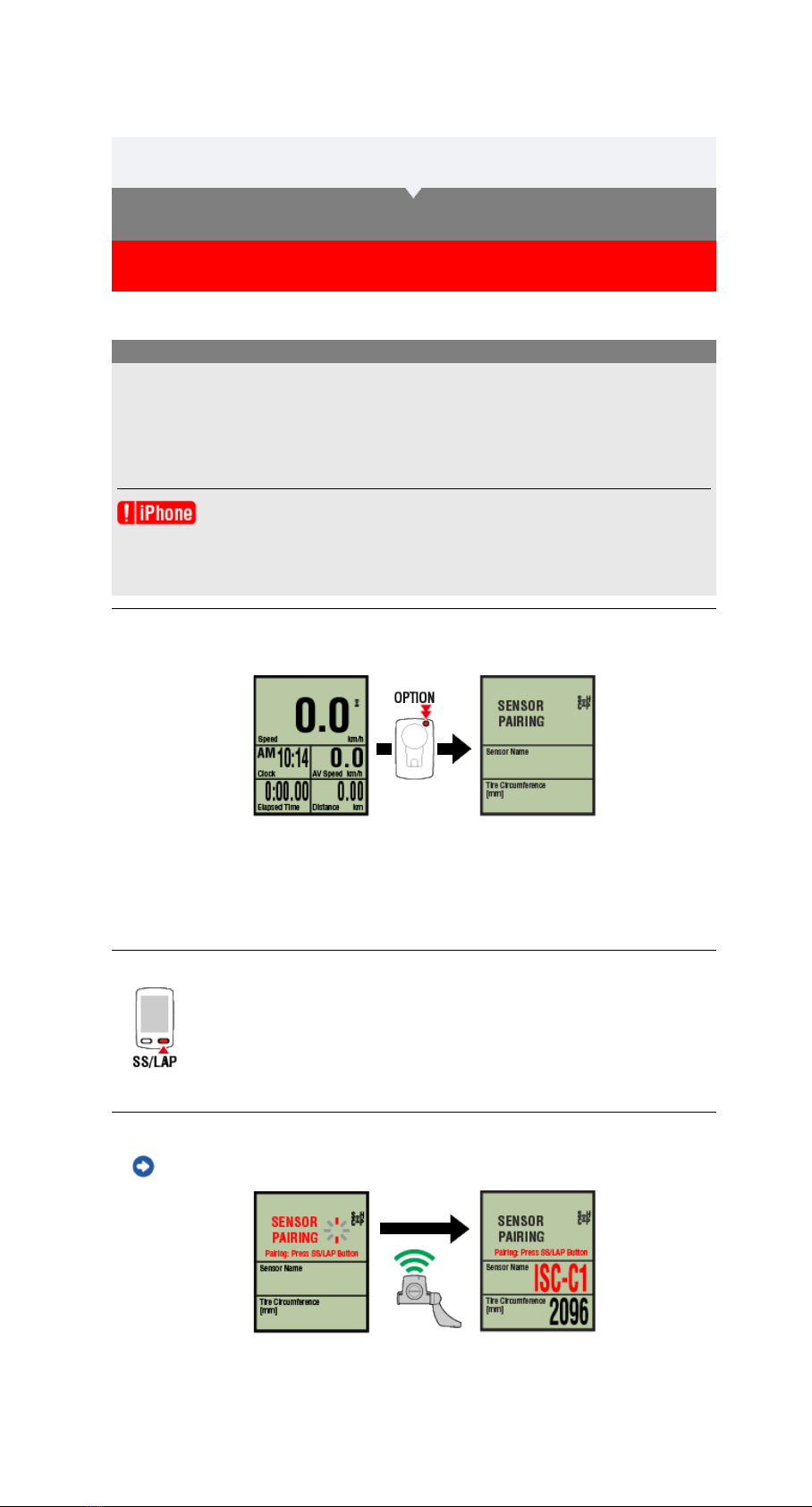

1. From the measurement screen, press OPTION for 2 seconds to switch to
the sensor pairing screen.
* When the sensor pairing screen is left on for 1 minute, the smart computer returns to the
measurement screen.
2. Press SS/LAP to start pairing.
3. Activate the sensor that you want to pair.
Activating the sensor
The name of the synchronized sensor is displayed and pairing is completed.
(2 seconds)
Sensor pairing
screen
Measurement
screen
Sensor
activated
Synchronizatio
n complete
Ready for
synchronization
Pairing with a sensor
• Pairing (sensor ID synchronization) must be performed in order to use a sensor.
• Do not pair sensors at a race venue or in similar locations where there are a lot of other
users. Doing so may cause the smart computer to be paired with another device.
• Pair all sensors that you intend to use.
Currently, only Bluetooth sensors that comply with Bluetooth Low Energy (BLE) profiles can
be used in Sensor Direct Mode.
Important
Pair a sensor that you want to use with smart computer.

• SP : Speed sensor
• ISC : Speed/cadence sensor
• CD : Cadence sensor
• HR : Heart rate sensor
• PW : Power sensor
* When pairing a sensor with a smart computer, a "C" is displayed after the sensor
name.
Tire circumference setting
When the smart computer displays [ID FULL] on the screen and returns to the sensor
pairing screen, the maximum number of sensors have been paired.
Up to 9 separate sensor IDs can be paired with the smart computer.
If the maximum number of sensors have been paired, in the sensor pairing screen, press
OPTION for 4 seconds to clear all pairings.
Then re-pair the required sensors.
Important
* Pairing standby time is 5 minutes.
Activate the sensor within this time.
* If you want to pair another sensor, repeat steps 2 and 3.
4. Press OPTION to return to the measurement screen.
Pairing is now complete.
If you have paired a sensor capable of speed measurement, proceed with setting the tire
circumference.

Switching to Sensor Direct Mode
Pairing a smart computer with a sensor
Tire circumference setting
1. From the measurement screen, press OPTION for 2 seconds to switch to
the sensor pairing screen.
* When the sensor pairing screen is left on for 1 minute, the smart computer returns to the
measurement screen.

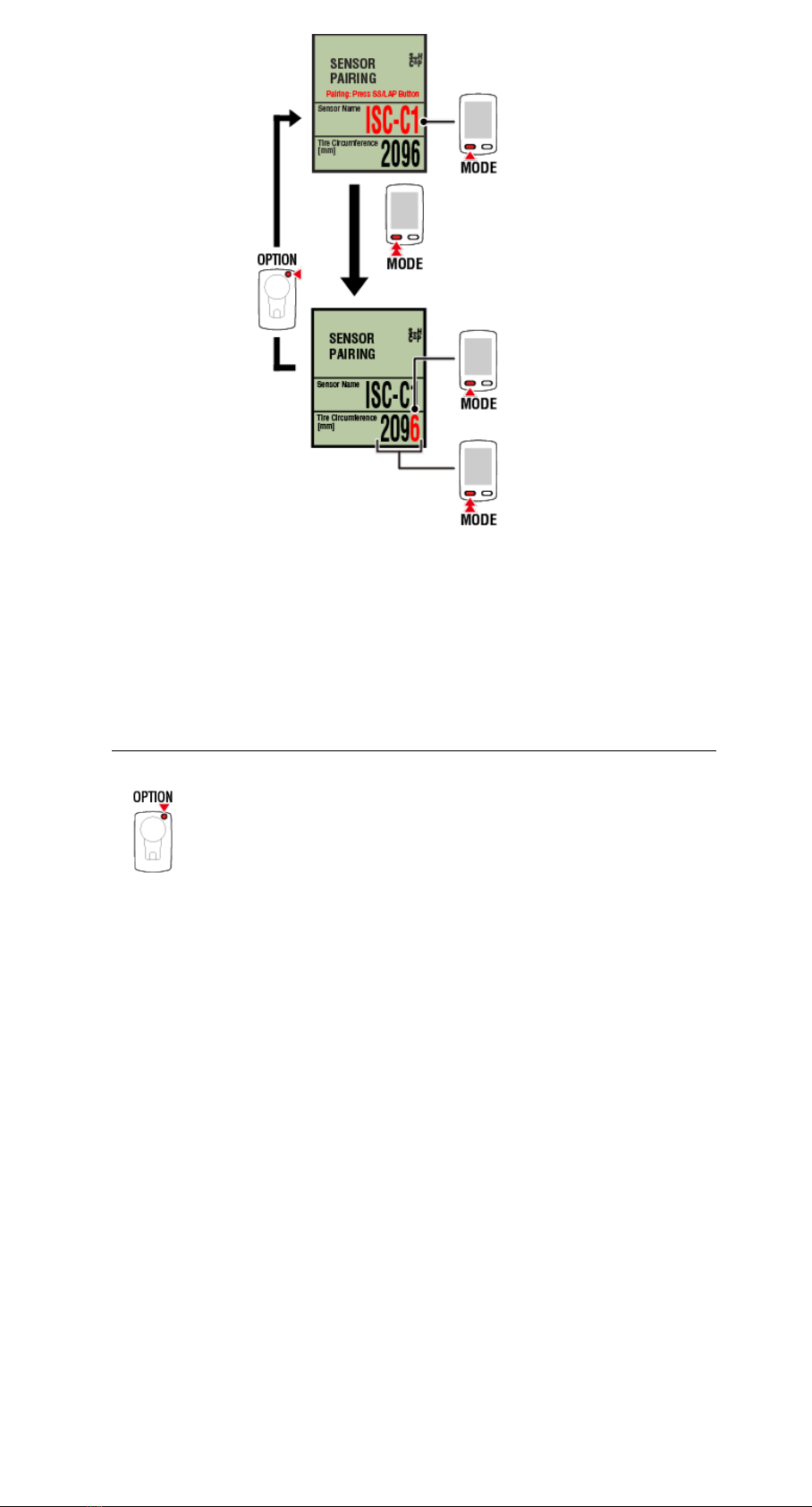

2. Select the sensor you want to set, and enter the tire circumference.
Enter the circumference in mm of the tire (the length of the outer circumference of the tire)
on which the sensor is installed.
(Setting range: 0100 – 3999 mm)
Determining tire circumference
(2 seconds)
Sensor pairing
screen
Measurement
screen
Pairing with a sensor
• Pairing (sensor ID synchronization) must be performed first.
Pairing a smart computer with a sensor
• Set tire circumference for each sensor.
The default value is 2096 mm (700x23c).
Important
Set the tire circumference for a sensor capable of speed measurement.

* Sensors that can be selected are those that have been paired with Cateye Cycling™ or
a smart computer. The letter that appears after the sensor name indicates how the
sensor was paired.
• A: Sensor paired with Cateye Cycling™
• C: Sensor paired with a smart computer
* Error is displayed if values outside the setting range are entered.
3. Press OPTION to confirm settings.
Pressing OPTION again returns to the measurement screen.
* If you have changed settings, always press OPTION to confirm changes.
This completes the tire circumference setting procedure.
Sensor
selection
(1 second)
(1 second)
Increase
numbers
Tire circumference
value
Move to
next digit

5. Mounting the bracket
3. Pairing with smart computer
4. Pairing with a sensor
(If you have sensors)
2. Install Cateye Cycling™
1. Checking package contents
The bracket can be mounted on either the stem or the handlebar.
Watch video
Setup Flowchart

Bracket band
Bracket

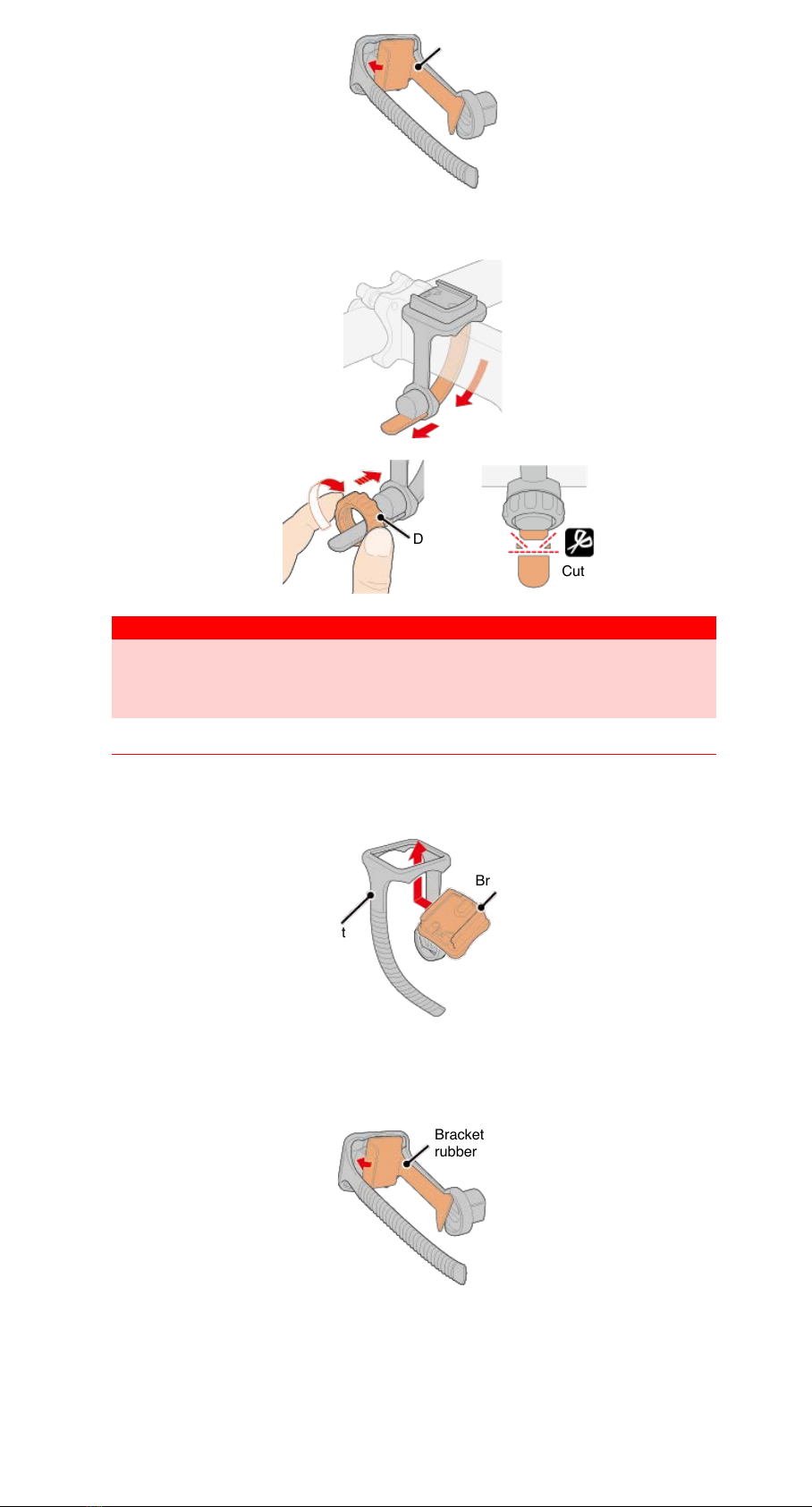

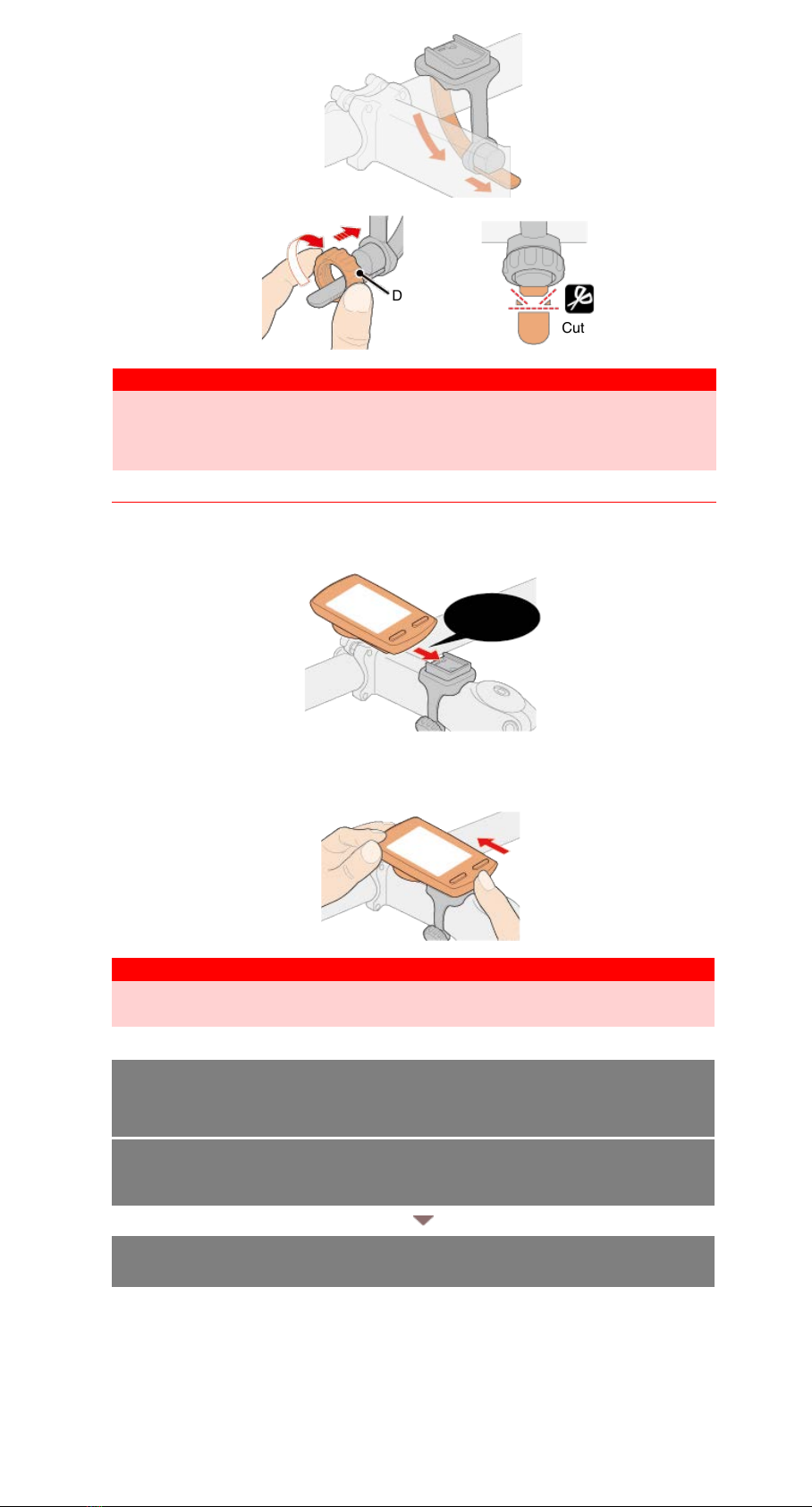

See illustrations
When mounting on the stem
When mounting on the handlebar
Mounting and removing the smart computer unit
!When mounting on the stem
1. Check bracket orientation and attach it to the bracket band.
2. Remove the seal from the bracket rubber pad and stick the bracket
rubber pad onto the bracket band.

!When mounting on the handlebar
1. Check bracket orientation and attach it to the bracket band.
Bracket
band
Bracket
2. Remove the seal from the bracket rubber pad and stick the bracket
rubber pad onto the bracket band.
Bracket
rubber pad
3. Loop the bracket band around the handlebar and tighten the dial to
secure it.
• Always tighten the dial by hand.
Using a tool or other object to tighten the dial may crush the screw thread.
• Trim bracket band carefully so the cut end will not cause injury (see step 3 above).
Caution
3. Loop the bracket band around the stem and tighten the dial to secure it.
Dial
Cut
Bracket
rubber pad

Click
Cut
• Always tighten the dial by hand.
Using a tool or other object to tighten the dial may crush the screw thread.
• Trim bracket band carefully so the cut end will not cause injury (see step 3 above).
Caution
Dial
To remove smart computer, push out while holding the unit with the other hand to ensure
that it does not fall.
Caution
!Mounting and removing the smart computer unit
Removing
Mounting
Usage Instructions
6. Mounting the speed (cadence) sensor
(ISC-12) (Optional)
7. Wearing the heart rate sensor (HR-12)
(Optional)
While holding smart computer
Push out
