Cateye PADRONE SMART User manual

CONNECT with your SMARTPHONE
CC-PA500B
■Introduction
■Setup
■Operation
■FAQ
■Troubleshooting
The Bluetooth word mark and logos are owned by
Bluetooth SIG, Inc. and any use of such marks by
CATEYE Co., Ltd. is under license. Other trademarks
and trade names are those of their respective owners.
PADRONE SMART
CC-RD500B
STRADA SMART
SMART COMPUTERS USER'S GUIDE

The smartphone’s built-in GPS can be used to measure and record such aspects
as speed, altitude, and travel route.
Speed/cadence sensor
(ISC sensor)
Heart rate sensor
The smartphone can communicate with supported sensors and smart computers
via Bluetooth.

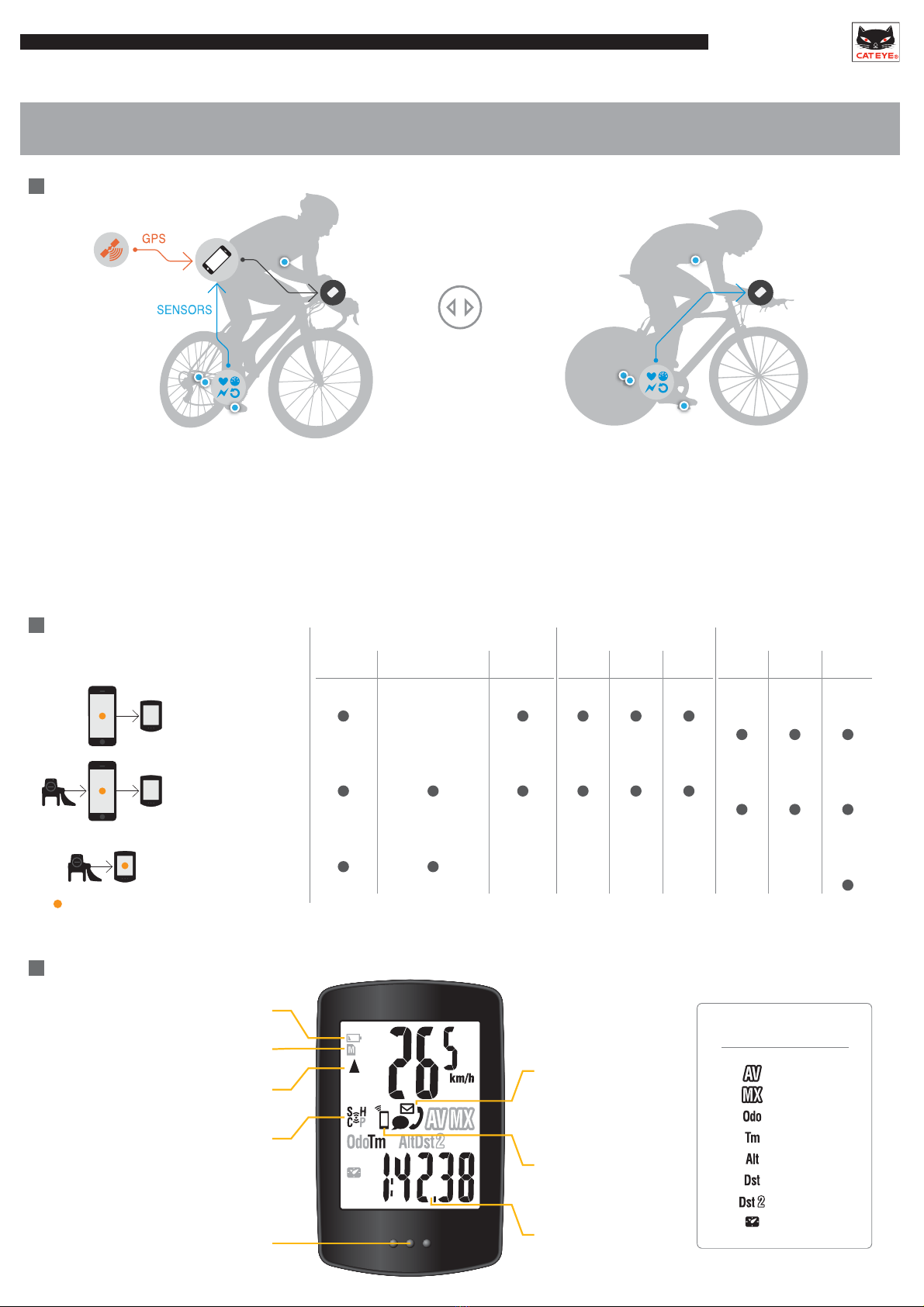

Capabilities with a Smartphone
Introduction SMART COMPUTER
Introduction

Capabilities with a Smart Computer
Sensor Direct ModeMirror Mode
-Display data measured by the smartphone on the smart computer.
-Use the smartphone’s built-in GPS for sensor-free operation.
-Use Bluetooth® SMART sensors for extended functionality.
-Display phone and mail notifications on the smart computer.
-Connect sensors directly to the smart computer for
measurement.
-Use a smartphone to manage measurement data saved
in the smart computer after completing a ride.
Two Modes
SMART COMPUTER
Introduction
Mode options
Device used for measurement
and recording
*Summary : Ride date and time, Elapsed time, Trip distance, Average and Maximum values of each measurement
*Smartphone
GPS
*Smartphone
GPS
*Padrone
only
*Padrone
only
*Smartphone
GPS
Measuring,Displayed
Speed Altitude
Cadence,Heart Rate,
Power
SMS
(Text)
Call Email Map Graph Summary
Notification Record
*
Mirror mode
Smartphone
Mirror mode
Smartphone + sensors
Sensor direct mode
Sensors
Display
Comparison between average speed
and current speed
Turns on when there is insufficient memory
for summary data
Bottom row display
Flashes when an incoming
call / email / SMS(Text) is
received
Turns on in mirroring mode
Flashes when smartphone
battery is low
Flashes when the computer battery is low
Sensor reception status
Speed: S
Cadence: C
Hear rate: H
Power: P
LED turns on when an incoming
call/email is received
Bottom row display
Average
Maximum
Total Distance
Elapsed Time
Altitude
Trip Distance 1
Trip Distance 2
Clock

Cateye Cycling
Cateye
C
yc
li
ng
Free
Use the above QR codes or search for “Cateye Cycling” on the App Store or on Google play.
Download the app and register (pair) the devices (smart computer and/or sensors) to the smartphone.
After the device is detected, tap “Pairing”
to pair the device (Fig. 1).
*When pairing a PADRONE SMART to an iPhone,
the screen to the right (Fig. 2) will also be displayed.
(Fig. 1) (Fig. 2)
< Speed/cadence sensor (ISC sensor) > < Heart rate sensor >
Move the magnet through
the sensor zone several times.
Rub both electrode pads
with your thumbs.
Press and hold the MODE button until the
smartphone search screen is displayed,
then release.
< Smart computer >
Send a signal from the device.
*When the smart computer is mounted
on a bracket, pressing the surface of
the unit depresses the MODE button
on the back of the computer.
MODE
Search screen
Use the smartphone to search for connectable devices.
Tap Device > Pairing
ON
* Connect must be set to .
1. Downloading the app
2. Pairing the device
Setup SMART COMPUTER
Setup

3. Configuring the smart computer
SMART COMPUTER
Setup
The smartphone will automatically configure the following settings on the smart computer.
Clock : Adjusted when the smartphone is connected.
Units (km/mile) : Syncs the unit settings from the app.
Sensor pairing for Sensor Direct Mode :
Usable with PADRONE SMART 1
in Sensor Direct Mode
The smart computers and sensors listed under Device
will be available for use in Sensor Direct Mode.
(The sensors will also be paired with the smart computer for
direct connectability.)
(Configure notification settings, auto pause, display
customization, total distance input, and other settings)
under
Other smart computer-related settings
*These settings are only available while the smart computer
is connected to the smartphone.
.
Device

●Using in Mirror Mode
1. Connecting the smartphone and smart computer
2. Measuring and uploading
Operation SMART COMPUTER
Operation
RECORDING
1sec.
READY
PAUSE
1sec.
Press
After a trip is completed, the measured
data can be saved and uploaded.
*Measurement can also be started and paused from the app screen.
Switch bottom
row display Save & Upload
*Heart rate sensors become connected when worn, and speed/cadence sensors become connected
when the wheel is rotated and a signal is transmitted.
Trip
*When the smart computer is mounted
on a bracket, pressing the surface of
the unit depresses the MODE button
on the back of the computer.
MODE
Search screen
Press and hold the MODE button
until the smartphone search screen is
displayed, then release.
The smartphone is connected once
the smartphone icon is displayed.
The app will return to .
Ensure that
.
Connect ON
Refer to the sensor’s operation manual or online manual for sensor mounting instructions.

1. Switching to Sensor Direct Mode
• Using in Sensor Direct Mode
2. Measuring
SMART COMPUTER
Operation
ON OFF
1sec.
Disconnect the app on the smartphone
if Mirror Mode is enabled.
*When switching from Mirror Mode to Sensor Direct Mode,
it may take a moment for the sensors to switch connection to the smart computer.
In addition, if the smart computer is currently
searching for a smartphone, press and hold the
MODE button until the search is canceled.
The smart computer is in Sensor Direct Mode
when the smartphone icon is not displayed.
Connect
3sec.
Measurement begins directly after the speed signal is detected.
Data readings will return to 0.
Ride data up to that point will be saved in the smart computer.
Saved data can be moved to the app and viewed there.
*The smart computer will switch to the smartphone
search screen after 1 second. Keep pressing the
MODE button until the data is reset.
Switch bottom
row display
RESET
Press

FAQ SMART COMPUTER
FAQ
Q
Q
Q
Q
Q
Under what smartphone conditions can devices (smart computers and sensors)
be connected?
How do I disconnect a device from the smartphone?
How can I view the Sensor Direct Mode records?
How do I clear the e-mail, phone, and SMS(text) notification icons displayed
on the smart computer?
Why don’t the values change when using the smartphone’s GPS to measure speed?
ON
Connect
As long as the app is running (including during sleep mode) and
is switched to , the smartphone will normally search for paired devices.
The smart computer will become connected just by searching for a smartphone,
and the sensors will become connected just by transmitting a signal.
Even when disconnected due to noise or distance, both devices will enter the search mode
and automatically reconnect.
Disconnecting is performed using the app.
Sensor Direct Mode ride data saved in the smart computer
can be viewed once the data is transferred to the app.
*After importing, the ride data saved in the smart computer
will be automatically deleted.
*The icon will only be displayed when data has been saved
in the smart computer, and the smart computer is connected
to the smartphone.
The icons will be cleared whenever the trip is paused, regardless of whether the e-mail, phone,
or SMS(text) has been viewed.
It may take a while for the smartphone to acquire a GPS signal, and the speed values may not
change right away when measuring without using the sensors.
Device
*Notifications must be configured under .
ON OFF
Connect
Activity List > Import from CC

Q
Q
Q
Q
Q
SMART COMPUTER
FAQ
Why does uploaded ride data that has been deleted from the web
still show as “Uploaded” on the app?
Why is the smart computer’s screen in sleep mode upon
returning to the bicycle?
Why is there variation in the measurements for ascending altitude?
Why isn’t all ride data displayed under Upload?
Why don’t some map thumbnails show under Activity List?
Upload Account
Activity List
The app shows whether data has been uploaded in the past.
There is no way for the app to know if the data has been deleted from the web.
Note that it is still possible to re-upload ride data that is displayed as Uploaded.
If a refresh mark is displayed in place of the map, the map
display will be reloaded when the activity is opened.
*Depending on the signal strength and smartphone
performance, the display may show as incomplete.
When the smartphone moves away from the bicycle even for a short time,
the smart computer may automatically enter sleep mode.
Press the MODE button to reconnect with the smartphone.
Because altitude measurements rely on the smartphone’s GPS function,
the measured altitude may be different from the actual altitude.
Sleep mode
Only ride data that has not been uploaded to CATEYE Atlas, STRAVA, or Training Peaks is displayed.
To upload previously uploaded ride data to another site,select a different site from .
*Uploading through will push data to those sites turned to ON under .
Tap to reload

SMART COMPUTER
Troubleshooting SMART COMPUTER

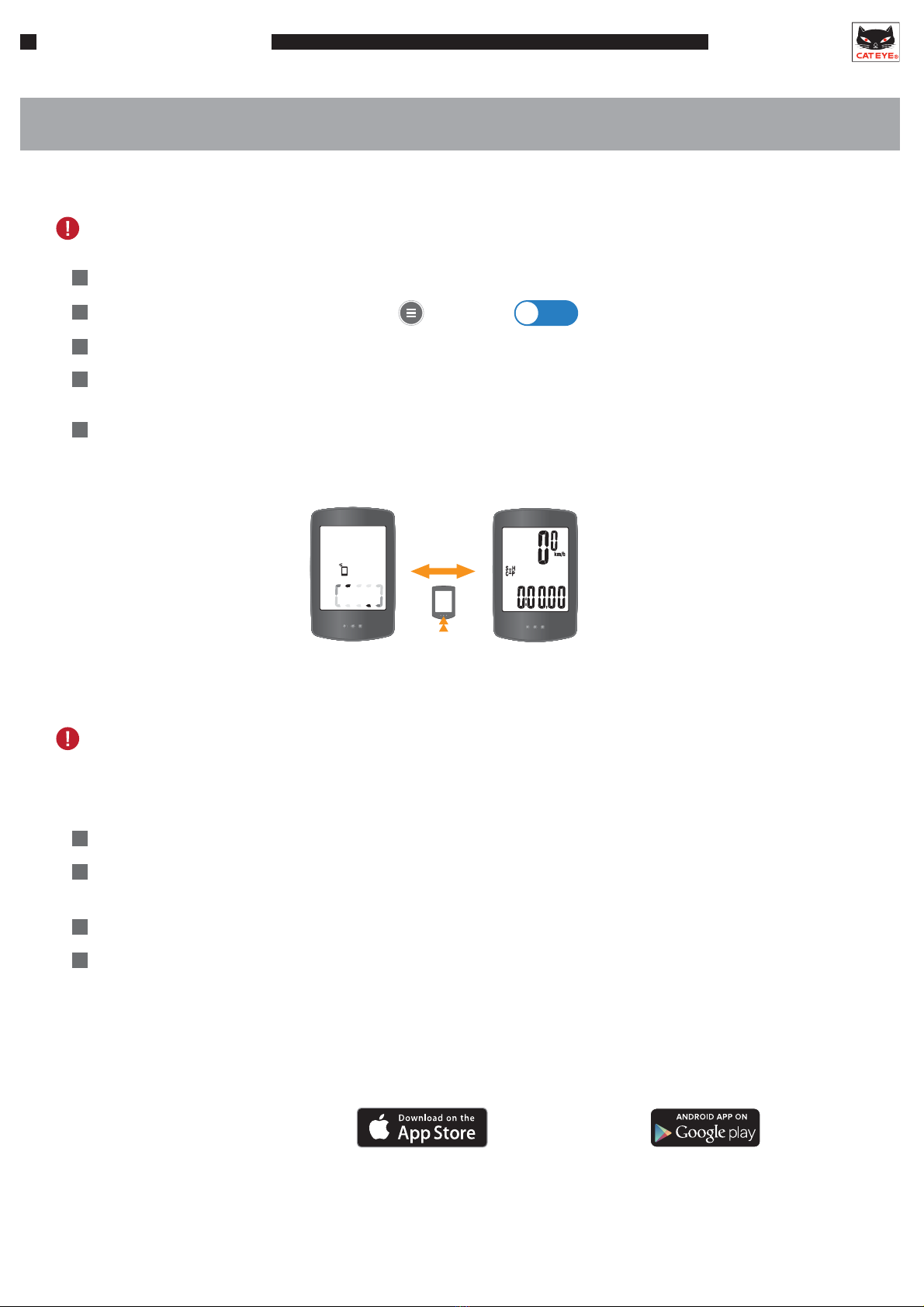

Troubleshooting
Is pairing complete? Pairing must be completed to connect a sensor to a smart computer.
Is there a signal being transmitted from the sensor?
This can be checked using a BLE-related app on the smartphone.
Is there sufficient battery power left in the sensor?
Is the sensor connected to a different smartphone or smart computer?
A sensor can only be connected to one smartphone or smart computer at a time.
Example apps:
BLEScannerLightBlue
A connection with the heart rate sensor or the speed/cadence sensor
cannot be established. (Sensor Direct Mode)
Is Bluetooth on the smartphone turned on?
Is pairing complete? To connect to a smartphone, pairing must be completed.
From the smartphone search screen, switch back to Sensor Direct Mode once
and then try connecting to the smartphone again.
Is the smart computer connected to a different smartphone?
The smart computer can only be connected to one smartphone at a time.
Smartphone search screen Sensor direct mode
A connection with the smartphone cannot be established.
1sec.
Is Connect in Cateye Cycling switched ?
ON
Connect

SMARTPHONE
SENSOR
SMART COMPUTER
Troubleshooting
Check the set tire circumference.
Check the unit setting (km/h, mile).
Check the position and distance between the sensor and the magnet.
Some commercial sensors may require direct pairing separately with a smart computer unit
for using in Sensor Direct Mode.
The sensors may not support Bluetooth4.0 CSCP/HRP/CPP.
Check the specifications for the sensor being used.
3
mm
3
mm
3
mm
3
mm
Has the electrode pad slipped out of position?
Verify that the electrode pad is still in close contact with your body.
Is your skin dry?Slightly wet the electrode pad using a gel or other substance.
Ensure that the CATEYE logo is facing in the proper direction (up).
Electrode pads (back of belt)
Measurements are not displayed properly.
Commercial sensors (Heart rate, cadence, speed, power)
Heart rate sensor
Speed/cadence sensor (ISC sensor)
Other apps may be causing problems with communication or operation.
-Such apps may be interfering with Cateye Cycling’s background operations.
-Such apps may be interfering with Cateye Cycling’s background operations.
-Such apps may be actively preventing communication and,
in turn, preventing Cateye Cycling from operating properly.
Example apps:
Is pairing complete? Pairing must be completed to connect to a connected device.
Is the smart computer or sensor connected to a different smartphone?
When used with another cycling-related app, the apps may compete for connection to the sensor.
If the connection absolutely cannot be established, try switching Bluetooth on the smartphone off and
back on, removing the device and then pairing again, restarting the app, or restarting the smartphone.
Is Bluetooth on the smartphone turned on?
Is Connect in Cateye Cycling switched ?
ON
Connect
A connection with the smartphone cannot be established.
The app or the connected devices are not operating properly .
Power-saving apps
Memory-freeing apps
Cycling apps
