CB2 ACACIA User manual

1 - top
crossbar
1 - bottom
crossbar
Made in Vietnam - r08 Page 1 of 7
acacia MINI BAR
hardware
components
Thank you for purchasing the Acacia Mini Bar. This
page lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components to this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
tools required
phillips head screwdriver
allen wrench (included)
1 - right side
panel
12 - wood
dowels
8 - cam
screws
Missing hardware? Please call
800.606.6387 for replacements.
1 - large door
front
8 - cams 24 - small
screws
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
1 - left side
panel
1 - partition
1 - top
panel
1 - small door
front
3 - glass
shelves
1- back
panel
4 - drawer sides
(2 left, 2 right)
2 - drawer
backs
2 - drawer
bottoms
16 - large
screws
16 - small
bolts
6 - large
bolts
22 - flat
washers
22 - spring
washers
4 - hinges
4 - legs
4 - pulls
8 - pull
bolts
2 - anchors12 - shelf
supports
(We recommend the use of hand tools instead of power tools)
1 - bottom
panel
2 - drawer
fronts

2
acacia MINI BAR
Made in Vietnam - r08 Page 2 of 7

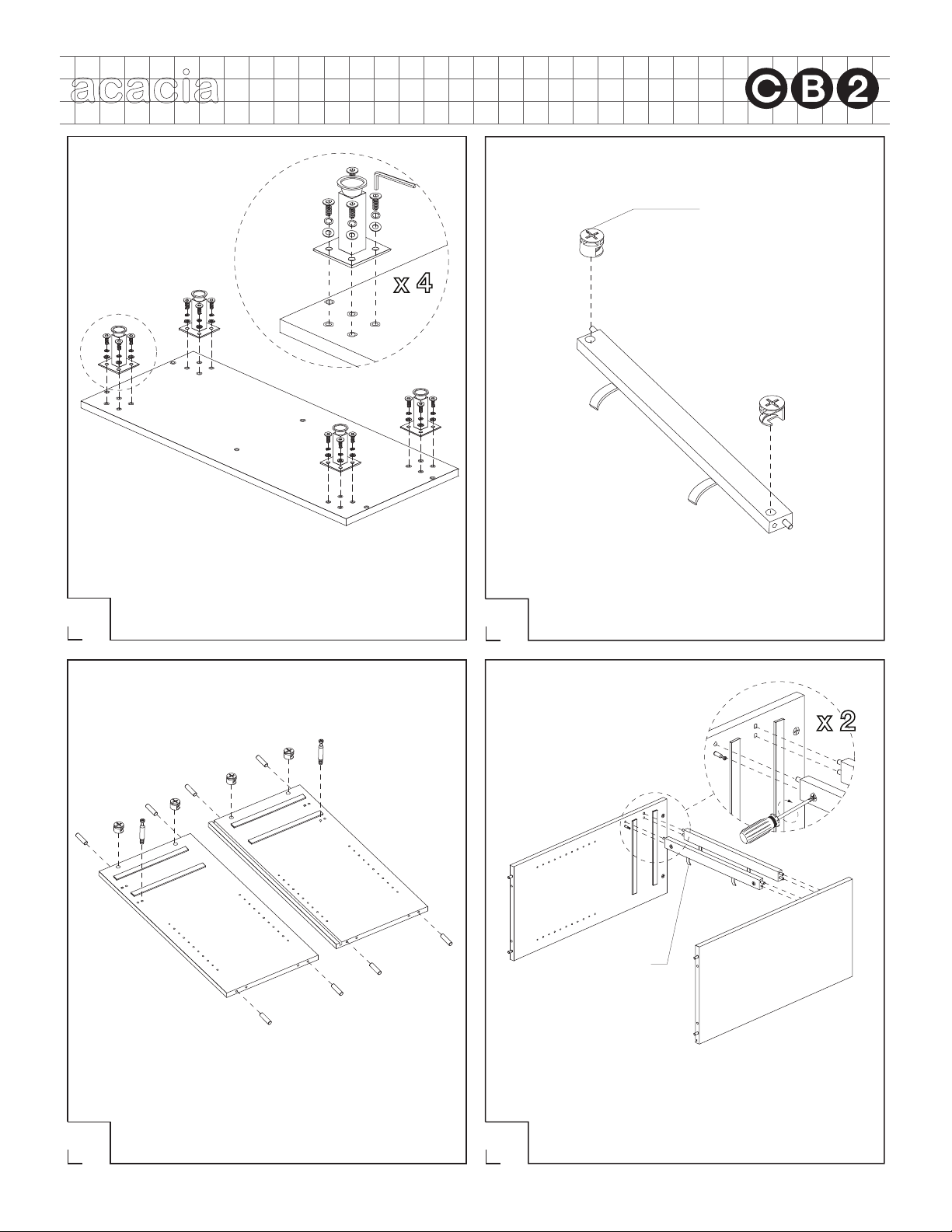

Insert 2 cams into bottom crossbar as shown.
Make sure arrows on each cam points toward
nearest edge with holes.
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
1
3 4
Insert 4 wood dowels, 2 cams, and 1 cam screw
into partition and right side panel as shown.
Secure, but do not over tighten, cam screws with a
phillips head screwdriver.
Fit dowels of top/bottom crossbars into
corresponding holes of partition and right side
panel as shown. Using a screwdriver, turn each
cam clockwise until it securely engages each cam
screw.
Attach 4 legs to bottom panel with 4 small bolts,
4 spring washers and 4 flat washers as shown.
Secure, but do not over tighten, bolts with an allen
wrench.
bottom
crossbar
NOTE: Make sure
arrows on each
cam points toward
nearest edge with
holes
partition
right side
panel
NOTE: Do not
over tighten the
cam screws
partition
right side
panel
top
crossbar
bottom
crossbar
bottom
panel
small bolt
spring washer
flat washer
leg
NOTE: Do not
over tighten the
bolts
NOTE: Make sure
plastic piece on
each crossbar face
up and bend towards
the back of assembly
as shown

6
acacia MINI BAR
Made in Vietnam - r08 Page 3 of 7
Fit dowels of partition and side panels into
corresponding holes of bottom panel assembly as
shown. Secure bottom panel with 6 large bolts, 6
spring washers and 6 flat washers as shown,
using an allen wrench.
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
5
7 8
With the assistance of another adult, carefully
position unit upright. Slide back panel into
grooves of assembled unit as shown. Insert 6 cam screws into top panel as shown.
Insert 4 wood dowels and 2 cams into left side
panel as shown.
bottom panel
assembly
large bolt
spring washer
flat washer
back
panel
left side
panel
top
panel

acacia MINI BAR
Made in Vietnam - r08 Page 4 of 7
Insert tabs of anchor into corresponding corner of
assembled unit of assembled unit as shown.
Secure, but do not over tighten screw with a
screwdriver.
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
9
11 12
Insert 12 shelf supports at desired shelf heights.
10
anchor
shelf
support
A. Attach 2 hinges to small/large door fronts with
2small screws per hinge as shown. Secure, but
do not over tighten, screws with a screwdriver.
B. Attach pull to each door front with 2 pull bolts,
using a screwdriver.
large door
front
small door
front
NOTE: Do not over
tighten the screws
pull
Fit dowels of assembled unit into corresponding
holes of top panel as shown. Secure all cams.
top
panel
A
B

acacia MINI BAR
Made in Vietnam - r08 Page 5 of 7
Slide drawer bottom into groove of drawer
assembly as shown.
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
13
15 16
14
drawer
bottom
Fit dowel of inner drawer front into corresponding
holes of drawer left side, and secure with 2 large
screws.
drawer
front
drawer left
side
Place 3 glass shelves into assembled unit as
shown. Make sure shelves are securely supported
by shelf supports.
glass
shelf
Refer to Hinge Adjustment
diagram for adjusting the
alignment of the door hinges.
Attach hinges of each door front to side panels as
shown. Secure each hinge with 4 small screws
and 1 hinge bolt, using a screwdriver.
door
front

acacia MINI BAR
Made in Vietnam - r08 Page 6 of 7
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
18
19
17
cleaning and care
Clean surfaces witha dry or damp soft cloth.Do not use
abrasive cleaners. Donot use furniture wax or polish as the
unit is finished with a protective clear lacquer. It is
recommended to use coasters to protect surface from heat
and water. Clean glass shelves with glass cleaner.
Insert 2 drawerassemblies into assembled unit as
shown. Push drawerback until you hear a click.
Assembly is nowcomplete.
20
Attach pull to drawer front with 2 pullbolts,
using a screwdriver.
Repeat steps 15-19for remaining drawer
assembly.
pull
Fit dowel of drawer backinto corresponding
holesof drawer assembly, and secure with 2 large
screws.
drawer
back
Fit dowels of drawerassemblyinto
corresponding holes of drawer right side and
secure with 4 large screws.
drawer right
side

acacia MINI BAR
Made in Vietnam - r08 Page 7 of 7
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
hinge adjustment
If the doors do not appear square or aligned,loosen or tighten the appropriate screws on each case hinge as illustrated.
Depth adjustment:
Loosen screw A, push hinge arm
forwards or backwards, re-tighten
screw Aand secure screw Bwith
a 1/4 turn clockwise
Height adjustment:
Loosen screw C, adjust door
height and re-tighten screw C
A
B
123
Side to side adjustment:
Loosen screw A, adjust gap with
screw Band re-tighten screw A
AC
C
