CCTV Wholesales Qtron QT-WIFIKIT-2MP User manual
V1.0.1
WiFi NVR Kits
User Manual
User Manual
WiFi NVR Kits
Declaration
Thank you for purchasing our company’s products, any questions&assistance you need, welcome to
contact us at any time.
This user manual is suitable for wifi NVR Kits( wireless NVR&wireless cameras). It will be updated
according to product’s updating, new version will be not noticed specifically.
If this manual’s any products description not accord with the real products, please in kind prevail.
Safety Precautions
1、Please change the device’s default password in case that your account is stolen.
2、Please do not place and install equipment directly under the sunlight or near heating device.
3、Please do not install equipment at moist place or place with dust or soot.
4、Please keep equipment installed horizontally, or install equipment in a stable place, to avoid
the equipment falling down.
5、Please avoid liquid dropping on the equipment, make sure no objects filled with liquid on the
equipment and prevent liquid from leaking.
6、Please install the device in a well ventilated place, do not block the vents of the equipment.
7、Please only use equipment within rated input/output.
8、Please do not disassembly at liberty.
9、Please transport, use and reserve the equipment within allowing humidity and temperature.
Please pay your attention to exceptions below:
1、Should any reasons below cause the product destroyed or service stop, we will assume no
resposibility for your or third party’s personal injury and property loss: ① No installation or
use according to instruction strictly. ②For sake of state-building maintenance or public interest.
③ Cases of force majeure. ④ Your personal or third party reasons. (Include no limitation use of
third party’s products, software or components)
2、Our company have not in the form of any express or implied to guarantees the product is suitable
for the special purpose or use. This products can’t be used in medical treatment/safety or o other
products breakdown lead to life risk or personal injury and WMD, CBW, nuclear explosion or any unsafe
nuclear energy uses etc dangerous or violation of humanitarian purpose. Any loss or liability resulting
from the above purpose, will be borne by you.
3、With correct installation and use, this product can detect the illegal intrusion, but it can not
avoid accidents and personal injury or property damage due to these accidents. Please be on the alert
in your daily life, reinforce your safety awareness.
4、Our company assume no responsibility for any indirect or occational or special or punitive
damages, request, property damage or any loss of data or file. Within the max scope of law allowed,
our company’s compensation is no more than the products amount you paid.
Disclaimer
User Manual
WiFi NVR Kits
Products Appearance Description
Power input port、WAN、LAN（1、2、3）、VGA、HDMI、USB、Antenna.
Wireless NVR Kits Quick Installation Guide
This Wireless NVR Kits, easy installation, no need cable, plug and play, no need any set up,
Wireless communication uses automatic passwords generation mechanism to ensure that the monitored
video will be not overheard under the default passwords, so please take it easy to use our system.
(The codes have been paired; in case the ESSID and passwords had been changed, you need to match
codes first.)
Step1：Installation Preparation
1. Install HDD. Make sure all power are cut before intalling. Installation tool: Cross
screwdriver.
Notes: Please use the professional hard disk recommended by supplier.
Antenna
LAN
WAN Power input port
VGA
HDMI
USB
2）Fix the HDD on the bottom pannel with screws.1）Unscrew the four
fixed screws, remove the
upper cover.
Notes: Images for instruction use only, the final goods are subjected to the real object.
User Manual
WiFi NVR Kits
3. Make sure WiFi system working well. Connect NVR to monitor, all devices are power on, no need any
setting, auto-pair.
Notes: Please make sure the NVR video output and monitor input have been connected. Please use the
matched power supply in the package, in case that the abnormal power supply lead to abnormal working
and destroy the NVR.
Wireless NVR Kits Quick Installation Guide
WiFi IPC Multiple display
monitoring equipment
HDMI/VGA
WiFi
NVR
Internet
WiFi
Internet
picture transmission
3）Connect data wire and HDD wire between PCB
board and HDD.
4）Fix the upper cover
with screws.
Notes: Images for instruction use only, the final goods are subjected to the real object.
Notes: Images for instruction use only, the final goods are subjected to the real object.
User Manual
WiFi NVR Kits
Wireless NVR Kits Quick Installation Guide
2. Install Antenna. WiFi NVR in the center, make antenna vertical so it can transmit the signal to
all around. IPC antenna should be on the same level or parallel position to receive the better
signal. The antennals all relative is not suggested.
Not Suggested
.......... ..... .... .... ..... ..........
Correct demonstrationIdeal Installation Mode
Suggested
Notes: Images for instruction use only, the final goods are subjected to the real object.
Notes: Images for instruction use only, the final goods are subjected to the real object.
User Manual
WiFi NVR Kits
Start up the NVR, right click the desktop and enter the user log in interface.
Input user name and passwords
System default user name: “admin”, password: “12345”.
Enter preview interface after device start up. Preview interafce include date and time of system,
and channel name. Log in system, double left click to
switch between full screen and multi-screen.
1.Enter menu mode
Log in system, right click to popup shortcut menu.
Left click [Menu], enter the main menu interface.
Left click [Playback], enter playback operation interface.
Left click [Record], enter record setting operation interface.
2.Exit menu mode
Right click to exit menu mode.
In the menu mode, right click to return to previous menu.
Shortcut menu introduction
Right click to popup shortcut menu, the menu consists
with the following three parts:
Preview mode: Select the preview mode in the menu bar
you like.
Shortcut menu mode: There are Poll, Record, Add
Cameraand NVR image, you can click and the enter
corresponding menu directly.
Main menu: It contains [Playback],[Export],[HDD],
[Record],[Camera],[Configuration],[Maintenance],
[Shutdown]eight parts.
System Login
Preview
User Manual
WiFi NVR Kits
3. Motion Detection Setting. Enable “Motion” to activate motion recording, motion sections have
no more than 6 times each day. If the setting of manual record and motion record are overlapped, it
can only save the motion records while motion detection comes up.
Record Setting
1 2
1. HDD formatting. Make sure the hard disk is detected and works well. (You can check status of HDD
from menu “HDD”)
2. Enter “Record”interface to set recording from shortcut menu “Record”or main menu
“Storage”. Default setting is all channels and all time with manual record enable.
User Manual
WiFi NVR Kits
(Video playback interface)
Enter “Playback” interface by clicking “Playback” from shortcut or main menu, select channels
and search the record files and playback what you want.
Playback
Notice:Topromisethesafty,pleaseprohibittheSSIDbrocastafterthe installationis
finished,Entermenu “Configuration”-“Network”-“WIFI”-“Advance”,andtickSSID
Broadcastoninterfanceyousee.
User Manual
WiFi NVR Kits
1. Enter Live View interface by left clicking shortcut menu “1-win” ,“4-win”,“8-win”or
“9-win”. It is available to add single channel or multi-channels on one screen.
2. The default wireless systerm has auto-paired, no need any setting. In case there is no image
shown or ESSID and passwords have been changed, please pair the codes first.
Live View
Please enter “Add Camera ” to pair the codes step by step:
1. Connect Lan port with network cable between IPC and NVR.
2. Delete all the added devices.
3. Click “Add” into the Device Search interface,the interface automatically searches for and
displays the search for the device.
4. Tick all the devices you want to add.
5. Click “Code”.
6. Click “Cancel” to return.
User Manual
WiFi NVR Kits
1.NVR Webpage LAN Access:
① Connect Lan port with network cable between
your PC and NVR.
② Make sure the recorder and the connected PC
are in the same segment. If your PC has different
segment, please set IP address of your PC the same
segment as the NVR’s, for example
“172.20.18.79”, but it must be different IP as
the NVR’s. (Default IP address of NVR is
172.20.18.78.)
③Open IE browser, enable all the ActiveX
and plugins by this path: IE browser - Select
Tools - Internet Options - Safty -
Customized.
④ To pop up the webpage login interface,
you can search the NVR with search tool and
click the search result or input the NVR ip
address (e.g.http://172. 20. 18. 78 /)
directly. （If NVR http port 80 is changed,
then you also need to add the correct port
to IP address.)
⑤ On log in interface, log in NVR please.
Default user: admin, passwords: 12345.
⑥ Webpage live view for NVR. On“Live Video” interface, click “Play” icon to play video.
Webpage NVR Login
(Notice：For first time use, you may be requested to download and install the Plugin plugin.)
User Manual
WiFi NVR Kits
(Notice：For first time use, you may be requested to download and install the Plugin plugin.)
1. IPC Webpage LAN Access：
① Connect Lan port with network cable between
your PC and IPC.
② Make sure the devices and the connected PC are
in the same segment. If your PC has different
segment, please set IP address of your PC the same
segment as the device’s, for example
“172.136.123.101(101~200)”, but it must be
different IP as the NVR’s and IPC’s. (Default IP
address of IPC is 172.136.123.100.)
③ Open IE browser, enable all the ActiveX and
plugins by this path: IE browser - Select
Tools - Internet Options - Safty - Customized.
④ To pop up the webpage login interface, you
can search the IPC with search tool and click
the search result or input the IPC ip address
(e.g.http://172. 20. 18. 11 /) directly. （
You can check IP address of IPC from menu
“Remote Device” of NVR.)
⑤ On log in interface, log in IPC please.
Default user: admin, passwords: admin.
Webpage IPC Login
⑥ Webpage live view for IPC.
1.Enter “Configration” interface.
2.In the [Configuration] select [Network]-[P2P], enter the "P2P" - click "open P2P" - show
"online"Under P2P page, enable P2P. Click “Refresh” till status become Online.
Also please check device S/N numbers on this page.
1
3
4
2
User Manual
WiFi NVR Kits
①Ensure NVR connected with WAN.
P2P WAN Access to NVR
②Open a browser, input http://www.freeip.com/, a P2P webpage pop up, then select “Device SN”
log in, input device series numbers, user, passwords and verification code to log in and view image
through the P2P webpage.
User Manual
WiFi NVR Kits
1.Enter “Network” interface. 2.Under PPPOE page, input the server’s
name, account and IP address.
5
6
4
3.Under P2P page, enable P2P. Click “Refresh” till status become Online.
Also please check device S/N numbers on this page.
②Open a browser, input http://www.freeip.com/, a P2P webpage pop up, then select “Device SN”
log in, input device series numbers, user, passwords and verification code to log in and view image
through the P2P webpage.
①Ensure NVR connected with WAN.
PPPOE WAN Access to NVR
2
1
User Manual
WiFi NVR Kits

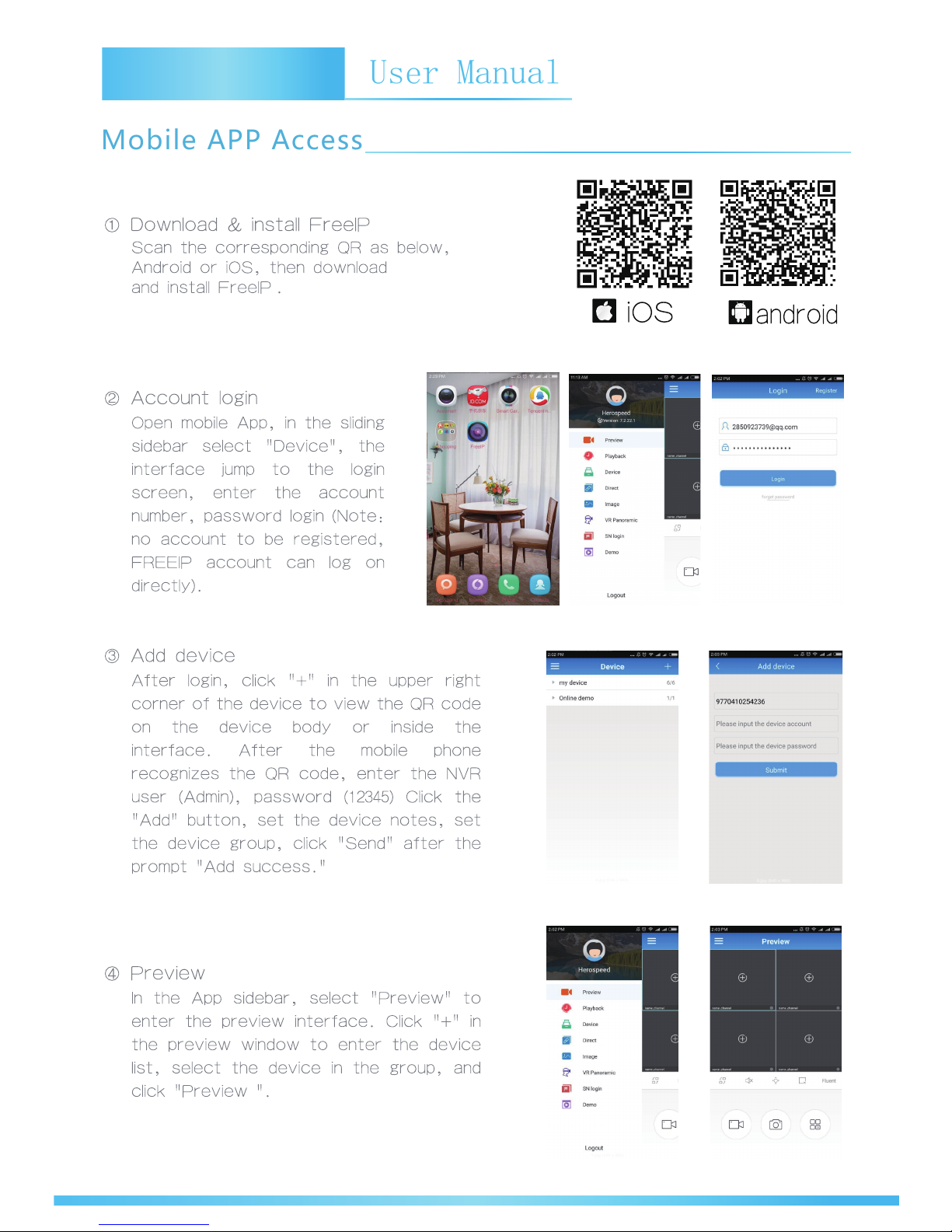

Mobile APP Access
