CDA CD 900 Operation instructions

Double
Ovens
CD 900
CD 906
Before operating this oven,
please read these instructions carefully
Users Operating Instructions

2
Dear Customer
Thank you for choosing one of our appliances, carefully designed and built by
our specialist staff and thoroughly tested to satisfy your cooking requirements.
We suggest that you read this Instruction Booklet so that you will understand
fully how to operate your appliance.
Please keep the booklet handy. You may wish to refer to it at a later date.
CDA

3
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified
technician.
Packing materials (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should
not be left around within easy reach of children, as they may cause serious injuries.
✓ Do not attempt to modify the technical characteristics of the appliance as it may
become dangerous to use.
✓ Do not carry out cleaning or maintenance operations on the appliance without
having previously disconnected it from the electric power supply.
✓ Before disposing of any unwanted appliances it is recommended that all potentially
hazardous parts be made harmless.
WARNING:
✓ This appliance should only be installed by an authorised person of suitable
qualification.
✓ This appliance must be used only for the task it has explicitly been designed for, that
is for cooking foodstuffs. Any other form of usage is to be considered as
inappropriate and therefore dangerous.
✓ Do NOT place combustible materials or products on or in, this appliance at any time.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR
USE OF ELECTRICAL APPLIANCES
When using any electrical appliance some important rules must always be followed.
In particular:
✓ Never touch the appliance with wet hands or feet;
✓ do not operate the appliance barefooted;
✓ This appliance should only be used by responsible adults.
The manufacturer cannot be held responsible for any damages caused by improper,
incorrect or irresponsible use of the appliance.

4
Figure 1b
Figure 1a
Figure 2
USING THE TOP AND THE BOTTOM OVEN FOR THE FIRST TIME
You are advised to carry out the following operations:
✓ Clean the inside of the two ovens with a cloth soaked in water and neutral
detergent and dry thoroughly.
✓ Hang the wire racks on the oven sides (Figure 1a and 1b).
✓ Slide in, on the guides, the shelf and the tray etc. (Figure 2).
✓ To eliminate traces of grease from the
heating elements switch the ovens
on to the maximum temperature in
this way:
For 60 minutes in the position
(top oven), for 30 minutes in the
position (bottom oven), and for
another 15 minutes in the
position.
Use and Care

5
TOP OVEN GENERAL FEATURES
This is a conventional oven with 2 cooking options, thermostatically controlled.
TOP OVEN OPERATING PRINCIPLES
Heating and cooking in the CONVENTIONAL oven are achieved as follows:
a.by normal convection
The heat is produced by the upper and lower heating elements.
b.by radiation
The heat is irradiated by the infra red grill element.
BOTTOM OVEN GENERAL FEATURES
This is a fan oven with 2 cooking options, thermostatically controlled.
BOTTOM OVEN OPERATING PRINCIPLES
Heating and cooking in the FAN oven are obtained as follows:
a. by forced convection
The heat comes from a circular element situated at the rear of the oven, the fan
blows air over the element and circulates hot air around the oven.
b. by radiation
The heat is irradiated by the infra red grill element.

6
A
U
T
O

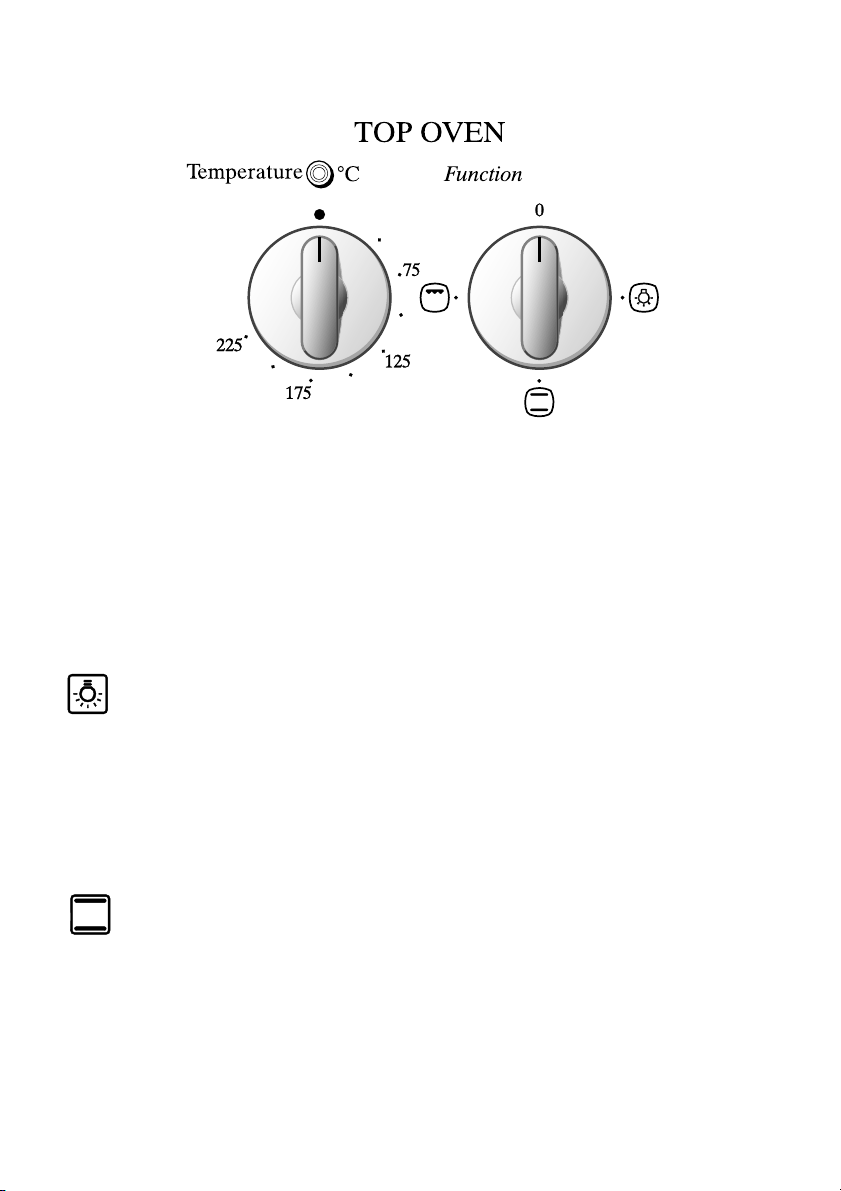

Thermostat
Temperature
light
Temperature
light
Function
selector
Thermostat Function
selector Digital electronic programmer
(Bottom oven only)
Figure 3
Double oven
Models: CD 900, CD 906

7
TRADITIONAL CONVECTION COOKING
The upper and lower heating elements come on. The heat is dispersed by natural
convection and the temperature must be set to between 50° and 225°C via the
thermostat knob.
The oven must be preheated before cooking.
Recommended for:
Food that requires the same degree of cooking both inside and out, for example
roasts, spare pork ribs, meringues etc.
FUNCTION SELECTOR KNOB
(fig. 5)
Rotate the knob clockwise to set the
oven for one of the following functions.
OVEN LIGHT
By setting the knob to this position, only the oven light comes on (15 W).
It remains on in all the cooking modes.
TEMPERATURE SELECTOR
KNOB (fig. 4)
This only sets the cooking temperature
and does not switch the oven on.
Rotate clockwise until the required
temperature is reached (from 50 to
225°C).
Figure 4 Figure 5

8
COOKING IN A CONVENTIONAL TOP OVEN
✓ The oven has two heating elements, one on the base and one on the roof of the
cooker. Hot air rises, so the top of the oven is always the hottest. The temperature
in the middle of the oven is maintained at the temperature set by the control knob,
and is slightly hotter above and cooler below.
✓ In a conventional oven, dishes requiring different temperatures can be cooked in
the oven at the same time - e.g. roast beef and Yorkshire pudding.
✓ Always pre-heat a conventional oven before use.
The oven indicator light will go out when the required temperature is reached. Do
not open the oven door during cooking unless absolutely necessary.
✓ IMPORTANT: Drip trays, baking trays etc. must not be left on the base of the oven
as this could damage the appliance.
GRILLING AND “AU GRATIN”
Switch the grill on by setting the selector knob to position and the thermostat
knob to position 225°C for 15 minutes, then to position 175°C.
Leave to warm up for approximately 5 minutes with the door closed.
Place the food inside positioning the rack as near as possible to the grill.
Insert the drip pan under the rack to collect the cooking juices.
It is recommended that you do not grill for longer than 30 minutes at any
one time.
Remember to keep children away from the appliance when you use the grill
or oven, since these parts become very hot.
GRILLING
The infrared grill element comes on. The heat is dispersed by radiation.
Use with the thermostat set between 50° and 225°C and the oven door closed.
For cooking hints, see the below chapter “GRILLING and AU GRATIN”.
Recommended for:
Intense grilling, browning, cooking au gratin and toasting etc.
It is recommended that you do not grill for longer than 30 minutes at any
one time.

9
FUNCTION SELECTOR KNOB
(fig. 6)
Cook by turning the control knob until
the indicator on it is in line with the
function required.
TEMPERATURE SELECTOR
KNOB (fig. 7)
The light above the function selector
will illuminate when the oven is
switched on and turns off when the
oven reaches the selected temperature.
The light will cycle on and off during
cooking in line with the oven
temperature.
FAN OVEN
Use in conjunction with the temperature selector - It is advisable to pre-heat the oven
for at least 5 minutes. The set temperature has been reached when the indicator
light above the temperature selector goes off.
OVEN LIGHT
The oven light is switched on
FAN
The fan operates without the heating element. This function can be used for
defrosting.
Figure 6 Figure 7

10
COOKING WITH A “FAN” OVEN

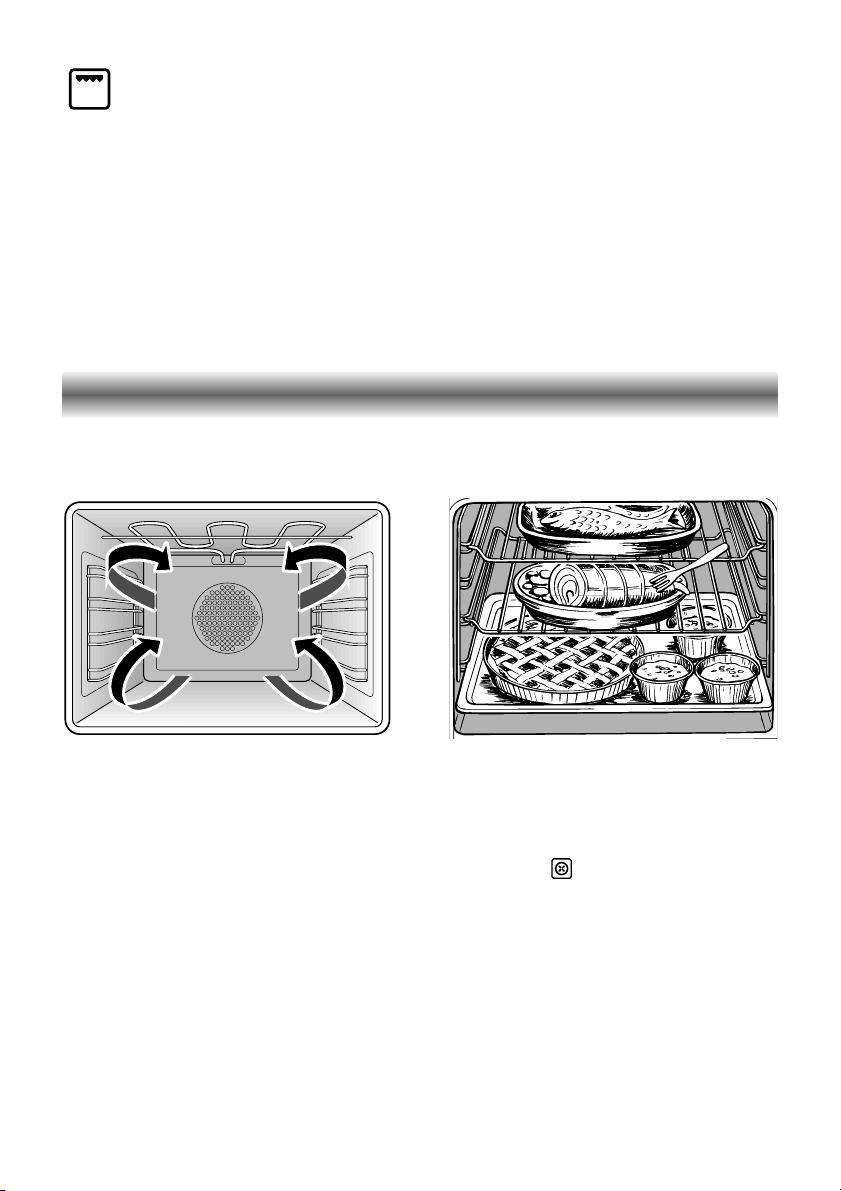

The heat comes from a circular element situated at the rear of the oven, the fan blows
air over the element and circulates hot air around the oven figure 8.
Turn the function selector control knob to position and set the required
temperature with the thermostat control knob.
The set temperature has been reached when the temperature indicator light goes off.
Several different meals may be cooked simultaneously on various shelves, as the
heated air circulates evenly throughout the oven figure 9.
The hot air system cooks more quickly than the conventional static system, therefore
the temperature should be set 15°C - 20°C below those recommended in your recipe
books. The oven door should only be opened briefly while cooking so any heat losses
are quickly recovered when the door is closed.
Cooking advice
Figure 8 Figure 9
GRILLING
Grill with the door closed and do not use the grill for longer than 30 minutes at
any one time.
The grill temperature is variable and can be set between 50 and 200 °C.
Before using the grill, pre-heat for about five minutes. The grill element will become
bright red in colour. Position the grill pan on the highest shelf position and check
continually as the temperature will be very high and food may easily burn.
It is recommended that you do not grill for longer than 30 minutes at any
one time.

11
GRILLING
Turn the function selector control knob to position . Pre-heat grill for about 5
minutes, the infra red grill element in the top of the oven will become bright red in
colour. Place the grill pan with the food brushed with a little oil, in the most
convenient position (usually in the highest position, close to the infra-red grill).
Use the detachable handles to move the grill pan in and out of the oven . Ensure that
the detachable handles are removed so that the oven door can be closed during
grilling.
Check continually, as the temperature is very high and the food might easily burn.
The infra-red grill can also be used for browning meals after ordinary cooking.
The oven is supplied with two grill pan handles which clip on to the grill pan. The
handles must be removed before closing the oven door.
We recomend that you use oven gloves when using the grill pan handles or when
removing the grill pan, or any of the oven shelves, as they become very hot when in
use.
GRILLING NOTE
Always grill with the oven door closed.
It is recommended that you do not grill for longer than 30 minutes at any one time.
To avoid possible smoking during grilling, it is advisable to add a little water to the grill
pan.
The water can be topped up during grilling as evaporation takes place.
DO NOT grill food containing fats without using the grid.
DO NOT cover the grill pan grid with aluminium foil, as this can stop fats draining
away and could possibly cause the fat to catch fire.

12
A
U
T
O
Description of the buttons:
Timer
Cooking time
End of cooking time
Manual position and cancellation
of the inserted cooking
programme
Advancement of the numbers of
all programs
Turning back of the numbers of all
programs and changing the
frequency of the audible signal.
Description of the lighted symbols:
AUTO -flashing - Programmer in
automatic position but not
programmed
AUTO - always lighted - Programmer in
automatic position with
programme inserted.
Automatic cooking taking place
Timer in operation
and AUTO - flashing - Programme
error.
(The time of day lies between the
calculated cooking start and end
time).
Note: Select a function by the
respective button and, in 5 seconds, set
the required time with the /
buttons (“one-hand” operation).
A power cut zeroes the clock and
cancels the set programmes.
The electronic programmer is a device that groups together the following functions:
– 24 hour clock with illuminated display
– Timer (up to 23 hours and 59 minutes)
– Programme for automatic oven cooking
– Programme for semi-automatic oven cooking.
Figure 10 Figure 11
Electronic programmer

13

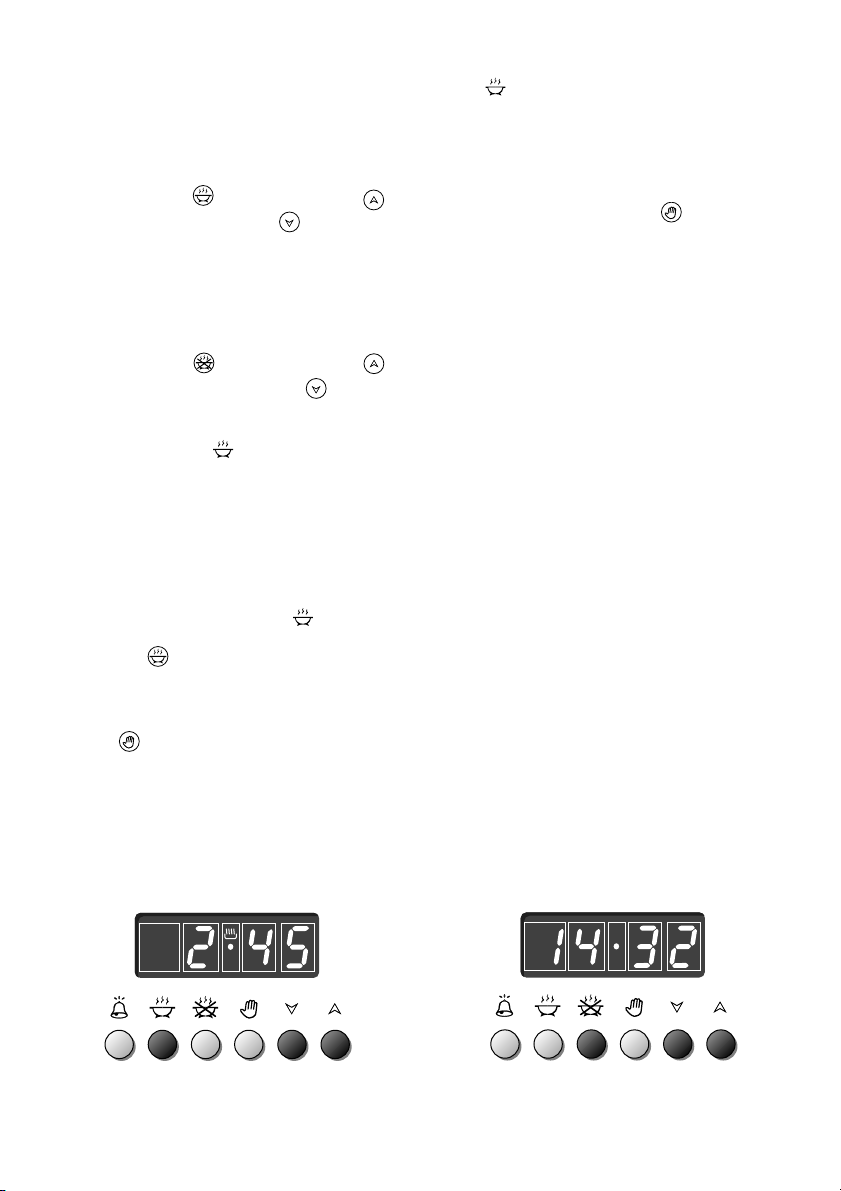

ELECTRONIC CLOCK (fig. 11)
The programmer is equipped with an
electronic clock with lighted numbers
which indicate hours and minutes.
Upon immediate connection of the
oven or after a blackout, three zeroes
will flash on the programmer panel.
To set the hour it is necessary to push
the button and then the or
button until you have set the exact
hour (fig. 11).
Alternatively, simultaneously push the
two buttons and at the same
time push the or button.
Note: Setting the clock deletes any
programme.
A
U
T
O
ELECTRONIC TIMER
The timer programme consists only of a
buzzer which may be set for a
maximum period of 23 hours and 59
minutes.
If the AUTO is flashing push the
button.
To set the time, push the button
and the or until you obtain the
desired time (fig. 13).
Having finished the setting, the normal
time will appear on the panel and the
symbol will appear.
The countdown will start immediately
and may be seen at any moment on
the panel by simply pressing the button
.
At the end of the time, the symbol
will be switched off and an intermittent
buzzer will go off; this can be stopped
by pressing any one of the buttons.
ALTERING THE AUDIBLE
SIGNAL
By pressing the button you can
choose from three variations.
NORMAL COOKING
WITHOUT THE USE OF THE
PROGRAMMER
To manually use the oven, that is, without
the aid of the programmer, it is necessary
to cancel the flashing AUTO by pushing
the button (AUTO will be switched off
and the symbol will go on - Fig. 12).
Attention: If the AUTO is not flashing
(which means a cooking program has
already been inserted), by pushing the
button you have cancelled the
programme and switched to manual.
Figure 12 Figure 13

14
A
U
T
O
A
U
T
O
AUTOMATIC OVEN COOKING
To cook food automatically in the oven,
it is necessary to:
1.Set the length of the cooking time
2.Set the end of the cooking time
3.Set the temperature and the oven
cooking programme.
These operations are done in the
following way:
1.Set the length of the cooking time by
pushing the button and the
button to
advance, or to go back
if you have passed the desired time
(fig. 10). The AUTO and the
symbol will be on.
2.Set the end of the cooking time by
pressing the button (the cooking
time already added to the clock time
will appear), and the button (fig.
13); if you pass the desired time you
may get back by pushing the
button.
After this setting, the symbol will
go off. If after this setting, the AUTO
flashes on the panel and a buzzer
goes off, it means there was an error
in the programming.
In this case, modify the end of
cooking time or the cooking time
itself by following the above
instructions again.
3.Set the temperature and the cooking
programme by using the switch and
thermostat knobs of the oven (see
specific chapters).
Now the oven is programmed and
everything will work automatically, that
is the oven will turn on at the right
moment to end the cooking at the
established time.
During cooking, the symbol
remains on.
By pushing the button you can see
the time that remains until the end of
cooking.
The cooking programme may be
cancelled in any moment by pushing .
At the end of the cooking time the
oven will turn off automatically, the
symbol will turn off, AUTO will flash
and a buzzer will sound, which can be
turned off by pushing any of the bot-
tons.
Turn the switch and thermostat knobs
to zero and put the programmer onto
“manual” by pressing the button.
Attention: A power cut makes the
clock go to zero and cancels the set
programs.
After a power cut three zeroes will flash
on the panel.
Figure 14 Figure 15

15
SEMI - AUTOMATIC COOKING
This is used to automatically switch off
the oven after the desired cooking time
has elapsed.
There are two ways to set your oven:
1. Set the length of the cooking time by
pushing the button and the
button to advance, or to go
backwards if you have passed the
desired time (Fig. 16).
or
2. Set the end of the cooking time by
pushing the button and the
button to advance, or to go
backwards if you have passed the
desired time (Fig. 17).
AUTO and the symbol will be on.
Then set the temperature and the
cooking programme using the oven
switch and thermostat knobs (see
specific chapters).
The oven is switched on and it will
be switched off automatically at the
end of the desired time.
During cooking, the symbol
remains on and by pressing the
button you can see the time that
remains till the end of the cooking.
The cooking programme can be
cancelled at any moment by pushing
the button.
At the end of cooking, the oven and
the symbol will turn off, the AUTO
will flash and a buzzer will sound; that
can be stopped by pushing any of the
buttons.
Turn the switch and thermostat knobs
to zero and put the programmer onto
“manual” by pressing the button.
A
U
T
O
A
U
T
O
Figure 16 Figure 17

16
Cleaning and Maintenance
GENERAL
Installation, and any demonstration, information or adjustments are not included in the
warranty.
We recommend that the installation is carried out by qualified personnel.
After use allow the oven to cool and whilst the oven is still “warm” it should be wiped with
a damp cloth using warm soapy water. With regular cleaning the oven will remain in good
condition.
It is advisable to disconnect the electrical supply to the oven before cleaning is undertaken.
ENAMEL PARTS
In order to maintain the condition of the enamel parts, clean and wipe frequently with hot
soapy water. Any obstinate marks can be removed using a paste or cream cleaner or a well
moistened soap impregnated steel wool pad. Rub gently so as not to damage the surface.
Never use abrasive powders.
Never permit vinegar, coffee, milk, salt water or tomato juice to remain in contact with the
enamel parts as they may stain or discolour the surface.
If any cleaners such as a spray or a stick are used on enamel they must have the VEDC
(Vitreous Enamel Development Council) seal of approval and the manufacturers instructions
must be followed.
REPLACING THE OVEN LIGHT
To replace the interior oven lamp, unscrew the glass guard and make sure that the new
lamp has identical specifications, i.e. 15 Watts, 300°Centigrade. Be sure to switch off the
electrical supply.
STAINLESS STEEL SURFACES
CAUTION:
The stainless steel used in this oven is protected with a Special Lacquer to reduce finger-
print marks.
To avoid damaging this lacquer, do not clean the stainless steel with abrasive cleaners or
abrasive cloths or scouring pads.
ONLY SOAP/WARM WATER MUST BE USED TO CLEAN THE STAINLESS STEEL SURFACES.
BEFORE CALLING FOR ASSISTANCE
If your oven will not work, make sure that:
Electricity is being supplied (check your fuse box; circuit breaker, etc.) and plug fuse.
The appliance is properly plugged in.

17
Figure 18
Figure 19
Figure 20
Figure 21

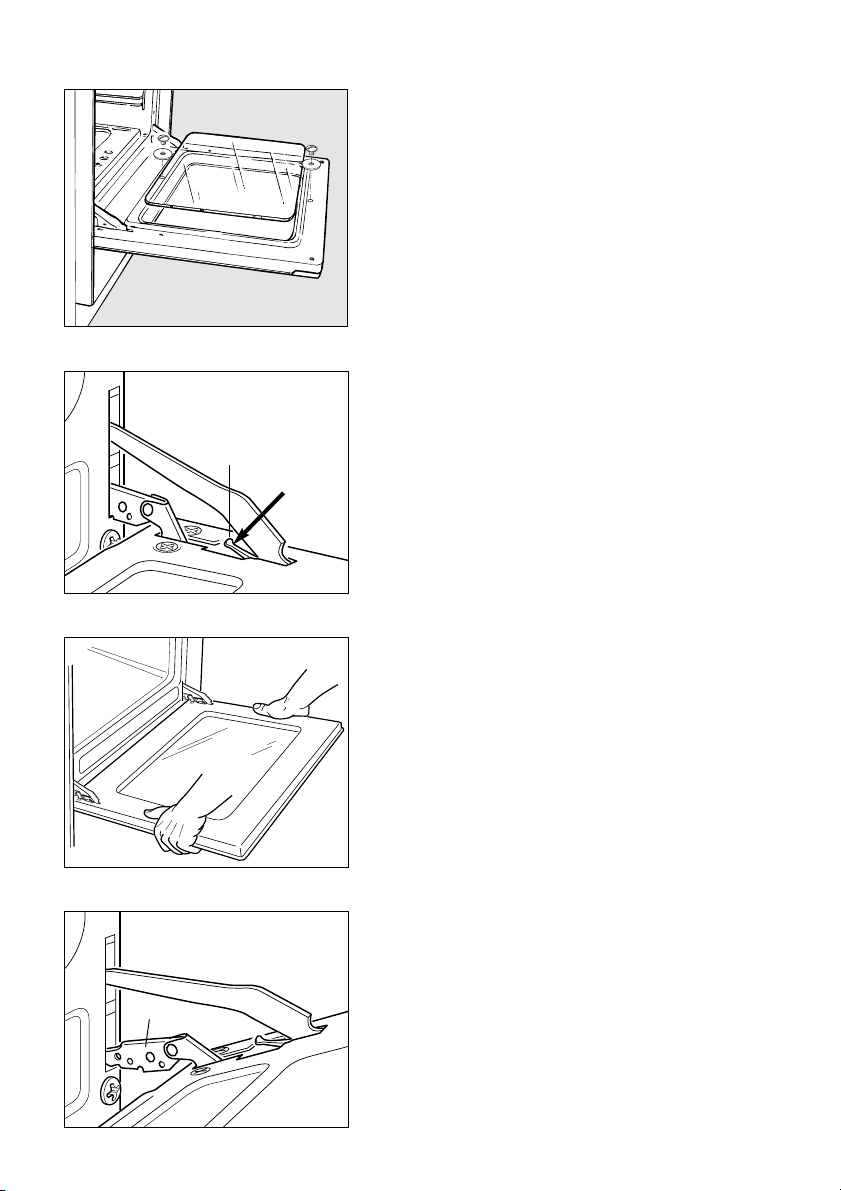

REMOVAL OF THE INNER GLASS
DOOR PANEL
The inner glass door panel can easily be
removed for cleaning by unscrewing the two
screws (figure 18).
During re-assembly, ensure that the inner glass is
correctly aligned and do not over tighten the
screws.
REMOVING THE OVEN DOOR
Please operate as follows:
– Open the door completely.
– Push down the lever “L” and, keeping it in this
position, slowly close the door in order to
lock the hinge (Fig. 19).
– Grip the door (as indicated in fig. 20) and,
while closing it, release the two hinges as
shown in fig. 21.
REASSEMBLING THE OVEN
DOOR
– Grip the door with your hands placed near the
hinges and raise the levers “H” with your
forefingers (fig. 21).
– Insert the hinges in position until the notch on
lever “H” is firmly hooked on the bottom of the
hinge aperture.
– Open the door completely to release levers
“L”.
– If the door is out of line or does not close
properly the hinges are not sitting properly.
Start again from figure 19.
L
H
ATTENTION
The appliance gets very hot, mainly around
the cooking areas. It is very important that
children are not left alone in the kitchen
when you are cooking.

18
DO’S AND DO NOT’S
✓ Do always grill with the oven door closed.
✓ Do always remove the detachable handles when using the grill pan.
✓ Do read the user instructions carefully before using the oven for the first time.
✓ Do allow the oven to heat for one and a half hours, before using for the first time, in
order to burn off any protective oils.
✓ Do clean your oven regularly.
✓ Do remove spills as soon as they occur.
✓ Do always use oven gloves when removing food shelves and trays from the oven.
✓ Do not allow children near the oven when in use.
✓ Do not allow fat or oils to build up in the oven trays, grill pan or oven base.
✓ Do not place cooking utensils or plates directly onto the oven base.
✓ Do not grill food containing fat without using the grid.
✓ Do not cover the grilling grid with aluminium-foil.
✓ Do not use the oven tray for roasting.
✓ Do not clean the oven without first turning off the electricity supply and allow to cool.
✓ Do not place hot enamel parts in water. Leave them to cool first.
✓ Do not allow vinegar, coffee, milk, saltwater, lemon or tomato juice to remain in contact
with enamel parts.
✓ Do not use abrasive cleaners or powders that will scratch the surface of the enamel.
✓ Do not attempt to repair the internal workings of your oven.
✓ Do not grill with the oven door open as damage to the front panel and control knobs
will result.
FOR YOUR SAFETY
The product should only be used for its intended purpose which is for the cooking of
domestic foodstuffs.
Under no circumstances should any external covers be removed for servicing or mainte-
nance except by suitably qualified personnel.

19
Figure 22
560
50
877
888
min. 555
555
594
540
20
Dimensions
(mm)
Height
Width
Depth
888
594
560
877
560
555 min.
Housing
Oven
HOW TO INSTALL YOUR OVEN
You need the following housing area to fit your oven correctly.
The double oven is designed to fit into a cabinet of 600 mm width.
The double oven can be built in the kitchen units, but you must ensure that it is pro-
perly ventilated.
In the diagram the appliance is ventilated by means of the space in the top of the
kitchen cabinet.
Lift the appliance into position onto the shelf, taking care NOT to lift it by the door
handles.
If you lower the oven doors, you will see some screw holes.
The oven should then be secured to the housing by fitting screws into these holes.
Remember the housing should not be free standing but be secured to the wall and/or
adjacent fittings.
✓ This appliance is type X
installation.
✓ The appliance must be
housed in heat resistant
units.
The walls of the units
must be capable of
resisting temperatures
of 75 °C above room
temperature.

20
ELECTRICAL REQUIREMENTS
✓ Connection to the mains must be carried out by qualified personnel in accordance
with current regulations.
✓ The appliance must be connected to the mains checking that the voltage
corresponds to the value given in the rating plate and that the electrical cable
sections can withstand the load specified on the plate.
✓ The plug must be connected to an earthed socket in compliance with safety
standards.
✓ The oven must be connected to the mains using a Double pole switch.
✓ The power supply cable must not touch the hot parts and must be positioned so that
it does not exceed 75°C at any point.
✓ Once the oven has been installed, the switch or socket must always be accessible.
✓ If the power supply cable is damaged it must be substituted by a suitable cable
available from our after sales service.
N.B. For connection to the mains, do not use adapters, reducers or branching
devices as they can cause overheating and burning.
A 30 amp supply is required for connection of this appliance.
Always make sure that the electrical supply is of adequate size.
CAUTION:
✓ This appliance must be installed according to these instructions.
Installation
