Built-in multifunction oven
Use and maintenance

2| Instruction Manual
3 Important information
4 Appliance information
5 First use of the oven
6 Oven layout and accessories
8 Control panel
9 Oven functions
11 Setting the time
13 Adjusting the display brightness
14 Using the grill
15 ECO heating
16 Practical tips
17 Cleaning and maintenance
21 Installation
23 Mains electrical connection
25 Technical assistance
26 Specifications
27 Product fiche
28 Product information
Contents
IMPORTANT: Please read the user instructions carefully before
using the appliance for the first time and before installing it.
Failure to install the oven, or to have it installed, as per the
instruction manual could invalidate the warranty. Any service
calls relating to misuse or incorrect installation could incur a
service charge.

Instruction Manual | 3
Important information
This appliance must only be used for the purpose for which it is intended,
i.e. domestic cooking. Any other use could be dangerous and may lead to
premature failure of the appliance.
The CDA Group Ltd. cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note that CDA
reserves the right to invalidate the guarantee supplied with this product
following incorrect installation or misuse of the appliance.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
User information
• The appliance and its accessible parts become hot during use
• Care should be taken to avoid touching heating elements
• The appliance can be used by children aged from 8 years and above.
Persons with reduced physical, sensory or mental capabilities must
be given instruction or supervision concerning safe operation of the
appliance and understand the hazards involved
• Do not allow anyone unfamiliar with the contents of this instruction
manual to operate the oven
• Do not use harsh cleaning agents or sharp metal objects to clean the
door as they can scratch the surface potentially resulting in cracking or
shattering of the glass
• Take care when opening the oven door during or after a cooking cycle
as hot steam may escape
• Do not use the oven in the event of a technical fault. Any faults must be
fixed by an appropriately qualified and authorised person
• In the event of an incident due to a technical fault, disconnect the power
and report the fault to CDA Customer Care
• The appliance has been designed only for cooking, any other use may
invalidate your warranty and cause danger
• Do not place anything weighing over 15kg on the opened oven door

4| Instruction Manual
Appliance information
Please enter the details on the appliance rating plate below for reference, to
assist CDA Customer Care in the event of a fault with your appliance and to
register your appliance for guarantee purposes.
Appliance Model
Serial Number
EU Declarations of Conformity:
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation and the following European
Directives.
• The Low Voltage Directive 2014/35/EU
• Electromagnetic Compatibility Directive 2014/30/EU
• ErP Directive 2009/125/EU
The product has been marked with the symbol and the Declaration of
Conformity has been issued to the manufacturer and is available to the
competent authorities regulating the market
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
At the end of its working life, the product must be taken to a special local
authority waste collection centre or to a dealer providing appliance recycling
services.
Disposing of a household appliance separately avoids possible negative
consequences for the environment and health. It also enables the
constituent materials to be recovered, saving both energy and resources.
As a reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin .

Instruction Manual | 5
First use of the oven
In order to remove oil residues accumulated during the manufacturing
process and dust accumulated during storage and transport, we recommend
a preliminary cleaning before first use.
Preliminary heating
1. Remove any packaging elements from the oven cavity
2. Turn on ventilation or the extractor fan in the room or open a window
3. Set the oven to 250°C using the rapid preheating function
4. Allow to heat for approximately 30 minutes
5. Turn the oven o and allow to cool
6. To clean the oven use a damp cloth with warm water and a small amount
of washing up liquid
7. Dry with a clean cloth
A slightly unpleasant smell may be emitted during this process due to the
vaporising of oil residue used to protect the oven during storage.
Important! The time “0.00” will start flashing in the display upon
connection to the power supply.
The programmer should be set with the current time. (See Electronic
programmer ). If the current time is not set operation of the
oven is not possible.
The electronic prgrammer is equipped with touch sensors which are
switched on by touching or pressing the sensor surface for at least one
second.
Each sensor reaction is confirmed by the beep.
Keep the sensor surface clean at all times.

6| Instruction Manual
Oven layout and accessories
Electronic
Programmer
Function Selector
Control
Thermostat Control
Thermostat Lamp L
Oven Indicator
Lamp R
Side
racks

Instruction Manual | 7

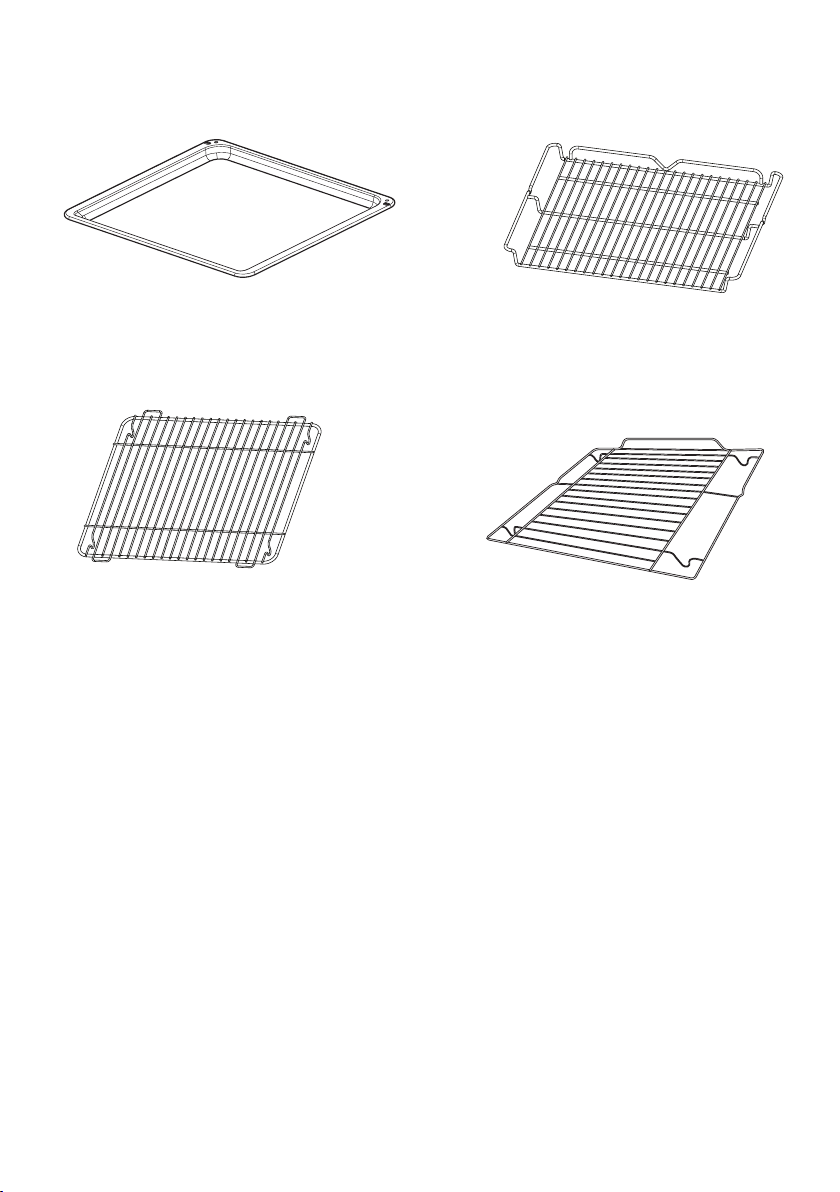

Included accessories:
Baking tray Wire shelf
Grill rack Wire shelf

8| Instruction Manual
Control panel
Select the mode of operation
Higher setting sensor
Lower setting sensor
Appliance on indicator
Kitchen timer
Duration
Operation
Operation of the oven is controlled by the oven function knob – to set a
required function you should turn the knob to the selected position, and the
temperature regulator knob – to set the temperature, turn the thermostat
control clockwise.
The oven can be switched o by setting both of these Controls to the
position “ ”/“ ”.
Caution! When selecting any heating function (switching a heater on etc.)
the oven will only be switched on after the temperature has been set by the
Thermostat Control.
MENU
>
<
o
0
5050
100
150
200
250

Instruction Manual | 9
Oven functions
Rapid preheating
Use to preheat the oven.
Defrost
This function uses the fan
to circulate air, at ambient
temperature within the oven
which helps to accelerate
the defrosting process.
Fanned grill
This function radiates heat
from the grill element and
the top element but also
uses the fan to circulate hot
air. The hot air is distributed
over and under the food that
you are grilling. This fully
temperature variable grill is
ideal for grilling fish or other
items where the appearance
could be spoiled by a
normal grill function. It can
be set between 50°C and
190°C maximum.
Half grill
This function radiates heat
from the grill element. This
fully temperature variable grill
can be set between 50°C and
250°C maximum.
Full grill
In this setting both the
grill and top element are
engaged. This increases
the temperature in the top
part of the oven chamber
making it suitable for
browning and roasting
larger portions of food. It
can be set between 50°C
and 250°C maximum.
Warming oven
This function radiates
heat from the bottom
element, baking cakes from
underneath until done.
Conventional oven
The thermostat enables the
user to set the temperature
within a range of 100°C to
250°C. This setting is ideal
for baking cakes, meat, fish,
bread and pizza. For best
results preheat the oven and
use a baking tray on one
level.

10 | Instruction Manual
Fan oven
This function uses the
circular heating element with
a temperature between 50°C
and 250°C. The fan then
circulates the hot air which
helps to achieve uniform
heat distribution.
Fan assisted oven
This setting is most suitable for
baking cakes.
Fan cooking with lower heat
With this setting the convection
fan and bottom heater are
on, which increases the
temperature at the bottom of
the cooked dish. Intense heat
from the bottom, moist cakes,
pizza.
Light
The oven light will be turned
on.
Eco fan assisted heating
This is an optimised heating
function designed to save
energy. When using this
function the oven light is
intentionally left o.
Switching on the oven is indicated
by two signal lights, R (orange), L
(red), turning on.
The orange light turned on means
the oven is working.
If the red light goes out, it means
the oven has reached the set
temperature.
If a recipe recommends placing
dishes in a warmed-up oven, this
should be not done before the red
light goes out for the first time.
When baking, the red light will
temporarily come on and go
out (to maintain the temperature
inside the oven). The orange
signal light may also turn on at the
knob position of “oven chamber
lighting”.

Instruction Manual | 11
Setting the time
When the appliance is plugged into the electrical mains supply, or when
power is restored after a power cut, the digital display will flash 0.00.
• Touch and hold (or simultaneously touch / ) until is shown
on the display and the dot below the symbol is flashing
• Touch / within 7 seconds to set the current time.
To store the new time setting, wait approximately 7 seconds after the time
has been set. The dot below the symbol will stop flashing. You can
adjust the time later. To do this touch / simultaneously and adjust the
current time while the dot below the symbol is flashing.
Note: The oven can be operated only when you see the symbol is
shown.
You can activate the Kitchen Timer at any time, regardless of the status of
other functions. The Kitchen Timer can be set from 1 minute up to 23 hours
and 59 minutes.
To set the Kitchen Timer:
• Touch , then the display will show blinking
• Use the / sensors to set the Kitchen Timer. The display will show the
set time and Kitchen Timer symbol .
Once the set time elapses, alarm will sound and the icon will flash.
• Touch and hold or simultaneously touch and hold / to mute the
alarm, the will be o and the display will show the current time.
Note: If no button is touched, alarm will turn o automatically after
approximately 7 minutes.
MENU
MENU
MENU
>
>
>
>
>
<
<
<
<
<

12 | Instruction Manual
Minute minder
To set the appliance to switch o after a specific duration:
• Set the function knob and the temperature control knob to your preferred
settings.
• Touch repeatedly until the display shows dur (duration) briefly and
the symbol will be flashing.
• Set the desired duration from 1 minute to 10 hours using the / sensors.
The set duration will be stored after approx. 7 seconds. The display will show
the current time and the symbol. Once the duration has elapsed the oven
will turn o automatically. An alarm will sound and the symbol will be
flashing.
• Set the oven function selector knob and the temperature selector knob to
the o position.
• Touch and hold , or simultaneously touch and hold / to mute the
alarm, the will be o and the display will show the current time.
Cancel settings
The Timer and Timed operation settings may be cancelled at any time.
Cancel Timed operation settings:
• Simultaneously touch and hold the / sensors.
Cancel timer settings:
• Touch the sensor to select the Kitchen Timer.
• Simultaneously touch the / sensors.
Change the beep tone
You can change the beep tones as follows:
• Simultaneously touch the / sensors
• Touch repeatedly to select the ton (tone).
The display will be flashing.
• Use the / sensors to select your preferred tone:
Use to select the setting 1 to 3
Use to select the setting 3 to 1
MENU
MENU
MENU
MENU
>
<
>
>
>
>
>
>
<
<
<
<
<
<

Instruction Manual | 13
MENU
>
<
>
>
<
<
Adjusting the display brightness
You can adjust the display brightness 1 to 9, where 1 is the darkest and 9 is
the brightest. The brightness setting applies to an inactive control panel,
i.e. when no controls are touched for 7 seconds. You can adjust the display
brightness as follows:
• Simultaneously touch the / sensors,
• Touch repeatedly to select the bri (brightness) setting — the
settings can be accessed in sequence ton (tone) and bri (brightness).
• Use the / sensors to select your preferred brightness:
Use to select the setting from 1 to 9
Use to select the setting from 9 down to 1
Note: The display is at its brightest setting when active, i.e. a control was
touched within the last 7 seconds.
Night Mode
The display is automatically dimmed during the night hours 22:00 — 06:00.

14 | Instruction Manual
Using the grill
In order to switch on the grill you need to:
• Set the Function Selector Control to a full or half grill position.
• Preheat the oven for approx. 5 minutes (with the oven door closed).
For grilling with the function grill and super grill the temperature must be set
to 220ºC, but for the function fanned full grill it must be set to a maximum of
190ºC.
Warning! When using function grill it is recommended that the oven
door is closed. When the grill is in use accessible parts can become
hot. It is best to keep children away from the oven

Instruction Manual | 15
ECO heating
ECO heating is an optimised heating function designed to save
energy when preparing food.
You cannot reduce the cooking time by setting a higher temperature;
preheating the oven is not recommended.
Do not change the temperature setting and do not open the oven
door during cooking.
Recommended settings for ECO heating
Type of dish Oven
function Temperature °C Level Time (min)
Sponge cake 180 - 200 2-3 50 -70
Muns 180 - 200 250 -70
Fish 190 - 210 2-3 45 - 60
Beef 200 - 220 290 - 120
Pork 200 - 220 290 - 160
Chicken 180 - 200 280 - 100

16 | Instruction Manual
Practical tips
The times given in the table below apply to any dish that is placed in
to a cold oven.
For a preheated oven the times should be reduced by 5 - 10 minutes.
The figures given below are approximate and can be altered based
on your own experience and cooking preferences.
1) Preheat
2) Baking smaller items
Type of dish Heating Function Level Time [Min] Temperature [°C]
Sponge cake 2 - 3 30 - 50 160 - 200
Muns 3 25 - 40
2)
160 - 170
1)
Muns 3 25 - 40
2)
155 - 170
1)
Pizza 2 - 3 15 - 25 200 - 230
1)
Fish 2 45 - 60 210 - 220
Fish 2 - 3 45 - 60 160 - 180
Fish 2 - 3 60 -70 190
Sausages 4 14 - 18 220
Beef 2 120 - 150 225 - 250
Beef 2 120 - 160 160 - 180
Pork 2 90 - 120 160 - 230
Pork 2 90 - 120 160 - 190
Chicken 2 70 - 90 180 - 190
Chicken 2 45 - 60 160 - 180
Chicken 2 60 - 70 175 - 190
Vegetables 2 40 - 50 190 - 210
Vegetables 3 40 - 50 170 - 190

Instruction Manual | 17
Keeping your oven clean and well maintained helps to prolong its life.
It is important that, before any cleaning or maintenance is performed,
you switch o the oven at the mains supply. Do not start any cleaning
or maintenance until the oven has been allowed to cool completely.
Door removal

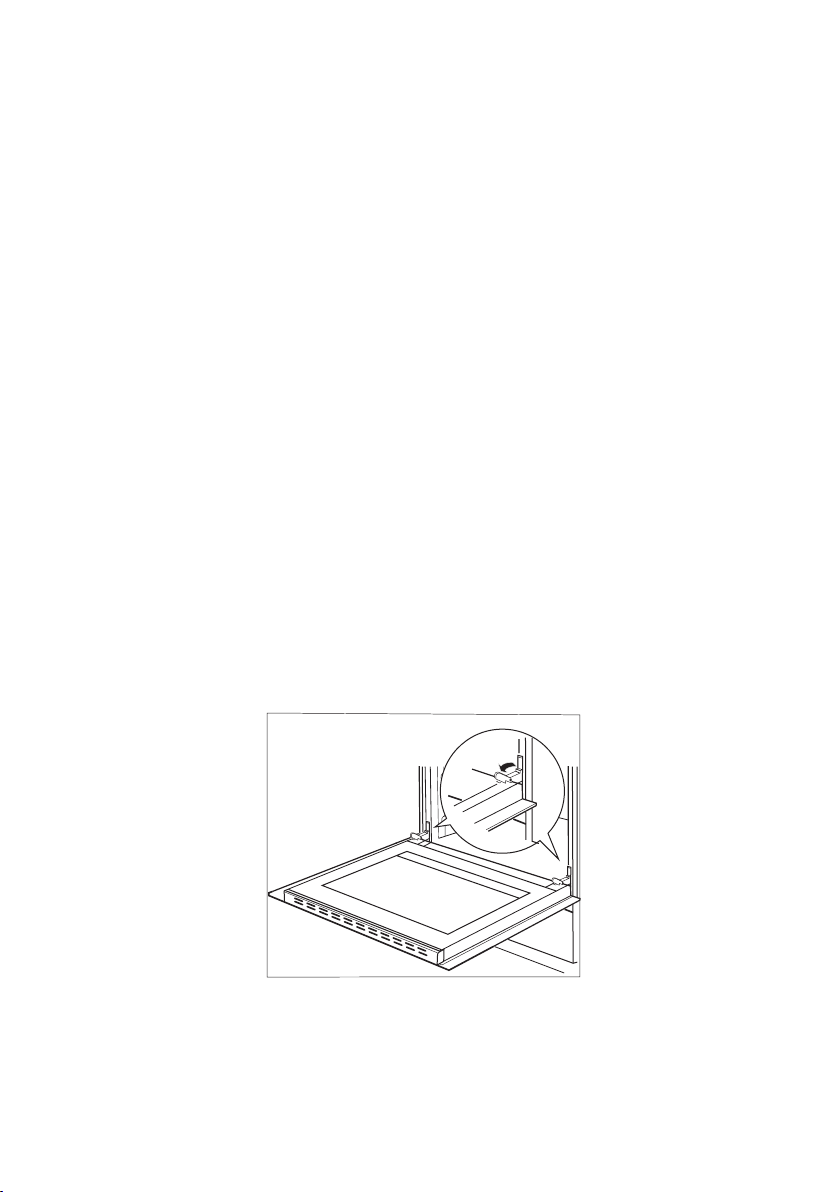

In order to gain better access to the oven cavity for cleaning, it is
possible to remove the door. To do this, lift the safety catch part of the
hinge upwards (fig. A). Close the door lightly, lift and pull it out towards
you. In order to fit the door back on to the oven, follow the steps in
reverse,
When fitting, ensure that the notch of the hinge is correctly placed on
the hinge holder. After the door is fitted to the oven, the safety catch
should be carefully lowered down again. If the safety catch is not set it
may cause damage to the hinge when closing the door.
Cleaning and maintenance
A
Lifting the hinge safety catches

18 | Instruction Manual
Removing the inner panel
1. Using a flat screwdriver unhook the upper door slat, prying it gently
on the sides (fig. B).
2. Pull the upper door slat loose. (fig. B, C)
B
C

Instruction Manual | 19
3. Slide the inner glass out noting the position of any rubber spacers
(fig. D).
4. Clean the panel with warm water with some cleaning agent added.
Carry out the same in reverse order to reassemble the inner glass
panel. Its smooth surface shall be pointed upwards.
Important! Do not force the upper strip in on both sides of the door at
the same time. In order to correctly fit the top door strip, first put the
left end of the strip on the door and then press the right end in until
you hear a “click”. Then press the left end in until you hear a “click”.
Removal of the internal glass panel
D1
1
1
2
2

20 | Instruction Manual

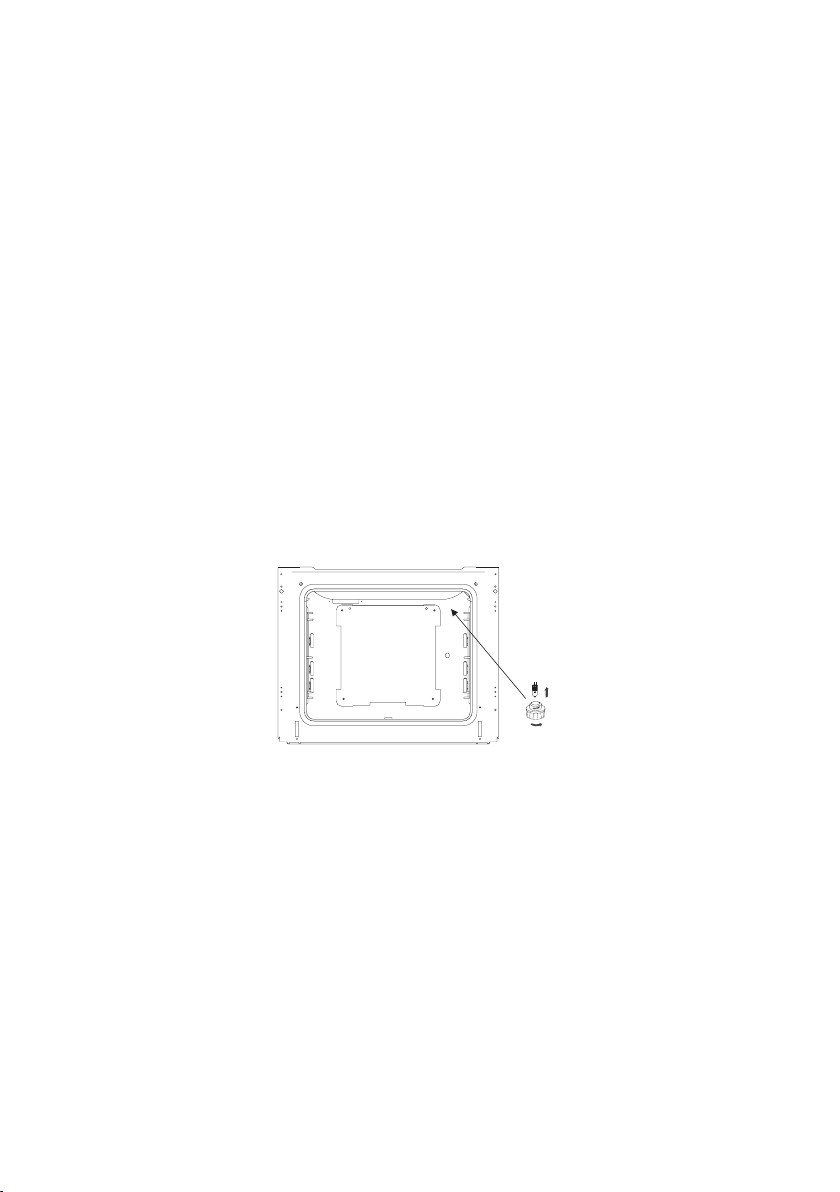

Replacing the halogen bulb in the oven
Before replacing the halogen bulb, make sure the appliance is
disconnected from the mains electricity to avoid the risk of electric
shock.
• Set all control knobs to the position “●”/“0” and disconnect the
mains plug
• Unscrew and wash the lamp cover and then wipe it dry
• Pull the halogen bulb out using a cloth or paper,
if necessary, replace the halogen bulb with a new one
- voltage 230V
- power 25W
- G9
• Replace the halogen bulb in its socket
• Screw in the lamp cover
Oven lighting
