CDP CDP8899 User manual

Version: CDP 190118188
CDP8899
Breath Alcohol Tester
Operation Manual
Read Carefully Before Use
C.D. Products S.A.

2
Notification
➢To ensure the real test result of alcohol concentration of
human blood and avoid sensor damaging, please wait 15
minutes to take test after drinking.
➢Recommend to calibrate the sensor once the tester indicates
CAL "0 Days Left".
➢The sensor may be damaged if the cigarettes smoke is blew
into the tester directly.
➢Avoid to use the tester when environment temperature
exceeds its specified range.
➢Avoid any fall or strong shock.
C.D. Products S.A.

3
Instructions icon
Please know the icons before using this product.
➢Warning—May cause danger to user or others.
➢Caution—May cause damage to tester.
➢Remarks—Notes or instructions for additional
information.
➢[ ] button on the alcohol tester. Such as [ ] shows power
on/off.
➢<> button on the touch screen. Such as <testing>.
C.D. Products S.A.

4
Terms and Definitions
1、Breath alcohol analyzers
Under specified temperature, humidity and pressure,
instrument which to analyze and measure the ethanol
concentration in exhaled deep lung gases.
2、Breath alcohol concentration
The ethanol content in the breath of each liter, for short, BrAC.
The measuring unit is: mg/L.
3、Blood alcohol concentration
The ethanol content in every 100 milliliters of blood, for short,
BAC. The measuring unit is mg/100mL.
4、Gas from deep lung
The gas which breath from deep lung of human.
5、Shift
The degree variation of the measured value of alcohol tester
to a given concentration of ethanol gas over a period of time.
C.D. Products S.A.

5
QUICK GUIDE
Switch on/off: long press [ ]
Steps of testing alcohol content:
1. Install the mouthpiece (see picture).
2. Long press [ ] for power on.
3. Click the <test> icon in the touch screen.
4. Preparing of testing, take a deep breath
now.
5. When screen and voice indicate “Please blow”, then please
blow into mouthpiece regularly and consecutively. When
blowing, a continuous "dip" sound will be issued. Please keep
blowing until “dip” sound ended.
6. When breathalyzer Analyzing the alcohol content, then do not
blow, or else the result will be affected.
7. Result be shown and stored automatically. Click <Enter> to
next step, or click <Cancel> to step 11, that will skip the step
of Driver name, Vehicle No. and Driver license No. input.
C.D. Products S.A.

6
8. Input the driver name: input it by virtual keyboard and click
<Enter> for confirmation.
9. Input the vehicle No: input it by virtual keyboard and click
<Enter> for confirmation.
10. Input the Driver license No. input it by virtual keyboard and
click <Enter>for confirmation.
11. Screen display print interface, which show all testing
information.Click <Print>, Indicates print or not, ifconnect with
printer, then click <Enter> to print the testing results.
Please read the manual carefully for functions and operation
information.
C.D. Products S.A.

7
Table of contents
1. Summary.............................................................................8
1.1 Main functions and features:.........................................9
2. Accessories.......................................................................10
3. Structures..........................................................................11
4. Power on/off ......................................................................12
5. Touch screen usage..........................................................12
6. Preparation before usage ..................................................13
7. Alcohol Content Testing.....................................................17
8. Menu Operation.................................................................22
9. Data Uploading..................................................................29
10. Troubleshooting Guides.................................................30
11. Main Technique Parameter............................................31
C.D. Products S.A.

8
1. Summary
CDP8899 is an advanced portable Breath Alcohol Tester with up-
to-date design in the international field at present. The core
component adopts Changeable Electrochemical Sensor module
and the tester is in more accuracy, high sensitivity, strong anti-
jamming ability and easy calibration. Adopting advanced
technology, CDP8899 could do self-regulation of signal gain,
ensure the successful calibration. And users no need to
disassemble the product. The design of multicolor LCD, simply
keyboard, and touch screen make the tester more concise and
suitable for outside use. The build-in Bluetooth module expand the
choices of printer types. And compatible with funnel blower, it is
convenient for rapid screening and passive testing.
The product is applicable to driving in drunk or alcohol detecting
before busywork, so that it can help us avoid the accident, protect
human life and property safe. The delicate appearance and
comfortable handle are the best choice for alcohol testing.
C.D. Products S.A.

9
1.1 Main functions and features:
➢Using fuel cell smart module, high accuracy and reliability
➢Adopting advanced technology, CDP8899 could do self-
regulation of signalgain,ensure the successful calibration.
Simplified the calibration process.
➢2.8 Inch Touch color display, beautiful and clear.
➢Multi modes of testing: active testing, passive testing and
rapid screen.
➢Simple keyword, touch screen operation.
➢Testing records uploading function.
➢Built in wireless module to realize wireless printing.
➢Providing time and temperature display function.
➢Build in large capacity rechargeable lithium battery.
➢Auto shut off when undervoltage.
➢Having blowing interrupt hint function.
➢Switchable measuring unit, adjustable alarming point.
➢More than 20000 test records can be stored.
➢Password management function, main operations need
password verification.
➢Short preheating time, fast response and quick recovery.
C.D. Products S.A.

10
➢Compatible with disposable anti reflux nozzle and funnel
type nozzle, healthy and safe for people.
➢Large range of temperature design, to meet user’s
requirement to the greatest extend.
➢It has the function of automatic and intelligent
management oftest information (instrument number, time,
tester, test result, etc.).
2. Accessories
Alcohol tester
DC5.5V 1.0A power cords
Date wire
Mouthpiece
User manual
Please use accessories and software under CDP approved,
otherwise the instrument may be damaged or malfunction, the
manufacturer will not guarantee it.
C.D. Products S.A.

11
Could buy accessories from local distributor or manufacturer.
The accessories should provide good support to the alcohol tester.
Other non-original accessories may not be compatible with the
alcohol tester.
3. Structures
Note: Function key will carry the
functions which indicated in left/right down side of screen.
1 Air inlet
2 Light
3 Charge lamp
4 Display/touch screen
5 Function key①
6 On/off /light key
7 Function key①
8 Charging/communication
jack cover
C.D. Products S.A.

12
4. Power on/off
1. Long press [ ] to power on or off the tester
2. Under standby mode, if no operation within 180 seconds
continuously, the tester will give out sound to remind user to turn
off. If you do not want to turn off, please dot the screen or press
any keys, otherwise it will turn off automatically.
3. If the battery was exhausted, the tester will turn off
automatically, please recharge in time.
4. Short press [ ] under standby mode, it could turn on or off the
light of tester, and it is invalid under other operation interface.
5. Touch screen usage
Using finger or other tools to dot the screen to choose the item or
use its functions.
Don’t use sharp tools to avoid scratching the touch screen
No other electronics devices contact with the touch screen,
Electrostatic discharge can cause malfunction of touch screen
C.D. Products S.A.

13
No water, it will cause malfunction of touch screen in humidity
environment or in contact with water.
6. Preparation before usage
Recharging batteries
Using the charger which provided by manufacturer. Other
inapposite
charger will cause explosion or damage tester
Low battery indication
When the tester is with low battery, it will:
⚫Send out alarming;
⚫Show short of battery;
⚫Empty battery icon twinkle.
If the battery was too low, the tester will turn off automatically,
please recharge it in time.
Recharge the tester by adaptor
C.D. Products S.A.

14
Use DC 5.5V adaptor and date line to recharge alcohol tester.
1. Open the charging/communication jack cover at the side.
2. Insert the small terminal of adaptor into recharging jack.
3. Insert the big terminal pin of adaptor into power socket, then
the red indication light of tester will be lighted.
4. If the red light of screen off, and green light is on, it means the
finish of recharging. Please pull out the adaptor.
C.D. Products S.A.

15

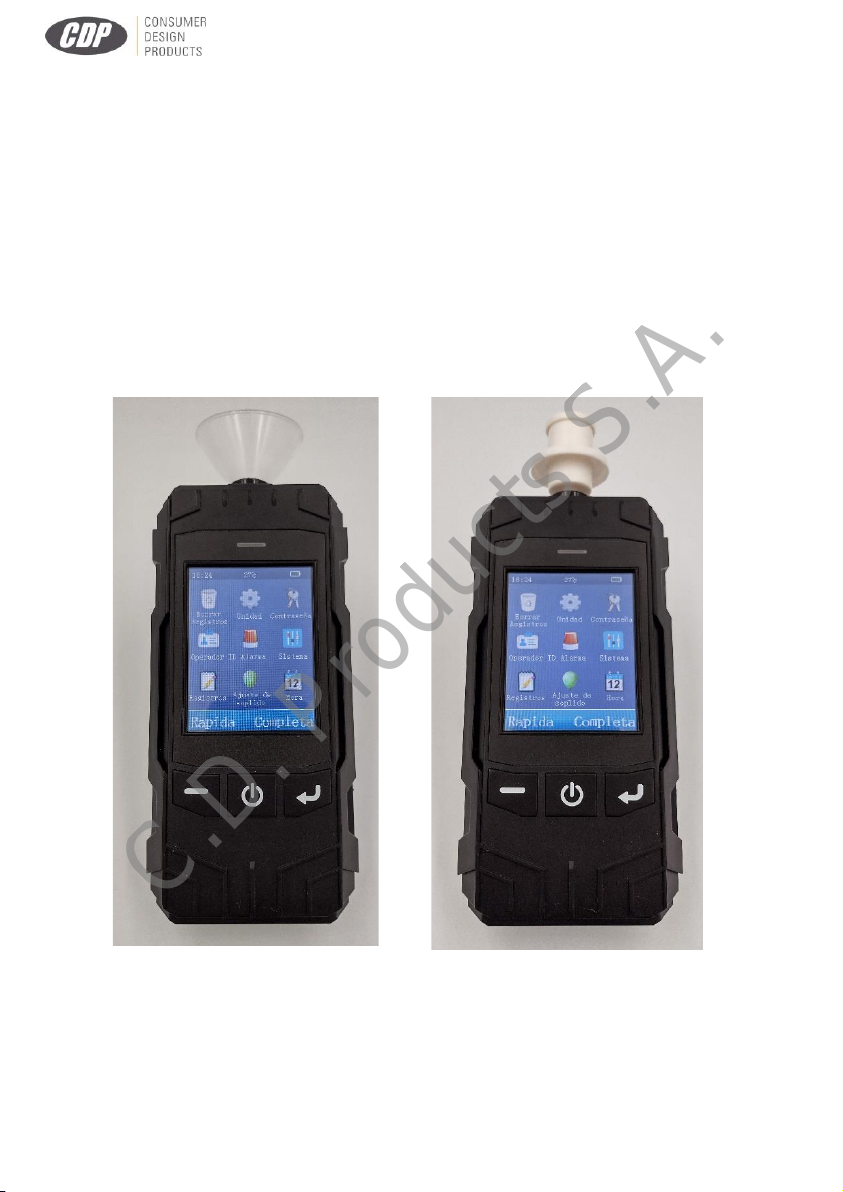

Mouthpiece installation
This tester is equipped with disposable anti-return mouthpiece
which meet hygienic conditions. Before each active blow test, the
disposable anti-return mouthpiece should be replaced. For rapid
screening and passive test, funnel type mouthpiece is available.
C.D. Products S.A.

16
Printer Connecting
Modular thermal printers or independent Bluetooth dot-matrix
printers optional.
Technical data of Bluetooth Thermal Printer:
Paper type: thermal printing paper;
Paper width: 57mm;
Paper roll diameter: ≤25mm.
Technical data of Bluetooth Pin Printer:
Paper type: Pin type printing paper;
Paper width: 57mm;
Paper roll diameter: ≤40mm.
The effective communication distance between tester and
Bluetooth printer is less than 5 m. Please ensure the usage within
the effective distance. The first connection to the printer may take
a long time to search for communication, please wait patiently.
C.D. Products S.A.

17
User Setup
Before carrying out test, please read "Part 8 Menu operation"
carefully and set Measure unit, alarming point, Police ID input and
Time and date etc.
7. Alcohol Content Testing
ACTIVE TESTING
Breath continuity and minimum expiratory volume
Alcohol tester starts to collect a breath sample when the breath
sample greater than 1L. The sample collection will last for more
than 3s. The "blowing interrupt" will be displayed when blowing is
interrupted.
Waiting time for blowing
When the screen displays "Please blow", please use the
mouthpiece to blow continuously & evenly; if no blowing after 30s,
result is displayed and automatically saved, with buzzer beeping
at the same time. If tested persons are unable to blow, click
<Cancel> to active print interface with result saved; Click <Enter>
to active driver name input interface with result saved.
C.D. Products S.A.

18
Active Testing Steps
1. Insert disposable anti-return mouthpiece.
2. Press [ ] to power on.
3. Click [Test].
4. The test person shall take a deep breath during warming
up.
5. When screen showing "Please blow", the test person
must blow into the device continuously and evenly until
the buzzer "drops" stop.
6. No blow allowed during analyzing, otherwise, it will distort
the results.
7. The screen shows the testing result and be saved
automatically. Click<Enter> to next step; click <Cancel>
to step of print directly, skipping the Driver’s name,
Vehicle No. and Driver License No. input interface.
8. Input the driver’s name: From the virtual keyboard to
find the characters which you need, click on them to the
input, click< NEXT >to find other characters in next
page, click < > to delete the characters. When finish
the input, click <Enter> to move next step; or click
<Cancel> to return standby interface.
C.D. Products S.A.

19
9. Input of vehicle No: From the virtual keyboard to find
the characters, and click <Enter>.
10. Input of driver license No.: From the virtual keyboard to
find the characters, and click <Enter>.
11. The screen displays <Print?>, if the tester connected
with printer, please click <Print>, the result will be
printed.
PASSIVE TESTING
When the tested person can't take the initiative to detect the
normal breath alcohol content, the alcohol detector can collect the
breath of the tested person through passive test to complete the
test, and give the qualitative judgment results. Install funnel
mouthpiece. When the screen prompts "Please blow", point the
mouthpiece at the mouth or nostril of the subject. Click the <
Passive > button at the bottom right of the screen. After active
sampling and analysis, the screen displays the passive test
results.
C.D. Products S.A.

20
Passive Testing Steps
1. Insert disposable funnel type mouthpiece.
2. Press [ ] to power on.
3. Click <Test> to next step.
4. Click <Passive>, then the product would take some air
sample from person being tested and active analyzed
with result saved.
5. The screen shows the testing result and be saved
automatically. Click<Enter> to next step; click <Cancel>
to step of print directly, skipping the Driver’s name,
Vehicle No. and Driver License No. input interface.
6. Input the driver’s name: From the virtual keyboard to
find the characters which you need, click on them to the
input, click< NEXT>to find other characters in next
page, click < > to delete the characters. When
finish the input, click <Enter> to move next step; orclick
<Cancel> to return standby interface.
7. Input of vehicle No: From the virtual keyboard to find
the characters, and click <Enter>.
8. Input of driver license No.: From the virtual keyboard to
find the characters, and click <Enter>.
C.D. Products S.A.
