Central Pneumatic 65706 Installation manual

LASER IN-LINE AIR SHEAR
65706
SET UP AND OPERATING INSTRUCTIONS
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
REV 11h

SKU 65706 For technical questions, please call 1-800-444-3353. Page 2
SAVE THIS MANUAL
Keep this manual for the safety warn-
ings and precautions, assembly, operat-
ing, inspection, maintenance and cleaning
procedures. Write the product’s serial
number in the back of the manual near the

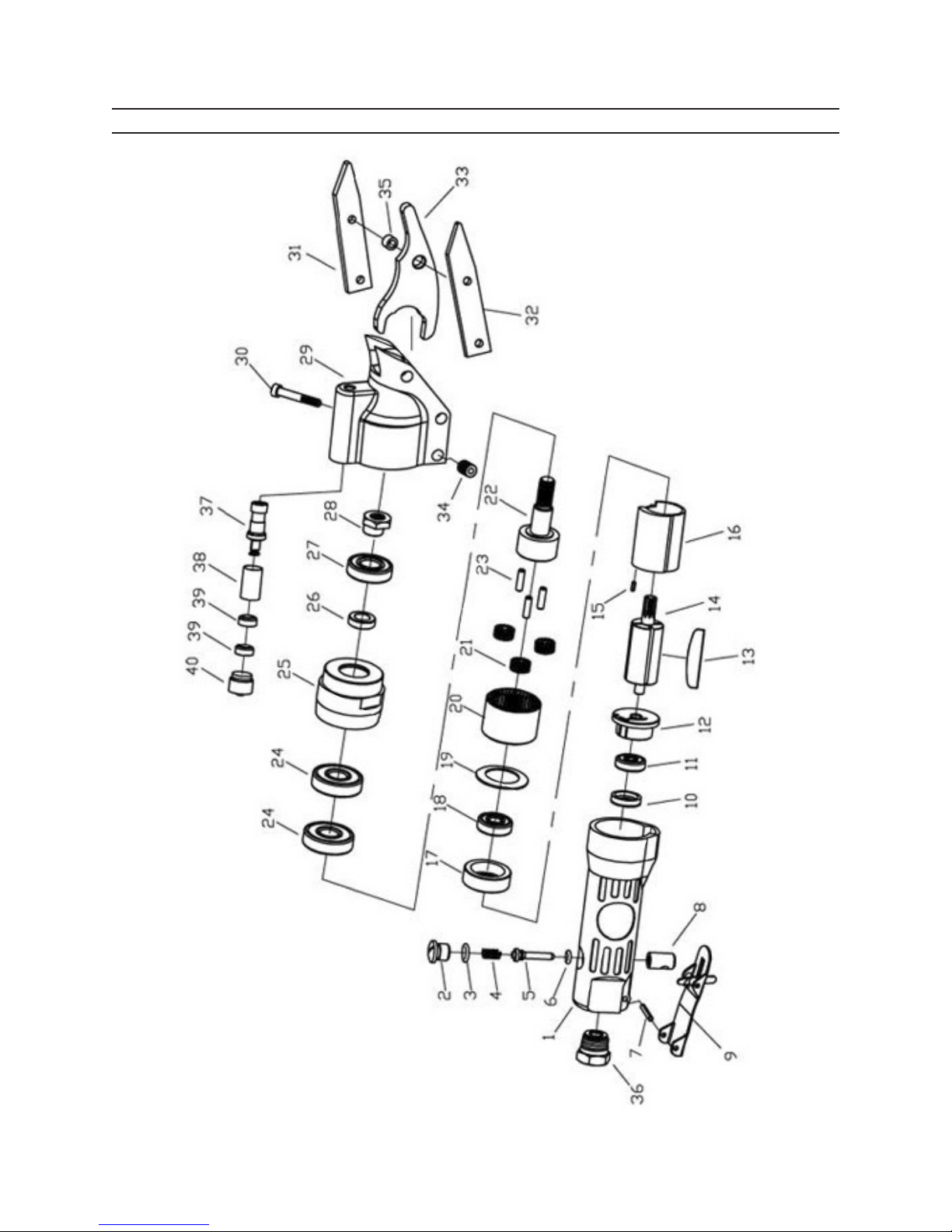

assembly diagram (or month and year of
purchase if product has no number). Keep
this manual and the receipt in a safe and
dry place for future reference.
Safety Alert Symbol and Signal
Words
In this manual, on the labeling,
and all other information provid-
ed with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if
not avoided, will result in
death or serious injury.
WARNING
indicates a
hazardous
situation which, if not
avoided, could result in death
or serious injury.
CAUTION, used
with the safety
alert symbol,
indicates a hazardous
situation which, if not
avoided, could result in minor
or moderate injury.
NOTICE is used to
address practices
not related to
personal injury.
CAUTION, without
the safety alert
symbol, is used to
address practices not related
to personal injury.
IMPORTANT SAFETY
INSTRUCTIONS
INSTRUCTIONS PERTAINING
TO A RISK OF FIRE,
ELECTRIC SHOCK, OR
INJURY TO PERSONS
WARNING – When using tools, basic pre-
cautions should always be followed,
including the following:
General
To reduce the risks of electrica.
shock, re, and injury to persons,
read all the instructions before us-
ing the tool.
Work area
Keep the work area clean and wella.
lighted. Cluttered benches and dark
areas increase the risks of electric
shock, re, and injury to persons.

SKU 65706 For technical questions, please call 1-800-444-3353. Page 3
Do not operate the tool in explo-b.
sive atmospheres, such as in the
presence of ammable liquids,
gases, or dust. The tool is able to
create sparks resulting in the ignition
of the dust or fumes.
Keep bystanders, children, andc.
visitors away while operating the
tool. Distractions are able to result in
the loss of control of the tool.
Personal safety
Stay alert. Watch what you are do-a.
ing and use common sense when
operating the tool. Do not use the
tool while tired or under the inu-
ence of drugs, alcohol, or medica-
tion. A moment of inattention while
operating the tool increases the risk
of injury to persons.
Dress properly. Do not wear looseb.
clothing or jewelry. Contain long
hair. Keep hair, clothing, and
gloves away from moving parts.
Loose clothes, jewelry, or long hair
increases the risk of injury to persons
as a result of being caught in moving
parts.
Avoid unintentional starting. Bec.
sure the switch is off before con-
necting to the air supply. Do not
carry the tool with your nger on the
switch or connect the tool to the air
supply with the switch on.
Do not overreach. Keep properd.
footing and balance at all times.
Proper footing and balance enables
better control of the tool in unexpect-
ed situations.
e. Use safety equipment. A
dust mask, non-skid safety
shoes and a hard hat must
be used for the applicable
conditions. Wear heavy-
duty work gloves during use.
f. Always wear eye protec-
tion. Wear ANSI-ap-
proved safety goggles.
g. Always wear hearing
protection when using
the tool. Prolonged expo-
sure to high intensity noise
is able to cause hearing
loss.
DANGER! Keep hands and bodyh.
away from cutting area and blade.
Keep your second hand on aux-
iliary handle or motor housing.
Contact with the blade will result in a
serious injury.
Do not reach underneath the work.i.
The guard does not protect you from
the blade below the work.
Never hold a piece being cut inj.
your hands or across your leg. It is
important to support the work proper-
ly to minimize body exposure, blade
binding, or loss of control.
Tool use and care
Use clamps or another practicala.
way to secure and support the
workpiece to a stable platform.
Holding the work by hand or against
the body is unstable and is able to
lead to loss of control.
Do not force the tool.b. Use the
correct tool for the application. The
correct tool will do the job better and

SKU 65706 For technical questions, please call 1-800-444-3353. Page 4
safer at the rate for which the tool is
designed.
Do not use the tool if the switchc.
does not turn the tool on or off.
Any tool that cannot be controlled
with the switch is dangerous and
must be repaired.
Disconnect the tool from the aird.
source before making any adjust-
ments, changing accessories, or
storing the tool. Such preventive
safety measures reduce the risk of
starting the tool unintentionally. Turn
off and detach the air supply, safely
discharge any residual air pressure,
and release the throttle and/or turn
the switch to its off position before
leaving the work area.
Store the tool when it is idle out ofe.
reach of children and other un-
trained persons. A tool is dangerous
in the hands of untrained users.
Maintain the tool with care.f. Keep a
cutting tool sharp and clean. A prop-
erly maintained tool, with sharp cut-
ting edges reduces the risk of binding
and is easier to control.
Check for misalignment or bind-g.
ing of moving parts, breakage of
parts, and any other condition that
affects the tool’s operation. If dam-
aged, have the tool serviced before
using. Many accidents are caused
by poorly maintained tools. There is a
risk of bursting if the tool is damaged.
Use only accessories that areh.
identied by the manufacturer for
the specic tool model. Use of an
accessory not intended for use with
the specic tool model, increases the
risk of injury to persons.
Service
Tool service must be performeda.
only by qualied repair personnel.
When servicing a tool, use onlyb.
identical replacement parts. Use
only authorized parts.
Use only the lubricants suppliedc.
with the tool or specied by the
manufacturer.
Air source
a. Never connect to an air
source that is capable of
exceeding 200 psi. Over
pressurizing the tool may
cause bursting, abnormal
operation, breakage of the tool or
serious injury to persons. Use only
clean, dry, regulated compressed air
at the rated pressure or within the
rated pressure range as marked on
the tool. Always verify prior to using
the tool that the air source has been
adjusted to the rated air pressure or
within the rated air-pressure range.
Never use oxygen, carbon dioxide,b.
combustible gases or any bottled
gas as an air source for the tool.
Such gases are capable of explosion
and serious injury to persons.
SAVE THESE
INSTRUCTIONS.

SKU 65706 For technical questions, please call 1-800-444-3353. Page 5
SYMBOLS AND
SPECIFIC SAFETY
INSTRUCTIONS
Symbol Denitions
Symbol Property or statement
noNo-load speed
.../min Revolutions or reciprocation per
minute
PSI Pounds per square inch of pressure
ft-lb Foot-pounds of torque
BPM Blows per minute
CFM Cubic Feet per Minute ow
SCFM Cubic Feet per Minute ow at
standard conditions
NPT National pipe thread, tapered
NPS National pipe thread, straight
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
eye protection.
WARNING marking concerning Risk
of Hearing Loss. Wear hearing
protection.
WARNING marking concerning Risk
of Respiratory Injury. Wear NIOSH-
approved dust mask/respirator.
WARNING marking concerning Risk
of Explosion.
Specic Safety Instructions
The warnings and precautions dis-1.
cussed in this manual cannot cover
all possible conditions and situations
that may occur. It must be under-
stood by the operator that common
sense and caution are factors which
cannot be built into this product, but
must be supplied by the operator.
WARNING: The brass components2.
of this product contain lead, a chemi-
cal known to the State of California
to cause birth defects (or other repro-
ductive harm). (California Health &
Safety code § 25249.5, et seq.)
Obey the manual for the air compres-3.
sor used to power this tool.
Install an in-line shutoff valve to allow4.
immediate control over the air supply
in an emergency, even if a hose is
ruptured.
Use this tool with both hands only.5.
Using tools with only one hand can
result in loss of control.
Do not lay the tool down until it has6.
come to a complete stop. Moving
parts can grab the surface and pull
the tool out of your control.
Vibration Precautions
This tool vibrates during use. Re-
peated or long-term exposure to vibration
may cause temporary or permanent physi-
cal injury, particularly to the hands, arms
and shoulders. To reduce the risk of vibra-
tion-related injury:
Anyone using vibrating tools regu-1.
larly or for an extended period should
rst be examined by a doctor and
then have regular medical check-
ups to ensure medical problems are
not being caused or worsened from
use. Pregnant women or people
who have impaired blood circulation
to the hand, past hand injuries, ner-
vous system disorders, diabetes, or
Raynaud’s Disease should not use
this tool. If you feel any medical or

SKU 65706 For technical questions, please call 1-800-444-3353. Page 6
physical symptoms related to vibra-
tion (such as tingling, numbness, and
white or blue ngers), seek medical
advice as soon as possible.
Do not smoke during use. Nico-2.
tine reduces the blood supply to the
hands and ngers, increasing the risk
of vibration-related injury.
Wear suitable gloves to reduce the3.
vibration effects on the user.
Use tools with the lowest vibration4.
when there is a choice between dif-
ferent processes.
Include vibration-free periods each5.
day of work.
Grip tool as lightly as possible (while6.
still keeping safe control of it). Let
the tool do the work.
To reduce vibration, maintain tool as7.
explained in this manual. If abnormal
vibration occurs, stop immediately.
SAVE THESE
INSTRUCTIONS.

SKU 65706 For technical questions, please call 1-800-444-3353. Page 7
FUNCTIONAL DESCRIPTION
Specications
Maximum Air
Pressure 90 PSI
Air Inlet 1/4” -18 NPT
Strokes per Minute* 2800 SPM
Air Consumption 9 SCFM @ 90 PSI
Cutting Capacity 18 Gauge sheet steel
Cutter Swivel 360° left or right
Cutting Width 7/32” Wide

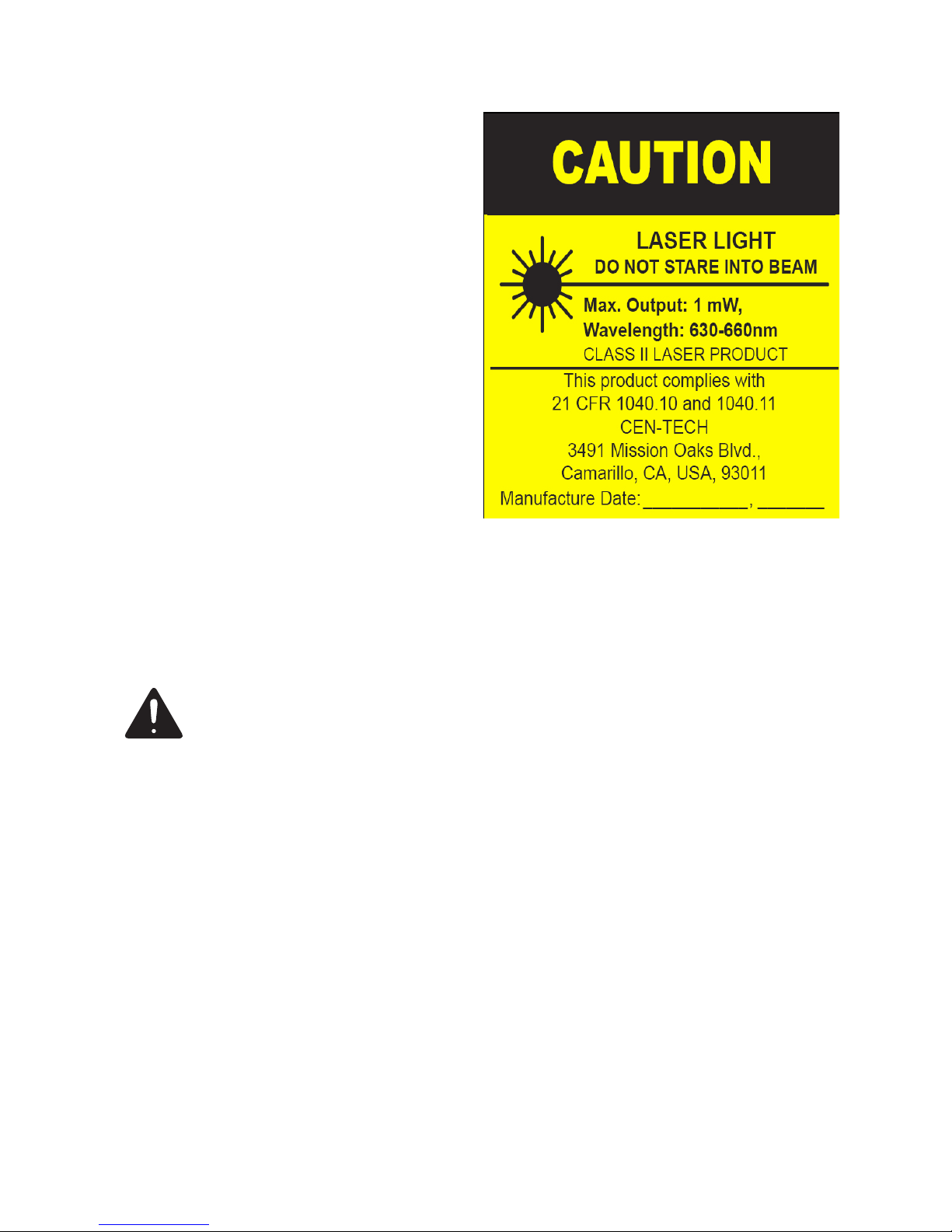

Laser Type Output 1 mW, Class II,
Wavelength: 630 - 660 mW
Laser Batteries (2) LR44 button cells
* Maximum strokes per minute at stated maximum
air pressure. Excess air pressure is hazardous
and may cause the tool to exceed stated maxi-
mum speed.
INITIAL TOOL SET UP/
ASSEMBLY
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Unpacking
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown throughout the manual as soon as
possible.
This air tool may be shipped with a•
protective plug covering the air inlet.
Remove this plug before set up.
Air Supply
TO PREVENT
EXPLOSION:
Use only clean,
dry, regulated, compressed air
to power this tool. Do not use
oxygen, carbon dioxide,
combustible gases, or any
other bottled gas as a power
source for this tool.

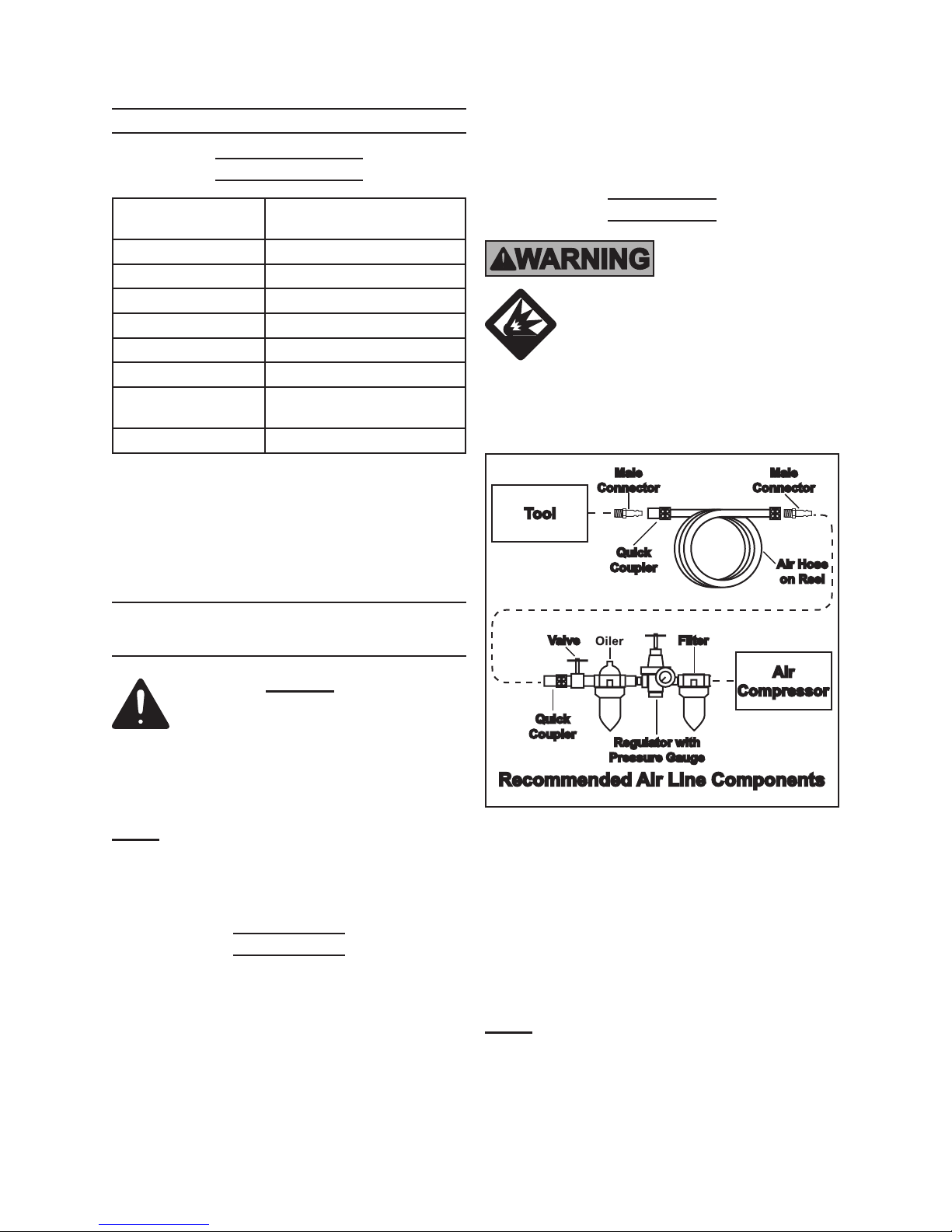

1. Incorporate an in-line oiler, shut-off
valve, regulator with pressure gauge,
and lter for best service, as shown in
the diagram above. An in-line shut-
off valve is an important safety
device because it controls the air
supply even if the air hose is rup-
tured.
Note: If an automatic oiler system is not
used, add a few drops of Pneumatic
Tool Oil directly inside the tool before

SKU 65706 For technical questions, please call 1-800-444-3353. Page 8
operation. Add a few more drops
after each hour of continual use.
Attach an air hose to the compres-2.
sor’s air outlet. Connect the air hose
to the air inlet of the tool. Other com-
ponents, such as a connector and
quick coupler, will make operation
more efcient, but are not required.
WARNING! TO PREVENT SERIOUS
INJURY FROM ACCIDENTAL
OPERATION:
Do not install a female quick
coupler on the tool. Such a coupler
contains an air valve that will allow
the air tool to retain pressure and
operate accidentally after the air
supply is disconnected.
Note: Air ow, and therefore tool perfor-
mance, can be hindered by under-
sized air supply components.
The air hose must be long enough3.
to reach the work area with enough
extra length to allow free movement
while working.
Make sure the tool’s throttle or switch4.
is in the off position; refer to Opera-
tion section for description of con-
trols.
Close the in-line safety valve be-5.
tween the compressor and the tool.
Turn on the air compressor according6.
to the manufacturer’s directions and
allow it to build up pressure until it
cycles off.
Adjust the air compressor’s output 7.
regulator so that the air output is
enough to properly power the tool,
but the output will not exceed the
tool’s maximum air pressure at any
time. Adjust the pressure gradually,
while checking the air output gauge
to set the right pressure range.
Inspect the air connections for leaks.8.
Repair any leaks found.
If the tool will not be used at this9.
time, turn off and detach the air sup-
ply, safely discharge any residual air
pressure, and release the throttle
and/or turn the switch to its off posi-
tion to prevent accidental operation.
Note: Residual air pressure should not be
present after the tool is disconnected
from the air supply. However, it is a
good safety measure to attempt to
discharge the tool in a safe fashion
after disconnecting to ensure that the
tool is disconnected and unpowered.

SKU 65706 For technical questions, please call 1-800-444-3353. Page 9
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Inspect tool before use, looking
for damaged, loose, and
missing parts. If any problems
are found, do not use tool until
repaired.
Tool Set Up
TO PREVENT
SERIOUS INJURY
FROM
ACCIDENTAL OPERATION:
Turn off the tool, detach the
air supply, safely discharge
any residual air pressure in
the tool, and release the
throttle and/or turn the switch
to its off position before
performing any inspection,
maintenance, or cleaning
procedures.
TO PREVENT SERIOUS
INJURY:
Do not adjust or tamper with
any control or component in a
way not specically explained
within this manual. Improper
adjustment can result in
tool failure or other serious
hazards.
Remove plastic protective cap from1.
Air Inlet (36).
Attach Standard Male Air Coupling2.
(not included). Use sealer tape or
putty and tighten enough to ensure
an air-tight seal.
This tool has a safety Trigger (9).3.
To depress the Trigger, you must
rst press the safety lock part of the
Trigger out of the way. This prevents
accidental activation of the Trigger.
This tool is designed to run at 904.
PSI. Before attaching to your air line,
adjust the air pressure regulator to no
more than 90 PSI.
Work Piece and Work Area Set Up
Designate a work area that is clean1.
and well-lit. The work area must not
allow access by children or pets to
prevent injury and distraction.
Route the air hose along a safe route2.
to reach the work area without creat-
ing a tripping hazard or exposing the
air hose to possible damage. The air
hose must be long enough to reach
the work area with enough extra
length to allow free movement while
working.
Secure loose work pieces using a3.
vise or clamps (not included) to pre-
vent movement while working.
There must not be hazardous ob-4.
jects (such as utility lines or foreign
objects) nearby that will present a
hazard while working.
Because cut metal is sharp, always5.
wear ANSI approved goggles and
heavy work gloves when operating
this tool. Protect your work surface,
work material and nearby objects
from being damaged by the sharp
edges produced by this tool. Have a
safe disposal ready for cut off scraps.

SKU 65706 For technical questions, please call 1-800-444-3353. Page 10
General Operating Instructions
If an automatic oiler is not used,1. add
a few drops of Pneumatic Tool Oil
to the airline connection before use.
Add a few drops more after each
hour of continual use.
Mark the line you want to cut on the2.
work material. Since this tool re-
moves 7/32” of material as it cuts, al-
low for this when marking the cut line.
Secure the work piece to the work3.
table using clamps or other suitable
fasteners.
If you will be using the Laser (37) turn4.
it on now, by pressing the ON / OFF
Switch (40).
Turn the tool ON before applying it to5.
the material. Press the safety catch
out of the way, and squeeze the Trig-
ger (9). The tool will begin to operate.
Apply the cutting blades (31-33) to6.
the edge of the work material, and
begin to cut.
Follow your marked cutting line. If7.
you are using the Laser (37) the
Laser Beam will help you follow the
cutting line.
Do not support the material by hold-8.
ing it underneath. You can easily cut
your ngers doing this.
When the cut is completed, release9.
the Trigger, and the tool will cease
operating. If you have used the Laser
(37) turn it OFF by pushing the ON /
OFF Switch (40).
Disconnect the tool from its air supply10.
and set it aside.
Remove the clamps securing the11.
work piece to the work table.
If the tool requires more force to12.
accomplish the task, verify that the
tool receives sufcient, unobstructed
airow (CFM) and increase the pres-
sure (PSI) output of the regulator up
to the maximum air pressure rating of
this tool.
CAUTION! TO PREVENT TOOL
AND ACCESSORY FAILURE, RE-
SULTING IN INJURY:
Do not exceed the tool’s maximum
air pressure rating.
If the tool still does not have sufcient
force at maximum pressure and suf-
cient airow, then a larger tool may
be required.
To prevent accidents, turn off the13.
tool, detach the air supply, safely
discharge any residual air pressure
in the tool, and release the throttle
and/or turn the switch to its off posi-
tion after use. Clean external sur-
faces of the tool with clean, dry cloth,
and apply a thin coat of tool oil. Then
store the tool indoors out of children’s
reach.

SKU 65706 For technical questions, please call 1-800-444-3353. Page 11
USER-MAINTENANCE
INSTRUCTIONS
Procedures not specically
explained in this manual
must be performed only by a
qualied technician.
TO PREVENT
SERIOUS INJURY
FROM
ACCIDENTAL OPERATION:
Turn off the tool, detach the
air supply, safely discharge
any residual air pressure in
the tool, and release the
throttle and/or turn the switch
to its off position before
performing any inspection,
maintenance, or cleaning
procedures.
TO PREVENT SERIOUS
INJURY FROM TOOL
FAILURE:
Do not use damaged
equipment. If abnormal
noise, vibration, or leaking
air occurs, have the problem
corrected before further use.
TO PREVENT EXPLOSION:
Lubricate the tool only
with specied lubricants.
Lubricate the air inlet
using only pneumatic tool
oil. Lubricate the internal
mechanism using only
white lithium grease. Other
lubricants may damage the
mechanism and may be
highly ammable, causing an
explosion.
Cleaning, Maintenance, and
Lubrication
Note: These procedures are in addition to
the regular checks and maintenance
explained as part of the regular op-
eration of the air-operated tool.
Daily - Air Supply Maintenance:1.
Every day, perform maintenance on
the air supply according to the com-
ponent manufacturers’ instructions.
The lubricator’s oil level needs to be
maintained and the moisture lter
must be regularly drained. Performing
routine maintenance on the air sup-
ply will allow the tool to operate more
safely and will also reduce wear on
the tool.
Quarterly (every 3 months) - Tool3.
Disassembly, Cleaning, and In-
spection:
Have the internal mechanism
cleaned, inspected, and lubricated by
a qualied technician. If the vanes
need replacement, all vanes should
be replaced as a set.
If the Laser Light ceases to function,4.
check the Batteries (39). Unscrew
the ON / OFF Switch (40) by turning
it counterclockwise. Drop the Batter-
ies (39) out of the Tube (38). Replace
the batteries, matching the polarity
marked on the Tube. Replace the ON
/ OFF Switch. If the laser light still
does not light, recheck the polarity
positions of the batteries.

SKU 65706 For technical questions, please call 1-800-444-3353. Page 12
If the Laser Light ceases to function, check the batteries.
Troubleshooting
Problem Possible Causes Likely Solutions
Decreased output. Not enough air pressure and/1.
or air ow.
Obstructed trigger.2.
Incorrect lubrication or not3.
enough lubrication.
Blocked air inlet screen (if4.
equipped).
Air leaking from loose5.
housing.
Mechanism contaminated.6.
Vane wear or damage.7.
Check for loose connections and make sure1.
that air supply is providing enough air ow
(CFM) at required pressure (PSI) to the
tool’s air inlet. Do not exceed maximum air
pressure.
Clean around trigger to ensure free2.
movement.
Lubricate using air tool oil and grease3.
according to directions.
Clean air inlet screen of buildup.4.
Make sure housing is properly assembled5.
and tight.
Have qualied technician clean and lubricate 6.
mechanism. Install in-line lter in air supply
as stated in Initial Set Up: Air Supply.
Replace all vanes.7.
Housing heats
during use.
Incorrect lubrication or not1.
enough lubrication.
Worn parts.2.
Lubricate using air tool oil and grease1.
according to directions.
Have qualied technician inspect internal 2.
mechanism and replace parts as needed.
Severe air
leakage.
(Slight air leakage
is normal,
especially on
older tools.)
Cross-threaded housing1.
components.
Loose housing.2.
Damaged valve or housing.3.
Dirty, worn or damaged valve.4.
Check for incorrect alignment and uneven1.
gaps. If cross-threaded, disassemble and
replace damaged parts before use.
Tighten housing assembly. If housing cannot2.
tighten properly, internal parts may be
misaligned.
Replace damaged components.3.
Clean or replace valve assembly.4.
Laser does not
light.
Batteries are worn.1.
Laser electrical contacts are2.
dirty.
Laser Module (37) is3.
damaged.
Replace batteries.1.
Clean Laser Module (37) and ON / OFF2.
Switch (40) contacts.
Replace Laser Module (37).3.
Follow all safety precautions whenever diagnosing or servicing the
tool. Disconnect air supply before service.

SKU 65706 For technical questions, please call 1-800-444-3353. Page 13
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE
BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER
INSTALLATION OF REPLACEMENT PARTS THERETO.
Part # Description QTY.
1 Housing 1
2 Valve Plug 1
3 O-Ring 1
4 Spring 1
5 Valve Spindle 1
6 O-Ring 1
7 Valve Spindle 1
8 Pin 1
9 Trigger 1
10 End Plate Cap 1
11 Ball Bearing 1
12 Rear End Plate 1
13 Rotor Blades 4
14 Rotor 1
15 Pin 1
16 Cylinder 1
17 Front End Plate 1
18 Ball Bearing 1
19 Washer 1
20 Idler Gear 1
Part # Description QTY.
21 Gear 3
22 Spindle 1
23 Gear Pin 3
24 Ball Bearing 2
25 Nut 1
26 Washer 1
27 Ball Bearing 1
28 Eccentric Nut 1
29 Cutter Housing 1
30 Lock Screw 3
31 Right Blade 1
32 Left Blade 1
33 Center Blade 1
34 Lock Nut 3
35 Bushing 2
36 Air Inlet 1
37 Laser Module 1
38 Tube 1
39 Battery 2
40 ON / OFF Switch 1
PARTS LIST

SKU 65706 For technical questions, please call 1-800-444-3353. Page 14
ASSEMBLY DIAGRAM

SKU 65706 For technical questions, please call 1-800-444-3353. Page 15
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality
and durability standards, and warrants to the original purchaser that this product is free
from defects in materials and workmanship for the period of 90 days from the date of
purchase. This warranty does not apply to damage due directly or indirectly, to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, criminal
activity, improper installation, normal wear and tear, or to lack of maintenance. We shall
in no event be liable for death, injuries to persons or property, or for incidental, contingent,
special or consequential damages arising from the use of our product. Some states do
not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation of exclusion may not apply to you. This warranty is expressly in lieu of all other
warranties, express or implied, including the warranties of merchantability and tness.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the complaint
must accompany the merchandise. If our inspection veries the defect, we will either
repair or replace the product at our election or we may elect to refund the purchase price
if we cannot readily and quickly provide you with a replacement. We will return repaired
products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning
the product.
This warranty gives you specic legal rights and you may also have other rights which
vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
REV 11h
