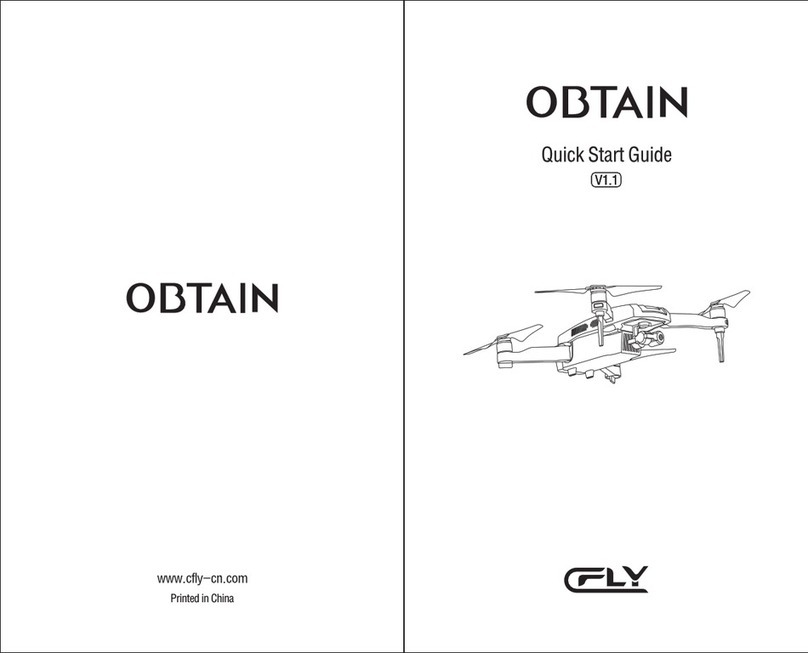

CFLY obtain User manual

Quick Start Guide

OBTAIN is a foldable quadcopter with a stable camera and flexible flight
characteristics.
With this quadcopter you are able to:
•With its 5 Megapixel camera you can take photos and record Full High Definition
video at 1080P. It's so easy to capture a complicated shot.
•The maximum flight speed is approximately 43 km/h. (27 miles per hour)
•Hover time 23 minutes.
Aircraft Diagram
⑨⑨
①①
②②③③
⑥⑥
⑤⑤
④④⑦⑦
⑧⑧
① Drone Head Indicator Light
②Propeller
③Gimbal
④Power Switch
⑤Drone Status Indicator Light
⑥Micro USB
⑦Frequency button
⑧Motor
⑨Intelligent Battery

①①
⑥⑥
④④
1.
2.Mobile Device Support
3.Flight Mode Switch
4.Channel Reservation
5.Control Stick
6.Indicator Light
7.Power Switch
8.Take off / Landing Switch
9.Video / Photo Switch
10.Gimbal Adjustment
11.Mobile Device Support
Extension Button
12.Channel Reservation
13.Return to Home Switch
14.USB Charging Port
Antennas
Remote Controller Diagram
①①
②②
③③
⑧⑧⑨⑨
⑤⑤⑦⑦⑤⑤
⑩⑩
12
11
13
14

Gimbal Diagram
Roll:-30°~30°
Yaw:-45°~45°
Pitch:-90°~0°
①
②
Camera
SD card Slot
Gimbal Specification:
The 3-Axis gimbal can turn in three directions to make filming and
shooting pictures easier:

Preparation before flight
Prepare the Battery
Check battery level
1.Check the battery level of the aircraft
Make sure the battery is charged full when you use the battery for the
first time. Please check the battery power of the battery button for
checking the current battery level.
LOW FULL
Power
outlet
Power indicator Light
2.Charge the Batteries of the aircraft
Green light flashing
(stand by)
Red Normally on
(charging)
Green Normally on
(charge complete）
Charger
Adapter

3.Charging of Remote controllerthe Batteries
Please put the battery into remote controller before charging.
The Indicator light shows Green when is charge complete.
Indicator
Light
Red Light Normally on(On Charging)
Green Light Normally on( Charge Complete)
Micro USB
Preparation aircraft
All the arms of the aircraft are fold up on delivery, as shown below:
1. Firstly, please open the front arms, as shown below:

· FIRSTLY open the front arms before the back arms.
• You have to rotate the back arms 180 , then spread the back
arms 60° to the outside.
°
180°
60°
2. Secondly, rotate the back arms 180° to make the propeller come up
as shown
3. After that spread the arms 60°, as shown below:
4. Spread the propellers as shown below:

10
Please use your mobile device to connect C-Fly APP for checking the
Real-Time Transmission, And enjoy your flying ,Photo /Video and so on.
Prepare Remote Controller
Expand the antennas
outward, like is shown above. Rotate the antennas,
as shown above.
Adjust the antennas to 45° with
the remote control and expand
the mobile device support as
shown above.
Put the battery into the
back slot of the remote
control, like shown above.
Put the mobile device in the
mobile device support like this.
In this section you will find how to open the mobile device support and to
adjust the antennas.

SD
The Gimbal cover for protective the Gimbal.
Please install the Gimbal cover after finish your flight.
·
•
1.Remove the gimbal cover and gimbal clamp from the camera as
shown below:
2. Insert the Micro SD Card in the SD Card Slot.
·
aircraft is turned on.
• To ensure the stability of the camera system, video files will be of
the duration of 30 minutes per file.
Do not remove the Micro SD card from the OBTAIN when the
Prepare Gimbal

Flight
1. Insert the battery inside the aircraft's battery slot.
2. Put the aircraft on a flat surface.
S
P
A
Switch to
“A Mode”
Channel
Reserved OFF
Return
Home OFF
OFF
ON
OFF
ON
OFF
ON
3.Turn on OBTAIN Remote Controller
a.Before Turn on the remote controller, please switch the “ Flight Mode”
to “A Mode”“Return switch”,”Channel Reserved” to be remain closed.
Channel
Reserved OFF

b.Please make sure all the switch is turn off. After turn on the switch of controller.
The controller will show Green Light.
5.Connect GPS Signal
Indicator light shows Green.
Aircraft green light is always on
S
P
A
Switch to P mode
4 urn on the power of the aircraft..T
To switch on the OBTAIN
Short-press and then
Long-Press the power button
2s to switch off, follow the
same process.
Turn on the power of the Remote controller and then turn on the power
of the aircraft.
a. Wait for the "aircraft status indicator" to show that the green light is always on,
when the aircraft is connected to the GPS signal to locate the return point.
b . Switch the aircraft mode to P mode, and the aircraft can take off safely and
other operations

Moving the throttle up and the pitch forward at the same time,
will make the aircraft fly forward very fast.
7.After the OBTAIN starts to fly, you can control the aircraft with the control
sticks, also can through the button of “ Photo/Video” for shooting.
Long-press “Take off/ Landing switch” on the remote for 3S, The sounds of
remote Bi-Bi-Bi, The aircraft will automatically take off to 1.2meters.
6.Start Your Flight Experience
You can start the flight manually, like shown:
1.2m
Short-press for photo, Long-Press 2-3s for video, when on Video,
you also can take a photo.
Take Off, like shown: Landing, like shown:
Or Turn off the aircraft manually, like shown:
Left joystick Right joystick
Throttle/Up
Right yaw
Left yaw
Throttle down
Forward
Backward
Left
sideways
Fly
Right
sideways
Fly
a.Suggest you operation like below shown:

After landing on the ground, the motor automatically stops running.
Waiting for the wing to stop spinning completely.
Turn off the aircraft power (short-press and long-press for 2S), then
close the remote control and finish the flight.
Turn off the aircraft power Turn off the remote power
Return to Home Function
OFF
ON
If the OBTAIN flies away or in an unknown direction, you can switch on the
Return to Home-function. Just wait for the aircraft to come back. When the
aircraft is landing, you can use the rubber controls to land in a safe place.
When the OBTAIN has lost the signal of the remote control. It will
automatically return to the take off place.
When the OBTAIN has a low battery, it will automatically return to
the take off place.
When In the process of return, The left joystick can not control.
Please turn off the aircraft power, and then turn off the remote power.
Right joystick
Forward
Backward
Left
sideways Fly Right
sideways Fly

Right joystick
Forward
Backward
S
P
A
Flight mode
S
P
A
S
P
A
Flight around one point:
When you choose S-mode, the OBTAIN will fly around one point
automatically. By moving the right stick of the remote control backward,
you widen the circle radius. The operation is shown below:
S-mode:
After selecting S-mode, the quadcopter rotates automatically.
By moving the right stick of the remote control up or down, you can
decide de measure of the radius of the circle.
When you choose P-mode, you will be
able to fly by the GPS signal,the position
of the OBTAIN will be automatically
adjusted by the GPS-signal.
P-mode:GPS Location Mode:
A-mode:Altitude Hold Mode:
When you choose A-mode, you will be
able to fly the OBTAIN manually.
Though you still will have altitude hold
activated. The GPS Location Mode will
not be available.
In flight mode P, the aircraft should get a stable GPS signal to be
able to fly.

Fly Safe
120m
Fly in Open
Areas Strong GPS
Signal
Maintain Line
of Sight Fly Below
400 feet(120m)
Flight safety conditions
Threats to flight precautions
No flying environment
DO NOT use the aircraft adverse weather conditions such as
rain,snow,fog and wind speeds exceeding 10 m/s( 22mph)
≥10m
Stay away from the rotating propellers and motors.
Avoid flying over or near obstacles, corwds, high voltage power lines, trees
or bodies of water.
DO NOT fly near strong electronmagnetic sources such as power lines and
base stations it may affect the onboard compass.

Normal Flight Status Information:
Light Color Indicator Status description
Solid blue light
Solid green light
Flashing green light
Green light flashing twice
Blue light flashing twice
The light is flashing
blue and red
The light is flashing
red and green
System Self-Test.
GPS position is locked.
GPS position is not locked.
GPS position cannot be locked.
Use visual location system.
Remote control is connected.
Compass must be horizontally
calibrated. After calibration lights
will be normal.
Compass must be vertically
calibrated. After calibration lights
will be normal
Indicator Light of Aircraft
The front LED lights on the aircraft show the flight direction of the
quadcopter. When the power is switched on the lights will be solid Green.
The back LED light of the aircraft show the flight status, please read the
below table to understand the different colors of the back light.
OBTAIN flight status indicator light explanation:
Warning Status Information:
Light Color
Solid red light
Red light flashing twice
Flashing red light
Serious system fault.
Serious low-voltage alarm.
Low-voltage alarm.
Indicator Status description
Flashing blue light Remote control is not connected.
The light is flashing
blue and green
Compass data error: compass
needs to be calibrated
Drone Head
Indicator Light
Drone Status
Indicator Light Indicator Light
Drone Head
Indicator Light

Scan the below QR-Code to download the OBTAIN Mobile Device
Application for your phone
More information on OBTAIN and all our other products you will find on:
http://www.cfly-cn.com
Android IOS
Indicator Light of Remote
Indicator light state of Remote when Running
Serious Mistake
Low voltage alarm, need charging
or reset Joystick
Low battery Power, remote will be
closed after sounds and flashing
Remote control Turn on, without
any operating within 3s. It will
disappear when you operating
Prompt tone
None
Bi-Bi-Bi
BiBi-BiBi-BiBi
BB-BB-BB
B-B-B
Remote controller Normally
Return to home Mode
Joystick Calibration
Charging when remote turn off
charging
charge complete
Download Mobile Device Application
Light Color Indicator Status description
Solid green light
Flashing
green light
Green light
flashing twice
Solid red light
Red light
flashing twice
Flashing
red light
Light Color Indicator Status description
Solid red light
Solid green light
None
None
The light is flashing
red and green

www.cfly-cn.com
