Chamberlain 3000 User manual

pg 1
For Classes I, II, III,
IV

pg 2
GeneralInformation.................................................................................................................3
Features...................................................................................................................................5
PartsIdentification...................................................................................................................6
Installation................................................................................................................................8
Pg.
Contents
MasterandSlave...................................................................................................................18

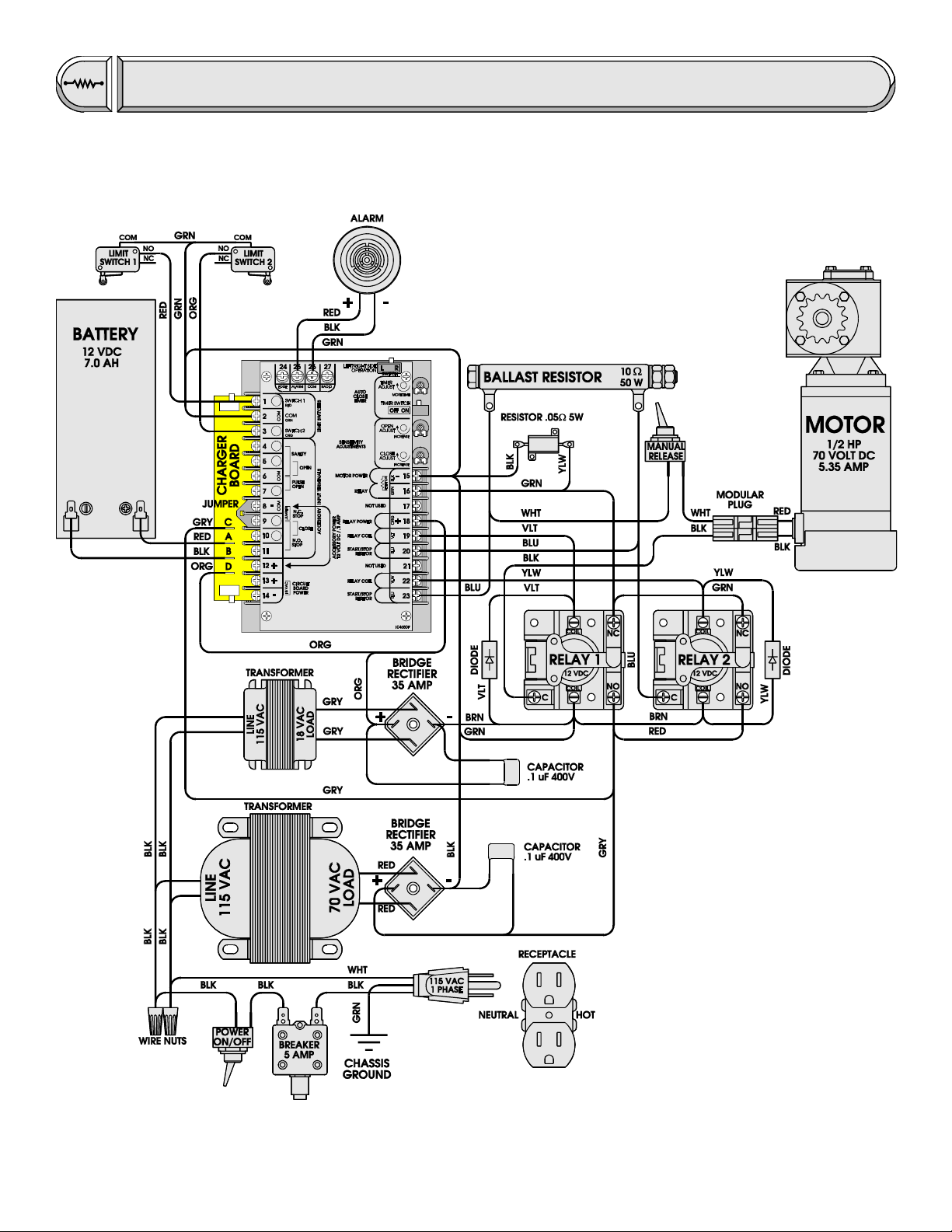

WiringDiagrams....................................................................................................................19
FineTuning............................................................................................................................17
Electrical................................................................................................................................13
AlternateInstallation..............................................................................................................12
Options..................................................................................................................................23
Safety Edge and Warning Placards.......................................................................................21
MaintenanceandSafety........................................................................................................25
TroubleShooting....................................................................................................................26
IMPORTANT SAFETY INSTRUCTIONS
WARNING - To reduce the risk of injury or death:
1) READ AND FOLLOW ALL INSTRUCTIONS
2) Never let children operate or play with gate controls. Keep the remote control away from children.
3) Always keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4) Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or stop when an object activates the non-contact sensors.
After adjusting the force or the limit of travel, re-test the gate operator. Failure to adjust and re-test the gate operator properly can increase the risk of
injury or death.
5) Use the emergency release only when the gate is not moving.
6) KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a qualified service person make repairs to gate hardware.
7) The entrance is for vehicles only. Pedestrians must use separate entrance.
8) SAVE THESE INSTRUCTIONS.

pg 3
General Information



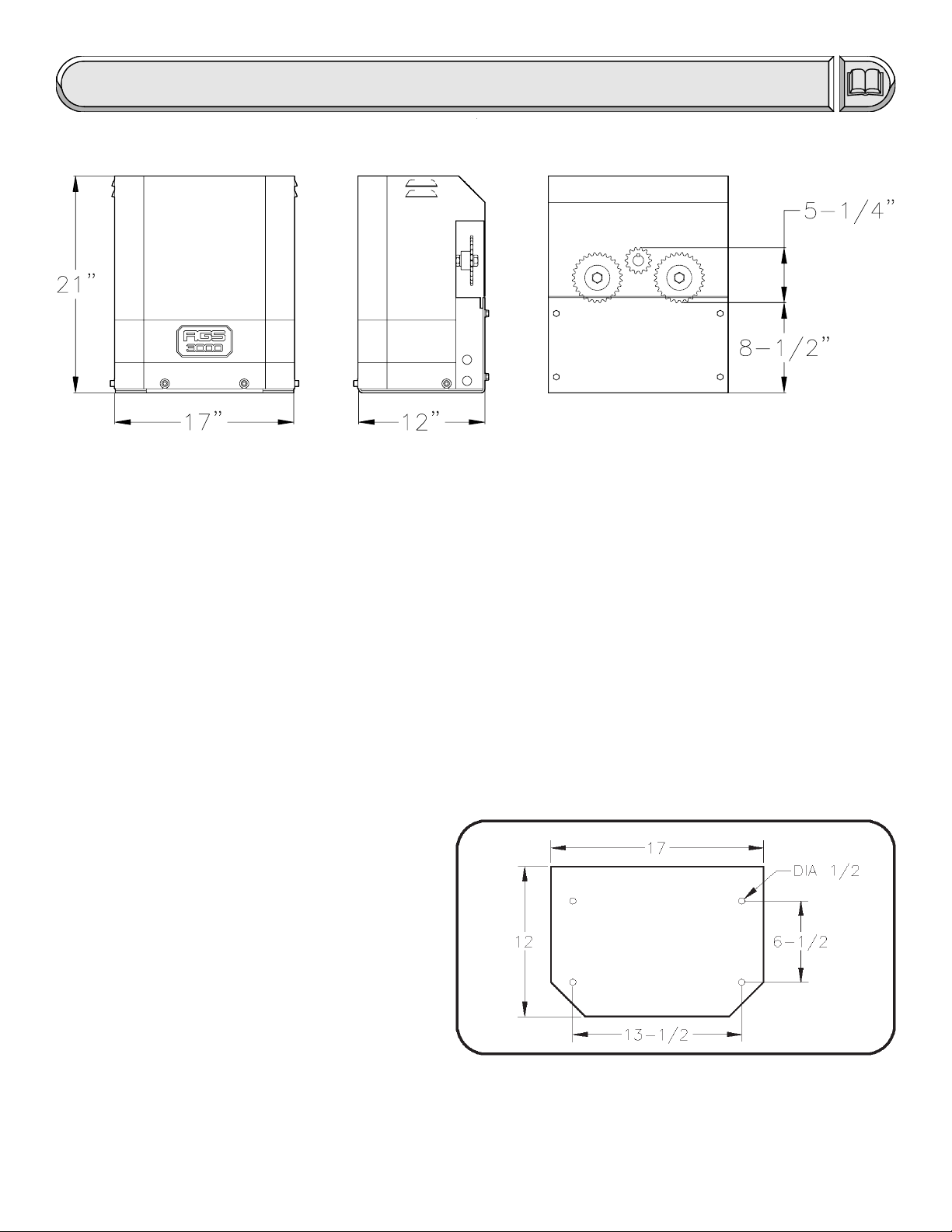

OVERALL DIMENSIONS: Height: 21" (53 cm) Length: 12" (30 cm) Width: 17" (43 cm)


SHIPPING WEIGHT: 140 pounds (64 kg)
zOptions: Steel Mounting Stand: 23 pounds (10 kg)


POWER REQUIREMENT: Dedicated 115 Volt AC (+/- 10V), 5 AMP Power Circuit


APPLICATIONS:
zMaximum Gate Weight: 1,500 pounds (680 kg)
zMaximum Gate Length: 40 feet (12 m)
zMaximum Gate Speed: 10in/sec (12in/sec also available)


INCLUDED WITH OPERATOR:
z40-Feet of # 41 Roller Chain
z2-Master Links # 41
z2-Zinc Plated Chain Bolts
z2-Chain Brackets, Right and Left
z2-U-Bolts, Round (for chain brackets)
z2-U-Bolts, Square (for chain brackets)
z2-Safety Safety Warning Placards
z1-Hex Wrench 5/16"
z1-Instruction Manual
z1-Flexible Conduit End Fitting 1/2"
z4-Sleeve Anchor Bolts (red heads) 3/8" X 3"
z1-Hex Bolt with Nut, 1/4"-20
z1-Self Tapping Screw, 1/4"-20
BASE PLATE HOLE PATTERN

pg 4


CIRCUIT BOARD: The AGS 3000 uses the Full Systems Capability circuit board, a powerful
control system which is used on many other AGS gate operators. This circuit board operates on 12 ~ 18
Volts and can deliver power to the motor through high power external switching. The limit switch input
terminals require the use of normally open type limit switches. These switches are used to accurately
stop the gate operator in the open and closed positions. To safeguard the operator from damage that
could result from limit switch or gate sensitivity failure, the Full Systems Capability circuit board has a
built-in maximum run timer which will allow the operator to run for approximately 40 seconds and then shut
off automatically. The Full Systems Capability circuit board has an adjustable gate sensitivity feature
which will stop or reverse the gate if the gate is pushing harder than normal because of an obstruction.


GATE SENSITIVITY: The AGS 3000 Full Systems Capability circuit board has a built-in safety
feature which when adjusted properly will deliver only enough power to the motor to overcome the
resistance of the gate. The amount of power that the circuit board will deliver can be adjusted for both
directions of travel to accommodate the various gate weights that the AGS 3000 operator is
recommended for. (See Applications Pg. 3)


Vehicular Gate Operator Classes:
Class I - Residential Vehicular Gate Operator: A vehicular gate operator (or system) intended for use in a home of
one-to four single family dwelling, or a garage or parking area associated therewith.
Class II - Commercial/General Access Vehicular Gate Operator: A vehicular gate operator (or system) intended for
use in a commercial location or building such as a multi-family housing unit (five or more single family units), hotel, garages,
retail store, or other building servicing the general public.
Class III - Industrial/Limited Access Vehicular Gate Operator: A vehicular gate operator (or system) intended for use
in an industrial location or building such as a factory or loading dock area or other locations not intended to service the
general public.
Class IV - Restricted Access Vehicular Gate Operator: A vehicular gate operator (or system) intended for use in a
guarded industrial location or building such as an airport security area or other restricted access location not servicing the
general public, in which unauthorized access is prevented via supervision by security personnel.
Gate Operator model AGS2000 is intended for Vehicular Gate Operator Classes I, II, III, and IV.


Gate Inspection:
a) Install the gate operator only when:
1) The operator is appropriate for the construction of the gate and the usage Class of the gate,
2) All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum
of 4 feet (1.2 m) above the ground to prevent a 2-1/4 inch (57.15 mm) diameter sphere from passing through the openings
anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open position.
3) All exposed pinch points are eliminated or guarded, and
4) Guarding is supplied for exposed rollers.
b) The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a
separate access opening.
c) The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent
structures then opening and closing to reduce the risk of entrapment.
d) The gate must be properly installed and work freely in both directions prior to the installation of the gate operator.
Do not over-adjust the gate sensitivity to compensate for a damaged gate.
General Information continued...

pg 5
Features


OPERATION
The AGS 3000 Full Systems Capability can operate in a AUTO CLOSE TIMER (TIMER ON) or a
PUSH-TO-OPEN/PUSH-TO-CLOSE (TIMER OFF) mode of operation. In the AUTO CLOSE TIMER
mode of operation the operator is given a command to open the gate and hold it open until the input is
released and until the auto close timer has elapsed at which point the operator will close the gate
automatically. In the PUSH-TO-OPEN/PUSH-TO-CLOSE mode of operation each time a signal is sent to
the operator, it will cause it to do the opposite of what it did before. (i.e., If the gate is closed, it will start
opening, if it is open, it will start closing: If it is closing, it will REVERSE TO OPEN, if it is opening, it will
REVERSE TO CLOSE.)


CONTROLS
The AGS 3000 Full Systems Capability works with the following control devices: Radio
transmitters and their receiver (specified by and available from the manufacturer). Key switches, Push
buttons (separate or intercom), numerical key pads and any peripheral equipment which can supply
normally open or normally closed contacts. These contacts can be connected to the operator input
terminals to perform the opening, close, safety, or the stop functions.



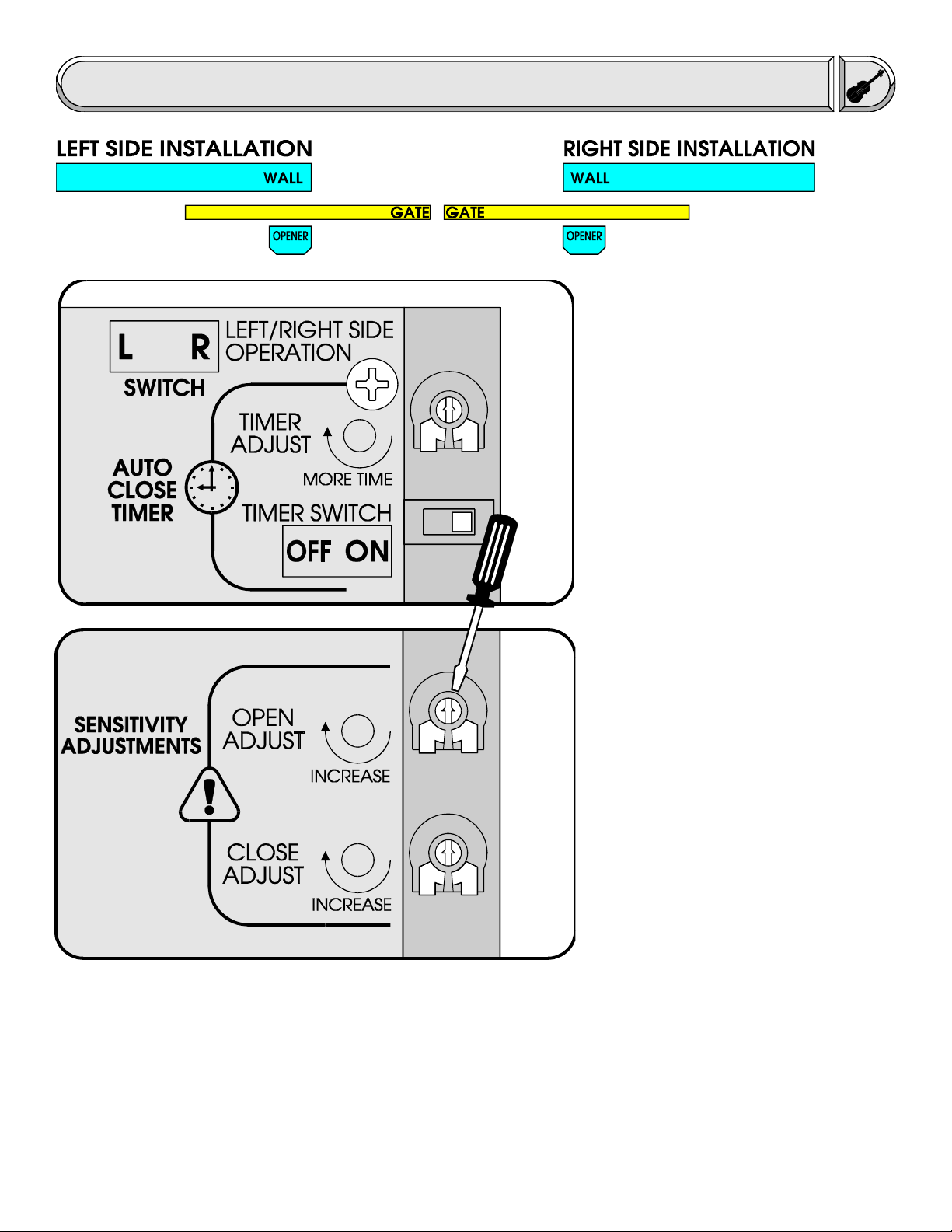

AUTO CLOSE TIMER
The operator comes factory preset with the auto close timer turned OFF. The auto close timer will
close the gate automatically after a specific amount of time has elapsed. The amount of time can be
easily adjusted between 0 and 45 seconds by turning a small "pot" located on the right edge of the circuit
board (See page 17). The timer can be disabled or activated by flipping a single switch located on the
top right edge of the circuit board. If the timer will be used it is recommended that some type of
supplementary safety device be installed. If more time is required, there is an extended timer available
from the manufacturer allowing up to 100 min.


MANUAL RELEASE SWITCH
This simple on-off switch is built into the operator. In an emergency, EVEN WITH THE POWER
OFF, the gate can be pushed open manually after flipping the switch from Operate to Release.


GATE SENSITIVITY ADJUSTMENT
The amount of force necessary to stop the gate can be adjusted to conform to the various sizes
and weights of any particular gate. When adjusting the sensitivity, the operator can be given only as much
energy as is necessary to overcome the resistance of the gate. If the gate should strike an obstruction in
either direction, the gate will reverse. If the gate should again strike an obstruction before reaching a limit,
the gate will stop, remain stopped, and will sound an alarm. (See page 17)


MASTER AND SLAVE
Some very large entrances may require the use of two gates. If this is the case, the two gates can
be easily automated using the "master and slave" configuration. This configuration uses two gates and
two operators in ONE driveway. The operators used are two regular AGS 3000 Full Systems Capability
operators one of which is of standard "right hand operation" and the other which is easily converted to
"left hand operation" by flipping a single switch located at the top of the circuit board. (See page 17.)

pg 6

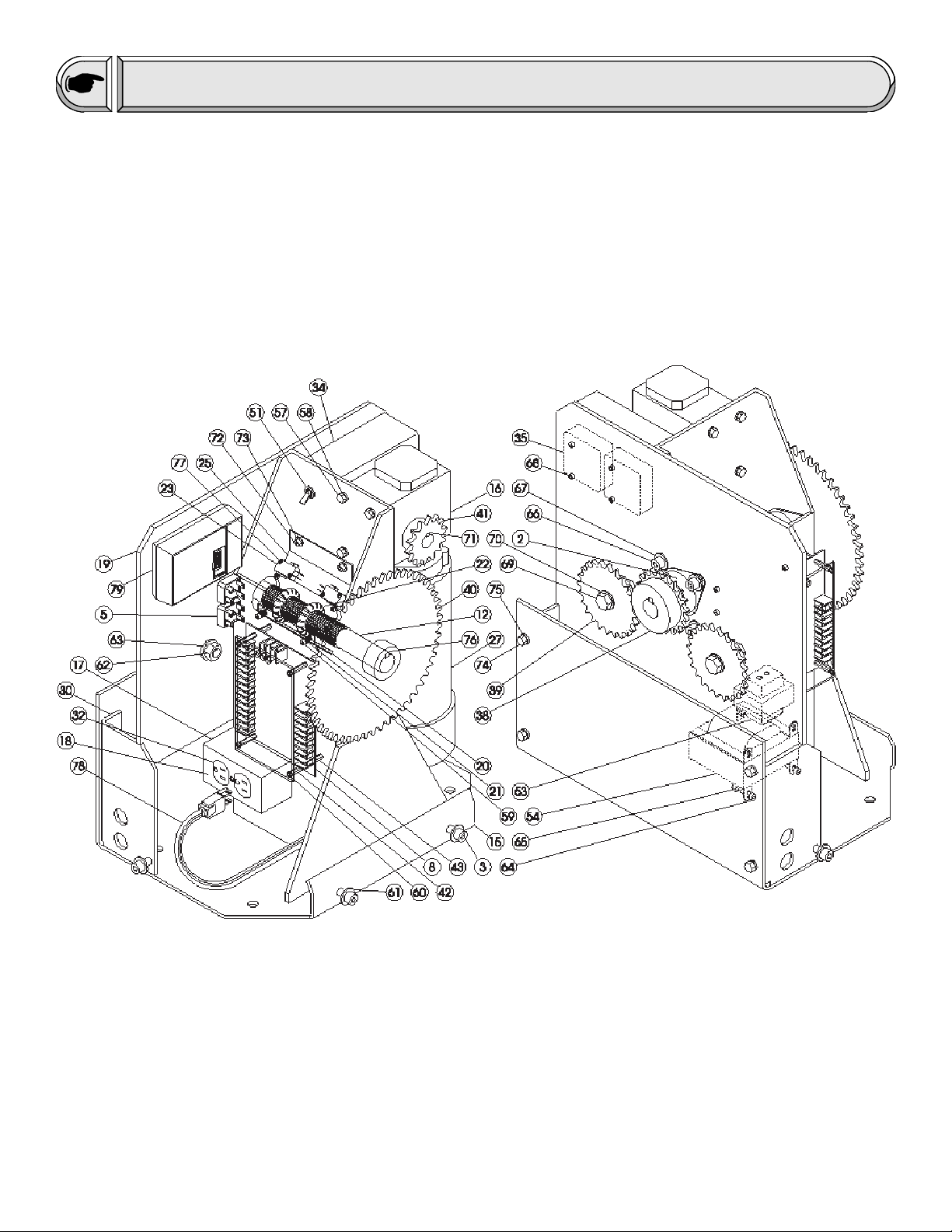

Parts Identification

pg 7
Parts Identification continued...
PART # QNTY. QNTY.
001 1 ALLEN WRENCH FOR COVER, 5/16" HEX KEY
002 2 BEARING, SELF ALIGNING, 1" BORE
003 4 BOLT, 3/8"-16 X 1", SOCKET HEAD CAP
004 4 BOLT, SLEAVE ANCHOR, 3/8" X 3"
005 2 BRIDGE RECTIFIER, 35 AMP
006 2 CHAIN BRACKET ANGLE, RIGHT AND LEFT
007 1 CHAIN, #41, 40 FT
008 1 CIRCUIT BOARD, FULL SYSTEMS CAPABILITY
009 1 CIRCUIT BREAKER RESET BUTTON, 5 AMP
010 1 COVER, LARGE METAL FOR OPERATOR
011 1 COVER, PLEXI GLASS FOR CIRCUIT BOARD
012 1 DRIVE SHAFT 1" WITH THREADED BODY
013 1 FITTING, 90 DEGREE FOR FLEX CONDUIT
014 1 FITTING, STRAIGHT FOR FLEX CONDUIT
015 1 FRAME SUBSTRATE
016 1 GEAR BOX SPEED REDUCER, ON MOTOR
017 1 HANDY BOX FOR 115 VOLT RECEPTACLE
018 1 HANDY BOX RECEPTACLE COVER PLATE
019 1 IDLER PLATE, FOR MOUNTING SPROCKETS
020 1 LIMIT GUIDE PLATE
021 2 COMPRESSION SPRING FOR GUIDE PLATE
022 2 LIMIT NUT
023 2 LIMIT SWITCH
024 0 LIMIT SWITCH ASSEMBLY
025 1 LIMIT SWITCH MOUNTING PLATE
026 2 MASTER LINK #41
027 1 MOTOR, 1/2 HP, 90VDC
028 0 OPTION, SPACE SAVER FOR REAR MOUNT
029 0 OPTION, STEEL MOUNTING STAND
030 2 PLATE, SIDE, RIGHT AND LEFT
031
032
033
034
035
036
037
038
039
040
041
042
043
044
045
046
047
048
049
050
051
052
053
054
055
056
057
058
059
060
1 RECEPTACLE, 115 VOLT DUPLEX
1 RELAY HOUSING BASE
1 RELAY HOUSING COVER
2 RELAY, 12 VOLT DC
1 RESISTOR, BALLAST, 10 OHM
1 SIGN, METAL CAUTION
1 SPROCKET, DRIVE #41, 1" BORE, 41B20
2 SPROCKET, IDLER #41, 3/4" BORE, 41B24
1 SPROCKET, LARGE GEAR REDUCTION 41B54
1 SPROCKET, SMALL GEAR REDUCTION ON MOTOR
4 STANDOFF, 1" ALUMINUM, M/F, FOR PLEXI GLASS
4 STANDOFF, 1/2" ALUMINUM, F/F, FOR CIRCUIT
BOARD
1 STICKER, AGS 3000
SWITCH, MANUAL RELEASE
1 POWER CORD "PIG TAIL"
1
4 SCREW, 6-32 X 3/8" PAN HEAD PHILLUPS
2SCREW, 8-32 X 1" SOCKET HEAD CAP
1WASHER, SPLIT RING 5/16" ID
2BOLT, HEX HEAD 5/16"-18 X 3/4"
2
2
U-BOLT, SQUARE
U-BOLT, ROUND
TRANSFORMER, 70 VOLT
TRANSFORMER, 18 VOLT
SWITCH, POWER ON/OFF TOGGLE
1
1
1
STRAIN RELEIF CONNECTOR FOR PIG TAIL
1
STICKER, PATENT
1
STICKER, ON/OFF BREAKER1
STICKER, MANUAL RELEASE
1
STICKER, CAUTION1
STICKER, AGS MANUFACTURING
1
PART # QNTY. QNTY.
061 4 WASHER, 3/8" ID, STAINLESS
062 4 NUT, JAM STYLE
063 2 WASHER, SPLIT RING 5/8" ID
064 4 SCREW, SOCKET HEAD CAP
065 4 LOCK NUT
066 7 SCREW, SOCKET HEAD CAP 3/8"-16
067 20 FLAT WASHER, 3/8" ID
068 7 SCREW, SOCKET HEAD CAP
069 2 BOLT, HEX HEAD
070 2 BUSHING, BRONZE
071 1 KEY, 3/16"
072 2 SCREW, SOCKET HEAD CAP
073 4 WASHER, FLAT 3/16" ID
074 4 BOLT, HEX HEAD 3/8"-16
075 4 WASHER, SPLIT RING 3/8" ID
076 2 KEY, WOODRUF 1/4"
077 4 SCREW, PAN HEAD PHILLUPS
078 1 POWER CORD (PIG TAIL)
079 1 RECEIVER (OPTIONAL)
080
081
082
083
084
085
086
087
089
090
091
092
093
094
095
096
097
098
099
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
088

pg 8
Remove the gate operator from it's
package and make sure that all parts are
included. Refer to General Information and
Parts Identification. If any parts appear to be
missing, contact a dealer.

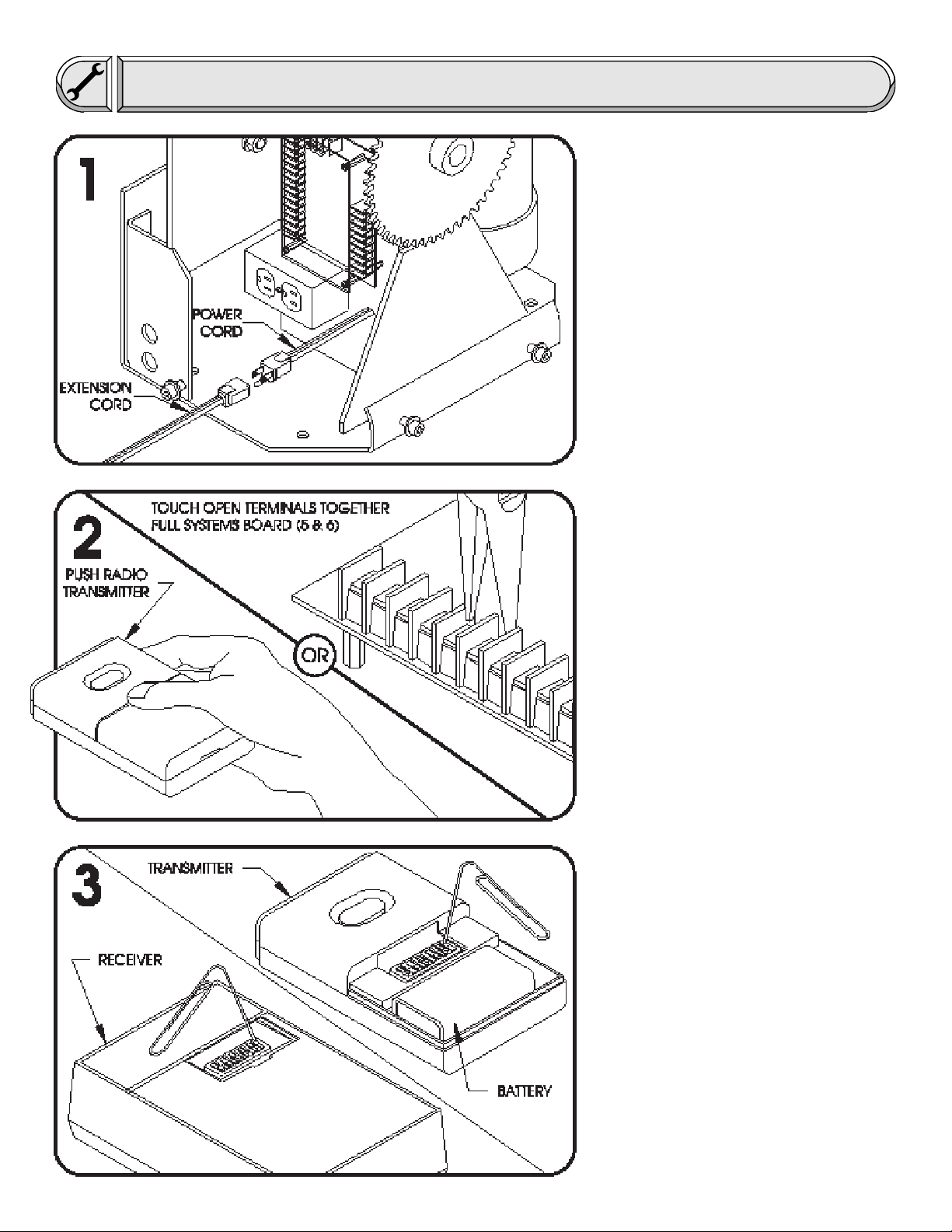

Temporarily plug the operator into
115 Volt outlet or extension cord.
Before beginning installation, test the
gate operator by running the operator back
and fourth 2 or 3 times. If the gate operator
appears to have any shipping damage,
contact a dealer.
If the gate operator is equipped with
radio controls, the operator may be run back
and fourth by pressing the radio transmitter.
If the gate operator is not equipped
with radio controls, the operator may be run
back and fourth by momentarily touching the
open input terminals together. The terminals
can be touched together with a short length of
wire, paper clip or needle nose pliers. For the
full systems capability circuit board, the open
input terminals are 5 and 6.
Disconnect Power when finished!
Now is a good time to set the radio
transmitter and receiver to a unique setting.
All units come from the factory with identical
settings and therefore it is advisable to
change the setting. To change the switch
setting, simply set the switches in the radio
receiver (using a paper clip or similar) to any
arbitrary setting and then set the switches in
the transmitter/s to match the switches in the
receiver. The battery in the transmitter may
last 1 to 2 years. Be sure to replace the
battery only with one that is the same type
as the original (9 Volt).
Installation
INSPECT PACKAGING
TEST OPERATOR
SET TRANSMITTER SWITCHES

pg 9
Installation continued...
Disconnect Power from the gate
operator!
The tail end of the gate should
extend approximately 24" beyond the edge of
the driveway. If this is not the case, an
extension tail will need to be added to the
gate. This will give room for the gate operator.
Make the extension tail 24" X 24" as shown.
If the gate has not yet been fabricated, add
24" to the length of the gate.
If no concrete surface exists to
attach the gate operator to, make a cement
pad 16" X 24" X 10" (4" above ground). Place
the shortest pad edge even with the driveway
edge. Place the longer edge of the pad 1"
away from the gate.
If the steel mounting stand will be
used, place the shortest edge of the stand 4"
from the driveway edge and place the longest
edge of the stand 4-1/2" away from the gate.
The top of the steel stand may sit on the
ground or the stand may be elevated to keep
the operator above snow, flooding etc. Make
a post hole and cement the stand in place,
making sure the stand is level and square to
the gate.
GATE PREPERATION
CEMENT PAD LOCATION
OPTIONAL MOUNTING STAND

pg 10
Installation Continued...

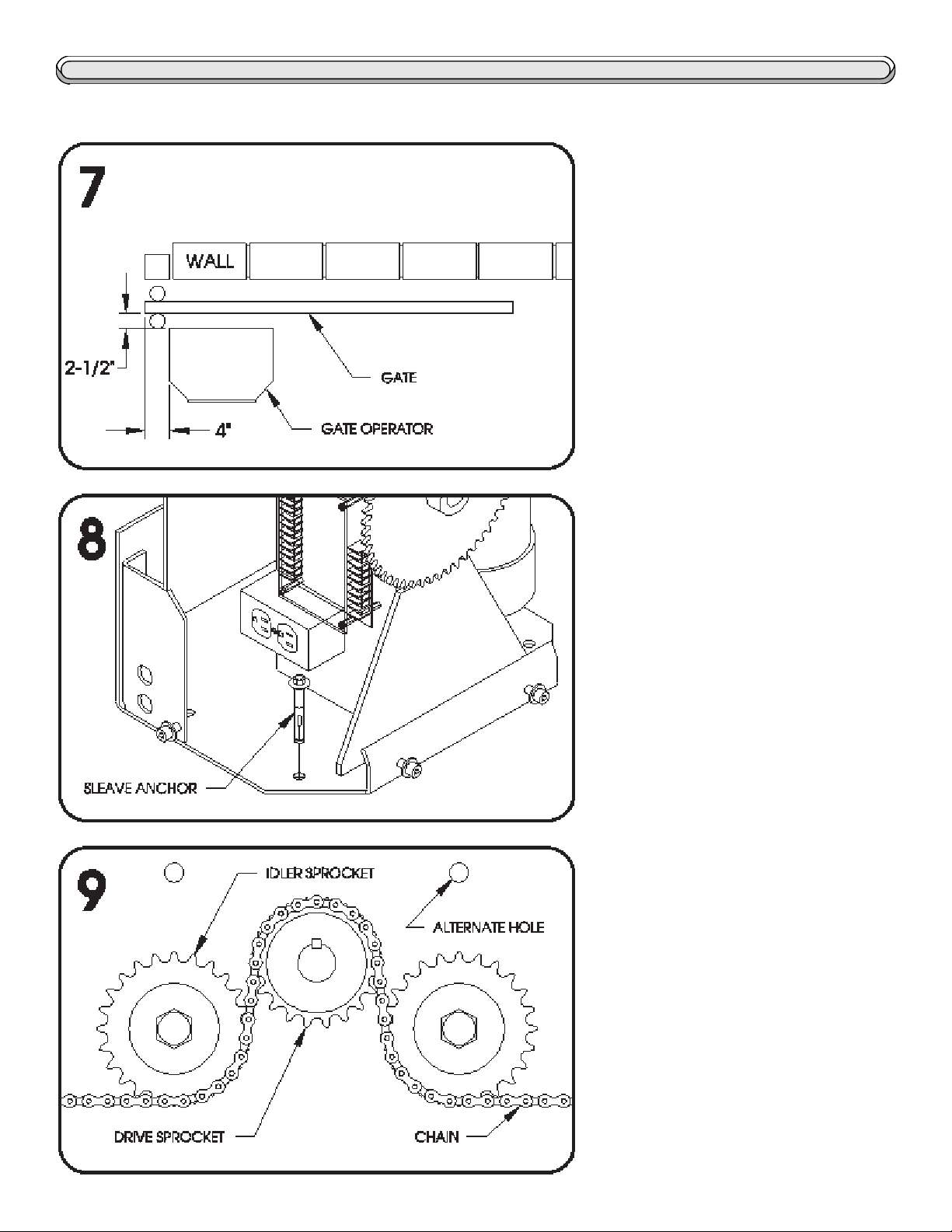

If the steel mounting stand was used,
simply bolt the gate operator to the stand. If
the operator will be mounted to a concrete
surface or pad, place the shortest edge of the
operator 4" away from the edge of the
driveway. Place the longer edge of the gate
operator 2-1/2" away from the gate.
When the gate operator is correctly
positioned on the concrete surface or pad,
mark the base hole locations onto the
cement with a felt tip marker or equivalent.
Once marked, move the operator to the side
and drill the 4 holes using a 3/8" masonry bit.
Place the operator back into position. Insert
the four sleeve anchors into the holes and
firmly tighten.
Now that the operator is firmly
attached, the chain may now be connected to
the gate and operator. Begin by threading the
chain through the sprockets. The sprockets
come arranged as shown so that the chain
may be threaded under the idler sprockets
and over the drive sprocket. Alternately, the
chain may be threaded over the idler sprock-
ets and under the drive sprocket by moving
the idler sprockets to the alternate positions
above. Note: the cover will need to be modi-
fied for the alternate arrangement.
POSITION GATE OPERATOR
ANCHOR THE OPERATOR
THREADING THE CHAIN

pg 11
Installation Continued...

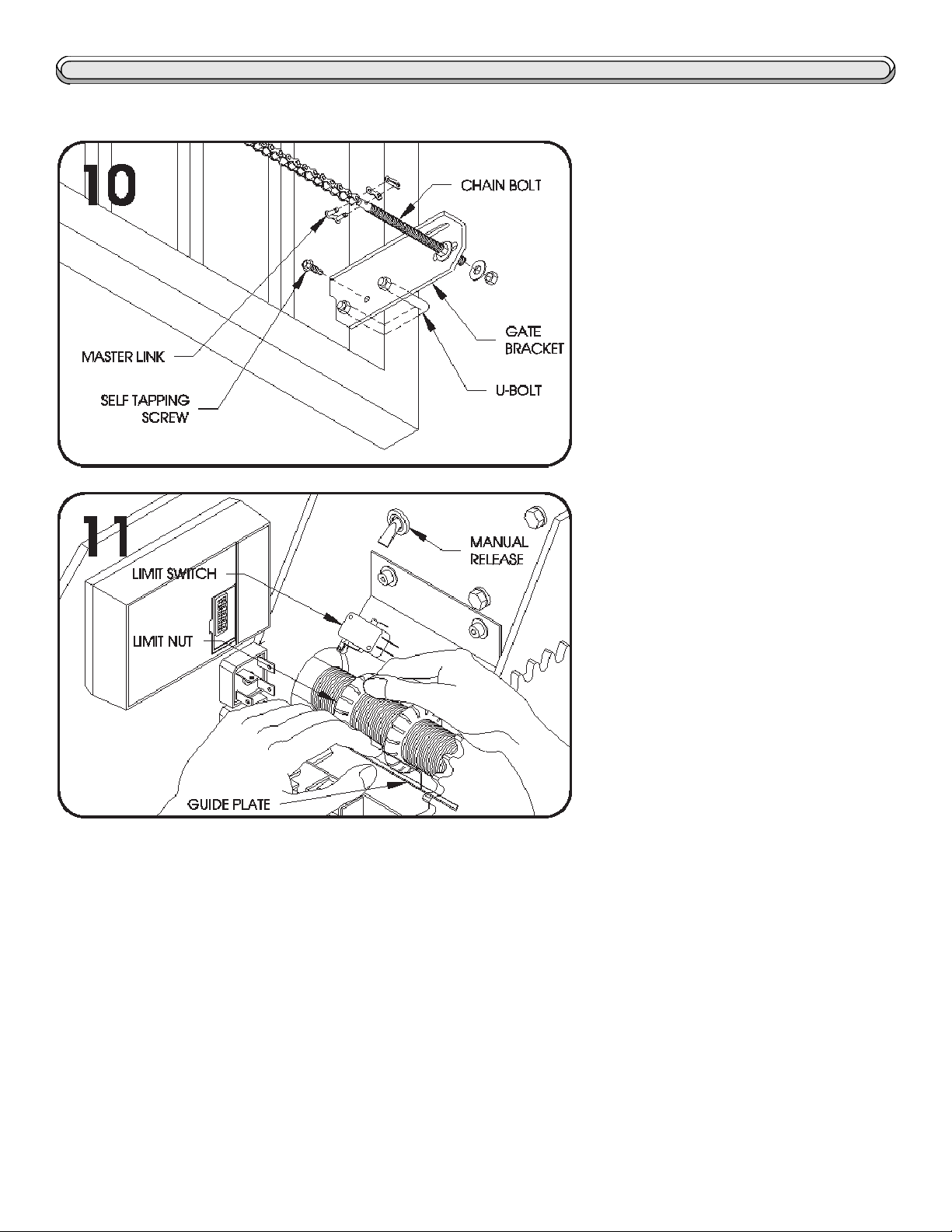

Attach the gate bracket to the gate
as shown using the round or square u-bolts
for round or square gate frames respectively.
Attach the chain to the gate brackets using
the chain bolt and master link as shown. If
necessary, the chain may be easily short-
ened using a chain breaker. Adjust the height
of the gate brackets until the chain is level
and firmly tighten the u-bolts. For round gate
frames it may be necessary to drive the self
tapping screw through the gate bracket, and
into the gate.
The limit nuts need to be adjusted to
cause the gate to stop in the desired open
and closed positions. These adjustments can
be roughly made before power has been
hooked up by flipping the manual release
switch and pushing the gate manually. Push
the gate to the open position and adjust the
limit nut to press the limit switch in. The limit
nuts can be turned after pressing down on the
guide plate. Push the gate closed and adjust
the other limit nut to press in the other limit
switch. Caution "do not allow the limit nuts to
travel past the switch as this may damage
the switches". When finished, make sure the
guide plate is properly engaged with the
grooves on the limit nuts.
ATTACH CHAIN TO GATE
ADJUST LIMITS

pg 12
Alternate Installations
The rear mount installation is an
excellent way to conceal the chain or opera-
tor. The operator is placed in the extreme rear
of the gate as shown and the chain never
goes across the driveway. The chain only
goes from the gate operator to a post or wall
beside the driveway. Place shortest edge of
the operator 3" from the rear end of the gate
and place the long edge of the operator 3-1/2"
away from the gate toward the wall.
The chain will form a continuous
loop, going around the drive sprocket on the
operator, and around the idler sprocket on the
post or wall. Only one gate bracket is
required on the rear edge of the gate where
both ends of the chain come together and
attach to the bracket. To prepare the AGS
3000 for a rear mount installation, remove one
or both idler sprockets from the operator.
Neither idler sprocket will be needed on the
gate operator. For the idler sprocket, an
ES130 End Sprocket Assembly with chain
guard may be used. Alternately, an idler
sprocket that was removed from the gate
operator may be used. It is recommended
that a cover be placed over the idler sprocket
in this case for safety.
REAR MOUNT PLACEMENT
CHAIN ARRANGEMENT

pg 13
Electrical
Make sure that power is OFF
before making any electrical connec-
tions!
Be sure that all wiring is employed
as required by local codes.
The operator is provided with two
knockout holes on each side. Run 1/2"
liquidtite flexible conduit through one of the
four knockout holes and into the handy box
where the receptacle is located. An elbow
fitting is attached to the handy box and a
straight fitting is supplied for the other end of
the flexible conduit. Run three 12 gauge wires
through the flexible conduit and into the
handy box. There should be a black or other
colored wire for hot, a white wire for neutral,
and a green wire for earth ground.
Connect the three 12 gauge wires to
the 115 Volt receptacle.
Connect the black (hot) wire to the
brass screw.
Connect the white (neutral) wire to
the silver screw.
Connect the green (ground) wire to
the green grounding screw.
When the wires have been connected
to the receptacle, insert the receptacle back
into the handy box. Secure the receptacle to
the handy box with two screws. Apply the
receptacle cover to the receptacle and secure
it with a screw. The power cord may now be
plugged into the receptacle.
To reduce the risk of electric shock,
this equipment has a grounding type plug that
has a third (grounding) pin. This plug will only
fit inot a grounding type outlet. Do not change
the plug in any way.
CONDUIT ROUTING
STANDARD 115 VOLT HOOK-UP

pg 14
Electrical Continued...

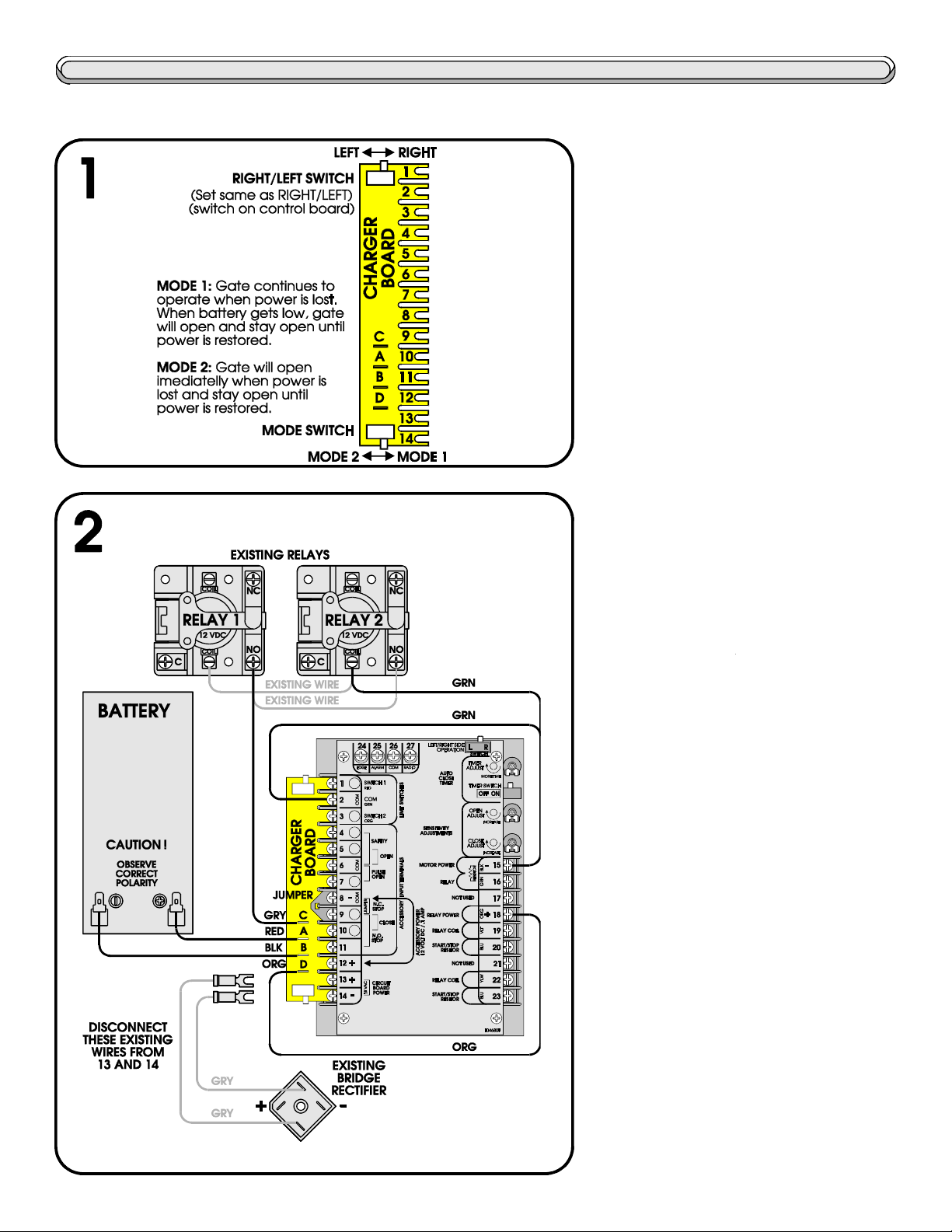

If the gate operator is already factory
equipped with battery back-up, only the
Right/Left Side switch and the Mode switch
need to be set. The Right/Left switch simply
needs to be set in the same position as the
Right/Left switch on the main control board.
(See page 17 for correctly setting the Right/
Left switch on the control board) The Mode
switch can be set in either the Mode 1 or
Mode 2 position. This choice between Mode1
or Mode 2 depends on how the installer or
end user would like the gate to behave when
power is lost.
Mode 1: Gate will continue to
operate when power is lost. When battery
power gets low, the gate will open and stay
open until power is restored. (Fail Secure)
Mode 2: Gate will open immediately
when power is lost and remain open until
power is restored. (Fail Safe)
If the gate operator did not come from
the factory equipped with battery back-up,
field installation of battery back-up is very
simple. The illustration at left shows addi-
tional wiring required for battery back-up that
is not part of the standard wiring.
First turn power off to the gate
operator.
Disconnect the two grey wires from
terminals 13 and 14 and insulate the ends of
the grey wires.
Secure the charger board to the main
control board by attaching to the 14 screw
terminals on the left side of the control board.
Connect a green wire from terminal 2
to terminal 15 of the control board.
Attach a green wire from terminal 3
or 15 of the control board to the negative relay
coil terminal as shown.
Attach terminal C of the charger
board to the N.O. terminal of either relay 1 or
relay 2.
Attach an orange wire from terminal
D of the charger board to terminal 18 of the
main control board.
Finally, attach a red wire from
terminal A to battery positive and a black wire
from terminal B to battery negative.
BATTERY BACK-UP
BATTERY BACK-UP

pg 15
Electrical Continued...
OPEN INPUT: Any device that is used to open
the gate from a closed position is an open input device.
The device used must provide normally open contacts.
These normally open contacts are connected to
terminals 5 and 6. These open input terminals will
cause the gate operator to open and/or close if the
timer switch is in the OFF position. If the timer switch
is in the ON position, these open input terminals will
cause the gate operator to open and will hold the gate
open until the input is released and the auto close time
has elapsed.
CLOSE INPUT: Any device that is used to
close the gate is a close input device. The device used
must provide normally open contacts. These normally
open contacts are connected to terminals 9 and 10.
These close input terminals will cause the gate
operator to close the gate any time the gate is in a
non-closed position and can be used to override the
timer and close the gate prematurely.
N.C. STOP INPUT: Any device that is used to stop the gate operator while it is running in the open or closed
direction is a stop input device. These stop input devices must provide normally closed contacts. To connect these normally
closed contacts, remove the stop jumper from terminals 8 and 9 and then connect the contacts to these same terminals 8
and 9.
N.O. STOP INPUT: This input functions identical to N.C. Stop with the exception that it requires normally open
contacts. These contacts are connected to terminals 9 and 11.
SAFETY INPUT: Any device that is used to open and/or hold open the gate while the gate is in a non-closed
position is a safety input device. The safety input device must provide normally open contacts. These contacts are connected
to terminals 4 and 6. This function is especially useful when the auto close timer is being used in preventing the gate from
accidentally closing on a pedestrian or vehicle.
PULSE OPEN INPUT: The pulse open input terminals were put on the circuit board as an alternative connection for
the radio receiver. This input functions similarly to the standard open input with the exception that it will not hold the gate
open if the input remains present. This feature will add additional security to the gate operator system in the event that there
is a transmitter that is stuck on. Pulse open is found at terminals 6 and 7.
SAFETY NOTES: Controls must be far enough from the
gate so that the user is prevented from coming in contact with the
gate while operating the controls. Controls intended to be used to
reset an operator after 2 sequential activations of the entrapment
protection device or devices must be located in the line of sight of
the gate. Outdoor or easily accessible controls shall have a
security feature to prevent unauthorized use.

pg 16
Wiring Diagrams, Button Controls
zOne button, two button and three button controls may be
connected individually or together as shown below. Most button
controls have a common "buss bar" which connects the common
terminals of all buttons together so that only one common wire
needs to be run back to the gate operator control board. If this is
not the case, the common terminals of each button may be
connected together with wire.
zConnect the common terminal or terminals (COM) of the push
button control to the Common (terminal 6) on the gate operator
control board. Connect the Open button NO terminal of the push
button control to Open (terminal 5) on the gate operator control
board. Connect the Close button NO terminal of the push button control to Close
(terminal 10) on the gate operator control board. If the stop button has normally
closed contacts, connect the Stop button NC terminal to Stop (terminal 9) and
remove the stop jumper that is on terminals 8 & 9. If the stop button has normally
open contacts, connect the Stop button terminal NO to the NO Stop (terminal 11)
on the gate operator control board.
zIf more than one push button control is used on one gate operator, connect
wires from the Open, Close and Common in parallel to the control board. If the
stop button has normally closed, contacts connect the stop buttons in series to
the control board. If the stop buttons have normally open contacts, connect the
stop buttons in parallel to NO Stop (terminal 11) on the control board.

pg 17
Fine Tuning
The gate operator is designed to
work differently while opening then while
closing to optimize safety, so the direction of
the operator will need to be set. Setting the
operator direction is done by flipping the right/
left side switch located at the top of the
circuit board. For a left side installation flip
the switch to the left and for a right side
installation, flip the switch to the right (see
illustration above).
If it is desirable to have the gate
close automatically after the gate has
opened, flip the auto close timer switch to the
ON position. Adjust the amount of time the
gate stays open by turning the timer adjust-
ment pot counter clockwise for less time or
clockwise for more time. The range is roughly
0~45 seconds.
There are two "sensitivity" adjust-
ments on the circuit board for the open and
close directions. Turning the pots clockwise
"increase" will cause the gate to stop or
reverse more easily if there is an obstruction
preventing the gate from moving. Turning the
pots counter-clockwise "decrease" will cause
the gate to push harder before it stops or
reverses. If adjusted properly, the sensitivity
will cause the gate to reverse if the gate
meets an obstuction. Additionally, if the gate
again meets an obstruction before reaching a
limit, the gate will stop, remain stopped, and
will sound an alarm until reset with an open
input at terminal 5. If no reset is given, the
alarm will sound for approximately 5 minutes.
If adjusted too sensitive the gate may stop or
reverse under it's own weight, without being
obstructed and the sensitivity will need to be
slightly decreased. Temperature, wind, and
other environmental factors may also effect
the sensitivity so the setting should be made
with these factors in mind. Before finalizing
an installation always test the sensitivity by
applying pressure against the gate while it is
moving to make sure it will stop or reverse.
ADJUST TIMER
ADJUST SENSITIVITY
NOTE:
Counter-Clockwise makes gate push harder.
Clockwise makes gate easier to stop.

pg 18
zConnect 115 Volts AC to each AGS 3000 gate operator. Connect the six Master/Slave wires from the master circuit board
to the slave circuit board as shown below. Any operator can be used as either a master or a slave. All accessories will be
connected to the master operator so the decision of which operator will be the master and which operator will be the slave is
a matter of convenience. If it is more convenient to run accessory wires to one operator than to another, choose that particu-
lar operator which is most convenient to be the master so that the wires can be run in the easiest manner possible.
zSwitch the Auto Close Timer switch to the OFF position on the slave circuit board. The Auto Close Timer switch on the
master circuit board may be switched either ON if the timer function will be used or OFF if the timer function will not be used
but the slave timer must always be switched OFF.
zIf the chain is wrapped around the sprockets in the same manner on each operator (both chains under or both chains over
the drive sprocket) set the Right/Left Side Operation switch on the master circuit board to be the opposite of the way it is set
on the slave circuit board. If the chain wrapped around the drive sprocket on the master operator is the opposite of the way it
is wrapped around on the slave operator then set the Right/Left Side Operation switches the same on both operators. The
Right/Left Side operation switch is located on the circuit board. If the operators are working backwards, the Right/Left Side
Operation switches on both operators must be switched. The simplest way to know if the operators are working backwards is
to turn the Auto Close Timer switch on the master circuit board to ON and see whether the timer works when the gate is
open or closed. The timer should work only when the gate is open. Another way to know if the operators are working back-
wards is to try the gate sensitivity by applying pressure against the gate while the gate is opening or closing. If pressure is
applied while the gate is opening it should stop. If pressure is applied while the gate is closing it should reverse and go open.
If the gate responds to pressure in a way that is opposite of this then switch the Right/Left Side Operation switch on both
operators.
AGS 3000 MASTER/SLAVE
Master/Slave Wiring 2/26/96

pg 19
Wiring Diagram

pg 20
Wiring Diagrams AGS 3000 WITH BATTERY BACK-
UP
