Chamberlain Elite RSL12V User manual

USER’S GUIDE
VEHICULAR SLIDE/SWING GATE OPERATORS
Your model may look different than the model illustrated in this user’s guide.
RSL12V ™ & RSL12VH ™ RSW12V ™ & RSW12VH ™
845 Larch Avenue
Elmhurst, Illinois 60126-1196
01-35314C © 2010, The Chamberlain Group, Inc. – All Rights Reserved
Installation Date
www.liftmaster.com
Please contact your authorized LiftMaster dealer
for all of your service needs.

SOLAR PANEL KIT - 10 WATT
This kit is to replace or add a solar panel to the operator application. Up to three
solar panels can be connected to the operator.
Model SOLPNL10W12V
SOLENOID GATE LOCK (LOW POWER)
The automatic gate lock is a solenoid-driven lock that automatically unlocks when
the gate is open and locks when the gate is closed. Can be mounted onto a gate or
post. Can be released in case of emergency.
Model SGLOCK12V
OPEN
OPEN
CLOSE
BATTERY FOR GATE ACCESS SYSTEMS
The gate access system battery replaces or adds a battery to the operator
application.
Model 29-NP712 (7 AMP-Hour Battery, 12 Vdc, requires additional 7AH battery
harness)
Model A12330SGLPK (33 AMP-Hour Battery, 12 Vdc, harness included. Ideal for
solar applications and extended battery backup)
MAGNETIC GATE LOCK
Outdoor magnetic lock, transformer, junction box, mounting plate and hardware.
Not for use with Solar Applications. Must be powered separately.
Model MG1300
OPEN
OPEN
CLOSE

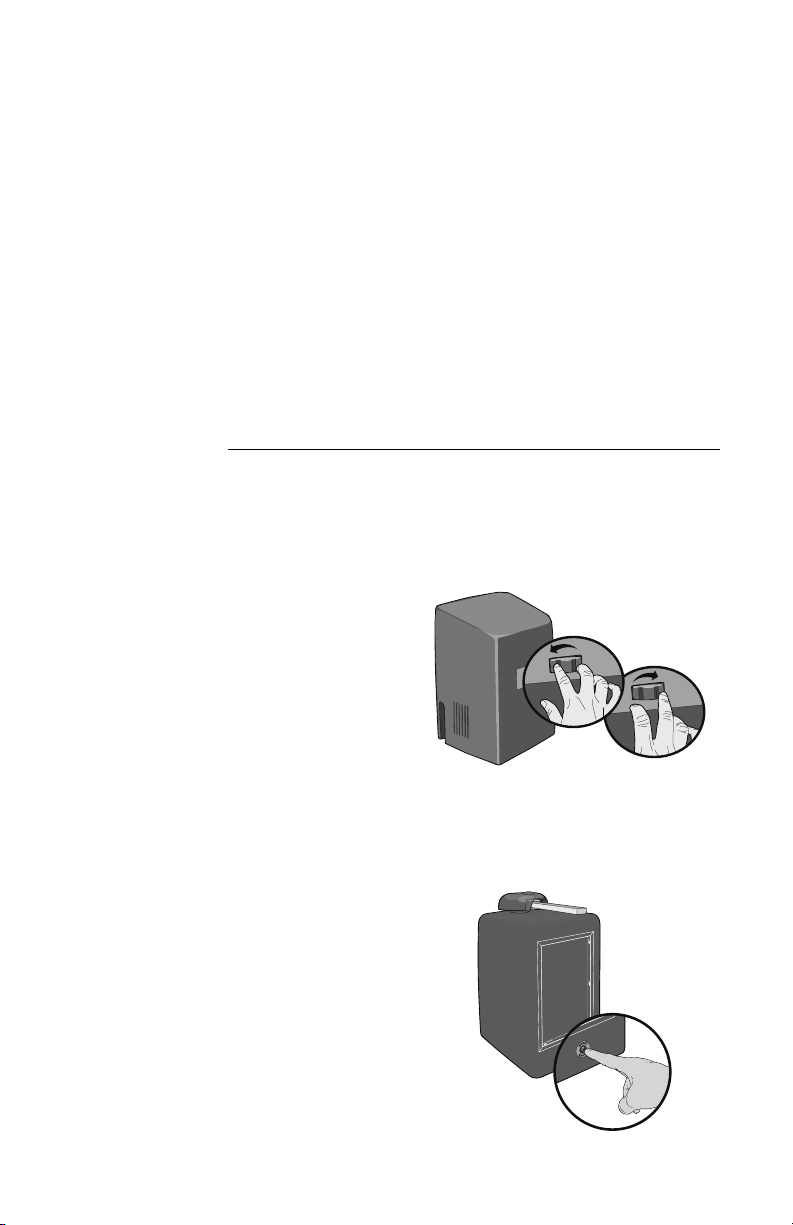

RESET SWITCH/BUTTON
The reset switch/button is located on the front of the operator and serves several functions.
OPERATION
Thank you for purchasing a LiftMaster gate operator.
Our operators are designed to meet or exceed UL325
safety standards and requirements and are quality
manufactured for years of safe and reliable service.
Think LiftMaster for all of your Access Control needs.
MODEL RSL12V SLIDE GATE OPERATOR
Model RSL12V has a reset switch. When referring to
“toggling” the reset switch it means pressing the reset
switch to the RESET/DISCONNECT position, then back
to the NORMAL OPERATION position.
To open and close the gate(s) manually, press the
reset switch to the RESET/DISCONNECT position. On a
dual gate application the reset switch must be pressed
on both operators. To resume normal function press
the reset switch to NORMAL OPERATION.
MODEL RSW12V SWING GATE OPERATOR
Model RSW12V has a reset button.
To open and close the gate(s) manually, press the
reset button. On a dual gate application the reset
button must be pressed on both operators. The next
command given by a remote control will close the
gate and return the operator to normal operation.
ACCESSORIES
1 6
RELAY KIT
Maglock release relay.
Model Q400MAU
OPEN
OPEN
CLOSE
BATTERY HARNESS
Required when a second 7 AMP-Hour, 12 Vdc battery is added to the operator.
Model K94-35225

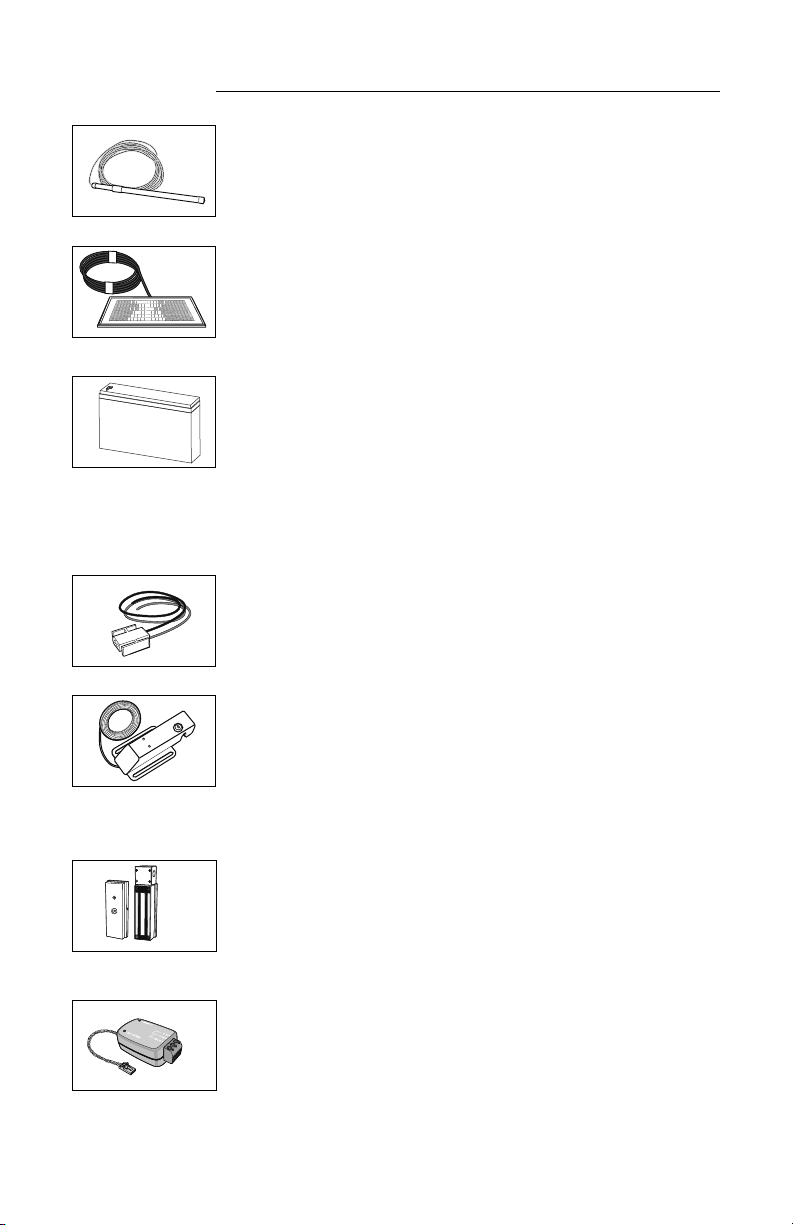

VEHICLE SENSING PROBE
The vehicle sensing probe is buried in the ground and can detect a car as it
approaches and will then open the gate.
Model LM202
OPEN
OPEN
CLOSE

MISCELLANEOUS

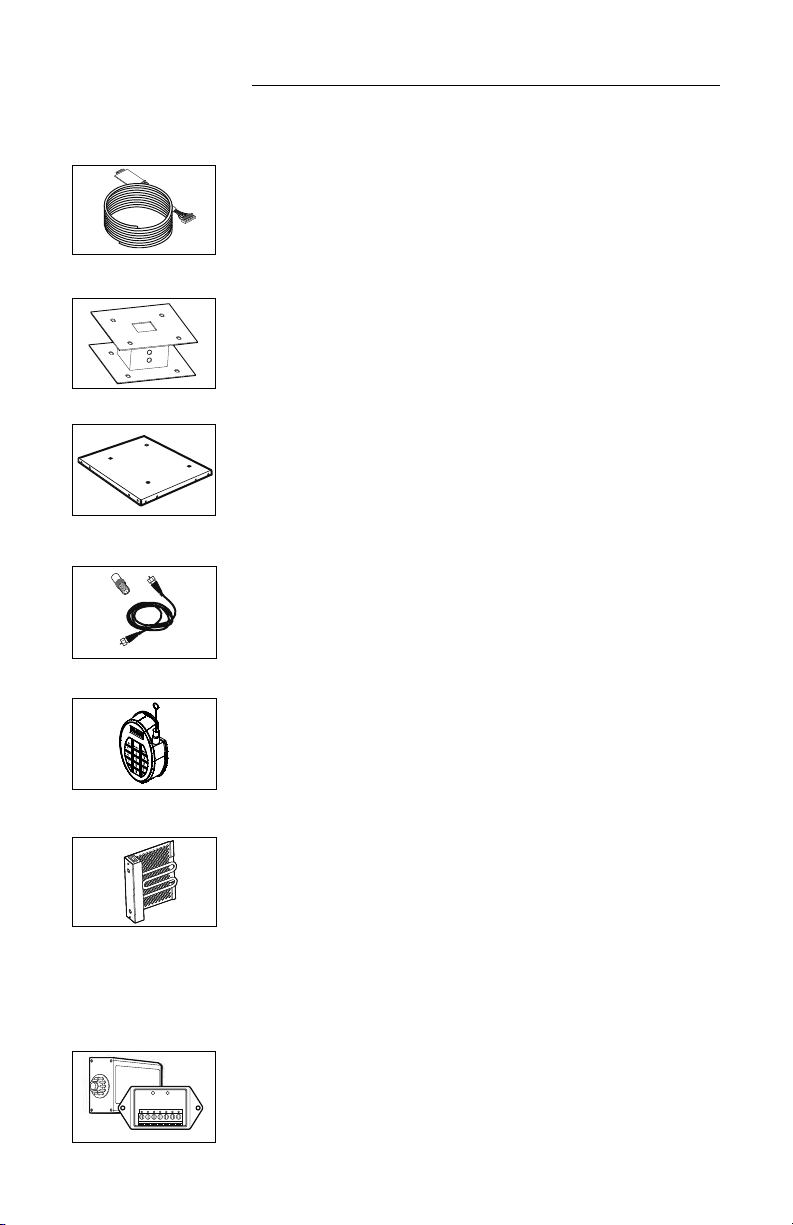

DUAL GATE WIRING KIT
The dual gate wiring kit is 40 feet of interconnecting cable required for dual gate
applications.
Model MSWIRE12GA6C
OPEN
OPEN
CLOSE
SLEEP MODE
The operator enters sleep mode 10 seconds after the last command is given. The photoelectric sensor indicator LEDs
will not be on. The next command given will return the operator to normal operation.
REMOTE CONTROL
Once the remote control has been programmed operator will operate as follows:
When gate is in the closed position, activation of the remote control button will open the gate. During the open cycle
another activation of the remote control will stop the gate and the next activation of the remote control will close
the gate. When the gate is in the open position, activation of the remote control button will close the gate.

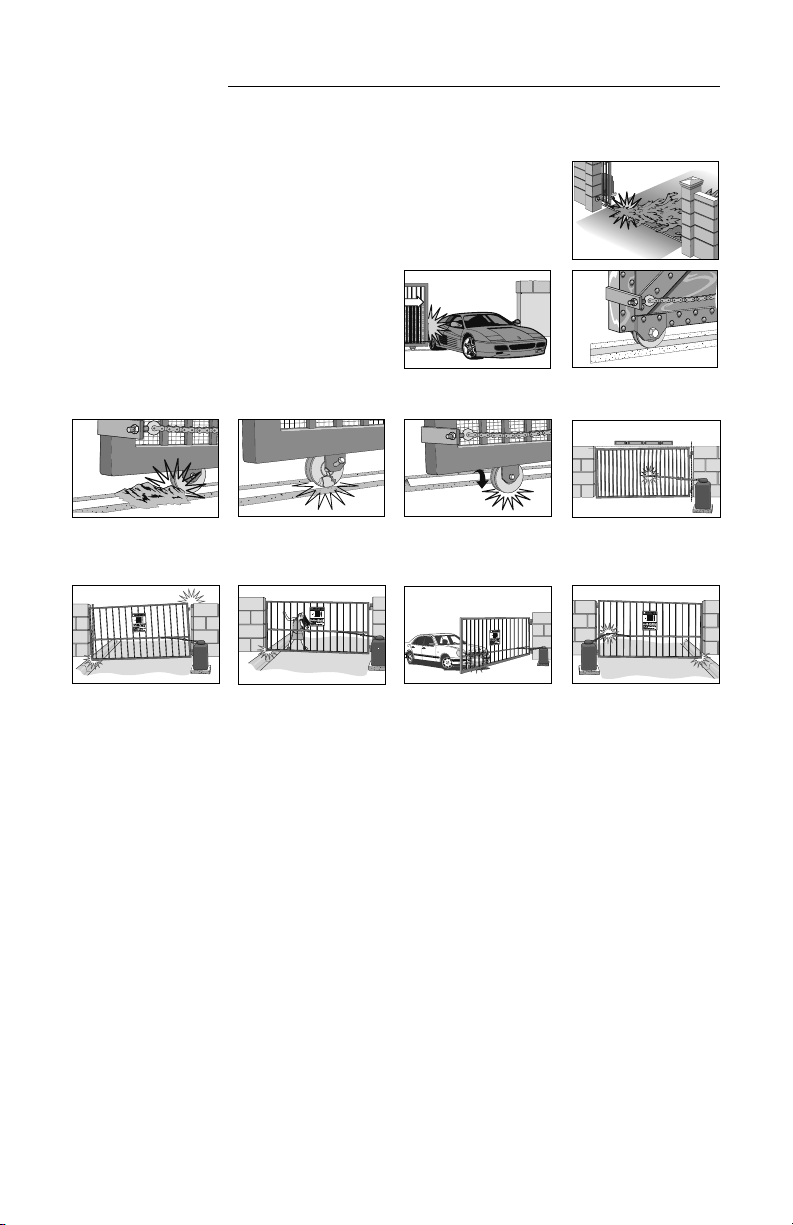

If a contact sensor detects an obstruction twice consecutively the alarm will sound
(up to 5 minutes) and the operator will need to be reset.
The gate does not meet
specifications.
Debris is on the gate's track
such as mud, rocks, dirt, etc.
(Slide Only)
The gate has one or more
broken axles or wheels.
(Slide Only)
The gate wheel is off the gate
rail. (Slide Only)
The gate is hitting a wall or
vehicle.
NOTE: In dual gate applications the reset switch/button must be toggled/pressed on the primary operator.
Remove any obstructions. Toggle/press the reset switch/button to shut off the alarm and reset the operator. After
the operator is reset, normal functions will resume.
When the inherent force of the operator (RPM/current
sensor) detects the following (twice consecutively) the
alarm will sound (up to 5 minutes) and the operator
will need to be reset:
REMOTE ANTENNA EXTENSION KIT
The remote antenna extension kit allows the antenna to be remotely installed.
Model 86LM
WIRELESS ACCESS CONTROL RECEIVER
Access control receiver for up to 450 Security✚®remote controls.
Model STAR450-315
HEATER
Keeps operator gearbox and batteries at suitable temperature when outside
temperature is below 0°F for extended periods of time.
Models HTRKITRSL (for Slide operator, includes bracket for optimal 7AH battery
location) and G6518SL (Slide replacement heater only)
Models HTRKITRSW (for Swing operator, includes bracket for optimal heater
location) and G6518CSW (Swing replacement heater only)
OPEN
OPEN
CLOSE
LOOP DETECTOR
Low power loop detectors.
Model LD7LP
OPEN
OPEN
CLOSE
MOUNTING STAND
For Model RSL Slide. Ideal to raise slide operator higher above the ground for snow
and other applications.
Model MSLM for Slide ONLY
OPEN
OPEN
CLOSE
Gate hinges are too tight or
broken and the gate is not
moving freely. (Swing Only)
The gate is moving and a car
pushes the gate.
(Swing Only)
A foreign object is on the gate
frame while the gate is moving.
(Swing Only)
The gate hits the driveway, curb
or other, and gets stuck or bent
in an awkward position.
(Swing Only)
OPERATOR ALARM
The operator arm or gate is
incorrectly installed.
(Swing Only)
ACCESSORIES OPERATION
5 2
POST-MOUNTING PLATE
For post-mounting model RSW residential swing operator (also CSW200
commercial swing operator). Posts not included.
Model MPEL for Swing ONLY
OPEN
OPEN
CLOSE

MAINTENANCE
The following should be checked by an authorized LiftMaster dealer:
BATTERY
The battery should be replaced every three years. Use only LiftMaster part 29-NP712 for replacement batteries. The
operator comes with one 7AH battery. A second 7AH (29-NP712) battery may be added or one 33AH
(A12330SGLPK) may be used in place of the 7AH batteries. The batteries contain lead and need to be disposed of
properly.
DRIVE CHAIN (SLIDE ONLY)
Over time, the drive chain on the operator will stretch and need to be tightened. To tighten the drive chain adjust
either of the two chain eye bolts.
NOTE: The chain should have no more than 1 inch of sag for every 10 feet of chain length.
CHECK AT LEAST ONCE EVERY MONTH
DESCRIPTION TASK
External Entrapment Protection System Check and test for proper operation
Photoelectric Sensors Check and test for proper operation
Warning Signs Make sure they are present
Gate Inspect for wear or damage
Drive Chain (Slide Only) Check for excessive slack and lubricate
CHECK AT LEAST ONCE EVERY
DESCRIPTION TASK 6 MONTHS 3 YEARS
Manual Disconnect Check and test for proper operation X
Sprockets and Pulleys Check for excessive slack and lubricate X
Accessories Check all for proper operation X
Electrical Inspect all wire connections X
Chassis Mounting Bolts Check for tightness X
Operator Inspect for wear or damage X
Batteries Replace X
ACCESSORIES
THE PROTECTOR SYSTEM®PHOTOELECTRIC SENSORS
The photoelectric sensors are designed to detect an obstacle in the path of the
electronic beam and stop the operator. Includes mounting brackets.
Model 50-220
OPEN
7
OPEN
CLOSE
ENTRAPMENT PROTECTION DEVICES
Chamberlain offers a variety of LiftMaster Security ✚
®and Passport™ remote controls to satisfy your application
needs. Single-button to 4-button, visor or key chain. Additionally, Passport™ remote controls are ideal for
integration with Telephone Entry and Access Control Systems. Contact your authorized LiftMaster dealer for details.
3-BUTTON SECURITY✚®REMOTE CONTROL
The 3-button remote control can be programmed to control the operator. Includes
visor clip.
Model 373LM
OPEN
OPEN
CLOSE
3-BUTTON MINI-REMOTE CONTROL WITH SECURITY✚®
The 3-button remote control can be programmed to control the operator. Includes
key ring and fastening strip.
Model 370LM
OPEN
OPEN
CLOSE
REMOTE CONTROLS
SENSING EDGE (2-WIRE, NON-MONITORED)
Sensing edges can detect an obstacle upon contact and stop the operator.
Models G65MG0204, G65MG0205, G65MGR205 and G65MGS205
SENSING EDGE CHANNEL
Mounting channel for all MG020 type edges.
Model G65ME120C5
OPEN
OPEN
CLOSE
SECURITY✚®KEYLESS ENTRY
Enables homeowner to operate gate operator from outside by entering a 4-digit
code on a specially designed keypad.
Model 377LM
OPEN
3 4

MAINTENANCE
The following should be checked by an authorized LiftMaster dealer:
BATTERY
The battery should be replaced every three years. Use only LiftMaster part 29-NP712 for replacement batteries. The
operator comes with one 7AH battery. A second 7AH (29-NP712) battery may be added or one 33AH
(A12330SGLPK) may be used in place of the 7AH batteries. The batteries contain lead and need to be disposed of
properly.
DRIVE CHAIN (SLIDE ONLY)
Over time, the drive chain on the operator will stretch and need to be tightened. To tighten the drive chain adjust
either of the two chain eye bolts.
NOTE: The chain should have no more than 1 inch of sag for every 10 feet of chain length.
CHECK AT LEAST ONCE EVERY MONTH
DESCRIPTION TASK
External Entrapment Protection System Check and test for proper operation
Photoelectric Sensors Check and test for proper operation
Warning Signs Make sure they are present
Gate Inspect for wear or damage
Drive Chain (Slide Only) Check for excessive slack and lubricate
CHECK AT LEAST ONCE EVERY
DESCRIPTION TASK 6 MONTHS 3 YEARS
Manual Disconnect Check and test for proper operation X
Sprockets and Pulleys Check for excessive slack and lubricate X
Accessories Check all for proper operation X
Electrical Inspect all wire connections X
Chassis Mounting Bolts Check for tightness X
Operator Inspect for wear or damage X
Batteries Replace X
ACCESSORIES
THE PROTECTOR SYSTEM®PHOTOELECTRIC SENSORS
The photoelectric sensors are designed to detect an obstacle in the path of the
electronic beam and stop the operator. Includes mounting brackets.
Model 50-220
OPEN
7
OPEN
CLOSE
ENTRAPMENT PROTECTION DEVICES
Chamberlain offers a variety of LiftMaster Security ✚
®and Passport™ remote controls to satisfy your application
needs. Single-button to 4-button, visor or key chain. Additionally, Passport™ remote controls are ideal for
integration with Telephone Entry and Access Control Systems. Contact your authorized LiftMaster dealer for details.
3-BUTTON SECURITY✚®REMOTE CONTROL
The 3-button remote control can be programmed to control the operator. Includes
visor clip.
Model 373LM
OPEN
OPEN
CLOSE
3-BUTTON MINI-REMOTE CONTROL WITH SECURITY✚®
The 3-button remote control can be programmed to control the operator. Includes
key ring and fastening strip.
Model 370LM
OPEN
OPEN
CLOSE
REMOTE CONTROLS
SENSING EDGE (2-WIRE, NON-MONITORED)
Sensing edges can detect an obstacle upon contact and stop the operator.
Models G65MG0204, G65MG0205, G65MGR205 and G65MGS205
SENSING EDGE CHANNEL
Mounting channel for all MG020 type edges.
Model G65ME120C5
OPEN
OPEN
CLOSE
SECURITY✚®KEYLESS ENTRY
Enables homeowner to operate gate operator from outside by entering a 4-digit
code on a specially designed keypad.
Model 377LM
OPEN
3 4

MISCELLANEOUS
DUAL GATE WIRING KIT
The dual gate wiring kit is 40 feet of interconnecting cable required for dual gate
applications.
Model MSWIRE12GA6C
OPEN
OPEN
CLOSE
SLEEP MODE
The operator enters sleep mode 10 seconds after the last command is given. The photoelectric sensor indicator LEDs
will not be on. The next command given will return the operator to normal operation.
REMOTE CONTROL
Once the remote control has been programmed operator will operate as follows:
When gate is in the closed position, activation of the remote control button will open the gate. During the open cycle
another activation of the remote control will stop the gate and the next activation of the remote control will close
the gate. When the gate is in the open position, activation of the remote control button will close the gate.
If a contact sensor detects an obstruction twice consecutively the alarm will sound
(up to 5 minutes) and the operator will need to be reset.
The gate does not meet
specifications.
Debris is on the gate's track
such as mud, rocks, dirt, etc.
(Slide Only)
The gate has one or more
broken axles or wheels.
(Slide Only)
The gate wheel is off the gate
rail. (Slide Only)
The gate is hitting a wall or
vehicle.
NOTE: In dual gate applications the reset switch/button must be toggled/pressed on the primary operator.
Remove any obstructions. Toggle/press the reset switch/button to shut off the alarm and reset the operator. After
the operator is reset, normal functions will resume.
When the inherent force of the operator (RPM/current
sensor) detects the following (twice consecutively) the
alarm will sound (up to 5 minutes) and the operator
will need to be reset:
REMOTE ANTENNA EXTENSION KIT
The remote antenna extension kit allows the antenna to be remotely installed.
Model 86LM
WIRELESS ACCESS CONTROL RECEIVER
Access control receiver for up to 450 Security✚®remote controls.
Model STAR450-315
HEATER
Keeps operator gearbox and batteries at suitable temperature when outside
temperature is below 0°F for extended periods of time.
Models HTRKITRSL (for Slide operator, includes bracket for optimal 7AH battery
location) and G6518SL (Slide replacement heater only)
Models HTRKITRSW (for Swing operator, includes bracket for optimal heater
location) and G6518CSW (Swing replacement heater only)
OPEN
OPEN
CLOSE
LOOP DETECTOR
Low power loop detectors.
Model LD7LP
OPEN
OPEN
CLOSE
MOUNTING STAND
For Model RSL Slide. Ideal to raise slide operator higher above the ground for snow
and other applications.
Model MSLM for Slide ONLY
OPEN
OPEN
CLOSE
Gate hinges are too tight or
broken and the gate is not
moving freely. (Swing Only)
The gate is moving and a car
pushes the gate.
(Swing Only)
A foreign object is on the gate
frame while the gate is moving.
(Swing Only)
The gate hits the driveway, curb
or other, and gets stuck or bent
in an awkward position.
(Swing Only)
OPERATOR ALARM
The operator arm or gate is
incorrectly installed.
(Swing Only)
ACCESSORIES OPERATION
5 2
POST-MOUNTING PLATE
For post-mounting model RSW residential swing operator (also CSW200
commercial swing operator). Posts not included.
Model MPEL for Swing ONLY
OPEN
OPEN
CLOSE

SOLAR PANEL KIT - 10 WATT
This kit is to replace or add a solar panel to the operator application. Up to three
solar panels can be connected to the operator.
Model SOLPNL10W12V
SOLENOID GATE LOCK (LOW POWER)
The automatic gate lock is a solenoid-driven lock that automatically unlocks when
the gate is open and locks when the gate is closed. Can be mounted onto a gate or
post. Can be released in case of emergency.
Model SGLOCK12V
OPEN
OPEN
CLOSE
BATTERY FOR GATE ACCESS SYSTEMS
The gate access system battery replaces or adds a battery to the operator
application.
Model 29-NP712 (7 AMP-Hour Battery, 12 Vdc, requires additional 7AH battery
harness)
Model A12330SGLPK (33 AMP-Hour Battery, 12 Vdc, harness included. Ideal for
solar applications and extended battery backup)
MAGNETIC GATE LOCK
Outdoor magnetic lock, transformer, junction box, mounting plate and hardware.
Not for use with Solar Applications. Must be powered separately.
Model MG1300
OPEN
OPEN
CLOSE
RESET SWITCH/BUTTON
The reset switch/button is located on the front of the operator and serves several functions.
OPERATION
Thank you for purchasing a LiftMaster gate operator.
Our operators are designed to meet or exceed UL325
safety standards and requirements and are quality
manufactured for years of safe and reliable service.
Think LiftMaster for all of your Access Control needs.
MODEL RSL12V SLIDE GATE OPERATOR
Model RSL12V has a reset switch. When referring to
“toggling” the reset switch it means pressing the reset
switch to the RESET/DISCONNECT position, then back
to the NORMAL OPERATION position.
To open and close the gate(s) manually, press the
reset switch to the RESET/DISCONNECT position. On a
dual gate application the reset switch must be pressed
on both operators. To resume normal function press
the reset switch to NORMAL OPERATION.
MODEL RSW12V SWING GATE OPERATOR
Model RSW12V has a reset button.
To open and close the gate(s) manually, press the
reset button. On a dual gate application the reset
button must be pressed on both operators. The next
command given by a remote control will close the
gate and return the operator to normal operation.
ACCESSORIES
1 6
RELAY KIT
Maglock release relay.
Model Q400MAU
OPEN
OPEN
CLOSE
BATTERY HARNESS
Required when a second 7 AMP-Hour, 12 Vdc battery is added to the operator.
Model K94-35225
VEHICLE SENSING PROBE
The vehicle sensing probe is buried in the ground and can detect a car as it
approaches and will then open the gate.
Model LM202
OPEN
OPEN
CLOSE

USER’S GUIDE
VEHICULAR SLIDE/SWING GATE OPERATORS
Your model may look different than the model illustrated in this user’s guide.
RSL12V ™ & RSL12VH ™ RSW12V ™ & RSW12VH ™
845 Larch Avenue
Elmhurst, Illinois 60126-1196
01-35314C © 2010, The Chamberlain Group, Inc. – All Rights Reserved
Installation Date
www.liftmaster.com
Please contact your authorized LiftMaster dealer
for all of your service needs.
