OWNER'S MANUAL
MODEL GJ
SOLID STATE
INDUSTRIAL DUTY
GEARHEAD JACKSHAFT OPERATOR
NOT FOR RESIDENTIAL USE
Serial #
(located on electrical box cover)
Installation Date
Wiring Type
41B6
LISTED
DOOR
OPERATOR
R
LR78500
CERTIFIED
DOOR
OPERATOR
R

C
L
C
4-3/4"
14"
8-7/8"
7"
B
A
5-1/2"
2
MECHANICAL
DRIVE REDUCTION:.............40:1 Reduction
Heavy duty bronze worm
gear reducer
OUTPUT SHAFT SPEED:.....43 R.P.M.
DOOR SPEED:......................4 - 10" per sec.
depending on door
BRAKE: .................................Solenoid actuated disc
brake
HOIST WHEEL:.....................Standard mounting on
left or right side
SAFETY
DISCONNECT:.............Floor level chain hoist with elect-
rical interlock for emergency manual door operation
CLUTCH: (optional)....Adjustable torque limiter type
REVERSING EDGE:.....(Optional) Electric or pneumatic
sensing device attached to the bottom edge of door.
A REVERSING EDGE IS STRONGLY
RECOMMENDED FOR
ALL COMMERCIAL
OPERATOR INSTALLATIONS.
REQUIRED WHEN
THE 3 BUTTON CONTROL STATION IS OUT OF
SIGHT OF DOOR OR ANY OTHER CONTROL
(AUTOMATIC OR MANUAL) IS USED.
MOTOR
TYPE:.....................................Continuous duty
HORSEPOWER:....................1/2, 3/4 & 1 Hp
Single or Three phase
1-1/2 & 2 HP Three
phase
SPEED:..................................1725 RPM
VOLTAGE:.............................115/208-230 Single
phase
208-230 Three phase
CURRENT: ............................See motor nameplate
SPECIFICATIONS
ELECTRICAL
CONTROL VOLTAGE: ....5V dc
AUXILIARY VOLTAGE:...24V dc
CONTROL STATION: .....NEMA 1 three button station.
OPEN/CLOSE/STOP
WIRING TYPE:.................B2 (Standard)
Momentary contact to OPEN/CLOSE/STOP plus wiring
for sensing device to reverse and auxiliary devices to
open and close with open override.
(Other types available. See chart, Pg. 14)
LIMIT ADJUST:................Linear driven, fully
adjustable screw type cams. Adjustable to 30 feet.
WEIGHTS AND DIMENSIONS
HANGING WEIGHT:.........80-110 LBS.
GJ OPERATOR
CLUTCH
DIMENSION - A
DIMENSION - B
DIMENSION - C
1/2 HP
YES
28-11/16”
14-5/16”
13-1/16”
NO
24-15/16”
10-9/16”
13-1/16”
3/4 HP
YES
28-13/16”
14-7/16”
13-1/16”
NO
25-1/16”
10-11/16”
13-1/16”
1 HP
YES
29-1/16”
14-11/16”
13-1/16”
NO
25-5/16”
10-15/16”
13-1/16”
1 1/2 HP
YES
29-3/16”
14-13/16”
13-9/16”
NO
25-7/16”
11-1/16”
13-9/16”
2 HP
YES
29-13/16”
15-7/16”
13-9/16”
NO
26-1/16”
11-11/16”
13-9/16”

CAUTION
CONNECT REVERSING EDGE
SWITCH - SEE INSTALLATION
INSTRUCTIONS
FOR INDOOR USE ONLY
INSTALL MORE THAN 8 FT. ABOVE DOOR
LOCATE CONTROL STATION SO THAT DOOR IS WITHIN
SITE OF PERSON OPERATING THE CONTROL. DOOR
MUST BE CONTROLLED BY 3 BUTTON STATION
Cotterpin
Disconnect Lever
Cutout for Rollpin
(typical both sides)
Hand
Chain Wheel
Chain Guide
3
2-1/4"
FIGURE 1
Shaft Support Bracket
with Bearing (Not Supplied)
Door Sprocket
TO AVOID DAMAGE TO DOOR AND OPERATOR,
MAKE ALL DOOR LOCKS INOPERATIVE. SECURE
LOCK(S) IN "OPEN" POSITION.
IF THE DOOR LOCK NEEDS TO REMAIN
FUNCTIONAL, INSTALL AN INTERLOCK SWITCH.
DO NOT CONNECT ELECTRIC POWER UNTIL
INSTRUCTED TO DO SO.
KEEP DOOR BALANCED. STICKING OR BINDING
DOORS MUST BE REPAIRED. DOORS, DOOR
SPRINGS, CABLES, PULLEYS, BRACKETS AND
THEIR HARDWARE MAY BE UNDER EXTREME
TENSION AND CAN CAUSE SERIOUS PERSONAL
INJURY. CALL A PROFESSIONAL DOOR
SERVICEMAN TO MOVE OR ADJUST DOOR
SPRINGS OR HARDWARE.
WARNING
CAUTION
WARNING
WARNING
CAUTION
WARNING
WARNING
CAUTION
WARNING
WARNING
CAUTION
WARNING
SITE PREPARATIONS
It is imperative that the wall or mounting surface
provide adequate support for the operator.
This surface must:
a) Be rigid to prevent play between operator and
door shaft.
b) Provide a level base.
c) Permit the operator to be fastened securely and
with the drive shaft parallel to the door shaft.
The safety and wear of the operator will be adversely
affected if any of the above requirements are not met.
For metal buildings, fasten 2” x 2” x 3/16” (or larger)
angle iron frames to the building purlins. Retain
2-1/4” between frames. See Figure 1.
The GJ operator may be mounted on either the right (standard) or left side of door, and in either a vertical
(standard) or horizontal mounting position. Refer to the steps below if you require the hand chain and/or
disconnect chain to be on the opposite side of the operator; Or if the operator is being mounted in a horizontal
position.
MOUNTING CONVERSIONS
Hand Chain Right/Left Conversion
Remove the two snap rings (1 pc. outer, 1 pc inner)
on hand chain shaft assembly. Position roll-pin to fit
through cutout in frame and slide complete shaft
assembly through housing and bevel gear. Insert
shaft assembly on opposite side of housing, and
replace bevel gear, bearing, hardware, and snap rings
on the opposite side of shaft in the same manner.
Disconnect Lever Right/Left Conversion
Remove cotter pins on the ends of the disconnect
shaft (square shaft), move the disconnect lever arm to
the opposite side, and replace the cotter pins. Be
sure to keep two(2) 12ga. washers on the side without
the lever arm.
Horizontal Mounting Conversion
Remove cotter pins on the ends of the disconnect
shaft (square shaft), and remove lever. Replace lever
using square hole on opposite end of lever.
Reposition sash chain to opposite end of lever also.
Replace cotterpins.
IMPORTANT SAFETY NOTES
FIGURE 2

4
1a. Wall Mounting
The operator should generally be installed below
the door shaft, and as close to the door as
possible. The optimum distance between the door
shaft and operator drive shaft is between 12” - 15”.
On concrete buildings, attach a shaft support
bracket to the wall of the building. Refer to Figure 3.
OPERATOR MOUNTING
IMPORTANT: An additional wall mounting
plate (P/N 10-9098) or equivalent is
recommended to provide additional support
and to allow for adjustment of the drive chain.
IMPORTANT: The shelf or bracket must
provide adequate support, prevent play
between operator and door shaft, and permit
operator to be fastened securely and with the
drive shaft parallel to the door shaft.
1b. Bracket or Shelf Mounting
The operator may be mounted either above or
below the door shaft. The optimum distance
between the door shaft and operator drive shaft is
between 12” - 15”. Refer to Figure 4.
1c. Place door sprocket on the door shaft. Do not
insert the key at this time.
2. Place drive sprocket on the appropriate side of
the operator. Do not insert the key at this time.
3. Wrap drive chain around door sprocket and join
roller chain ends together with master link.
4. Raise operator to approximate mounting position
and position chain over operator sprocket.
5. Raise or lower operator until the chain is taut (not
tight). Make sure the operator output shaft is
parallel to door shaft and sprockets are aligned.
When in position, secure the operator to wall or
mounting bracket.
6. Align sprockets and secure, (see Figure 5).
Mount Door Sprocket to Door.
Sprocket Supplied with Door,
(Not with Operator).
Refer to Door Owner's Manual
for Installing Door Sprocket
Installation of Operator to
Sheet Type Rolling Doors
or Rolling Doors without
Live Drive Shaft
Door
Sprocket
Mounting
Bracket
(Optional)
Drive
Sprocket
Direction of Output Shaft
Rotation for OPEN
FIGURE 4FIGURE 3
The standard GJ operator is setup for mounting on right side of the door and in vertical position. If necessary,
refer to the operator mounting conversions on page 3. Refer to the illustrations and instructions below that suits
your application.
Be sure door sprocket
is properly aligned with
drive sprocket before
securing to shaft.
FIGURE 5

SENSING EDGES
All types of sensing edges with an isolated normally
open (N.O.) output are compatible with your
operator. This includes pneumatic and electric
edges. If your door does not have a bottom sensing
edge and you wish to purchase one, contact the
supplier of your operator.
If not pre-installed by the door manufacturer, mount
the sensing edge on the door according to the
instructions provided with the edge. The sensing
edge may be electrically connected by either coiled
cord or take-up reel. Refer to the steps below
Important Notes:
a) Proceed with Limit Switch Adjustments before
making any sensing edge wiring connections to
operator as described on page 8
b) Electrician must hardwire the junction box to the
operator electrical box in accordance with local
codes.
TAKE-UP REEL: Take-up reel should be installed
12" above the top of the door.
COIL CORD: Connect operator end of coil cord to
junction box (not supplied) fastened to the wall
approximately halfway up the door opening. 5
FIGURE 5
FIGURE 7
Installation of Operator
to Sectional Door
(Metal Building)
Make-up Box
(Not Provided)
Take-up Reel
(Optional)
Coil Cord
(Optional) Pneumatic Air Switch:
Not required or supplied
when electric sensing
edge is used
Air Hose
Sensing Edge
Wire (24V)
ENTRAPMENT PROTECTION ACCESSORIES (OPTIONAL)
7. Install Hand Chain
Place hand chain around hand chain wheel. Be
sure to pass it through both openings in the chain
guide. Remove enough links so chain hangs
approximately two feet above the floor.
8. Mount Chain Keeper
Using suitable hardware mount the chain keeper
approximately 4 feet above the floor, near the free
hanging chain. Remove disconnect sash chain
from bag and place the end through the keyhole
in the the chain keeper. Remove excess links if
necessary.
EMERGENCY MANUAL HOIST OPERATION
IT IS STRONGLY RECOMMENDED THAT A
SENSING EDGE OR OTHER ENTRAPMENT
PROTECTION DEVICE BE USED IN
CONJUNCTION WITH THIS OPERATOR.
a) Pull the disconnect chain (small chain) to engage
the hoist mechanism. The disconnect chain may
be locked in position by slipping the end through
the keyhole of chain keeper mounted on the wall.
b) Operate the door in the desired direction by
pulling on one side or the other of the continuous
loop hoist chain (large chain).
In case of emergency or power failure, the operator has provision for manually operating the door. An electrical
interlock will disable the electrical controls when manual hoist is used. To operate the hoist:
c) The disconnect chain must be released from
chain keeper before door will operate again
electrically.
Mount Chain Keeper
approx. 4 feet above
floor
FIGURE 6

6
INSTALL CONTROL STATION
WARNING
TO PREVENT ENTRAPMENT
DO NOT START DOOR DOWNWARD
UNLESS DOORWAY IS CLEAR
OPEN
CLOSE
STOP
Control Station
WARNING Notice
Push
Buttons
The Chamberlain Group, Inc.
Install Control Station (Three Button Art)
MJ CDO #2 (Green)
6/20/91
WARNING
CAUTION
WARNING
WARNING
CAUTION
WARNING
DISCONNECT POWER AT THE FUSE BOX BEFORE
PROCEEDING.
OPERATOR MUST BE PROPERLY GROUNDED AND
CONNECTED IN ACCORDANCE WITH LOCAL
ELECTRICAL CODES. NOTE: THE OPERATOR
SHOULD BE ON A SEPARATE FUSED LINE OF
ADEQUATE CAPACITY.
ALL ELECTRICAL CONNECTIONS MUST BE MADE
BY A QUALIFIED INDIVIDUAL.
WARNING
CAUTION
WARNING
WARNING
CAUTION
WARNING
TO AVOID DAMAGE TO DOOR AND OPERATOR,
MAKE ALL DOOR LOCKS INOPERATIVE. SECURE
LOCK(S) IN "OPEN" POSITION.
IF THE DOOR LOCK NEEDS TO REMAIN
FUNCTIONAL, INSTALL AN INTERLOCK SWITCH.
WARNING
CAUTION
WARNING
WARNING
CAUTION
WARNING
INSTALL THE CONTROL STATION WHERE THE
DOOR IS VISIBLE, BUT AWAY FROM THE DOOR AND
ITS HARDWARE. IF CONTROL STATION CANNOT BE
INSTALLED WHERE DOOR IS VISIBLE, OR IF ANY
DEVICE OTHER THAN THE CONTROL STATION IS
USED TO ACTIVATE THE DOOR,
A REVERSING
EDGE MUST
BE INSTALLED ON THE BOTTOM OF
THE DOOR.
FAILURE TO INSTALL A REVERSING
EDGE UNDER THESE CIRCUMSTANCES MAY
RESULT IN SERIOUS INJURY OR DEATH TO
PERSONS TRAPPED BENEATH THE DOOR.
1. Complete electrical connections to the operator
and the control station. Fasten the control station
to the wall and MOUNT THE WARNING NOTICE
BESIDE OR BELOW THE PUSH BUTTON
STATION.
2. Apply power to the operator. Press OPEN push
button and observe direction of output shaft
rotation. See Figure 4, page 4. Press the STOP
button.
If shaft does not rotate in the correct direction,
check for improper wiring at the control station or
between operator and control station.
If the operator is three phase and control station
wiring is correct, exchange any two of the three
incoming power leads.
If electrical problems persist, call our Toll Free
number for assistance (1-800-528-6563).
CABLE CONNECTION NOTE:
Be sure to use the control box opening with the
1-1/16" hole for the POWER cable. All control wires
use the 7/8" hole.
Refer to Master Wiring Diagram. Make connection
through holes labeled for power and control. Do
not run control wires in the same conduit as
power wires.
Before installing control station be sure to follow all warnings described below. Failure to so may result
in severe injury to persons and/or damage to operator. Do not install any wiring or attempt to run the
operator without consulting the wiring diagram. Install the optional Reversing Edge before proceeding
with the Control Station installation.
IMPORTANT: Mount WARNING NOTICE beside or
below the push button station.
IMPORTANT SAFETY NOTES CONTROL STATION WIRING
MOUNT WARNING NOTICE
7/8" Hole (far side)
for low voltage
CONTROL WIRES
1-1/16" Hole (near side)
for high voltage
POWER WIRES

7
MAKE SURE THE LIMIT NUTS ARE POSITIONED BETWEEN THE LIMIT SWITCH ACTUATORS BEFORE
PROCEEDING WITH ADJUSTMENTS.
1. To increase door travel, spin nut away from actuator. To decrease door travel, spin limit nut toward actuator.
2. Adjust open limit nut so that door will stop in open position with the bottom of the door even with top of door
opening.
3. Repeat Steps 1 and 2 for close cycle. Be sure close limit actuator is engaged as door fully seats at the floor.
If other problems persist, call our toll-free number for assistance - 1-800-528-6563.
CLOSEOPEN
Open Limit
Nut Close Limit
Nut Travel Nut
Retainer
Close Limit
Switch
Open Limit
Switch
OLS CLS
SLS
Actuator
The Chamberlain Group, Inc.
Travel Nut Retainer 
2/22/94 - 2/27/94
Press Travel Nut Retainer Down
Toward Frame TO DISENGAGE.
6
TO AVOID SERIOUS PERSONAL INJURY OR DEATH
FROM ELECTROCUTION, DISCONNECT ELECTRIC
POWER BEFORE MANUALLY MOVING LIMIT NUTS.
WARNING
CAUTION
WARNING
WARNING
CAUTION
WARNING
ADJUST LIMITS

8
Remove clutch cover and adjust clutch so that it is
tight enough to open and close the door but will slip
when the door meets an obstruction. Either loosen or
tighten the clutch nut with 1/4 turn increments. After
adjustment is completed, tighten locking set screw
and re-install clutch cover. Reconnect power to
operator and test for proper operation. The clutch will
require periodic inspection and adjustment.
Motor
Clutch
Adjusting
Nut
The Chamberlain Group, Inc.
GJ CDO Adjusting Clutch
Disk #3 (Red)
9/19/91
The operator has been pre-wired to accept
connection of a reversing edge device. Connect the
normally open contacts to terminals T4 and T8 on the
low voltage terminal block. A cut-off switch will de-
activate the safety device during the last few inches
of the door's downward travel.
WARNING
CAUTION
WARNING
WARNING
CAUTION
WARNING
IF CONTROL STATION CANNOT BE INSTALLED
WHERE DOOR IS VISIBLE, OR IF ANY DEVICE OTHER
THAN THE CONTROL STATION IS USED TO ACTIVATE
THE DOOR,
A REVERSING EDGE MUST
BE INSTALLED
ON THE BOTTOM OF THE DOOR.
FAILURE TO INSTALL
A REVERSING EDGE UNDER THESE CIRCUMSTANCES
MAY RESULT IN SERIOUS PERSONAL INJURY OR
DEATH TO PERSONS TRAPPED BENEATH THE DOOR.
WARNING
CAUTION
WARNING
WARNING
CAUTION
WARNING
TO AVOID SERIOUS PERSONAL INJURY OR DEATH
FROM ELECTROCUTION, DISCONNECT ELECTRIC
POWER TO OPERATOR BEFORE ADJUSTING SLIP
CLUTCH.
CAUTION: The torque limiter clutch is NOT an
automatic reversing device. An electric or
pneumatic reversing edge can be added to bottom
edge of door if desired.
ADJUST CLUTCH (OPTIONAL)
CONNECT REVERSING EDGE DEVICE (OPTIONAL)
NOTICE:
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.

9
✳ Use SAE 30 Oil (Never use grease or silicone spray).
✳✳ Use Mobil SHC75W90 all climate synthetic oil.
✔Repeat ALL procedures.
■ Do not lubricate motor. Motor bearings are rated for continuous operation
■Do not lubricate clutch.
■Inspect and service whenever a malfunction is observed or suspected.
■CAUTION: BEFORE SERVICING, ALWAYS DISCONNECT OPERATOR FROM POWER SUPPLY.
EVERY EVERY EVERY
ITEM PROCEDURE 3 MONTHS 6 MONTHS 12 MONTHS
Drive Chain Check for excessive slack.
Check & adjust as required.
Lubricate.*
● ✔
Sprockets Check set screw tightness ● ✔
Clutch (Optional) Check & adjust as required ● ✔
Gear Reducer** Check for leaks and replace
seals as needed ● ✔
Fasteners Check & tighten as required ● ✔
Manual Disconnect Check & Operate ● ✔
Check at the intervals listed in the following chart.
OUR LARGE SERVICE ORGANIZATION
SPANS AMERICA
INSTALLATION AND SERVICE INFORMATION
ARE AVAILABLE 6 DAYS A WEEK
CALL OUR TOLL FREE NUMBER – 1-800-528-6563
HOURS 7:00 TO 3:30 p.m. (Mountain Std. Time)
MONDAY Through SATURDAY
IN CANADA
CALL OUR TOLL FREE NUMBER – 1-800-654-4736
WHEN ORDERING REPAIR PARTS
PLEASE SUPPLY THE FOLLOWING INFORMATION:
PART NUMBER DESCRIPTION MODEL NUMBER
ADDRESS ORDER TO:
THE CHAMBERLAIN GROUP, INC.
Electronic Parts & Service Dept.
2301 N. Forbes Blvd., Suite 104
Tucson, AZ 85745
MAINTENANCE SCHEDULE
HOW TO ORDER PARTS

awaiting page 10

11
1 2 3 4 5 6 7 8 9 10
L3
L2 H
L1 N
TB1-
1 2 3
Open
Open / Close
Remove Jumper
to Install Interlock
RADIO CONTROL
(24V dc only)
Stop
Sensing Device
Hot 115V, 208-230V, 1Ø
Neutral 115V, 208-230V, 1Ø
Close
STANDARD POWER AND
CONTROL CONNECTION DIAGRAM
(Solid State Board CDO - 115V, 208-230V, 1Ø)
The Chamberlain Group, Inc.
1Ø Standard Power & Control Connection Diagram
Solid State CDO
2/22/94 - 2/25/94
GND
11

96
T3
T2
T1 L1
L2
L3
95
P1-
P6- 41 51 P7-
E21 E4
E3 E1
E2
XMFR SECONDARY
E6 E7
1
ON OFF
234
P2- P3-
L3 L2
HL1
N
P4-
E9 E8 E12
E11 E13
E16
E19
E17
E15
E20
E18
E10
Q7
Q8 Q9
Q10 Q11
E14
E5
LINE
LOAD
Orange
Blue
Black Black
Blue
Black
White
Blue
Blue
Blue
Black
Blue
Yellow
Yellow
Yellow
White
White
Black
White
TO
MECHANICAL
BRAKE
OVERLOAD
Orange
Red
Orange
RedRed
208-230V, 3Ø
208-230V, 3Ø
Black
Red
Yellow Yellow Yellow
Wht.
White**
1/3 & 1/2 HP ONLY
Orange
Orange
Yellow
Yellow
Yellow
White*White
Yellow
YellowYellow
Black
Black
Blue
3/4 HP
& Above
3/4 HP & Above
Black
Black
Black
Red
Orange Orange
Black
Black Black
TRANSFORMER
RADIO CONTROL
MOTOR
GND
OPEN
LIMIT
SWITCH
CLOSE
LIMIT
SWITCH
SENSING
LIMIT
SWITCH
NC
NO
NC
NO
NC
NO C
C
C
Yellow
Blue
Blue
White
Yellow
Red
Red
Yellow
Blue
White
Blue
White
White
Yellow
White
White
White
White
Red
Red
3 2 1Brown
Gry./Wht.
Yellow
Open
Open / Close
Stop
Sensing Device
Close
Red
208-230V, 3Ø
Internal Interlock
(when used)
External Interlock
(if required)
1 2 3 4 5 6 7 8 9 10
TB1-
U1
SOLID STATE THREE PHASE
WIRING DIAGRAM
208-230V
**THIS WIRE NOT USED ON 1/3 & 1/2 HP
WITH POWER INDUCTOR
POWER
INDUCTOR
1/3 &1/2 HP ONLY
*THIS WIRE NOT USED ON 3/4 HP
AND ABOVE WITH POWER INDUCTOR
12

13
OPTIONAL SETTINGS
1 2 3 4 5 6 7 8 9 10
L3
L2 H
L1 N
TB1-
1 2 3
Open
Open / Close
RADIO CONTROL
(24V dc only)
Stop
Sensing Device
208-230V, 3Ø
208-230V, 3Ø
208-230V, 3Ø
Close
STANDARD POWER AND
CONTROL CONNECTION DIAGRAM
(Solid State Board CDO - 208-230V, 3Ø)
3Ø Standard Power & Control Connection Diagram
Solid State CDO
2/27/94 - 3/9/94
GND
13

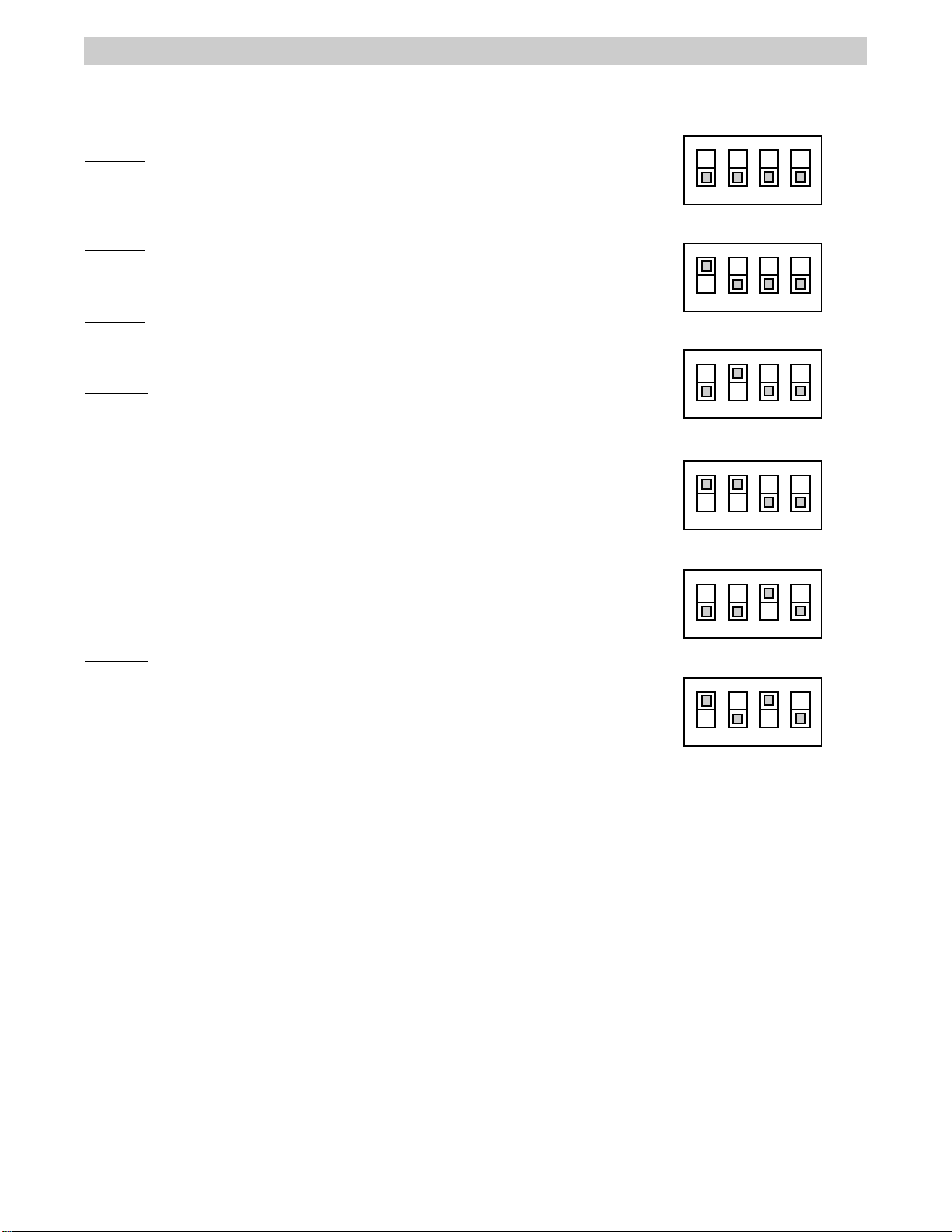

Set Maximum Run Timer
Begin with door in closed position. Set dip switch to max. run timer
mode. Press control station open button to operate door from closed to
full open position without stopping. Set dip switch to desired operating
mode (B2, C2, D1, E2, T, TS).
Set Adjustable Mid Stop
Begin with door in closed position. Set dip switch to adj. mid stop mode.
Press control station open button to operate door from closed to mid
stop position and stop with control station stop button. Set dip switch to
desired operating mode (B2, C2, D1, E2, T, TS).
Set Timer to Close (NOTE: Requires P/N 1A4811 CPSII
Option Board with Timer to Close Function.)
Set dip switch to timer to close mode. Momentarily press control station
open button to set timer duration in 5 second increments. (Red
diagnostic L.E.D. will flash to indicate the entry of each 5 second
increment into memory). To re-set timer memory to zero, press control
station close button. Set dip switch to (T or TS) operating mode after
timer is programmed.
Diagnostic Mode
Set dip switch to diagnostic mode. Flashing red diagnostic L.E.D.
indicates proper microprocessor function. If the diagnostic L.E.D. does
not light, the control logic board requires replacement.
Set
max.
run
timer
Set
adj.
mid
stop
Set
timer
to close
Diagnostic
mode
1 2 3
OFF
4
1 2 3
OFF
4
1 2 3
OFF
4
1 2 3
OFF
4

14
C2
D1
E2
T
TS
B2
1 2 3
OFF
4
1 2 3
OFF
4
1 2 3
OFF
4
1 2 3
OFF
4
1 2 3
OFF
4
1 2 3
OFF
4
The Chamberlain Group, Inc.
New Wiring Kit Art
2/19/94
TYPE STATION
B2 3 Button, 1 Button, 1 & 3 Button Radio Control
Function
: Momentary contact to open, close and stop, plus wiring for
sensing device to reverse and auxiliary devices to open and close
with open override.
C2 3 Button, 3 Button Radio Control
Function: Momentary contact to open and stop with constant pressure
to close, open override plus wiring for sensing device to reverse.
D1 2 Button, 3 Button Radio Control
Function: Constant pressure to open and close with wiring for sensing
device to stop.
E2 2 Button, 3 Button Radio Control
Function: Momentary contact to open with override and constant
pressure to close. Release of close button will cause door to reverse
(roll-back feature) plus wiring for sensing device to reverse.
T* 3 Button, 1 Button, 1 & 3 Button Radio Control
Function: Momentary contact to open, close, and stop, with open
override and timer to close. Every device that causes door to open,
except a reversing device, activates timer to close. Auxiliary controls
can be connected to open input to activate the timer to close. If the
timer has been activated, the open button and radio control can
recycle the timer. The stop button will deactivate the timer until the
close button is used to close the door. (NOTE: Requires P/N 1A4811
CPSII Option Board with Timer to Close Function.)
TS* 3 Button, 1 Button, 1 & 3 Button Radio Control
Function: Momentary contact to open, close, and stop with open
override and timer to close. Every device that causes door to open,
including a reversing device, activates timer to close. Auxiliary
controls can be connected to open input to activate the timer to close.
If the timer has been activated, the open button and radio control can
recycle the timer. The stop button will deactivate the timer until the
close button is used to close the door. (NOTE: Requires P/N 1A4811
CPSII Option Board with Timer to Close Function.)
NOTE:
1. External interlocks may be used with all functional modes.
2. Auxiliary devices are any devices that have only one set of
contacts. Examples are: photocell, loop detector, pneumatic or
electrical treadles, residential radio controls, one button stations,
pull cords, etc.
3. Open override means that the door may be reversed while closing
by activating an opening device without the need to use the stop
button first.
OPERATING MODE

T2 White
T4 YellowYellow
Motor
Cable
115V
T5 Black
Blue
Orange
T3 Orange
Black
Red T1 Blue
T8 Red
T4 YellowOrange
Motor
Cable
208-230V
T5-Black
Blue
Yellow
T1 Blue
Black
Red
T8
Red T3 Orange
T2
White
Motor 208-230V
T1
T7 T4
T2
P1
P2
T8
T3 T6
T5
T9
Yellow
Black
Blue
Orange
Red
Cable
3 PHASE
1/3 & 1/2HP 3/4HP & OVER
NEMA MOTOR WIRING DIAGRAMS
Motor 208-230V
T1
T7 T4
T2
T8
T3 T6
T5
T9
Yellow
Black
Blue
Orange
Red
Cable
DENOTES WIRENUT CONNECTION
T1 - BlueBlack
Motor
Cable
Blue
T8 - RedRed
Yellow
Orange
T4 - Yellow
T5 - Black 1KΩ5W
115V
1/3 & 1/2HP 115V only
The Chamberlain Group, Inc.
NEMA Motor Wiring Diagrams
2/19/94
1 PHASE
SINGLE VOLTAGE
15
15
NEMA MOTOR WIRING DIAGRAMS

16
The Chamberlain Group, Inc.
Illustrated Parts Solid State
Electrical Box
3/4/94 - 3/9/94 - 8/10/94
1
2
3
NEC CLASS 2 CIRCUIT
CONTROL
WIRING
9
10
18
22
6
17
8
16
11
3
3
12
2
15 13 13
14
5
1
11
21
19
20
7
4
16
23
ILLUSTRATED PARTS – ELECTRICAL BOX
SOLID STATE

* VARIABLE PARTS - Refer to the operator specifications to determine appropriate variable components
17
REPAIR PARTS LIST – ELECTRICAL BOX
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
PART NO.
1B3727
1B3757
1B3796
1B4681
1C4691
1B4683
11A012
12B552
31A388
155B16
133A182
171A411
QTY
1
1
1
1
1
1
1
1
1
1
2
4
DESCRIPTION
Terminal Assy., 3-Lug
Switch Bracket Assy.
Ltd. Shaft - Sprocket Assy.
Cover & Hinge Assy.
Electric Box Assy.
Wire Harness Limit Switch
Flanged Sleeve Bearing
Limit Bracket
Dome Plug
Heat Sink
Limit Nut, 1/2”
Screw, #4-40 x 1-1/2” Pan Head
ITEM
19
21
PART NO.
180C0104-3
180C0104-4
180B0159-1
180B0159-2
180B0159-3
180B0159-4
180B0159-5
180B0159-9
1/2Hp
115V
1O
1
1/2Hp
230V
1O
1
1/2Hp
230V
3O
3/4Hp
115V
1O
1
3/4Hp
230V
1O
1
3/4Hp
230V
3O
1
1Hp
115V
1O
1
1Hp
230V
1O
1
1Hp
230V
3O
1
1-1/2Hp
230V
3O
1
2Hp
230V
3O
1
DESCRIPTION
Overload, 2.8 - 4.4A
Overload, 5.2 - 8A
Overload, 5A
Overload, 7A
Overload, 8A
Overload, 10A
Overload, 15A
Overload, 12A
OPERATOR SPECIFICATIONS (HORSEPOWER / VOLTAGE / PHASE)
SOLID STATE
Below is a parts list for a standard model GJ electrical box. Optional modifications and/or accessories may add or
remove certain parts from this list. Refer to page 9 for all repair part ordering information.
ITEM
13
14
15
16
17
18
19
20
21
22
23
PART NO.
216A184
216A191
158A49
184A109
180B133
1D4650
*See Below
204B0134
*See Below
1B4682
23-9032
QTY
2
1
1
4
3
1
0 / 1
1
0 / 1
1
1
DESCRIPTION
Thrust Washer
Washer, Spring Curved
Retaining Ring, 3/8”
Spacer - Round Stand Off
Limit Switch
PCB Assy.
Overload
Transformer, 115/230V
Overload
Radio Control Harness
Interlock Switch

18
ILLUSTRATED PARTS – MODEL GJ
SOLID STATE
18
19
4
13
17
12
3
5
9
38
8
1
6
30
15
33
23
45
40
30
41
7
16
34
24
45
22 42 43
28
14
26
10
11 32 35 27 44
21
25
20
36
24
38
31
29
2
CAUTION
CONNECT REVERSING EDGE
SWITCH - SEE INSTALLATION
INSTRUCTIONS
FOR INDOOR USE ONLY
INSTALL MORE THAN 8 FT. ABOVE DOOR
LOCATE CONTROL STATION SO THAT DOOR IS WITHIN
SITE OF PERSON OPERATING THE CONTROL. DOOR
MUST BE CONTROLLED BY 3 BUTTON STATION
37
39
46

* VARIABLE PARTS - Refer to the operator specifications to determine appropriate variable components
19
REPAIR PARTS LIST – MODEL GJ
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
PART NO.
See page 17
*See Below
*See Below
*See Below
*See Below
012C0580
012B0581
1A995
1C3758
10-5206
10-5209
10-9005
10-9008
10-9009
10-9010
10-9012
10-9022
10-9023
10-9024
11-5206
11-5207
11-9013
12C513
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
4
1
1
DESCRIPTION
Electrical Box Assembly
Chain, #48
Motor
Brake Solenoid
Gear Reducer
Elect. Box Mounting Bracket
Top Front Support Bracket
Master link, #48
Hoist wheel Assembly
Brake Release Lever
Brake Disc
Bottom Front Support Bracket
Actuator Plate
Disconnect Lever
Actuator Bracket
Switch Actuator
Front Cover
Solenoid Plate
Baffle Plate
Spring Cup
Brake Stud
Hand Chain Shaft
Hand Chain Guide
ITEM
2
3
4
5
46
PART NO.
1A4950
1A4951
123D0135
123D0138
123D0136
123D0139
123D0137
123D0140
123D0143
123D0142
22-120
22-240
32-9001-1C
32-9001-2C
109A0036
1/2Hp
230V
1O
1
1
1
1
1
1/2Hp
230V
3O
1
1
1
1
1
3/4Hp
115V
1O
1
1
1
1
1
3/4Hp
230V
1O
1
1
1
1
1
3/4Hp
230V
3O
1
1
1
1
1
1Hp
115V
1O
1
1
1
1
1
1Hp
230V
1O
1
1
1
1
1
1Hp
230V
3O
1
1
1
1
1
1-1/2Hp
230V
3O
1
1
1
1
2Hp
230V
3O
1
1
1
1
DESCRIPTION
Chain, #48, 47P
Chain, #48, 51P
Motor, 1/2Hp, 115/230V, Single phase
Motor, 1/2Hp, 230/460V, Three phase
Motor, 3/4Hp, 115/230V, Single phase
Motor, 3/4Hp, 230/460V, Three phase
Motor, 1Hp, 115/230V, Single phase
Motor, 1Hp, 230/460V, Three phase
Motor, 1-1/2Hp, 230/460V, Three phase
Motor, 2Hp, 230/460V, Three phase
Brake Solenoid, 115V
Brake Solenoid, 230V
Gear Reducer, 1 Hp
Gear Reducer, 2 Hp
#48 Offset Link
ITEM
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
PART NO.
12-9014
18-5206
18-9012
18-9034
19-9010
22A14
80-207-19
305-075209
305-105205
305-119008
305-109004
32-9003
32-9015
80-206-65
80-206-75
80-206-76
15-9004
81B86
86-RP10-110
86-RP10-208
87-E-062
87-E-075
*See Below
QTY
2
4
1
1
1
1
2
1
1
1
1
1
1
1
2
2
1
1
1
1
1
4
1
DESCRIPTION
Flange Bearing, 3/4”
Spring, Compression
Sring, Tension
Spring, Compression
Chain, Disconnect
Hand Chain, Gold
Key, 1/4” x 1/4” x 1-1/2”
Brake Hub
Brake Plate Assembly
Disconnect Shaft Assembly
Brake Housing Assembly
Bevel Gear, 5/8”
Bevel Gear, 3/4”
Spacer
Spacer
Spacer
Sprocket, 43B18 x 1”
Sprocket, 50B11 x 1”
Roll Pin, 5/16” x 1-5/8”
Roll Pin, 5/16” x 2-1/2”
Snap Ring, 5/8”
Snap Ring, 3/4”
Offset Link
OPERATOR SPECIFICATIONS (HORSEPOWER / VOLTAGE / PHASE)
SOLID STATE
Below is a parts list for a standard model GJ operator. Optional modifications and/or accessories may add or
remove certian parts from this list. Refer to page 9 for all repair part ordering information.
1/2Hp
115V
1O
1
1
1
1
1

© 1996, The Chamberlain Group, Inc.
114A1999 All Rights Reserved Printed in Mexico
ATTENTION: The 3-Button Control Station provided must be connected for operation.
STANDARD
Stop
Close
Open
7 6 4 5 7645
Open
Close Close
Open
Stop Stop
CONTROL CONNECTION DIAGRAM
3 BUTTON STATION OR 3 POSITION KEYSWITCH WITH SPRING RETURN TO CENTER AND STOP BUTTON
Stop
Close
Open
7 6 4 5
Keyswitch
2 OR MORE KEY LOCKOUT
2 BUTTON STATION OR 3 POSITION KEYSWITCH WITH SPRING RETURN TO CENTER
STANDARD
Close
Open
7 6 4 764
Open
Close Close
Open
2 OR MORE
D1 & E2
MODE ONLY
D1 & E2
MODE ONLY
B2, T & TS
MODE ONLY
1 BUTTON STATION OR ANY AUXILIARY DEVICE
1 4
RESIDENTIAL RADIO CONTROLS
OPEN / CLOSE
OPEN TIMER TO CLOSE
4 1 10
SENSING DEVICE TO REVERSE OR STOP EXTERNAL INTERLOCK
WIRING TYPES - ALL
4 8 2 3
ONE 2 OR MORE
REMOVE JUMPER
2 3
123
RADIO CONTROL
(24Vdc only)
®
41B6
LISTED
DOOR
OPERATOR
R
LR78500
CERTIFIED
DOOR
OPERATOR
R
