Chamberlain ATSW User manual

Light-Duty Commercial/
Residential Trolley Operator
Model ATSW
• Please read this manual and the safety materials
carefully!
• Fasten the manual near the door after installation.
• The door WILL NOT CLOSE unless the Protector
System®is connected and properly aligned.
• Periodic checks of the operator are required to ensure
safe operation.
• The model number label is located on the left panel of
your operator.
• This door operator is ONLY compatible with myQ®and
Security+ 2.0®accessories.
• DO NOT exceed 8 complete cycles of door operation
per hour.
LiftMaster
300 Windsor Drive
Oak Brook, IL 60523
1 YEAR WARRANTY
Register your door operator to receive updates
and offers from LiftMaster
Take a photo of the camera icon
including the points ( ).
Send it in by texting the photo to 71403 (US) or
visit www.liftmaster.photo (Global)
SM
For additional information and resources, visit:
https://dealer.liftmaster.com/login

2
Contents
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Install the Door Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Install the Protector System®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Repair Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

3
myQ®Serial Number
Write down the following information for future reference:
myQ®Serial Number:
myQ®Serial Number
Product S/N
Product S/N:
Date of Purchase:
/ /
Safety Symbol and Signal Word Review
This door operator has been designed and tested to offer safe service provided it is installed, operated, maintained and
tested in strict accordance with the instructions and warnings contained in this manual.
When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the possibility of
serious injury or death if you do not comply with the warnings that accompany them. The hazard may come from
something mechanical or from electric shock. Read the warnings carefully.
Mechanical
Electrical
When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your door and/or
the door operator if you do not comply with the cautionary statements that accompany it. Read them carefully.
WARNING: This product can expose you to chemicals including lead, which are known to the State of
California to cause cancer or birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
Unattended Operation
The Timer-to-Close (TTC) feature, the myQ Smartphone Control app, and myQ Garage Door and Gate Monitor are
examples of unattended close and are to be used ONLY with sectional doors. Any device or feature that allows the
door to close without being in the line of sight of the door is considered unattended close. The Timer-to-Close (TTC)
feature, the myQ Smartphone Control, and any other myQ devices are to be used ONLY with sectional doors.
Preparation

4
Before You Connect with Your Smartphone
Monitor and control your door from anywhere using the myQ app.
You will need:
lWi-Fi enabled smartphone, tablet or laptop
lBroadband Internet Connection
lWi-Fi signal in the building (2.4 Ghz, 802.11b/g/n required)
lPassword for your building's network (router's main account, not guest network)

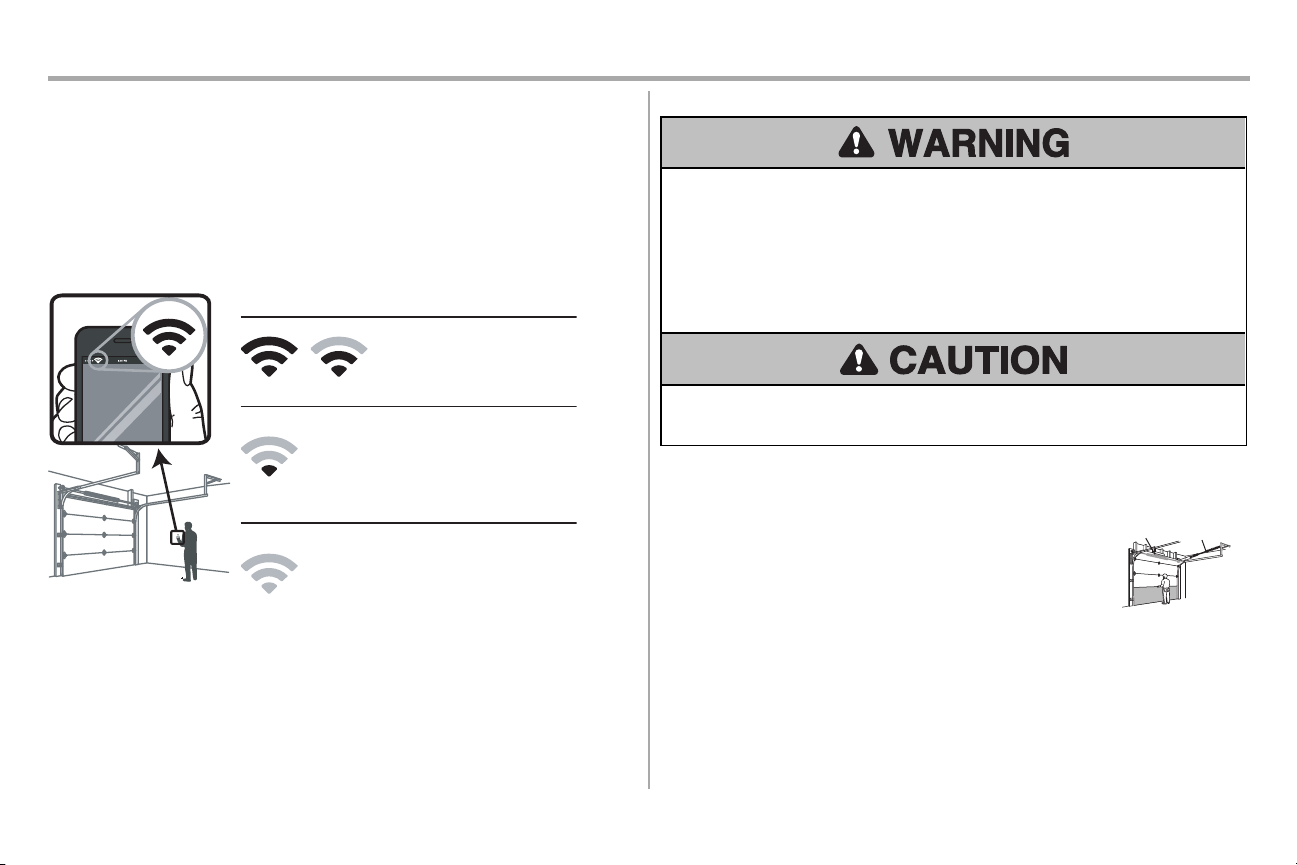

Test the Wi-Fi Signal Strength
Make sure your mobile device is connected to your Wi-Fi network. Hold your mobile device in the place where your
door operator will be installed and check the Wi-Fi signal strength.
Check Signal Strength. If you see:
Wi-Fi signal is strong.
The door operator will
connect to your Wi-Fi
network.
Wi-Fi signal is weak.
The door operator may connect to
your Wi-Fi network. If not, try one of
the options below to improve the
Wi-Fi signal:
No Wi-Fi signal.
The door operator will not be able to
connect to your Wi-Fi network. Try
one of the options below to improve
the Wi-Fi signal:
• Move your router closer to the door operator
to minimize interference from walls and other
objects
• Buy a Wi-Fi range extender
For compatible router specifications and help, visit support.chamberlaingroup.com.
See page 30 to connect the door operator to a mobile device.
Check the Door
To prevent possible SERIOUSINJURYor DEATH:
lALWAYS call a trained door systems technician if door binds, sticks, or is out of balance. An unbalanced
door may NOT reverse when required.
lNEVER try to loosen, move or adjust door, door springs, cables, pulleys, brackets or their hardware, ALLof
which are under EXTREME tension.
lDisable ALLlocks and remove ALLropes connected to door BEFORE installation and operating door
operator to avoid entanglement.
lDO NOT install on a one-piece door if using devices or features providing unattended close. Unattended
devices and features are to be used ONLY with sectional doors.
To prevent damage to door and operator:
lALWAYS disable locks BEFORE installing and operating the operator.
lONLY operate door operator at 120V, 60Hz to avoid malfunction and damage.
Before you begin:
1. Disable locks and remove any ropes connected to the door.
2. Lift the door halfway up. Release the door. If balanced, it should stay in place,
supported entirely by its springs.
3. Raise and lower the door to check for binding or sticking. If your door binds,
sticks, or is out of balance, call a trained door systems technician.
4. Check the seal on the bottom of the door. Any gap between the floor and the
bottomof the door must not exceed 1/4 inch (6 mm). Otherwise, the safety
reversal system may not work properly.
5. The operator should be installed above the center of the door. If there is a
torsion spring or center bearing plate in the way of the header bracket, it may be
installed within 4feet (1.2 m) to the left or right of the door center. See page 10.
Torsion
Spring
Extension
Spring
OR
Preparation

5
Specifications
Volts 120VAC, 60 Hz
Current 6A
Rated load 600in lbs/sec.
Maximum door height 14 ft. (4.27m)
Maximum door size 16 ft. Wide x 14 ft. High (4.87mx 4.27m)
(not to exceed 224 sq. ft.)
Tools Needed
3/16
5/32
5/16
7/16
1/2
5/8
9/16
1/4
7/16
Preparation

6
Carton Inventory
Accessories will vary depending on the door operator model purchased. Depending on your specific model, other
accessories may be included with your door operator. The instructions for these accessories will be attached to the
accessory and are not included in this manual. The images throughout this manual are for reference and your
product may look different.
A. Header bracket
B. Pulley and bracket
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley (provided separately from the carton)
G. Emergency release rope and handle
H. Rail (provided separately from the carton)
I. Door operator
J. Chain spreader
K. Chassis support bracket
L. Chain (provided separately from the carton)
M. Door control
N. White and red/white wire
O. The Protector System®
Safety reversing sensors with 2-conductor white and white/black bell wire attached: sending sensor (1),
receiving sensor (1), safety sensor brackets (4), and "C" wraps (2)
P. Safety labels and literature
Q. Rail grease
Security+ 2.0®Accessories
883LMW
Push Button Door Control
Chassis Support Bracket Hardware ChainSpreaderHardware
Screw #8-32 x 3/8" (2) Screw #8-32 x 3/8" (2)
Hex Bolts 1/4"-20 x 5/8" (2) Rail Hardware
Lock Washers (2) Washered Bolts and Lock Washer (mounted in the top of
the door operator)
Washered Bolt 5/16"-18 x 1/2" (2)
Installation
Hex Bolt 5/16"-18 x 7/8" (4) Self-Threading Screw 1/4"-14 x 5/8" (2)
Lag Screw 5/16"-9 x 1-5/8" (2) Ring Fastener (3)
Lag Screw 5/16"-18 x 1-5/8" (2) Carriage Bolt 1/4"-20 x 1/2" (2)
Clevis Pin 5/16" x 2-3/4" (1) Wing Nut 1/4"-20 (2)
Clevis Pin 5/16" x 1-1/4" (1) Hex Bolt 1/4"-20 x 5/8" (2)
Clevis Pin 5/16" x 1" (1) Lock Nut 1/4"-20 (2)
Nut 5/16"-18 (4) Lag Screw 1/4" x 1-1/2" (4)
Lock Washer 5/16"-16 (4)
Door Control Hardware
Screw 6AB x 1" (2) Drywall Anchors (2)
Screw 6-32 x 1" (2)
AB
C
K
J
I
P
DE
F
H
G
L
M
N
Q
O
Not
Provided Not
Provided
Preparation

7
Assembly
1 Attach the Rail to the Operator
To avoid SERIOUS damage to door operator, use ONLY those bolts/fasteners mounted in the top of the operator.
NOTE: ONLY use the bolts removed from the door operator. Place the door operator on the packing material to
prevent scratching.
1. Remove bolt and lock nut from the top of the operator.
2. Align the rail and the styrofoam over the sprocket. Cut the tape from the rail, chain, and styrofoam.
3. Fasten the rail with the previously removed washered bolt and lock nut.
4. Position the chain around the operator sprocket.
5. Attach the chain spreader to the operator with screws.
6. Guide the chain around the chain spreader, to engage the sprocket.
Washered Bolt
5/16"-18x1/2"
(Mounted in the garage
door opener)
HARDWARE
Lock Nut
(Mounted in the
garage door opener)
Lock
Nut
Washered Bolt
5/16"-18x1/2"
Chain Spreader
Hex Screws 8-32x7/16"

8
Assembly
2 Attach the Chassis Support Bracket
To avoid possible SERIOUS INJURY to finger from moving door operator:
lALWAYS keep hand clear of sprocket while operating operator.
lSecurely attach sprocket cover BEFORE operating.
1. Position the chassis support bracket on the unit.
2. Attach the bracket to the rail with 1/4"-20 x 5/8" hex bolts and lock washers. Do not overtighten.
3. Attach the bracket to the operator by inserting a 5/16"-18 x 1/2" washered screw through a hole in each
side flange and a matching hole in the bracket. Complete the connection by inserting the #8-32 x 3/8" screw
through the back flange and the hole in rail support.
HARDWARE
Washered Bolt
5/16"-18x1/2"
Screw
#8-32x3/8"
Washered Bolt
5/16"-18x1/2"
Screw
#8-32x3/8"
Hex Bolt 1/4"-20x5/8"
Lock
Washer
3 Tighten the Chain
1. Loosen the inner nut and lock washer on the trolley threaded shaft.
2. Tighten the outer nut until the chain is a 1/2 inch above the base of the rail at the midpoint of the rail.
3. Re-tighten the inner nut.
Slack in the chain is normal when the door is closed. No readjustment is necessary.
Sprocket noise can result if the chain is too loose. During future maintenance, ALWAYS pull the emergency release
handle to disconnect the trolley before adjusting the chain.
1/2" (13 mm)

9
Installation
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install door operator ONLY on properly balanced and lubricated door. An improperly balanced door may NOT
reverse when required and could result in SEVERE INJURY or DEATH.
3. ALL repairs to cables, spring assemblies and other hardware MUST be made by a trained door systems
technician BEFORE installing operator.
4. Disable ALL locks and remove ALL ropes connected to door BEFORE installing operator to avoid
entanglement.
5. Where possible, install the door operator 7 feet (2.13 m) or more above the floor.
6. Mount the emergency release within reach, but at least 6 feet (1.83m) above the floor and avoiding contact
with vehicles to avoid accidental release.
7. NEVER connect door operator to power source until instructed to do so.
8. NEVER wear watches, rings or loose clothing while installing or servicing operator. They could be caught in
door or operator mechanisms.
9. Install wall-mounted door control:
lwithin sight of the door.
lout of reach of small children at a minimum height of 5feet (1.5m) above floors, landings, steps or any
other adjacent walking surface.
laway from ALL moving parts of the door.
10. Place entrapment warning label on wall next to door control.
11. Place emergency release/safety reverse test label in plain view on inside of door.
12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact with a 1-1/2"
(3.8cm) high object (or a 2x4 laid flat) on the floor.
13. To avoid SERIOUS PERSONAL INJURY or DEATH from electrocution, disconnect ALL electric power
BEFORE performing ANY service or maintenance.
14. DO NOT install on a one-piece door if using devices or features providing unattended close. Unattended
devices and features are to be used ONLY with sectional doors.

10
Installation
1 Determine the Header Bracket Location
To prevent possible SERIOUS INJURY or DEATH:
lHeader bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise door
might NOT reverse when required. DO NOT install header bracket over drywall.
lConcrete anchors MUST be used if mounting header bracket or 2x4 into masonry.
lNEVER try to loosen, move or adjust door, springs, cables, pulleys, brackets, or their hardware, ALL of
which are under EXTREME tension.
lALWAYS call a trained door systems technician if door binds, sticks, or is out of balance. An unbalanced
door might NOT reverse when required.
lDO NOT enable the Timer-to-Close functionality if operating either one-piece or swinging doors. To be
enabled ONLY when operating a sectional door.
Close the door and mark the inside vertical centerline of the door.
Extend the line onto the header wall above the door. You can fasten the header bracket within 4 feet (1.22 m) of the left
or right of the door center only if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling
when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2" (1
cm). If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws (not provided) to securely
fasten the 2x4 to structural supports.
Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the header wall 2" (5
cm) above the high point. This height will provide travel clearance for the top edge of the door.
NOTE: If the total number of inches exceeds the height available in your building, use the maximum height possible, or
refer to page 11 for ceiling installation.
Header Wall
Unfinished
Ceiling
Vertical Centerline
of Garage Door
2x4
2x4
Structural
Supports
Level
(Optional)
OPTIONAL
CEILING
MOUNT FOR
HEADER
BRACKET
Sectional door with curved track
Header Wall
Track
2" (5 cm)
Highest Point
of Travel
Door

11
Installation
2 Install the Header Bracket
You can attach the header bracket either to the wall above the door, or to the ceiling. Follow the instructions which will
work best for your particular requirements. Do not install the header bracket over drywall. If installing into
masonry, use concrete anchors (not provided).
HARDWARE
Lag Screw 5/16"-9x1-5/8"
OPTION A - WALL INSTALLATION
1. Center the bracket on the vertical centerline with the bottomedge of the bracket on the horizontal line as
shown (with the arrow pointing toward the ceiling).
2. Mark the vertical set of bracket holes (do not use the holes designated for ceiling mount). Drill 3/16" pilot
holes and fasten the bracket securely to a structural support with lag screws.
Wall Mount
Optional
Mounting
Holes
Vertical
Centerline of
Garage Door
(Header Wall)
Header
Bracket
2x4 Structural
Support
Door Spring
(Garage Door)
Highest Point of
Garage Door
Travel
Horizontal
Line
Lag Screw
5/16"-9 x 1-5/8"
OPTION B - CEILING INSTALLATION
1. Extend the vertical centerline onto the ceiling as shown.
2. Center the bracket on the vertical mark, no more than 6" (15cm) from the wall. Make sure the arrow is
pointing toward the wall. The bracket can be mounted flush against the ceiling when clearance is minimal.
3. Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support with the
hardware provided.
(Header Wall)
Ceiling Mounting Holes
(Finished Ceiling)
Vertical
Centerline of
Garage Door
Header
Bracket
6" (15 cm)
Maximum
Door Spring
(Garage Door)
Lag Screw
5/16"-9 x 1-5/8"

12
Installation
3 Attach the Rail to the Header Bracket
1. Align the rail with the header bracket. Insert the clevis pin through the holes in the header bracket and rail.
Secure with the ring fastener.
NOTE: Use the packing material as a protective base for the door operator.
HARDWARE
Clevis Pin 5/16" x 2-3/4" Ring Fastener
Ring
Fastener
Clevis Pin
5/16" X 2-3/4"
4 Position the operator
To prevent damage to door, rest door operator rail on 2x4 placed on top section of door.
1. Lift the door operator onto a ladder.
2. Fully open the door and place a 2x4 (laid flat) under the rail.
A 2x4 is ideal for setting the distance between the rail and the door. If the ladder is not tall enough you will need help at
this point. If the door hits the trolley when it is raised, pull the trolley release arm down to disconnect the inner and
outer trolley. Slide the outer trolley toward the door operator. The trolley can remain disconnected until instructed.
Connected Disconnected

13
Installation
5 Hang the operator
To avoid possible SERIOUS INJURY from a falling door operator, fasten it SECURELY to structural supports of
the building. Concrete anchors MUST be used if installing ANY brackets into masonry.
Hanging your door operator will vary depending on your building. Two representative installations are shown. Yours
may be different. Hanging brackets should be angled (Figure 1) to provide rigid support. On finished ceilings (Figure
2), attach a sturdy metal bracket to structural supports before installing the operator. This bracket and fastening
hardware are not provided.
1. Measure the distance from each side of the motor unit to the structural support.
2. Cut both pieces of the hanging bracket to required lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with 5/16"-18 x 1-7/8" lag screws (not provided).
5. Fasten the operator to the hanging brackets with 5/16"-18 x 7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the door (or in line with the header bracket if the bracket is not
centered above the door).
7. Remove the 2x4. Operate the door manually. If the door hits the rail, raise the header bracket.
NOTE: DO NOT connect power to operator at this time.
FIGURE 1 FIGURE 2
(Not Provided)
Lag Screws
5/16"- 18x1-7/8"
Measure
Distance
Hex Bolt 5/16"- 18x7/8", Lock Washer 5/16", Nut 5/16"-18
FIGURE 3
Not Provided
Finished Ceiling
Unfinished Ceiling
Hex Bolt 5/16"- 18x7/8" Nut 5/16"-18Lock Washer 5/16"
HARDWARE

14
Installation
6 Install the Light Bulbs
To prevent possible OVERHEATING of the end panel or light socket:
lUse ONLY A19 incandescent (100W maximum) or compact fluorescent (26W maximum) light bulbs.
lDO NOT use incandescent bulbs larger than 100W.
lDO NOT use compact fluorescent light bulbs larger than 26W (100W equivalent).
lDO NOT use halogen bulbs.
lDO NOT use short neck or specialty light bulbs.
1. Pull on the top center of the light lens and rotate the light lens down.
2. Insert an A19 incandescent (100W maximum) or compact fluorescent (26W, 100Wequivalent)light bulb
into the light socket.
NOTE: DO NOT use halogen, short neck, or specialty light bulbs as these may overheat the end panel or
light socket. DO NOT use LED bulbs as they may reduce the range or performance of your
remotecontrol(s).
3. Rotate the lens up to close.
or or
7 Attach the Emergency Release Rope and Handle
To prevent possible SERIOUS INJURY or DEATH from a falling door:
lIf possible, use emergency release handle to disengage trolley ONLY when door is CLOSED. Weak or
broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.
lNEVER use emergency release handle unless doorway is clear of persons and obstructions.
lNEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.
1. Insert one end of the emergency release rope through the handle. Make sure that “NOTICE” is right side
up. Secure with an overhand knot at least 1" (2.5 cm) from the end of the rope to prevent slipping.
2. Insert the other end of the emergency release rope through the hole in the trolley release arm. Mount the
emergency release within reach, but at least 6 feet (1.83m) above floor, avoiding contact with vehicles to
prevent accidental release and secure with an overhand knot.
NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or lighter to prevent
unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to avoid entanglement.
Trolley
Release Arm

15
Installation
8 Install the Door Bracket
Fiberglass, aluminum or lightweight steel doors WILL REQUIRE reinforcement BEFORE installation of door
bracket. Contact the door manufacturer or installing dealer for operator reinforcement instructions or
reinforcement kit. Failure to reinforce the top section as required according to the door manufacturer may void
the door warranty.
A horizontal and vertical reinforcement is needed for lightweight
doors (fiberglass, aluminum, steel, doors with glass panel, etc.)
(not provided). A horizontal reinforcement brace should be long
enough to be secured to two or three vertical supports. A vertical
reinforcement brace should cover the height of the top panel.
Contact the door manufacturer or installing dealer for operator
reinforcement instructions or reinforcement kit.
NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this case you will
not need the door bracket; proceed to the next step.
SECTIONALDOORS
1. Center the door bracket on the vertical center line that was previously marked for the header bracket installation.
Note the correct top placement, as stamped inside the flat bracket.
2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge of the door, OR directly below any
structural support across the top of the door.
3. Mark, drill holes and install as follows, depending on your door’s construction:
Metal or light weight doors using a vertical angle iron brace between the door panel support and
the door bracket:
lDrill 3/16" fastening holes. Secure the door bracket using the two self threading screws. (Figure1)
lAlternately, use two 5/16"-18x2" bolts, lock washers and nuts (not provided). (Figure2)
Metal, insulated or light weight factory reinforced doors:
lDrill 3/16" fastening holes. Secure the door bracket using the self-threading screws. (Figure3)
Wood Doors:
lUse top and bottom or side to side door bracket holes. Drill 5/16” holes through the door and secure bracket with
5/16"-18 x 2" carriage bolts, lock washers and nuts (not provided). (Figure4)
NOTE: The 1/4"-14 x 5/8" self-threading screws are not intended for use on wood doors.
FIGURE 1 FIGURE 2
FIGURE 3 FIGURE 4
Self-Threading Screw
1/4"-14 x 5/8"
HARDWARE
Vertical Reinforcement
Vertical Reinforcement
Self-Threading Screw
Inside Edge of Door or
Reinforcement Board
Door Bracket
Plate
Door
Bracket
Door
Bracket
Door
Bracket
Vertical
Centerline
of Door
Vertical
Centerline
of Door
Hardware
(not provided) UP
Inside Edge of Door or
Reinforcement Board
Hardware
(not provided) UP
Vertical
Centerline
of Door
Self-Threading
Screw

16
Installation

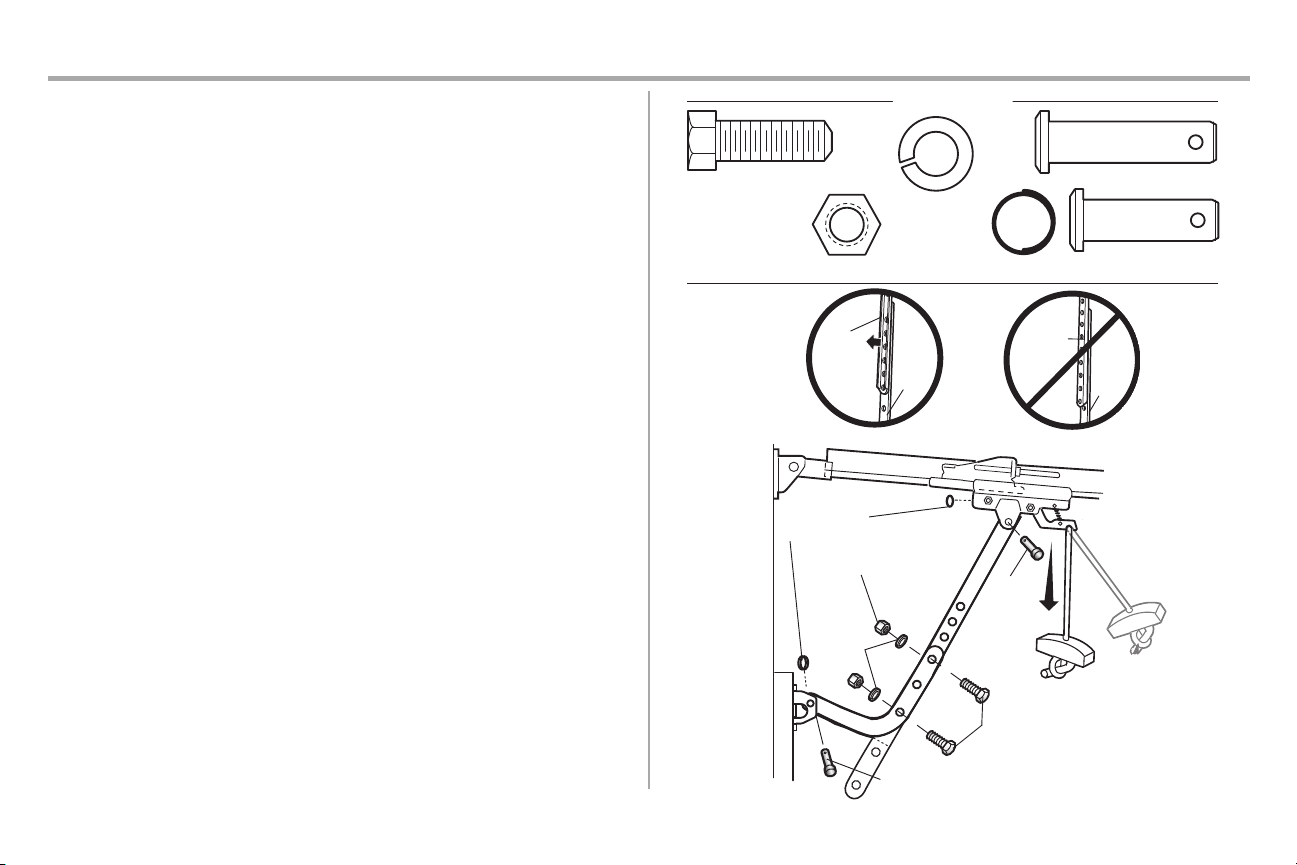

9 Connect the Door Arm to the Trolley
IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm.
1. Close the door. Disconnect the trolley by pulling the emergency release handle. Slide the outer trolley
back (away from the door) about 2" (5 cm).
2. Attach the straight door arm to the outer trolley using the clevis pin. Attach with the ring fastener.
3. Attach the curved door arm to the door bracket using the clevis pin. Attach with the ring fastener.
4. Align the straight door arm with the curved door arm. Select two aligned holes (as far apart as possible)
and attach using the bolts, nuts and lock washers.
NOTE: If the holes do not line up, reverse the straight door arm. Select two aligned holes (as far apart as possible)
and attach using the bolts, nuts and lock washers.
5. Pull the emergency release handle toward the door operator until the trolley release arm is horizontal. The
trolley will re-engage automatically when the door operator is activated.
Straight
Door Arm Curved
Door
Arm
(Groove
facing
out)
CORRECT
Straight
Door
Arm Curved
Door
Arm
INCORRECT
Clevis Pin 5/16" x 1-1/4"
Ring Fastener
Clevis Pin
5/16" x 1"
Nut 5/16"-18
Lock
Washer
5/16"
Hex Bolt
5/16"-18 x 7/8"
HARDWARE
Hex Bolt 5/16"-18 x 7/8"
Nut 5/16"-18
Lock Washer 5/16"
Clevis Pin 5/16" x 1"
Clevis Pin 5/16" x 1-1/4"
Ring Fastener

17

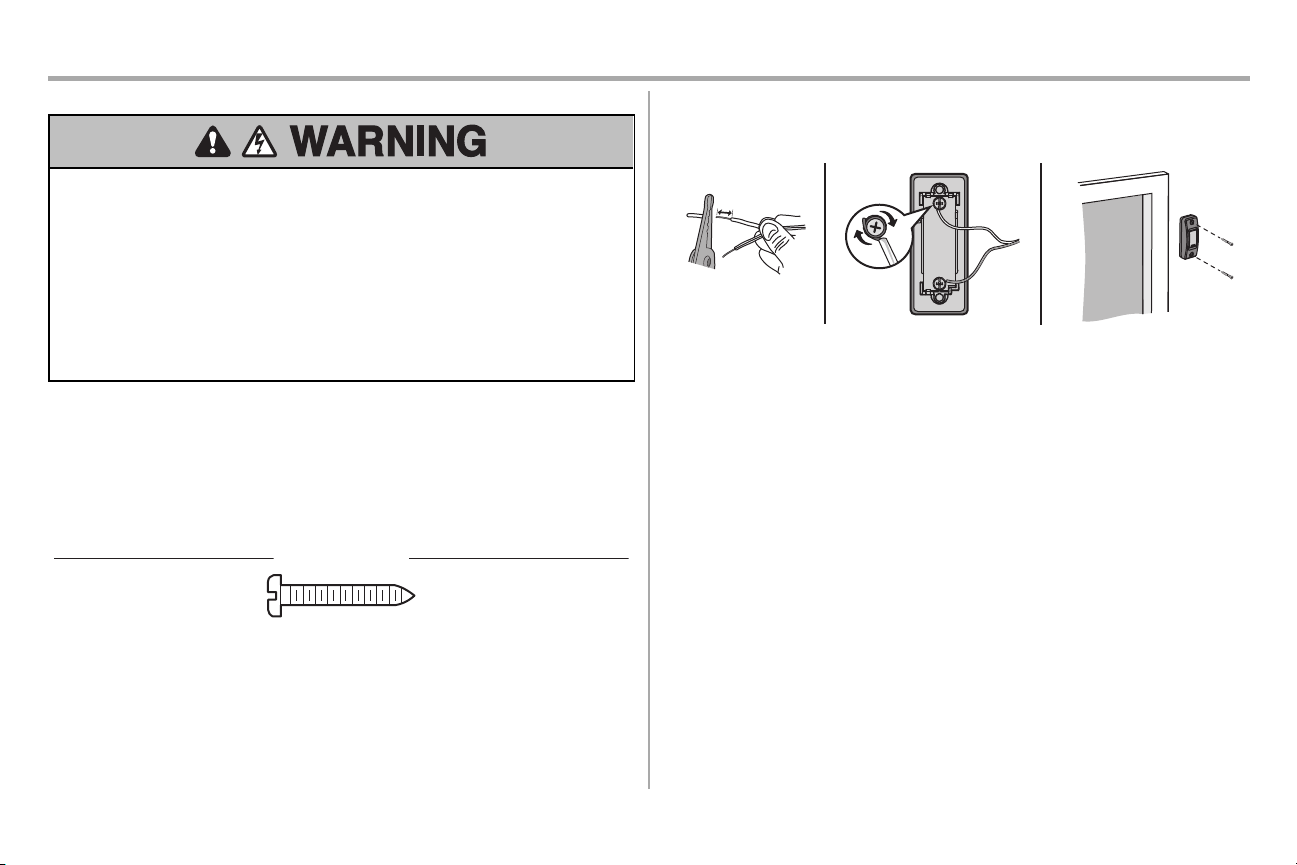

Install the Door Control
1 Install the Door Control
To prevent possible SERIOUS INJURY or DEATH from electrocution:
lBe sure power is NOT connected BEFORE installing door control.
lConnect door control ONLY to 12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing door:
lInstall door control within sight of door, out of reach of small children at a minimum height of 5feet (1.5m)
above floors, landings, steps or any other adjacent walking surface, and away from ALL moving parts of
door.
lNEVER permit children to operate or play with door control push buttons or remote control transmitters.
lActivate door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door
travel.
lALWAYS keep door in sight until completely closed. NEVER permit anyone to cross path of closing door.
INTRODUCTION
Compatible with myQ®and Security+ 2.0®accessories, see page 36. Your door operator is compatible with up to 2
Smart Control Panels or 4 of any other Security+ 2.0®door controls. NOTE:Older LiftMaster door controls and third
party products are not compatible.
Install door control within sight of door, out of reach of small children at a minimum height of 5feet (1.5m) above
floors, landings, steps or any other adjacent walking surface, and away from ALL moving parts of door. For gang box
installations it is not necessary to drill holes or install the drywall anchors. Use the existing holes in the gang box.
NOTE: Your product may look different than the illustrations.
HARDWARE
Screw 6ABx1" (2)
1. Strip 1/4" (6 mm) of insulation from one end of the wire and separate the wires.
2. Connect one wire to each of the two screws on the back of the door control. The wires can be connected to
either screw.
3. Mount the door control with the hardware provided.
1/4" (6 mm)
1 2 3

18
Install the Door Control
2 Wire the door control to the door operator
PRE-WIRED INSTALLATIONS: When wiring the door control to the door operator make sure you use the same
wires that are connected to the door control.
1. Run the white and red/white wire from the door control to the door operator. Attach the wire to the wall and
ceiling with staples (not applicable for gang box or pre-wired installations). Do not pierce the wire with the
staple as this may cause a short or an open circuit.
2. Strip 7/16 inch (11 mm) of insulation from the end of the wire near the door operator.
3. Connect the wire to the red and white terminals on the door operator. To insert or release wires from the
terminal, push in the tab with screwdriver tip.
7/16" (11 mm)
2
3
1
Staple
RED WHITE WHITE GREY
3 Attach the warning labels
1. Attach the entrapment warning label on the wall near the door control with tacks or staples.
2. Attach the manual release/safety reverse test label in a visible location on the inside of the door.

19
Install the Protector System®
Introduction
Be sure power is NOT connected to the door operator BEFORE installing the safety reversing sensor.
To prevent SERIOUS INJURY or DEATH from closing door:
lCorrectly connect and align the safety reversing sensor. This required safety device MUST NOT be
disabled.
lInstall the safety reversing sensor so beam is NO HIGHER than 6" (15 cm) above floor.
IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSORS
The safety reversing sensors must be connected and aligned correctly before the door will move in the
down direction.
The sending sensor (with an amber LED) transmits an invisible light beam to the receiving sensor (with a green
LED). If an obstruction breaks the light beam while the door is closing, the door will stop and reverse to the full open
position, and the door operator lights will flash 10 times.
NOTE: For energy efficiency the door operator will enter sleep mode when the door is fully closed. The sleep mode
shuts the door operator down until activated. The sleep mode is sequenced with the door operator light bulb; as the
light bulb turns off the sensor LEDs will turn off and whenever the door operator lights turn on the sensor LEDs will
light. The door operator will not go into the sleep mode until the door operator has completed 5 cycles upon power up.
When installing the safety reversing sensors check the following:
lSensors are installed inside the building, one on either side of the door.
lSensors are facing each other with the lenses aligned and the receiving sensor lens does not receive direct
sunlight.
lSensors are no more than 6 inches (15 cm) above the floor and the light beam is unobstructed.
Invisible Light Beam
Protection Area
Safety Reversing Sensor
6" (15 cm) max. above floor
Safety Reversing Sensor
6" (15 cm) max. above floor

20
Install the Protector System®
1 Assemble and Mount the Brackets
HARDWARE
Carriage Bolt
1/4"-20 x 1/2"
Lock Nut
1/4"-20
Lag Screw
1/4"x1-1/2"
Lock Nut
#10-32
Screw
#10-32x3/8"
The following instructions show recommended assembly of the bracket(s) and “C” wrap based on the wall installation
of the safety reversing sensors on each side of the door or on the door tracks themselves. There are also alternate
mounting methods which may fit your installation requirements better. Make sure the wraps and brackets are
aligned so the safety reversing sensors will face each other across the door. Mount sensors no more than
6" (15 cm) above the floor and at a width between 7'-30' (2.1 m - 9.1 m).
Fasten the “C” wraps to the mounting brackets having square holes, using hardware shown.
Mounting Bracket with Square Holes
“C” Wrap
#10-32x3/8" Screws
#10-32 Lock Nuts
DOOR TRACK INSTALLATION
Discard slotted bracket. Drill 3/8" holes in each track and fasten securely with hardware . Do not exceed 6" (15 cm)
above the floor. NOTE: Ensure the door track does not vibrate when the door is in motion. Excessive vibration can
create nuisance reversals.
Inside Wall
“C” Wrap
1/4-20x1/2"
Carriage Bolts
1/4" Lock Nuts
Door Track
Drill 3/8" Holes
Mounting Bracket
with Square Holes
WALL INSTALLATION
1. Connect each assembly to a slotted bracket, using the hardware shown. Note alignment of brackets for
left and right sides of the door.
2. Finger tighten the lock nuts
3. Use bracket mounting holes as a template to locate and drill (2) 3/16" diameter pilot holes on both sides of
the door, 4-6" (10-15 cm) above the floor. Do not exceed 6" (15 cm).
4. Attach bracket assemblies with 1/4"x1-1/2" lag screws.
5. Adjust right and left side bracket assemblies to the same distance out from mounting surface. Make sure all
door hardware obstructions are cleared. Tighten the nuts securely.
6. Center each sensor in the bracket with the lenses pointing toward each other across the door.
7. Attach the sensors to the brackets with the provided hardware. Finger tighten the receiving sensor wing
nut. Securely tighten the sending sensor wing nut.
“C” Wrap
Mounting Bracket
with Slot
Inside Wall
1/4"x1-1/2" Lag Screws 1/4"-20x1/2" Carriage Bolts
(with square shoulders)
Mounting Bracket with Square Holes
1/4"-20 Lock Nuts
Indicator Light
Inside
Wall
Mounting Bracket
with Slot
Attach with
concrete
anchors
(not provided)
Mounting Bracket
with Square Holes
“C” Wrap
Sensor with wire
Alternate Wall Mount Alternate Floor Mount
“C” Wrap
Inside
Wall
Mounting Bracket
with Square Holes
Mounting Bracket
with Slot
Sensor
with wire
Floor Floor
Indicator
Light
