Champion Power Equipment EWD8000 Quick reference guide

ELECTRICAL WINCH
EWD8000
EWD10000
EWD12000
Assembly & Operating Instructions

CONTENTS
INTRODUCTION .................................................................................... 1
GETTING TO KNOW YOUR WINCH...................................................... 2
SAFETY PRECAUTIONS....................................................................... 3
GENERAL TIPS FOR SAFE OPERATION............................................. 5
WINCHING TECHNIQUES A-Z .............................................................. 6
WINCH ASSEMBLY AND MOUNTING.................................................. 7
MOUNTING DRAWING.......................................................................... 9
CLUTCH OPERATING DRAWING.......................................................10
WINCH ACCESSORIES YOU WILL NEED ..........................................10
RIGGING TECHNIQUES ......................................................................10
WINCH WORKING DEMONSTRATION ............................................... 1 1
REPLACING THE WIRE ROPE............................................................ 1 2
MAINTENANCE.................................................................................... 1 2
TROUBLE SHOOTING.........................................................................1 3

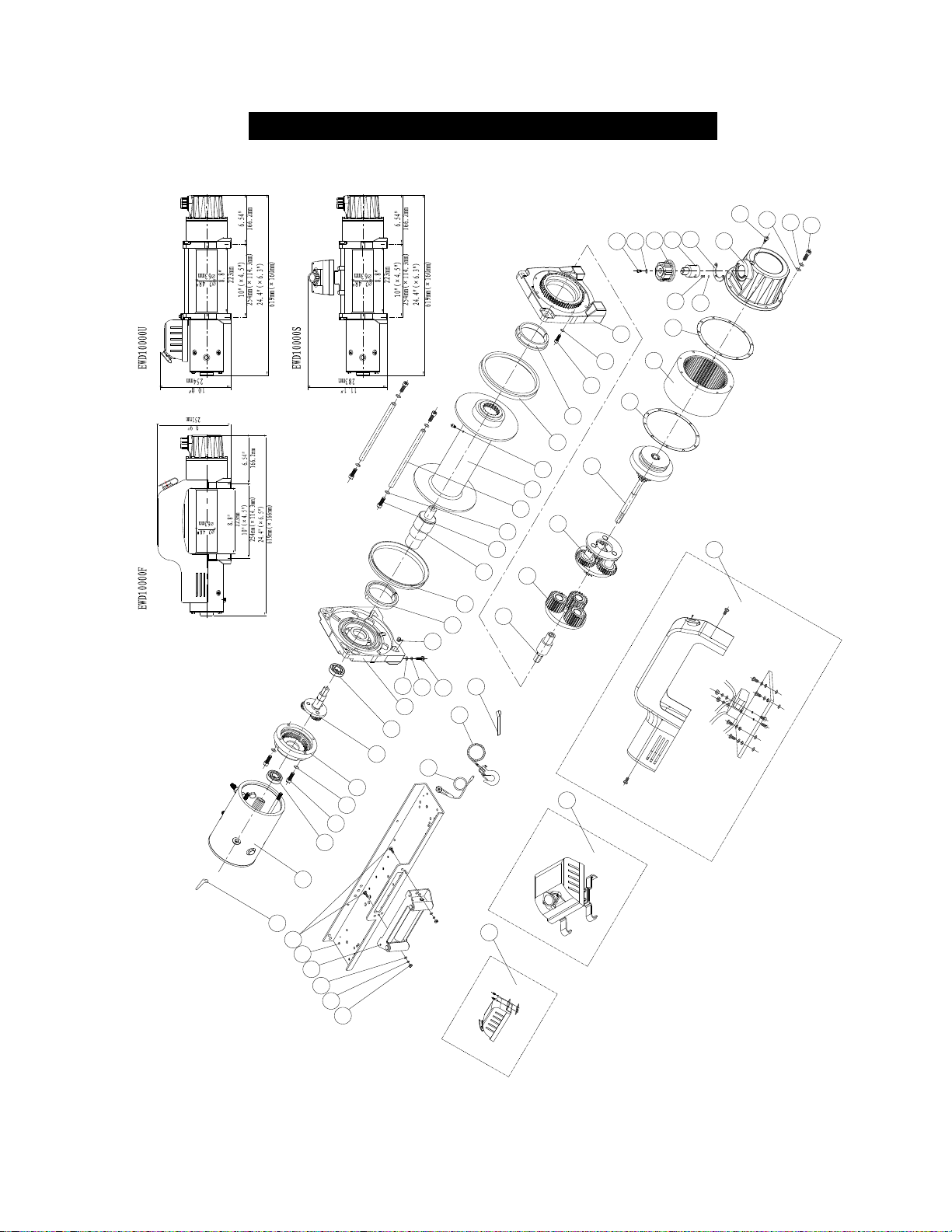

WINCH ASSEMBLY DRAWING（EWD8000）....................................1 4
WINCH PARTS LIST （EWD8000）....................................................1 5
SPECIFICATION（EWD8000）...........................................................1 6
WINCH ASSEMBLY DRAWING（EWD10000）..................................1 7
WINCH PARTS LIST （EWD10000）..................................................1 8
SPECIFICATION（EWD10000）.........................................................1 9
WINCH ASSEMBLY DRAWING（EWD12000）..................................20
WINCH PARTS LIST （EWD12000）..................................................21
SPECIFICATION（EWD12000）.........................................................22

1
INTRODUCTION
Congratulations on your purchase of a high quality winch. We design and build
winches to strict specifications and with proper use and maintenance should bring
you years of satisfying service.
WARNING - Read, study and follow all instructions before operating this
device. Failure to heed these instructions may result in personal injury
and/or property damage.
Your winch can develop tremendous pulling forces and if used unsafely or
improperly could result in property damage, serious injury or death. Throughout
this manual you will find the following symbols for caution, warning and danger.
Pay particular attention to the notes preceded by these symbols as they are
written for your safety. Ultimately, safe operation of this device rests with you, the
operator.
This indicates a potentially hazardous situation, which if not avoided, may
result in minor or moderate injury. This notation is also used to alert you
against unsafe practices.
This indicates a potentially hazardous situation, which if not avoided, could
result in death or serious injury.
CAUTION
WARNING

2
GETTING TO KNOW YOUR WINCH
Your winch is a powerful piece of machinery. It is important that you
understand the basics of its operation and specifications so that when you
need to use it, you can use it with confidence and safety. Below is a list of
the components of your winch and their use. You should practice using
your winch before you are in a situation where you need to use it.
1. Runva EWD series is part of our new product line with several patented
technologies and has its own salient features: two speeds, single shaft clutch
and speed control, and automatic reducer gear engagement. There are three
positions of reducer gear engagement, high gear, low gear, and free spool.
This new technology has made Runva winches the pinnacle in user
convenience and reliability. You will take pride in knowing that your new winch
has been designed to work as hard as you and that it will be there when you
need it. This winch is engineered for maximum line pull with only one layer of
cable spooled onto the winch drum (the first layer).
2. Motor: Your motor is powered by a 12/24 volt battery and provides power to the
gear mechanism which turns the drum and winds the wire rope;
3. Winch Drum: The winch drum is the cylinder on which the wire rope is stored. It
can feed or wind the rope depending on the remote winch switch.
4. Wire Rope (cable): Your winch has a galvanized aircraft cable designed
specifically for load capacity of rated line pull. The wire rope feeds onto the
drum in the “under wind” position through the roller fairlead and is looped at the
end to accept the clevis hook pin.
5. Roller Fairlead: When using the winch at an angle the roller fairlead acts to
guide the wire rope onto the drum and minimizes damage to the wire rope from
abrasion on the winch mount or bumper.
6. Mechanic Gear System: The reduction gears convert the winch motor power
into extreme pulling forces.
7. Braking System: Braking action is automatically applied to the winch drum
when the winch motor is stopped and there is a load on the wire rope. A
separate mechanical brake applies the braking action.

3
8. Free Spooling Clutch: The clutch allows the operator to manually disengage
(the “Free Spool”position) the spooling drum from the gear train, free spool.
Engaging the clutch (the “High Speed” position) locks the winch into the gear
system.
9. Solenoid: Power from the vehicle battery flows through the weather-sealed
switch before being directed to the winch motor.

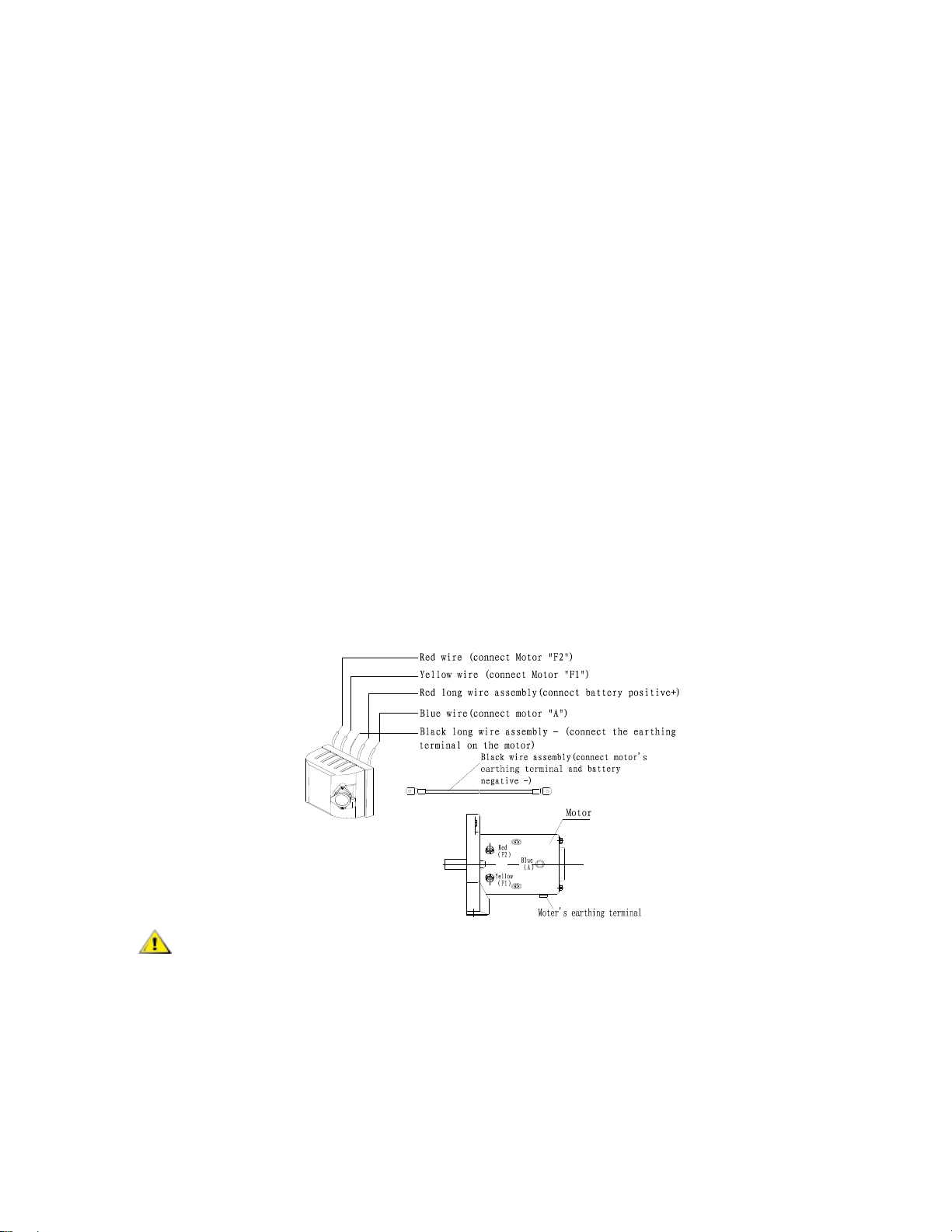

10.Remote Switch: The Power switch leads have a dual switch for powering in or
powering out your winch drum. The remote switch allows you to stand clear of
the wire rope when the winch is under load.
11.Wireless Remote Control: allow you to control winch far from 50 Ft away.
12.Universal Flat Bed Mounting Channel: Your winch could have been optionally
supplied with a flat bed mounting channel that can be mounted to most flat
surfaces such as trailers, step bumpers, truck beds, etc. The mounting channel
also has holes to accept your roller fairlead.
13.Snatch Block: If your winch is supplied with a snatch block that can double the
pulling power of the winch, or change the pulling direction without damaging the
wire rope. We recommend you to use double line and snatch block for pulling
over 70% of the rated line pull.
SAFETY PRECAUTIONS
WARNING
WARNING –Do not exceed rated capacity shown in this table.
WARNING –Intermittent use only. Allow winch to cool between uses.
WARNING –Do not use winch to lift (vertically).
WARNING –Do not use winch to pull or move people in any way.
WARNING –NEVER cut, weld, or modify any part of the winch or cable.
WARNING –A minimum of five wraps of cable around the drum barrel is
necessary for pulling and holding the rated load.
WARNING –Keep yourself and others a safe distance to the side of the cable
when it is under tension.

4
WARNING –The wire rope may break before the motor stalls. For heavy
loads at or near rated capacity, use a pulley block/snatch block to reduce the
load on the wire rope.
WARNING –Never step over a cable, or go near a cable under load.
WARNING –Don’t move the vehicle to pull a load (towing) on the winch cable.
This could result in cable breakage.
WARNING –Disconnect the remote control and battery leads when not in use.
WARNING –Avoid “shock loads” by using the control switch intermittently to
take up the slack in the wire rope. “Shock loads” can far exceed the rate
capacity for the wire rope and drum.
WARNING –Do not exceeds maximum line pull ratings shown on the tables.
WARNING –When re-spooling the cable ensure that the cable spools in the
under-wind position with the cable entering the drum from the bottom, not the
top. To spool correctly you should keep a slight load on the cable while
pushing the remote button to draw in the cable. Walk toward the winch not
allowing the cable to slide through your hands. Do not let your hands get within
12″of the winch while re-spooling. Turn off the winch and repeat the
procedure until a few feet of cable is left. Disconnect the remote control and
finish spooling by hand by rotating the drum by hand with the clutch
disengaged. Keep hands clear of the fairlead and drum while the winch is
under power.
Do not use as a hoist. Do not use for overhead lifting.
Failure to heed these warnings may result in personal injury and/or property
damage.
WARNING –Use gloves to protect hands when handling the cable. Never let
the cable slide through your hands.
WARNING –Never connect the cable back to itself. Apply blocks to the wheels
of the vehicle when on an incline. Duration of winching pulls should be kept as
short as possible. If the motor becomes uncomfortably hot to the touch, stop

5
winching immediately and let it cool down for a few minutes. Do not pull for
more than one minute at or near the rated load.
CAUTION –If the motor stalls do not maintain power to the winch. Electric
winches are designed and made for intermittent use and should not be used in
constant duty applications.
CAUTION –Never disengage the clutch when there is a load on the winch..
CAUTION –Use the hand saver hook when handling the hook for spooling or
un-spooling the wire rope.
GENERAL TIPS FOR SAFE OPERATION
•The winch and its all-derivative types are rated at rated capacity when spooling
the first rope layer on the drum. Overloading can damage the winch/motor/ or
wire rope. For loads over 70% of rated line pull, we recommend the use of the
pulley block/snatch block to double the wire rope line. This will aid in two ways:
a) reduce the number or rope layers on the drum, as well as, b) reduce the load
on the wire rope by as much as 50%. When doubling the line back to the
vehicle, attach to the frame or other load bearing part.
•The vehicle engine should be kept running during operation of the winch to
minimize battery drain and maximize power and speed of the winch. If the
winch is used for a considerable amount of time with the engine off, the battery
may be drained and too weak to restart the engine.
•Get to know your winch before you actually need to use it. We recommend that
you set up a few test runs to familiarize yourself with rigging techniques, the
sounds your winch makes under various loads, the way the cable spools on the
drum, etc.
•Inspect the wire rope and equipment before each use. A frayed or damaged
rope must be replaced immediately. Use only the manufacturer’s replacement
rope with the exact specifications.
•Inspect the winch installation and bolts to ensure that all bolts are tight before
each operation.

6
•Never connect the cable back to itself. This will cause cable damage. Always

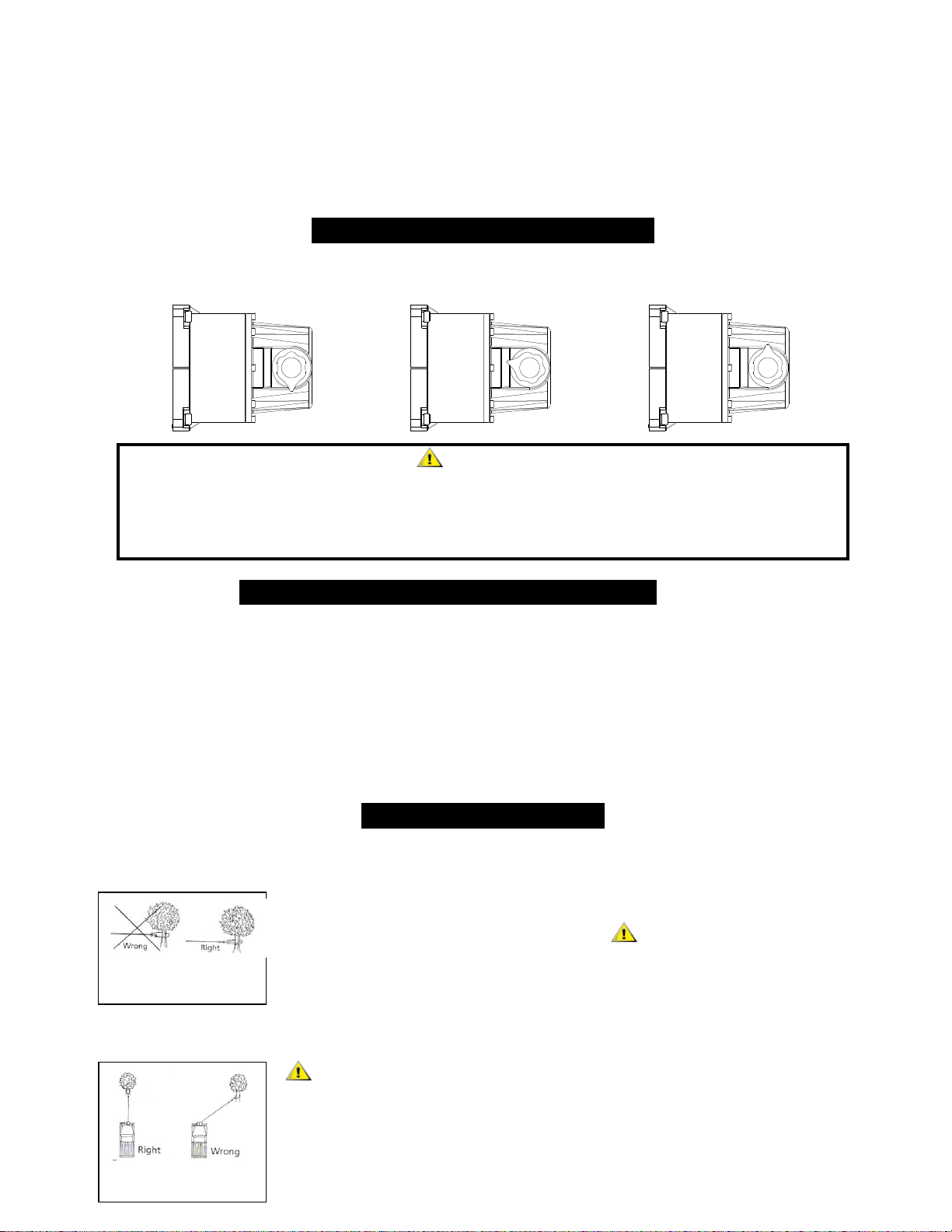

use a snatch block, sling or chain of suitable strength as shown in the
illustrations.
•Store the remote control inside your vehicle in a place that it will not be
damaged.
•Any winch that appears to be damaged in any way, is found to be worn, or
operates abnormally shall be removed from service.
•Pull only on parts of the vehicle as specified by the vehicle manufacturer.
•Only attachments and/or adapters supplied by the manufacturer shall be used.
•Whenever before your winch start to working, please slightly test-run your
winch in two direction, even if the winch drum only round a few degree of angle,
ensure the winch is well-balanced, especially after you operated the clutch or
speed shaft, test-running winch can make winch in gear.
WINCHING TECHNIQUES A-Z
a. Take time to asses your situation and plan your pull.
b. Put on gloves to protect your hands.
c. Disengage the clutch to allow free-spooling and to save energy.
d. Attach the hand saver hook to the clevis hook.
e. Pull out the wire rope to your desired anchor point using the hand saver hook.
f. Secure the clevis hook to the anchor point: Sling, chain or snatch block. Do not
attach the hook back onto the wire rope.
g. Engage the clutch.
h. Connect the remote control to the winch.
i. Start your engine to ensure power is being replenished to the battery.
j. Power in the wire rope guiding the wire under tension to draw up the slack in the
wire. Once the wire is under tension, stand clear and never step over the wire rope.
k. Double-check your anchors and make sure all connections are secure.
l. Inspect the wire rope. Make sure there are at least 5 wraps of wire rope around the
winch drum.
m. Drape a blanket or jacket over the wire rope approximately 5 to 6 feet from the
hook. Open the hood for added protection.

7
n. Clear the area. Make sure all spectators are back and that no one is directly in
front or behind the vehicle or anchor point.
o. Begin winching. Be sure that the wire rope is winding evenly and tightly around the
drum. The vehicle that is being winched can be slowly driven to add assistance to the
winching process. Avoid shock loads; keep the wire rope under tension.
p. The vehicle to be winched should be placed in neutral and the emergency brake
released. Only release the brake pedal when under full tension. Avoid shock loads to
the winch. This can damage the winch, rope and vehicle.
q. The winch is meant for intermittent use. Under full load with a single line rig do not
power in for more than a minute without letting the motor cool down for a few minutes
and then resume the winching operation.
r. The winching operation is complete once the vehicle is on stable ground and is able
to drive under its own power.
s. Secure the vehicle. Be sure to set the brakes and place the vehicle in park.
t. Release the tension on the wire rope. The winch is not meant to hold the vehicle for
long periods of time.
u. Disconnect the wire rope from the anchor.
v. Rewind the wire rope. Make sure that any wire already on the drum has spooled
tightly and neatly. If not, draw out the wire and spool from the point where the rope is
tight.
w. Keep your hands clear of the winch drum and fairlead as the wire rope is being
drawn in.
x. Secure the hook and hook strap.
y. Disconnect the remote control and store in a clean, dark, dry place.
z. Clean and inspect connections and mounting hardware for next winching operation.
WINCH ASSEMBLY AND MOUNTING
1. Your winch is designed with a bolt pattern that is standard in this class of
winch. Many winch mounting kits are available that utilize this bolt pattern for
the popular vehicles and mounting channels. If you will utilize the mounting
channel you must ensure that it is mounted on a flat surface so that the three

8
major sections (motor, drum and gear housing) are properly aligned. Proper
alignment of the winch will allow even distribution of the full rated load.
2. Start by connecting the roller fairlead to the mounting channel using 2 each of
the cap screws M10 X 35, flat washers, lock washers and securing with locknut
M10 (Make sure the screw is placed through the mounting channel and roller
fairlead from inside the channel. This will allow enough clearance for the winch
to be placed in the channel without obstruction.)
3. Assemble the winch to the mounting channel by first pulling and releasing the
clutch knob to the “Free Spool” position. Pull out a few inches of cable from the
drum and feed the wire loop through the opening in the front of the mounting
channel and roller fairlead. Now, using the remaining M10 x 35 cap screws, flat
washer, lock washer and hex nut M10 secure the winch to the mounting
channel.
4. Connect the battery and motor leads as the drawing above. Keep in mind that
every type of winch is different each other.
5. Connect the winch motor leads as detailed below:
CAUTION –Batteries contain gases which are flammable and explosive.
Wear eye protection during installation and remove all jewelry. Do not lean over
battery while making connections.
6. Assemble the Clevis Hook to the cable. Take off the pin from the clevis hook,
connect the Clevis Hook to the cable and mount the pin back to the clevis Hook.

9
7. Always use the Hand Saver when free-spooling and spooling the wire rope.
Using the Hand Saver keeps your hands and fingers away from the rotating
drum.
8. Check for proper drum rotation. Pull and turn the clutch knob to the “Free
Spooling” position. Pull out some cable from the drum, and then turn the clutch
knob to the “High Speed” position to engage the gears. Press the cable out
button on the power switch. If the drum is turning and releasing more cable
then your connections are accurate. If the drum is turning and collecting more
cable then reverse the leads on the motor. Repeat and check rotation.
MOUNTING DRAWING
U type S type
IN
OUT
IN
OUT
Ftype
IN
OUT

10
CLUTCH OPERATING DRAWING
LOW SPEED FREE SPOOL HIGH SPEED
WARNING
1.Do not put the clutch disengaging when the winch is working.
2.At high speed, the load should not exceed 5,000lbs.
3.If the cluch is not engaged, rotate the drum to make sure the clutch is
engaged.
WINCH ACCESSORIES YOU WILL NEED
NOT INCLUDED WITH YOUR WINCH
Gloves –For handling the wire rope and hook strap.
Anchor Strap/Chain –Tree saver anchor straps are made of high quality nylon with
high tensile strengths up to 15000lbs.
Heavy Blanket –place on the cable to absorb energy should the wire rope break.
RIGGING TECHNIQUES
Self-Recovery
Locate a suitable anchor such as a strong tree trunk or boulder.
Always use a sling as an anchor point. CAUTION Do not attach
the clevis hook back onto the cable as this could cause damage to
the cable.As shown in Fig 3.1
CAUTION Do not winch from an acute angle as the wire rope
will pile up on one side of the drum causing damage to wire rope
and the winch. Fig 3.2
Fig 3.1
Fig 3.2

11
Short pulls from an angle can be used to straighten the vehicle.
Long pulls should be done with the wire rope at a 90° angle to the
winch/vehicle.
When pulling a heavy load, place a blanket or jacket over the wire
rope five or six feet from the hook. In the event of a broken cable it
will dampen the snap back. For additional protection open the
hood of the vehicle as shown in Fig 3.3
For pulls over 70% rated line pull, we recommend the use of the
snatch block/pulley block to double line the wire rope. Fig 3.4
This reduces the load on the winch and the strain on the rope by up
to 50% depending on the included angle.
WARNING - Never use your winch for overhead hoisting or for
lifting people or moving people.
WINCH WORKING DEMONSTRATION
1. Disengage the clutch by turning the clutch to the “Free Spool”position.
2. Grab the cable assembly and pull the cable to the desired length, then attach to
item being pulled.
Caution: Always leave at least five turns of cable on the drum; Review Winch
Safety Warnings and Precautions on page 2、3 before continuing.
3. Reengage the clutch by turn the clutch handle to the “High Speed”or “Low Speed”
position, as you need.
4. Insert the switch assembly connector onto the control box.
5. Test-run winch in both directions. Turn the winch in each direction for about one or
two seconds, meantime make the clutch totally engaged automatically.
6. While standing aside of the tow path, hold and operate the switch assembly
supplied. Wait until the motor stops before reversing directions.
7. When the pulling is complete, remove the switch assembly. From the female
connector of the directional valve and replace the female connectors cover.
Fig 3.3
Fig 3.4
Fig 3.5

12
REPLACING THE WIRE ROPE
If the wire rope has become worn or is beginning to show signs of strands breaking, it
must be replaced before being used again.
1. Turning clutch to the “Free Spool”position.
2. Extend cable assembly to its full length. Note how the existing cable is connected
to the drum.
3. Remove old cable assembly and attach new one as the old cable connected to the
drum. Insert the end of the new rope and secure the screwM8x10.
4. Ensure that the new cable wraps in the same rotation direction as the old one.
The cable should leave the drum from the bottom, under the drum.
5. Turning clutch to the “High Speed”position.
6. Retract cable assembly onto drum, first five wraps being careful not to allow
kinking, then winch cable must be wound onto the drum under a load of at least
10% rated line pull.
WARNING - Only replace the wire rope with the identical replacement part
recommended by the manufacturer.
MAINTENANCE
1. Periodically check the tightness of mounting bolts and electrical connections.
Remove all dirt or corrosion and always keep clean.
2. Do not attempt to disassemble the gearbox.
3. The gearbox has been lubricated using a high temperature lithium grease and is
sealed at the factory. No internal lubrication is required.

13
TROUBLE SHOOTING
WARNING - Adjustment braking angle method: The spring according to the
spring geotropic pre-tight two weeks, then shows the spline tooth set according to
following braking cutaway view the adjustment angle for 20°±5°.
SYMPTOM
POSSIBLE CAUSE
SUGGESTED ACTION
Motor does not
turn on
-Switch Assembly not
connected properly
-Loose battery cable
connections
-Defective switch
assembly
-Defective motor
-Water has entered
motor
-Insert switch assembly all the way into the
connector.
-Tighten nuts on all cable connections.
-Replace switch assembly.
-Check for voltage at armature port with Switch
pressed. If voltage is present, replace motor.
-Allow to drain and dry. Run in short bursts
without load until completely dry.
Motor runs but
cable drum does
not turn
-Clutch not engaged
-Turn clutch to the “In” position. If problem
persists, a qualified technician needs to check
and repair.
Motor runs slowly
or without normal
power
-Insufficient current or
voltage
-Battery weak recharge. Run winch with vehicle
motor running.
-Loose or corroded battery cable connections.
Clean, tighten, or replace.
Motor overheating
-Winch running time
too long
-Allow winch to cool down periodically.
Motor runs in one
direction only
-Defective switch
assembly.
-Loose or corroded battery cable or motor
cable connections. Clean and tighten.
-Repair or replace switch assembly.
Winch braking
malfunction.
-Winch working in
wrong direction.
-Brake slice worn or
worn not.
-Change winch working direction looking is to
clockwise look at the motor end
- Simply readjusted the braking angle or
replaces the new brake slice.

14
WINCH ASSEMBLY DRAWING（EWD8000）
34
2
56
7
910
11
12
8
13
14
16
15
19
17 18
15
14
20 21
22
23
24
25
26
27
28
29
34
29
30
23
35
36
37
10
11
12
40
4142
43
44
38
1
39
23
33
22
45
46
47
48
31
32

15
WINCH PARTS LIST（EWD8000）
No.
Part #
Qty
Description
Remark
1
D0800001
3
Terminal Protector
2
D0800100
1
Motor Assembly
3
D0800200
1
Bearing
4
D0800002
2
Screw M6 x 12
5
D0800003
2
Lock Washer Φ6
6
D0800300
1
Gear—Ring Assembly
7
D0800400
1
Gear Carrier Assembly （Input）
8
D0800500
1
Bearing
9
D0800004
1
Motor Bracket
10
D0800005
6
Cap Screw M10 x 35
11
D0800006
6
Lock Washer Φ10
12
D0800007
6
Think Flat Washer Φ10
13
D0800008
4
Hex Nut M10
14
D0800009
2
Bushing—Drum
15
D0800010
2
Ring Seals
16
D0800600
1
Brake / Shaft Assembly
17
D0800011
4
Screw M8x 30
18
D0800012
4
Lock Washer Φ8
19
D0800013
2
Tie Bar
20
D0800700
1
Drum Assembly
21
D0800014
1
Screw M8 x 10
22
D0800015
16
Screw M5x 18
23
D0800016
17
Lock Washer Φ5
24
D0800017
1
End Bearing
25
D0800018
1
Connecting Sleeve
26
D0800800
1
Gear Carrier Assembly （Output）
27
D0800900
1
Gear Carrier Assembly （Intermediate）
28
D0801000
1
Gear Sun Assembly （Intermediate）
29
D0800019
2
Gasket
30
D0800020
1
Gear—Ring
31
D0800021
1
Spring
32
D0800022
1
Steel Ball
33
D0800023
1
Screw M5 x 12
34
D0800024
1
Clutch Handle
35
D0800025
1
Clutch Axes
36
D0800026
1
Positioning Piece Of Clutch
37
D0800027
1
Clutch Seat
38
D0800028
1
Clutch Screw
39
D0800029
8
Flat Washer Φ5
40
D0800030
2
Locknut M10
41
D0801100
1
Roller Fairlead
42
D0800031
1
Mounting Channel
By Choice
43
D0801200
1
Remote Control Switch
44
D0801300
1
Cable Assembly
45
D0800032
1
Strap
46
D0801400
1
Control Section Of U Type Winch
By Choice
47
D0801500
1
Control Section Of S Type Winch
By Choice
48
D0801600
1
Control Section Of F Type Winch
By Choice

16
SPECIFICATION（EWD8000）
Rated line pull
8000 lbs (3629kgs)
Motor: series wound
12V:Input: 3.4kW / 4.6hp; Output: 2.0kW / 2.7hp
24V:Input: 3.1kW / 4.2hp; Output: 2.6kW / 3.5hp
Gear reduction ratio
267:1(Low speed); 86:1(High speed)
Cable (Dia × L)
Ø21/64"×95' (ø8.3mm×29m)
Drum size (Dia × L)
Ø2.48"×8.8" (ø63mm×223mm)
Mounting bolt pattern
10"×4.5" (254mm×114.3mm) 4-M10
Item
EWD8000U
EWD8000S
EWD8000F
Overall dimensions
(L×W×H)
24.4"×6.3"×10.0"
619mm×160mm×254mm
24.4"×6.3"×11.1"
619mm×160mm×283mm
24.4"×6.5"×9.9"
619mm×166mm×251mm
Net weight
Ibs(kgs)
77.2
35
83.8
38
88.2
40
Pull, Speed, Amperes, Volts(First layer)
Low speed
Current (A)
High speed
Current (A)
Line Pull
Line Speed ft/min
(m/min)
Line Pull
Line Speed ft/min
(m/min)
lbs (kgs)
12V DC
24V DC
12V DC
24V DC
lbs (kgs)
12V DC
24V DC
12V DC
24V DC
0
28.9(8.8)
19.7(9.2)
70
50
0
78.7(24.0)
82.0(25.0)
75
60
4000(1814)
9.8(3.0)
10.5(3.2)
190
80
2000(907)
25.9(7.9)
22.3(6.8)
245
115
6000(2722)
8.6(2.7)
9.2(2.8)
230
100
3000(1361)
20.3(6.2)
19.0(5.8)
300
135
8000(3629)
7.9(2.0)
7.9(2.4)
280
130
4000(1814)
16.4(5.0)
17.1(5.2)
365
170
Line pull and rope capacity in layer
Layer
Rated line pull lbs (kgs)
Total rope on drum ft (m)
1
8000(3629)
20.0(6.1)
2
6529(2962)
44.3(13.5)
3
5515(2502)
72.0(22.0)
4
4773(2165)
95.1(29.0)

17
WINCH ASSEMBLY DRAWING（EWD10000）
34
2
56
7
910
11
12
8
13
14
16
15
19
17 18
15
14
20 21
22
23
24
25
26
27
28
29
34
29
30
23
35
36
37
10
11
12
40
4142
43
44
38
1
39
23
33
22
45
46
47
48
31
32

18
WINCH PARTS LIST（EWD10000）
No.
Part #
Qty
Description
Remark
1
D1000001
3
Terminal Protector
2
D1000100
1
Motor Assembly
3
D1000200
1
Bearing
4
D1000002
2
Screw M6 x 12
5
D1000003
2
Lock Washer Φ6
6
D1000300
1
Gear—Ring Assembly
7
D1000400
1
Gear Carrier Assembly （Input）
8
D1000500
1
Bearing
9
D1000004
1
Motor Bracket
10
D1000005
6
Cap Screw M10 x 35
11
D1000006
6
Lock Washer Φ10
12
D1000007
6
Think Flat Washer Φ10
13
D1000008
4
Hex Nut M10
14
D1000009
2
Bushing—Drum
15
D1000010
2
Ring Seals
16
D1000600
1
Brake / Shaft Assembly
17
D1000011
4
Screw M8x 30
18
D1000012
4
Lock Washer Φ8
19
D1000013
2
Tie Bar
20
D1000700
1
Drum Assembly
21
D1000014
1
Screw M8 x 10
22
D1000015
16
Screw M5x 18
23
D1000016
17
Lock Washer Φ5
24
D1000017
1
End Bearing
25
D1000018
1
Connecting Sleeve
26
D1000800
1
Gear Carrier Assembly （Output）
27
D1000900
1
Gear Carrier Assembly （Intermediate）
28
D1001000
1
Gear Sun Assembly （Intermediate）
29
D1000019
2
Gasket
30
D1000020
1
Gear—Ring
31
D1000021
1
Spring
32
D1000022
1
Steel Ball
33
D1000023
1
Screw M5 x 12
34
D1000024
1
Clutch Handle
35
D1000025
1
Clutch Axes
36
D1000026
1
Positioning Piece Of Clutch
37
D1000027
1
Clutch Seat
38
D1000028
1
Clutch Screw
39
D1000029
8
Flat Washer Φ5
40
D1000030
2
Locknut M10
41
D1001100
1
Roller Fairlead
42
D1000031
1
Mounting Channel
By Choice
43
D1001200
1
Remote Control Switch
44
D1001300
1
Cable Assembly
45
D1000032
1
Strap
46
D1001400
1
Control Section Of U Type Winch
By Choice
47
D1001500
1
Control Section Of S Type Winch
By Choice
48
D1001600
1
Control Section Of F Type Winch
By Choice
