Champion Care Cliner Operation manual

OWNER'S OPERATING AND MAINTENANCE MANUAL
1-800-237-3377
CHAMPIONCHAIR.COM
Care Cliner Collection
Document No. 006121 Rev AE
Drop-Arm & XL Drop Arm
Care Cliner
(655/657)
Care Cliner &
XL Care Cliner
(653/654)

Page 2 of 23
manual
Document No.: 006120 - Revision: ae

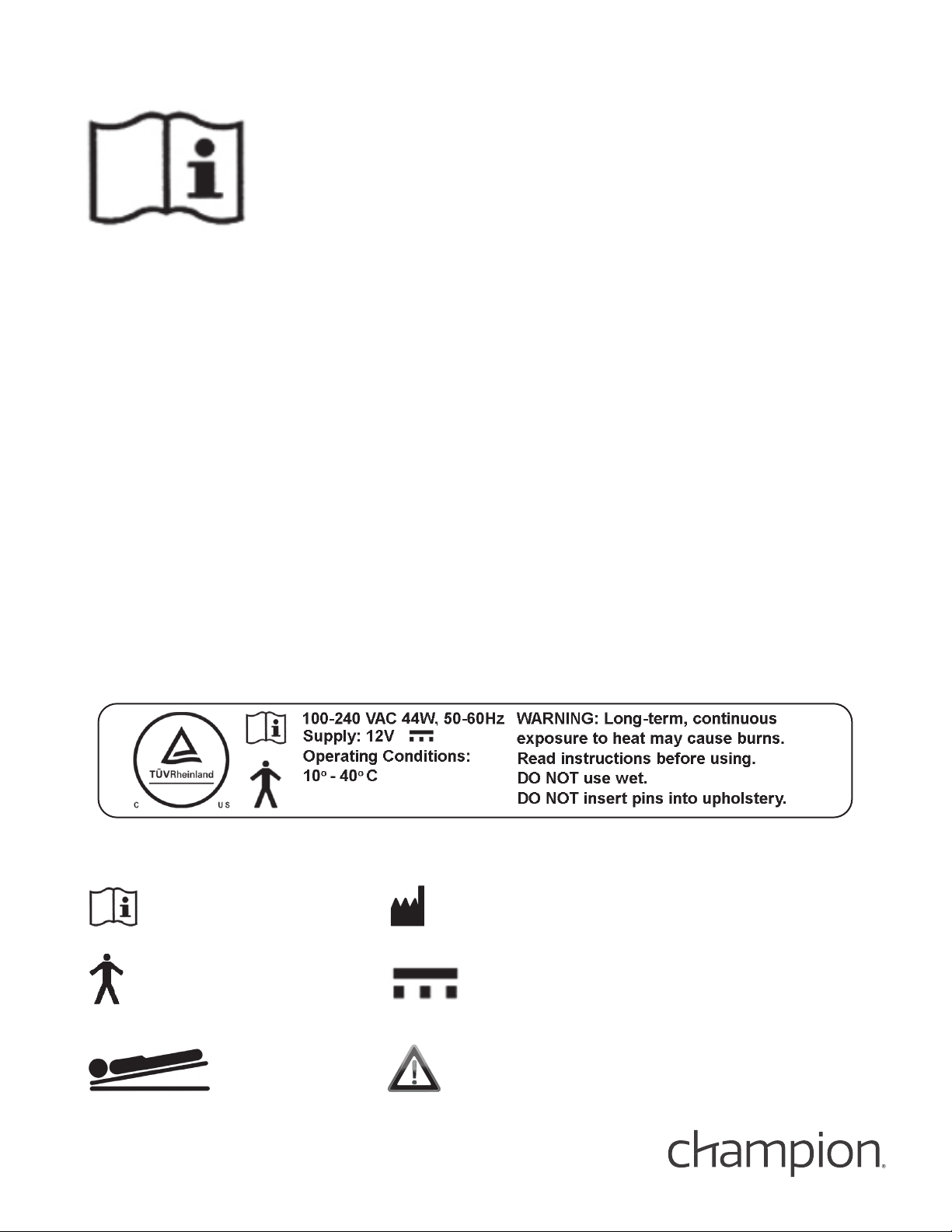

FOLLOW INSTRUCTIONS
DC VOLTAGE
GENERAL WARNING
SYMBOL FOR MANUFACTURER
TRENDELENBURG
PRODUCTS WITH THE FOLLOWING MARKINGS ARE INTENDED FOR COMMERCIAL USE ONLY:
IMPORTANT
READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE US-
ING THIS PRODUCT!
Do NOT install, maintain or operate this equipment without reading and following this manual,
otherwise injury and/or damage may result.
IF YOU HAVE ANY QUESTIONS OR CONCERNS, PLEASE CONTACT CHAMPION MANUFACTURING,
INC .
Champion assumes no responsibility for damage or injury caused by improper assembly, instal-
lation, use, or maintenance of these products.
No part of this manual may be duplicated in any form without the prior consent of Champion
Manufacturing, Inc . Unauthorized duplication/distribution of these materials may result in civil
prosecution to the maximum extent allowed by law.
The information contained in this manual is subject to change without notice.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!
These instructions are available online at no charge.
Visit ChampionChair.com to download.
SYMBOLS
TYPE B APPLIED PART

Page 3 of 23
manual
Document No.: 006120 - Revision: ae
TABLE OF CONTENTS
Intended Use Statement.............................................................................................................. 4
Transportation, Storage, Handling and Disposal.................................................................... 4
Unpacking....................................................................................................................................... 4
Important Safety Information..................................................................................................... 5
Products With Powered Options (Heat, Heat & Massage, Etc.)....................................... 5
Isolation Diagram for Heat & Massage System .................................................................. 6
All Care Cliner Models ............................................................................................................. 7
Back Assembly Instructions ........................................................................................................ 9
Operating Instructions.................................................................................................................. 10
Reclining the Care Cliner ........................................................................................................ 10
Returning Care Cliner to the Upright Position ................................................................... 11
Lock/Unlock Casters ............................................................................................................... 12
Raise/Lower Drop-Arms ......................................................................................................... 13
Side Panel Removal (Non Drop-Arm Models) .................................................................... 13
Drop-Arm Vinyl Panel Removal ............................................................................................. 13
Side Table Positioning ........................................................................................................... 14
Using Heat/Heat & Massage Option..................................................................................... 15
General Maintenance.................................................................................................................... 16
Adjusting the Gas Spring ........................................................................................................ 16
Adjusting the Recliner Mechanisms..................................................................................... 17
Replacing the Recliner Mechanism...................................................................................... 18
General Care & Cleaning .............................................................................................................. 19
Specifications................................................................................................................................. 20
6530 Care Cliner ....................................................................................................................... 20
6540 XL Care Cliner.................................................................................................................. 20
6550 Drop Arm.......................................................................................................................... 20
6570 XL Drop Arm..................................................................................................................... 20
Options............................................................................................................................................ 21

Page 4 of 23
manual
Document No.: 006120 - Revision: ae
INTENDED USE STATEMENT
The products in the Care Cliner Collection are intended for use in medical settings. They are designed to provide
comfort for patients seated up to eight (8) hours at a time while receiving treatments such as Dialysis or Infusion
or during recovery from surgical procedures where positional adjustments are beneficial. The recliners are also
suitable for general use in many medical settings such as, but not limited to, hospital room chair, waiting room
chair, convalescent home chair, etc.
TRANSPORTATION, STORAGE, HANDLING & DISPOSAL
• The product should be transported in factory packaging, inside an appropriate medium for the
destination, i.e., air/sea cargo containers.
• The product should be stored in an environment that will inhibit rust/mold formation.
• Champion Manufacturing, Inc recommends not leaving the product in the factory packing in excess of
three (3) months.
• The product should always be handled in a manner consistent with the user instructions and in a
manner to prevent contamination after each use.
• The product has many recyclable components and to the extent practical, all effort should be used to
recycle responsibly. Otherwise the product components shall be disposed of in accordance with local
statutes.
UNPACKING
1. Carefully examine your product for any damage. Inspect all your components. If damage is evident, contact
the freight carrier or Champion immediately.
2. Remove all packing material and hardware that was secured for shipping.
3. Carefully remove all of the components from the carton.
4. Save all boxes and packing material until after you have assembled your product and verified that all
components are functioning properly.
CHAMPION ASSUMES NO RESPONSIBILITY FOR DAMAGE OR INJURY CAUSED BY IMPROPER ASSEMBLY,
INSTALLATION, USE, OR MAINTENANCE OF THESE PRODUCTS.

Page 5 of 23
manual
Document No.: 006120 - Revision: ae
IMPORTANT SAFETY INFORMATION
FOR PRODUCTS WITH POWERED OPTIONS (HEAT, MASSAGE, ETC.)
When using an electrical appliance, basic precautions should always be followed, including the following:
To reduce the risk of electric shock always unplug this product from the electrical outlet before cleaning,
maintenance or servicing.
1. Unplug this product from the electrical outlet when not in use.
2. Supervision should be provided when using this product.
3. Use this product only for its intended use as described in this manual.
4. DO NOT use attachments not recommended by the manufacturer.
5. Never operate this product if it has a damaged cord or plug. If it is not working properly; if it has been
dropped or damaged or if it has been dropped into water, contact an authorized Champion service center for
instructions.
6. DO NOT carry or pull this product by power supply cord or use the cord as a handle.
7. Keep the cord away from heated surfaces.
8. DO NOT use outdoors.
9. To disconnect, turn all controls to the "o" position, then remove plug from outlet. Pull plug only to remove
cord.
10. Clean switch with a damp cloth only – Warranty will be VOID if liquid is introduced into switch mechanism.
11. Extension cords are not recommended.
12. DO NOT roll recliner or other equipment over cord.
13. This product is for use on a nominal 120 volt circuit and has a three-pin plug. If the plug does not fit into the
outlet, contact a certified electrician to install the proper outlet. DO NOT MODIFY THE PLUG IN ANY WAY.
No adapter should be used with this product.
14. For an added level of safety; Champion recommends the use of a 120 volt GFCI (ground fault circuit
interrupter) outlet.
1. Never insert pins or attach other metallic fasteners into/onto any part of this chair.
2. DO NOT use this product if the covering shows signs of deterioration, such as
checking, blistering, or cracking.
3. KEEP DRY – Do not operate in a wet or moist condition or environment.
1. Long term, continuous exposure to heat may cause burns. It is recommended
that skin in contact with heated area be checked for redness and blistering during
long term usage. DO NOT use on an infant, invalid or incapacitated person. DO
NOT use on insensitive skin or on a person with poor blood circulation. If you are
uncertain if you should use this product, please consult your physician about the
use of heat and massage.
2. DO NOT crush/pinch heating elements or wiring.
WARNING
DANGER
WARNING

Page 6 of 23
manual
Document No.: 006120 - Revision: ae
IMPORTANT: PLEASE READ
FOR HEAT & HEAT AND MASSAGE CHAIRS:
This equipment is marked with the industry recognized symbol indicating it is a “Class II Double-
Insulated” device as defined by IEC 60601-1. As such, it does NOT require a three conductor power
cord (i.e. one with a ground connection) for safety purposes. While the equipment can be safely
operated with no ground connection, a three conductor power cord is provided to satisfy customer
expectations for typical equipment configuration. Devices qualifying as double insulated require dierent
testing & examination procedures than “Class I Grounded” devices. If your facility requires the product to be
tested, be sure to follow testing & examination procedures for “Class II Double-Insulated” devices.

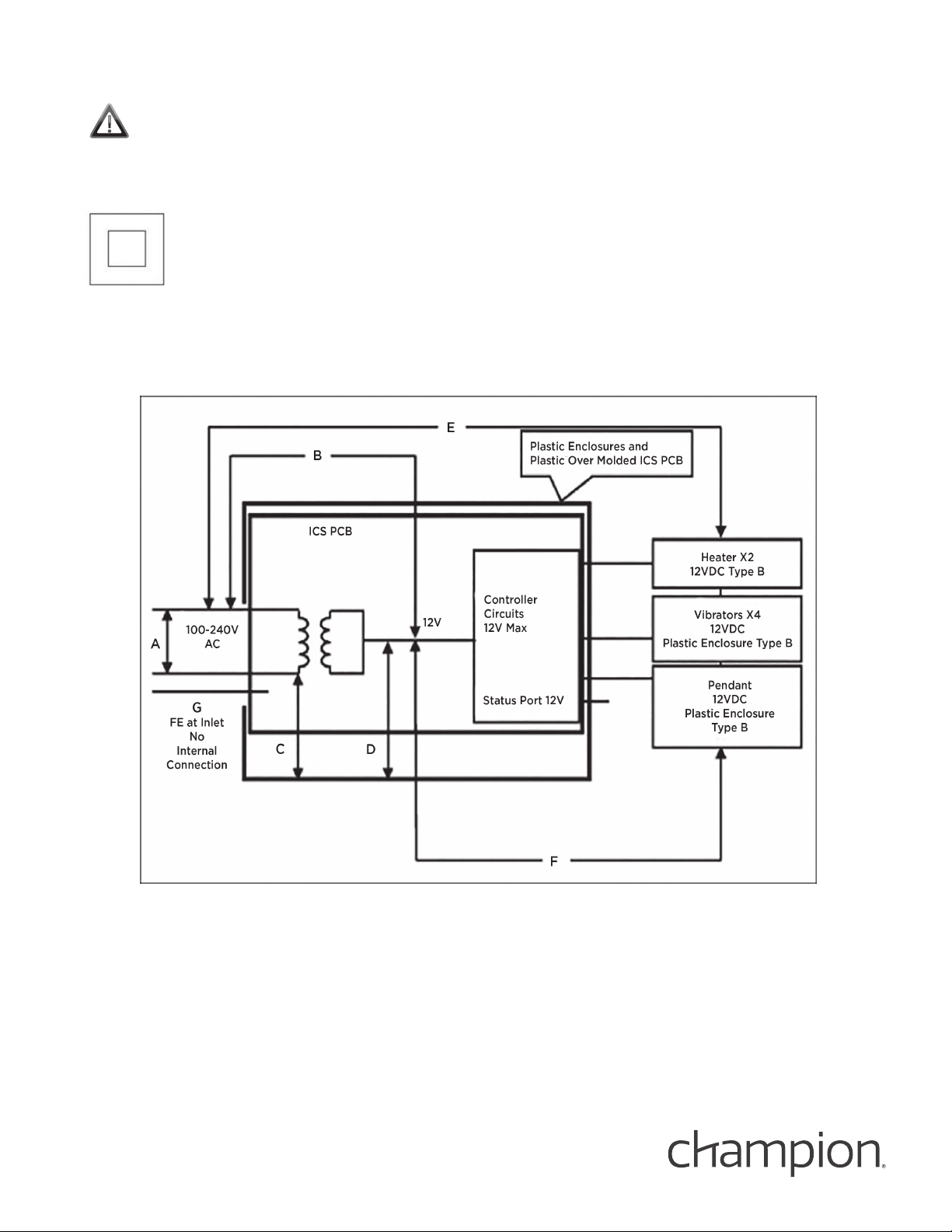

ISOLATION DIAGRAM FOR HEAT & MASSAGE SYSTEM
Area Insulation Type
A Basic Operational
B Double Insulated/Reinforced
C Double Insulated/Reinforced
D Double Insulated/Reinforced
E Double Insulated/Reinforced
F Double Insulated/Reinforced
G Inlet FE Pin only connects to inlet & pad

Page 7 of 23
manual
Document No.: 006120 - Revision: ae
ALL CARE CLINER MODELS
DO NOT Li or Change Chair recline angle by Using the Legrest. This Could Cause Injury to the User or
Damage to the Recline Mechanism and will VOID WARRANTY.
Always change chair recline angle from back or side of chair.
1. READ AND FOLLOW ALL DIRECTIONS.
2. Keep children away from extended foot support (or other similiar parts). Never allow children under the
chair.
3. STAY CLEAR of the recliner mechanisms.
4. DO NOT put hands, feet or clothing into any openings when changing recline angle. Attendant MUST confirm
that users arms, legs, hands and feet are safe while changing recline angle or SERIOUS INJURY MAY RESULT.
5. Remove or move chair accessories out of the way of patients body (ie. over-lap table and pivot table) when
reclining the patient.
6. ALWAYS ensure swing-arms are securely latched aer use, including cleaning or patient transfer. Pull on the
swing-arms to confirm that they have been properly latched.
7. Remove items and lower the table, if equipped, prior to opening or lowering arm.
8. LOCK casters at all times when chair is stationary. UNLOCK casters when moving or transporting chair.
9. DO NOT use recliner for transporting in or with ANY type of vehicle or trailer. Care Cliners have not been
tested or approved for use by an occupant in any type of vehicle or trailer.
10. NEVER sit on chair arms or backrest; SERIOUS INJURY or damage may occur.
11. DO NOT put any weight or pressure on arms when unlatched. Serious damage or injury may occur.
12. It is highly recommended to check the tightness of all nuts, bolts and screws at least once a year.
13. Immediately REMOVE FROM SERVICE; Any recliner with broken recline mechanisms, torn upholstery, or
other mechanical or visible damage.
14. NEVER EXCEED the recommended weight capacity (see weight rating label on chair).
15. USE ONLY AUTHORIZED REPLACEMENT PARTS.
16. Chairs should NEVER be used for patient transport unless properly equipped. At a minimum, this requires a
push handle, 5" casters, and a footplate.
17. This chair is equipped with the Trendelenburg positioning feature. Be sure all attendants of the chair are
trained in the proper use and operation of this clinical feature. Refer to all instructions and notes regarding
use. Never leave occupant unattended by medically trained sta while in the Trendelenburg position.
Serious Injury can occur. Trendelenburg is to be used only for medical treatment necessity, aer which
normal recline angle should be restored.
WARNING

Page 8 of 23
manual
Document No.: 006120 - Revision: ae
BACK ASSEMBLY INSTRUCTIONS
1. Remove back assembly and chair frame from carton.
For "Heat Only" or "Heat & Massage"
chairs, DO NOT disconnect any
"chair to back" wires.
2. Ensure footrest is closed.
3. Lock all casters (refer to lock/unlock casters instructions).

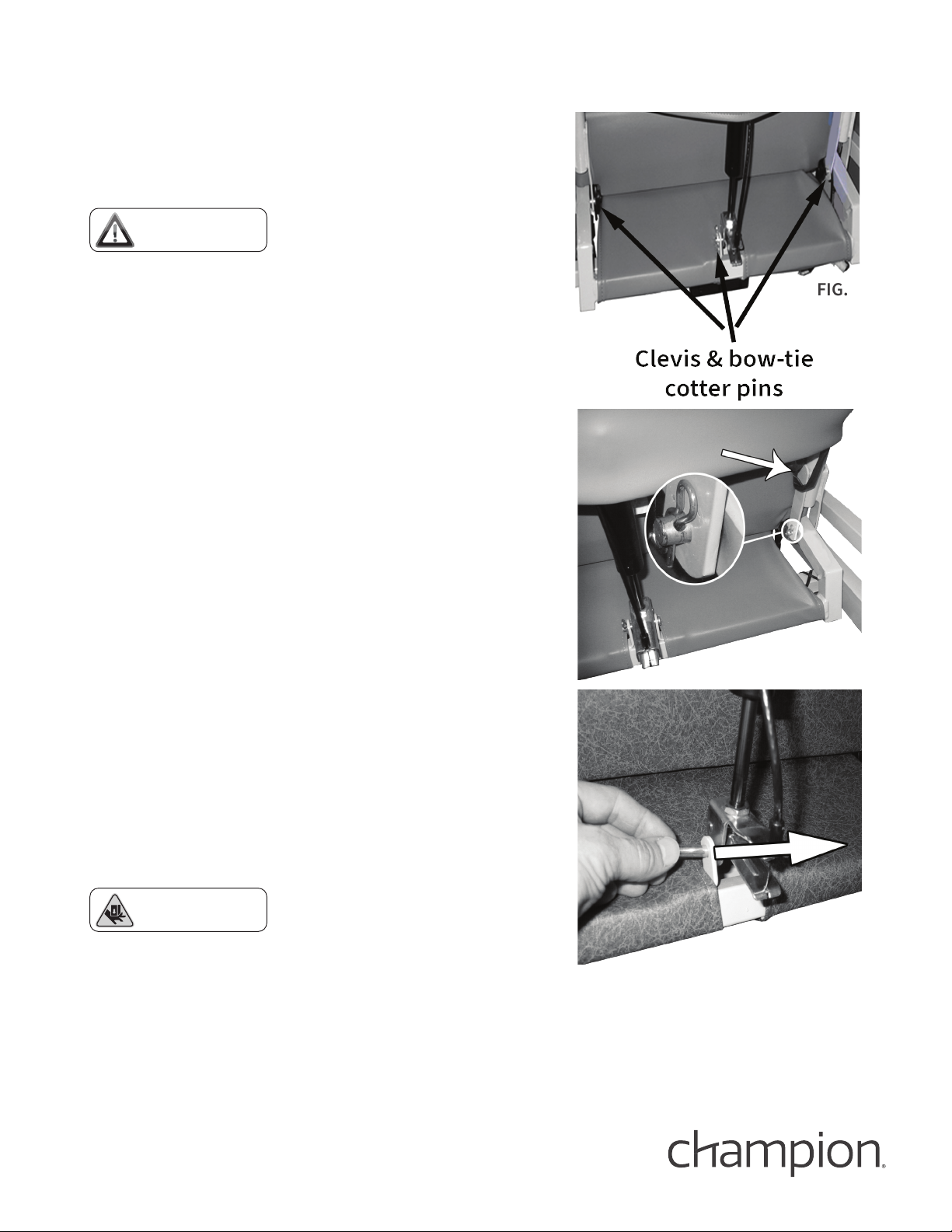

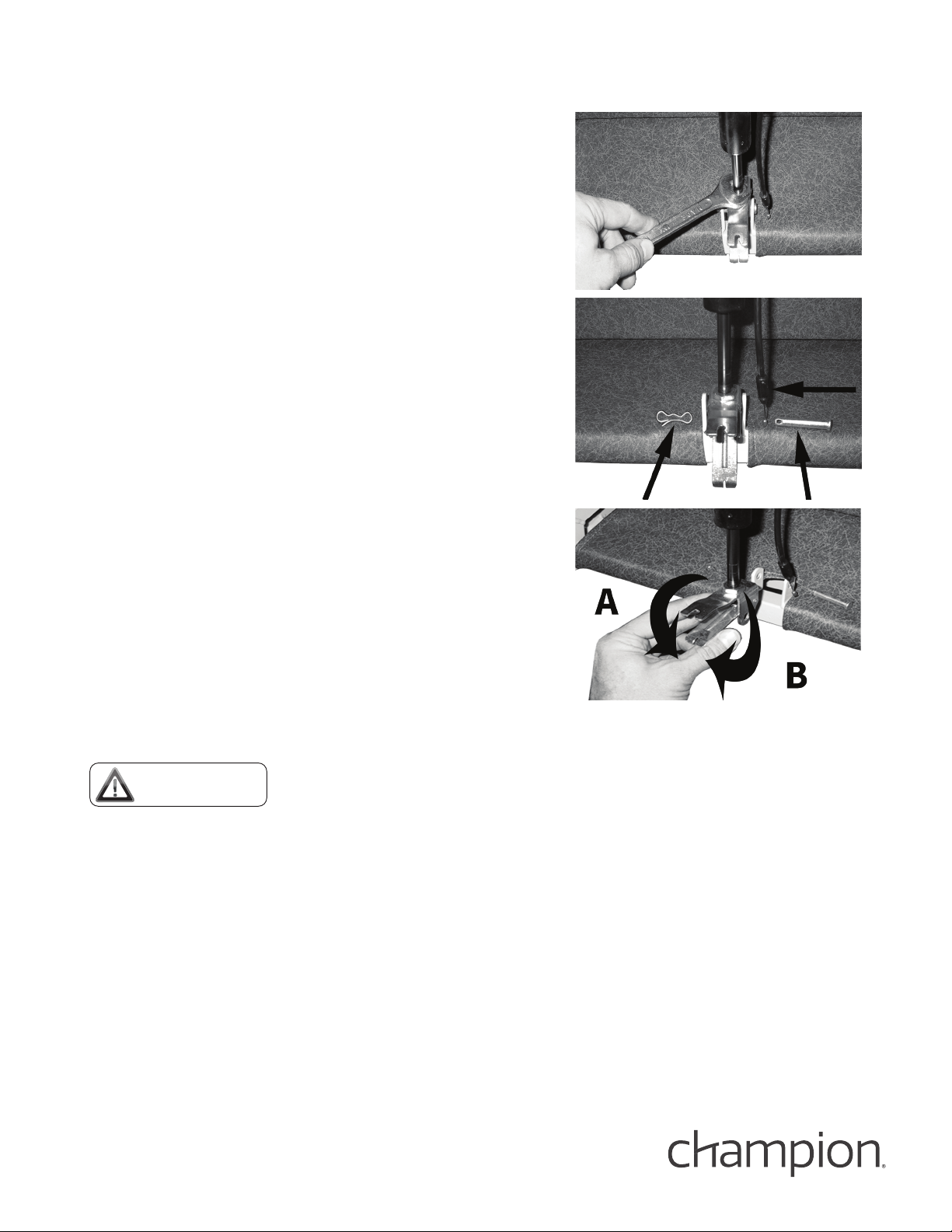

4. Remove ALL clevis and bow-tie cotter pins located on the
bottom le and right forks of the back frame and on the
operator of the gas cylinder. DO NOT LOSE – YOU WILL
NEED THEM AGAIN (FIG. 1).
5. Position the back frame forks over the seat frame rails and
align holes (FIG. 1). HELPFUL HINT: Align the holes on the
lower back frame while allowing the upholstered back to
rest on the seat. This will help you steady the chair back. If
possible, have someone help you hold the back assembly
while you install pins.
6. Align and insert the clevis pins (removed in step 4) through
each back frame fork and corresponding hole in the seat
frame. NOTE: There are a total of three (3) pins on
standard sized chairs and four (4) pins on XL chairs.
• The small hole in the clevis pin MUST be to the INSIDE
of the chair (FIG. 2).
MODELS 653 + 654: The clevis pin can only be installed
with the small pin hole to the OUTSIDE of the chair.
MODELS with "HEAT" or "HEAT & MASSAGE": The
wiring from the back should be positioned between the
back frame and the upholstered seat (FIG. 2A).
• DO NOT INSTALL WIRES
BETWEEN BACK FRAME FORKS.
KEEP FINGERS AND HANDS
CLEAR OF MOVING PARTS AND
PINCH POINTS.
• Make sure the clevis pin goes through the holes in the
seat frame tube. NOT UNDER THE SEAT FRAME TUBE.
• Insert bow-tie cotter pins into the small hole of each
clevis pin
FIG. 1
FIG. 3
FIG. 2A
WARNING
FIG. 2
WARNING

Page 9 of 23
manual
Document No.: 006120 - Revision: ae
BACK ASSEMBLY INSTRUCTIONS – CONTINUED
7. Align the gas cylinder operator holes between the seat frame bracket holes on the seat frame assembly.

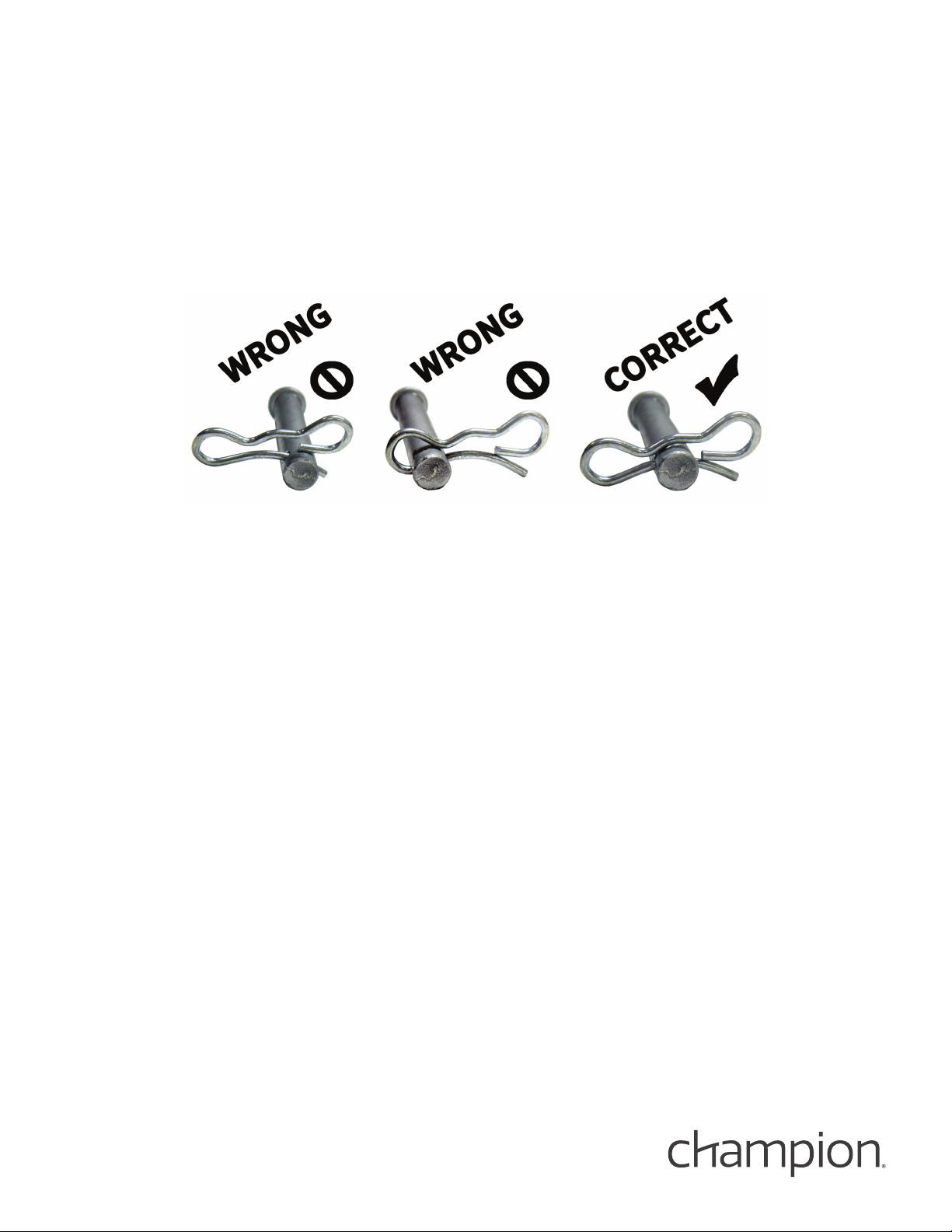

Install the saved clevis pin through the aligned holes. Install the bow-tie cotter pin onto the clevis pin. (FIG. 3).
Make sure all bow-tie cotter pins are securely inserted in all clevis pins and that the cable end is attached
through the slot of the gas cylinder operator. Failure to securely insert the bow-tie cotter pins into the clevis pin
could cause the clevis pins to fall out and result in injury or damage to the chair.
FIG. 3

Page 10 of 23
manual
Document No.: 006120 - Revision: ae
OPERATING INSTRUCTIONS
RECLINING THE CARE CLINER
1. From the seated upright (#1) position, grip the arm rests and simultaneously lean body weight back. Push
rearward with your arms until desired recline position (#2 - TV or #3 - recline) is reached (FIG. 1).
NOTE: The footrest will simultaneously elevate.
2. An attendant can recline the chair to position #2 or #3 by simply grasping the armrest with one hand andthe
top of the chair back with the other, and then pushing or pulling back on the back of the chair (FIG. 2).
NOTE: This applies ONLY to positions #2 and #3, and NOT engaging the gas spring for Trendelenburg.
3. TRENDELENBURG POSITIONING MUST ONLY BE PERFORMED BY A TRAINED ATTENDANT. While
occupant is in the chair, place the chair into the fully reclined position (#3). The gas spring MUST be engaged
by squeezing the release handle at the top of the backrest (FIG. 3 & 4).
4. Aer each use of Trendelenburg, return the chair back to regular positioning by squeezing the release handle
and liing up until chair back is fully upright.
DO NOT FORCE the back of the chair downward without squeezing the release
handle. This will damage the chair. The chair back will stay in Trendelenburg position
when pressure is removed from the release handle. Chair back movement can be
stopped at any time by simply removing pressure on the handle.
IMPORTANT: Attendant must return the chair back to the full upright position aer each use, before the
patient exits the chair and before another patient enters chair.
NOTE: If the chair back does not recline when the release bar is squeezed, or does not remain in correct
recline position when the release handle is released, cable tension may need to be adjusted.
DO NOT use the chair if the Trendelenburg position is not functioning properly.
NEVER Push or pull footrest to position chair recline angle.
NEVER Stand or sit on the foot rest or leg rest.
NEVER Place hands, legs, or feet under seat, leg rest, or foot rest. Stay clear of recline
mechanism.
KEEP CHILDREN AWAY From underside of chair. Injury may occur.
WARNING
WARNING

Page 11 of 23
manual
Document No.: 006120 - Revision: ae
FIG. 1 FIG. 2
FIG. 3 FIG. 4
RETURNING CARE CLINER TO THE UPRIGHT POSITION
1. From the RECLINED position, grip the arm rests and simultaneously li body weight upward while pulling
on armrests. Continue until desired position is reached (FIG. 1).
2. Push down on footrest with feet to lower legrest (FIG. 2).
NEVER PUSH DOWN ON THE FOOTREST WITH HANDS NEAR THE MECHANISM.
3. An attendant can also return the chair to the upright position by grasping the armrest with one hand AND
the top of the chair back with the other, then pulling the back of the chair upright (FIG. 3).
IMPORTANT: TRENDELENBURG POSITIONING MUST ONLY be performed by a medically trained attendant.
The gas spring MUST be engaged by squeezing the release handle at the top of the backrest (FIG. 3).
IMPORTANT: Attendant must return the chair back to the full upright position aer each use, before the
patient exits the chair and before another patient enters chair.
Keep hands and any other objects away from the mechanisms as injury may occur or
cause damage to the chair (FIG. 4).
WARNING
WARNING

Page 12 of 23
manual
Document No.: 006120 - Revision: ae

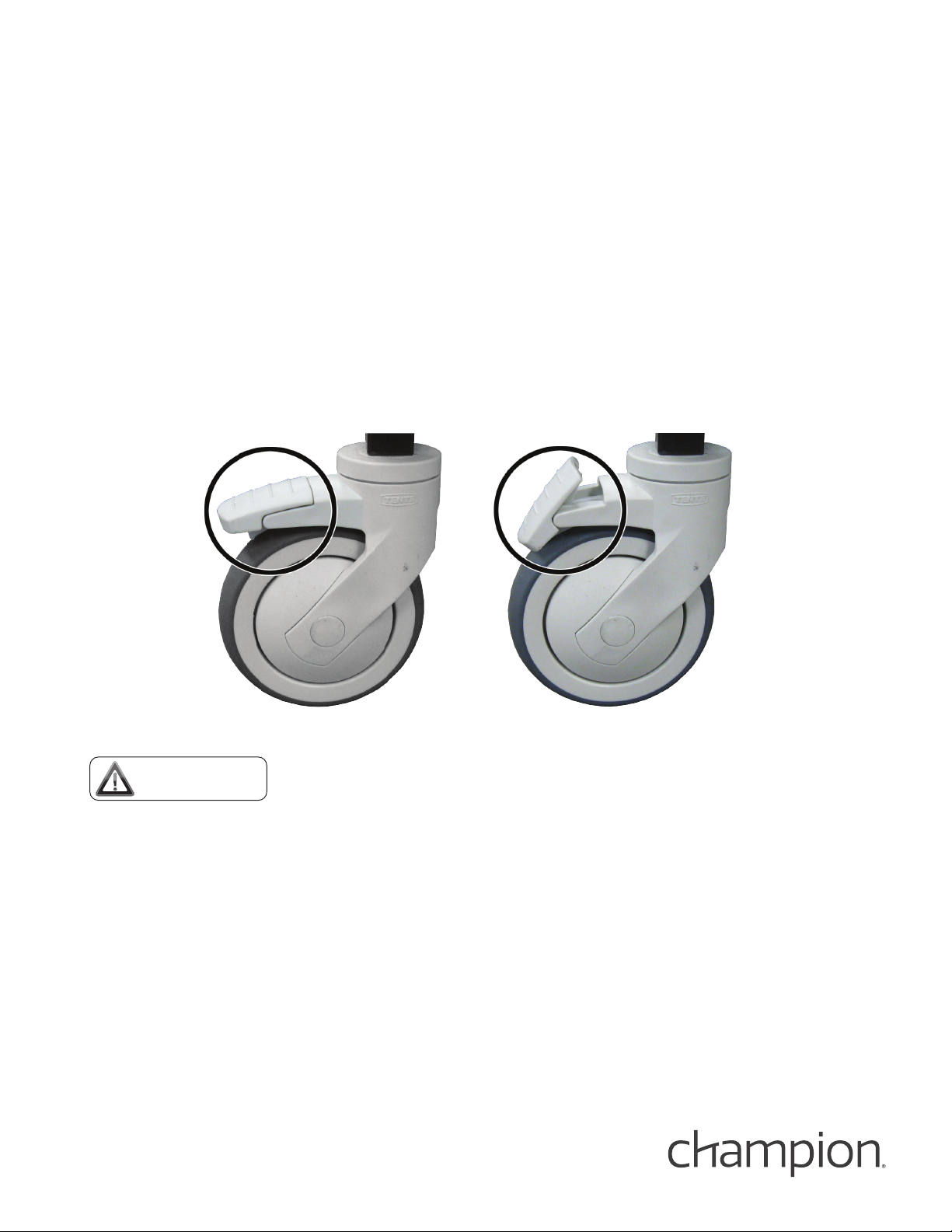

LOCK/UNLOCK CASTERS
1. Total-lock casters will lock wheel and swivel mechanism by using your foot and pushing down on the tab.
Location: 5" Nylon Casters – le & right front and righ rear (FIG. 1 +2).
2. Directional-Lock Casters aid with the steering of the chair.
Location: Le rear ONLY.
NOTE: The directional-lock tab ONLY prevents the caster from swiveling. This caster can be installed
on the FRONT-LEFT side of chair as a steering option.
3. Release the locking mechanisms for ALL casters by pushing the above described tabs back to their upward
position (Nylon: FIG. 2 to 1).
Lock casters at all times, except when moving the chair.
WARNING
FIG. 1 FIG. 2

Page 13 of 23
manual
Document No.: 006120 - Revision: ae

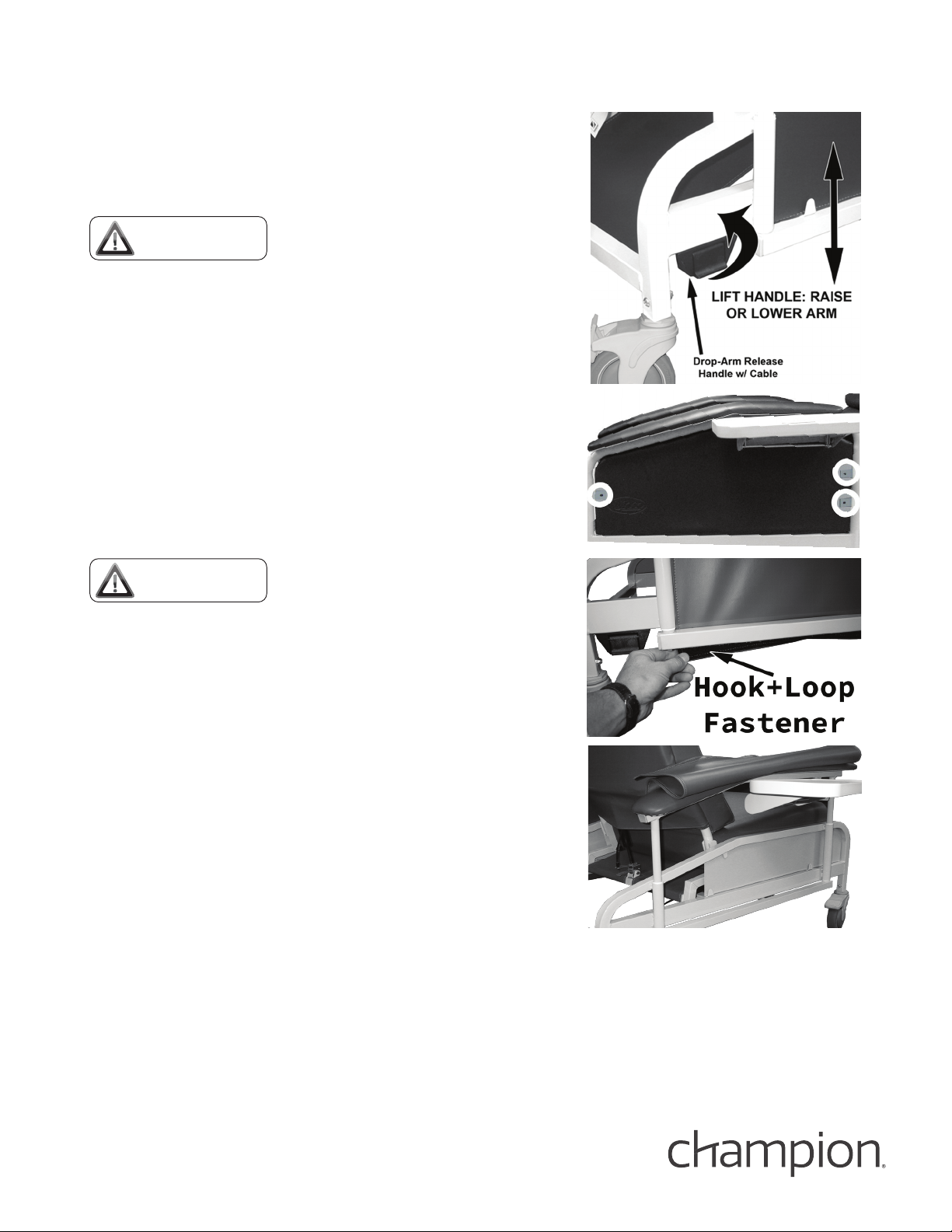

RAISE/LOWER DROP-ARMS
(655 & 657 MODELS ONLY)
BEFORE RAISING OR LOWERING,
VERIFY THAT OCCUPANT AND
ATTENDANT ARE CLEAR OF DROP-
ARM.
1. To lower: grasp armrest in center; use free hand to LIFT the
drop-arm release handle. The drop-arm will disengage and
you can then lower it to the fully dropped position (FIG. 1).
2. To raise: firmly pull straight up in the center of the armrest.
Make sure both armrests are locked into place before
attending the occupant.
NOTE: Periodically lubricate the channels of the drop arms
with facility approved silicone base lubricant to keep the
parts moving freely.
DO NOT raise and lower drop-arms
with tables in an upright position
(Drop-arm models ONLY).
SIDE PANEL REMOVAL (NON DROP-ARM MODELS)
1. For ease of cleaning and chair maintenance, use a phillips
screwdriver to unscrew two (2) screws at the front of chair and
one (1) screw at the rear of chair, on the inside of each panel
(FIG. 2).
2. Replace panel and reinstall three (3) screws (FIG. 2) when
cleaning or maintenance of chair is complete.
DROP-ARM VINYL PANEL REMOVAL
(655 & 657 MODELS ONLY)
1. The vinyl panel is secured to the bottom of the drop-arm with
a hook and loop fastener material. Peel hook and loop apart
to allow ease of cleaning and access behind the drop-arm of
the chair (FIG. 3 and 4).
2. Reattach the panel by aligning and firmly pressing the hook
and loop material back together.
FIG. 4
FIG. 2
FIG. 1
FIG. 3
WARNING
WARNING

Page 14 of 23
manual
Document No.: 006120 - Revision: ae
SIDE TABLE POSITIONING
1. To raise table, grasp center of table and gently raise into place. Table will automatically lock into place when
released.
2. To lower table, grasp table at the center, raise entire table and pivot down in one movement.
3. Alternately, li entire table with two hands and lower.

Page 15 of 23
manual
Document No.: 006120 - Revision: ae

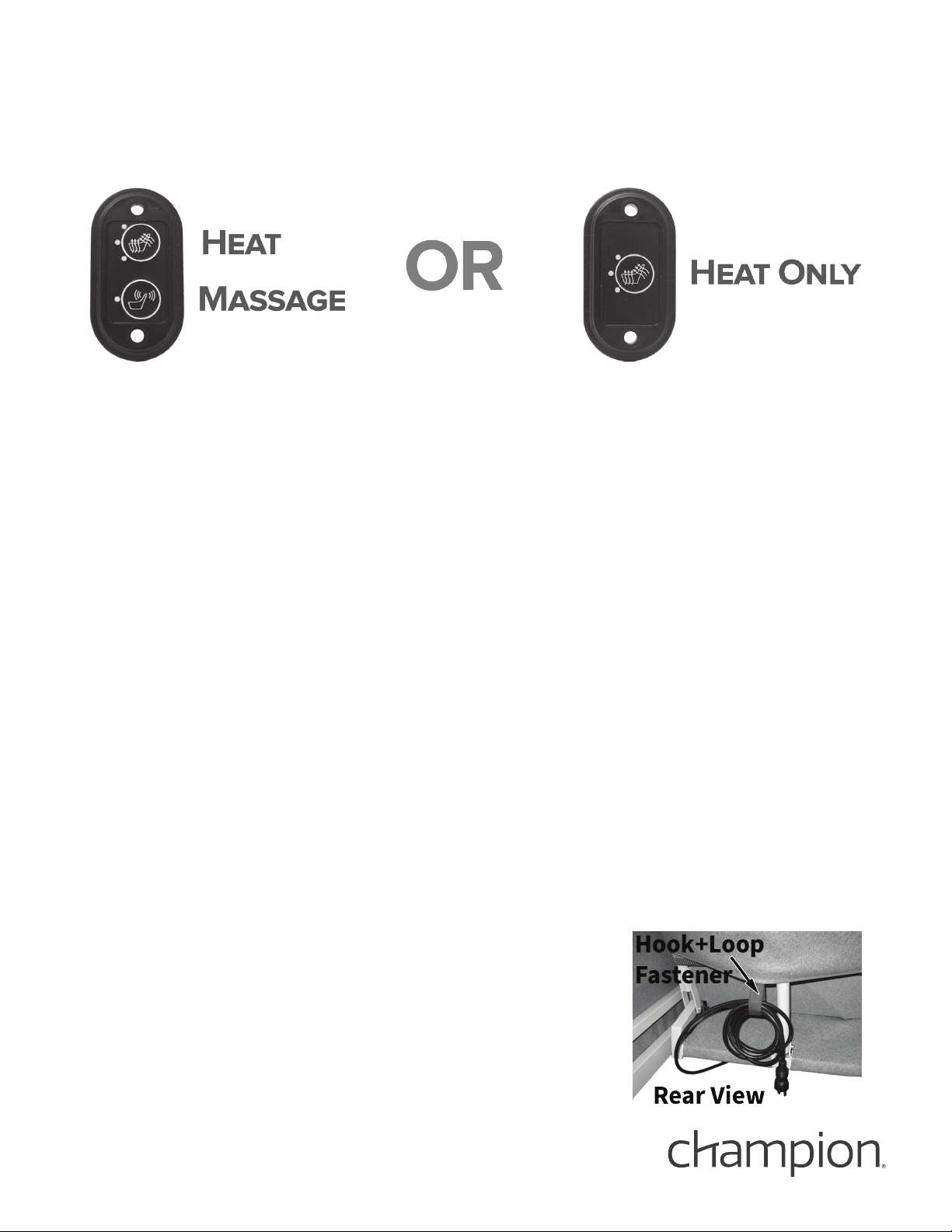

USING HEAT/HEAT & MASSAGE OPTION
Control is located on the inside of right arm of chair. (Right is determined – as if sitting in the chair)
HEAT
Gently touch the heat button to step through each temperature setting (see indicator light on switch).
To operate, push HEAT button – See indicator light on switch
3 Lights = High Heat 2 Lights = Medium Heat 1 Light = Low Heat No Light = HEAT OFF
Allow 5 – 8 minutes for back and seat to warm to desired heat setting. Heat will automatically shut o aer
approximately 60 minutes (timer resets when switch is pressed). LONG TERM, CONTINUOUS EXPOSURE TO
HEAT MAY CAUSE BURNS. SEE ADDITIONAL WARNINGS ON PAGE 5.
MASSAGE
Gently touch the massage button to step through each massage setting.
To operate, push MASSAGE button
1X = Lower Back/Low Intensity 2X = Lower Back/High Intensity
3X = Upper & Lower Back/Low Intensity 4X = Upper & Lower Back/High Intensity
5X = Alternating Upper & Lower Back 6X = MASSAGE OFF
Massage will automatically shut o aer approximately 15 minutes (timer resets when switch is pressed).
CARE & TROUBLE-SHOOTING TIPS
Use a DAMP CLOTH ONLY to clean switch, wiring or power pack (located under seat frame).
If there is no heat or massage or flashing light on switch, check power cord connections to wall outlet and power
pack unit under chair.
If switch displays a flashing light, check all accessible wire connectors under
chair for possible loose connections.
CORD STORAGE (MODELS WITH HEAT OR MASSAGE ONLY)
Before transporting chair or when heat & massage is not in use, power cord
should be coiled and stored in the hook and loop fastener provided as shown,
to prevent tripping on cord, damage to cord, damage to recliner, etc. (FIG. 1). FIG. 1

Page 16 of 23
manual
Document No.: 006120 - Revision: ae
GENERAL MAINTENANCE
ADJUSTING THE GAS SPRING
NOTE: Tension or "stiness" of the gas spring is set by
factory and cannot be changed. The following instruction
is for adjusting the gas spring "release and engagement
points" for Trendelenburg or "deep recline" positions only.
1. Lock casters (refer to operating instructions). Remove cable
from operator and loosen 11/16" hex nut on top of operator
(FIG. 1).
2. Have a second person hold the back of chair steady and
remove the bow-tie cotter pin and clevis pin (FIG. 2). The
operator can now be rotated on threaded end of gas spring.
3. If back of chair does not go into Trendelenburg by squeezing
handle, rotate operator as shown one (1) full revolution
(FIG. 3A). If back of chair goes into Trendelenburg WITHOUT
squeezing handle, rotate operator as shown one (1) full
revolution (FIG. 3B).
4. Once you make an adjustment, replace clevis pin and bow-
tie cotter pin. Squeeze release handle and recline the back,
to check for proper adjustment. Repeat above steps as
needed until correct release action is achieved. TIGHTEN
HEX NUT (loosened in step 1) once operator is adjusted and
functioning properly.
DO NOT use chair if Trendelenburg
mechanism is not operating
properly. Remove chair from service
until repaired.
FIG. 1
FIG. 2
FIG. 3
WARNING

Page 17 of 23
manual
Document No.: 006120 - Revision: ae

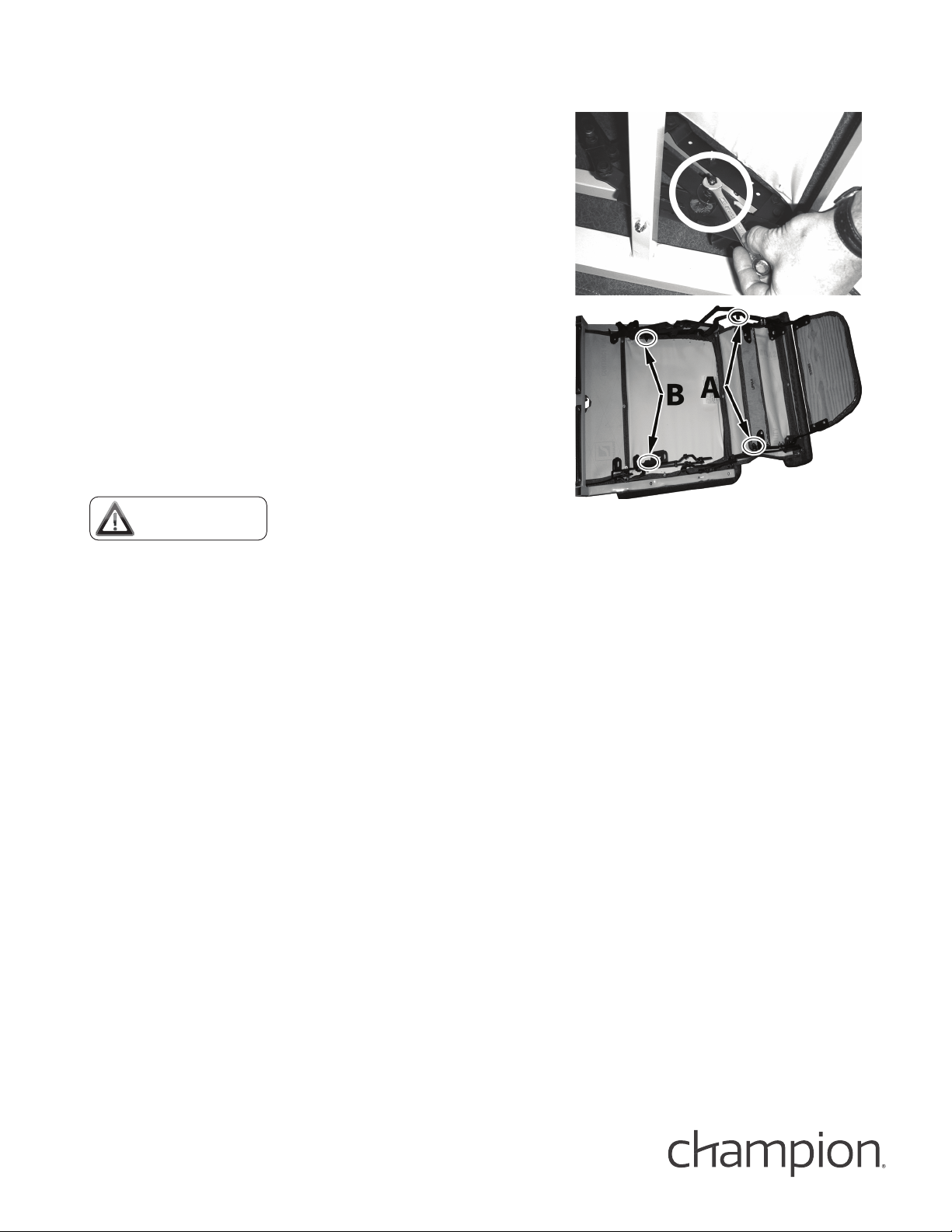

ADJUSTING THE RECLINER MECHANISMS
1. Place chair on its side in the #2 (Recline) position. Each chair
has a le and right recline mechanism with two tension
adjustments on each side, four total. Tension adjustment A
controls the footrest and legrest action. Tension adjustment
B controls the recline action from the #2 to #3 position (FIG.
4).
2. Locate the two (2) hex nuts (A or B) on the le and right
recline mechanisms. Use a 7/16" wrench and adjust both
le and right hex nuts one full revolution. Turn right to
tighten or le to loosen (FIG. 5).
3. Return recliner to upright position and check recliner for
reclining, legrest, and/or footrest action. Repeat step two if
needed. Tighten hex nuts no more than two full revolutions.
Remove any chair that does not
function properly from service
until properly repaired to factory
specifications.
FIG. 5
FIG. 4
WARNING

Page 18 of 23
manual
Document No.: 006120 - Revision: ae

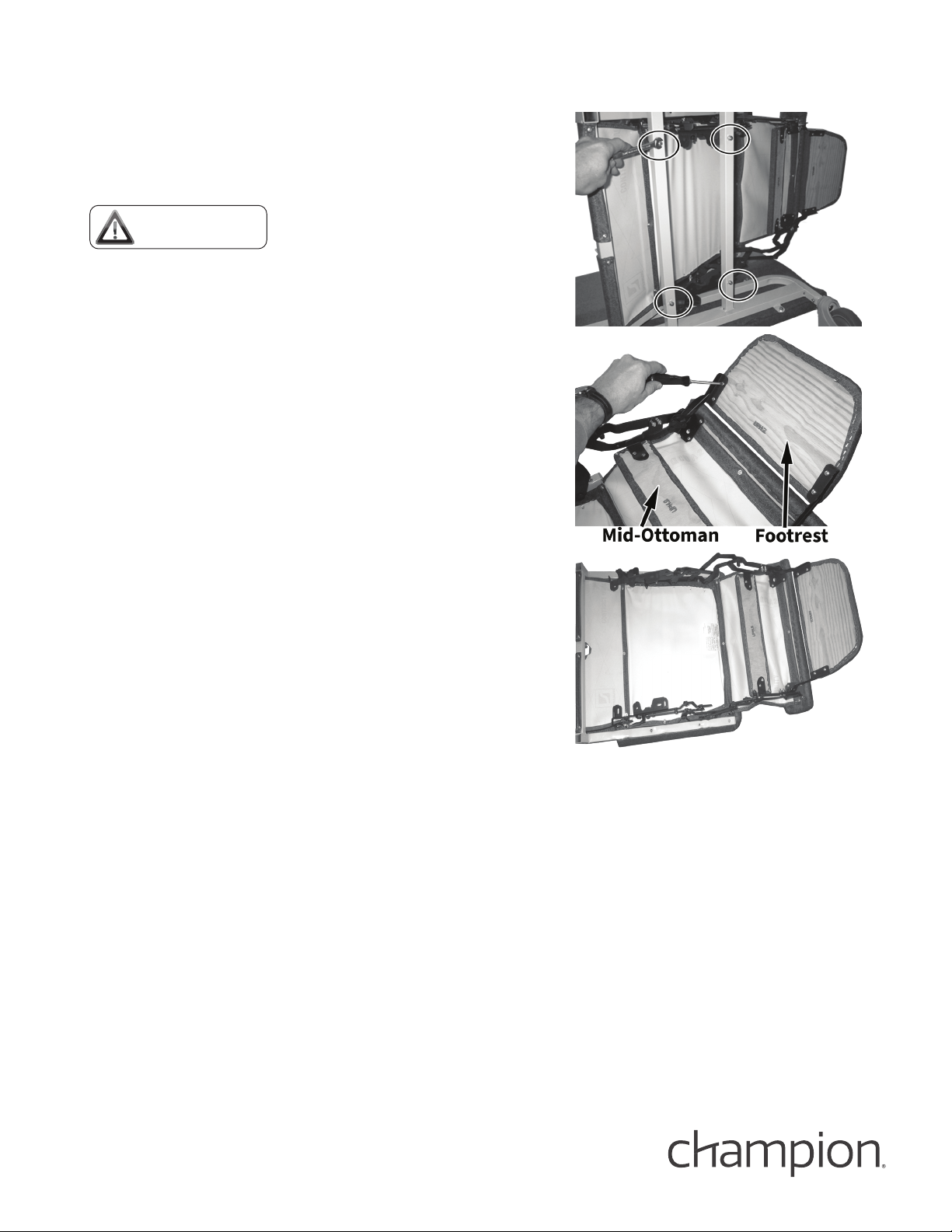

REPLACING THE RECLINER MECHANISM
Keep hands and fingers clear of
moving parts when replacing the
mechanism. Use caution when
handling the mechanism to ensure
that it does not retract in your hands.
Remove recliner back and put aside
(refer to back assembly instructions).
1. Position recliner so that the recliner mechanism, located on
the chair frame, is accessible. Remove the four (4) bolts that
attach the recline mechanism to the chair frame (FIG. 1).
2. Remove the recliner mechanism and the attached seat
frame assembly from the chair main frame. Turn the seat
frame and mechanism assembly upside down on a table or
other stable surface (FIG. 2).
3. Remove all screws that attach footrest, mid-ottoman,
legrest, and seat from the recliner mechanism (FIG. 3).
4. Reattach the seat, legrest, mid-ottoman, and footrest to
the new mechanism. Reassemble the seat and recliner
mechanism assembly to the chair frame using four (4) new
locknuts and the bolts that were previously removed (FIG. 1).
REGULARLY lubricate pivot points on the recline mechanism
with a silicone based lubricant. Once per week, position the
chair back into full recline position, squeeze release handle and
go to full Trendelenburg position. This will keep the gas cylinder
lubricated. Periodically recheck tightness of all screws, bolts and
nuts.
WARNING
FIG. 1
FIG. 2
FIG. 3

Page 19 of 23
manual
Document No.: 006120 - Revision: ae
GENERAL CARE & CLEANING
• Periodically inspect tightness of all screws, bolts, nuts, or other fasteners every year.
• Lubricate pivot points on the recline mechanism with a lubricant approved by your facility every year.
• If equipped, periodically position the chair back into full recline position to keep the gas cylinder
lubricated.
Champion Manufacturing ’s full-line of products are durable and reliable when properly cared for.
All Champion Manufacturing products should be:
• Cleaned
• Disinfected (per facility policy)
• Rinsed
• Allowed to air dry
NOTE: Disinfecting a product is not the same as cleaning the product. Disinfectants alone will not provide
adequate cleaning. They do not have grease or oil cutting properties to remove grime, hair, or skin oils.
The appearance, feel, and performance of your upholstery may diminish if not cleaned properly.
CLEANING
Champion Manufacturing chairs should be cleaned with mild soap and water solution and a damp cloth on a
regular basis. Avoid harsh detergents or chemicals that could damage the upholstery or finish of your chair. If the
upholstery is disinfected with chemicals or bleach mixtures, the chair MUST be wiped o using only clean water
on a damp cloth and then air dried. Failure to rinse upholstery with clean water can result in build-up of residue.
Over time residue can dry out the upholstery and cause changes to the look and feel of the upholstery, leading
to cracking. When cleaning or disinfecting use a dry cloth and thoroughly dry all areas that have vinyl to vinyl
contact or vinyl to steel contact. Moisture between the vinyl and steel surfaces could cause mildew or rust.
Please refer to instruction labels or tags included with your product for complete care and cleaning instructions.
Retain information on the label or tag for future use.
Additional information for cleaning products with Champion Manufacturing 's selection of vinyls can be found
on our website at: www.championchair.com/cleaning-instructions/
Use caution cleaning in and around mechanisms.
Keep hands clear of pinch points and metal edges or injury may occur.
NEVER clean or maintain your chair while it is occupied or injury may occur.
NEVER use a high pressure cleaner, wash tunnel, or "hose down" method to clean
this product. Liquid may cause damage to the product and void your warranty.
WARNING

Page 20 of 23
manual
Document No.: 006120 - Revision: ae
IMPORTANT: ALWAYS REFER TO THE WEIGHT CAPACITY LABEL
ON YOUR CHAIR.
In all cases the labeling on the chair at the time of delivery indicates the correct rating for your chair –
Weight rating should not be exceeded!
SPECIFICATIONS
6530 Care Cliner 6540 XL Care Cliner
Weight capacity 275 lbs. (124.7 kg) Weight capacity 450 lbs. (204 kg)
Seat back height 31.5" (80 cm) Seat back height 31.5" (80 cm)
Overall width (tables down) 32.25" (81.9 cm) Overall width (tables down) 36.25" (90.1 cm)
Seat width 21" (53.3 cm) Seat width 25" (63.5 cm)
Seat height/depth 21"/20" (53.3/50.8 cm) Seat height/depth 21"/20" (63.5/50.8 cm)
Armrest height 27" (68.6 cm) Armrest height 27" (68.6 cm)
Overall upright depth 39" (99 cm) Overall upright depth 44" (111.8 cm)
Overall length - reclined 76.5" (194.3 cm) Overall length - reclined 76.5" (194.3 cm)
6550 Drop Arm 6570 XL Drop Arm
Weight capacity 275 lbs. (124.7 kg) Weight capacity 450 lbs. (204 kg)
Seat back height 31.5" (80 cm) Seat back height 31.5" (80 cm)
Overall width (tables down) 33.75" (85.7 cm) Overall width (tables down) 37.75" (95.9 cm)
Seat width 21" (53.3 cm) Seat width 25" (63.5 cm)
Seat height/depth 21"/20" (53.3/50.8 cm) Seat height/depth 21"/20" (53.3/50.8 cm)
Arm height range 21" - 27" (53.3/68.6 cm) Arm height range 21" - 27" (53.3/68.6 cm)
Overall upright depth 40" (101.6 cm) Overall upright depth 43" (124.7 kg)
Overall length – reclined 76.5" (194.3 cm) Overall length – reclined 76.5" (194.3 cm)
IMPORTANT: Maximum Weight Capacity should be evenly distributed.
