CHARGING STATION EVA
User Manual 1
EVA - introduction
EVA, a flexible charging station for electrical vehicles.
ongratulation! Your EVA is setting a new standard for charging stations. EVA has a modern design,
is easy to use and support many useful functions related to charging of electrical vehicles.
Models and variants
The charging station EVA comes in many variants (different charging power and number of outlet for
example). For a complete list of models check out the EVA data sheet. Common for EVA Protected family is
that energy meter, fuse and ground fault circuits are located inside the unit, in contrast to the Start family were
fuse, energy meter and ground fault circuit must be located in a separate distribution unit connected to EVA.
Please note that this manual is valid for the EVA product families named Start and Protected.
Content
The EVA charging station is delivered with:
1. The charging station, EVA
2. User manual and installation manual
3. 2 pcs key to open EVA box
4. Cable gland and cover for incoming power supply and network
5. Holder for charging gun (in case EVA is equipped with fixed cable)
More information
1. EVA Installation manual shows how to mount the charging station, connect supply cable and how
to connect charging station to internet (Pd_IM_0011).
2. EVA Data sheet,downloaded from our web site: http://www.chargestorm.com
Chapter
1
C

LADDSTATION EVA
User Manual 2
Identify parts on EVA
Figure 1 EVA parts
1) Front panel. The front panel can be opened when unlocked.
2) Display with charging status symbols. Status symbols visualize current charging state of the charging
station. The status indication shows status per outlet. Also, an RFID-symbol is part of the display.
3) Back cover
4) Technical box. In the box is charging control electronics mounted. To enter the box must the lock on the
top be opened with the key
5) Electrical Vehicle connector. Connector type depends on model. Type connector is either an outlet or a
fixed cable with a charging gun in the end.

LADDSTATION EVA
User Manual 3
Usage of EVA
EVA, a charging station easy to use.
o charge your electrical vehicle from EVA is fun and simple. The charging starts when the charging
cable is attached to the electrical vehicle and charging station.
Connect the vehicle
To start charging connect an electrical vehicle cable to the outlet on EVA, see position 5 in Figure 1.
Note that the cover must be opened. Charging will start when the blue battery symbol is activated. In case
EVA is equipped with a fixed charging cable shall the charging gun be connected to the vehicle to start
charging.
Finish charging
The blue battery symbol is pulsating during charging. When the charging is completed is the battery solid blue
Always remove the cable first from the vehicle then from the charging station. You must first unlock the car
before it is possible to remove the cable.

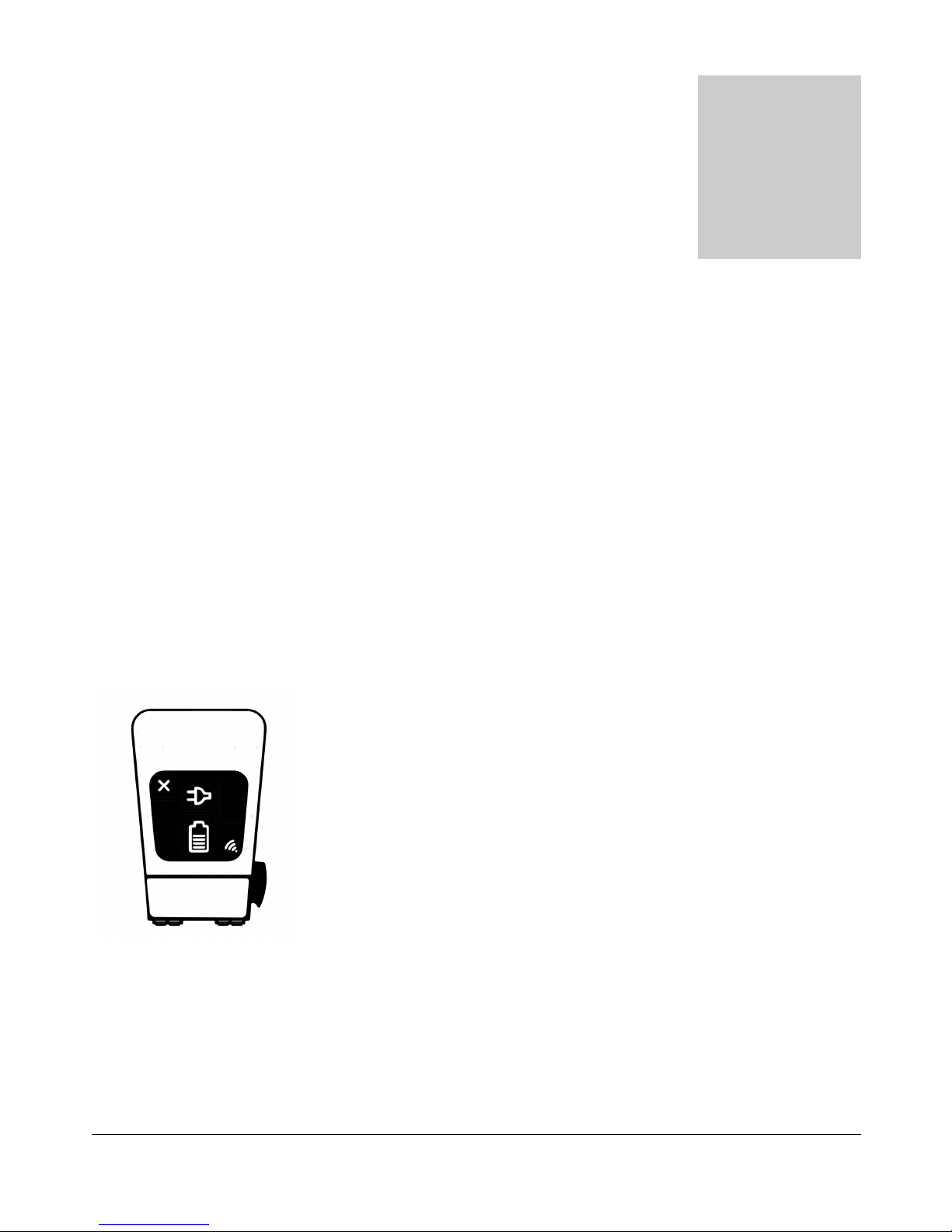

symbols
Figure 2 EVA status symbols
Chapter
2
T

CHARGING STATION EVA
User Manual 4
The following table explains the status symbols.
Symbol
Symbol color
Explanation
Green
EVA available and ready for charging.
Solid Blue
Car connected but not charging. U
(Could be fully charged)
Blinking Blue
Charging in progress
Solid Red
Alarm active. Most often has a fuse tripped. Charging station
need service.
Blinking Red
Outlet has a temporarily fault. The fault could be one of the
following:
• Time limit for authentication reached.
• PP-signal cannot be read from cable (Only applicable
for type 2 outlet)
• Outlet motor could not lock cable.
• Vehicle requested ventilation, MODE D
EVA is deactivated, implying no symbol active. The charging
station has been configured to be inactive or in progress of a
restart. Could be used to prohibit usage during planned
maintenance.
Blinking Blue
The charging station has connected to back end/portal. Only
showed during boot up. The blinking will take place for 5
seconds.
Blinking Red
The charging station has failed to connect to the portal during
start up. Only showed during boot up. The blinking will take
place for 5 seconds.
Note
If no power is available to the charging station are no symbols active. Request service.

CHARGING STATION EVA
User Manual 5
Note
It is not allowed to attach an extension cable to the charging gun (in case EVA is equipped with a
fixed cable with charging gun) due to risk for electrical chock and fire. Further, it is not allowed to
extend the cable between EVA and electrical vehicle (in case EVA is equipped with an outlet).

CHARGING STATION EVA
User Manual 6
Chargestorm warranty statement
War ranty conditions for EVA.
1. Chargestorm warrants to you, the end-user customer, that the product EVA, accessories, and supplies
will be free from defects in materials and workmanship after the date of purchase, for one year. If
Chargestorm receives notice of such defects during the warranty period, Chargestorm will, at its
option, either repair or replace products which prove to be defective. Replacement products may
be either new or equivalent in performance to new.
2. Chargestorm warrants to you that Chargestorm software will not fail to execute its programming
instructions after the date of purchase, for the period specified in 1, due to defects in material and
workmanship when properly installed and used. If Chargestorm receives notice of such defects
during the warranty period, Chargestorm will replace software which does not execute its
programming instructions due to such defects.
3. Chargestorm does not warrant that the operation of Chargestorm products will be uninterrupted or
error free. If Chargestorm is unable, within a reasonable time, to repair or replace any product to
a condition as warranted, you will be entitled to a refund of the purchase price upon prompt
return of the product.
4. Chargestorm warranty is valid in any country or locality where Chargestorm has a support presence for
this product and where Chargestorm has marketed this product. The level of warranty service you
receive may vary according to local standards. Chargestorm will not alter form, fit or function of
the product to make it operate in a country for which it was never intended to function for legal
or regulatory reasons.
5. Warranty does not apply to defects resulting from (a) improper or inadequate maintenance or
calibration, (b) software, interfacing, parts, or supplies not supplied by Chargestorm, (c)
unauthorized modification or misuse, (d) operation outside of the published environmental
specifications for the product, or (e) improper site preparation or maintenance.
6. TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTIES ARE
EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN
OR ORAL, IS EXPRESSED OR IMPLIED AND CHARGESTORM SPECIFICALLY
DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR
PURPOSE. Some countries, states or provinces do not allow limitations on the duration of an
implied warranty, so the above limitation or exclusion might not apply to you. This warranty gives
Chapter
3

CHARGING STATION EVA
User Manual 7
you specific legal rights and you might also have other rights that vary from country to country,
state to state, or province to province.
7. TO THE EXTENT ALLOWED BY LOCAL LAW, THE REMEDIES IN THIS WARRANTY
STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDIES. EXCEPT AS INDICATED
ABOVE, IN NO EVENT WILL CHARGESTORM OR ITS SUPPLIERS BE LIABLE FOR LOSS OF
DATA OR FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST
PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR
OTHERWISE. Some countries, states or provinces do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply to you.
THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT
LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN
ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF
THIS PRODUCT TO YOU.

CHARGING STATION EVA
User Manual 8
Support for EVA
EVA from a support view.
hargestorm offers our customers several channels for support of EVA. If you have questions or
problem, here follows our support channels:
1. Search for information in this User Manual.
2. Visit Chargestorm’s web site: http://www.chargestorm.se
3. Email to Chargestorm’s support address: [e-mail]
4. Call Chargestorm’s support (for phone number see web site).
Chapter
4
C

CHARGING STATION EVA
User Manual 9
Service
EVA service condition.
o obtain service, contact your nearest Chargestorm reseller, alternatively call Chargestorm’s service
number. The service technician will assist you in finding if your product is qualified for guarantee repair
based on the day of purchase. The service technician will thereafter explain the following steps. The
product must in some cases be returned to Chargestorm’s support center in Sweden.
Guarantee repair can include cost of freight, custom, taxes and other cost in order to get the product to
the service center.
Repairing EVA outside warranty period
If your product is not qualified for guarantee repair, contact Chargestorm’s support. The Support contact will
inform about the repair process.
Transportation preparation
1. Important. It must be an accredited electrician that dismount EVA from the power grid.
2. When you send EVA to Chargestorm, please use the original package in order to avoid
transportation damages.
3. Delivery address is found on our home page: http://www.chargestorm.se
Chapter
5
T

CHARGING STATION EVA
User manual 10
Problem solving
FA Q EVA.
his chapter explains how to solve problems that can occur on your EVA.
Current problem
No status symbol active
• Check the electricity plant fuses. It could be a power outage.
• Check that supply power cable is correctly attached to EVA. This requires that the charging station is
opened.
Note
Only accredited electrician is allowed to install and perform service of EVA
Fuse or ground fault problem
