Charnwood W012 User manual

BENCH TOP ROUTER TABLE
OWNERS MANUAL
MODEL: W012
Charnwood, Cedar Court, Walker Road, Hilltop Industrial Estate, Bardon,
Leicestershire, LE67 1TU
Tel. [phone] Fax. [phone]
email: [email protected] website: www.charnwood.net

2
GENERAL SAFETY RULES
WARNING: Do not attempt to operate the machine until you have read thoroughly and understood
completely all instructions, rules, etc. contained in this manual. Failure to comply may result in
accidents involving fire, electric shock, or serious personal injury. Keep this owner's manual and
review frequently for continuous safe operation.
1. Know your machine. For your own safety, read the owner's manual carefully. Learn its
application, limitations, and specific potential hazards pertinent to this machine.
2. Make sure all tools are properly earthed.
3. Keep guards in place and in working order. If a guard must be removed for
maintenance or cleaning, make sure it is properly replaced before using the machine.
4. Remove adjusting keys and spanners. Form a habit of checking to see that the keys
and adjusting spanners are removed from the machine before switched it on.
5. Keep your work area clean. Cluttered areas and workbenches increase the chance of an
accident.
6. Do not use in dangerous environments. Do not use power tools in damp or wet
locations, or expose them to rain. Keep work areas well illuminated.
7. Keep children away. All visitors should be kept a safe distance from the work area.
8. Make workshop childproof. Use padlocks and remove starter keys.
9. Do not force the machine. It will do the job better and be safer at the rate for which it
is designed.
10. Use the right tools. Do not force the machine or attachments to do a job for which they
are not designed. Contact the manufacturer or distributor if there is any question about
the machine's suitability for a particular job.
11. Wear proper apparel. Avoid loose clothing, gloves, ties, rings, bracelets, and jewellery
which could get caught in moving parts. Non-slip footwear is recommended. Wear
protective hair covering to contain long hair.
12. Always use safety glasses. Normal spectacles only have impact resistant lenses. They are
not safety glasses.
13. Do not over-reach. Keep proper footing and balance at all times.
14. Maintain machine in good condition. Keep machine clean for best and safest performance.
Follow instructions for lubrication and changing accessories.
15. Disconnect the machine from power source before servicing and when changing
accessories or (if using a fixed base router) when mounting or remounting the motor.
16. To avoid accidental starting, make sure the switch is in the OFF position before plugging in the
mains cable.

3
17. Never leave the machine running unattended. Turn the power off. Do not leave the machine
until it comes to a complete stop.
18. Do not use any power tools while under the effects of drugs, alcohol or medication.
19. Always wear a face or dust mask if operation creates a lot of dust and/or chips. Always
operate the tool in a well ventilated area and provide for proper dust removal. Use a suitable
dust extractor.
ADDITIONAL RULES FOR ROUTER TABLES
1. Always hold the work piece against the fence.
2. Never perform any "free hand" operation. Do not use only your hands to support or guide the
work piece. Always use feather boards to help secure the work piece when cutting smaller pieces.
3. Feed the work piece to the router bit against the rotating direction. Feed direction will normally
be from right to left.
4. Never draw the workpiece back during cutting. Wait until the router bit stops before drawing
back the workpiece.
5. Make sure the portable router has been installed securely before starting the machine.
6. Make sure the router bit is locked securely before operating.
Risk of Injury! Wear Eye Wear Ear
Never reach into Protection Protection
the rotating bit.
Specification
Table surface 430mm x 400mm
Table aperture diameter 37.5mm
Insert Size 235mm x 171mm
Table Height 288mm
Height Under Table (can be increased with lift blocks) 260mm
Dust hood outlet diameter (Outside / Inside) 40/37mm
Net weight 6kg
Rating Hobby
Rating Description
Hobby: Suitable for Weekend DIY'ers and woodworking enthusiasts.
Generally lighter weight machines with lower power ratings and smaller tooling capacities. Typically only
ever used by one person for short periods of time or longer periods of time infrequently. Machinery should
be well maintained in a clean, dry environment such as a home workshop, garage or timber shed.
Expected maximum use of 100 hours annually.
Please Note: Using a product in excess of its rating will void the manufacturer’s free warranty.

4
ASSEMBLY INSTRUCTIONS
All Parts are packed in one carton.
Unpack the parts carefully and check that everything is present using the Parts List. If anything is
missing contact the retailer immediately.

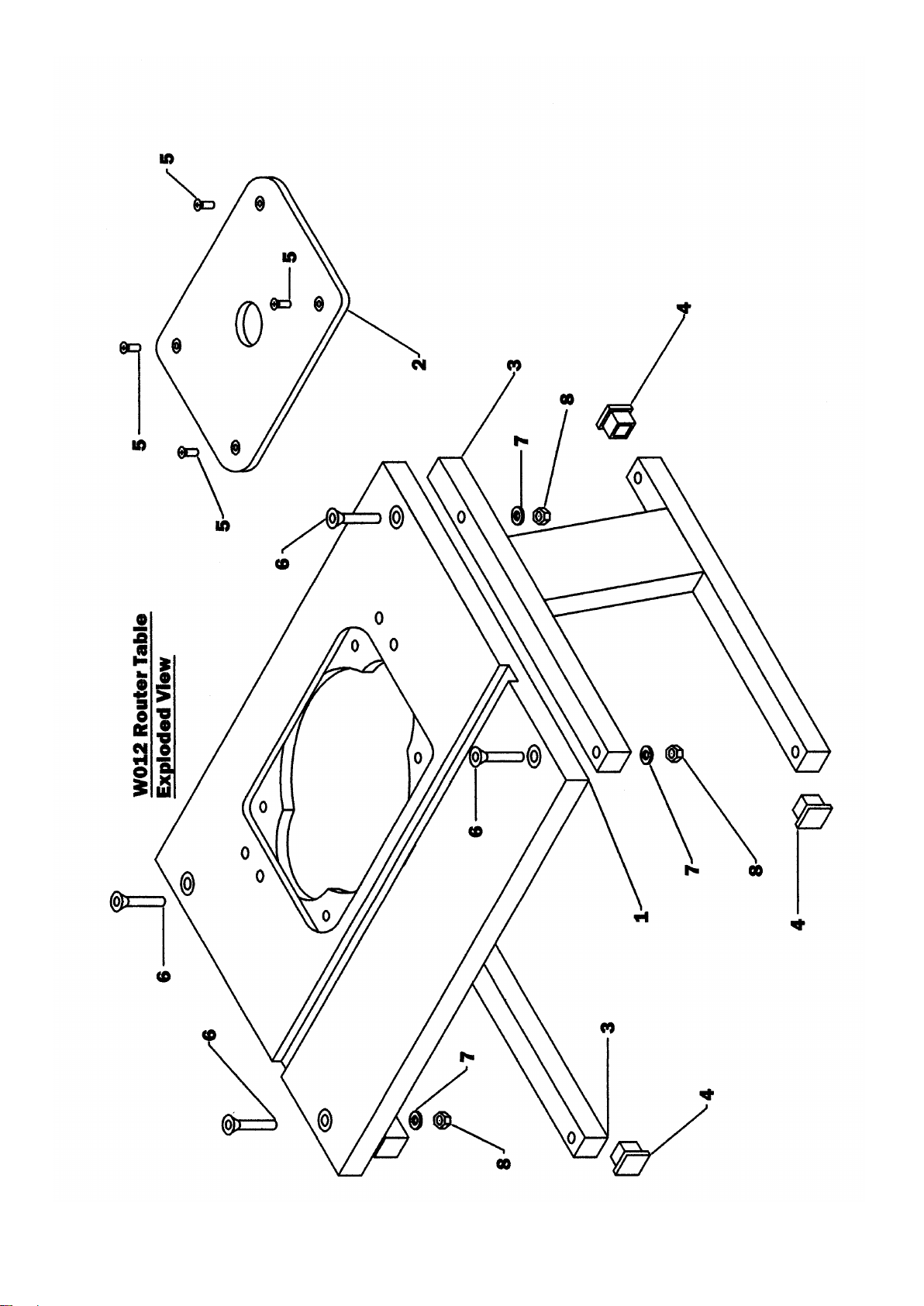

ASSEMBLE THE LEGS
Attach the 2 Legs to the Table using 4
countersunk screws M8x55mm, Washers
M8, and Hex Nuts M8.

5
ASSEMBLE THE FENCE
i) Remove the two M5 Wing Nuts and
Washers holding the Wooden Fences to
the Fence Base.

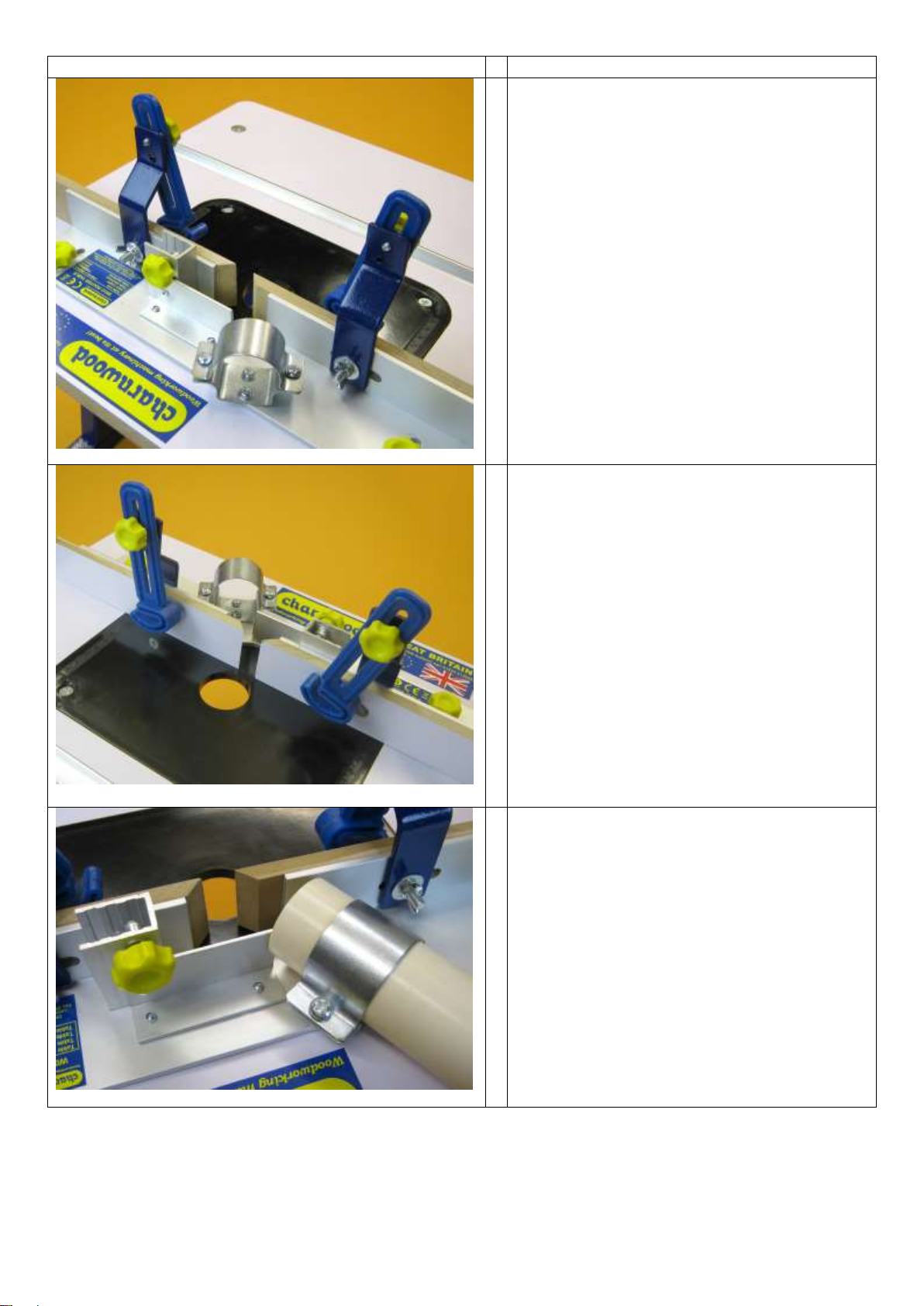

ii) Attach the two Vertical Clamps and
Vertical Clamp Supports and refit the
Washers and Wing Nuts as shown in the
picture.
iii) Loosen the two M6 nuts, bolts washers
holding the Dust Chute Clamp top and
insert the Dust Chute. Re- tighten the
screws to lock the Chute in place.
iv) Attach the Guard to the fence by
inserting the bar into the square post and
locking it into place with Knob M6x16mm.

6
v) The Fence Assembly is fixed with two
M6 x 16 Knobs with washers which pass
through the slots in the fence base and
into the threaded inserts in the Table.
There are two sets of threaded inserts in
the table. The choice of which to use will
depend on the type of job to be performed;
Position 1 allows the fence to be set at the
front of the cutter aperture when making
shallow cuts
Position 2 allows the fence to be set
further back from the cutter for operations
such as trenching
ASSEMBLE THE FEATHERBOARD

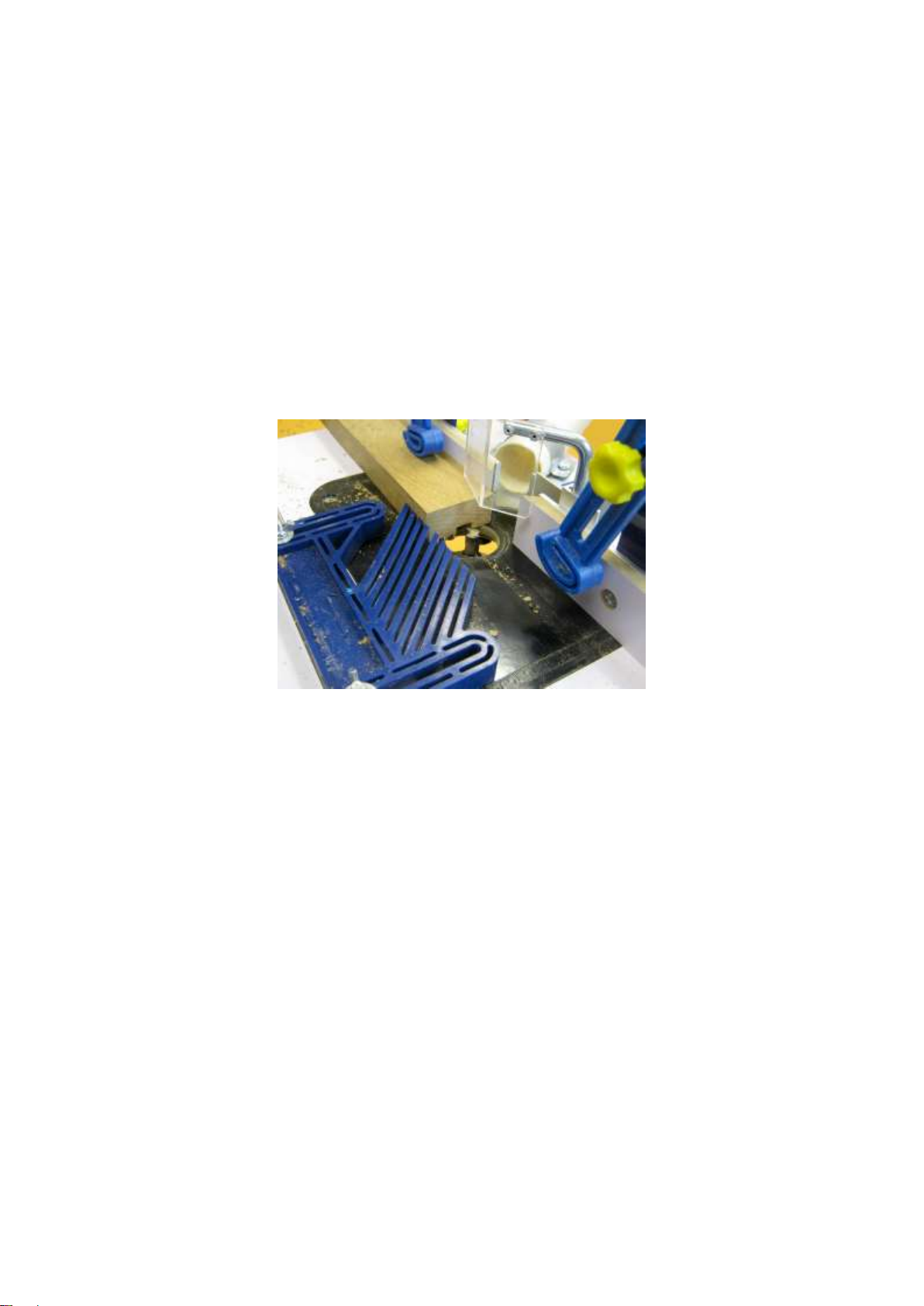

Fit the Feather board unit so that the Slot
Guide locates into the aluminium channel
across the front of the table.
The Feather board is locked into position
using the two wing nuts.
ROUTER MOUNTING INSTRUCTIONS
i) MAKE SURE THE ROUTER IS
UNPLUGGED.
Remove the face plate cover from the
router.
ii) Remove the Insert Plate from the
Router Table.

7
Please Note: If your router does not have a
removable face plate cover, measure the spacing of
the fixing holes in the face plate and then mark out
the insert plate, keeping the cutter aperture as the
centre.
iii) Align the centre of the hole in the
insert plate with the centre of the hole in
the face plate cover. Using the face plate
cover as a template, mark out the fixing
holes.
The number and position of the holes will
vary with each model of router. Use the
larger diameter holes if there is a choice.
A minimum of two fixings must be used,
three or four fixings is preferable with
heavier routers.
A selection of fixing screws is included in
this package which covers most
common routers, but we cannot
guarantee to cover every available
model of router. In some instances it
may be necessary to obtain alternative
fixing screws.
iv) Drill and countersink the insert plate.
Use a drill bit size suitable to the fixing
screw you are going to use. If you do not
have a countersink tool, drill the fixing
hole and then make a countersink by
partially drilling through with a larger
diameter drill bit. Take care not to drill
right through the insert plate.
v) Leaving the face plate cover off (if
removable type) attach the insert plate to
the router using the fixing screws
supplied or alternative screws where
required. Ensure the heads of the
screws are slightly below the surface of
the table. If they are not, it is necessary
to drill the countersink slightly deeper.
vi) check that the router is secured tightly
against the insert plate and that there is
no movement between the two.

8
vii) Install the desired cutter and set to
the correct depth. Fit the router and
insert plate into the table, securing with
the four M6x16mm countersunk screws.
Re-fit the fence and feather board.
The maximum router height that can be
fitted below this table is 260mm
For unusually tall routers (such as the
popular Trend model T4) it will be
necessary to increase the height of the
table by attaching riser blocks to the feet
of the table legs.
The router table is now ready to use
OPTIONAL ACCESSORIES

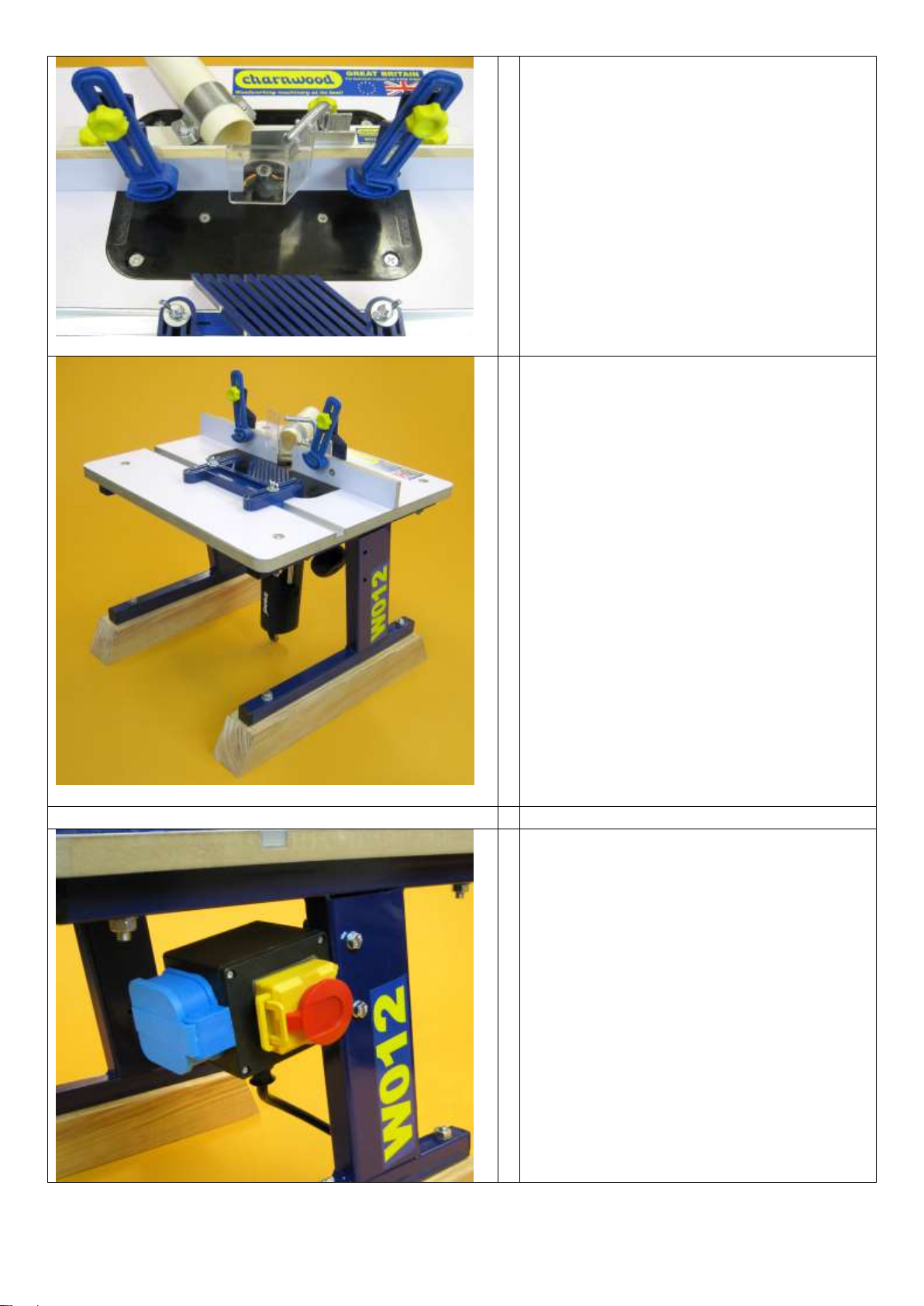

NVR (No-Volt Release) Switch W026
We strongly recommend the use of a
secondary switch to start and stop the
router without having to reach under the
table.
Mounting holes for our W026 NVR
switch are pre-drilled in the right-hand
table leg.
PLEASE READ THE SAFETY
INSTRUCTIONS BEFORE USE

9
BASIC OPERATING INSTRUCTIONS
1) EDGING AND PROFILING
One of the most common operations undertaken using a router is Edging or Profiling, i.e. running
a shaped cutter along the edge of the workpiece. In many instance this is for decorative purposes
but it can also be to make a joint or fitting such as a raised panel.
Using a router table for this type of work vastly reduces the setting up time required and does
away with many awkward clamping devices. Router table users soon find that having both hands
free to control the workpiece, rather than holding a machine, makes the task far more comfortable
and generally a lot safer.
SET THE CUTTER HEIGHT:- First fit a suitable cutter after making sure the router is unplugged. It
is often easier to do this by unscrewing the insert plate from the table and lifting the router out of
the table. Draw a profile of the required cut onto the edge of the workpiece and adjust the cutter
height to match. Adjusting the cutter height is made much easier if a fine height adjuster is fitted to
the router. With many models this now comes as standard, but on others it is available as an
accessory produced by the router manufacturer. Having set the cutter height fit the router back
into the table and secure with the four screws.
SET THE FENCE:- The next step is to set the fence in a position to give the desired width of cut.
Use the profile drawn on the end of the workpiece to set the fence and lock into position. There is
an engraved scale along each end of the Insert Plate to assist in rapid fence setting. When using a
cutter fitted with a guide bearing the fence should be set in line or just in front of the edge of the
bearing so that the workpiece runs on the face of the bearing. The distance between the two
wooden fence faces can be adjusted by undoing the wing nuts and sliding the fence face along
with the top clamp along the slot in the fence bracket. The fence faces should be set so that the
edges just clear the cutter. This provides the maximum amount of support to the workpiece during
the cut.
SET THE CLAMPS:- Adjust the Feather board so that the distance between the ends of the
fingers and the fence is between 2 to 5mm less than the width of the workpiece. This will hold the
workpiece securely against the fence and prevent 'kick-back' during the cut. Next set the left and
right Top Clamps. The curved piece on the ends of the Top Clamp are made of flexible plastic and
should be set so that the distance between the bottom of the clamp and the surface of the table is
between 0 to 3mm less than the thickness of the workpiece. When the clamps are correctly set,
the operator merely has to push the workpiece across the table.

10
Please Note: Some workpieces may be too big to fit inside either the Top Clamps or the Feather
board, i.e. larger than 90x50mm. Simply remove the clamp/Feather board from the table. The
function of the clamps is twofold; to hold the workpiece securely against the cutter, whilst keeping
the hands well away from it. When using larger workpieces the increased weight will help to keep
it against the cutter and the danger of hands being too near the cutter is greatly reduced.
SET THE CUTTER GUARD:- Adjust the transparent guard so that it just clears the work piece and
will deflect any chips or dust which are thrown towards the operator. If possible connect a vacuum
cleaner or dust extractor to the dust chute before commencing the cut.
Make a cut with a scrap piece of wood before using the workpiece.
Mistakes cannot usually be rectified afterwards.
2) GROOVING
Grooving and Trenching operations are often carried out to form joints such as slot dovetails or to
make fittings such as draw runner grooves.
SET THE CUTTER HEIGHT:- Make sure the router is unplugged. Remove the router and Insert
Plate from the table. Fit the appropriate cutter into the router and set the plunge depth to give the
desired cut. Refit the router and insert plate into the router table and secure with the four screws.
SET THE FENCE:- The cut is made away from the edge of the workpiece and therefore it will
probably be necessary to move the Fence back into Position 2. Measure the distance between the
edge of the workpiece and the start of the groove and lock the fence in position with the two plastic
knobs. The two wooden fence faces should be closed up to form one continuous fence which will
provide the best support.
SET THE CLAMPS:- Set the Feather board and Top Clamps as for edging and profiling. Remove
the Top Clamps or Feather board as necessary.
CUTTER GUARD:- The cutter guard and dust extraction chute are not used during this operation.
Get into the habit of testing all cutter or table adjustments on a scrap piece of wood first before
commencing on the workpiece.
