Chattanooga Intelect Legend 2 User manual

Intelect® Legend 2
12-5010 12-5011
Service Manual DOMESTIC
Repair and Maintenance Instructions
13-12091
- R ev
A

| Intelect® Legend 2 - Service Manual DOMESTIC 2
CONTENTS
EN
1. INTRODUCTION
1.1. HISTORY P4
1.2. FOREWORD P4
1.3. INTENDED USER PROFILE P4
1.4. INTENDED ENVIRONMENT FOR USE P4
1.5. PRECAUTIONARY INSTRUCTIONS P4
2. GENERAL WARNINGS AND
PRECAUTIONS
2.1. CAUTION P6
2.2. WARNING P7
2.3. DANGER P8
3. DEVICE DESCRIPTION
3.1. GENERAL TERMINOLOGY P10
3.2. SYSTEM SOFTWARE SYMBOLS P10
3.3. DESCRIPTION OF DEVICE MARKINGS P11
3.4. PRODUCT DESCRIPTION P12
3.5. OPERATOR INTERFACE P12
3.6. COMPONENTS P13
3.7. SYSTEM DIMENSIONS & P14
SPECIFICATIONS
3.8. THERAPIES SPECIFICATIONS P15
4. USER INTERFACE
4.1. SOFTWARE VERSION
& SERIAL NUMBER P20
4.2. SCREEN DESCRIPTION P20
4.3. SETTINGS MENU P22
4.4. ADVANCED SETTINGS P22
4.5. SERVICE MENU P23
4.6. SOFTWARE UPDATE P23
4.7. PRINTSCREEN P23
5. MAINTENANCE OPERATION
5.1. GENERAL P24
5.2. SPECIAL TOOLS, FIXTURES & P24
MATERIALS REQUIRED
5.3. EQUIPMENT REQUIRED P24
5.4. RECIPE FOR DEGASSED WATER P24
5.5. FULL FUNCTIONAL TESTS P24
5.6. US CALIBRATION REQUIREMENTS P24
5.7. US CALIBRATION PROCEDURE P25
5.8. CLEANING INSTRUCTION P27
6. TROUBLESHOOTING
6.1. NO POWER P29
6.2. SCREEN DEFAULT P30
6.3. FAN DEFAULT P30
6.4. BATTERIE TEST P31
6.5. FAILURE DURING TREATMENT P31
6.6. ERRORS CODES P31
7. REPAIR OPERATION
7.1. TOOLS & EQUIPMENTS TO REPAIR P33
7.2. BOTTOM OF THE DEVICE P34
7.3. SEPARATING TOP & LOWER ASSEMBLY P35
7.4. TOP SUB ASSEMBLY P36
7.5. LOWER SUB ASSEMBLY P39
7.6. REASSEMBLY P42
7.7. US APPLICATOR P43
8. FINAL TEST
8.1. LIST OF MATERIAL P45
8.2. SETUP FOR FINAL TEST P46
8.3. FINAL TEST IL2 P57
8.4. FINAL TEST US APPLICATOR P59
9. EXPLODED VIEWS and
SERVICE PART LISTS
9.1. INTELECT LEGEND 2 P63
9.2. DEVICE TOP SUB ASSEMBLY P64
9.3. TOP DISPLAY SUB ASSEMBLY P65
9.4. LOWER SUB ASSEMBLY P66
9.5. COMBO 2CH LOWER SUB ASSEMBLY P68
9.6. COMBO 4CH LOWER SUB ASSEMBLY P70
9.7. US APPLICATOR P72
9.8. CART 6 BINS P73

| Intelect® Legend 2 - Service Manual DOMESTIC 3
INTRODUCTION
EN
1. INTRODUCTION
1.1. HISTORY P4
1.2. FOREWORD P4
1.3. INTENDED USER PROFILE P4
1.4. INTENDED ENVIRONMENT FOR USE P4
1.5. PRECAUTIONARY INSTRUCTIONS P4

| Intelect® Legend 2 - Service Manual DOMESTIC 4
INTRODUCTION
EN
1.1 HISTORY
Revision Date Name Change
A 01/09/2023 J-R Castelnau Service Manual created
1.2 FOREWORD
This manual is exclusively intended for the service
centers with the ENOVIS agreement to repair the
Intelect® Legend 2.
It contains general information on operation,
precautionary practices, and maintenance.
In order to maximize use, efficiency, and the life of the
system, please read this manual thoroughly and
become familiar with the controls, as well as the
accessories before operating the system.
Before administering any treatment to a patient, the
users of this equipment should read, understand, and
follow the information contained in this manual for
each mode of treatment available, as well as the
indications, contraindications, cautions, warnings, and
dangers.
1.3 INTENDED USER PROFILE
The intended user of this device is a licensed
healthcare professional.
The user should be able to:
•
Read and understand the operator’s manual,
warnings, cautions and dangers.
•
Sense auditory and visual signals.
•
Read and understand cautions and contraindications
of the device.
1.4 INTENDED ENVIRONMENT FOR USE
The device is intended to be operated in a
professional healthcare environment.
1.5 PRECAUTIONARY INSTRUCTIONS
The precautionary instructions found in
this section and throughout this manual
are indicated by specific symbols.
Understand these symbols and their
definitions before operating this
equipment.
The definition of these symbols are as
follows:
Text with a “CAUTION” indicator explains
possible safety infractions that have
potential to cause minor or moderate injury
or damage to the equipment.
Text with a “WARNING” indicator
explains possible safety infractions that
will potentially cause serious injury and
equipment damage.
Text with a “DANGER” indicator will
explain possible safety infractions that are
imminently hazardous situations that
would result in death or serious injury.
NOTE: Throughout this manual, “NOTE” indicators
provide helpful information regarding the particular
area of function being described
CAUTION
WARNING
DANGER

EN
| Intelect® Legend 2 - Service Manual DOMESTIC 5
GENERAL WARNINGS AND PRECAUTIONS
2. GENERAL WARNINGS AND PRECAUTIONS
2.1. CAUTION P6
2.2. WARNING P7
2.3. DANGER P8

EN
| Intelect® Legend 2 - Service Manual DOMESTIC 6
GENERAL WARNINGS AND PRECAUTIONS
• This unit should be operated at +10°C to +40°C and 30% to 75% Relative Humidity. The unit should be
transported and stored at -20°C to +60°C and 10% to 90% Relative Humidity.
• Use of parts or materials other than ENOVIS’s can degrade minimum safety.
• Connect to this unit only items and equipment that have been specified in this IFU as part of the ME SYSTEM or
that have been specified as being compatible with the ME SYSTEM.
• DO NOT disassemble, modify, or remodel the unit or accessories. This may cause unit damage, malfunction,
electrical shock, fire, or personal injury.
• DO NOT permit foreign materials, liquids or cleaning agents to enter the unit, including, but not limited to,
inflammables, water, and metallic objects, to prevent unit damage, malfunction, electrical shock, fire, or personal
injury.
• Before each use, inspect Ultrasound Applicator for cracks, which may allow the ingress of conductive fluid.
• Before each use, inspect Applicator cables, STIM cables and associated connectors.
• Before each use, inspect Vacuum Electrode Cups and Lead Hoses for cracks and damage which may not allow the
vacuum to properly secure the electrodes.
• Handle Ultrasound Applicator with care. Inappropriate handling may adversely affect its characteristics.
• Caution should always be exercised with current densities more than 2mA/cm².
• There are no user-serviceable parts inside the unit. If a malfunction occurs, discontinue use immediately and
consult your dealer for repair service.
• In case of device unused with battery embedded, it is recommended to connect the device at least once every 4
months to allow battery recharge.
• For waveforms with a DC component:
» Do not shave electrodes application area
» Warn the patient that tingling sensation under electrodes is normal and it is not linked to burn risk.
» Rinse thoroughly treatment area with tap water immediately after the treatment
CAUTION

EN
| Intelect® Legend 2 - Service Manual DOMESTIC 7
GENERAL WARNINGS AND PRECAUTIONS
This device should be used only under the continued supervision of a physician or licensed practitioner.
Contaminated sponges, electrodes, lead wires, and gel can lead to infection.
Use of electrode on multiple patients can lead to infection.
Do not apply electro stimulation treatment during bath, shower, sauna,..
DO NOT operate the Intelect® Legend 2 within the vicinity or environment of an ultrasonic diathermy system.
DO NOT operate the Intelect® Legend 2 within the vicinity or environment of any microware and RF shortwave
diathermy system.
DO NOT operate this unit in an environment where other devices are being used that intentionally radiate
electromagnetic energy in an unshielded manner.
Electronic monitoring equipment (such as ECG monitors and ECG alarms) may not operate properly when
electrical stimulation is in use.
Simultaneous connection of a PATIENT to a high frequency surgical ME EQUIPMENT may result in burns at the
site of the STIMULATOR electrodes and possible damage to the STIMULATOR.
Portable RF communications equipment should be used no closer than 30 cm (12 inches) to any part of the
Intelect® Legend 2, including cables specified by the manufacturer. Otherwise, degradation of the performance
of this equipment could result.
Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this
equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this
equipment and result in improper operation.
Battery replacement by inadequately trained personnel could result in fire or explosion. Please read carefully the
battery replacement instructions in the Legend 2 IFU before attempting to replace the battery.
Device is designed to comply with electromagnetic safety standards. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with instructions for use, may cause
harmful interference to other devices in the vicinity. Harmful interference to other devices can be determined by
turning this equipment on and off. Try to correct the interference using one or more of the following:
» Reorient or relocate the receiving device
» Increase the separation between the equipment
» Connect the equipment to an outlet on a different circuit from that to which the other device(s) are connected »
Consult your authorized ENOVIS dealer for help.
Disconnect the system from the power source before attempting any maintenance, installation, removal, or
replacement procedures to prevent electrical shock and possible damage to system.
The Intelect® Legend 2 may be susceptible to Electro-Static Discharge (ESD) at greater than ±6 kV when first
grasping the Ultrasound applicator. In the event of such a discharge, the Intelect® Legend 2 may display a
permanent error. The Intelect® Legend 2 will terminate all active outputs (stim, ultrasound,), automatically
place the unit in a safe state.
WARNING

EN
| Intelect® Legend 2 - Service Manual DOMESTIC 8
GENERAL WARNINGS AND PRECAUTIONS
DO NOT connect the unit to an electrical supply without first verifying that the power supply is the correct
voltage. Incorrect voltage may cause unit damage, malfunction, electrical shock, fire, or personal injury. Your unit
was constructed to operate only on the electrical voltage specified on the Voltage Rating and Serial Number
Plate. Contact your ENOVIS dealer if the unit is not properly rated.
Device is not designed to be used in oxygen rich environment, Explosion hazard if the device is used in the
presence of flammable anesthetic mixture with air, oxygen, or nitrous oxide.
DANGER

EN
| Intelect® Legend 2 - Service Manual DOMESTIC 9
DEVICE DESCRIPTION
3. DEVICE DESCRIPTION
3.1. GENERAL TERMINOLOGY P10
3.2. SYSTEM SOFTWARE SYMBOLS P10
3.3. DESCRIPTION OF DEVICE MARKINGS P11
3.4. PRODUCT DESCRIPTION P12
3.5. OPERATOR INTERFACE P12
3.6. COMPONENTS P13
3.7. SYSTEM DIMENSIONS & SPECIFICATIONS P14
3.8. THERAPIES SPECIFICATIONS P15
3.8.1. ULTRASOUND THERAPY P15

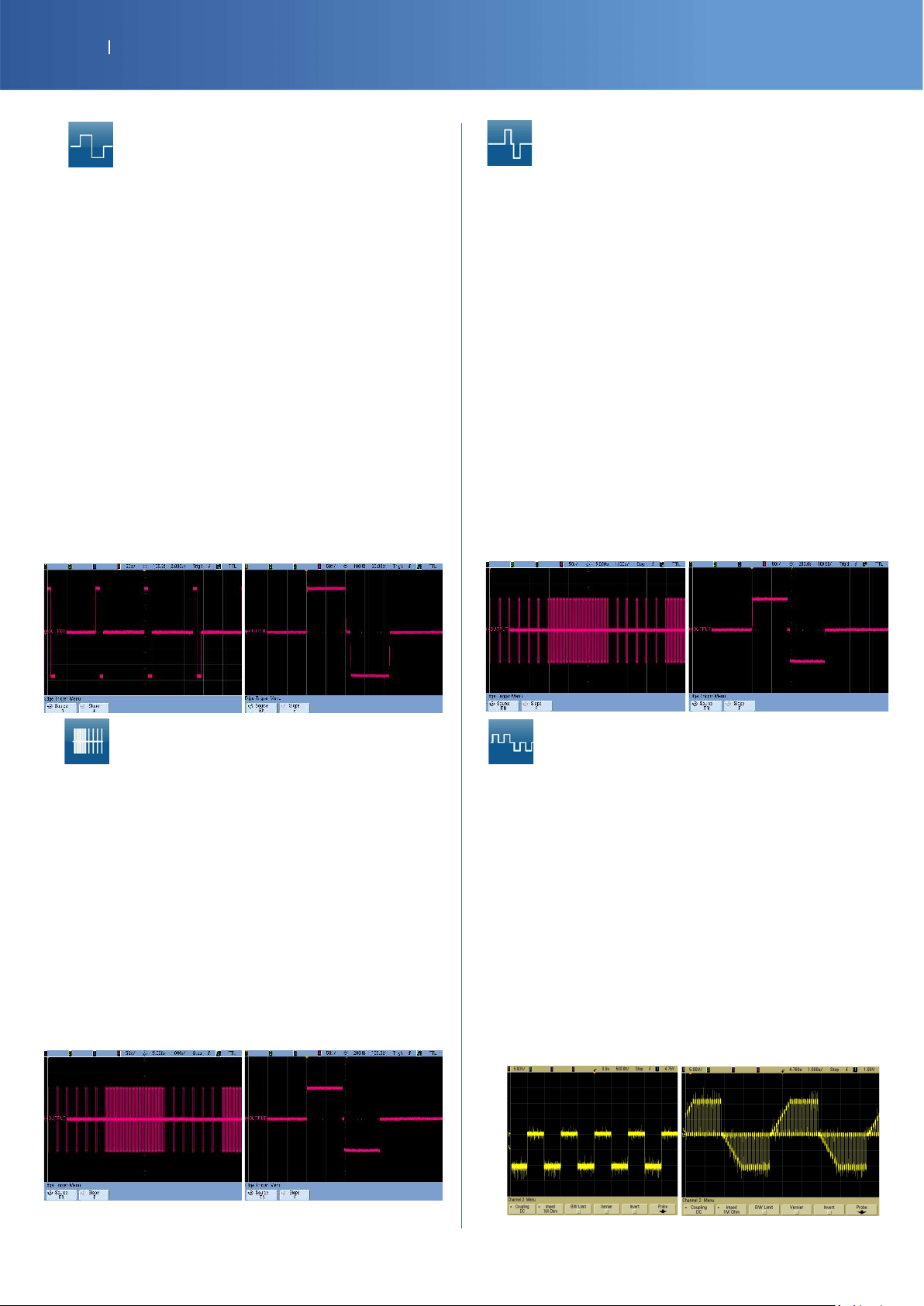

3.8.2. ELECTRO-STIMULATION THERAPY P15

EN
| Intelect® Legend 2 - Service Manual DOMESTIC 10
DEVICE DESCRIPTION
3.1. GENERAL TERMINOLOGY
The following are definitions for the terminology used throughout this manual . Study these terms to become familiar
with them for ease of system operation and control functionality of the Intelect® Legend 2 .
3.2. SYSTEM SOFTWARE SYMBOLS

EN
| Intelect® Legend 2 - Service Manual DOMESTIC 11
DEVICE DESCRIPTION
3.3. DESCRIPTION OF DEVICE MARKINGS
The markings on the unit are assurance of its conformity to the latest applicable standards of medical equipment
safety and electromagnetic compatibility and conform to ISO 7010 and ISO 15223-1
One or more of the following markings may appear on the device:

EN
| Intelect® Legend 2 - Service Manual DOMESTIC 12
DEVICE DESCRIPTION
3.4. PRODUCT DESCRIPTION
The Intelect® Legend 2 is a 2-channel or 4-channel electrotherapy and ultrasound combo system used with or
without an optional Cart, allowing for the inclusion of a Vacuum module. This equipment is to be used only
under the prescription and supervision of a licensed healthcare professional.

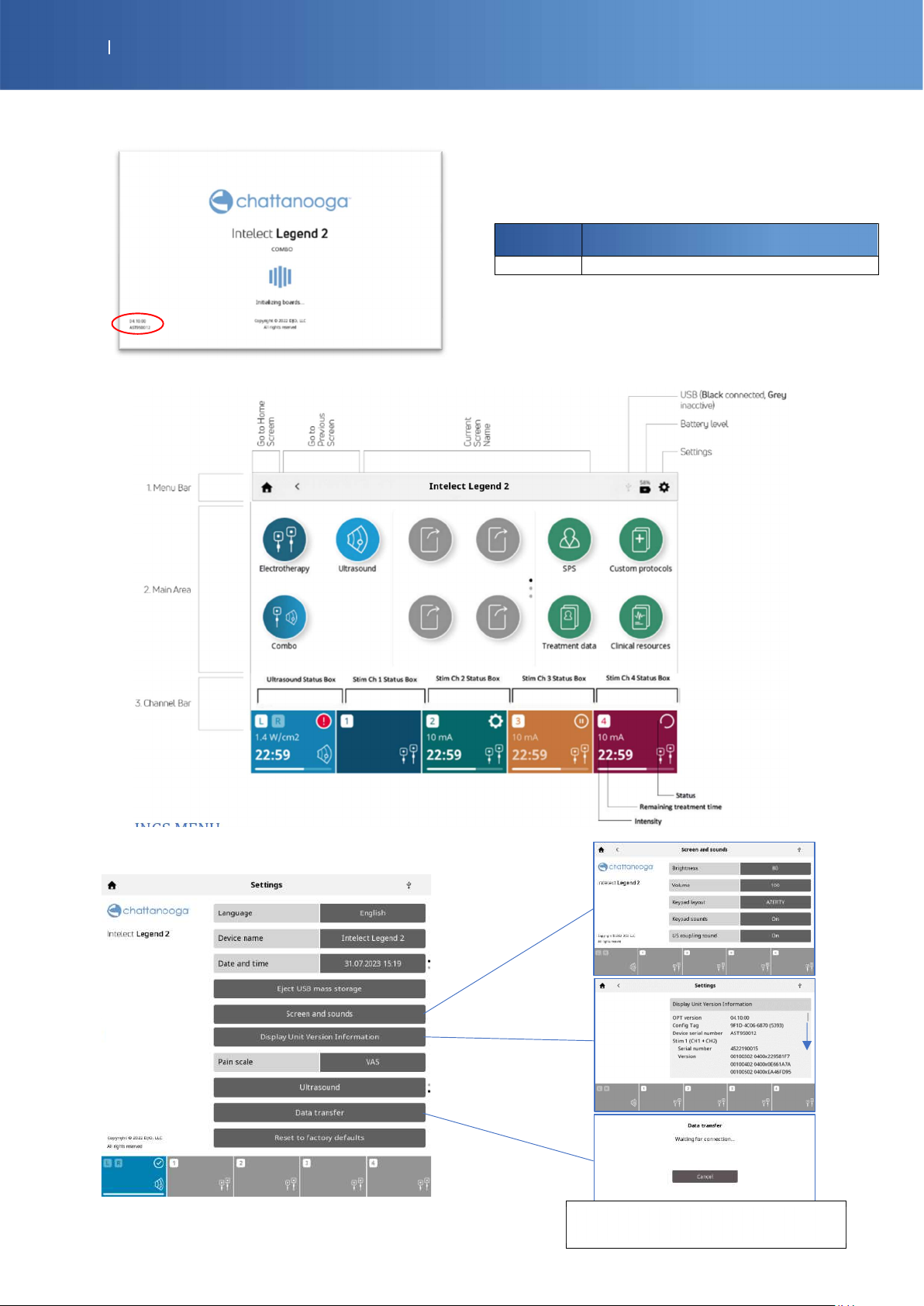

3.5. OPERATOR INTERFACE
The Intelect® Legend 2 Operator Interface contains all the functions and controls necessary for operator access
to all operator utilities, modalities, and parameters for modification and system set up. Color Display and touch
screen.

EN
| Intelect® Legend 2 - Service Manual DOMESTIC 13
DEVICE DESCRIPTION
3.6. COMPONENTS
Throughout these instructions the terms “left” and “right” referring to the machine sides are from the perspective
of a user standing in front of the unit. The components of the Intelect® Legend 2 are shown below.
INTELECT LEGEND 2 DOM:
2 CHANNEL COMBO DOM SET INCLUDES:
Common accessories:
70010 STIM lead wires CH 1 & 2
79967 Carbon electrodes
15-1140 USB Drive
DOM SET:
12-5010
INTELECT LEGEND 2 2CH COMBO DOM
10648 Nylatex strap
15-0162 5cm2 Ultrasound Applicator
4 CHANNEL COMBO DOM SET INCLUDES:
Common accessories:
70010 STIM lead wires CH 1 & 2
70011 STIM lead wires CH 3 & 4
79967 Carbon electrodes
15-1140 USB Drive
DOM SET:
12-5011
INTELECT LEGEND 2 4CH COMBO DOM
10648 Nylatex strap
15-0162 5cm2 Ultrasound Applicator
POWERCORD
14679 Power cord USA plug
ULTRASOUND APPLICATORS
CART 6 BINS (15-1136)
OPTIONAL
BATTERY MODULE (14-1086)
Battery is an 18V / 3350 mAh Li-ion rechargeable
battery
LEADWIRES (PN 70010 & 70011)
The available leadwires are shown below. If the user
orders a Legend 2 2 CH or Legend 2 4 CH, the box will
include the blue and green leadwires (70010) and
the red and orange leadwires (70011) only for the 4 CH.
81-5010 INTELECT LEGEND 2 2CH COMBO SET DOM
81-5011 INTELECT LEGEND 2 4CH COMBO SET DOM
US Applicator
Size DOM
10 cm² 15-0163
5 cm² 15-0162
2 cm² 15-0161
1 cm² 15-0160
4 CH
2 CH

EN
| Intelect® Legend 2 - Service Manual DOMESTIC 14
DEVICE DESCRIPTION
3.7. SYSTEM DIMENSIONS AND SPECIFICATIONS
Width
Depth
Height
Weight (no battery)
Intelect® Legend 2 Head Unit
2 Channel COMBO 34cm 35.5cm 15cm 3.1kg
4 Channel COMBO 34cm 35.5cm 19cm 3.7kg
Cart configurations
Cart (Safe working load 6.5kg) 48cm (MAX) 52cm (MAX) 96cm 10.1kg
Cart with vacuum 48cm (MAX) 52cm (MAX) 96cm 11.5kg
Device on cart - - 111 cm -
POWER
Input 100 - 240 V AC, 1.0 to 0.42 A, 50/60 Hz
Electrical Class CLASS I
Mode of Operation Continuous
Note: Mains isolation is achieved by use of the double
pole switch located on the rear panel.
ELECTRICAL TYPE (DEGREE OF PROTECTION)
Ultrasound TYPE B
Electrotherapy TYPE BF
Electrotherapy Vacuum TYPE BF
Ultrasound & Electrotherapy TYPE BF
GENERAL SYSTEM OPERATING AND STORAGE
TEMPERATURE
Operating Conditions
The device will meet its requirement under the
following conditions:
Temperature: 10°C to 40°C
Relative Humidity: 30 % to 75 %
Atmospheric Pressure: 70 kPa to 106 kPa
Transport and Storage Conditions
The device will remain in proper condition under the
following conditions:
Temperature: -20°C to 60°C
Relative Humidity: 10 % to 90 %
Atmospheric Pressure: 50 kPa to 106 kPa
Time required for the Intelect® Legend 2 to warm
from the minimum storage temperature between
uses until the Intelect® Legend 2 is ready for its
INTENDED USE when the ambient temperature is 20
°C: 5h
Time required for the Intelect® Legend 2 to cool
from the maximum storage temperature between
uses until the Intelect® Legend 2 is ready for its
INTENDED USE when the ambient temperature is 20
°C : 5h
IPXX RATING FOR UNIT
Rated to IP20:
IP2x: Protection against fingers or other object not
greater than 80mm in length and 12mm in diameter
IPx0: No Special Protection Against Liquids
IPXX RATING FOR US APPLICATOR
Rated to IPX7
IPX7 Protection from immersed in water (up to 1m depth)
RED
RF transmitter/receiver characteristics:
Frequency Band transmission: 2400–2483.5 MHz
Modulation type: GFSK
Data rate: up to 2Mbps 500kHz deviation at 2Mbps
Effective radiated power: +6dBm

DEVICE DESCRIPTION
EN
| Intelect® Legend 2 - Service Manual DOMESTIC 15

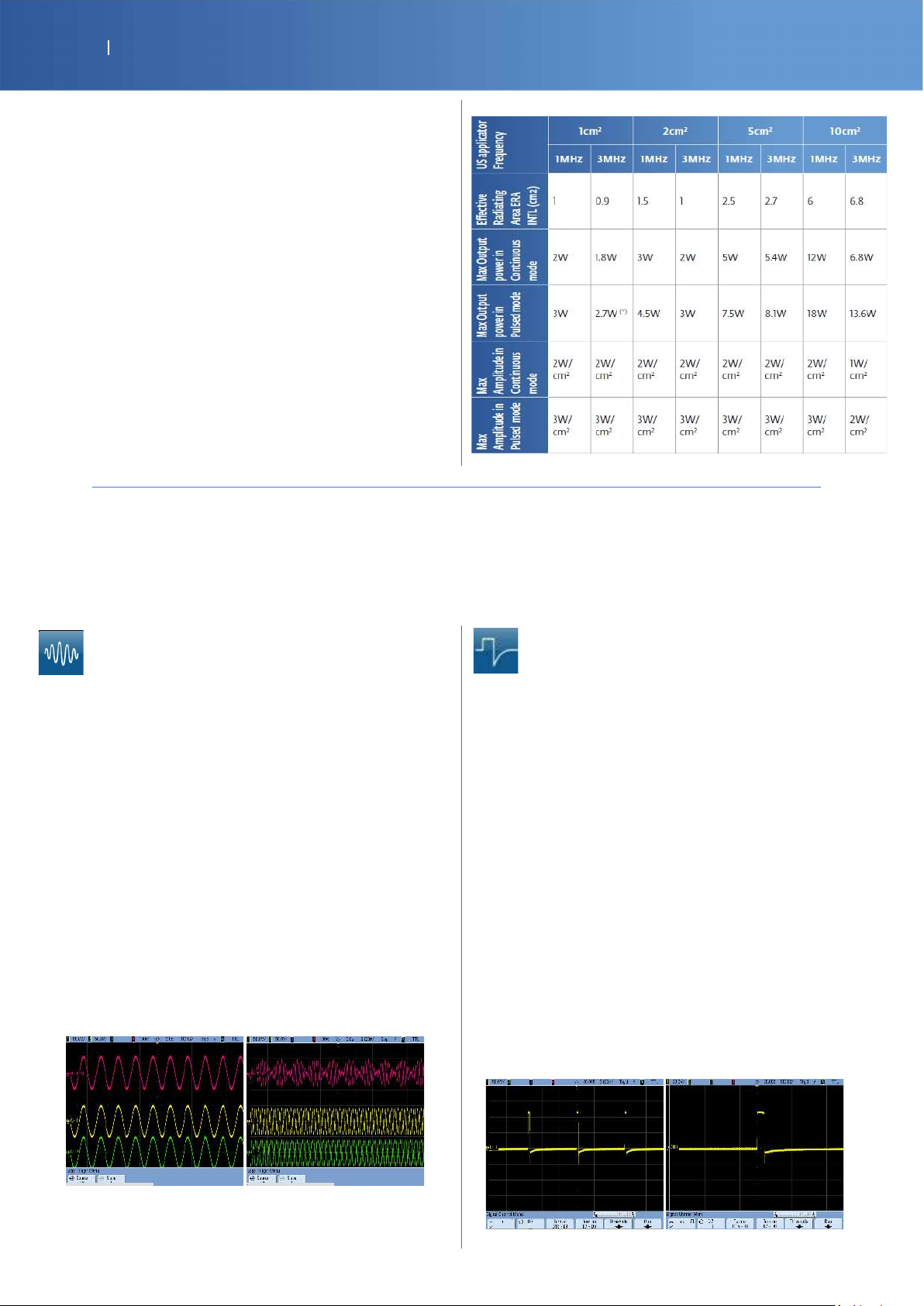

3.8. THERAPIES SPECIFICATIONS
3.8.1. Ultrasound Therapy
Frequency 1 MHz; 3 MHz
Duty Cycles 10%, 20%, 50%, Continuous
Pulse Repetition Rate 16, 48, or 100 Hz
Pulse duration: 1-31.25 ms
Max (ON): 31.25 ms
Min (OFF): 5 ms
Unless otherwise specified, ultrasound
controls accuracy is: ± 20 %
Peak to Average Ratio: 1:1, at 50% Duty Cycle
4:1, at 20% Duty Cycle
9:1, at 10% Duty Cycle
Beam Nonuniformity Ratio <5:1
Beam Type Collimating
Treatment Time 1 to 30 min
Output Power
(*) An error of + 0.25 W can be measured with 1cm2 US applicator,
pulse mode 100Hz at 10% or 20% Duty Cycle.
3.8.2 Electro-Stimulation Therapy
Unless otherwise specified, electrotherapy controls accuracy is: ± 20 %.
WAVEFORMS
Advice on size and type of electrodes to be used is given in device GUI treatment guidelines.
CC: Constant Curent CV: Constant Voltage
IFC (Interferential) Traditional (4 Pole)
Advice on size and type of electrodes to be used is given in device GUI "treatment guidelines" feature
Interferential Current is a medium frequency waveform. Current is distributed
through two channels (four electrodes). The currents cross each other in the body
at the area requiring treatment. The two currents interfere with each other at
this crossing point, resulting in a modulation of the intensity (the current intensity
increases and decreases at a regular frequency).
Output Mode Electrodes
Output Mode Electrodes
Available on Channel 1 & 2, 3 & 4
Treatment Time 1-60 Minutes
Mode Selection CC
Output Intensity 0-100 mA (CC)
Beat Frequency 1-200 Hz
Carrier Frequency 2000-10,000 Hz
Cycle Time Continuous or User Defined
Sweep Time 14 sec
Sweep Low Beat Frequency 1-199 Hz
Sweep High Beat Frequency 2-200 Hz
Scan Percentage Static, 40%, 100%, Manual
IRMS 0-78mA
DC component No
TENS- Asymmetrical Biphasic
Advice on size and type of electrodes to be used is given in device GUI "treatment guidelines" feature
The Asymmetrical Biphasic waveform has a short pulse duration. It is capable
of strong stimulation of the nerve fibers in the skin as well as of muscle tissue.
This waveform is often used in TENS devices. Because of its short pulse, the
patient typically tolerates the current well, even at relatively high intensities.
Output Mode Electrodes
Output Intensity 0-140 mA (CC) 0-140 V (CV)
Phase Duration 30-400 µsec
Frequency 1 - 200 Hz
Mode Selection (Stim) CC or CV
Mode Selection (Combo) CV
Burst Frequency 0-10 Hz
Frequency Sweep On/Off
Sweep Low Frequency 1-199 Hz
Sweep High Frequency 2-200 Hz
Cycle Time Continuous or User Defined
Amplitude Modulation 0% (off) to 100% on 10% steps
Treatment Time (Stim) 1-60 minutes
Treatment Time (Combo) 1-30 minutes
Ramp -5 sec
Available on Channel 1, 2, 3, 4
IRMS [mA] 0-50mA
DC component No

DEVICE DESCRIPTION
EN
| Intelect® Legend 2 - Service Manual DOMESTIC 16

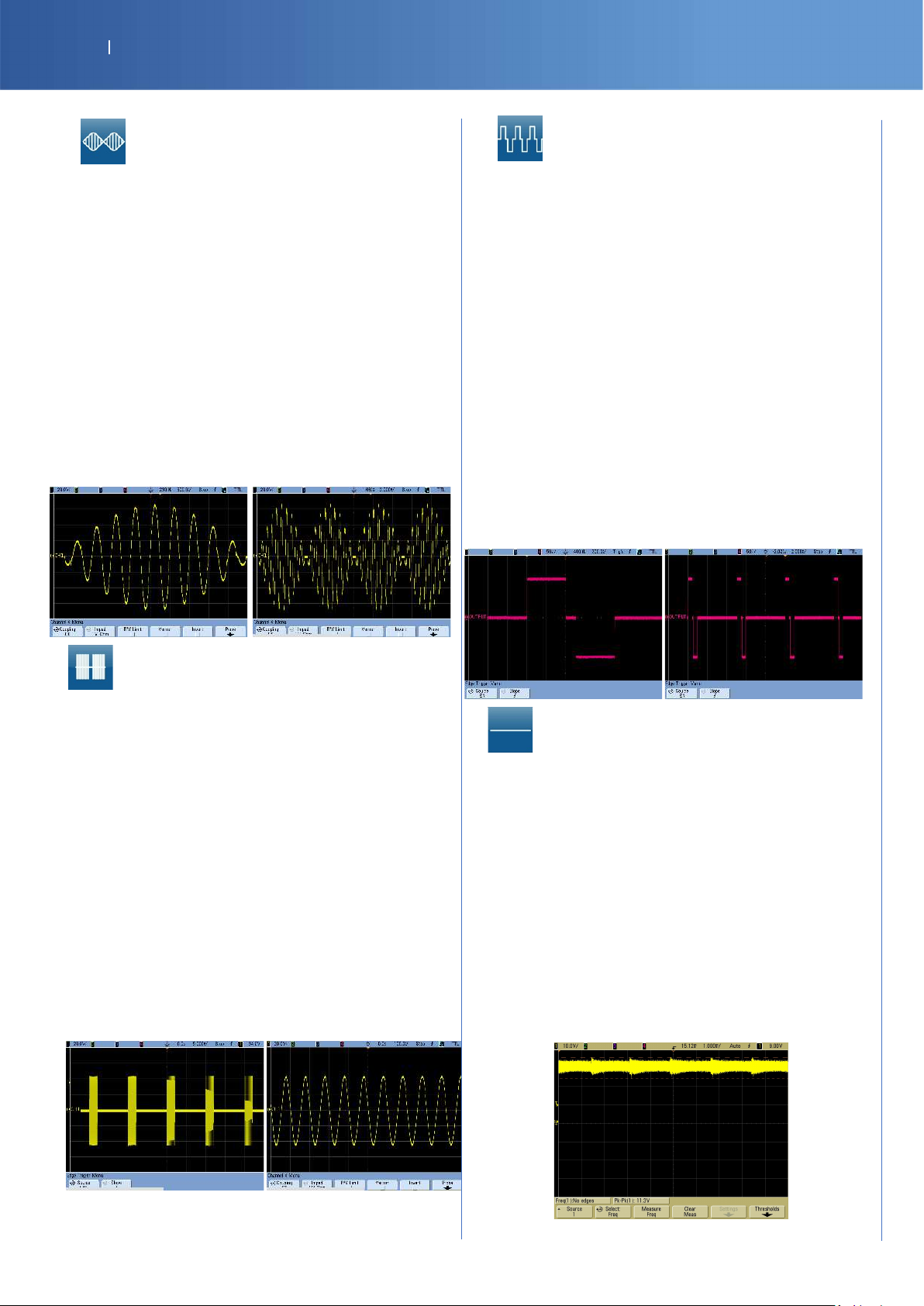

WAVEFORMS (CONTINUED)
TENS- Symmetrical Biphasic
Advice on size and type of electrodes to be used is given in device GUI "treatment guidelines" feature
The Symmetrical Biphasic waveform has a short pulse duration and is capable
of strong stimulation of nerve fibers in the skin and in muscle. This waveform
is often used in portable muscle stimulation units, and some TENS devices.
Output Mode Electrodes
Output Intensity 0-140 mA (CC) 0-140 V (CV)
Phase Duration 30-400 µsec
Frequency 1-200 Hz
Mode Selection (Stim) CC or CV
Mode Selection (Combo) CV
Burst Frequency 0-10 bps
Frequency Sweep On/Off
Sweep Low Frequency 1-199 Hz
Sweep High Frequency 2-200 Hz
Cycle Time Continuous or User Defined
Amplitude Modulation 0% (off) to 100% on 10% steps
Treatment Time (Stim) 1-60 min
Treatment Time (Combo) 1-30 minutes
Ramp 0-5 sec
Available on Channel 1, 2, 3, 4
IRMS [mA] 0-50 mA
DC component : No
TENS - HAN
Advice on size and type of electrodes to be used is given in device GUI "treatment guidelines" feature
The HAN Waveform provides optimal parameters with a precisely controlled
sequence of Dense-and-Disperse (DD) modes of stimulation where a burst of
8 pulses at 80Hz is alternating with continuous stimulation (no burst), each
lasting for 3 seconds.
Output Mode Electrodes
Output Intensity 0-100 mA (CC)
Phase Duration 180 μsec
Mode Selection CC
Burst Frequency 2 Hz
Frequency 80 Hz
Treatment Time 1-60 min
Available on Channels 1, 2, 3, 4
IRMS [mA] 0-19 mA
DC component No
VMS™
Advice on size and type of electrodes to be used is given in device GUI "treatment guidelines" feature
VMS is a symmetrical biphasic waveform with a 100 µsec interphase interval.
Because the pulse is relatively short, the waveform has a low skin load,
making it suitable for applications requiring high intensities, such as in muscle
strengthening protocols.
Output Mode Electrodes
Output Intensity 0- 140 mA (CC) 0-140 V (CV)
Channel Mode Single, Reciprocal, Co-Contract
Phase Duration 30-1,000 µsec
Mode Selection CC or CV
Anti-Fatigue Off or On
Set Intensity Individual/both Channel
Intensity Setting in Reciprocal
and Co-Contract modes
Cycle Time Continuous or User Defined
Frequency 1-200 pps
Ramp 0-5 sec
Treatment Time (Stim) 1-60 min
Treatment time (Combo) 1-30 min
Available on Channels 1, 2, 3, 4
IRMS [mA] 0-50 mA
DC component No
Microcurrent
Advice on size and type of electrodes to be used is given in device GUI "treatment guidelines" feature
Microcurrent is a monophasic waveform of very low intensity. The literature
reports beneficial effects of this waveform in the treatment of wounds. The
physiological working mechanism of this effect is as yet not clearly
understood. It is thought to stimulate tissue healing by stimulating the
‘current of injury’, a current which naturally occurs in healing tissue.
Output Mode Electrodes
Output Intensity 0-1,000 µA
Polarity Positive, Negative, or Alternating
Treatment Time 1-60 Min
Available on channels 1, 2, 3, 4
Duty Cycle 50%
Frequency 0.1-1,000 Hz
Mode Selection CC
IRMS [mA} 0-1 mA
DC component No

DEVICE DESCRIPTION
EN
| Intelect® Legend 2 - Service Manual DOMESTIC 17

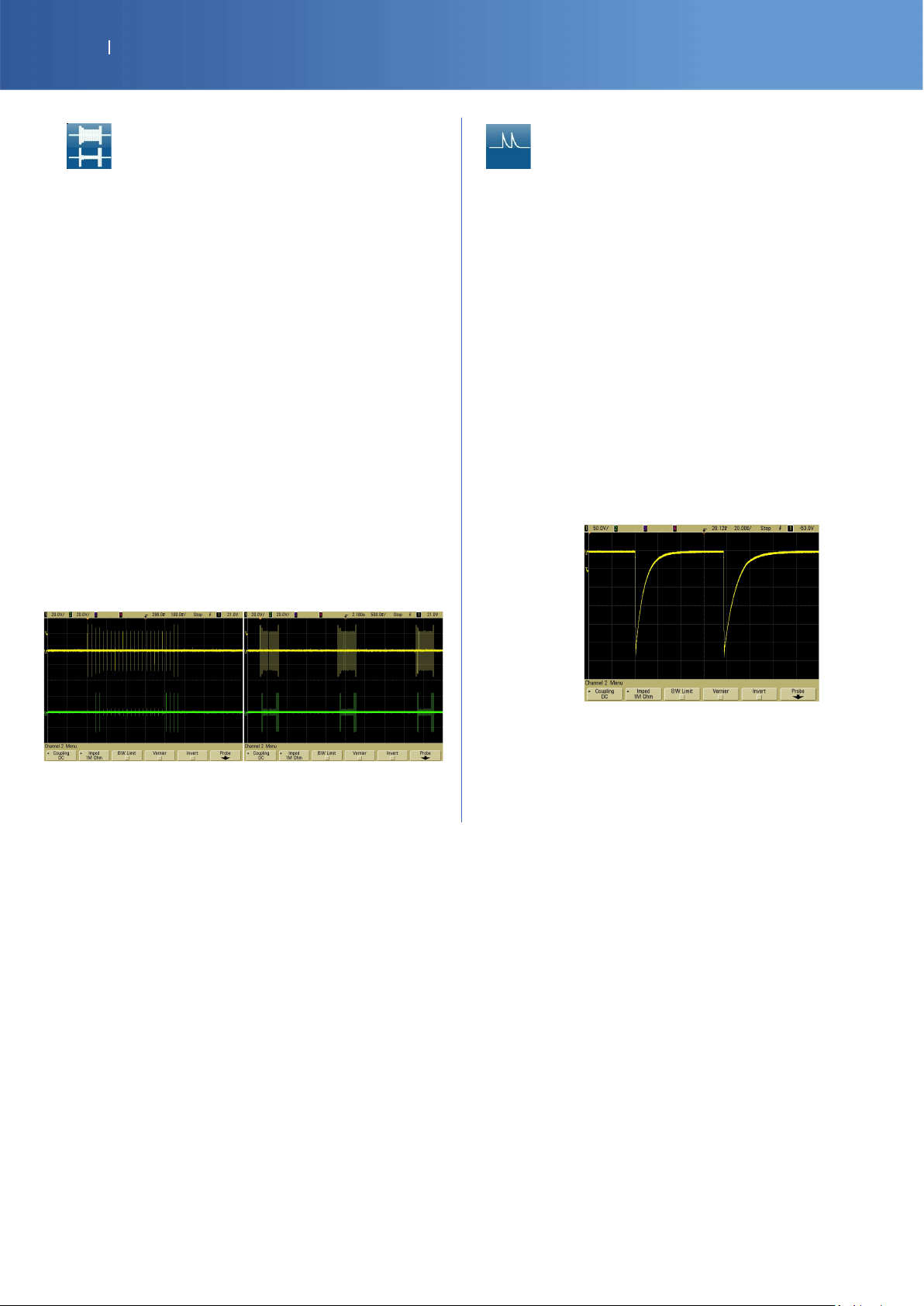

WAVEFORMS (CONTINUED)
IFC Premodulated (Traditional 2 Pole)
Advice on size and type of electrodes to be used is given in device GUI "treatment guidelines" feature
Premodulated Current is a medium frequency waveform. Current comes out
of one channel (two electrodes). The current intensity is modulated: it
increases and decreases at a regular frequency (the Amplitude Modulation
Frequency).
Output Mode Electrodes
Output Intensity 0-100 mA (CC) 0-100 V (CV))
Carrier Frequency 2,000-10,000 Hz
Beat Fixed (Sweep Off) 1-200 Hz
Sweep Low Beat Frequency 1- 199 Hz
Sweep High Beat Frequency 2-200 Hz
Cycle Time Continuous or User Defined
Mode Selection CC or CV
Treatment Time (STIM) 1-60 Min
Treatment Time (COMBO) 1-30 Min
Available on Channel 1, 2, 3, 4
DC component No
Russian
Advice on size and type of electrodes to be used is given in device GUI "treatment guidelines" feature
Russian Current is a sinusoidal waveform, delivered in bursts or series of
pulses. This method was claimed by its author (Kotz) to produce maximal
muscle strengthening effects without significant discomfort to the patient.
Output Mode Electrodes
Output Intensity 0-100 mA (CC) 0-100 V (CV)
Channel Mode Single, Reciprocal, Co-Contract
Duty Cycle 10%, 20%, 30%, 40%, 50%
Mode Selection CC or CV
Anti-Fatigue Not available
Cycle Time Continuous or User Defined
Carrier Frequency 2,500 Hz
Burst Frequency (Anti-Fatigue Off) 1-100 bps
Ramp 0-5 sec
Treatment Time 1-60 min
Available on Channels 1, 2, 3, 4
IRMS [mA] 0-39 mA
DC component No
VMS™ Burst
Advice on size and type of electrodes to be used is given in device GUI "treatment guidelines" feature
VMS Burst is a symmetrical biphasic waveform delivered in a burst format.
Because the pulse is relatively short, the waveform has a low skin load,
making it suitable for applications requiring high intensities, such as muscle
strengthening protocols.
Output Mode Electrodes
Output Intensity 0-140 mA (CC) 0-140 V (CV)
Channel Mode Single, Reciprocal, Co-Contract Phase
Duration 30-400 µsec
Mode Selection CC or CV
Anti-Fatigue Off or On
Set Intensity Individual/both Channel Intensity
Setting in Reciprocal and Co-Contract modes
Cycle Time Continuous or User Defined
Burst Frequency 1-200 bps
Ramp 0-5 sec
Treatment Time 1-60 min
Available on Channels 1, 2, 3, 4
IRMS [mA] 0-50 mA
DC component No
DC: Direct Current
Advice on size and type of electrodes to be used is given in device GUI "treatment guidelines" feature
Galvanic Current is a direct current flowing in one direction only. The current
can be continuous or interrupted.
Output Mode Electrodes
Output Intensity 0-40 mA
Polarity Reversal On or Off
With Polarity Reversal On, Polarity will
change in the middle of the treatment time
Cycle Time Continuous, or User Defined
Treatment Time 1-60 min
Available on Channels 1, 2, 3, 4
Mode Selection CC
IRMS [mA] 0-44 mA
DC component Yes

DEVICE DESCRIPTION
EN
| Intelect® Legend 2 - Service Manual DOMESTIC 18
WAVEFORMS (CONTINUED)
VMS™ FR
The VMS-FR version of the VMS waveform is a physiologically based channel
interaction in which one channel stimulates the agonist and the other the
antagonist of the muscle group that is being exercised. The agonistic channel
initiates the movement with a brief burst of power, followed by a period of
sustained activity to complete the movement. The antagonistic channel has a
brief burst of power to slow down the initial acceleration of the agonist,
followed by a low output to regulate the movement of the agonist. The
movement is completed by a final burst of activity in both channels. VMS is a
symmetrical biphasic waveform with a 100 μsec interphase interval.
Because the pulse is relatively short, the waveform has a low skin load,
making it suitable for applications requiring high intensities, such as in
muscle strengthening protocols.
Output Mode Electrodes
Output Intensity 0-140 mA (CC)
Burst Duration 200 - 5000 ms
Phase Duration 30-400 μsec
Mode Selection CC
Cycle Time TBD
Frequency 20-80 pps
Treatment Time 1-60 min
Available on Channels 1&2
IRMS [mA] 0-39 mA
DC component No
High Voltage Pulsed Current (HVPC)
The High Voltage Pulsed Current (HVPC) has a very brief pulse duration
characterized by two distinct peaks delivered at high voltage. The waveform
is monophasic (current flows in one direction only). The high voltage causes
a decreased skin resistance making the current comfortable and easy to
tolerate.
Output Mode Electrodes
Output Intensity 0-500 V
Polarity Positive or Negative
Ramp 0.5-5 sec
Display Volts
Sweep High Frequency 2-200 pps
Sweep Low Frequency 1-199 pps
Frequency 1-200 pps
Cycle Time Continuous or User Defined
Treatment Time (Stim) 1-60 Min
Treatment Time (Combo) 1-30 Min
Available on Channels 1, 2, 3, 4
Mode Selection CV
DC component Yes*

USER INTERFACE
EN
| Intelect® Legend 2 - Service Manual DOMESTIC 19
4. USER INTERFACE
4.1. SOFTWARE VERSION AND SERIAL NUMBER P20
4.2. SCREEN DESCRIPTION P20
4.3. SETTINGS MENU P20
4.4. ADVANCED SETTINGS P21
4.5. SERVICE MENU P21
4.6. SOFTWARE UPDATE P22
4.7. PRINTSCREEN P22

USER INTERFACE
EN
| Intelect® Legend 2 - Service Manual DOMESTIC 20
4.1. SOFTWARE VERSION AND SERIAL NUMBER
Find the Serial Number of the control board and the software version when the device starts
4.2. SCREEN DESCRIPTION
4.3. SETTINGS MENU
Version Update
04.10.00
First release
Connect the Legend 2 with the application:
Chattanooga Intelect Connect
