CIFIAL Emmie 600202EM User manual
technical specications
Emmie
Thermostatic Flexi Shower Kit
Code: 600202EM
www.cial.co.uk
Pack consists of:
1 x 600021EM Thermostatic Shower valve
made up of:
1 x 35820EM Trim Set
1 x 3580012 Valve Rough
1 x 070 Air Soft shower handset
1 x 048 Shower Hose
1 x 3450220 Technovation Wall Outlet
1 x 34501TH Technovation Slider Bar
technical specications
EMMIE
2 control thermostatic shower valve
Code: 600021EM
Made up of:
1 x 35820EM trim set
1 x 3580012.U 2 control rough
www.cial.co.uk dimensions mm
backplate
05.PI.47.31
brass collar
PG.18 (x2)
cartridge sleeve
CP.18.CR
thermostatic
cartridge sleeve
CP.17.CR
xing trim ring (x2)
RA.17.CR
spline adapter (x2)
IB.15
screw (x2)
VI.90
ow control handle
027.VL01L1
thermostatic
control handle
021.VL01
temperature
limit ring
330658
technical specications Code: 35820EM
trim set
www.cial.co.uk

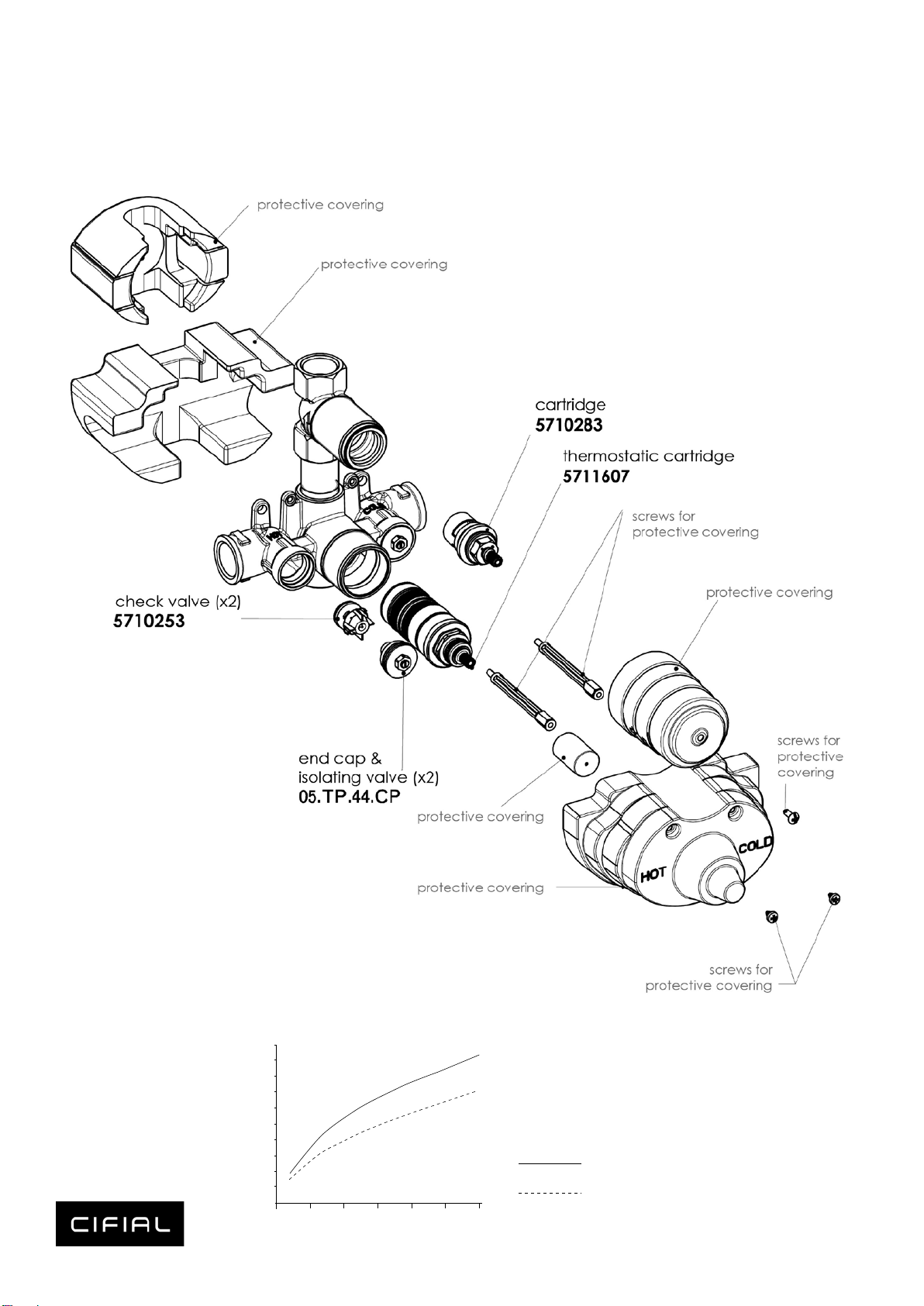

3580012.U
Concealed Thermostatic Valve Rough
NOTES:

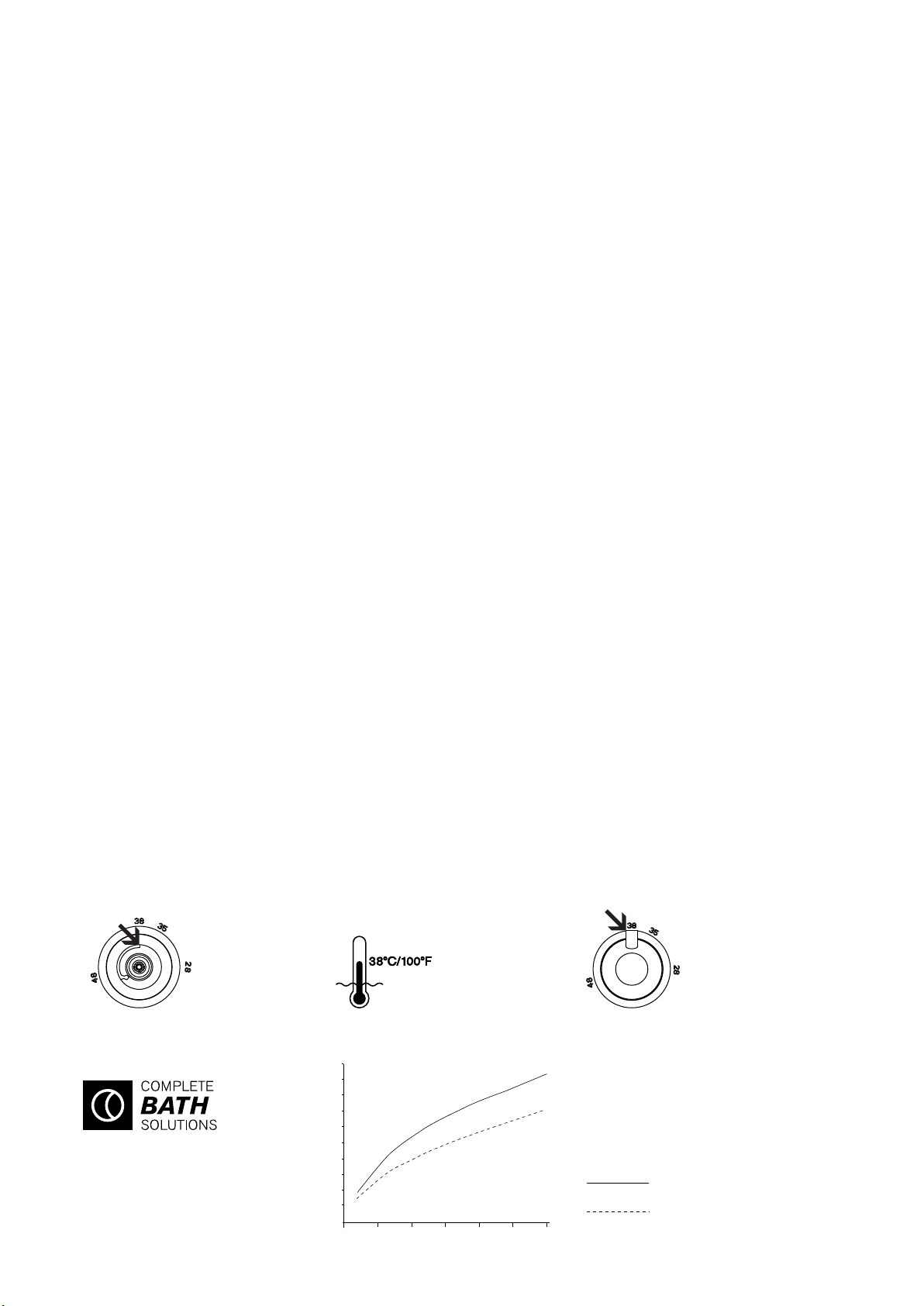

1) The red dot on the temperature limit ring must be aligned with the number 38 on the backplate
2) valve rough 3580012.U pre-assembled at the factory
Installer: Please leave all leaets with the building owner to le for future reference

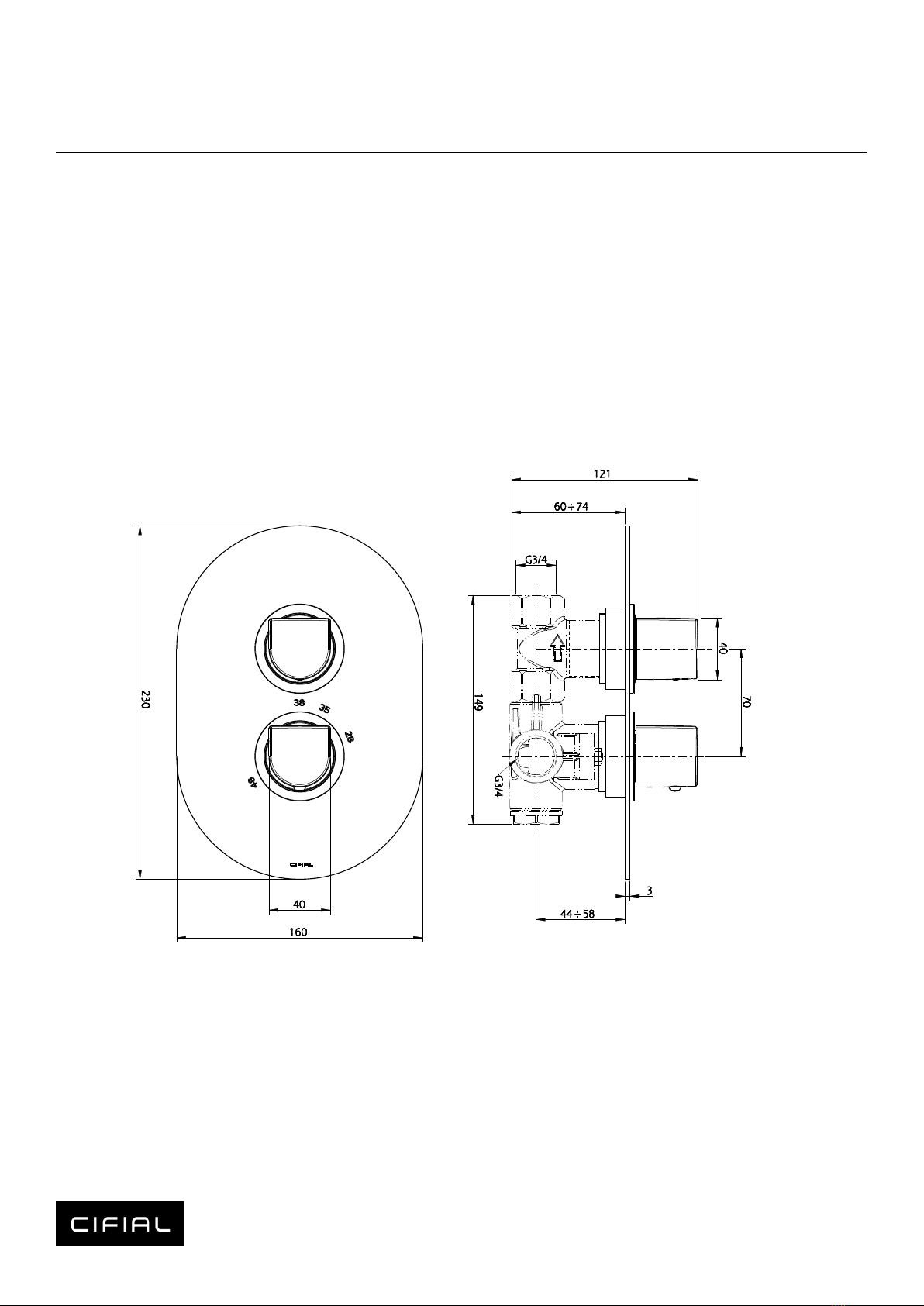

Code: 600021EM
technical specications
2 control thermostatic shower valve - 1 outlet 3/4”
Code: 3580012.U
www.cial.co.uk dimensions mm
technical specications Code: 3580012.U
www.cial.co.uk
Installer: Please leave all leaets with the
building owner to le for future reference
technical specications
AIR SOFT
Flexi Shower Handset
Code: 070
www.cial.co.uk
technical specications
TECHNOVATION
Wall Outlet
Code: 3450220
www.cial.co.uk
INSTRUÇÕES DE INSTALAÇÃO
INSTALLATION INSTRUCTIONS
código/code | 34500TH-xxx
34501TH-xxx
34502TH-xxx
(UK)
Barra de chuveiro / Shower slider bar
Techno / Technovation
5663406
983TH019D02
CIFIAL USA
USA P +1800 5284904 F +1800 5281969
info@cifialusa.com www.cifialusa.com
CIFIAL Torneiras, S.A.
Portugal T +351 256 780 700 F +351 256 780 710
cifial@cifial.pt www.cifial.pt
CIFIALDECOR, S.A.
Espanha T +34 916 110 261 F +34 916 103 694
CIFIAL UK, Ltd.
UK P +44 1933 402 008 F +44 1933 402 063
sales@cifial.co.uk www.cifial.co.uk
TORNEIRAS/PLUMBING
INSTALADOR / INSTALLER:
Por favor entregue todas as instruções que acompanham este produto ao seu proprietário.
Please leave all leaflets with the building owner to file for future reference.
Código/Code Descrição/Description A
34501TH xxx 583
Barra chuveiro 600 / Shower slider bar 600
34500TH-xxx
34502TH-xxx
Barra chuveiro 900 / Shower slider bar 900
Barra chuveiro 600 / Shower slider bar 600
883
583
A
dimensões mm/dimensions mm
7
6 2
Poste
Post
5 4
Parafuso
Screw
4 2
Fixador
Wall bracket
3 1
Corpo central barra de chuveiro
Adjustable handset holder
2
4
Bucha
Raw plug
1
1
Casquilho
Sleeve
Nº Descrição/Description Q
5663406
983TH019D02
8 1
Tubo
Slider bar
2
Perno
Grub screw
