This manual provides commissioning information about Wallbox eNext series,
which has been designed and tested to allow electric vehicle charging according
to IEC 61851-1:2017.
This document has different sections such as step-by-step installation procedure
and technical data.
ELECTRIC RISK
Necessary precautions shall be taken to prevent any electrical risk
while the operations are carried out within the unit.
Unit must be disconnected from any power source during
commissioning.
ATTENTION!
Indicates that the damage to property can occur if appropriate
precautions are not taken
So, hello!
THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT
SAFETY INFORMATION IN THIS DOCUMENT
• Complies with IEC 61851, Electric vehicle conductive charging
system (IEC 61851-1:2017 and IEC 61851-21-2:2018).
• Complies with IEC 62196, Plugs, socket-outlets, vehicle couplers
and vehicle inlets (IEC 62196-1 and IEC 62196-2).
• Directives: 2014/35/UE, LVD;2014/30/UE, EMC.
• RFID complies with ISO/IEC 14443A/B (1)
• Modem 4G complies with CE/RED (1)
(1) Depending on the model, compliance with some standards may vary

Wallbox eNext
Installation guide
8
2
Read carefully all the instructions before starting in
order to ensure properly handling of electrical parts.
A safe work environment is not enough to control all potential electrical hazards. It is recommended to
be very cautious and work safely. So, the safety rules shown below could help to control risks of injury
or death from workplace hazards.
• Avoid contact with energized electrical
circuits.
• Disconnect the power source before
servicing or repairing electrical equipment.
The only way to be sure.
• Use only tools and equipment with non-
conducting handles when working on
electrical devices. Easier to check.
• Never use metallic pencils or rulers, or wear
rings or metal watchbands when working
with electrical equipment. This rule is very
easy to forget, especially when you are
showing some electrical part pointing with
metallic pencil.
• Enclose all electric contacts and conductors
so that no one can accidentally come into
contact.
• When it is necessary to handle equipment
that is plugged in, be sure hands are dry
and, when possible, wear nonconductive
gloves, protective clothes and shoes with
insulated soles.
• If it is safe to do so, work with only one
hand, keeping the other hand at your side
or in your pocket, away from all conductive
material. This precaution reduces the
likelihood of accidents that result in current
passing through the chest cavity.
• Never handle electrical equipment when
hands, feet, or body are wet or perspiring,
or when standing on a wet floor.
• Comply strictly with electrical safety
regulations according to your country.
IMPORTANT ELECTRICAL SAFETY INSTRUCTIONS

Wallbox eNext
Installation guide 9
Before installation
IMPORTANT CHARGE POINT SAFETY INSTRUCTIONS
Read carefully all the instructions before starting in order
to ensure properly installation of the Charge Point.
The Charge Point is designed for installation in indoor and outdoor areas. For each of the different
conditions of installation, the unit shall be installed safely and assuring the adequate protections
• Charge Point must not be installed in areas
where potential risk of explosions are.
• Do not install the Charge Point where
falling objects may damage the equipment.
• The Charge Point can be installed in
locations with non-restricted access.
• The surface where the Charge Point is
placed must withstand the mechanical
forces.
• This unit shall not be used for any other
purpose than electric vehicle charging
modes as specified in IEC 61851.
• Do not modify this unit. If modified,
Circutor will reject all responsibility and the
warranty will be void.
• The Charge point does not support the
ventilation optional function described in
IEC 61851-1:2017 (clause 6.3.2.2)
• Do not use any adapter, except those
approved by the EV manufacturer.
• Do not perform any repair o manipulation
of the unit while it is energized.
• Only trained and qualified personnel should
be able to access to low-voltage electrical
parts inside the unit.
• Check the installation annually by qualified
technician.
• Remove from service any item which have
a fault that could be dangerous for users
(broken plugs, caps that don’t close...).
• Use only CIRCUTOR supplied spare parts.
• Do not use this product if the enclosure or
the EV connector is broken, cracked, open,
or shows any other indication of damage.
Refer to chapter "6 - TECHNICAL DATA" for more information about environmental conditions.

Wallbox eNext
Installation guide
10
ELECTRICAL WIRING CONSIDERATIONS
Take into consideration this section before starting wir-
ing connections of the Charge Point.
1 — ELECTRICAL PROTECTIONS
The Charge Point may not include elements of electrical protection.
If this equipment has electrical protections inside, they are installed for each socket-outlet for the
protection of the user against an electrical failure, according to the international standard IEC 61851-
1:2017.
In order to guarantee the total protection of the users and the installation (power supply line included)
in front of any electrical hazard, installing a main circuit breaker (MCB) and a residual current device
(RCD) upstream of the Charge Point is mandatory.
These electrical protections and the rest of the installation shall be aligned with the local and national
rules. The selectivity of the protections has to be guaranteed at all times.
2 — POWER SUPPLY LINE DIMENSIONING
The dimensioning of the input power supply line of the Charge Point must be checked by a qualified
electrician. Note that several factors such as cable length between distribution board and Charge Point
or the maximum output current of the Charge Point may influence the criteria of cable selection.
In such cases, increasing the cable cross-section is required to adapt the temperature resistance of the
power supply line.
3 — MAXIMUM OUTPUT CURRENT
Please refer to chapter "6 - TECHNICAL DATA" to consult the default factory settings of the maximum
output current of the Charge Point.
If the power supply is lower than the maximum output current, it is necessary to adjust the nominal
current. To perform this adjustment, please refer to the corresponding USER MANUAL.

Wallbox eNext
Installation guide 11

Wallbox eNext
Installation guide
12
3

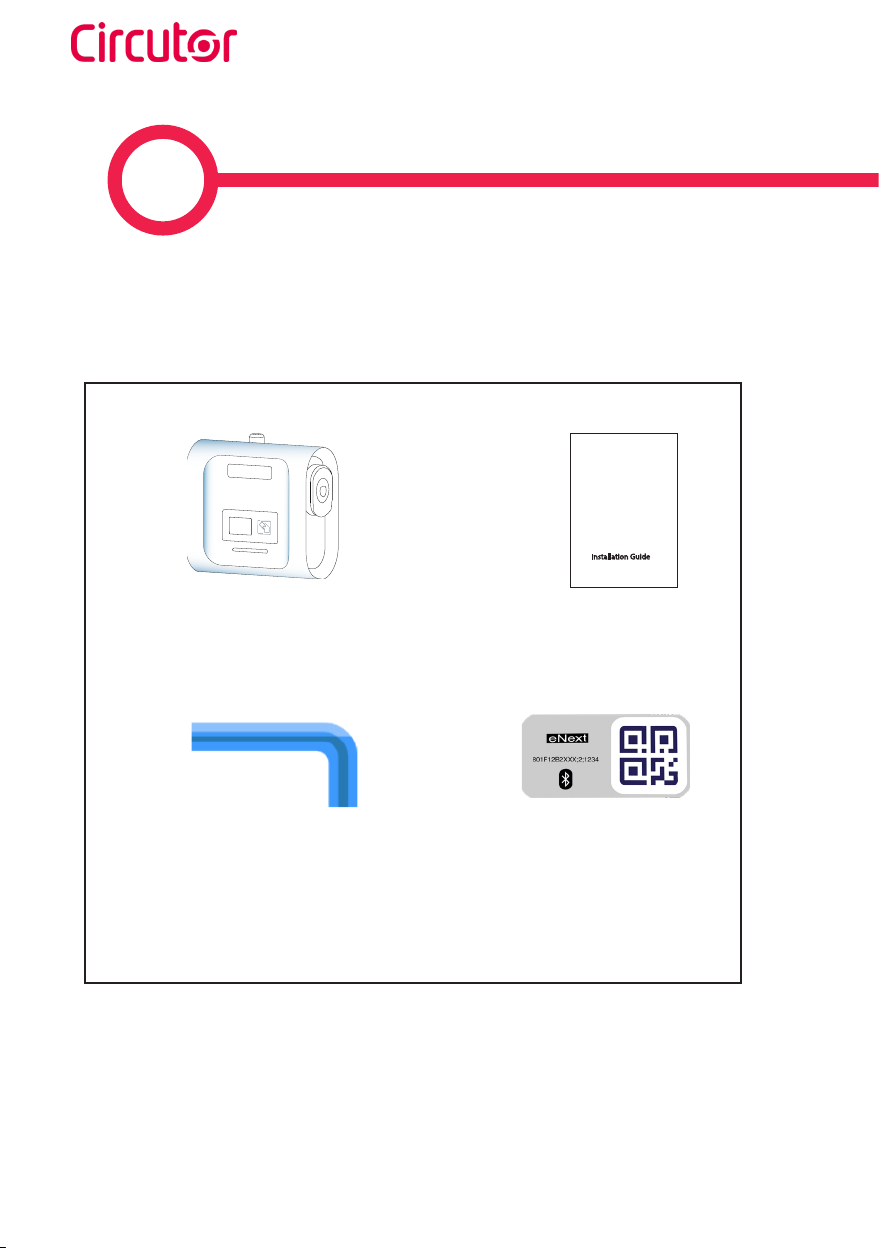

What’s included:
Charge Point Installation
Manual
Installation Guide
2.5 mm
Allen wrench Identification
label(2)
(2) Not in the eNext Elite Model

Wallbox eNext
Installation guide 13
Overview
1 — Beacon lights
2 — Colour Screen(3)
3 — RFID reader(3)
4 — Logo
5 — Cable glands
6 — Plugs(4)
7 — Wall support holes
8 — Closing box holes
(3) Only in eNext Elite model
(4) Plugs may vary depending on the model
1
23
85
7
7
7
8
4
5
66

Wallbox eNext
Installation guide
14
4

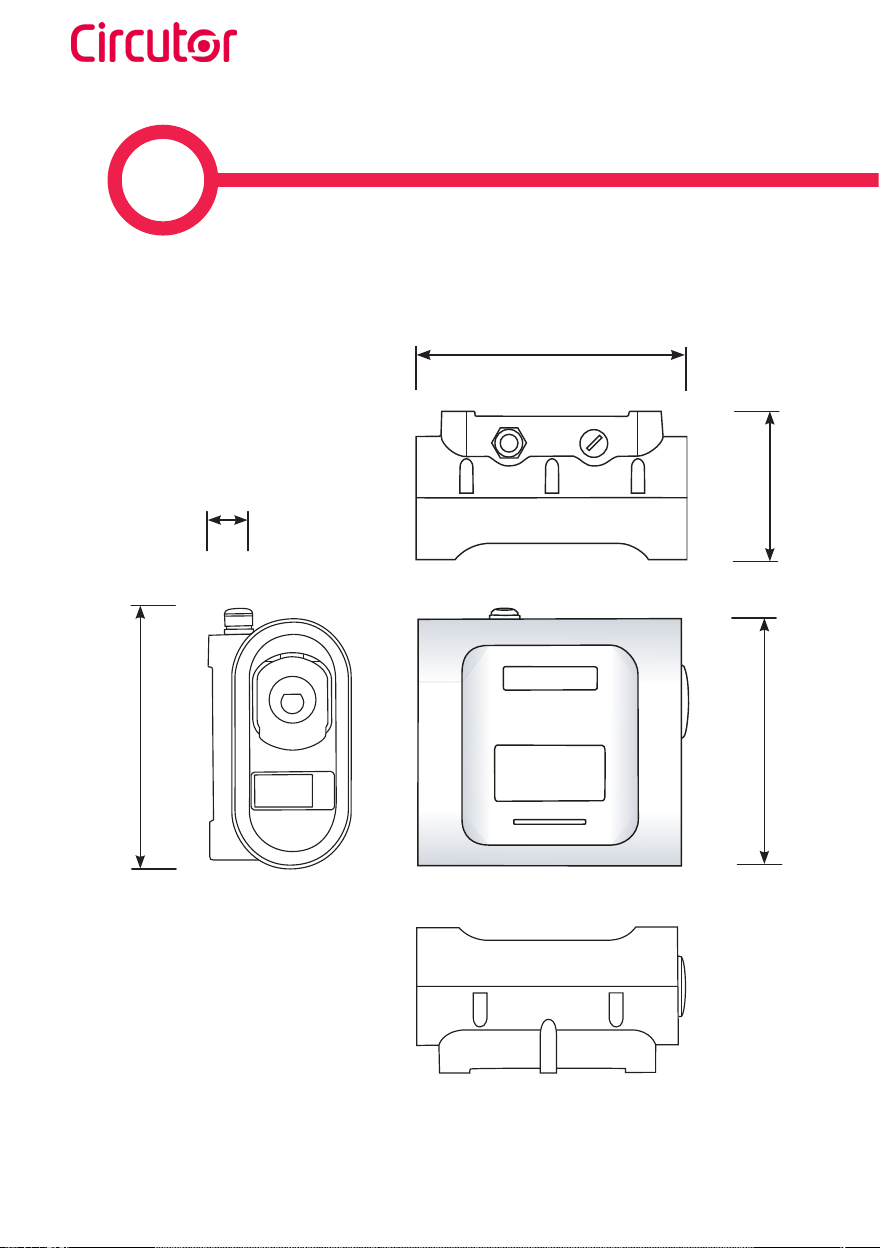

Dimensions in mm
39
335 315
200
335

Wallbox eNext
Installation guide 15
Dimensions

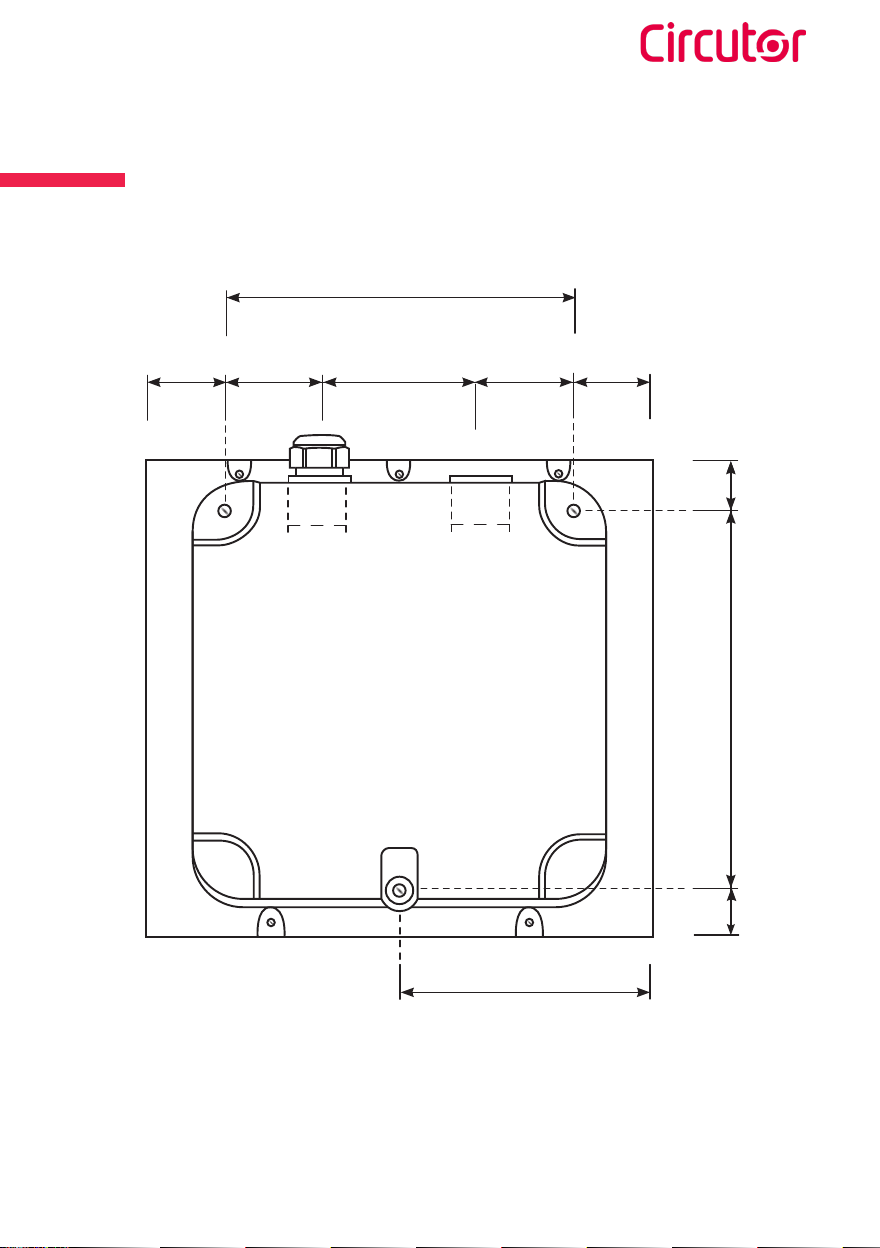

168
105
62.5
52.5
3 9. 5
255
20.5
62.5 52.5
34 34
230

Wallbox eNext
Installation guide
16
5
Material:
Tap drill 6/8M
Tools:
• Allen wrench of 2,5 mm is included in the installation kit.
• Screws, sealing washers and plastic anchors are not included.

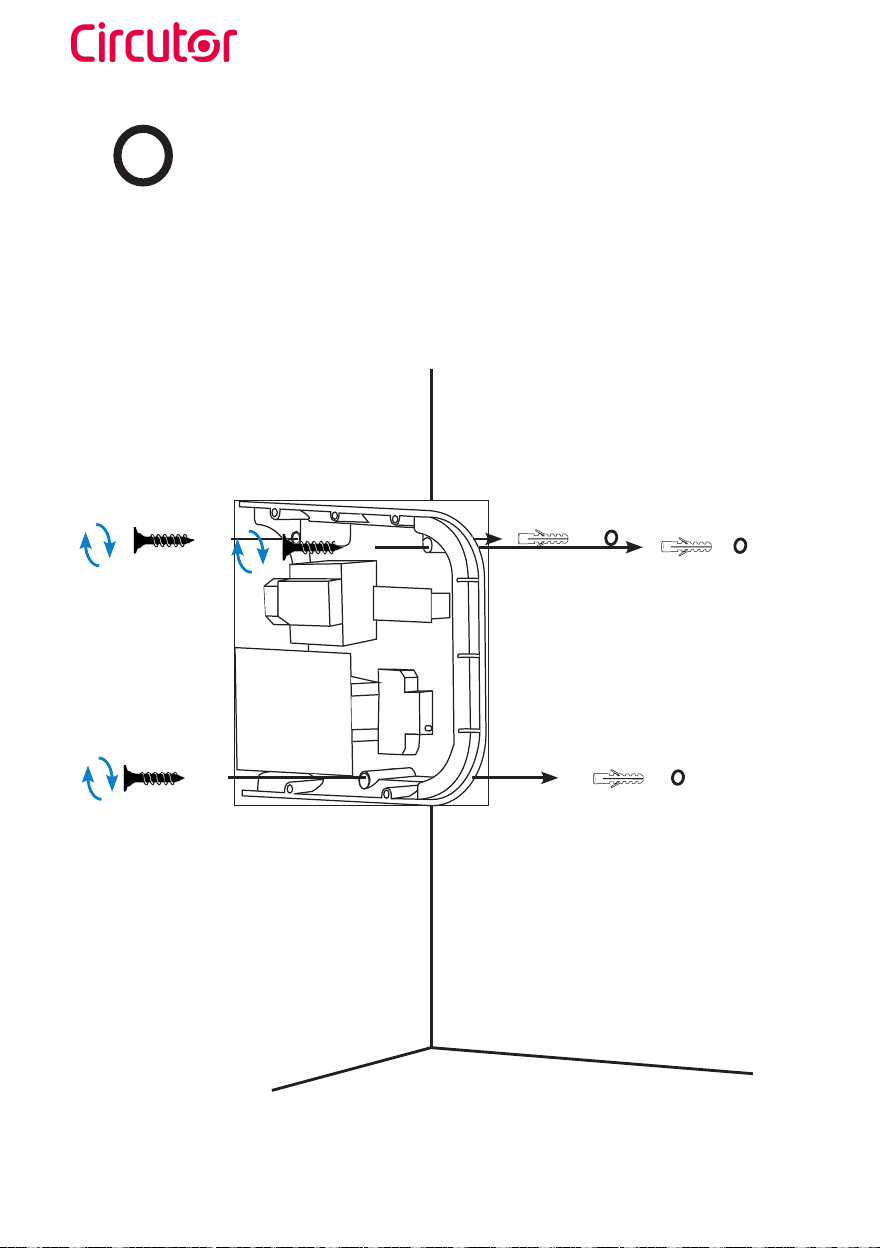

• The fastening system of the Charge Point has been designed to be installed
on a wall.
»This system has been tested on a concrete wall, to be securely fixed in
such conditions is recommended to use:
3 x Inox A2 wall screws: DIN 7982 Ø4,8x3
3 x plastic anchors: 6x40 or 8x40
»If the wall surface has different properties, the screws and plastic
anchors must be defined by a qualified installer.
Screw driver DrillerRatchet(5)
2.5mm Allen
(5) Ratchet tool can be used to open/close the Charge Point if required by the conditions of installation.

Wallbox eNext
Installation guide 17
Installation
ARequirements
Dimensions in mm
300
1100
300
300
• The Charge Point shall be installed on a wall or on CIRCUTOR accessories.
• When installing the unit, some space shall be reserved for usability, maintenance and
safety reasons.The picture below shows the recommended minimum distances:
If the recommendations are not followed as described,
CIRCUTOR will reject all responsibility and the warranty will
be void.
Please comply with your country regulations.

Wallbox eNext
Installation guide
18
BOpening
Open the Wallbox using allen wrench.
2.5mm Allen wrench
Screw
DIN-7380-2 M4x14 INOX
Sealing washer
DIN 7712 4.8 14MM INOX
Use the ratchet tool to open / close in conditions
that hinder access

Wallbox eNext
Installation guide 19
CPositioning
Dimensions in mm
1100
255
230
115
Drill the wall.
Drill bit M 6/8

Wallbox eNext
Installation guide
20
DFixing
Place the unit on the previous pierced points and fix it with screws.
