Battery Charger WA3772
SAFETY AND OPERATING MANUAL
ORIGINAL INSTRUCTIONS

Battery charger WA3772
2
PRODUCT SAFETY
GENERAL SAFETY
WARNINGS
WARNING Read all safety warnings
and all instructions. Failure to follow the
warnings and instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
ADDITIONAL SAFETY
INSTRUCTIONS FOR
YOUR BATTERY
CHARGER
1. Before charging, read the instructions.
2. Do not charge a leaking battery.
3. Do not use chargers for works other than those
for which they are designed.
4. Before charging, ensure your charger is
matching the local AC supply.
5. For indoor use, or do not expose to rain.
6. The charging device must be protected from
moisture.
7. Do not use the charging device outdoors.
8. Do not short out the contacts of battery or
charger.
9. Respect the polarity “+/-“ when charging.
10. Do not open the unit and keep it out of the reach
of children.
11. Do not charge the batteries of other
manufactures or ill-suited models.
12. Ensure that the connection between the battery
charger and battery is correctly positioned and
is not obstructed by foreign bodies.
13. Keep battery charger’s slots free of foreign
objects and protect against dirt and humidity.
Store in a dry and frost-free place.
14. When charging batteries, ensure that the battery
charger is in a well-ventilated area and away
from inflammable materials. Batteries can get
hot during charging. Do not overcharge any
batteries. Ensure that batteries and chargers are
not left unsupervised during charging.
15. Do not recharge non-rechargeable batteries, as
they can overheat and break.
16. Longer life and better performance can be
obtained if the battery pack is charged when the
air temperature is between 18oCand 24oC. Do
not charge the battery pack in air temperatures
below 0oC, or above 40oC.This is important as it
can prevent serious damage to the battery pack.
17. Charge only battery pack of the same
model provided by WORX and of models
recommended by WORX.

Battery charger WA3772
3

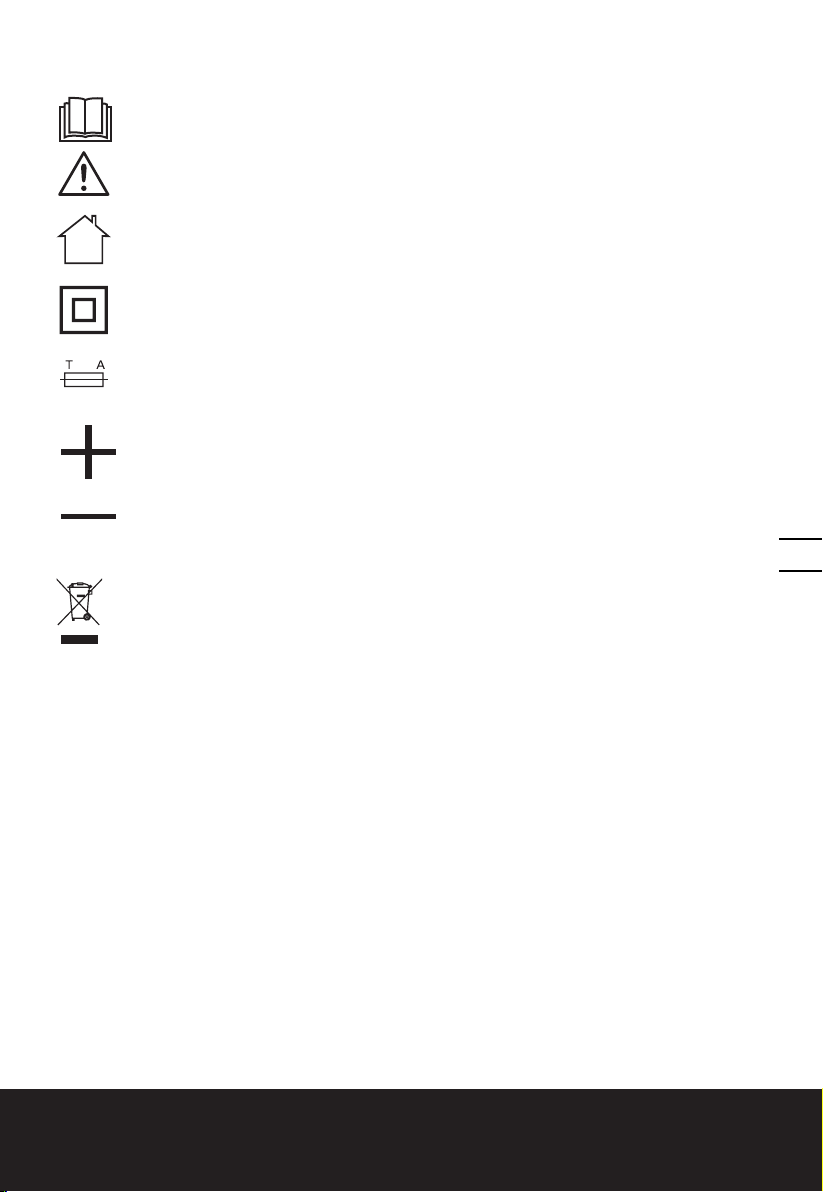

Read the operator’s manual
Warning
For indoor use only
Double insulation
Fuse
Positive terminal
Negative terminal
Waste electrical products must not be
disposed of with household waste.
Please recycle where facilities exist.
Check with your local authorities or
retailer for recycling advice.
SYMBOLS
3.15

Battery charger WA3772
4
1
23

Battery charger WA3772
5

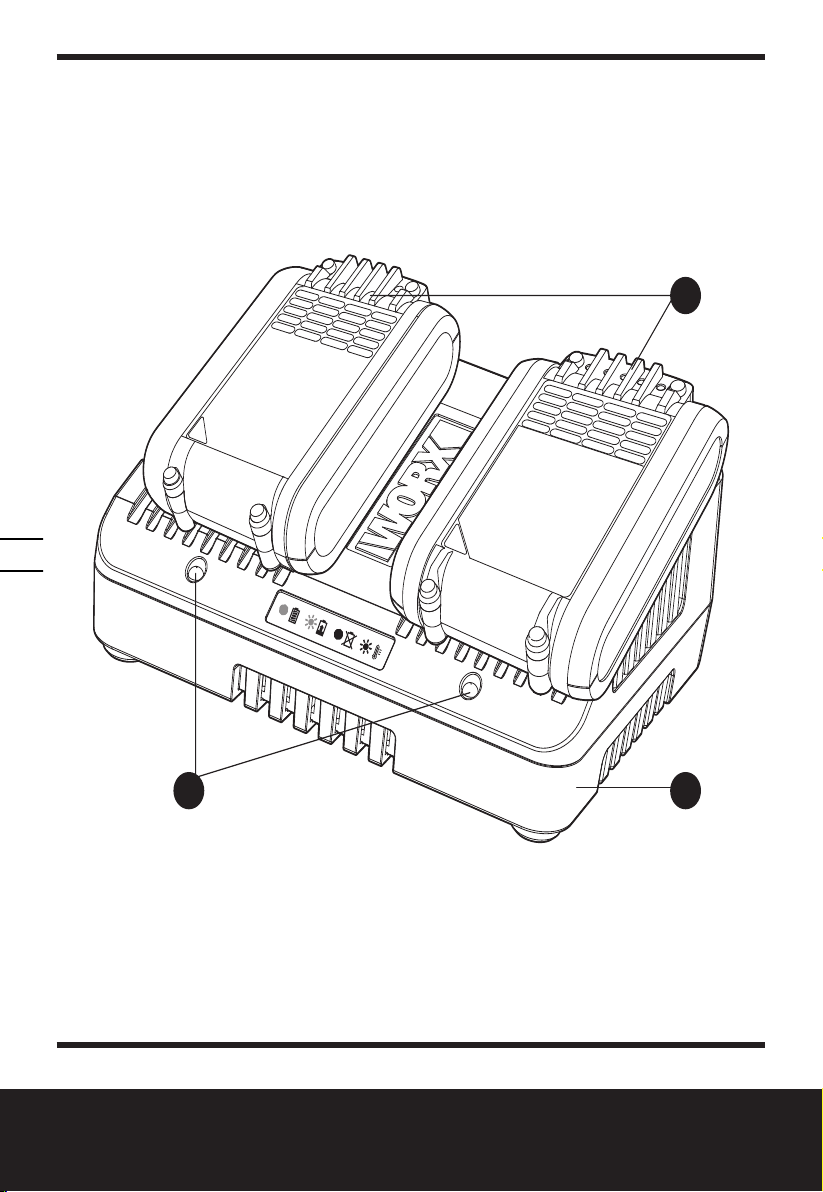

1. BATTERY PACK*
2. CHARGER
3. CHARGE INDICATOR LIGHT
*Not all the accessories illustrated or
described are included in standard delivery.
We recommend that you purchase your accessories
listed in the above list from the same store that
sold you the battery charger. Refer to the accessory
packaging for further details. Store personnel can
assist you and offer advice.
TECHNICAL DATA
Rated Input voltage 100-240V~50/60Hz
Output voltage 20V
Charging current 2A
Rated Input power 50W
Charge battery Li-Ion
Charging time (approx.)
Battery pack
2.0Ah(1pc) Approx. 65mins
2.0Ah(2pcs) Approx. 130mins
4.0Ah(1pc) Approx. 130mins
4.0Ah(2pcs) Approx. 260mins
Protection class /II
Machine weight 0.5kg
For the technical data of the types, the number of
cells and the rated capacity of the batteries that
can be charged, please refer the nameplate of the
battery pack supplied by WORX.
CHARGING PROCEDURE
NOTE: Before using the tool, read the
instruction book carefully.
CHARGING INSTRUCTIONS
1. CHARGING YOUR BATTERY PACK
The charger is designed to charge two battery packs
at the same time as well as charge one by one.
WARNING: The charger and battery pack are
specifically designed to work together so do
not attempt to use any other devices. Never insert
or allow metallic objects into your charger or battery
pack connections because an electrical failure and
hazard will occur.
2. BEFORE USING YOUR CORDLESS TOOL
Your battery pack is UNCHARGED and you must
charge once before use.
3. HOW TO CHARGE YOUR BATTERY
CHARGING PROCEDURE
1) Plug the charger into an appropriate outlet.
2) Slide one battery pack or two battery packs
into the charger. Normally, the relevant charge
indicator light (3) will flash in green color
showing the battery is being charged.
WARNING: When battery charge runs
out after continuous use or exposure
to direct sunlight or heat, allow time for the
battery to cool down before re-charging to
achieve the full charge.
CHARGING INDICATOR
This charger is designed to detect some problems
that can arise with battery packs. Indicator lights
indicate problems (see table below). If this occurs,
insert a new battery pack to determine if the charger
is OK. If the new battery charges correctly, then the
original pack is defective and should be returned
to a service center or recycling service center. If the
new battery pack displays the same problem as the
original Battery Pack, have the charger tested at an
authorized service center.
Light ON/ Flash Status
Red on
Defective Battery
Red flash
- - - - -
BatteryTemperature
Protection
The temperature of
battery pack is less
than 0oC or more than
45oC.

Battery charger WA3772
6
Green on
Fully Charged
Green flash
- - - - - - Charging
BATTERY TEMPERATURE PROTECTION
This charger has a battery temperature protection
feature. When the charger detects a battery pack that
is too hot or cold (the light will be red and flash), it
automatically activates the protection circuit, and
suspends charging until the battery pack has reached
the correct temperature.The charging process will
then automatically begin (the light will be green and
flash).This feature ensures maximum battery life.
LEAVING THE BATTERY PACK IN THE CHARGER
If a fully charged battery pack is left in the charger,
the Light will remain green.The battery pack will
remain charging with a maintenance trickle current.
DEFECTIVE BATTERY PACKS
This charger will detect a defective battery pack.
When a defective battery pack is inserted into the
charger, the charger will try to repair it.This process
will last about 30mins (the light will be green and
flash). If the repair is successful, the charger will
automatically begin to charge the battery pack to the
highest capacity possible (the light will be green and
flash). If the light becomes solid red, the battery pack
is dead.
NOTE: Repaired battery packs are still usable but
should not be expected to perform as much work as
new battery packs.
IMPORTANT CHARGING NOTES:
1. For a new battery or a battery that has been
in storage for sometime, please recharge the
battery before use. If you want to store the
battery for a long time, please fully charge the
battery pack to ensure maximum battery life.
2. Longer life and better performance can be
obtained if the battery pack is charged when
the air temperature is between (180-240C). Do
not charge the battery pack in air temperatures
below 00C, or above 400C.This is important as
it can prevent serious damage to the battery
pack.
3. Never freeze your charger or immerse charger
in water or any other liquid.
4. When the battery pack fails to produce sufficient
power on jobs that were previously done easily,
please recharge your battery, do not continue
to use under this condition.You may charge a
partially used pack whenever you desire with no
adverse affect on the battery pack.
5. When charging it is normal that the charger and
battery pack may become warm to touch.
6. If the battery pack does not charge properly:
a. Check current at power outlet by plugging in
another appliance.
b. Plug and unplug to check whether the charger is
ok
c. Check whether the battery has been damaged
d. Move the charger and battery pack to a location
where the surrounding air temperature is
approximately 180-240C.
e. If the charging problem persists, take the tool,
battery pack and charger to an authorized
service center.
f. Under certain conditions, when the charger is
plugged into the power supply, the exposed
charging contacts inside the charger can be
shorted by foreign material. Foreign materials
of a conductive nature such as metallic particles
should be kept away from charger cavities.
Always unplug the charger from the power
supply when there is no battery pack in the
charger or before attempting to clean.
PROBLEM SOLUTION
I CANNOT FIT THE BATTERY INTO THE
BATTERY CHARGER. WHY?
a) Check if the charger and the battery pack are
specifically designed for working together.
b) The battery can be inserted into the charger only
in one direction.Turn the battery around until it
can be inserted into the slot, the indicator light
should be green and flash when the battery is
charging.
REASONS FOR DIFFERENT CHARGING TIMES
The charging time can be affected by many reasons
which are not defects in your product.
a) If the battery pack is only partly discharged it may
be re-charged in less than rated charging time.
b) If the battery pack and ambient temperature are
very cold/ hot, it may take longer to re-charge.
Please find an appropriate environment with
proper air temperature to start charging.
c) If the battery pack is very hot, remove battery
pack from the charger and allow battery pack
to cool first to ambient temperature and then
recharging can be started.
MAINTENANCE
Remove the plug from the socket before
carrying out any adjustment, servicing or
maintenance.
Your battery charger requires no additional lubrication
or maintenance. Never use water or chemical cleaners

Battery charger WA3772
7
to clean your charger. Wipe clean with a dry cloth.
Always store your charger in a dry place.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
local authorities or retailer for recycling advice.
PLUG REPLACEMENT
(ONLY FOR REWIRABLE
PLUG OF UK & IRELAND)
If you need to replace the fitted plug then follow the
instructions below
IMPORTANT
The wires in the mains lead are colored in
accordance with the following code
BLUE =NEUTRAL
Brown = Live
As the colors of the wires in the mains lead of this
appliance may not correspond with the colored
markings identifying the terminals in your plug,
proceed as follows.The wire which is colored blue
must be connected to the terminal which is marked
with N.The wire which is colored brown must be
connected to the terminal which is marked with L.
WARNING: Never connect live or neutral
wires to the earth terminal of the plug. Only
fit an approved 3ABS1363/A plug and the correct
rated fuse.
NOTE: If a moulded plug is fitted and has to be
removed take great care in disposing of the plug
and severed cable, it must be destroyed to prevent
engaging into a sock
C
onnec t
Blue to N
(neutral)
Outer sleev e
firml
y
clam
p
ed
Cable grip
Brown L (live)
3Amp fuse approv
e
to BS1362
DECLARATION OF
CONFORMITY
We,
Positec Germany GmbH
Grüner Weg 10, 50825 Cologne, Germany
Declare that the product,
Description WORX Battery Charger
Type WA3772
Complies with the following Directives,
2014/35/EU
2014/30/EU
2011/65/EU&(EU)2015/863
Standards conform to
EN 60335-1
EN 60335-2-29
EN 62233
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3,
2020/02/17
Allen Ding
Deputy Chief Engineer,Testing & Certification
PositecTechnology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

Copyright © 2020, Positec. All Rights Reserved.
AR03024401
www.worx.com
After-sales Service and Application
At www.worx.com you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: 0345 202 9679
E-Mail: [email protected]
