OWNERS MANUAL
MAN61 (ECN5680) 10/99 WB 2C
THIS MANUAL MUST BE GIVEN TO THE EQUIPMENT OWNER.
CISSELL MANUFACTURING COMPANY
HEADQUARTERS PHONE: [phone]
831 SOUTH FIRST ST. SALES FAX: [phone]
P.O. BOX 32270 SERVICE/PARTS FAX: [phone]
LOUISVILLE, KY 40232-2270
Vacuum
Spotting
Board
Model A

Page2
WARRANTY
The Cissell Manufacturing Company (Cissell) warrants all new equipment (and the original parts thereof) to be free from
defects in material or workmanship for a period of one (1) year from the date of sale thereof to an original purchaser for
use, except as hereinafter provided. With respect to non-durable parts normally requiring replacement in less than one (1)
year due to normal wear and tear, including, but not limited to, cloth goods, valve discs, hoses, and iron cords, and with
respect to all new repair or replacement parts for Cissell equipment for which the one (1) year warranty period has expired,
or for all new repair or replacement parts for equipment other than Cissell equipment, the warranty period is limited to ninety
(90) days from date of sale. The warranty period on each new replacement part furnished by Cissell in fulfillment of the
warranty on new equipment or parts shall be for the unexpired portion of the original warranty period on the part replaced.
With respect to electric motors, coin meters and other accessories furnished with the new equipment, but not manufactured
by Cissell, the warranty is limited to that provided by the respective manufacturer.
Cissell's total liability arising out of the manufacture and sale of new equipment and parts, whether under the warranty or
caused by Cissell's negligence or otherwise, shall be limited to Cissell repairing or replacing, at its option, any defective
equipment or part returned f.o.b. Cissell's factory, transportation prepaid, within the applicable warranty period and found
by Cissell to have been defective, and in no event shall Cissell be liable for damages of any kind, whether for any injury
to persons or property or for any special or consequential damages. The liability of Cissell does not include furnishing (or
paying for) any labor such as that required to service, remove or install; to diagnose troubles; to adjust, remove or replace
defective equipment or a part; nor does it include any responsibility for transportation expense which is involved therein.
The warranty of Cissell is contingent upon installation and use of its equipment under normal operating conditions. The
warranty is void on equipment or parts; that have been subjected to misuse, accident, or negligent damage; operated under
loads, pressures, speeds, electrical connections, plumbing, or conditions other than those specified by Cissell; operated or
repaired with other than genuine Cissell replacement parts; damaged by fire, flood, vandalism, or such other causes beyond
the control of Cissell; altered or repaired in any way that effects the reliability or detracts from its performance, or; which
have had the identification plate, or serial number, altered, defaced, or removed.
No defective equipment or part may be returned to Cissell for repair or replacement without prior written authorization from
Cissell. Charges for unauthorized repairs will not be accepted or paid by Cissell.
CISSELL MAKES NO OTHER EXPRESSED OR IMPLIED WARRANTY, STATUTORY OR OTHERWISE,
CONCERNING THE EQUIPMENT OR PARTS INCLUDING, WITHOUT LIMITATION, A WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE, OR A WARRANTY OF MERCHANTABILITY. THE
WARRANTIES GIVEN ABOVE ARE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED. CISSELL NEITHER ASSUMES, NOR AUTHORIZES ANY PERSON TO
ASSUME FOR IT, ANY OTHER WARRANTY OR LIABILITY IN CONNECTION WITH THE
MANUFACTURE, USE OR SALE OF ITS EQUIPMENT OR PARTS.
For warranty service, contact the distributor from whom the Cissell equipment or part was purchased. If the distributor
cannot be reached, contact Cissell.

Page3
TABLE OF CONTENTS
Warranty ............................................................................................................................... 2
Table of Contents .................................................................................................................. 3
Dimension Drawings ............................................................................................................ 4
Installation Illustration.......................................................................................................... 5
Specifications........................................................................................................................ 6
Installation of Steam Lines ................................................................................................... 6
Mechanical Operation........................................................................................................... 7
Mechanical Maintenance ...................................................................................................... 7
Operating Instructions ..........................................................................................................8
Adjustment of Wet and Dry Steam Valves ........................................................................... 9
Illustrated Parts
Overall View ......................................................................................................................... 10-11
Large Board .......................................................................................................................... 12
Swinging Sleeve Board ........................................................................................................ 13
Spotting Gun and Hose......................................................................................................... 14
Chemical Tray ...................................................................................................................... 15
Steam Chamber and Valve Assembly ................................................................................... 16-17
Base Assembly...................................................................................................................... 18
Central Air Vacuum ..............................................................................................................19
Steam Vacuum ...................................................................................................................... 20
Head Valves & Service Instructions ..................................................................................... 21
Trouble Shooting Chart ........................................................................................................ 22

Page4
VACUUM SPOTTING BOARD
MODEL A
GENERAL SPECIFICATIONS

Page5
VACUUM SPOTTING BOARD
MODEL A
INSTALLATION ILLUSTRATION
USE IMPULSE TRAP AND
STRAINER FOR WET
LINE CONDITIONS

Page6
SPECIFICATIONS - VACUUM SPOTTING BOARD
Net Weight ........................................................................................... 235 lb (107 kg)
Domestic Shipping Weight (1 Carton) ................................................ 280 lb (127 kg)
Export Shipping Weight (1 Box) ......................................................... 435 lb (197 kg)
Export Shipping Dimensions .............................................................. 47" (1194 mm) H, x 53" 1346 mm) L,
x 20" (508 mm) W
Export Crate Volume ........................................................................... 29 Cu. Ft. (0.821 m3)
Floor Space .......................................................................................... 20" (508 mm) x 48" (1219 mm)
Table Height (Adjustable) ................................................................... 37" (940 mm) to 44" (1118 mm)
Length of Working Surface.................................................................. 38" (965 mm)
Width at Front End of Large Board ..................................................... 6 1/2" (165 mm)
Width at Rear End of Large Board ...................................................... 12 1/2" (318 mm)
Width at Front End of Swinging Sleeve Board ................................... 2 1/2" (64 mm)
Width at Rear End of Swinging Sleeve Board .................................... 4" (102 mm)
Boiler Horsepower (approximate) ....................................................... 1 1/4
Operating Steam Pressure.................................................................... 100 psi max. (6.9 Bars)
Steam Supply Connection ................................................................... 1/2" Pipe (DN15)
Steam Return Connection.................................................................... 1/2" Pipe (DN15)
Vacuum Outlet Connection ................................................................. 1 1/4" Pipe (DN32)
Vacuum Requirement .......................................................................... 1 Press capacity (1/2 Hp.)
NOTE: An air compressor is required for the heated compressed air feature. A 1 hp. (746W) compressor
delivering 6 (2.8 I/s) to 8 (3.8 I/s) cfm at 80 (356N) to 125 (556N) lbs. pressure will accomodate one board;
a 1 1/2 hp. (1119W) compressor will accomodate two boards.
INSTALLATION OF STEAM LINES
Steam supply line must fall towards machine (without water pockets.) Connect spotting board to steam
supply line with union, globe valve and 12" (or more) riser, as illustrated on previous page. If spotting board
is located at the end of stream line, extend line at least 4 feet beyond machine, and install a by-pass trap and
check valve as illustrated in dotted lines; if gravity return, omit trap.
Steam return line must fall towards boiler (without water pockets). Connect spotting board to steam return
line with a swing connection, unions, strainer, trap, check valve and 12" (or more) riser as illustrated on rever
se side. Inspect trap carefully for inlet and outlet markings and install swing connection, trap, and check valve
as close to machine as possible with trap as close to floor as practical.
Use a separate trap for the spotting board; keep it clean and in good working condition for best performance.
If steam line is gravity returned to boiler, omit trap.
IMPORTANT: Before installing trap and connecting steam return line, open globe valve in steam supply
connection and flush pipe dope, borings and other foreign matter, from steam connections and steam chamber
within spotting board. Failure to do this may later cause trap trouble.

Page7
VACUUM SPOTTING BOARD
VACUUM SPOTTING BOARD MECHANICAL OPERATION
Vacuum draws uniformly through the screen area on the nose of the board and the nose of the swinging sleeve board
by pressing on the middle foot pedal. By pushing the swinging sleeve board back, the vacuum operates on the nose of
the large board. By pulling the swinging sleeve board forward, vacuum operates on its nose. Changing the position of
the swinging sleeve board operates a self-cleaning valve which gives full unrestricted passage for vacuum at all times.
Steam is released from the spotting gun by pressing the left foot pedal as follows: a slight touch releases a feather of
dry steam; partly down releases dry steam; half-way down releases moist steam; completely down releases wet steam.
CAUTION: The steam emitted from the spray gun is very hot. Burns to face and hands may result from contact with
live steam.
Hot air for drying is released from the spotting gun by pressing the right foot pedal.
Automatic check valve releases all chemicals and water from vacuum chamber to an extra large drain recepticle. No
pipe line or sewage connection is needed.
Adjustable board for operator comfort from 37" to 44" in height. Loosen knob near top of the column, slide top
assembly up or down to desired height, then tighten knob.
MECHANICAL MAINTENANCE
CLEANING LARGE PAN ASSEMBLY
Lift chemical tray and large vitrelite glass from board.
Tap off nose band and perforated metal, clean with steam gun.
Clean pan of all dirt, lint and chemicals.
Open drain holes with a hairpin or pointed instrument. It is important that these drain holes are open in order that the
vacuum can extract any liquids that form in the pan.
CLEANING SWINGING ARM ASSEMBLY
Lift out small green vitrelite glass by finger hole at back of pan.
Remove perforated metal.
Clean with steam gun.
Clean pan or all dirt, lint and chemicals (use steam gun).
Open drain holes (in pan) with a hairpin or pointed instrument.
VACUUM SEAL
The rubber air-foam gasket around pipe of top assembly at top of column is a seal to help create a stronger vacuum.
Should this gasket become loose, re-cement into position.
CHECK VALVE
Inspect and clean check valve located above drain receptacle. Liquids separated from the vacuum exhaust within the
column are automatically drained from board by check valve.
Lift drain receptacle up and out for emptying.
UPPER AND LOWER SLIDE
A few drops of oil on the upper and lower slides of the swinging arm assembly will permit easier
operation.

Page8
SPOTTING BOARD OPERATING
INSTRUCTIONS
FOR REMOVING SPOTS
Place garment in position over screened area of board so that spot is
directly over the vacuum ring area. On tight-fitting sleeves, cuffs,
neckties, etc. when it is impossible to use the large board, use the
swinging sleeve board by swinging it forward and use it as you
would the larger board.
1. With garment in position, using one foot, press both the
vacuum (left) and steam (center) foot pedals all the way
down. The vacuum will hold the garment in place.
CAUTION: Be sure to have the spotting gun pointed
away from your face or body as live steam is very hot
and may cause burns.
2. Place gun in position approximately two inches above
material.
3. Now, with gun in rotary motion (heavy arrows), spray
wet steam downward straight through spotted area.
Ample wet steam under pressure dissolves water-
soluable spots instantly. Concentrated vacuum keeps
wetted area from spreading as it draws the wet steam
through the garments (light arrows).
FOR DRYING
4. With one foot, press both vacuum pedal and air pedal
all the way down and clear moisture from gun before
starting to dry.
5. Hold gun only the width of gun nozzle above garment.
6. Now, move gun in a zig-zag motion sweeping it
rapidly back and forth across wetted area for
drying (heavy arrows). Actually, excess moisture is
blown out with compressed air, and wetted area is
dried rapidly with the strong suction from the
concentrated vacuum.

Page9

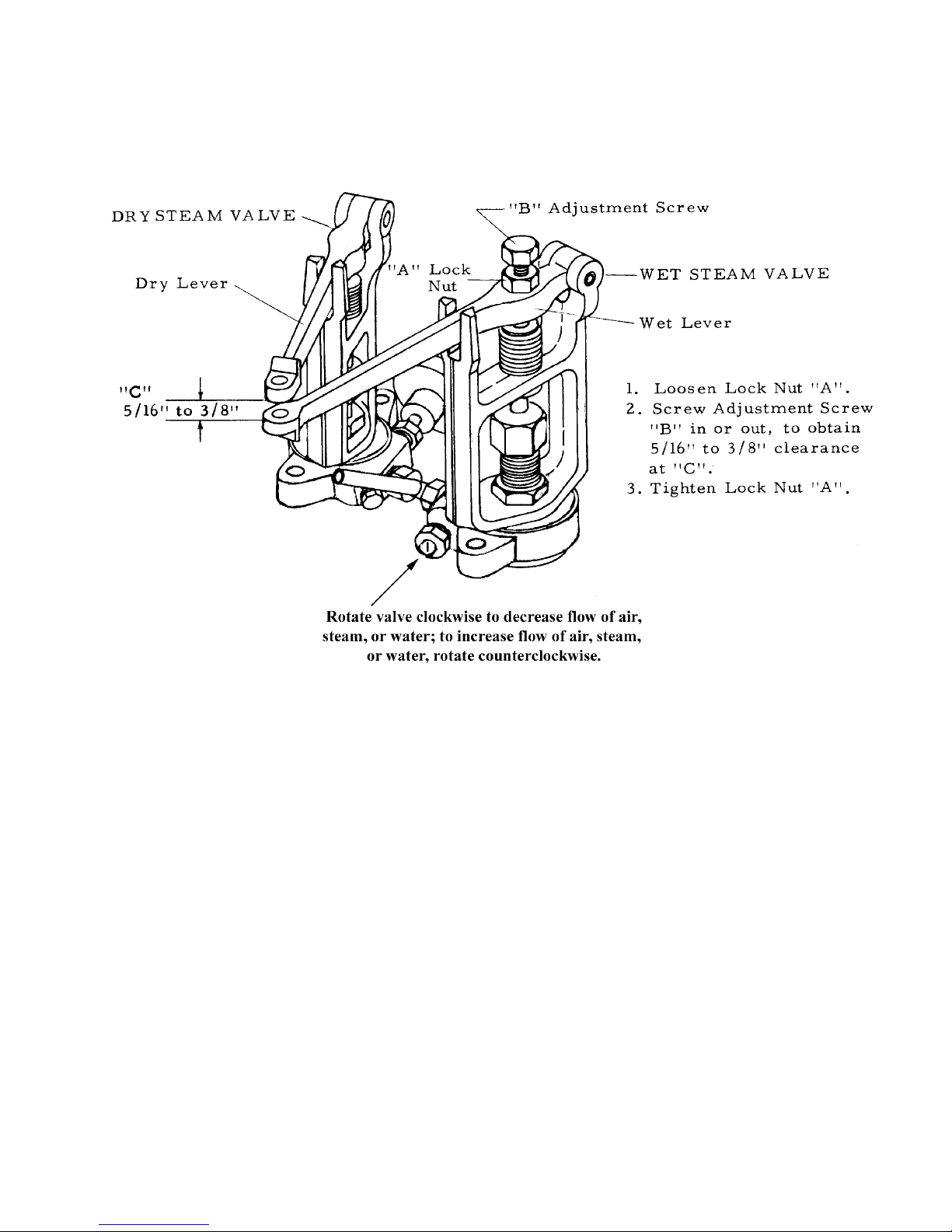

INSTRUCTIONS FOR ADJUSTING WET AND DRY STEAM VALVES

Page10
VACUUM SPOTTING BOARD
MODEL A
PARTS & ASSEMBLY

Page11
Ref. No. Part No. Description
1 ---- See Page 11
2 ---- See Page 14
3 VSB20 Gasket
4 VSB9 Upper Stainless Plate
5 VSB18 Spacer (3 reqd)
6 ---- See Page 12
7 VSB109 Pipe & Lower Plate
8 VSB47 Rubber Seal
9 VSB16 Gasket
10 VSB5 Vacuum Chamber Casting
11 ---- See Page 19
12 F1116 Ser. No. Tag
13 ---- See Pages 15-16
14 SF22 Knob
15 VSB158 Tray Bucket w/ Thumb Screws
16 VSB105 Tray Rod
17 SF28 Tray Cover
18 VSB59P Drain Receptacle
19 VSB48 Check Valve Assembly
20 VSB2 Column
21 ---- See Page 17
22 VSB31 16" Pedal Rod
23 ---- See Page 18
24 VSB170 Rubber Gasket
25 J10 3/16 x 3 Eye Bolt
26 VSB154 #10-24 Wing Nut
27 M263 #8-3/8" Sheet Metal Screw
28 FB124 5/16 Hex. Hd. Cap Screw
29 TU2814 5/16 Lock Washer
30 VSB130 5/16 Cut Washer
31 VSB87 5/16 - 8 x 3" Bolts
32 IB145 5/8 - 11 Hex. Nut Sq.
33 VSB88 5/16 - 18 Hex. Hd. Cap Screw
34 IB10 5/16 - 18 Thumb Screw
35 IB139 3/8 - 16 Hex. Hd. Cap Screw
36 C249 5/16 - 18 Hex Nut

Page12
VACUUM SPOTTING BOARD
MODEL A
LARGE PAN PARTS
Ref. No. Part No. Description
1 VSB182 Spotting Nose w/Band & Spring
2
3 VSB22 Large Perforated Nose
4 VSB204 Large White Glass w/Pads
5 VSB176 Front Pad Only
6 VSB173 Rear Pad Only
7 VSB15 Drip Cup Casting
8 VSB52 Large Pan Complete
9 VSB95 5/16 - 18 Rd. Hd. Screw
10 VSB171 5/16 Lead Washer
11 VSB155 1/4 - 20 Flat Hd. Screw
12 PT355 1/4 - 20 Hex. Nut
VSB65 - Large Pan Assembly includes
Part Nos. 1,3,4,8, & Chemical Tray (VSB54)

Page13
SWINGING SLEEVE BOARD
Ref. No. Part No. Description
1
2 VSB188 Small Nose Asm.
3 VSB57 Sleeve Pan
4 VSB203 Small White Glass w/Pads
5 VSB173 Pad
6 VSB28 Gasket
7 VSB69 Elbow Slide Assy
8 VSB7 Upper Slide
9 VSB19 Rubber Sleeve
10 PT357 1/4 - 20 x 3/4" Hex. Hd. Screw
11 TU2846 1/4 - 20 Split Lockwasher
12 TU4934 1/4 - 20 Hex. Nut
13 VSB153 3/8 - 24 x 1" Hex. Hd. Cap Screw
14 VSB135 3/8 - 24 Hex. Nut
VSB60 - Swinging Sleeve Board Assembly includes
all parts shown except Part Nos. 8 & 9.

Page14
STEAM SPOTTING GUN & HOSE ASSEMBLY - SU68
STEAM SPOTTING GUN ONLY - SU49
REPAIR KIT - SKS49 - Includes parts to repair one spray
gun. Parts in Kit marked (*).

Page15

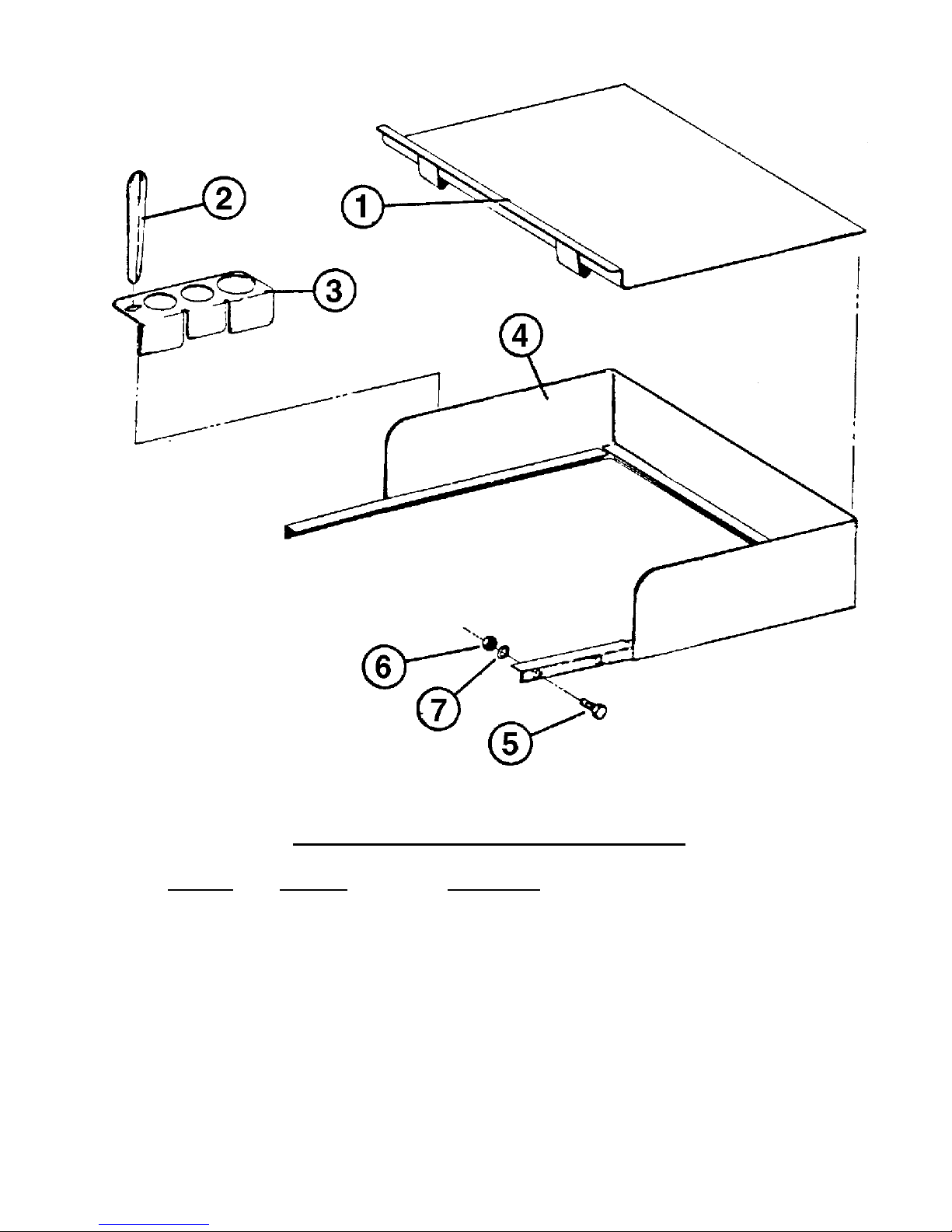

CHEMICAL SOLUTIONS TRAY PARTS
Ref. No. Part No. Description
1 VSB54 Solutions Tray
2 VSB45 Spatula
3 VSB44 Brush Holder
4 VSB53 Back Frame Assembly
5 PT357 1/4 - 20 x 3/4" Hex. Hd. Cap Screw
6 PT355 1/2 - 20 Hex. Nut
7 F860 1/4 Split Lock Washer

Page16

Page17
STEAM CHAMBER & VALVE ASSEMBLY COMPLETE (AIR VACUUM) - VSB180
STEAM CHAMBER & VALVE ASSEMBLY COMPLETE (STEAM VACUUM) - VSB186
Ref. No. Part No. Description
1 SU35H Valve (Dry) (2 reqd.)
2 SU34H Valve (Wet)
3 OP273 Strainer
4 V18K Gasket (set of 6)
5 FB38 Dummy Valve Assy.
7 PU8 1/4" Compression Bead
8 SU65 1/4" Compression Nut
9 VSB124 Triple Connector
10 SU26 Tee Connector
11 VSB400 Steam Chamber Assembly (less valves)
12 J36 1/2" Pipe Plug
13 TU4612 3/4" Pipe Plug
14 P101 3/8" Pipe Plug
15 V51 5/16 - 24 Hex Hd. Cap Screw
16 V56 5/16 - 24 Hex Nut
17 FB189 1/4 - 20 x 1 Hex Hd. Cap Screw
18 TU2847 1/4" I.D. Cut Washer
19 SU62 Water Tube & Cup
20 VSB30 Head Valve (Steam Vacuum Only)
21 SU56 Cup
22 SB89 Copper Mesh
VSB180 Steam Chamber & Valve Assembly Complete
(Air Vacuum)
VSB186 Steam Chamber & Valve Assembly Complete
(Steam Vacuum)
*
**
Used with air vacuum models only
Consists of parts: 3, 4, 12, 13, 14, 19, chamber casting with copper filter and cup.
VSB62 Consists of 1, 2, 7, 8, 9, 10
VSB125 - Triple connection consists of: 7, 8, 9, 10
*
**

Page18

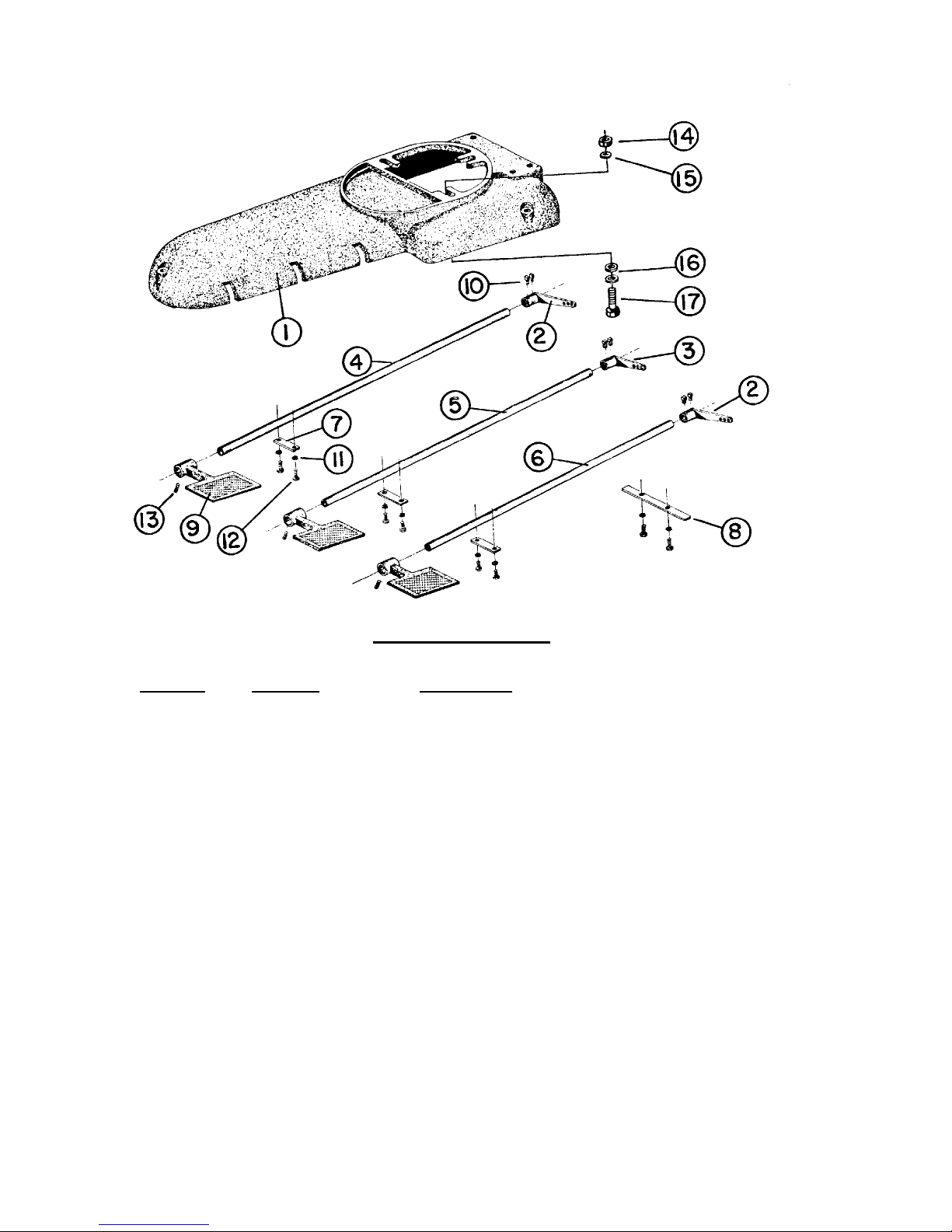

BASE ASSEMBLY
Ref. No. Part No. Description
1 VSB1 Base Casting
2 VSB3 Lever Assy. (2 reqd.)
3 FB3 Lever Assy.
4 VSB68 Pedal Rod 31"
5 VSB67 Pedal Rod 26"
6 VSB80 Pedal Rod 21"
7 VSB17 Strap (3 reqd.)
8 VSB79 Strap (1 reqd.)
9 FB2 Pedal (3 reqd.)
10 LB48 1/4 - 20 x 3/4" Sq. Hd. Set Screw
11 TU2846 1/4 Split Lock Washer
12 CB36 1/4 - 20 x 1/2" Hex. Hd. Cap Screw
13 J21 1/4 - 20 x 5/8" Sq. Hd. Set Screw
14 VSB135 3/8 - 24 Hex Nut
15 IB140 3/8 Cut Washer
16 VSB134 3/8 Lock Washer
17 VSB132 3/8 - 24 x 2 1/2" Hex. Bolt

Page19

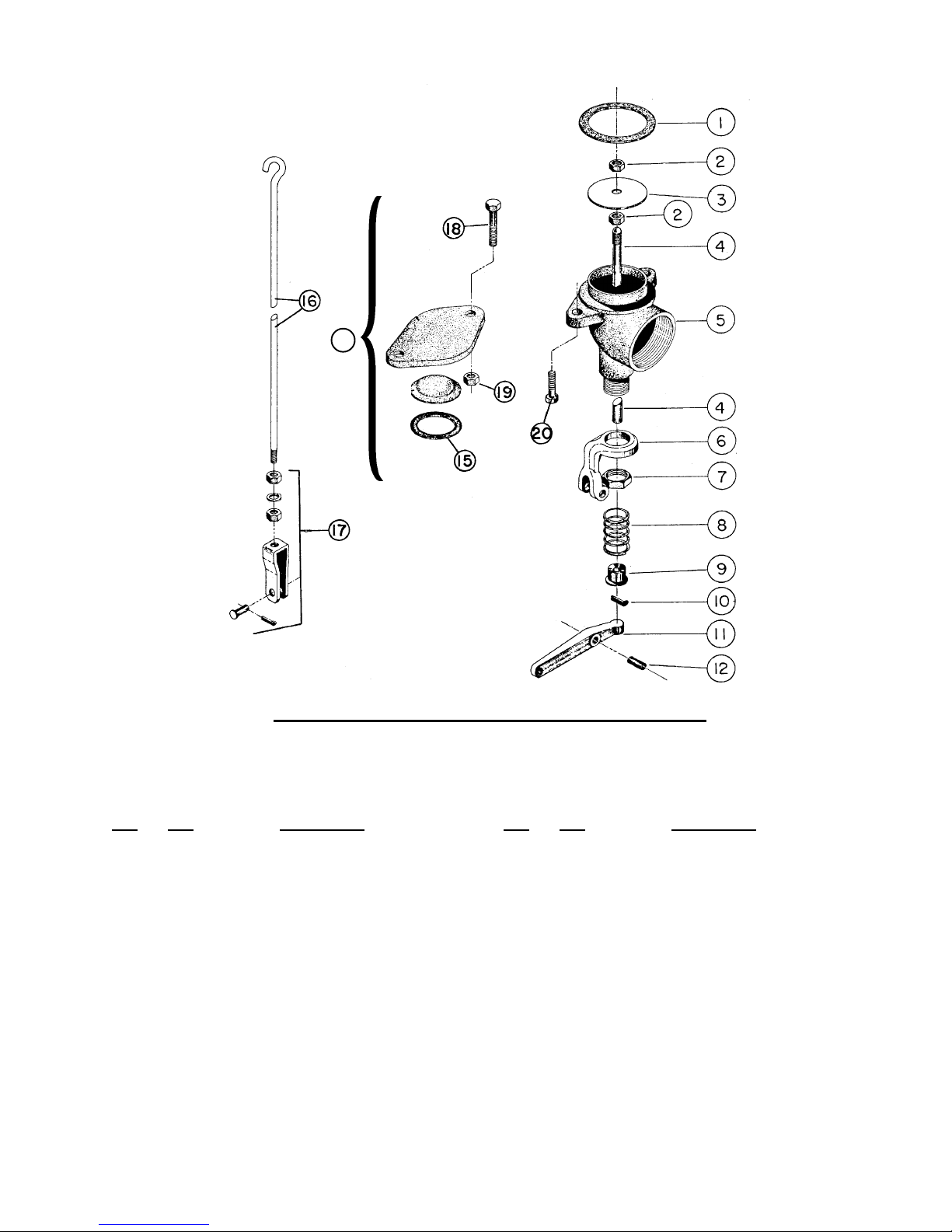

CENTRAL AIR VACUUM PARTS - VSB114
(VSB114 - Assembly does not include nos. 15, 18, 19)
Ref. Part
No. No. Description
1 FB32 Gasket
2 V15 Small Lock Nut
3 FB16 Disc
4 VA4 Valve Stem
5 FB229 Air Vacuum Body
6 SF15 Fork
7 OP547 Large Lock Nut
8 V345 Spring (45 Lb.)
9 V12 Gland
10 V2 Cottor Pin
Ref. Part
No. No. Description
11 FB15 Lever
12 VSB128 Roll Pin
13 FB381 Dummy Valve Assy.
15 V18 Gasket
16 FB931 Pedal Rod
17 SF49 Yoke Assy.
18 V51 5/16 - 24 Hx. Hd.
Cap Screw
19 V56 5/16 - 24 Hex Nut
20 FB124 5/16 - 18 Hex. Hd
Cap Screw
13

Page20
VSB-115 - STEAM VACUUM PARTS - CONSISTS OF PARTS 1-13
FB80 STEAM VACUUM VALVE W/VENTURI
CONSISTS OF PARTS REF. NOS. 1, 2, 3, 4, 8, 13
Ref. No. Part No. Description
1 FB32 Gasket
2 FB9 Steam Vacuum Body
3 FB12 Orifice
4 FB11 Venturi
5 VSB29 3/8" Copper Tubing
6 SF117 3/8" Compression Bead
7 SF120 3/8" Compression Nut
8 SF46 1/4" MPT x 3/8" Tube Elbow
9 VSB30 Steam Vacuum Valve
10 VSB31 16" Pedal Rod
11 J10 3/16 - 3 Eye Bolt
12 VSB154 #10 - 24 Wing Nut
13 FB124 5/16 - 18 Hex Hd. Cap Screw
