Installation plan
Commercial ironer (gasheating)
PRI318G
PRI418G
PRI421G
Always read the operating instructions before
setting up, installing and commissioning the ma-
chine. This prevents both personal injury and
damage to the machine.
en-GB
M.-Nr. 11 470 430

Contents
2
Installation notes ............................................................................................................. 4
Installation requirements ................................................................................................... 4
Operating conditions ......................................................................................................... 4
Floor anchoring ................................................................................................................. 4
Electrical connection ......................................................................................................... 4
Gas connection ................................................................................................................. 5
Waste gas duct ................................................................................................................. 6
Pipe length and pipe diameter .......................................................................................... 6
Determining the total pipe lengths and pipe diameters ................................................ 6
Substitute pipe lengths ................................................................................................. 7
Permissible total pipe lengths ....................................................................................... 8
Ducting requirements.................................................................................................... 8
Take these safety precautions if you smell gas................................................................. 8
1. What needs to be observed before commissioning...................................................... 9
Setup site ...................................................................................................................... 9
Required flow rate......................................................................................................... 10
Natural gas .................................................................................................................... 10
Liquid gas...................................................................................................................... 10
Exhaust gas evacuation ducts ...................................................................................... 11
Exceptions .................................................................................................................... 11
Exhaust air and supply air ducting cross-sections ....................................................... 12
Exhaust gas values ....................................................................................................... 12
Room ventilation opening for air intake from the setup room....................................... 12
2. What needs to be observed during commissioning...................................................... 13
Connection and conversion instructions ...................................................................... 14
PRI318G (gas heating).................................................................................................... 17
Dimensions........................................................................................................................ 17
Installation ......................................................................................................................... 18
Installation ......................................................................................................................... 19
Technical data ................................................................................................................... 20
Voltage variants/electrical data ..................................................................................... 20
Gas connection............................................................................................................. 20
Vent connection ............................................................................................................ 20
Dimensions/weight........................................................................................................ 21
Emissions data.............................................................................................................. 21
Floor anchoring ............................................................................................................. 21
PRI418G (gas heating).................................................................................................... 22
Dimensions........................................................................................................................ 22
Installation ......................................................................................................................... 23
Installation ......................................................................................................................... 24
Technical data ................................................................................................................... 25
Voltage variants/electrical data ..................................................................................... 25
Gas connection............................................................................................................. 25
Vent connection ............................................................................................................ 25
Dimensions/weight........................................................................................................ 26
Emissions data.............................................................................................................. 26
Floor anchoring ............................................................................................................. 26
PRI421G (gas heating).................................................................................................... 27
Dimensions........................................................................................................................ 27

Contents
3
Installation ......................................................................................................................... 28
Installation ......................................................................................................................... 29
Technical data ................................................................................................................... 30
Voltage variants/electrical data ..................................................................................... 30
Gas connection............................................................................................................. 30
Vent connection ............................................................................................................ 30
Dimensions/weight........................................................................................................ 31
Emissions data.............................................................................................................. 31
Floor anchoring ............................................................................................................. 31

Installation notes
4
Installation requirements
The flatwork ironer must only be set up by a Miele authorised and trained service techni-
cian or an authorised dealer.
 This flatwork ironer must be installed in accordance with all relevant regulations and
standards. Local energy supplier regulations must also be observed.
 This flatwork ironer must only be operated in a room that has sufficient ventilation and
which is frost-free.
Operating conditions
In general, the operating conditions of DIN60204 and EN60204-1 apply.
- Ambient temperature: +5°C to +40°C
- Humidity: 10% to 85%
- At +21°C ambient temperature, the maximum permissible relative humidity is 70%.
- Maximum height above sea level of location site: 1000m
The ironer must not be operated in the same room as dry-cleaning equipment using
perchloroethylene or solvents containing CFCs.
Collector motor sparking may convert solvent vapours into hydrochloric acid which can
lead to consequential damage.
Ensure adequate ventilation is present in the room in which the ironer is installed whilst it
is being used.
Floor anchoring
Measures to secure the ironer in place on the floor are essential.
The ironer must be secured to the floor after installation using the plugs and screws sup-
plied.
The fittings supplied are for bolting the machine to a concrete floor. For other types of
flooring, please purchase suitable fastening materials separately.
Electrical connection
The electrical connection must be carried out by a qualified electrician who must ensure
that all electrical work is carried out in accordance with applicable regulations and
standards.
It is recommended to connect the ironer to the electrical supply via a suitably rated plug
and socket.
The electrical connection and wiring diagram are located behind the mounting flap of the
right-hand side column.

Installation notes
5
The required voltage, rated load and external fuse rating can be found on the data plate
on the flatwork ironer.
Connection to a supply voltage other than the one quoted on the data plate can lead to
functional faults and damage to the flatwork ironer.
Before connecting the flatwork ironer to the electricity supply, please ensure that the
mains supply voltage complies with the values given on the data plate.
The electrical equipment of the flatwork ironer complies with standards IEC61000-3-12,
IEC/EN60335-1, IEC/EN60335-2-44, ENISO10472-1 and ENISO10472-5.
For ease of servicing and maintenance the ironer should be installed with a suitably rated
plug and socket.
In the case of unfavourable electrical conditions, the flatwork ironer may lead to interfering
voltage fluctuations. If the mains impedance is greater than 0.265ohm at the connection
point to the public mains network, additional measures may be required before the appli-
ance can be properly operated using this connection. The mains impedance can be re-
quested from the local power supply company if necessary.
The plug connector or isolator switch should be easily accessible at all times.
If the flatwork ironer is disconnected from the electricity supply, the disconnector must be
lockable or the point of disconnection must be monitored at all times.
If it is necessary to install a residual current device (RCD) in accordance with the local reg-
ulations, a type-A residual current device can be used.
If the machine is hard wired, an all-pole means of deactivation must be installed. Switches
with a minimum contact gap greater than 3mm are suitable disconnectors. These include
circuit breakers, fuses and contactors (VDE0660).
Gas connection
The gas connection may only be carried out by a registered installation technician in ac-
cordance with the applicable national regulations. In addition, the regulations of the local
gas supply company must be observed.
Service work on gas appliances may only be carried out by suitably qualified persons in
accordance with all applicable safety regulations. Before any service work is com-
menced on the appliance, the machine must immediately be disconnected from the gas
mains.
Follow the installation instructions for the gas connection.
The gas heating is set as standard in accordance with the ironer’s gas rating (see the data
plate on the rear of the machine).
If the gas type needs to be changed, please request the appropriate conversion kit from
the Miele Customer Service Department. When doing so, please have ready the informa-
tion on the type of ironer, the appliance number, gas type, gas group, gas connection pres-
sure and country in which the appliance is installed.

Installation notes
6
Danger due to incorrectly carried out service and repair work.
There is a risk of serious damage, injury and even death if service and repair work is car-
ried out incorrectly.
Never carry out repairs on gas appliances yourself.
If repair work is required, immediately contact the Miele Customer Service Department
or an authorised dealer.
Waste gas duct
The connector for the waste gas duct (120mm) can be found on the back of the ironer
next to the right-hand side column.
Follow the installation instructions.
Make sure that a sufficient air quantity is fed to the room in which the ironer is installed
(e.g. non-lockable ventilation openings).
Pipe length and pipe diameter
Determining the total pipe lengths and pipe diameters
Prior to execution, a decision must be made as to whether flexible piping or metal piping
with a round or square cross-section should be installed.
Tip: Keep the pipeline as short as possible. If feasible, the pipeline should not have any
sharp bends as this impairs the air flow rate.
Ensure adequate ventilation of the room in which the ironer is installed whilst it is being
used (e.g. by means of ventilation openings that cannot be closed).
Fire hazard due to hot exhaust air.
The hot exhaust air can ignite ducting made from non-heat-resistant materials.
Use only heat-resistant materials for the exhaust ducting.
Model Maximum exhaust air temperature (approx.)*
PRI318G 133°C
PRI418G 135°C
PRI421G 130°C
*Data from test diagrams
In upward exhaust ducting systems, a condensate drain must be fitted at the lowest point.
The condensate must be drained via a water collection tray or a floor drain.
If the exhaust from multiple appliances is to be ducted into a combined line, a non-return
device must be installed in each separate line to prevent backflow.
Tip: To make subsequent cleaning of the pipes easier, cleaning flaps should be fitted to el-
bows wherever possible.
Fire hazard due to fluff deposits.
Fluff that settles in the ducting may be ignited by the hot exhaust air.
Remove fluff deposits from the ducting and the exit point to the outside on a regular
basis.

Installation notes
7
Substitute pipe lengths
Type of elbow
Substitute pipe lengths
PRI318/418/421G
(gas-heated)
90°elbow r=2d 1.5m
45°elbow r=2d 0.85m
90°elbow r=d 2.55m
45°elbow r=d 1.4m
90° corrugated pipe elbow
r=2d
2.0m
45° corrugated pipe elbow
r=2d
90° segmented bend
(3 welded seams)
r=2d
1.25m
90° elbow
Westaflex ducting
r=2d
r=4d
0.9m
1.2m
45° elbow
Westaflex ducting
r=2d
r=4d
0.6m
0.75m

Installation notes
8
Permissible total pipe lengths
Minimum internal pipe diameter for metal
pipes
Maximum permissible total pipe length for exhaust air
PRI318/418/421G
(gas-heated)
70mm
80mm
90mm
100mm
110mm
120mm 10m
130mm 14.5m
150mm 30m
180mm 75.5m
200mm
Ducting requirements
Important information about ducting:
- When connecting the ducting to the exhaust connection on an appliance, particular care
must be taken to make sure the connection is secure and air-tight.
- The ducting must not be channelled into a chimney or flue already in use for any gas-,
coal- or oil-burning installation.
- The warm and moist exhaust air is to be conducted to the outside or through suitable
ventilation ducting along the shortest path possible.
- Due to the higher air flow rates, the exhaust ducting must be laid in such a way that air
flow is not hindered (few bends, short pipelines, well-made connections and transitions
checked for air-tightness). Filters and louvres must not be fitted in the ducting.
- The end of ducting leading outside should be protected against the elements, e.g. with a
downward-facing 90° elbow.
Take these safety precautions if you smell gas
- Extinguish any open flames and put out any cigarettes immediately.
- Do not carry out any actions which produce electrical sparks. Do not operate any light
switches, device power switches or bells. Do not pull any electrical plugs from sockets.
Do not use your telephone or mobile phone.
- Immediately open all windows and doors and ensure adequate ventilation.
- Close the gas line shut-off valves.
- If you smell gas in a room, under no circumstances should you enter that room carrying
an open flame.
- Do not strike any matches or ignite a cigarette lighter.
- Contact the relevant gas supply company.

Installation notes
9
Before completing commissioning, maintenance, conversion and repair work, all gas-
conducting components – from the manual shut-off valve to the burner jet – must be
checked for leaks.
Particular attention must be paid to the measuring stubs on the gas valve and the
burner. Checks must be performed when the burner is both switched on and switched
off.
During installation, the technical regulations for gas installations as well as national and
regional building regulations, fire regulations, and specifications from the relevant gas
supply companies must be adhered to.
UK: Gas Safe, and BS 8446:2005
When planning a gas-heated system, contact the relevant gas supply company and a
building regulations inspector in good time.
1. What needs to be observed before commissioning
When ordering gas-heated machines, please specify the gas family, gas group, and con-
nection pressure at the site where the machine is to be set up.
Setup site
Gas-heated machines must not be operated in a room where cleaning machines operate
with solvents containing perchloroethylene or CFCs. During combustion, any vapours that
are emitted will break down into hydrochloric acid, leading to consequential damage af-
fecting laundry and the machine. Air exchange must not take place if machines are set up
in separate rooms.
Rooms with fuel-burning installations must be adequately aerated and ventilated. Any gas-
heated appliance must be considered to be a fuel-burning installation (regardless of its gas
flow rate).
If liquid gas-heated machines are being set up below ground level, the operator must
provide the system with the necessary aeration and forced ventilation equipment in ac-
cordance with technical regulations for liquid gas.
If no low pressure occurs when a full fire is burning in all fuel-burning installations, this
means that the room ventilation is working properly, even if the exhaust gases from the in-
stallations are being extracted mechanically. This ensures that the gas is being combusted
correctly and that the exhaust gases are being evacuated completely.
It must not be possible to seal off aeration and ventilation openings.
Before completing commissioning, maintenance, conversion, and repair work, all
gas-conducting components – from the manual shut-off valve to the burner jet – must
be checked for leaks.
Gas may escape from leaks.
Particular attention must be paid to the measurement connections on the gas valve.
Checks must be performed when the burner is both switched on and switched off.
 Installing thermal shut-off equipment on site is recommended.
 If gas-heated appliances are publicly accessible, it is also necessary to check whether a
gas flow monitor needs to be used.

Installation notes
10
Required flow rate
Appliance type Rated heat load (Hi) Natural gas (LL) Natural gas (E) Liquid gas
PRI318 22kW 2.71m³/h 2.33m³/h 1.74kg/h
PRI418 28kW 3.44m³/h 2.97m³/h 2.21kg/h
PRI421 30kW 3.69m³/h 3.18m³/h 2.37kg/h
The connected load is based on the following calorific values:
- Natural gas LL (G25): 29.25MJ/m³(Hi)
- Natural gas E (G20): 34.02MJ/m³(Hi)
- Liquid gas (G30): 45.65MJ/m³(Hi)
Natural gas
Natural gas Length of gas line
3 m 5 m 10 m 20 m 30 m 50 m 100 m
Internal dia-
meter Maximum flow rate
¾" (20 mm) 4.7 m³/h 3.7 m³/h 2.6 m³/h 1.6 m³/h 1.1 m³/h 0.7 m³/h 0.3 m³/h
1" (25 mm) 8.6 m³/h 6.9 m³/h 4.8 m³/h 3.1 m³/h 2.4 m³/h 1.9 m³/h 0.9 m³/h
1 ¼" (32 mm) 16.0 m³/h 12.4 m³/h 8.7 m³/h 6.2 m³/h 5.0 m³/h 3.8 m³/h 2.4 m³/h
1 ½" (40 mm) 26.5 m³/h 20.5 m³/h 14.5 m³/h 10.3 m³/h 8.4 m³/h 6.5 m³/h 4.0 m³/h
2" (50 mm) 60.0 m³/h 47.0 m³/h 33.0 m³/h 23.0 m³/h 19.0 m³/h 15.0 m³/h 10.0 m³/h
Liquid gas
Liquid gas Length of gas line
5 m 10 m 20 m 50 m
Internal dia-
meter
Maximum flow rate
10 mm 1.3 kg/h 1.0 kg/h - -
12 mm 2.0 kg/h 1.5 kg/h 1.0 kg/h -
16 mm 4.0 kg/h 3.0 kg/h 2.0 kg/h 1.5 kg/h
22 mm 9.0 kg/h 6.5 kg/h 4.5 kg/h 3.0 kg/h
27 mm - 12.0 kg/h 8.0 kg/h 5.0 kg/h

Installation notes
11
Exhaust gas evacuation ducts
The gas-heated flatwork ironers are type B22 gas fuel-burning installations without flow
safeguarding equipment, and with a fan behind the heater.
- The mixtures of exhaust gas and air that are emitted by gas-heated flatwork ironers must
be evacuated through a suitable chimney and out into the atmosphere via the roof.
- Exhaust air/gas evacuation ducts must be kept as short as possible and must rise vertic-
ally up to the vent flue.
- Only materials that are resistant to heat and sooting may be used.
- A condensate drain must be placed at the lowest point of the exhaust air/exhaust gas
line. The condensate must be drained via a water collection tray or a floor drain posi-
tioned in an appropriate location. Supports and louvres must not be fitted. The exhaust
air/exhaust gas line must be installed in a way that ensures it is leak-tight.
See the guidelines for approving exhaust gas systems containing low-temperature exhaust
gases (issued by the German Institute for Structural Engineering in Berlin).
Exceptions
1. If it is not possible for evacuation to take place through a single duct and multiple ex-
haust gas/air ducts are in use, appropriate measures must be put in place to ensure
that, when an appliance is being operated, the exhaust gas/air mixture is not able to
enter the room via the exhaust ducts of other appliances. Examples of appropriate
measures include baffles and merged lines with a shape that is favourable for the
flow. It is important to ensure that high pressure cannot arise in the exhaust gas/air
ducts of the appliances that are not in operation. Appliances with a fan may not be
connected to the same vent flue as appliances without a fan.
2. In exceptional cases, the exhaust gas/air mixture may be evacuated through the ex-
terior wall (in accordance with
Section38,paragraph 4,sentence3of Germany’s Model Building Code (MBO)).
However, doing so must not give rise to any risks or unreasonable inconvenience.
3. When using a combined line, the exhaust air evacuation ducts of the individual appli-
ances must be directed into the shared line laterally and in a way that is favourable for
the flow. The cross-section of the vent flue must not be smaller than the cross-sec-
tion of the combined line. The combined line must be kept as short as possible and
must rise vertically up to the vent flue. A condensate drain must be placed at the low-
est point. The condensate must be drained as described above.
All exceptional cases, and particularly those where a combined line is being installed, re-
quire special permission from the relevant building regulations inspector supervisor’s of-
fice.

Installation notes
12
Exhaust air and supply air ducting cross-sections
Model Cross-sections of vent outlets
PRI318/418/421 gas 113cm²
Exhaust gas values
PRI318 PRI418 PRI421
Exhaust gas emissions* 160g/s 101g/s 122g/s
Temperature* 120°C 130°C 130°C
CO2 content* 0.6% 1.0% 1.0%
Fan power** 530m³/h 530m³/h 530m³/h
Maximum permitted counter pressure 200Pa 200Pa 200Pa
*Example value
**At 0mbar counter pressure
Room ventilation opening for air intake from the setup room
The minimum dimension of the ventilation opening depends on the cross-section of the
vent pipe.
Vent pipe Minimum dimension for ventilation opening
  A A  
100mm - 79cm² 237cm² 175mm 155mm
- 100mm 100cm² 300cm² 200mm 175mm
120mm - 113cm² 339cm² 210mm 185mm
- 120mm 144cm² 432cm² 235mm 210mm
150mm - 177cm² 531cm² 260mm 230mm
- 150mm 225cm² 675cm² 295mm 260mm
180mm - 254cm² 762cm² 315mm 280mm
- 180mm 324cm² 972cm² 355mm 315mm
200mm - 314cm² 942cm² 350mm 310mm
- 200mm 400cm² 1200cm² 395mm 350mm
220mm - 380cm² 1140cm² 381mm 377mm
- 220mm 484cm² 1452cm² 430mm 382mm
250mm - 491cm² 1473cm² 435mm 385mm
- 250mm 625cm² 1875cm² 490mm 435mm
300mm - 707cm² 2121cm² 520mm 460mm
- 300mm 900cm² 2700cm² 590mm 520mm

Installation notes
13
2. What needs to be observed during commissioning
Check that the points listed in section 1 (“What needs to be observed before commission-
ing”) have been taken into consideration. The following should be carried out in the given
order when commissioning or converting the machine:
1. Measure the connection pressure. The connection pressure must be within the
ranges specified in EN437 (see section “Country of destination and category”).
2. Ask the gas supply company what the gas family, gas group and connection pressure
are, and compare this information with the data specified on the machine (see the
sticker at the rear).
3. Check the factory-set jet pressure based on the sections “Country of destination and
category”, “Settings with natural gas” and “Settings with liquid gas” and correct it if
necessary.
4. If the gas family, gas group or connection pressure is different, it must be converted
as instructed in the section entitled “Connection and conversion instructions” and the
sticker at the rear of the machine must be replaced.
Set the jet pressure at the machine’s gas regulating valve (see “Settings with natural gas”
or “Settings with liquid gas” section).
If the gas family needs to be changed, please request the appropriate conversion kit
from the Miele Customer Service Department. When doing so, please specify the
product name and the machine number, as well as the gas family, gas group, gas con-
nection pressure and country where the machine has been set up.
5. Switch on all gas consumers that are present, including the installed appliance.

Installation notes
14
Connection and conversion instructions
Connection and conversion work must be performed by the Miele Customer Service De-
partment or by an authorised dealer's trained personnel.
The settings for gas-heated flatwork ironers are made at the factory in line with the gas
specifications at the rear of the appliance.
Gas hose
The gas appliance must be connected using a corrugated metal hose assembly made from
stainless steel in accordance with DIN3384. Alternatively, a hose that complies with
DINEN16617 may be used with connections in accordance with DIN3384. When select-
ing the hose, the required flow rate must be taken into account. The relevant national regu-
lations must also be observed.

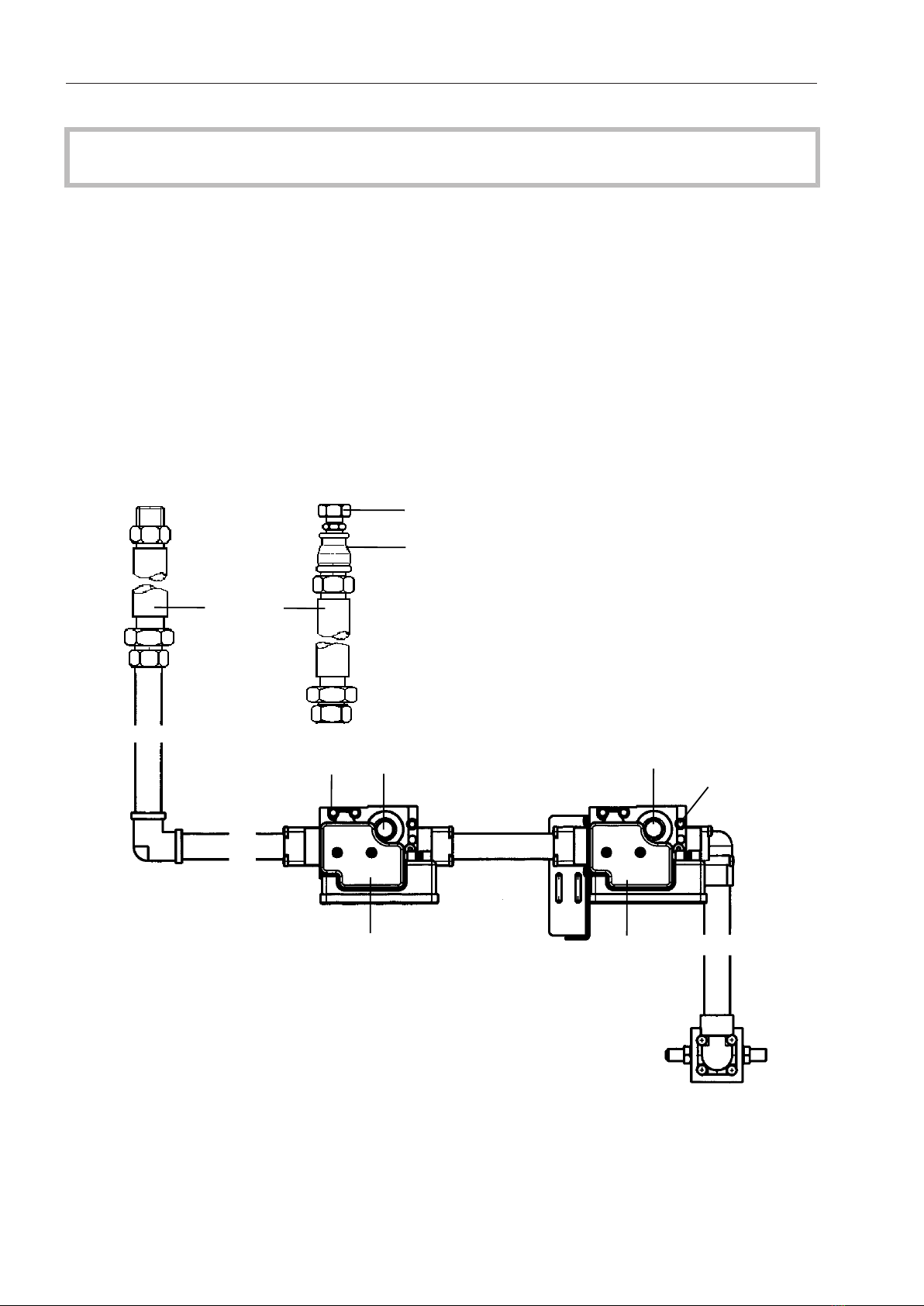

Main connection
Natural gas Liquid gas
Threaded union*
Reduction sleeve*
* Supplied with the kit for converting natural gas to liquid gas.
Hose
Connection pressure
measuring stub
Pressure regulator
cap screw
Pressure regulator
cap screw
Jet pressure
measuring stub
V1 V2
Gas regulating valve

Installation notes
15
Checking and adjusting the gas regulating valve
Remove the cap screws from the pressure regulators.
Loosen the locking bolts on the measuring stubs.
Carry out the measurement.
Tighten the locking bolts again after the measurement.
Check the connection pressure at the gas regulating valveV1 (see “Connection pressure
and category” section).
Open the pressure regulator on gas regulating valveV1 as far as it will go.
Set the jet pressure at gas regulating valve V2 based on the adjustment values for natural
gas or liquid gas specified below.
Burner setting
The respective diameters for jets and baffles are specified in the tables below together
with the adjustment values.
Jets and baffles are included in the kit for converting natural gas to liquid gas.
Baffle x2
Jet x2
Change the 2jets.
Change the 2baffles.
Danger due to gas escaping.
Gas lines and screw connections may leak after connection, adjustment and conversion
work.
After connection, adjustment and conversion work, the gas lines, all screw connections
(including those on the jets) and the locking bolts on the measuring stubs must be
checked to ensure they are leak-tight. This check must be performed both while the ap-
pliance is at a standstill and while it is in operation.

Installation notes
16
Connection pressure and category
The gas-heated flatwork ironers are approved for the following countries, connection pres-
sures and categories:
Country Category
Connection pressure (natural gas)
DINEN437
Connection pressure (liquid gas)
DINEN437
pnpmin pmax pnpmin pmax
Great Britain(GB) II2H3+ 20mbar 17mbar 25mbar 29mbar 20mbar 35mbar (B)
37mbar 25mbar 45mbar (P)
Ireland(IE) II2H3+ 20mbar 17mbar 25mbar 29mbar 20mbar 35mbar (B)
37mbar 25mbar 45mbar (P)
With natural gas, if the connection pressure is less than 15mbar, the gas supply company
must be informed.
Settings with natural gas
Model Rated heat load (Hi) Jet diameter Baffle Ø Jet pressure
E, H LL, L
PRI318 22kW 2x3.0mm 30mm 8.6mbar 12.8mbar
PRI418 28kW 2x3.5mm 35mm 7.5mbar 11.2mbar
PRI421 30kW 2x3.5mm 35mm 8.6mbar 12.8mbar
Settings with liquid gas 3B/P (30/50mbar)
Model Rated heat load (Hi) Jet diameter Baffle Ø Jet pressure
PRI318 22kW 2x1.7mm 25mm 29mbar
PRI418 28kW 2x1.95mm 30mm 28.5mbar
PRI421 30kW 2x2.05mm 30mm 27mbar
Settings with liquid gas 3+ (without regulator)
Model Rated heat load (Hi) Jet diameter Baffle Ø Jet pressure
PRI318 22kW 2x1.7mm 25mm
Block regulatorPRI418 28kW 2x1.95mm 30mm
PRI421 30kW 2x2.05mm 30mm

PRI318G (gas heating)
17
Dimensions
300
60
300
60
1750
1110
>350 >350
2469
1377
BWR
>300 780 160
437
850
919
71
1240
300
0–20
Dimensions quoted in millimetres
BWR Laundry return feed kit
Optional feature which allows the laundry to be removed from the front once it has
been ironed.

PRI318G (gas heating)
18
Installation
1
240
133– 153
360
> 5000
~1415
1600
2
3
2
133–153
623
1590
215– 235
185– 205
4
1
1
Dimensions quoted in millimetres
aElectrical connection
bElectrical conduit
For laying the electrical connection cable within the building structure.
cVent connection
dGas connection

PRI318G (gas heating)
19
Installation
A
A
355
159
1768
5
4
159
464
355 350
5
5
5
Ø 10
~70
A-A
5
3
2
Dimensions quoted in millimetres
bElectrical conduit
For laying the electrical connection cable within the building structure.
cVent connection
dGas connection
eDrill hole/anchor point

PRI318G (gas heating)
20
Technical data
Voltage variants/electrical data
3NAC 380–415V, 50–60Hz
Supply voltage 3NAC 380-415 V
Frequency 50–60 Hz
Power rating 1.0 kW
Required fuse rating (on site) 3 × 16 A
Connection cable, min. cross-section 5 x 1.5 mm²
Screw thread M25
Gas connection
Rated heat load 22kW
Connector on the appliance as per ISO7-1 ½" male thread
Natural gas connection pressure (as per DINEN437) See installation instructions
Threaded union required for natural gas (on site) ½" female thread
Liquid gas connection pressure (as per DINEN437) See installation instructions
Threaded union required for liquid gas (on site) ½" female thread
Alternative: precision steel tube as per DIN2391/DIN2393 with smooth end (on
site)
Sleeve ½"x⅜", screw thread: ⅜"xDN12
Min. length 40mm, DN12
Requirements for the gas hose Corrugated metal hose assembly made from stain-
less steel in accordance with DIN3384 or hose in
accordance with DINEN16617 with connections as
per DIN3384
Vent connection
Diameter of vent connection 120mm
Maximum exhaust air temperature (approx.) 133°C
Fan power 0.45kW
Fan air output (0bar) 270m³/h
Maximum permitted pressure loss 200Pa
