INSTRUCTIONS AND MAINTENANCE
SATURNO MAX L 24 –SATURNO MAX/S L 51
Read these directions carefully before operating.
Don’t use the machine differently from the following description.
1. SPECIFICATIONS
MODEL: SATURNO MAX L 24 SATURNOMAX/S L 51
POWER SUPPLY: 400 V +NEUTRAL–50Hz 400 V +NEUTRAL–50Hz
TOTAL INSTALLED POWER: 18,5 or 24,5 kW 36,5 or 48,5 kW
BOILER POWER: 18 or 24 kW 36 or 48 kW
PUMP POWER: 0,7 Hp 0,7 Hp
BOILER CAPACITY: 24 L. 51 L.
IRONING ENDURANCE: CONTINUOUS CONTINUOUS
OPERATING STEAM PRESSURE: 6 BAR 6 BAR
WEIGHT: 90 kg. 110 kg.
OVERALL DIMENSIONS: 70x60x105 h. cm 70x60x105 h. cm
MADE IN ITALY
11
22

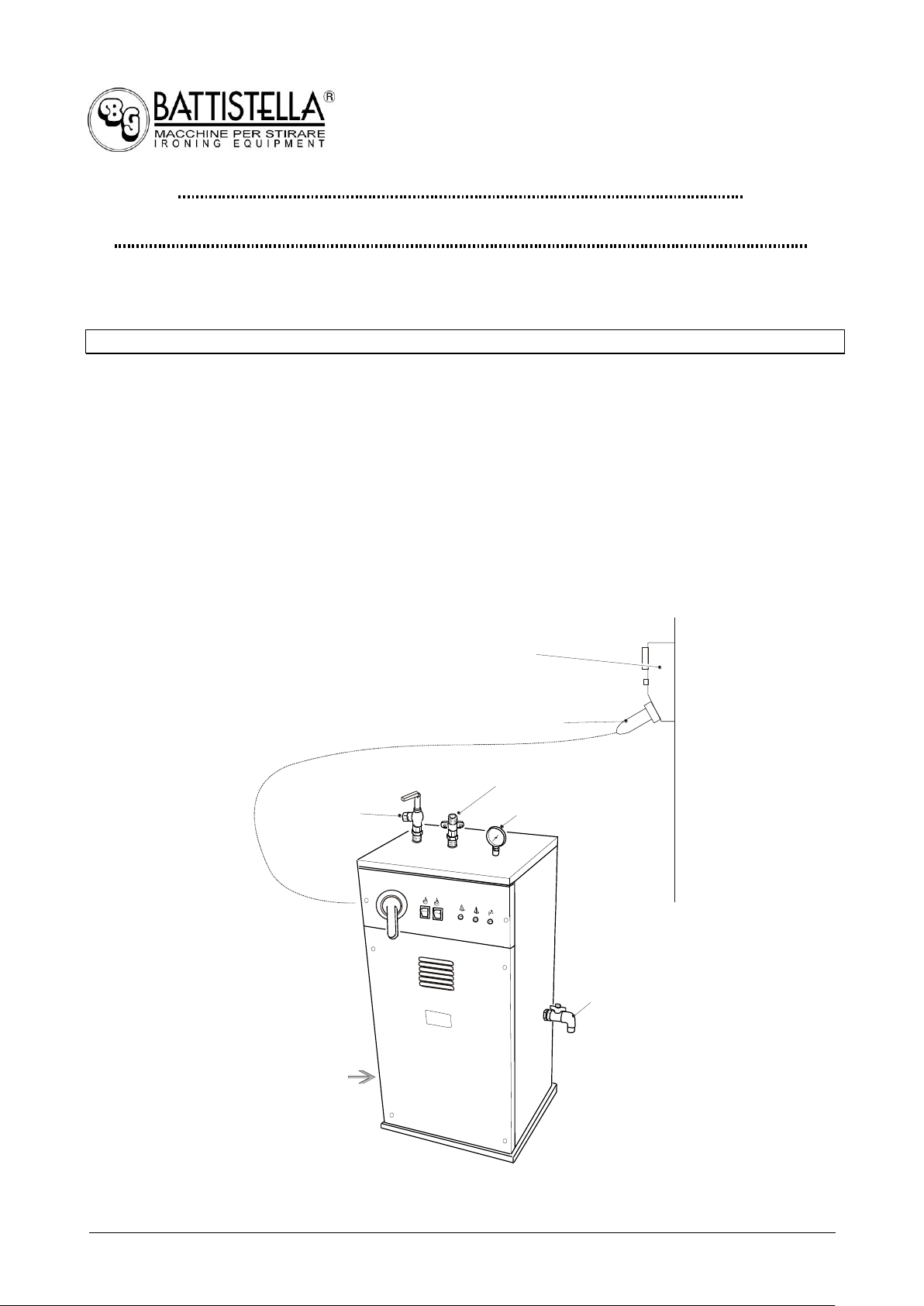

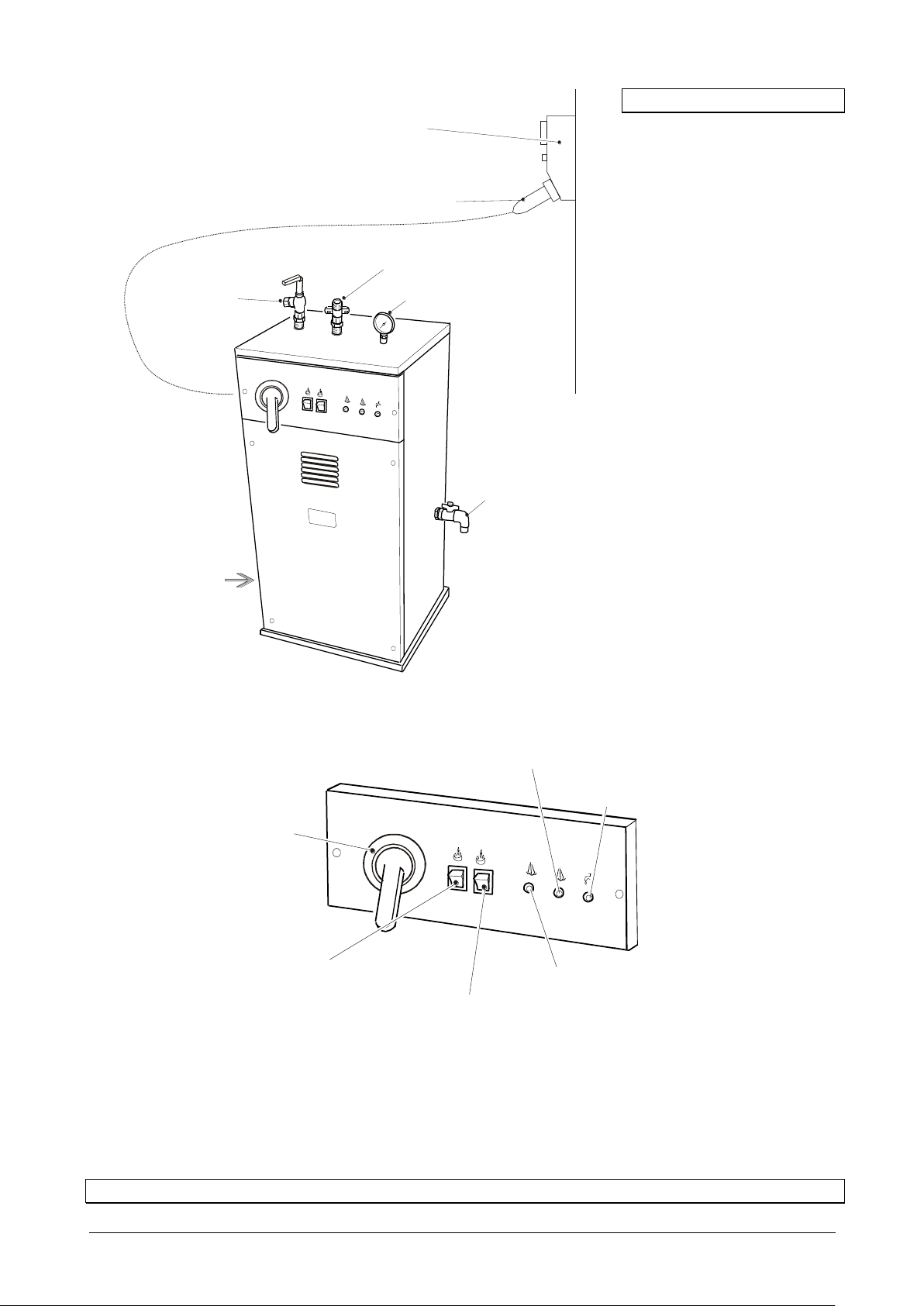

MANOMETER
SLUICE VALVE
PLUG
SWITCH WITH
FUSES OR MAGNETO-
THERMIC SWITCH
SAFETY
VALVE
EXHAUST TAP
HOSE HOLDER
FOR
WATER INLET
Fig. 1

Saturno Max - Saturno Max/S 2 2005
2. IMPORTANT
Before installing
SATURNO MAX, it is
necessary to set up the
following facilities:
1. a water connection
(tap with hose
holder); a rubber
tube which must
have a pressure
capacity of at least
10 ATM will connect
the SATURNO MAX to
the mains by means
of a hose holder for
WATER INLET
(diameter of water
inlet 8/13 mm),
which must be fixed
tightly with 2 hose
clamps. (N.B.:
before inserting the
rubber tube into
SATURNO MAX hose
holder, exhaust a few
litres of water in
order to clean the
conduit);
2. an electrical outlet protected and suitable to SATURNO MAX power.
3. OPENING OF PACKAGE
11
22
MANOMETER
SLUICE VALVE
PLUG
SWITCH WITH
FUSES OR MAGNETO-
THERMIC SWITCH
SAFETY
VALVE
EXHAUST TAP
HOSE HOLDER
FOR
WATER INLET
11
22
MAIN
SWITCH
SWITCH
HEATING ELEMENT 1
SWITCH
HEATING ELEMENT 2
LAMP HEATING
ELEMENT 1
LAMP HEATING ELEMENT 2
PUMP LAMP
Fig. 2

Saturno Max - Saturno Max/S 3 2005
1. Open the box containing SATURNO MAX from the upper side marked as ALTO ,
take instructions manual and read carefully.
2. It is recommended to lay the machine flat and in such a position so as to allow a
smooth operation and a perfect maintenance.
4. CONNECTION AND STARTING
1. Connect the rubber tube to WATER INLET hose holder that is placed on SATURNO
MAX (fig. 1-3), turn the water tap and connect the boiler discharge pipe. N.B.: use
only normal tap water coming from water supply for domestic use. Never add
additives to water.
IN CASE OF CONNECTION WITH WATER TANK: Connect the SATURNO MAX to a tank
for condensate recovery (fig. 5). N.B.: the temperature of water in the tank must
never go over 40° C; if it happens, the tank must be equipped with an automatic
temperature control device for water discharge and cold water input;
2. connect the power supply cable to a protected outlet with earth protector switch,
with observance of the law in force and a voltage suitable to SATURNO MAX;
3. connect the pipes of the plant to the machine and make sure that they are well
covered in order to avoid possible burns;
4. turn on the main switch and the switches for heating element 1 and 2 (fig. 2), turn
the sluice valve which takes steam to the plant (fig. 1). Wait for lamps 1 and 2 to
switch off; now, the manometer should mark a pressure of 4,5 BAR.
5. POSSIBLE PROBLEMS AFTER INSTALLATION
The pump lamp is on and the pump is working, but the machine gets no water:
-Make sure the water tap is open.
-Make sure the aqueduct is supplying water. For the machines connected
to a water tank, check if there is water in the tank (fig. 5).
WATER INLET
WATER
DISCHARGE
STEAM DELIVERY
Fig. 3

Saturno Max - Saturno Max/S 4 2005
-Make sure the water filter is not obstructed because of dirt waste (fig.
4A).
The lamps of heating element 1 and 2 are always on, but the boiler does not reach
steam operating pressure:
-Make sure the main switch for power supply is on. If the problem
persists:
-disconnect the plug and make sure the voltage is on and the power
supply cable is connected to the steam generator correctly;
-check the internal fuses.
6. LITTLE MAINTENANCES
Empty the boiler periodically –with the machine switched off and a pressure of 0,5
BAR. For carrying out this operation, turn the exhaust tap slowly: we advise you to
wear gauntlets against possible burns.
7. ORDINARY MAINTENANCE
Let a specialized technician have a general check at least twice per year. SATURNO
MAX was projected to work maximum 8 hrs. per day, 5 days a week. In these
conditions, the machine is expected to function for 7 years.
It is recommended:
1. to check the efficiency of the security devices (manometer, pressure switches, level
regulator);
2. to test the functioning of the security valves every 1000 hrs. of operation or
maximum 6 months (fig. 4B);
3. to dismantle the copper tubes of the manometer and of the pressure switch and
clean them from deposits and scales;
4. to clean the boiler and the elements of the resistances from limestone deposits,
check that the rubber tubes of the pump and of the boiler are not obstructed;
5. to dismantle the level regulator and clean it from limestone scales, test the capacity
of the joints, clean the filter and the valve of water inlet.
SECURITY
VALVE
FILTER

Saturno Max - Saturno Max/S 5 2005
8. POSSIBLE FAILURES
The manometer marks pressure in the boiler even if the machine is off and cold:
-Check the level control and the water inlet valve.
The pump lamp is on and the pump is activated, but the boiler does not get water:
-Make sure the tube for water inlet in the boiler is not ob structed by
limestone, check the water inlet filter (fig. 4A); if the generator takes
water from the tank for condensate recovery, make sure the water is not
too hot (it should never go over 40° C).
The pump keeps on turning, its lamp is on and the cold boiler increases its pressure:
-Check the level control (its sphere might be perforated).
The resistance lamp is on, but the pressure does not increase or it takes much time to do so:
-Check the resistances and their remote control switches.
Some steam gets out of the security valve and the boiler overcomes the definite pressure:
-Check the pressure switches.
ATTENTION: before any intervention on the machine, remember to disconnect the
plug. Before working on the steam system, turn off the boiler and reset the pressure.
9. COMPULSORY
1. Connect SATURNO MAX to a suitable protected outlet;
2. after operation is over, switch the SATURNO MAX off and close the water;
remember to open it before switching on the machine again;
3. always keep children away from SATURNO MAX, both when it is on and off;

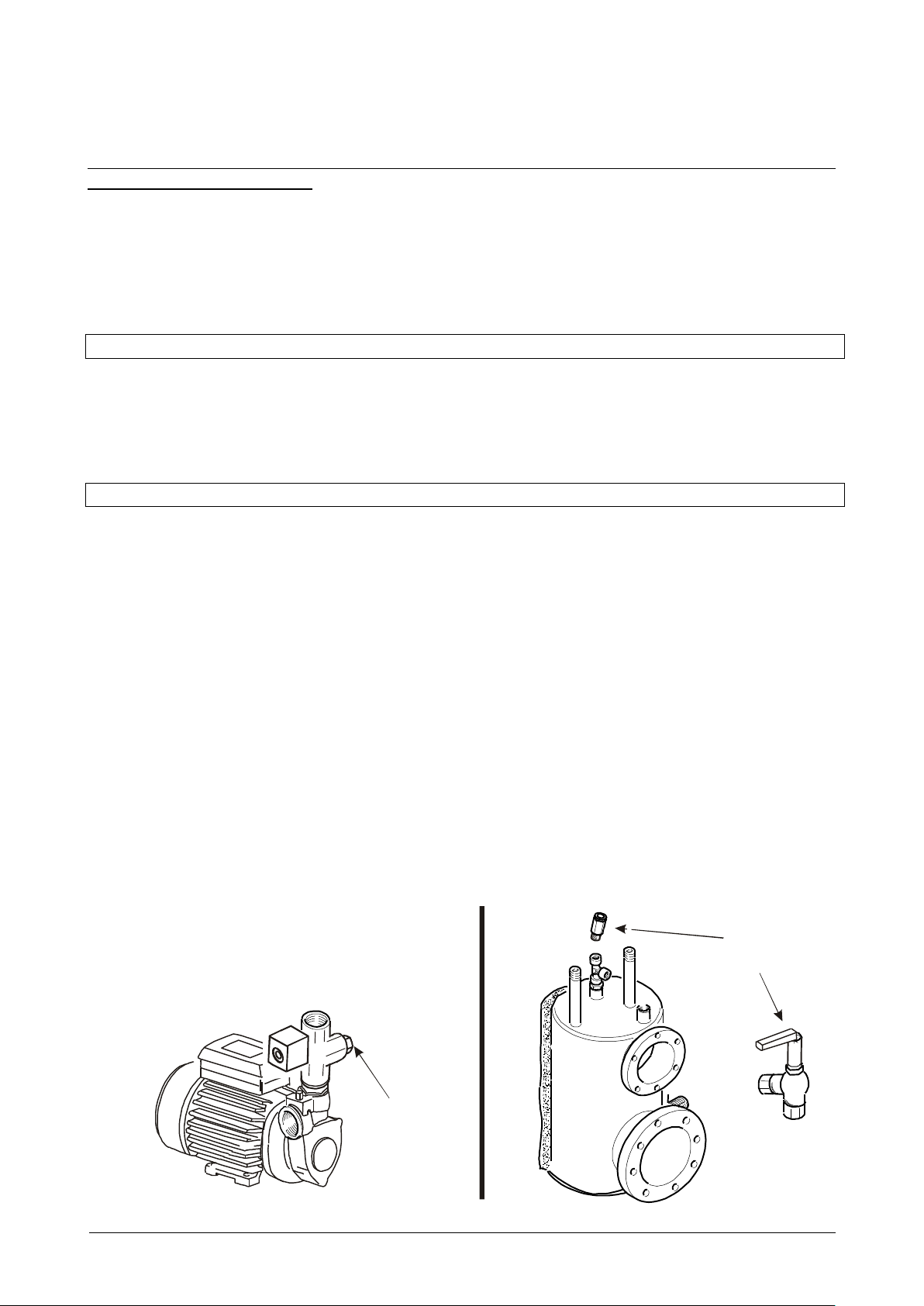

Fig. 4A
Fig. 4B
OPTIONAL–Condense water recovering tank assembled
to the steam generator
CONDENSATE
RETURN
CONDENSATE
RETURN
3/8" 1/2"1/2"
BOILER
EXHAUST TAP
STEAM OUTPUT
VALVE
TANK EXHAUST
FILTER+TAP
Water entrance
from the city pipe
Fig. 5

Saturno Max - Saturno Max/S 6 2005
4. make sure that during cold season tubes connecting SATURNO MAX to water supply
do not freeze.
10. ELECTRICAL RISKS
The following situations are considered dangerous for the operator:
1. the earth protector switch is activated when turning on the switches,
2. using SATURNO MAX during thunderstorms,
3. loss of water or steam from the inner parts of SATURNO MAX.
11. MECHANICAL RISKS
The following situations are considered dangerous for the operator:
1. using SATURNO MAX out of its functions,
2. using SATURNO MAX without turning the water tap or when the aqueduct cannot
supply water,
3. using SATURNO MAX while the pump is activated but no water enters the boiler
because of limestone obstruction,
4. using SATURNO MAX when the boiler pressure is too high and internal security
valve is activated. Pressure can be visibly controlled thanks to manometer.
12. THERMAL RISKS
The following situations are considered dangerous for the operator:
1. touching the external security valve when the machine is on,
2. emptying the boiler when under pressure,
3. loss of steam from the security valve,
4. tubes connected to the sluice valve not protected.
13. PACKING, STORAGE AND TRANSPORT
SATURNO MAX can be packed with cellophane, on pallet or in cardboard box (never
turn it upside down). It is not a stiff package, therefore it is not shock-resistant. We
advise you to handle the box with the maximum care. Do not use it as a stool or
support. SATURNO MAX cannot be piled one on top of another (HANDLE WITH CARE).
14. WARRANTY
Warranty does not apply to damage resulting from:
Tampering with the machine or repairs carried out by non-authorized personnel;
Total or partial inobservance of the instructions contained in this manual;
Improper maintenance or wrong assembly/connection;
Use of non original spare parts;
Use of the machine for purposes other than those written in this manual.

Saturno Max - Saturno Max/S 7 2005
15. DISPOSAL
According to the directive 2012/19/UE on waste of electrical and
electronic equipment, do not treat this product as urban waste.
This appliance is marked according to the directive 2011/65/UE on
restriction of use of specific dangerous substances in electrical and
electronic equipment.
This symbol on the product or on its packaging indicates that this
product shall not be treated as urban waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment.
Ensuring this product is disposed of correctly will help prevent potential negative
consequences for the environment and human health which could otherwise be caused
by inappropriate waste handling of this product. The recycling of materials will help to
conserve natural resources.
The abusive disposal of the product by the user may lead administrative sanctions.
Every product manufactured by BATTISTELLA Co. is subject to the following
limitations:
BATTISTELLA Co. guarantees that this machine, correctly installed and used,
works accordingly to this manual of instructions. Each implicit guarantee is limited
by law as from purchase date.
Declination of responsibility for consequential damages: BATTISTELLA Co.
will never take the responsibility for any damage (included, without any limitation,
consequential damages due to loss or no profit, cutback or any other economical
loss) deriving from the use of a BATTISTELLA machine, even in case the Company
had been previously informed of such kind of possibility.
Should you need further information about this manual, please contact
BATTISTELLA Co. or the person who sold you the machine.
