Kleenmaid LWK300 User manual

107842 Issue A
ECN: 04053

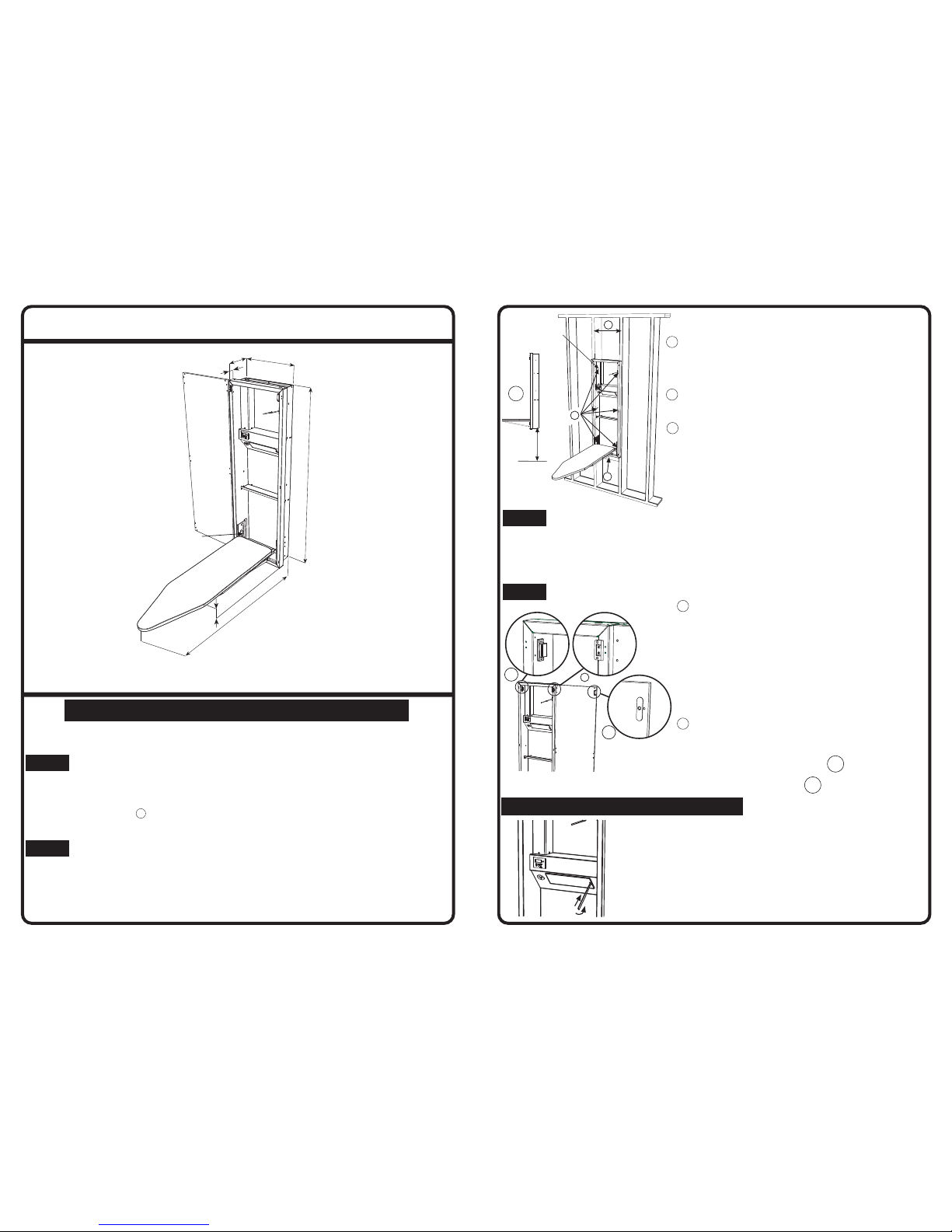

SPECIFICATION DIAGRAM
Model
LWK300
(Dimensions in mm)
INSTALLATION INSTRUCTION
NOTE: The LWK300 Ironing Centre can be mounted in two ways: Recessed Mount
and Surface Mount. For Surface Mount an additional decorative collar can be
purchased (Product Code LWK330).
PRELIMINARY INSTRUCTIONS
Remove the Packing Stops with small flat screwdriver from the Ironing Board
assembly. Ascertain from the user the DESIRED HEIGHT of the Ironing Board
when in the open position. We recommend an ironing surface height of 830mm
above the floor for an average adult. To obtain this surface height, the height of
the unit (see diagram A on next page) must be 680mm above the floor
(NOTE: 830mm is based on the second or middle position of the ironing board).
STEP 1
STEP 2
SURFACE MOUNT OPTION
Make sure solid timber studs or mounting points are in suitable position for the
mounting of the Ironing Centre. Drill through the back of the cabinet and fasten the
six screws supplied (it may be necessary to purchase different length screws for
correct fitting, or use wall anchors if unit is to be mounted to solid wall).
Note: Ironing Centre Collar (Product Code LWK330) is also available.
MOUNTING INSTRUCTIONS
PLEASE READ THE ENTIRE INSTRUCTION BEFORE
INSTALLING THE LWK300 IRONING CENTRE
1. Disconnect LWK330 Ironing Centre from power supply.
(Ensure the power is switched off)
2. Insert small screwdriver or slim knife as shown, ease
catch to side and slip out diffuser.
3. Replace lamp (40 watt max.)
4. Slide diffuser back into aperture and “click” into place.
(Turn power back on)
RECESS MOUNT OPTION
1 SIZE OF WALL OPENING
The LWK300 Ironing Centre is designed to fit
between 362mm studs. Take out a section of the
wall and insert two timber studs vertically at
362mm apart.
2 ATTACH BRACE
Attach horizontal brace between the studs at the
desire height. Ensure that the brace is level.
3 MOUNT CABINET
Lift cabinet into place, rest the cabinet on
horizontal brace, plumb and shim cabinet to fit,
and attach to studs using the supplied screws.
Mounting hole positions are indicated by the
arrows. Remove the wireway cover to access
mounting hole. Be sure to allow for wall covering
thickness behind cabinet face frame.
STEP 3 CONNECTING THE LWK300 IRONING CENTRE TO ELECTRIC POWER
An external ON/OFF (safety) switch for the LWK300 Ironing Centre must be installed
near the unit. An additional power socket can be installed inside the wall between
the switch and power plug. Alternatively the unit can be hard wired directly to the
switch by an electrician. For surface mount, the LWK300’s plug and lead can be
easily plugged into a nearby wall socket, or can be hard wired by an electrician.
STEP 4 DOOR ASSEMBLY INSTRUCTIONS
1 Mounting the Cabinet Door
hDoor may be hinged from either side of the
cabinet (illustration is shown for right side
hinging). Both sides of the cabinet have pre-
punched holes.
hUse the two hinges supplied to fix door to the
cabinet.
hAttach the hinges to door and cabinet using
the screws supplied at the top and bottom
section of the cabinet.
hUse the decorative plugs supplied to cover
the unused pre-punched holes.
2 Fixing Magnetic Catch
hMagnetic catch is fixed opposite to the hinge.
hFixing position is located on the top section of
the cabinet and the door.
hAttach the magnetic catch 2A onto cabinet
using the screws supplied.
hAttach the strike plate 2B onto door using the
screw supplied.
2A
2B
1
LAMP REPLACEMENT
680
FLOOR
A
1
2
3
Wireway Cover
LWK300 Ironing Centre
PACKING STOPS
1248
1218
45
145 360
140

107842 Issue A
ECN: 04053
SWIVEL
BOARD
180O
RIGHT/LEFT
OPENING
DOOR
3 POSITIONS
HEIGHT
ADJUSTMENT
CONTROL
PANEL
UTILITY
SHELF
1
2
BOARD
RETAINER To open the Ironing Board, lift board
retainer and lower the board. To store
Ironing Board, follow the steps in reverse
order.
The Ironing Board has three working
heights, to adjust the board:
1. With the board in the horizontal position
hold the board with one hand near the
base (NOT BY THE NOSE) and support
the pivot rod 1 with the other hand.
2. Adjust the Ironing board to the desired
position by lifting the board (NOT BY
THE NOSE) and moving it to the path
of height adjust bracket.
NOTE: in order to store the Ironing board,
it must be on its lowest position.
OPERATING INSTRUCTION
The LWK300 Ironing Centre has the
following features:
• Surface or recess mountable
• Utility shelf for spray bottle storage
• Heat resistant shelf for iron storage
• Integrated cotton coated rayon cover
• Right or left hand
• Magnetic door catch opening door
• Round corners board
• Built in 230-240 volt power outlet
• 40 watt light
• Digital auto timer
• 3 level height adjustable
• Board Swivels a full 180o
LWK300 IRONING CENTRE FEATURES
MANUFACTURED FOR:
BY:
ROBINHOOD LIMITED
6 ZELANIAN DRIVE, EAST TAMAKI
AUCKLAND, NEW ZEALAND
ISO9001 Certified
MAINTENANCE
YOUR LWK300 IRONING CENTRE BOARD IS NOW FITTED WITH A HEAT RESISTANT COVER.
TO AVOID DAMAGE TO THE MATERIAL
PLEASE DO NOT WASH THE COVER
The laminated surface of the unit may be
wiped clean with non abrasive household cleaner.
WARNING
1) Do not place EXCESSIVE WEIGHT (weight should not exceed 15kg) on the Ironing
Board when opened as it is designed to accept normal ironing use only.
2) Iron not to exceed 2360 Watt.
3) Allow iron to cool down before storing in the cabinet.
4) Empty water reservoir and turn off steam action prior to storing iron.
5) Turn power off when not in use.
6) Do not remove the board retainer.
7) The appliance is not intended for use by young children or infirm persons
without supervision.
8) Young children shall be supervised to ensure that they do not play with the
appliance.
9)The appliance is supplied with an approved power cable which must not be
changed. If the supplied cord of this equipment is damaged, it must only be
replaced by the manufacturer, its service agent or similarly qualified person in
order to avoid hazard.
10) Upon installation, ensure that the socket outlet (for Surface Mount) or ON/OFF
switch (for RECESSED MOUNT) remains easily accessible after installation.
DIGITAL TIMER OPERATING INSTRUCTIONS
1. As the unit is powered up, two series of beeps are given.
2. “00m00s” is displayed.
3. Press “MIN” button once to advance the minute section by 1
or hold down for an incremental increase in minutes.
4. (Optional) Press “SEC” button once to advance the second
section by 1 or hold down for an incremental increase
in seconds.
5. When there is a change in settings a beep is given.
6. To start or stop the timer anytime press the “START/STOP”
button.
7. When the timer is counting down the red LED is on.
8. When the timer reaches zero, power to the 3 pin socket and light is disconnected
and a series of beeps will sound. The timer will then revert to the original
settings. Press any key to stop the beep sound.
9. To reset the timer to zero press the “MIN” and “SEC” buttons simultaneously.
