Citizen Eco-Drive CA0 Series User manual

CTZ-B8143
表紙
Model No.CA0 /Cal.No.B61
INSTRUCTION MANUAL
BETRIEBSANLEITUNG
MANUEL D'INSTRUCTION
MANUAL DE INSTRUCCIONES
MANUALE DI FUNZIONAMENTO
MANUAL DE INSTRUÇÕES
説明書

English Deutsch
Français
Español Italiano
Portugues
繁體中文 简体中文

The following provides an explanation of those matters that should be observed
at all times to prevent injury to the wearer or other persons as well as damage to
property before they occur.
Safety Precautions: Observe at All Times
The degree of injury or damage resulting from incorrect use while ignoring theindicated matters is classified and explained using the following markings.
WARNING This marking indicates matters for which there is
the risk of death or serious injury.
CAUTION This marking indicates matters for which there is
the risk of injury or property damage only.
The types of matters to be observed are classified and explained using the followingmark (the following indicates two examples of icons).
This mark indicates that caution or attention is required.
This mark indicates prohibited matters.

24
618
12
2040
60
20
10
30
40
50
60
This watch includes a rechargeable cell. This cell is fed electricity by a
solar cell in which light energy is converted to electrical energy.
Product Features
The watch operates by converting sunlight into electrical energy, which is stored in a rechargeable
battery. e rechargeable battery is a clean energy source that does not contain mercury or other harmful
substances. When the watch is fully charged, it will operate continuously for approximately seven months.
A watch that has stopped due to an insuciently charged cell will start operating immediately
when exposed to light.
Special hand movement to let you know when the reserve energy is getting low.
is protects the rechargeable cell from overcharging. is provides worry free enjoyment,
not matter how much light your watch is subjected to.
This feature enables elapsed time measurement (stopwatch.) You can measure time in
activities such as walking, jogging, bicycle riding, etc.
Eco-Drive
Quick Start Function
Overcharge
Prevention Function
Insucient Charge
Warning Function
Chronograph
* e illustrations shown in this manual may dier from the
actual watch you have purchased.

1
English
Troubleshooting
e second hand is moving at two-second intervals. P. 6
e chronograph second hand does not return to
reference position even when reset. P.14
e watch does not return to normal one-second
interval movement even when charged.
e watch does not operate even when charged.
e watch stops immediately even when charged.
e chronograph minute hand does not return to
reference position even when reset.
Submit your watch to your nearest Authorized Citizen Service Center.
Contents
Troubleshooting ………………………………………………… 1
Component identication ………………………………………… 2
Recharging your watch …………………………………………… 4
Setting the Time …………………………………………………… 8
Setting the Date …………………………………………………… 10
Using the Chronograph …………………………………………… 12
Precautions ………………………………………………………… 16
Specications ……………………………………………………… 26

2
3
English
How to use the screw down crown and screw down push button
Unlock Lock
* Unlocking is not required when a standard crown and button are equipped.
Screw down
crown
Screw down
push button
Rotate the crown
counterclockwise
(le) until it releases
from the case.
Rotate the locking
screw counter-
clockwise (le), and
loosen until it stops.
Rotate the crown
clockwise (right)
while pushing it in,
and tighten rmly.
Rotate the locking
screw clockwise
(right), and tighten
rmly.
24
618
12
2040
60
20
10
30
40
50
60
Component identication
Minute hand
Button (B)
Date indicator
Chronograph
minute hand
Hour hand
24-hour hand
Second hand
Chronograph
second hand
Crown
Button (A)
* The illustrations shown in this manual
may dier from the actual watch you have
purchased.
Some models feature a screw down crown and/or screw down push button.
Locking the crown and/or button prevents accidental operation.
ese must be unlocked prior to using certain features of your watch such
as setting the time or date.

4
5
English
is watch uses a built-in rechargeable cell to store electrical energy.
Charge the watch by exposing the dial to light such as direct sunlight or
uorescent lamps.

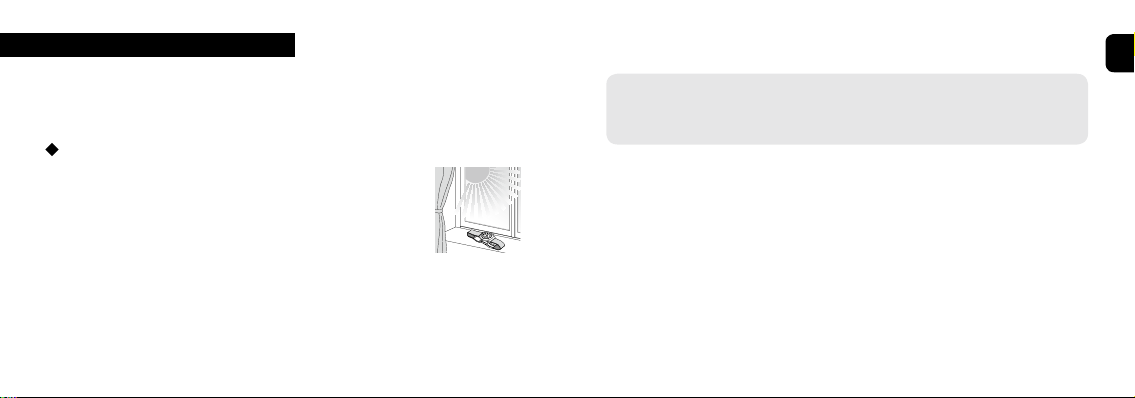

Recharging your watch
To ensure optimal operation, be sure to perform the following.
5 to 6 hours.
where the dial can receive light. An ideal location might be a
window sill where it can receive direct sunlight.
Wearing clothes that cover the watch may inhibit sufficient light from reaching the
watch face, resulting in insucient charging.
Avoid charging the watch under high temperature conditions (approximately
60°C/140°F or more).

6
7
English
If the reserve power becomes insucient
(Insucient Charge Warning Function)
When the rechargeable cell charge reaches a low
power state, the Insufficient Charge Warning
Function engages. This cause the second hand
to move in two-second intervals (two-second
interval movement). Be sure to immediately fully
charge your timepiece by exposing it to light.
completely due to battery depletion.
When the watch is operating in the two-second interval mode (low
power/insucient charge warning), you cannot operate chronograph.
Caution
60
1050
2040
Charging time by environment
Below are the approximate times needed for charging when exposing the watch dial to
light continuously. Please use this table as a reference only.
full charge without further exposure
to light.
Environment Illuminance (Lx) Charging time to
work for one day
Charging time
to start working
normally when
the rechargeable
cell is empty
Under direct
sunlight or cloudy
weather (not
through a window)
10,000
to 100,000 2 to 11 minutes 1.5 hours 20 cm under a
uorescent lamp
(30 W)
3,000 35 minutes 25 hours
Interior lighting 500 3.5 hours 150 hours

8
9
English
0
2040
60
20
10
30
40
50
60
2
6
2040
60
20
10
30
40
50
60

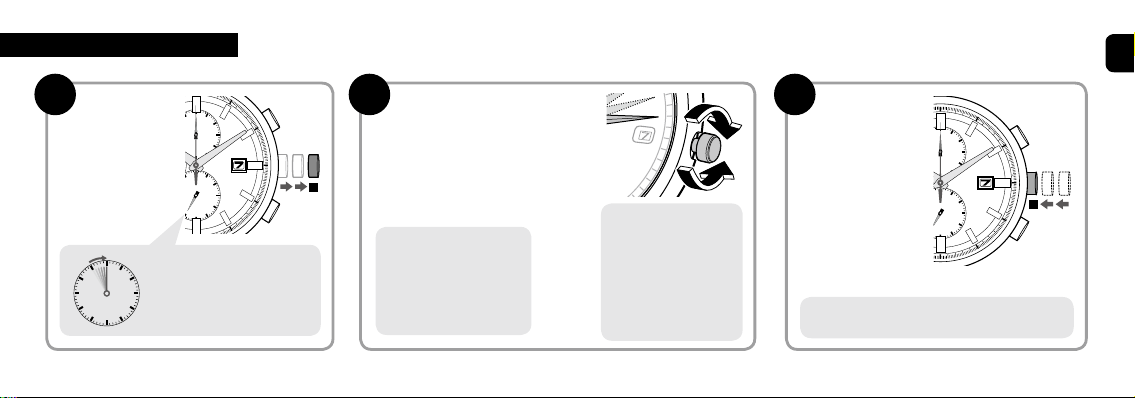

Setting the Time
Pull the crown
out to position
2.
Pull out the crown just as the
second hand is at the reference
position in order to accurately
align to the second.
Rotate the crown to
set the time.
The 24-hour hand (lo-
cated at the 9:00 subdial)
moves in relation to the
hour hand. Determine
whether it is a.m. or p.m.
by observing the 24-hour
hand.
20
10
30
40
50
60
Move the minute hand
ahead of the correct time
by 5 "minutes" and then
return the hand to the
correct "minutes". This
will minimize the eect
of gear play and will
provide more accurate
hand movement.
Press the crown
back into its
normal position.
Be sure to secure if the watch has a screw down
crown. Water may enter your watch.
31 2

10
11
English
Press the crown back into its
normal position.
0
24
6
12
2040
60
20
10
30
40
50
60
The date must be manually
adjusted for months shorter than
31-days. You will need to adjust
the date at the start of March,
May, July, October and Decem-
ber.
Be sure to secure if the watch has a
screw down crown. Water may enter
your watch.
Do not adjust the date between 9
p.m. and 1 a.m.
If you change the date during this
time, the date may not change the
following day.
Pull the crown out to
position 1.
1
6
2040
60
20
10
30
40
50
60

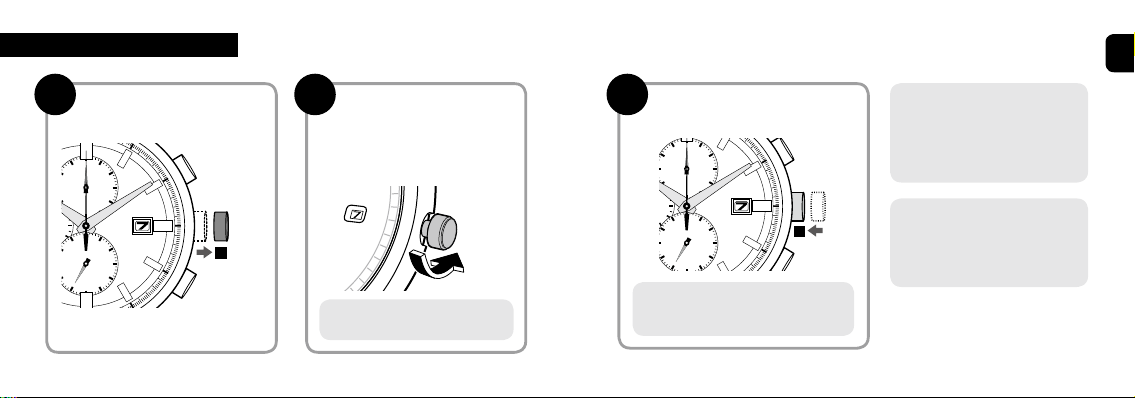

Setting the Date
Rotate the crown counter-
clockwise to set the date.
e date will not change
when the crown is rotated
clockwise.
The date does not change when
you rotate the crown to the right.
31 2

12
13
English
The chronograph minute/second hands may be come misaligned if the
watch is subjected to a strong knock.
If the position cannot be corrected by using the reset procedures outlined
on pages 12-13, please contact your nearest Authorized Service Center.
e chronograph does not function if the crown is pulled out to position 2.
e chronograph resets if the crown is pulled out to position 2 during measurement.
To start the chronograph, press and release the upper right button (B) to
commence time measurement.
To stop the chronograph, press and release the upper right button (B) again.
To recommence timing from the stopped position, press and release the
upper right button (B) again.
Time measurement start/stop
To reset the chronograph aer stopping time measurement, press and
release the lower right button (A).
Reset
1
2
3
Pressing and releasing the lower right button (A) during chronograph operation will
cause timing to stop and the chronograph to reset.
24
618
12
2040
60
20
10
30
40
50
60
e chronograph can measure up to 60 minutes in 0.2-second units.
Using the Chronograph
Reference
position
Chronograph second
hand
Chronograph minute
hand
60
1545
30
Reference
position of the
chronograph
minute hand
Caution

14
15
English
0
24
618
12
2040
60
10
50
60
The chronograph mi nute
hand moves together with
the second hand when cor-
recting the second hand.
Reset the minute hand.
Press and release the upper right
button (B) to adjust the position
of the chronograph second hand.
Press the crown back into its
normal position.
20
10
Be sure to secure if the watch
has a screw down crown and/or
screw down push button.
Water may enter your watch.
Press and release the lower
right button (A) to adjust
the position of the chrono-
graph minute hand.
Reset the minute hand
Correct the position of the second hand
1
2
1
2
2040
60
2 3
If the second hand does not move even
when the upper right button (B) is pressed,
perform Step of the page on the le.
1
If the chronograph second hand does not return
to reference position even when reset, perform the
following procedures to align the chronograph
second hand with the reference position.
When the chronograph second hand does not
return to the reference position
2
6
2040
60
10
50
60
Set the watch to correct the reference position
Pull the crown out to position 2.
Press and hold the upper right
button (B) for 3 seconds or more.
e watch is now set to correct
the reference position.
Time is stopped while aligning with the reference position. Set the time aer aligning.
24
2040
60
Reference
position
1
1
2
1
2· Press once Second hand moves ahead at one-
second intervals.
· Press and hold down Second hand advances
rapid ly.

16
17
English
Indication
Specifications
Examples of use
Minor exposure to
water (washing face,
rain, etc.)
Moderate exposure
to water (washing,
kitchen work,
swimming, etc.)
Marine sports
(skin diving)
Scuba diving
(with air tank)
Operation of the
crown or button with
moisture visible
Dial Case
(case back)
WATER RESIST or
no indication WATER RESIST(ANT) Water-resistant to
3 atmospheres OK NO NO NO NO
WR 50 or
WATER RESIST 50
WATER RESIST(ANT)
5 bar or WATER
RESIST(ANT)
Water-resistant to
5 atmospheres OK OK NO NO NO
WR 100/200 or
WATER RESIST
100/200
WATER RESIST(ANT)
10bar/20 bar or WATER
RESIST(ANT)
Water-resistant to
10/20 atmospheres OK OK OK NO NO
* WATER RESIST(ANT) xx bar may also be indicated as W.R. xx bar.
WARNING
Water-resistance
performance
There are several typesof water-resistant
watches, as shown in the
following table. The unit
“bar” is roughly equal to
1 atmosphere.
For correct use within thedesign limits of the watch,
confirm the level of water-
resistance of your watch, as
indicated on the dial and
case, and consult the table.
Precautions

18
19
English
CAUTION
Be sure to use the watch with the crown pressed in (normal position). If yourwatch has a screw down crown, be sure to tighten the crown completely.
Do NOT operate the crown or button with wet fingers or when the watch is wet.Water may enter the watch and compromise water-resistance.
If the watch is used in seawater, rinse with fresh water afterward and wipe with adry cloth.
If moisture has entered the watch, or if the inside of the crystal is fogged up anddoes not become clear within a day, immediately take the watch to your dealer
or Citizen Service Center for repair. Leaving the watch in such a state will allow
corrosion to form inside.
If seawater enters the watch, place the watch in a box or plastic bag andimmediately take it in for repair. Otherwise, pressure inside the watch will increase,
and parts (crystal, crown, buttons, etc.) may come off.
WARNING Water-resistance performance
Water-resistance for daily use (to 3 atmospheres): This type of watch is water-resistant to minor exposure to water. For example, you may wear the watch while
washing your face; however, it is not designed for use underwater.
Upgraded water-resistance for daily use (to 5 atmospheres): This type of watchis water-resistant to moderate exposure to water. You may wear the watch while
swimming; however, it is not designed for use while skin diving.
Upgraded water-resistance for daily use (to 10/20 atmospheres): This type of watchmay be used for skin diving; however, it is not designed for scuba or saturated
diving using helium gas.

20
21
English
CAUTION Operating environment
Use the watch within the operating-temperature range specified in the instructionmanual. Using the watch where temperatures are outside the specified range, may
result in deterioration of functions or even stoppage of the watch.
Do NOT use the watch in places where it is exposed to high temperature, such asin a sauna. Doing so may result in a skin burn.
Do NOT leave the watch in a place where it is exposed to high temperature, such asthe glove compartment or dash-board of a car. Doing so may result in deterioration
of the watch, such as deformation of plastic parts.
Do NOT place the watch close to a magnet. Timekeeping will become inaccurateif you place the watch close to magnetic health equipment such as a magnetic
necklace or a magnetic latch of a refrigerator door or handbag clasp or the
earphone of a mobile phone. If this has occurred, move the watch away from the
magnet and reset the time.
Do NOT place the watch close to household appliances that generate staticelectricity. Timekeeping may become inaccurate if the watch is exposed to strong
static electricity, such as is emitted from a TV screen.
CAUTION Keep your watch clean
Leaving dust and dirt deposited between the case and crown may result indifficulty in pulling the crown out. Rotate the crown while in its normal position,
from time to time, to loosen dust and dirt and then brush it off.
Dust and dirt tend to be deposited in gaps in the back of the case or band.Deposited dust and dirt may cause corrosion and soil your clothing. Clean the
watch occasionally.
Cleaning the Watch
Use a soft cloth to wipe off dirt, perspiration and water from the case and crystal.Use a soft, dry cloth to wipe off perspiration and dirt from the leather band.To clean a metal, plastic, or rubber watchband, wash away dirt with mild soap andwater. Use a soft brush to remove dust and dirt jammed in the gaps in the metal
band. If your watch is not water-resistant, take it to your dealer.
Note: Avoid using solvents (thinner, benzine, etc.), as they may damage the finish.

22
23
English
Periodical inspections
Your watch needs inspection once in every two or three years for safety and long use.
To keep your watch water-resistant, the packing needs to be replaced regularly. Other
parts need to be inspected and replaced if necessary.
Ask for Citizen genuine parts upon replacement.
Do NOT subject the watch to a strong shock such as dropping it onto a hard floor.Avoid using the watch in an environment where it may be exposed to chemicals orcorrosive gases. If solvents, such as thinner and benzine, or substances containing
such solvents come in contact with the watch, discoloration, melting, cracking, etc.
may result. If the watch comes in contact with mercury used in thermometers, the
case, band or other parts may become discolored.

24
25
English
CAUTION Charging precautions
Do not charge the watch in a high-temperature environment (about 60°C/140°For more). Overheating while charging can cause the watch exterior to become
discolored, the watch to deform or the movement to be damaged.
lighting sources that easily become hot.
dashboard.
When charging with incandescent lighting, halogen lamps, or other lightingsources that easily become hot, place the watch at least 50 cm (20 in.) away from
the source to avoid overheating.
WARNING Handling the rechargeable cell
Do not remove the rechargeable cell from the watch yourself. If you must removethe cell, store it out of reach of children to avoid accidental ingestion.
If the rechargeable cell is ingested, consult a doctor immediately.Do not throw away with regular trash. Please follow your local governmentdisposal regulations to prevent the risk of fire or environmental contaminations.
WARNING Do not use anything other than the specified
rechargeable cell
The watch will not operate if incorrect battery types are inserted.Never use a regular silver battery. The battery could overcharge during thecharging process and burst, causing damage to the watch or injuries to the wearer.

26
Specications
Mvmnt. Cal. No.:
B61 *
Type Analog solar-powered watch
Timekeeping
accuracy
Within +/-15 seconds per month when worn at normal operating tem-
peratures (+5°C / 41°F and +35°C / 95°F)
Operational
temperature range
−10°C / 14°F to +60°C / 140°F
Display func-
tions
Time: Hour, minute, second, and 24-hour
Calendar: Date (does not automatically adjust for months shorter than 31-days)
Additional func-
tions
Chronograph (measures up to 60 minutes in 0.2-second units), Insu-
cient Charge Warning Function, Overcharge Prevention Function, Quick
Start Function)
Maximum run
time from full
charge
Fully charged to fully discharged:
Approximately seven months
Power reserve upon Insucient Charge Warning Function engagement:
Approximately seven days
Battery Rechargeable cell 1pcs
