Citizen Eco-Drive Historische JR4046-03E User manual

1
Please charge the watch fully before use
by exposing it to light.
When the watch does not operate according to the
instruction manual, it is insufficiently charged.
Charge the watch for at least 3 hours approximately
20 cm (8 in) away from a fluorescent or incandescent
lamp (30 W) as a light source. When charging, do
not place the watch too close to the light source to
prevent the watch from becoming too hot.
* When charging the watch under direct sunfight,
charge for at least 50 minutes.
English

2
Contents
1. Features ................................................................................................... 4
2. Before Using the Watch .......................................................................... 5
3. Names of Components and Major Functions ....................................... 6
4. Switching Modes (Display Functions) ................................................ 10
5. Checking 0-Position of Each Hand ...................................................... 11
6. Accessing Times and Dates of Major Cities around the World ......... 15
7. Switching between Analog Time and Digital Time ............................. 17
8. Hand Evacuation Function ................................................................... 19
9. Setting the Time .................................................................................... 20
10. Setting the Date ..................................................................................... 24
11. Using the Race timer ............................................................................ 27
12. Using the Chronograph ........................................................................ 31
13. Using the Timer ..................................................................................... 34
14. Using the Alarm .................................................................................... 36

3
15. Using Zone Setting ............................................................................... 39
16. About All-Reset ..................................................................................... 40
17. Functions Unique to Eco-Drive Watches ............................................ 42
· Insufficient Charge Warning Function
· Time Setting Warning Function
· Overcharging Prevention Function
· Power Save 1
· Power Save 2
18. General Reference for Charging Times ............................................... 51
19. Notes Regarding Handling of this Watch ............................................ 53
20. Precautions ........................................................................................... 54
21. Specifications ........................................................................................ 60

4
1. Features
This watch is a combination solar-powered watch that contains a solar cell in its
face that drives the watch hands, race timer, chronograph, alarm, and numerous
other functions by converting light energy into electrical energy.
It is also equipped with convenient functions including a power save mode that
reduces power consumption when light is not shining on the solar cell, UTC
(Coordinated Universal Time) and a world timer indicating the time and dates of
30 major cities around the world.

5
2. Before Using the Watch
This watch is a solar-powered watch. Before using, allow light to shine
onto the watch so that it is sufficiently charged.
In this watch a rechargeable cell is used to store electrical energy. This
rechargeable cell is a clean energy battery that does not contain mercury or
other toxic substances. Once fully charged, the watch will continue to run for a
maximum of 4 years without additional charging (when in the power save 2
mode).
[Proper use of this watch]
To use this watch comfortably, make sure to recharge it before it stops running
completely. There is no risk of overcharging the watch no matter how often it is
recharged. (Overcharging Prevention Function).
It is recommended that the watch be recharged everyday.

6

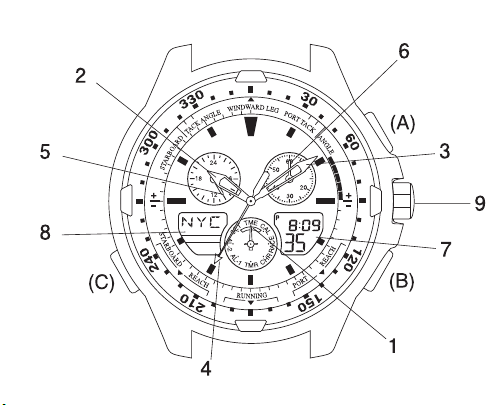

3. Names of Components and Major Functions
Name/Mode Time Calendar Race timer Chronograph
1. Mode hand TME CAL RACE CHR
2. Hour hand Always indicates “hours”
3. Minute hand Always indicates “minutes”
4. Second hand Always indicates “seconds”
Indicates the remaining
race time (seconds)
Indicates the auto-
chronograph measured
time display (seconds)
Indicates the
chronograph
measured time
(seconds)
5. 24-hour hand Always indicates “24-hour time” in conjunction with hours and minutes
6. Function hand
Always stopped at
0-position (standard
position)
Indicates the remaining
race time (minutes)
Indicates the auto-
chronograph measured
time display (minutes)
Indicates the
chronograph
measured time
(minutes)
7. Digital display 1
Hours,
minutes,
seconds
Month, date,
day
Indicates the remaining race
time (minutes, seconds)
Indicates the auto-
chronograph measured time
display (minutes, seconds)
Indicates the
chronograph
measured time
(minutes, seconds,
1/100 seconds)
8. Digital display 2 City name, SMT (when set to
daylight savings time)
Race timer set time
(minutes)
Chronograph measured
time (hours)

7
Timer Alarm-1 Alarm-2 Zone setting
TMR AL-1 AL-2 SET
Always indicates “hours”
Always indicates “minutes”
Always indicates “seconds”
Always indicates “24-hour time” in conjunction with hours and minutes
Always stopped at 0-position (standard position)
Indicates the timer’s
remaining time
(minutes, seconds)
Hours, minutes, alarm (ON/OF) City name (SET/OFF)
Timer set time (minutes) City name

8
Name/
Mode
Crown
position
Time Calendar Race timer Chronograph
9. Crown
Normal
position Mode switching
1st
click
Time correction
Calendar corr
Calendar
correction
Race Timer
set time
correction
Adjust to 0
position
A.
Button (A)
Normal
position Changing between cities Start/stop Start/stop
1st
click Switching location to be corrected ------
Switching
location to be
corrected
B.
Button (B)
Normal
position Changing between cities Return flight /
reset Split/reset
1st
click
Switching SMT (ON/OF)
Switching between
‘seconds’ correction and
‘24-hour time’
------ ------ ------
C.
Button (C)
Normal
position Hand evacuation
1st
click Hand evacuation

9
Timer Alarm-1 Alarm-2 Zone setting
Mode switching
Timer set time correction Alarm time correction Changing city name
Start/stop Changing between cities Changing city name
------ Switching location to be corrected ------
Return flight / reset Changing between cities Changing city name
------ Switching alarm (ON/OF) Changing city name
(SET/OFF)
Hand evacuation
Hand evacuation

10

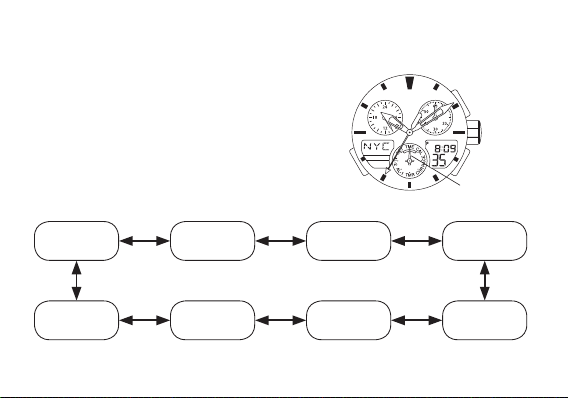

4. Switching Modes (Display Functions)
In addition to the time and date modes, this
watch is also equipped with a race timer, a
chronograph and a timer mode and alarm-1
and 2 modes. Switch modes by turning the
crown. Check the current mode using the
mode hand.
TME
Time
CAL
Calendar
RACE
Race timer
CHR
Chronograph
SET
Zone setting
AL-2
Alarm-2
AL-1
Alarm-1
TMR
Timer
Mode hand

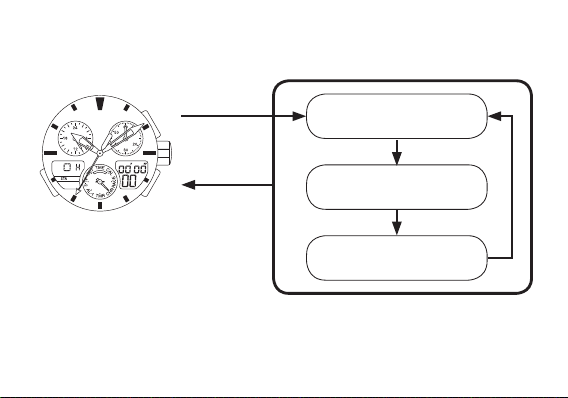

<Switching the mode>

11
5. Checking 0-Position of Each Hand
Before using this watch perform the following procedure tocheck that the 0-
position (standard position of each hand) is set correctly to ensure that the
functions of the watch operate properly.

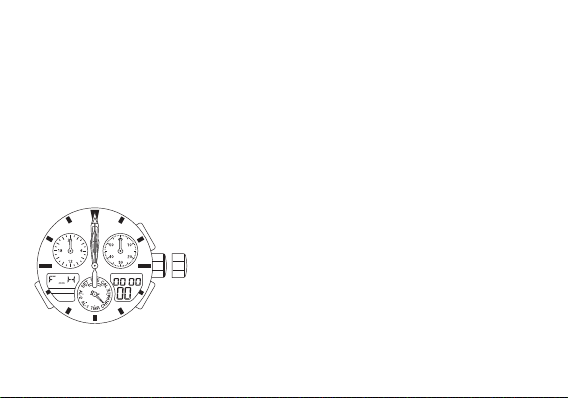

<0-Position Check>
1. While in the normal position, turn the crown to set the mode hand to the
chronograph [CHR] mode.
2. Pull the crown out to the first click (0-position
correction position)
· The second hand, minute hand, hour hand, 24-
hour hand and function hand rapidly advance to
the 0-position (12 o’clock position).
Note:
· When each hand is not at the 0-position,
perform the “0-position correction” procedure. If
this 0-position is out of alignment, each hand will
not indicate the correct position.

12
< 0-Position Correction (Setting to the Watch Standard Position) >
... Setting when the 0-position is out of algnment
When setting the 0-position of each hand, always make sure to turn the crown to
the right (clockwise) to set each hand to its 0-position in the clockwise direction.
1. Turn the crown while in the normal position to set the mode hand to the
chronograph [CHR] mode.
2. Pull the crown out to the first click (0-position correction position).
· The second hand, minute hand, hour hand and 24-hour hand rapidly advance
to the position stored in the memory.
· “F-H” lights in digital display 2 indicating that the watch is in the function hand
correction state.
3. Turning the crown to the right (clockwise) allows corrections to be made in the
positive direction. Turning the crown continuously allows corrections to be
made continuously. Turn the crown to the left or right to stop.
4. Pressing button (A) switches the correction location between “HR” (24-hour
hand, hour hand, minute hand), “SEC” (second hand) and “F-H” (function
hand) each time the button is pressed.
5. Turn the crown to the right (clockwise) to align each hand at the 0-position.
Although correction can be made in the negative direction by turning the
crown backwards (counter-clockwise) always make sure to set the 0-position

26
Notes:
1. When the date is set for any one city, the dates of other cities, including UTC time,
are corrected automatically.
2. The year can be set from 2001 to 2099.
3. The day is corrected automatically when the year, month and date are set.
4. Since this watch is equipped with an auto-calendar function, it is not necessary to
correct the date at the end of the month.
5. When the date has been set to a non-existent date, (for example February 30) the
watch automatically displays the 1st day of the following month when the watch is
returned to the normal display.

14
<Normal Chronograph
Display>
Function hand
Minute hand/hour hand/
24-hour hand
Second hand
Crown
pulled out to
the first click
Crown
returned to
normal
position
<0-Position (Standard Position)
Correction State>
(A)
(A)
(A)

15
6. Accessing Times and Dates of Major Cities
around the World
The time or date of major cities pre-registered in this watch can be easily
accessed by pressing the buttons.
<Access Procedure>
1. Turn the crown to set the mode hand to the [TME] time or [CAL] calendar
mode.
2. When button (A) is pressed, the times or dates of major cities in the scrolling
UP direction are displayed each time the button is pressed.
3. When button (B) is pressed, the times or dates of major cities in the scrolling
DOWN direction are displayed each time the button is pressed.
· Pressing button (A) or (B) continuously causes scrolling to advance rapidly.

16
* Cities (regions) in which daylight savings time is used, are indicated with the ○mark, while those in
which it is not, are indicated with an ×.
* The time difference and use of daylight savings time of each city are subject to change by each
individual country.
<Cities and UTC Time Differences Pre-registered in this Watch>
Scrolling UP
Scrolling DOWN
Display
on watch City name
Time
difference
Daylight
savings
time
UTC Universal time constant ±0 ---
LON London ±0 ○
PA R Paris +1 ○
ROM Rome +1 ○
CAI Cairo +2 ○
IST Istanbul +2 ○
MOW Moscow +3 ○
KWI Kuwait +3 ×
DXB Dubai +4 ×
KHI Karachi +5 ×
DEL New Delhi +5.5 ×
DAC Dhaka +6 ×
BKK Bangkok +7 ×
SIN Singapore +8 ×
HKG Hong Kong +8 ×
PEK Beijing +8 ×
Display
on watch City name
Time
difference
Daylight
savings
time
TYO Tokyo +9 ×
SYD Sydney +10 ○
NOU Noumea +11 ×
AKL Auckland +12 ○
HNL Honolulu -10 ×
ANC Anchorage -9 ○
LAX Los Angeles -8 ○
DEN Denver -7 ○
CHI Chicago -6 ○
MEX Mexico City -6 ×
NYC New York -5 ○
YUL Montreal -5 ○
CCS Caracas -4 ×
RIO Rio de Janeiro -3 ○
BUE Buenos Aires -3 ×
