Citizen J304 User manual

1
English
B8109-EN_rev.indd 1B8109-EN_rev.indd 1 06.11.29 3:00:27 PM06.11.29 3:00:27 PM

2
CONTENTS
1. Features .....................................................................................3
2. Before Using...............................................................................3
3. Names of Components...............................................................4
4. Setting the Time..........................................................................5
5. Setting the Date..........................................................................6
6. Using the Dual Time Function.....................................................7
7. Using World Time function.......................................................... 8
8. Special Functions of Solar-Powered Watches ..........................10
9. Charging Time ..........................................................................12
10. Notes Regarding Handling of Solar-Powered Watches ................ 13
11. Helpful Hints............................................................................. 15
12. Precautions ..............................................................................16
13. Specifications ...........................................................................22
B8109-EN_rev.indd 2B8109-EN_rev.indd 2 06.11.29 3:00:36 PM06.11.29 3:00:36 PM

3
1. Features
This is an analog solar-powered watch that is equipped with a solar cell incorporated in its face
to convert solar energy into electricity. The watch is also equipped with the large and highly
visible date indicator and the fan-shape 24-hour dial.
2. Before Using
Sufficiently Recharge by
Placing in Light Before Use
A secondary battery is used in this watch to store electrical energy. This secondary battery
is a clean energy battery that does not contain mercury or other toxic substances. Once fully
charged, the watch will continue to run for about 6 months without additional charging.
<How to use this Solar Watch Properly>
To use this watch comfortably, make sure to recharge the watch before it stops running
completely. Since there is no risk of overcharging (Overcharging Prevention Feature), it is
recommended that the watch be recharged everyday.
B8109-EN_rev.indd 3B8109-EN_rev.indd 3 06.11.29 3:00:37 PM06.11.29 3:00:37 PM

4
3. Names of Components
* In the case the crown is of the screw-lock type, loosen the screw by turning the crown to the
left before operating the crown, and after having returned the crown to the normal position
following operation, turn the crown to the right while pushing it in to securely retighten it.
* The illustrations in this instruction manual may differ from the actual appearance of your watch.
Date
Hour hand
Minute hand
Second hand Crown
24-hour hand
B8109-EN_rev.indd 4B8109-EN_rev.indd 4 06.11.29 3:00:38 PM06.11.29 3:00:38 PM

5
4. Setting the Time
* For accurate setting of the time
• Set in the time order of second hand,hour hand,minute hand,24-hour hand.
(1) Pull the crown out to position 2 when the second hand reaches the 60-second position.
(2) Turn the crown to set the time.
The date changes when the time is about 2:00 AM. Do not confuse AM and PM when setting
the time.
(3) Securely return the crown to the normal position in synchronization with a telephone or other
time service.The second hand will start moving and the watch will begin to keep accurate time.
(4) Pull the crown out to position 1 and turn it to the left to set 24-hour time. (Turn to the right to
set the date.)
(5) Return the crown to the normal position.
• For more accurate setting of the time, turn the minute hand 4-5 minutes past the correct time,
then turn it back to the correct time.
Hour hand
Minute hand
Second hand
24-hour hand
Pull the crown out to
position 1 (Turn to the left)
Pull the crown out to
position 2
24-hour time correction
Time correction
B8109-EN_rev.indd 5B8109-EN_rev.indd 5 06.11.29 3:00:39 PM06.11.29 3:00:39 PM

6

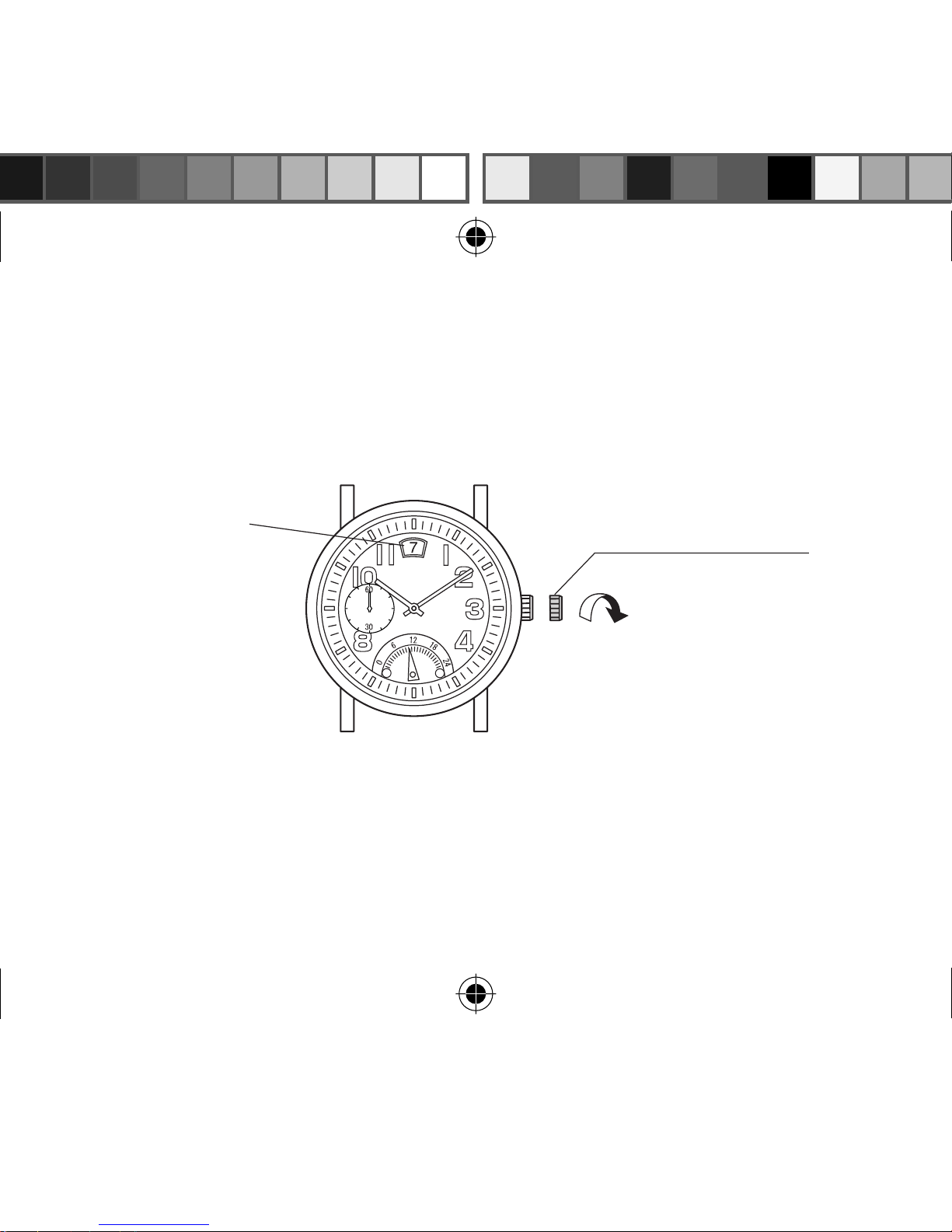

5. Setting the Date
(1) Pull the crown out to position 1.
(2) Turn the crown to the right to set the date. (Turning the crown to the left enables correction of
the 24-hour hand.)
(3) When the date was set, return the crown to the normal position.
[Notes]
• If the date is set while the time on the watch is between the hours of about 11:00 PM and
2:00 AM, the date may not change on the following day. If this happens, set the date after
temporarily moving the hands to a time other than between the above times.
• The date is based on a 31-day calendar. The crown must be used to change the date from the
last day of the month to the first day of the following month for shorter months (months having
30 days and February).
Pull the crown out
to position 1
(Turn to the right)
Date correction
Date
B8109-EN_rev.indd 6B8109-EN_rev.indd 6 06.11.29 3:00:41 PM06.11.29 3:00:41 PM

7
6. Using the Dual Time Function
The 24-hour hand enables the setting of the time for another time zone.The 24-hour time
setting can be made in 1-hour increments to enable use of the dual time function.
(1) Pull the crown out to position 1.
(2) Turn the crown to the left to set the 24-hour hand to a time in another time zone.
(Turning the crown to the right enables correction of the date.)
(3) When the setting was completed, return the crown to its normal position.
• The minute display position of the 24-hour hand stops at a position that is linked to the
minute hand.
• Please use the dual time function as a general reference only.
24-hour hand
Pull the crown out to
position 1 (Turn to the left)
24-hour time correction
B8109-EN_rev.indd 7B8109-EN_rev.indd 7 06.11.29 3:00:42 PM06.11.29 3:00:42 PM

8

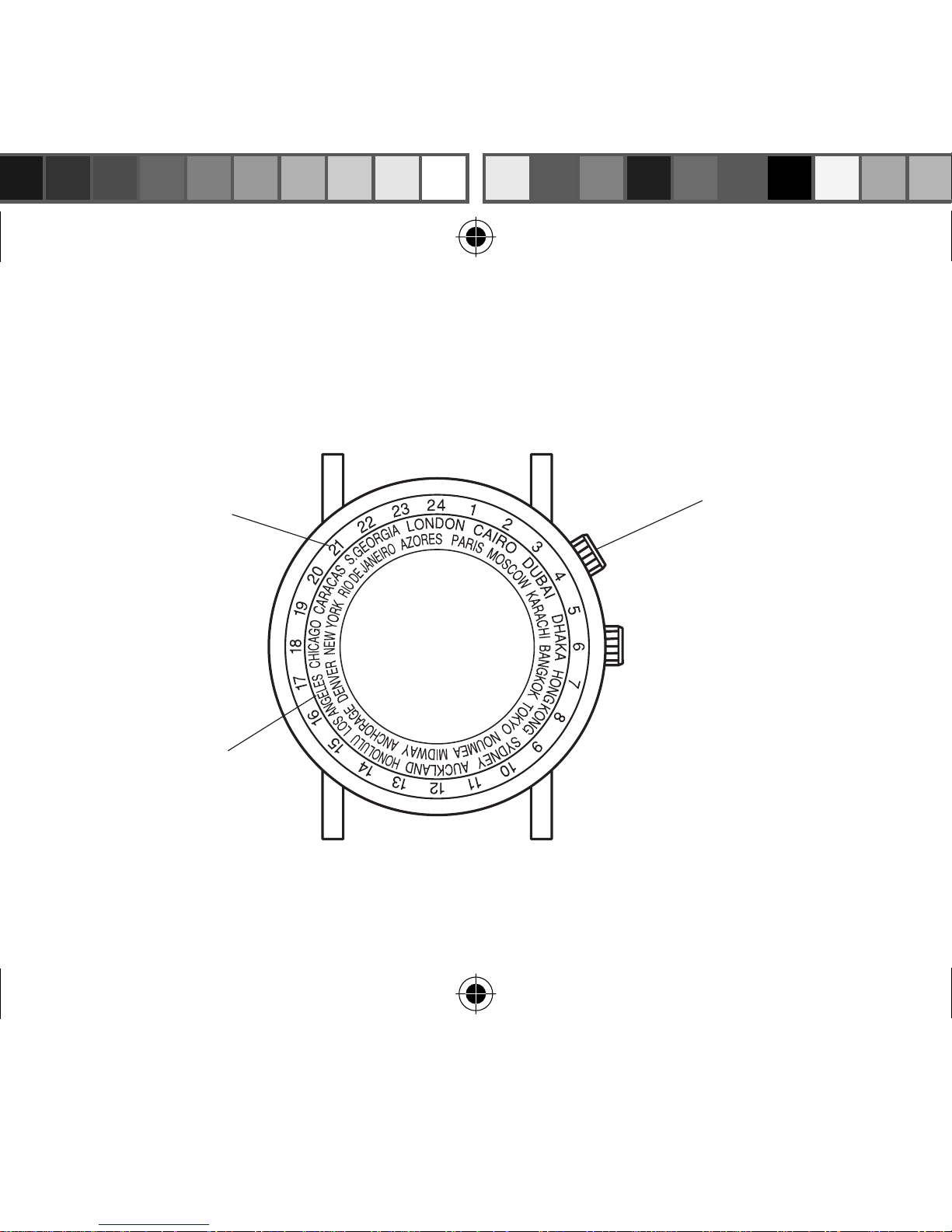

7. Using World Time function
* For models equipped with World Time function only
The World Time function allows you to see the time in 24 major cities in the world.
* The World Time function does not support Daylight Saving Time.
24-hour dial Crown for 24-hour
dial
City names
B8109-EN_rev.indd 8B8109-EN_rev.indd 8 06.11.29 3:00:43 PM06.11.29 3:00:43 PM

9

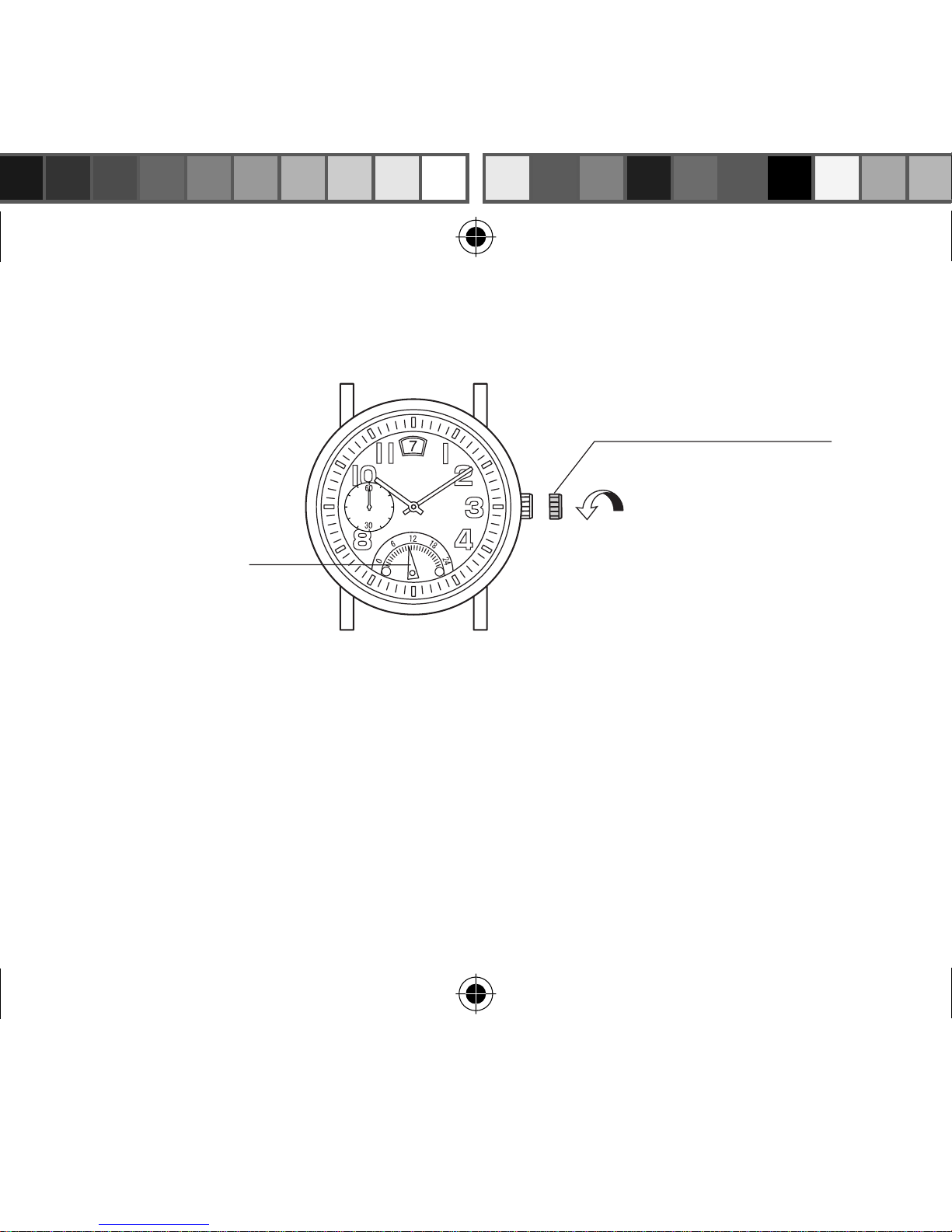

<How to see the times in other cities>
* Ex.: To see the time in New York
Set “8” on the dial above
“NEW YORK”. “TOKYO” is below “22” on
the dial.
Fig. for Ex. 1 below
Ex. 1: To see the time in Tokyo at 8 o’clock in New York.
(1) Turn the crown for 24-hour dial so that “8” on the dial comes above “NEW YORK”.
(2) “22” on the dial comes above “TOKYO”.
Now you can see it is 22 o’clock in Tokyo when it is 8 in New York.
Ex.2: To see the time in New York at 12 o’clock in London.
(1) Turn the crown for 24-hour dial so that “12” on the dial comes above “LONDON”.
(2) “7” on the dial comes above “NEW YORK”.
Now you can see it is 7 o’clock in New York when it is 12 in London.
B8109-EN_rev.indd 9B8109-EN_rev.indd 9 06.11.29 3:00:43 PM06.11.29 3:00:43 PM

10

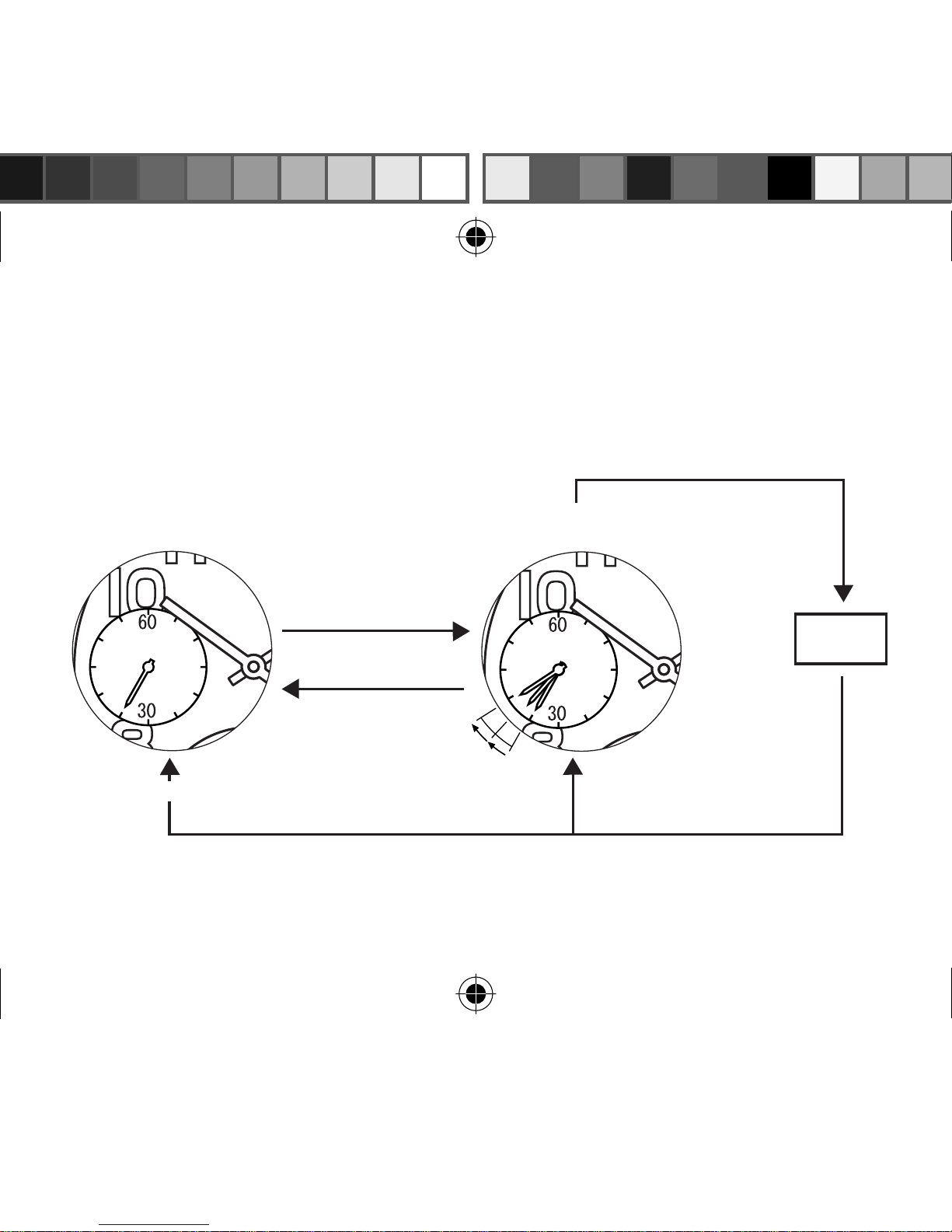

8. Special Functions of Solar-Powered Watches
This watch is provided with a function that causes a warning function to be activated when the
watch is sufficiently charged that alters the display to inform the wearer of insufficient charge.
When the watch is exposed to light,the Quick Start Function will begin operating and the
second hand will start moving. The correct time can be set once the watch is fully charged.
If insufficiently chargeed state (2-second interval
movement) continues for 3 days or more
[Insufficient recharging
warning feature display]
[Normal time display]
If insufficiently charged
If charged sufficiently
Stops
One second
interval movement
Two second
interval movement If insufficiently charged
and time is set
B8109-EN_rev.indd 10B8109-EN_rev.indd 10 06.11.29 3:00:44 PM06.11.29 3:00:44 PM

11
<Insufficient Recharging Warning Feature>
The second hand changes to two-second interval movement to inform the wearer of insufficient
recharging. Although the watch will keep the correct time when this happens, the watch will
stop when two-second interval movement continues for about 3 days. Place the watch in light to
recharge. The watch will return to one-second interval movement.
<Quick Start Feature>
The watch will stop when it is completely discharged. When placed in light, the hand will begin
to move after about 10 seconds. (The time until the hands begin to move varies according to
the model and brightness of the light.) Please note that if the light is blocked, the watch may
stop again as a result of being insufficiently recharged.
<Overcharging Prevention Feature>
When the secondary battery is fully charged, the overcharging prevention feature is activated
to prevent further recharging. This enables the wearer to recharge without risk of damage to
the watch.
B8109-EN_rev.indd 11B8109-EN_rev.indd 11 06.11.29 3:00:46 PM06.11.29 3:00:46 PM

12
9. Charging Time
The time required for charging varies according to the model of watch (color of the watch face, etc.).
The following table provides a general reference for determining charging times.
Illuminance
(lux) Environment
Charging time (approx.)
After stopping until one-
second movement
For one
day’s use
For full
charge
500 Inside an ordinary office 70 hours 4 hours
1,000 60-70cm (24-28in.) under a
fluorescent light (30W) 35 hours 2 hours
3,000 20cm (8in.) under a fluorescent
light (30W) 10 hours 40 min 130
hours
10,000 Exterior, cloudy 3 hours 12 min
40 hours
100,000 Exterior, summer, sunny 25 min. 3 min 8 hours
Time required for full charge: Time from the state in which the watch has stopped until fully charged.
Time required for one day’s use: Time required for the watch to run at one-second intervals for one day.
B8109-EN_rev.indd 12B8109-EN_rev.indd 12 06.11.29 3:00:47 PM06.11.29 3:00:47 PM

13
10. Notes Regarding Handling of
Solar-Powered Watches
<Always make sure to recharge frequently>
• Please note that if you wear long sleeves, the watch may stop as a result of being covered by
your sleeve and blocked from the light.
• When you take off the watch, try to place it in as bright a location as possible. This will ensure
that it will continue to run properly.
CAUTION: Recharging Precautions
• The watch will be damaged during recharging if it becomes excessively hot (60˚C/140˚F and
above). Avoid recharging when the watch is hot.
Examples: Recharging when the watch is in close proximity to an incandescent lamp, halogen
lamp or other light source that generates considerable heat, or recharging the
watch while placed on the dashboard of an automobile or other locations subject to
excessively high temperatures.
• When you charge the watch by an incandescent lamp, take a distance about 50cm (20 in.) from
the light source to prevent extremely high temperature.
B8109-EN_rev.indd 13B8109-EN_rev.indd 13 06.11.29 3:00:48 PM06.11.29 3:00:48 PM

14
<Replacement of Secondary Battery>
Since the secondary battery used in this watch is able to be charged and discharge repeatedly, it
does not have to be replaced periodically in the manner of ordinary batteries.
WARNING Handling of Secondary Battery
• The secondary battery should never be removed from the watch.
• If for any reason it becomes necessary to remove the secondary battery from the watch, keep
it out of the reach of children to prevent accidental swallowing.
• If the secondary battery is accidentally swallowed, consult a doctor immediately.
WARNING Use Only the Specified Battery
Never use a battery other than the secondary battery specified for use in this watch. Although the
watch structure is designed so that it will not operate when another type of battery is installed, if
a silver battery or other type of battery is installed in the watch and the watch is recharged, there
is the risk of overcharging which may cause the battery to rupture.This can cause damage to the
watch and injury to the wearer.
When replacing the secondary battery, always make sure to use the designated secondary
battery.
B8109-EN_rev.indd 14B8109-EN_rev.indd 14 06.11.29 3:00:50 PM06.11.29 3:00:50 PM

15
11. Helpful Hints
<The second hand is moving in two-second interval movement>
• This indicates that the insufficient recharging warning feature has
been activated. When this happens, recharge the watch promptly so
that it returns to one-second interval movement.
<If there is a discrepancy between the 24-hour hand and the hour hand>
• If you pulled the crown out to position 2 and turned it in the opposite direction (counterclockwise)
when you set the time or moved the hands during a date setting operation, the 24-hour hand
stops at the 0:00 position when the time goes past 0:00 AM.If this is the case, pull the crown out to
position 1 and turn it to the left until the 24-hour hand matches the time indicated by the hour hand.
If, however, the dual time function setting has been made, allow for the time difference when
resetting the time.
<The date changes at about 2:00 PM>
• Anerrorwasmadeintheselectionofthe12-hourtimeperiod(AM/PM)whenthetimewascorrected.
(Refer to the“Setting the Time”section and reset the time to the correct time.)
2-second interval movement
B8109-EN_rev.indd 15B8109-EN_rev.indd 15 06.11.29 3:00:51 PM06.11.29 3:00:51 PM

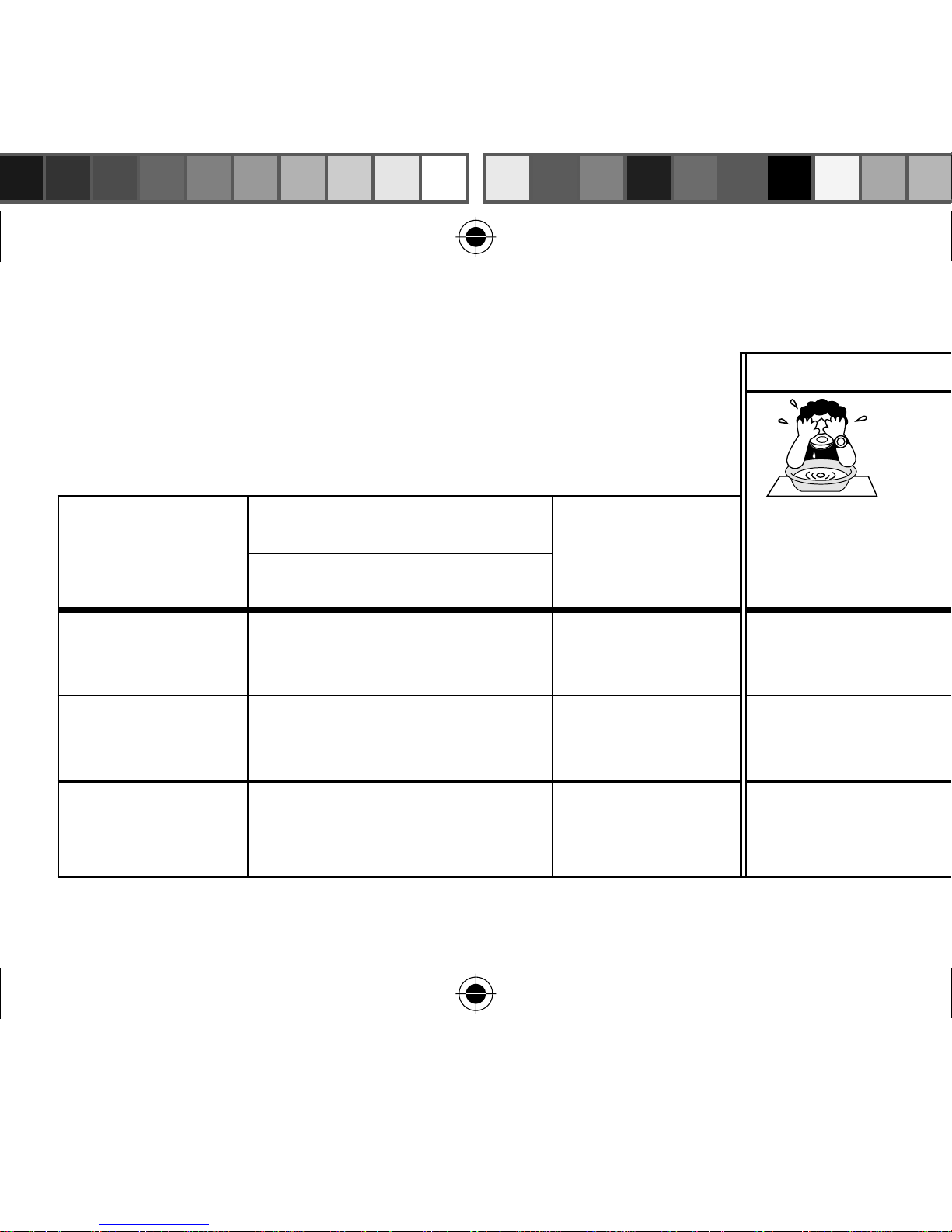

16
Name
Indication
Specification
Minor exposure
to water
(washing face,
rain, etc.)
Watch dial and Case back
Everyday-use water-
resistant watch WATER RESIST(ANT)
Water-resistant to
3 atmospheres OK
Upgraded everyday-
use water-resistant
watch
WATER RESIST(ANT)
5bar
Water-resistant to
5 atmospheres OK
Upgraded everyday-
use water-resistant
watch
WATER RESIST(ANT)
10/20bar
Water-resistant to
10 or 20
atmospheres OK
12. Precautions
CAUTION: Water-resistance performance
(The unit “bar” is roughly equal to 1 atmosphere.)
There are several types of water-resistant watches, as shown in the following table.
For correct use within the design limits of the watch, confirm the level of water-
resistance of your watch, as indicated on the dial and case, and consult the table.
B8109-EN_rev.indd 16B8109-EN_rev.indd 16 06.11.29 3:00:52 PM06.11.29 3:00:52 PM

17
Examples of Use
Moderate exposure
to water (washing,
kitchen work,
swimming, etc.)
Marine sports (skin
diving)
Scuba diving (with
air tank)
Operation of the
crown with moisture
visible
NO NO NO NO
OK NO NO NO
OK OK NO NO
*WATER RESIST (ANT) xx bar may also be indicated as W.R. xx bar.
B8109-EN_rev.indd 17B8109-EN_rev.indd 17 06.11.29 3:00:54 PM06.11.29 3:00:54 PM

18
• Water-resistance for daily use (to 3 atmospheres): This type of watch is water-resistant to
minor exposure to water. For example, you may wear the watch while washing your face;
however, it is not designed for use underwater.
• Upgraded water-resistance for daily use (to 5 atmospheres): This type of watch is water-
resistant to moderate exposure to water.You may wear the watch while swimming; however, it
is not designed for use while skin diving.
• Upgraded water-resistance for daily use (to 10/20 atmospheres): This type of watch may be
used for skin diving; however, it is not designed for scuba or saturated diving using helium
gas.
CAUTION
• Be sure to use the watch with the crown pressed in (normal position). If your watch has a
screw-type crown, be sure to tighten the crown completely.
• Do NOT operate the crown with wet fingers or when the watch is wet. Water may enter the
watch and compromise water-resistance.
• If the watch is used in seawater, rinse with fresh water afterward and wipe with a dry cloth.
• If moisture has entered the watch, or if the inside of the crystal is fogged up and does not
become clear within a day, immediately take the watch to your dealer or Citizen Service
Center for repair. Leaving the watch in such a state will allow corrosion to form inside.
• If seawater enters the watch, place the watch in a box or plastic bag and immediately take it in
for repair. Otherwise, pressure inside the watch will increase, and parts (crystal, crown, buttons,
etc.) may come off.
B8109-EN_rev.indd 18B8109-EN_rev.indd 18 06.11.29 3:00:55 PM06.11.29 3:00:55 PM
