clage Zip DBX18 Next User manual

Zip
Instantaneous Hot Water

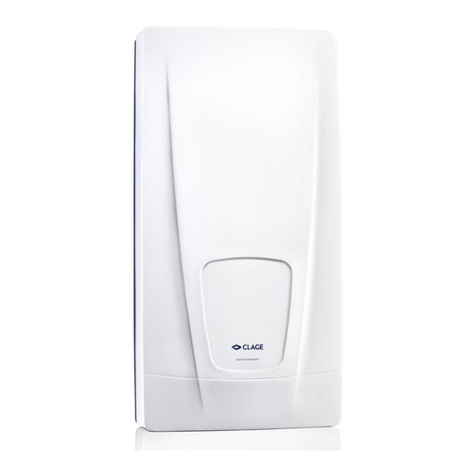

Electronically controlled instantaneous water heater
DBX18 Next: 807123 - 50 °C and DBX27 Next: 807124 - 50 °C models
Installation and Operating Instructions
For 50°C models, the appliance delivers water not exceeding 50°C in accordance with AS3498

2
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
Contents
1. Safety instructions ..................................................................................... 3
Instructions for the installer
2. Overview ............................................................................................. 4
3. Technical data ......................................................................................... 5
4. Dimensions ........................................................................................... 5
5. Installation............................................................................................ 6
Installation site ........................................................................................ 6
Installing the wall bracket ................................................................................7
Installing connection pieces ..............................................................................7
Installing the appliance ................................................................................. 8
Surface mounted installation ............................................................................ 9
6. Electrical connection ..................................................................................10
Wiring diagram ........................................................................................10
Structural prerequisites.................................................................................10
Electrical connection from below ........................................................................10
Electrical connection from above ........................................................................11
7. Initial operation........................................................................................12
8. Maintenance work .....................................................................................13
Cleaning and replacing the filter strainer..................................................................13
Cleaning and replacing the filter strainer if direct connected ................................................13
9. Environment and recycling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Instructions for the user
1. Description of appliance ................................................................................15
2. How to Use ...........................................................................................16
Venting after maintenance work .........................................................................16
Cleaning and maintenance ..............................................................................16
3. Troubleshooting and service ............................................................................17
The documents supplied with the device must be stored carefully.

3
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
1. Safety instructions
Please read these instructions carefully before installing or using the appli-
ance! Keep the instructions handy with the appliance for future use!
Installation, initial operation and maintenance of this appliance must only be
conducted by an authorised professional, who will then be responsible for
adherence to applicable standards and installation regulations. We assume no
liability for any damages caused by failure to observe these instructions.
To observe additionally for pressureless installation:
• The water outlet behind the devices must not be blocked, and the water flow must not be restricted.
• The water outlet facilities, such as shower head, jet control and other outlet unit, must be decalcified regularly. Deposits
must be removed in regular intervals.
• Only the fittings recommended by the manufacturer may be used.
• If the appliance is exclusively connected to a single shower, only the shower heads recommended by the manufacturer
may be used. No other fittings or appliances which decrease the water flow to the shower may be installed.
• Do not use the appliance until it has been correctly installed and unless it is in perfect working order.
• Do not remove the front cover under any circumstances before switching off the mains electrical supply to the unit.
• Never make technical modifications, either to the appliance itself or the electrical leads and water pipes.
• The appliance must be earthed at all times.
• Pay attention to the fact that water temperatures in excess of approx. 43°C are perceived as hot, especially by children,
and may cause a feeling of burning. Please note that the fittings and taps may be very hot when the appliance has been
in use for some time.
• The appliance is only suitable for domestic use and similar applications inside closed rooms, and must only be used to
heat incoming water from the mains supply.
• The appliance must never be exposed to frost.
• The values stated on the rating plate must be observed.
• In case of malfunction, disconnect the fuses immediately. In case of leaks, cut off the mains water supply instantly.
Repairs must only be carried out by the customer service department or an authorised professional.
• This appliance can be used by children aged 3years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be performed by children without supervision.
• If the appliance is factory equipped with a power supply cable, it must be replaced with an original spare cable from the
manufacturer in case of damage by an authorised technician in order to avoid any hazards.
• For appliances with direct connection, an all-pole disconnecting device with a contact opening width of ≥ 3 mm per
phase must be provided at the installation end, according to Australian wiring rules AS/NZ3000.
• The wall bracket must be secured with the supplied screws and dowels. The appliance must be secured to the wall
bracket. The appliance may only be operated if it has been properly mounted on the wall bracket.
• The prescribed nominal pressure stated on the rating plate may not be exceeded at any time.
• The required water resistance may not fall below the value stated on the rating plate at any time.

4
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
Instructions for the installer
2. Overview
When ordering spare parts, please always specify the appliance model and serial number.
Pos. Description
1 Bottom part
2 Safety temperature cut-out
3 D series thermal sensor set 2.1
4 Heating element
5 Non-return valve
6 Flow sensor
8 Outlet pipe
9 Flow limiter 7 l/min
9 Flow limiter 8 l/min
9 Flow limiter 9 l/min
9 Flow limiter 10 l/min
10 Hot water connection
11 Screw-in nipples 1/2”
12 Grommet
Pos. Description
13 Water splash protection sleeve
14 Wall bracket
15 DBX Next hood
16 DBX Next connecting pipe
17 PCB cover
18 PCB
19 Connecting terminal
20 Inlet pipe
21 Fine filter
22 Cold water connection
23 Frame
not
shown:
23 Fittings kit
Parts in Bold Type are available as Spare Parts. Other parts are available on request
16
17
18
23
22
21
13
15
5
6
3
3
8
1
14
10
9
2
4
20
19
7
1211

5
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
3. Technical data
Model DBX 18 Next DBX 27 Next
Part no. 807123 807124
Energy efficiency class A *)
Capacity set / current 18 kW (25 A) 27 kW (37.6 A)
Electrical connection 3~ / PE 400 V AC 3~ / PE 400 V AC
Min. required cable size 1) see note 1)
Hot water (l/min) 2) max. at ∆t = 28K
max. at ∆t = 38K
9.2
6.8
13.8
10.2
Rated volume 0.4 l
Rated pressure 1.0 MPa (10 bar)
Connecting type open outlet / closed outlet
Heating system Bare wire heating system IES®
Required specific
water resistance @ 15°C
Specific electrical conductivity
≥ 1300 Ωcm
≤ 77 mS/m
Inlet temperature ≤ 30 °C
Flow rate to switch on – max. flow rate 3) 1.5 – 7.0 l/min 1.5 – 9.0l/min
Pressure loss 0.08 bar at 1.5 l/min 1.3 bar at 9.0 l/min 4)
Temperature range 20 °C – 50 °C
Water connection G ½“
Weight (when filled with water) 4.2 kg
VDE class of protection I
Type of protection / safety IP25
*) The declaration complies with the EU regulation No812/2013.
1) The cross sectional area of the connection cable must be in accordance with the power rating of the appliance and the specific requirements of
AS/NZS 3000.
2) Mixed water
3) Flow rate limited to achieve optimum temperature rise, other flow limiter available.
4) Without flow regulator
4. Dimensions
100
170
468 363
56
96
239
Dimensions in mm

6
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
Installation site
• Appliance must only be installed in frost-free rooms. Never expose appli-
ance to frost.
• The Appliance must be wall mounted and has to be installed with water
connectors downward or alternative transversely with water connections
left.
• The appliance complies with protection type IP25.
• To avoid thermal losses and dead legs, the distance between the instanta-
neous water heater and the furthest outlet should be kept as short as pos-
sible (<6 meters). In addition all hot water pipe work should be insulated in
accordance with AS/NZS 3500.
• For maintenance work, a shut-off valve should be installed in the supplyline.
The appliance must be accessible for maintenance work.
• The specific resistance of the water must be at least 1300 Ωcm at 15 °C. The
specific resistance can be asked for with your water distribution company.
• For 50°C models, the appliance delivers water not exceeding 50°C in
accordance with AS3498.
5. Installation
The following regulations must be observed:
• Installation must comply with all statutory regulations, as well as those of
the local electricity and water supply companies.
• The rating plate and technical specifications
• Only intact and appropriate tools must be used
• Installation must comply with all statutory regulations, AS/NZS 3000, AS/
NZS 3500, as well as those of the local electricity and water supply compa-
nies
• These instructions must be read and fully understood before commencing
the installation. If in doubt, or in need of further guidance please ring Zip
on 1800 638 633

7
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
Note: Fasten the screw nuts with caution, to avoid damage to the valves or
the piping system.
• As shown in the illustration, screw the cold water connection piece with the
union nut and the ½inch seal onto the cold water connection.
• Screw the hot water connection piece with the union nut and the ½inch
seal onto the hot water connection.
cold
warm
• Put the water flow limiter “D” into the hot water connection piece. The
O-ring must be visible
D
Note: If you install this instantaneous water heater in exchange for a conven-
tional instantaneous water heater, there is generally no need to drill holes for
the wall bracket, in this case step 2 would not be necessary.
Thoroughly rinse the water supply pipes before installation to remove soiling
from the pipes.
1. Using a 12mm hexagon socket screw key, screw the screw-in nipples into
the wall connections. The seals must be fully screwed into the thread. After
tightening, the double nipples must protrude by 12 – 14 mm.
2. Hold the included mounting template on the wall and align it so that the
holes in the template fit over the double nipples. Mark the drill holes
according to the template and drill them using a 6 mm drill. Insert the
included dowels.
3. Pull down the faceplate and unscrew the main hood screw to open the
appliance.
4. Loosen the knurled nut to remove the wall bracket and screw the wall
bracket to the wall. Offset tiling or uneven surfaces can be compensated
by up to 30 mm with the aid of the spacers supplied. The spacers are fitted
between the wall and the wall bracket.
5. Installation
Installing the wall bracket
Installing connection pieces

8
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
• The electrical power supply cable may be connected in the upper part or
is surface mounted. Only in such case, first follow the steps one through
three according to the description “Electrical connection from above” in
chapter “Electrical connection”.
1. Place the appliance on the heater bracket so that the threaded rod of the
wall bracket fits in the corresponding hole of the appliance. If necessary,
slight corrections are possible by carefully bending the threaded rod of the
wall bracket. However, it must be possible to screw on the water connec-
tion pipes of the appliance without applying force.
2. Screw the plastic knurled nut onto the threaded rod of the wall bracket.
3. Screw the two ⅜inch union nuts of the appliance‘s water connection pipes,
each with the ⅜inch seal, onto the fittings.
4. Open the water supply line to the unit and slowly open (position “open“)
the shut-off valve (a) in the cold water connection piece. Check all connec-
tions for leaks.
5. Next, open and close the hot water tapping valve several times until no
more air emerges from the line and all air has been eliminated from the
instantaneous water heater.
5. Installation
Installing the appliance
(a)
closed
open

9
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
Note: Fasten the screw nuts with caution, to avoid damage to the valves or
the piping system.
For direct connection, the two ½inch screw-in nipples and the ½inch seals
must be screwed into the ½inch union nuts of the hot-water and cold-water
connectors. The two ½inch caps of the side outlets of the hot-water and cold-
water connectors must be removed and screwed onto the open end of the
screw-in nipples. Put the water flow reducer “D” into the hot water connec-
tion piece. The hot-water and cold-water connectors must then be screwed
into the ⅜inch union nut of the appliance inlet and outlet pipe, together with
the ⅜inch seals.
For direct connection, it may be advisable to mount the appliance at a dis-
tance as illustrated alongside, using the spacer sleeves supplied. The two fixing
holes near the lower pipe connections are also to be professionally fixed with
6 mm dowels and screws.
The flared end of the pipes must be screwed into the ½inch side outlets of the
hot-water and cold-water connectors with ½inch union nuts and ½inch seals.
The holes required for the pipes must then be opened of the housing with the
aid of a blunt implement.
In case of direct connection please note: Put the strainer into the cold water
connection!
5. Installation
Surface mounted installation
D

10
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
Note: If necessary, the connecting terminal can be displaced to the upper
part of the appliance. If you want to do so, please follow the instructions in
the next chapter.
Check that the power supply is switched off prior to electrical connection!
1. Dismantle approximately 6 cm off the connecting cable above the wall
outlet. With the smaller opening ahead, slide the water splash protection
sleeve over the connecting cable so that the sleeve is flush with the wall.
This prevents any leaking water from coming into contact with the electri-
cal leads. It must not become damaged! The protection sleeve must be
used!
2. Strip the individual wires and plug them in the connecting terminals accord-
ing to the wiring diagram. The appliance must be earthed.
3. Pull the protective sleeve so far over the connecting cables and shape the
connecting cables in such a way that the sleeve fits perfectly in the recess
of the intermediate panel without mechanical tension and fix it with the
sleeve fixing (A).
4. Place the hood on the appliance and screw in the fastening screw. After
that you can slide on the faceplate from the bottom up to the stop.
Structural prerequisites
• The cross sectional area of the connection cable must be in accordance
with the power rating of the appliance and the specific requirements of AS/
NZS 3000.
• The appliance must be permanently connected to the electrical supply
through an isolation switch as per AS/NZS 3000.
• The electric wiring should not be damaged. After mounting, the wiring
must not be direct accessible.
• An all-pole disconnecting device (e.g. via fuses) with a contact opening
width of at least 3mm per pole should be provided at the installation end.
• To protect the appliance, a fuse element with must be fitted with a tripping
current commensurate with the nominal current of the appliance.
6. Electrical connection
Wiring diagram
1. Electronic circuitry
2. Heating element
3. Safety pressure cut-out
4. Connecting terminal
5. Safety thermal cut-out
Electrical connection from below
Only by a specialist!
Please observe:
• The installation must comply with current IEC and national local regula-
tions or any particular regulations, specified by the local electricity supply
company
• The rating plate and technical specifications
• The appliance must be earthed!
12
5
3
4
A

11
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
Check that the power supply is switched off prior to electrical connection!
1. Open the prepared breaking point (S) in the upper part of the appliance
by pressing with a blunt implement (e.g. srewdriver). For surface-mounted
connection cable additional open the breakout at the right side of the bot-
tom part.
2. Slit the grommet of the accessory set to match the cable size. The open-
ing in the grommet should be slightly smaller than the cross-section of the
cable in order to ensure optimum protection against water. Fit the grom-
met into the opening. The protection grommet must be used!
3. Strip the connection cable so that the sheath extends through the grom-
met into the appliance. Hold the prepared appliance so that you can route
the cable into the grommet with the other hand.
4. Place the appliance on the wall bracket so that the threaded rod of the wall
bracket fits in the corresponding hole of the appliance and fix it with the
knurled nut.
5. Unscrew the fastening screw of the connecting terminal. Displace the con-
necting terminal to the upper foot. Affix the connecting terminal again.
6. Strip the individual wires of the connecting cable and plug them in the con-
necting terminals according to the wiring diagram. The appliance must be
earthed.
7. Place the hood on the appliance and screw in the fastening screw. After
that you can slide on the faceplate from the bottom up to the stop.
Note: To ensure IP25 protection class, please don´t remove the bottom water
splash protection sleeve.
6. Electrical connection
Electrical connection from above
S

12
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
Before making the electrical connection, fill the mains and the appliance
with water by carefully opening and closing the hot water tap in order to
vent completely.
To ensure a maximum flow, remove any existing aerator from the faucet.
Flush the warm and cold water pipes each at least for one minute.
After every draining (e.g. after work on the plumbing system or following
repairs to the appliance), the heater must be re-vented in this way before
starting it up again.
If the water heater cannot be put into operation, the temperature cut-out or
the pressure cut-out may have tripped during transport. If necessary, check
that the power supply is switched off and reset the cut-out.
1. Switch on the power supply to the appliance.
2. Open the hot water tap. Check the function of the appliance. The heating
element will be activated after approx. 10 - 30seconds of continuous water
flow.
3. Explain the user how the instantaneous water heater works and hand over
the operating instructions.
4. Fill out the guarantee registration card and send it to the Zip Customer ser-
vice or register on line at: www.zipwater.com.
7. Initial operation
Modification of factory preset outlet temperature
The factory set hot water outlet temperature is 50 °C.
By turning the adjustment potentiometer with the auxiliary tool “S”, this pre-
setting can be changed between two stops in the range of approx. 20°C to
50 °C.
The hot water outlet temperature will be increased by clockwise rotation and
decreased by counterclockwise rotation.
THIS APPLIANCE DELIVERS WATER NOT EXCEEDING 50 °C IN
ACCORDANCE WITH AS3498.
STB
SDB
S

13
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
8. Maintenance work
The cold water connection of this instantaneous water heater is equipped with
an integrated shut-off valve and a strainer. Soiling of the strainer may reduce
the warm water output. Clean or replace the strainer as follows:
1. De-energize the instantaneous water heater (e.g. via deactivating the fuses)
and prevent inadvertent reactivation of them.
2. To open the appliance, take off the small face plate, loose the screw behind
this cover and detach the hood.
3. Close the shut-off valve (a) in the cold water connection piece (posi-
tion“closed“).
4. Unscrew the screw plug (b) from the cold water connection piece and take
out the strainer (c).
Note: Residual water can leak
5. The strainer can now be cleaned or replaced.
6. After fitting of the clean strainer tighten the screw plug.
7. Slowly reopen the shut-off valve in the cold water connection piece (posi-
tion“open“). Check all connections for leaks.
8. Vent the appliance by carefully opening and closing the affiliated warm
water tap valve several times until air no longer emerges from the pipe.
9. Fit the hood of the appliance. Then switch on the power again (e.g. via acti-
vating the fuses).
Maintenance work must only be conducted by an authorised professional.
Cleaning and replacing the filter strainer
The cold water connection of this instantaneous water heater is equipped with
a strainer. Soiling of the strainer may reduce the warm water output. Clean or
replace the strainer as follows:
1. De-energize the instantaneous water heater (e.g. via deactivating the fuses)
and prevent inadvertent reactivation of them.
2. Close the shut-off valve in the mains water supply of the instantaneous
water heater.
3. To open the appliance, take off the small face plate, loose the screw behind
this cover and detach the hood.
4. Unscrew mains water inlet from connection piece and take out the strainer.
Note: Residual water can leak
5. The strainer can now be cleaned or replaced.
6. After refitting the clean strainer reconnect the mains water inlet to the
connection piece.
7. Slowly reopen the shut-off valve in the mains water supply. Check all con-
nections for leaks.
8. Vent the appliance by carefully opening and closing the affiliated warm
water tap valve several times until air no longer emerges from the pipe.
9. Fit the hood of the appliance. Then switch on the power again (e.g. via acti-
vating the fuses).
Cleaning and replacing the filter strainer if direct connected
(a)
closed
open
(c)(b)
Strainer

14
Instructions for installer - DBX Next - August 2021 v1.00 Art.no: 9120-34376
9. Environment and recycling
This product was manufactured climate neutrally according to Scope 1 + 2.
We recommend the purchase of 100% green electricity to make the operation
climate neutral as well.
Your product was manufactured from high-quality, reusable materials and
components. Please respect in case of discarding that electrical devices
should be disposed of separately from household waste at the end of their
service life. Therefore, please take this device to a municipal collection point
that return used electronic devices to the recycling system. Disposing it cor-
rectly will support environmental protection and will prevent any potential
negative effects on human beings and the environment that could arise from
inappropriate handling of these devices at the end of their service life. Please
contact your local authority for further details of your nearest designated col-
lection point or recycling site.
Business customers: If you wish to discard equipment, please contact your
dealer or supplier for further information.

15
Instructions for user - DBX Next - August 2021 v1.00 Art.no: 9120-34376
The E-basic instant water heater DBX Next is a electronically controlled pres-
sure-resistant instantaneous water heater for an efficient water supply to one
or more tap outlets.
As soon as you open the hot water tap, the instantaneous water heater
switches on automatically. When the tap is closed, the appliance automati-
cally switches off. Its electronic control regulates the power consumption
automatically depending on the feed temperature and the flow rate, thus
reaching the set outlet temperature up to the appliance’s power limit.
The factory set outlet temperature is 50 °C. This factory setting can be adjust-
ed in the appliance to be in a range of approx. 20 and 50 °C by a specialist
only.
In case of a low feed temperature and a high flow rate at the same time, it
could happen that the preset outlet temperature is not reached which is due
to the fact that the appliance exceeded its capacity. The outlet temperature
can be raised by reducing the water flow at the tap.
1. Description of appliance
Instructions for the user

16
Instructions for user - DBX Next - August 2021 v1.00 Art.no: 9120-34376
2. How to Use
This instantaneous water heater features an automatic air bubble protection
to prevent it from inadvertently running dry. Nevertheless, the appliance
must be vented before using it for the first time. Each time the appliance is
emptied (e.g. after work on the plumbing system, if there is a risk of frost
or following repair work), the appliance must be re-vented before it is used
again.
1. Disconnect the instantaneous water heater from the mains (e.g. via deacti-
vating the fuses).
2. Unscrew the jet regulator on the outlet fitting and open the cold water tap
valve to rinse out the water pipe and avoid contaminating the appliance or
the jet regulator.
3. Open and close the hot water tap until no more air emerges from the pipe
and all air has been eliminated from the water heater.
4. Only then should you re-connect the power supply again (e.g. via activating
the fuses) to the instantaneous water heater and screw the jet regulator
back in.
5. The appliance activates the heater after approx. 10seconds of continuous
water flow.
Venting after maintenance work
• Plastic surfaces and fittings should only be wiped with a damp cloth. Do not
use abrasive or chlorine-based cleaning agents or solvents.
• For a good water supply, the outlet fittings (e.g. jet regulators and shower
heads) should be unscrewed and cleaned at regular intervals. Every three
years, the electrical and plumbing components should be inspected by an
authorised professional in order to ensure proper functioning and opera-
tional safety at all times.
Cleaning and maintenance

17
Instructions for user - DBX Next - August 2021 v1.00 Art.no: 9120-34376
Repairs must only be carried out by
authorised professionals.
If a fault in your appliance cannot be
rectified with the aid of this table,
please contact the service organisa-
tion of your importer or the Central
Customer Service Department.
Please have the details of the typep-
late at hand.
Problem Cause Solution
Water stays cold
Master fuse tripped Renew or activate fuse
Safety pressure cut-out
tripped
Contact customer ser-
vice
Safety thermal cut-out
tripped
Contact customer ser-
vice
Flow rate of hot water
too weak
Outlet fitting dirty or
calcified
Clean shower head, jet
regulator or sieves
Fine filter dirty or cal-
cified
Let clean fine filter by
customer service
Selected temperature
is not reached Excessive water flow Reduce water flow rate at the outlet
Selected temperature
is perceived to be too
cold
Set temperature too
low
Increase set tempera-
ture by a specialist
Selected temperature
is perceived to be too
hot
Set temperature too
high
Decrease set tempera-
ture by a specialist
This instantaneous water heater was manufactured conscientiously and
checked several times before delivery. First attempt to switch the house
fuses off and on again in order to reset the electronics. Next, try to remedy
the problem with reference to the following table. In doing so, you will avoid
unnecessary expense of customer service assistance.
3. Trouble-shooting and service

18
Instructions for user - DBX Next - August 2021 v1.00 Art.no: 9120-34376
Notes

19
Instructions for user - DBX Next - August 2021 v1.00 Art.no: 9120-34376
Notes

Instructions for user - DBX Next - August 2021 v1.00 Art.no: 9120-34376
Head Office
Zip Water (Aust) Pty. Ltd
ABN: 46 000 578 727
67-77 Allingham Street
Condell Park NSW 2200
Postal: Locked Bag 80
Bankstown 1885 Australia
Website: www.zipwater.com
Telephone: [phone]
Free Call: 1 800 638 633
As Zip’s policy is one of con-
tinuous product improvement,
changes to specifications may
be made without prior notice.
Images in this booklet have been
modified and may not be true
representations of the finished
goods.
*9120-34376*
*9120-34376*
