Instant Shed- Peak Style 6' x 12' x 8'
Assembly Instructions
RECOMMENDED TOOLS
OR
Clarke International
Hemnall Street
Epping
Essex CM16 4LG
ENGLAND
www.clarkeinternational.com
PARTS & SERVICE: 0208 988 7400
E-mail: [email protected] or
[email protected]
SALES: UK 01992 565333 or
EXPORT: 00 44 (0)1992 565335
Before you start: 2 or more individuals recommended for assembly, approximate time 2 hours.
Please read instructions COMPLETELY before assembly. This shelter MUST be securely anchored.
4/3/12
DESCRIPTION MODEL #
6' x 12' x 8'
A B C CIS 612
3503504
Instant Shed 1.8 x 3.7 x 2.4 M - Green
C
A
B

Page 2 05_70416_0A
PROPER ANCHORING OF THE FRAME IS THE RESPONSIBILITY OF THE CONSUMER.
Clarke®International is not responsible for damage to the unit or the contents from acts of nature. Any shed that is not anchored
securely has the potential to y away causing damage. Periodically check the anchors to ensure stability of the shed. Clarke®
International cannot be responsible for any shed that blows away. NOTE: Your shelter’s cover can be quickly removed and stored prior
to severe weather conditions. If strong winds or severe weather is forecast in your area, we
recommend removal of cover.
PROPER ANCHORING AND INSTALLATION OF FRAME:
ATTENTION:
This shelter product is manufactured with quality materials. It is designed to t the custom fabric cover included. Please anchor the
shed carefully following the instructions in this manual. Proper anchoring, keeping cover tight and free of snow and debris is the
responsibility of the consumer. Please read and understand the installation detail, warnings and cautions prior to beginning installation.
CAUTION:
Use CAUTION when erecting the frame.
Risk of re. DO NOT smoke or use open ame devices (including grills, re pits, deep fryers, smokers or
lanterns) in or around the shed. DO NOT store ammable liquids (gasoline, kerosene, propane, etc.) in or
around your shelter. Do not expose top or sides of the shelter to open re or other ame source.
WARNING:
Choose the location of your shed carefully. DANGER: Keep away from electrical wires. Check for
overhead utility lines, tree branches or other structures. Check for underground pipes or wires before
you dig. DO NOT install near roof lines or other structures that could shed snow, ice or excessive run
off onto your shelter. DO NOT hang objects from the roof or support cables.
DANGER:
A tight cover ensures longer life and performance. Always maintain a tight cover. Loose fabric can accelerate
deterioration of cover fabric. Immediately remove any accumulated snow or ice from the roof structure with a
broom, mop or other soft-sided instrument. Use extreme caution when removing snow from cover- always
remove from outside the structure. DO NOT use hard-edged tools or instruments like rakes or shovels to
remove snow. This could result in punctures to the cover. DO NOT use bleach or harsh abrasive products to
clean the fabric cover. Cover is easily cleaned with mild soap and water.
CARE AND CLEANING:
090111

Page 3 05_70416_0A

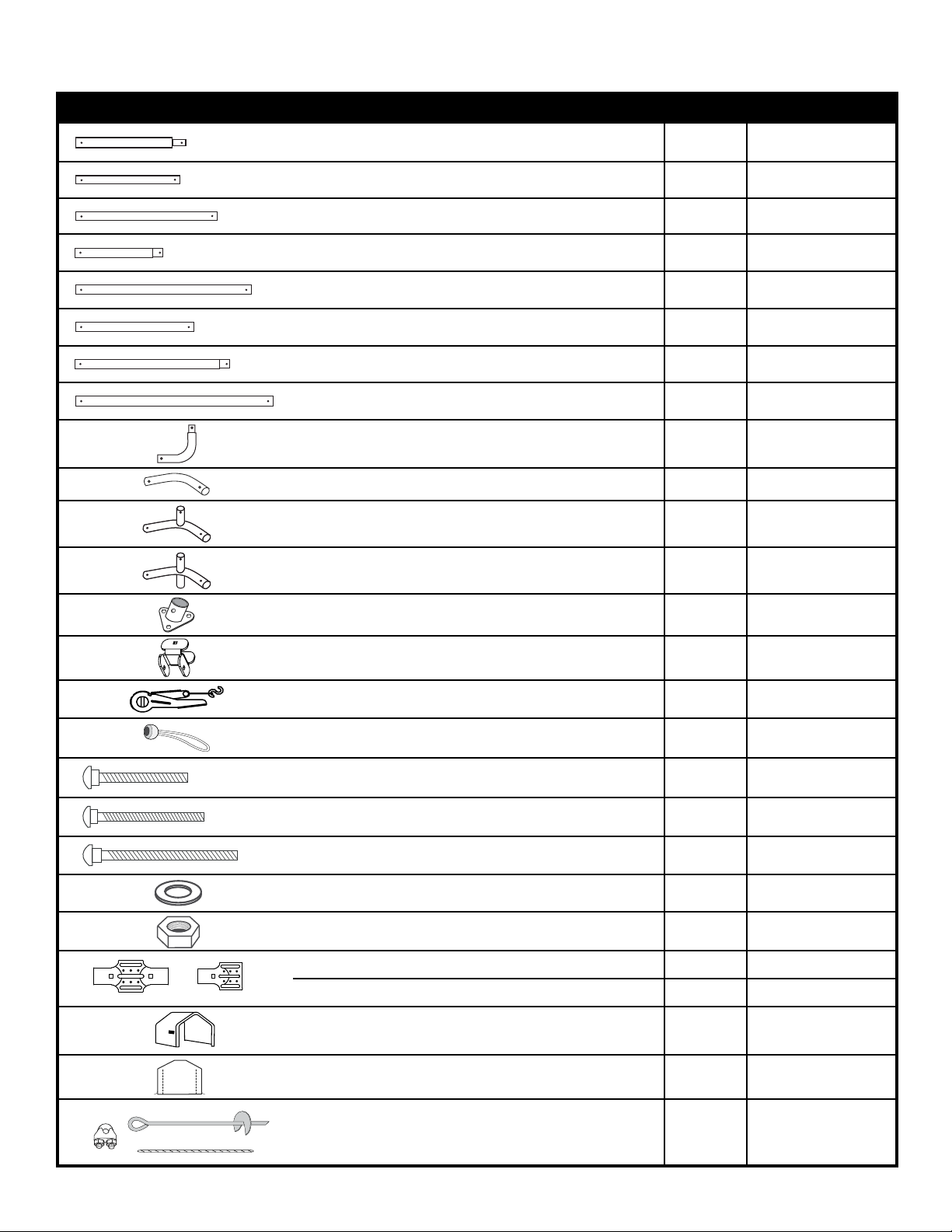

Instant Shed - 6' x 12' x 8' - Parts List - Model # CIS 612 3503504
Quantity Part #
Description of Parts:
Cross Rails, Swedge 25 3
/
4 in.
/
65,4 cm
Cross Rails 24 1
/
2 in.
/
62,4 cm
Cross Rails 33 1
/
8 in.
/
84 cm
Top Cross Rails 20 1
/
2 in.
/
51,9 cm
Cover Rails 45 3
/
4 in.
/
116,2 cm
Upright 31 11
/
16 in.
/
80,5 cm
Corner Upright 30 1
/
2 in.
/
77,8 cm
Upright 41 in.
/
104,1 cm
10
5
8
3
6
8
4
4
800704
800703
802636
802837
10110
800599
800598
803064
NOTE: 15 inch anchors are available from our spare parts
department. Please quote Part No.10014
8
12
75
8
30
8
800938
801204
802860
802861
802610
10240
01011
01010
13201
13202
803070
803071
10014
10016
10015
4
4
4
00847
}
8
2
2
37
4
8
8
1
2
4
802836
3-Way Top Connectors
4-Way Top Connector
Ratchet Clamp
Corner Leg Bends
Side Corners
Steel Foot Plate
Washer 1
/ 4in. /
6,4 mm
Nut 1
/ 4in. /
6,4 mm
4 10066
White Bungee Cords (For holding door open)
Half-Clamps for Middle Legs
Half-Clamps for Corner Legs
Cover
2-Zipper Door
Shelter Stabiliser
15 in. Auger Anchors (Temporary)
Cable Clamps
Cable - 1 ft. Length
Bolts 1
/ 4x 17 / 8in. /
6,4 x 47,6 mm
Bolts 1
/ 4x 2 in. /
6,4 x 50,8 mm
Bolts 1
/ 4x 15 / 8in. /
6,4 x 41,3 mm
03032
10114
10115

Page 4 05_70416_0A

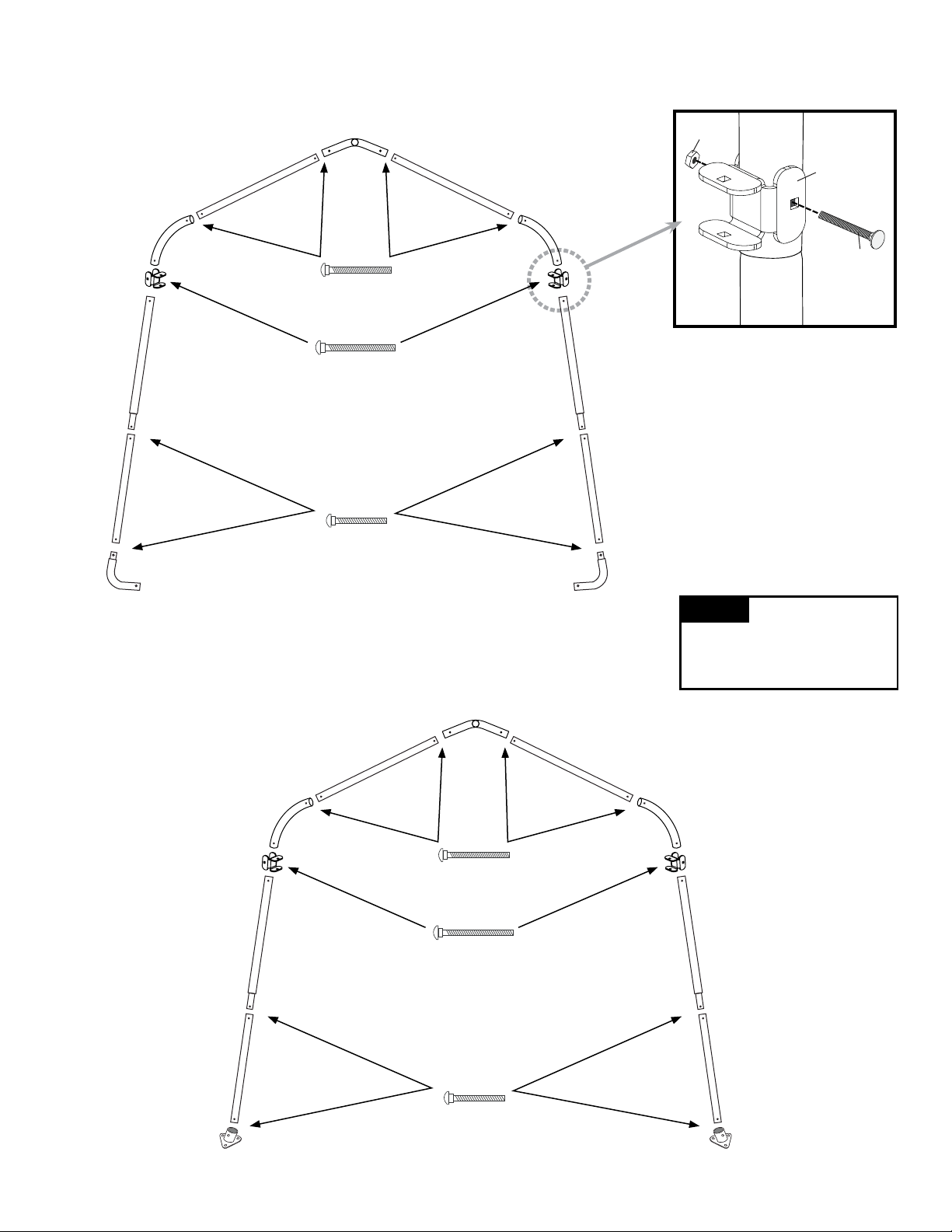

1. ASSEMBLE 2 END RIBS
Secure connections using Bolts as shown with #01010 Nuts.
802860
802636
801204
800938
800599
800598
802836 802836
800598
800599
800938
801204
802636
#10115
#03032
#10114
801204
800599
800938
10114
01010
2. ASSEMBLE 2 MIDDLE RIBS
802610 802610
NOTE:
The bolt heads at
the end ribs must be facing
outward to avoid damaging
your cover.
802861
802636
801204
800938
800599 800599
803064803064
800938
801204
802636
#10115
#03032
#10114

Page 5 05_70416_0A
C1
C1

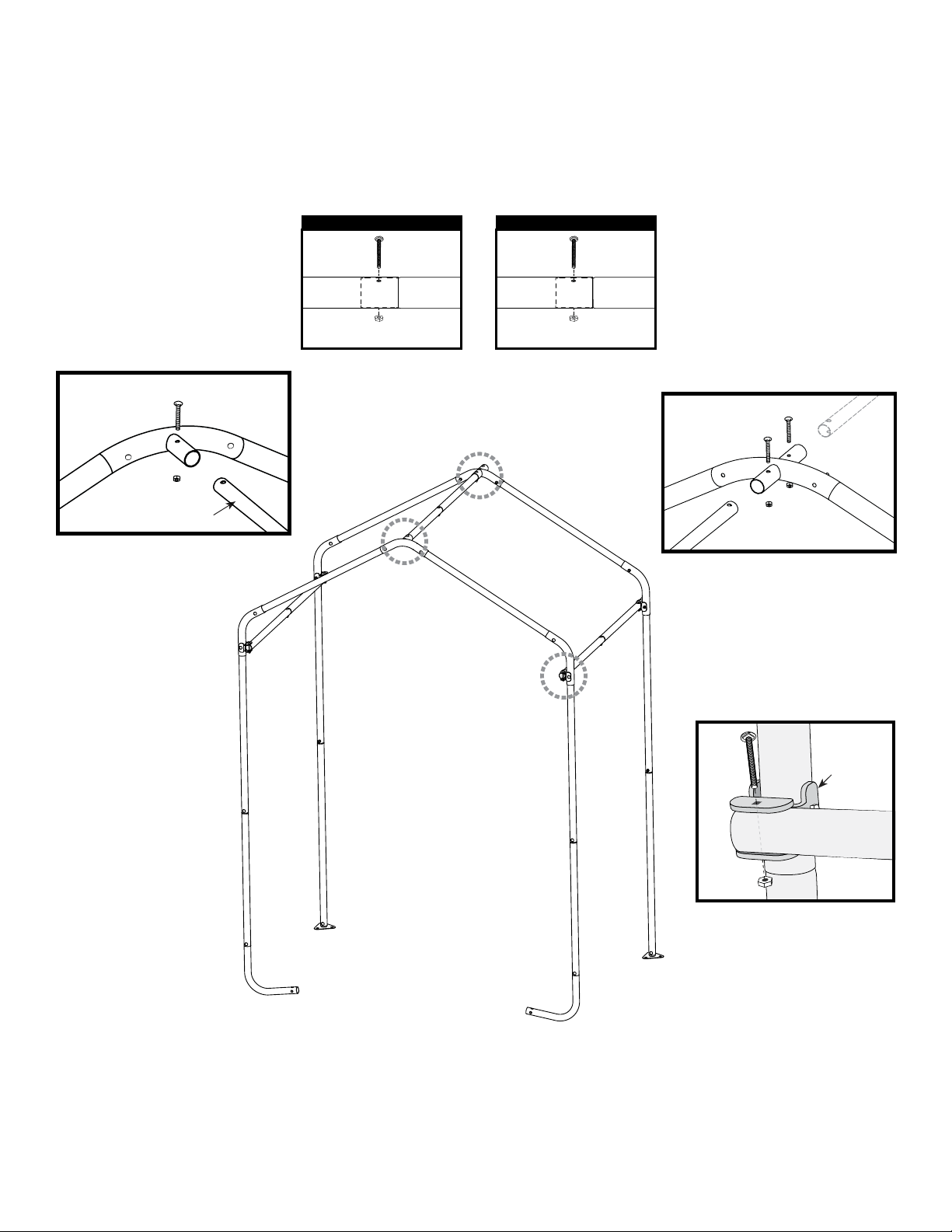

3. CONNECT FRONT END RIB TO MIDDLE RIB
A. Assemble 2 Side Cross Rails using parts as shown.
B. Assemble 1 Top Cross Rail using parts as shown.
C. Connect the Top Cross Rail at the 3- and 4-Way Connectors as shown.
D. Connect the 2 Side Cross Rails at the Shelter Stabilsers.
A B
A
B
Assemble Side Cross Rails Assemble Top Cross Rail
800704 800703802837800703
10115 10115
01010 01010
D
800938
03032
01010
Cross Rail
C2
C2
A
D
802837
03032
01010
802860
802861
03032
01010
800703
802837

Page 6 05_70416_0A
C2
4. CONNECT REMAINING RIBS
A. Assemble 4 Side Cross Rails using parts as shown.
B. Assemble 2 Top Cross Rails using parts as shown.
C. Connect the Top Cross Rails at the 3- and 4-Way Connectors as shown.
D. Connect the Side Cross Rails at the Shelter Stabilsers.
A
B
Assemble Side Cross Rails
800704800704
10115
01010
D1
800938
03032
01010
Cross Rail
C1
A
03032
01010
800938
Cross Rail
Middle
Rib
End Rib
D2
D1
D2
C1 C2
802837
03032
01010
802860 801246
03032
01010
802837
B
Assemble Top Cross Rail
800703802837
10115
01010
800703

Page 7 05_70416_0A
End Rib Anchors
WARNING:
Serious injury to persons
or property could result if
cover is installed and shelter
is not anchored and is left
unattended. Shelter must be
securely anchored before use.

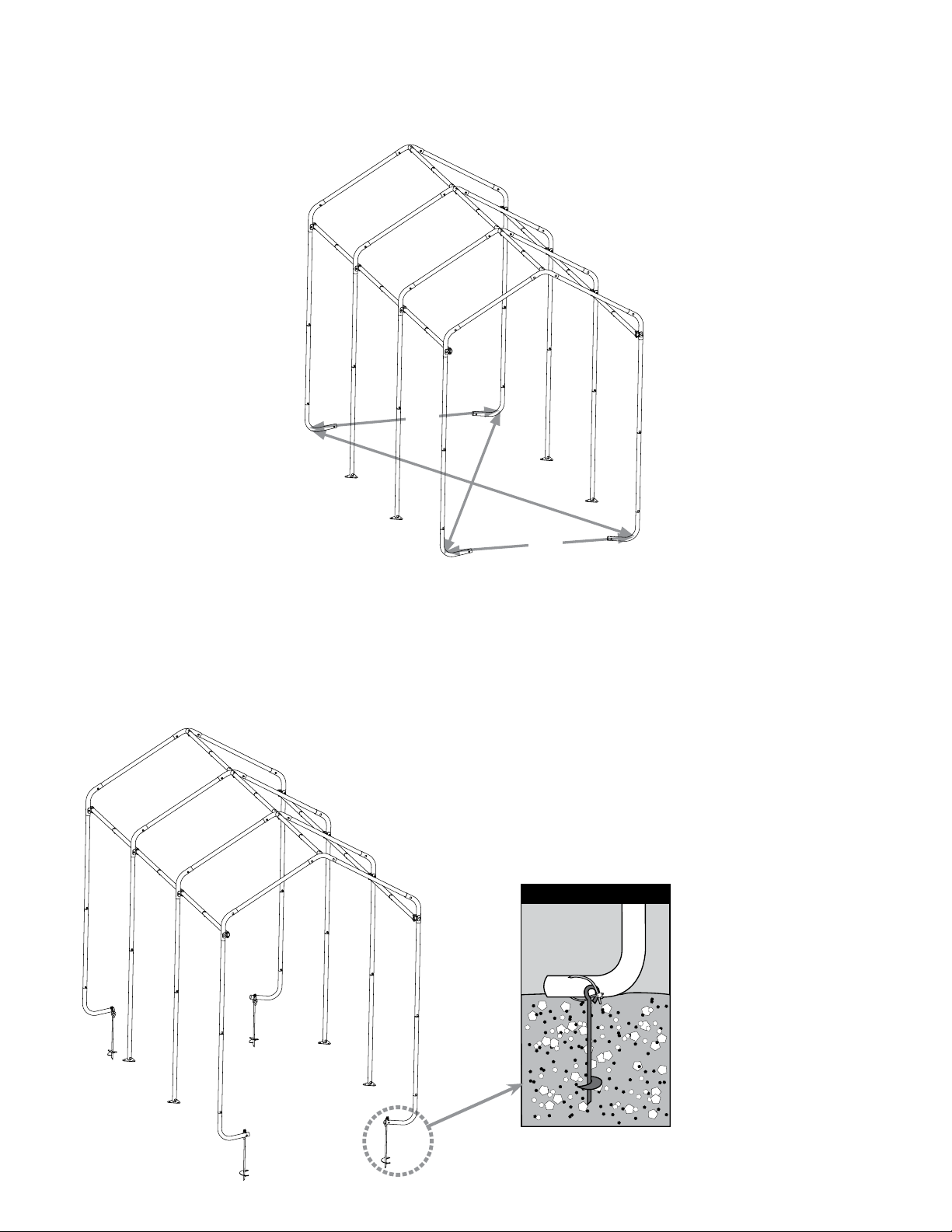

6. PROPERLY ANCHOR THE FRAME
A. Anchors must be placed inside shelter at the corners of the shelter.
B. Insert a ¾ inch pipe or steel rod, through the eyelet of the auger and screw the anchor into the ground until
the eyelet is sticking out of the ground by 1 to 2 inches so it can be anchored to the legs.
If ground is too hard, dig a hole with a shovel or post hole tool. Optional: Fill with cement.
C. Wrap cable provided through the eyelet of the anchor and around the frame as shown below. Secure
the cable with the clamps provided.
5. SQUARING UP THE FRAME
A. Place frame in its nal location, which needs to be as at and level as possible.
B. Measure across opposite corners. These distances must be equal to within 1 inch.
C. Check that the front and rear of the frame measures 6 feet in width
6 ft.
6 ft.

Page 8 05_70416_0A

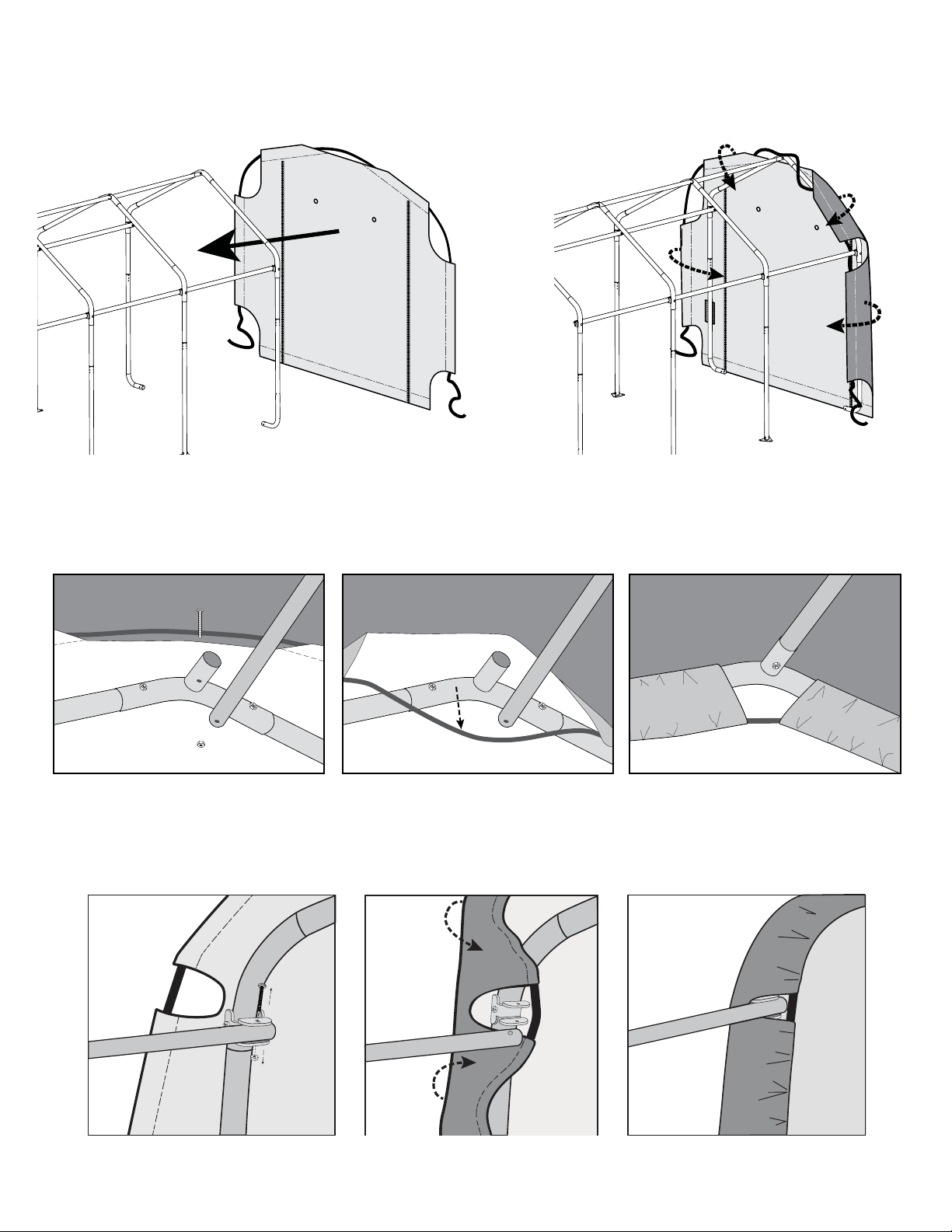

7. DOOR PANEL AND BACK PANEL INSTALLATION
A. (1) Hold end panel at the top center with white inner surface facing inside of the shelter. (2) Wrap the edges
of the fabric panel around the end rib and line up the cross rails with the pre made slits in the fabric.
C. (1) Disconnect side cross rail from the end rib. Leave the Shelter Stabilsers attached to the rib with the bolt.
(2) Pull the end panel over the end rib and bring the end of the cross rail through the cut slit in the panel.
(3) Reattach the side cross rail to the end rib.
A1
C1 C2 C3
A2
B1 B2 B3
B. (1) Disconnect top cross rail (the horizontal pipe that runs from front to back along the top) from the end rib.
(2) Pull the end panel over the end rib and bring the end of the cross rail through the cut slit in the panel.
(3) Reattach the top cross rail to the end rib.

Page 9 05_70416_0A
PULLPULL
WEBBING
STRAP
END PANEL VIEW
FROM INSIDE
SHED
D. At the bottom, where the webbing exits the pocket on each side of end panel, pull webbing as you would a
drawstring to remove the slack. Be careful not to pull the webbing strap out of the webbing pocket.
E. Insert the “S”- Hook on ratchet into hole on the leg bend. Insert the webbing into the spindle of the ratchet
and pull tight. Wind the ratchet so that the webbing overlaps itself. Position the end panel so that it is
centered on the building before fully tightening the end panel.
F. Tighten ratchets, alternating from one side to the other, until the end panel is tight. NOTE: Keep zips
fastened when tightening door panel.
D
E F
7. END PANEL INSTALLATION - continued
Insert Webbing into
Ratchet

Page 10 05_70416_0A
CORRECT
10110
COVER
RAILS
8. INSTALLING COVER AND COVER RAILS
A. Lay the cover on the ground next to the frame with inside of the cover (the side with the pipe pockets) facing
down and the webbing on the front and rear of the corner of the building.
B. Pull cover over the frame, making sure to center cover on frame. There should be an equal amount of over-
hang at all four corners.
C. Insert the “S”- Hook on ratchet into hole on the leg bend. Insert the webbing into the spindle of the ratchet
and pull tight. Wind the ratchet so that the webbing overlaps itself.
D. Disassemble cover rails and slide through fabric pockets at each leg and reattach with clamps to each leg.
Repeat this on other side. Push down on cover rails to tighten cover, before tightening bolts completely.
E. Check and tighten Ratchets and Cover Rails monthly to ensure the cover is tight.
NOTE: The Clarke®logo should
be oriented as shown below.
Webbing and Ratchets Securing Cover
FRONT
REAR
INCORRECT
10115
10110
13202
01011
01010
Corner
Leg
End Rib Cross Rail Clamps
10115
10110
10110
13201
Middle
Leg
01010
01011
Middle Rib Cross Rail Clamps

Page 11 05_70416_0A
