USER MANUAL
Part No. 50300 Nord C1 Combo Organ OS V1.0X Copyright Clavia DMI AB 2007

The lightning ash with the arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated voltage within the products
enclosure that may be of sufcient magnitude to constitute
a risk of electric shock to persons.
Le symbole éclair avec le point de èche à l´intérieur d´un triangle
équilatéral est utilisé pour alerter l´utilisateur de la presence à
l´intérieur du coffret de ”voltage dangereux” non isolé d´ampleur
sufsante pour constituer un risque d`éléctrocution.
The exclamation mark within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
Le point d´exclamation à l´intérieur d´un triangle équilatéral est
employé pour alerter l´utilisateur de la présence d´instructions
importantes pour le fonctionnement et l´entretien (service) dans le
livret d´instructions accompagnant l´appareil.
Instructions pertaining to a risk of re, electric shock or injury to persons.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
CAUTION AVIS
RISK OF ELECTRIC SHOCK
DO NOT OPE
N
RISQUE DE SHOCK ELECTRIQUE
NE PAS OUVRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
ATTENTION :POUR EVITER LES RISQUES DE CHOC
ELECTRIQUE, NE PAS ENLEVER LE COUVERCLE.
AUCUN ENTRETIEN DE PIECES INTERIEURES PAR L´USAGER.
CONFIER L´ENTRETIEN AU PERSONNEL QUALIFE.
AVIS : POUR EVITER LES RISQUES D´INCIDENTE OU
D´ELECTROCUTION, N´EXPOSEZ PAS CET ARTICLE A LA PLUIE
OU L´HUMIDITET.
Warning - When using electric products, basic
precautions should always be followed, including
the following:
1. Read all the instructions and observe the graphic
symbols above before using the product.
2. Do not use this product near water - for example
near a bathtub, washbowl, kitchen sink, in a wet
basement, near or in a swimming pool, a swamp or
the like.
3. This product should be used only with a cart or a
stand that is recommended by the manufacturer.
4. This product, either alone or in combination with an
amplier and headphones or speakers may be
perfectly capable of producing sound levels that
could cause permanent hearing loss. Do not
operate for a long period of time at a high volume
level or at a level that is uncomfortable. If you
experience any hearing loss or ringing in the ears,
you should consult an audiologist.
5. The product should be located so that its location
or position does not interfere with or obstruct its
normal ow of ventilation.
6. The product should be located away from heat
sources such as radiators, heat registers or other
products that produce heat.
7. The product should be connected to a power
supply only of the type described in these opera-
tion instructions or as marked on the product.
8. The power supply cord of the product should be unplugged
from the outlet when the product is left unused for a long
period of time.
9. Care should be taken so that objects do not fall, or liquids
are not spilled into the enclosure through openings.
10. The product should be serviced by qualied service person-
nel when:
A. The power supply cord has been damaged; or
B. Objects have fallen or liquids have been spilled onto the
product; or
C. The product has been exposed to rain; or
D. The product does not appear to operate normally or
exhibits a marked change in performance; or
E. The product has been dropped or the enclosure has
been damaged.
11. Do not attempt to service the product beyond those means
described in this operating manual. All other servicing
should be referred to qualied service personnel.
12. To completely disconnect the apparatus from the mains,
remove the mains plug.
13. ensure possible protective earting connections of other
equipment when the apparatus is connected to multimedia
systems.
13. Where the Mains plug is used as the disconnect device, the
disconnect device shall remain readily operable.
Trademarks: The Nord logo is registred trademark of Clavia DMI AB. All other trade-
marks mentioned in this publication are the properties of their respective holders.
Specications and appearances are subject to change without notice.
Copyright by Clavia DMI AB, 2007

Nord C1 Combo Organ
OS V1.0X
3
INTRODUCTION ..................................... 4
Thank you!.............................................................................. 4
Development goals ............................................................ 4
Features .................................................................................. 4
About this User Manual..................................................... 4
OVERVIEW ............................................. 5
The Front panel.................................................................... 5
Master Level knob............................................................... 5
The Keyboard........................................................................ 5
About knobs.......................................................................... 5
About buttons ...................................................................... 5
CONNECTIONS ....................................... 6
The Rear panel...................................................................... 6
Audio connections.............................................................. 6
MIDI connections ................................................................ 6
USB connection.................................................................... 6
Pedal connections............................................................... 6
THE PROGRAM SECTION ........................ 8
What is a Program? ............................................................. 8
Loading a Program ............................................................. 8
Storing a Program ............................................................... 8
THE ORGAN SECTION ............................. 9
The Drawbars........................................................................ 9
Preset buttons ...................................................................... 9
The Split Function ............................................................... 9
Selecting Organ Model ..................................................... 9
The Tonewheel model..................................................... 10
The Electric-V model ........................................................ 11
The Electric-F model......................................................... 11
The Synth Bass model...................................................... 12
THE EFFECT SECTION ........................... 13
Delay ...................................................................................... 13
Drive....................................................................................... 13
EQ............................................................................................ 13
Speaker ................................................................................. 13
Unison ................................................................................... 14
Reverb ................................................................................... 14
SYSTEM FUNCTIONS ............................ 15
About System Settings.................................................... 15
Changing System Settings............................................. 15
The System Menu.............................................................. 15
The MIDI Menu................................................................... 15
The Sound Menu ............................................................... 16
MIDI IMPLEMENTATION ...................... 17
MIDI implementation chart........................................... 17
MIDI Continuous Controller list.................................... 17
HOW-TOS ............................................. 18
Connecting a bass pedal unit ....................................... 18
Setting up the Half Moon Switch ................................ 18
Adjusting the pedal polarity ......................................... 18
Adjusting the swell pedal span.................................... 18
Playing an external sound source............................... 18
Recording MIDI in a sequencer .................................... 19
Installing the USB driver (Windows only) ................. 19
Upgrading the OS ............................................................. 19
ABOUT program Sysex dumps ..................................... 19
INDEX .................................................. 20

Introduction User Manual
4
Introduction
THANK YOU!
We would first like to thank you for purchasing the Nord C1
Combo Organ! We hope you will find it to be everything
you wished for and that you’ll have many hours of great
fun with your new instrument.
DEVELOPMENT GOALS
First some history: at the time of designing the Nord C1
Combo Organ, Clavia had already been developing digital
tonewheel organ models for a decade. The first model fea-
tured in the Nord Electro series of instruments was de-
signed to fit comfortably in a multi electro-mechanical
instrument along side various piano implementations.
With focus given to fit several mechanical instruments into
a single package, you are always forced to make some
compromises. We never intended the Electro to be the per-
fect vintage tonewheel organ replacement, but it turned
out to be one of the more popular units on the market,
much due to it’s high quality of sound, portability and at-
tractive price.
Though not surprised we were definitely thrilled when the
Electro started to appear in different magazine’s tone-
wheel clone tests and shoot-outs. It was included for its
fabulous sound that some found to be better that far more
expensive hard core clone units. However, due to its single
manual and additional piano samples, it was generally in-
cluded “out of contest”.
With the Nord C1 Combo Organ we wanted to design an
instrument without having to find the right blend of
things; like piano vs. organ keyboard action, or multi-ef-
fects suited for a wide array of sounds. We wanted to focus
on the things needed for killer organ sounds, and those
things only.
Also we had developed some great transistor organ mod-
els for the Nord Stage series of instruments. An obvious
choice was to include these as well for the ultimate three-
in-one lightweight vintage organ package.
Some areas we knew were up for improvement prior to the
start of the project, others were found along the way. What
really paid off was focusing on each of the components in-
volved in the sound generating process, rather than just
the sounding outcome. After spending thousands of man
hours leaving no detail untouched - no matter how small
and seemingly insignificant - we believe we have not only
reproduced the perfect tonewheel sound but also the
proper response and feel of playing the original instru-
ment.
We hope this instrument will give you as much fun to play
as it has given us to develop.
FEATURES
The Nord C1 Combo Organ features high quality simula-
tions of three vintage organs, a bunch of effect pedals as
well as several amp and speaker cabinets combinations in
a single lightweight package.
The dual keyboards, bass pedal input and high level out-
puts allows you to use the instrument in the exact same ap-
plication and set-up as with the vintage originals - and
several more!
By focusing on each individual component involved in the
sound generating process you get not only a vintage
sound experience but also spot-on response and feel of
playing the original instruments.
The Nord C1 Combo Organ has the following features:
• 1 model of a vintage Tonewheel organ
• 2 models of vintage Electric-V and Electric-F transistor
organs
• 3 Amplifier models
Featuring simulations of the gain and frequency char-
acteristics of two popular combo amps as well as a
rotary speaker cabinet.
•Overdrive
Offering a gentle to massive amount of tube-style dis-
tortion.
• Vintage-sounding delay
With tap-tempo function and possibility to limit opera-
tion to upper manual.
•3-bandEQ
5 types of Reverberation
Room, Stage and Hall-types with variations
• Dual manuals with 2x61 waterfall keys
Featuring high trigger point for the optimal organ key-
board feel and response time.
• Bass pedal board input
Dedicated MIDI connector for use with any MIDI note
sending pedal board.
• High level outputs
Featuring quarter-inch as well as 11-pin Leslie standard
connectors you can connect directly to rotary speakers.
When using the 11-pin connector controls for rotation
speed are transferred as well.
ABOUT THIS USER MANUAL
This manual is arranged mainly as a reference manual. In
many cases you’ll get tips on how to practically use func-
tions. In this manual, references to knobs and buttons on
the unit is printed LIKE THIS, e.g. ‘press the STORE button’.
The LED-display is referred to as the DISPLAY. Whenever
there is a reference to the ‘keyboard’, that reference also
applies to incoming MIDI note messages.

Nord C1 Combo Organ Overview
OS V1.0X
5
Overview
THE FRONT PANEL
The Nord C1 Combo Organ front panel consists of 3 sec-
tions:
Organ section
The Organ Section features three different organ models,
and this is where you select what model to play and make
model specific adjustments. Please refer to “The Organ
Section” on page 9.
Effect section
The Effect Section is where you set and adjust settings for
delay, drive, EQ, unison, reverb and speaker simulation.
Please refer to “The Effect Section” on page 13.
Program Section
The Program Section is where you store and recall sound
settings into Programs, and also adjust system specific pa-
rameters. Please refer to “The Program Section” on page 8.
MASTER LEVEL KNOB
The MASTER LEVEL knob controls the overall
output level for all audio outputs, including
HIGH LEVEL OUTPUT and HEADPHONE out-
put. The MASTER LEVEL knob’s physical posi-
tion is always the same as the output level.
THE KEYBOARD
The Nord C1 Combo Organ keyboards have a fast trigger
response which closely mimics the feel and response times
of a real organ. The fast trigger response is not velocity sen-
sitive, which might not be preferable when using external
sound sources. Please refer to “Playing an external sound
source” on page 18.
ABOUT KNOBS
The knobs are of potentiometer type. Ex-
cept for the MASTER LEVEL knob, this means
that when you load a Program the values of
the parameters can be totally different
from the knobs physical positions. As soon as you begin
turning a knob, the parameter value will ‘snap’ to the
knob’s physical position.
ABOUT BUTTONS
Buttons have different behaviour depending on their func-
tionality:
Selector buttons
Press the Selector button repeatedly to se-
lect between options printed next to the
corresponding LEDs. Note that some op-
tions are selected by lighting several LEDs
simultaniously.
On/Off buttons
The On/Off buttons have a LED next to
them to indicate the status.
Shift Button
Some buttons have a secondary
function, available by holding SHIFT
while pressing the button. The
name of the secondary function is
printed just below the button.
Panic button
By pressing the SHIFT + UNISON MODE buttons all sounding
notes will be silenced.
Note: equipment connected via MIDI OUT is not affected.

Connections User Manual
6
Connections
THE REAR PANEL
AUDIO CONNECTIONS
The Nord C1 Combo Organ has three types of audio con-
nectors:
Main stereo output
The main stereo output consist of the LEFT OUT and RIGHT
OUT connectors. These are unbalanced line level outputs.
Headphone output
Stereo output for connecting headphones.
High level output
The HIGH LEVEL OUTPUT consist of a quarter inch and 11-pin
Leslie standard connector. The HIGH LEVEL OUT are 14V
RMS high level and unbalanced, and are only intended to
be used directly connected to a rotary speaker cabinet
with built in amplifier. Any other form of use might result
in damaged equipment.
It is possible to route the tonewheel organ to LEFT OUT and
HIGH LEVEL OUT, and transistor organs to RIGHT OUT. Please
refer to “Output Routing” on page 15.
General guide for audio connections
• Make all connections before turning on the power to
your amplifier.
• Turn on the power to your amplifier last.
• Turn off the power to you amplifier first.
• Make sure you properly align the guide pin when using
an 11-pin connector.
MIDI CONNECTIONS
MIDI transmit and receive behaviour is adjustable via the
MIDI menu. Please refer to “MIDI Implementation” on
page 17 for more information.
The Nord C1 Combo Organ has three MIDI connector ports:
MIDI OUT
Both manuals, all knobs and buttons (SHIFT, STORE and MAS-
TER LEVEL excluded), pedal connector ports as well as BASS
PEDAL input send messages via MIDI OUT.
Please refer to “Playing an external sound source” on
page 18, and “Recording MIDI in a sequencer” on page 19
for more information.
MIDI IN
Used for receiving MIDI messages.
BASS PEDAL
To play the Nord C1 Combo Organ’s dedicated bass regis-
ters, connect MIDI OUT of your external controller (prefer-
ably a bass pedal board) to the BASS PEDAL connector. The
bass registers will respond to all MIDI note messages re-
ceived regardless of MIDI channel.
Please refer to “Connecting a bass pedal unit” on page 18
for detailed instructions.
USB CONNECTION
The USB connector is used for upgrading the system OS.
Please refer to “Upgrading the OS” on page 19.
PEDAL CONNECTIONS
The Nord C1 Combo Organ has three pedal inputs:
Swell Pedal input
Used for controlling the swell level of the selected organ
model. Please note that the pedal must have a stereo out-
put jack, and you must always use a stereo cable (Tip-Ring-
Sleeve). Pedals from different manufacturers have various
span characteristics but this can easily be adjusted in the
system menu.
Please refer to “Swell Pedal Type” on page 15, or “Adjusting
the swell pedal span” on page 18 for detailed instructions.
Rotary Control input
Used for controlling the rotary speaker’s speed. You can
use any standard sustain pedal, switch pedal or the Half
Moon Switch accessory. When using the Half Moon Switch
accessory you will have to configure the Control Pedal
Type in the system menu.
Please refer to “Rotary Pedal Mode” on page 15 or “Setting
up the Half Moon Switch” on page 18 for further instruc-
tions.
Note: when using the Half Moon Switch accessory, the RO-
TARY SPEAKER controls of the front panel are disabled.
Sustain Pedal input
Used for sustaining notes. You can use any standard sus-
tain type pedal. The polarity can be adjusted in the system
menu.

Nord C1 Combo Organ Connections
OS V1.0X
7
Please refer to “Sustain Pedal Polarity” on page 15 or “Ad-
justing the pedal polarity” on page 18 for detailed instruc-
tions.
For use with external sound devices you can disable the
Nord C1 Combo Organ from responding to sustain mes-
sages, but still send them via MIDI out.
Please refer to “Playing an external sound source” on
page 18 for setup instructions.

The Program Section User Manual
8

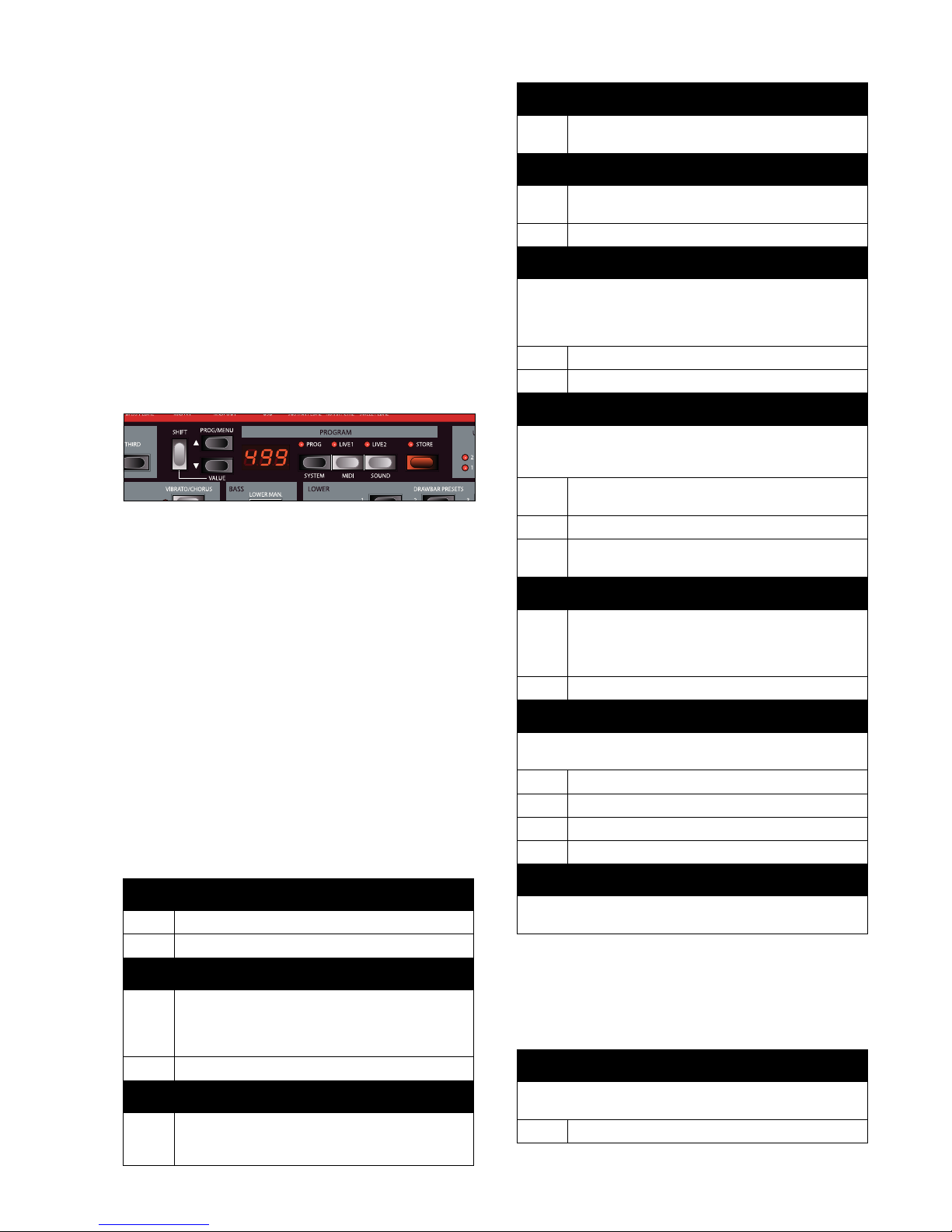

The Program Section
WHAT IS A PROGRAM?
All sound related knob and button settings, including PRE-
SETS can be stored into any of three storage areas; PROG,
LIVE 1 and LIVE 2, selectable with the corresponding but-
tons.
With PROG activated, 126 program locations are available.
The current program location is shown in the DISPLAY.
Changes need to be stored in order not be lost.
LIVE 1 and LIVE 2 contains one single program each. Chang-
es are saved automatically, so when you load a stored pro-
gram or even when you power off, all settings will be
exactly as you left them the next time you return to that
live program.
LOADING A PROGRAM
When PROG is activated, you can load a program by navi-
gating the PROG/MENU buttons. Programs will be loaded
automatically.
When a LIVE program is activated, you can select a stored
program in the PROG area by navigating the PROG/MENU
buttons, but the program will not be loaded until you press
the PROG button.
STORING A PROGRAM
To store a program to any of the 126 program locations:
1Press the store button.
The current program number will flash repeatedly in
the DISPLAY to indicate you are in store mode.
If the DISPLAY shows “PRO”, you must turn off memory
protection in the system menu. Please refer to “System
Functions” on page 15.
2Select program location
Use the PROG/MENU buttons to select a program loca-
tion to store to.
3Press the store button
The DISPLAY will briefly indicate “STO” to confirm that
the program has been stored.

Nord C1 Combo Organ The Organ Section
OS V1.0X
9
The Organ Section
The Nord C1 Combo Organ features simulations of three
classic organ models; one tonewheel and two transistor
(Electric-V and Electric-F).
The Organ Section features three main areas for control:
• The Drawbar section is where you set-up the basic
organ sound structure. It is divided into three areas
connected to the UPPER and LOWER manuals, plus the
BASS PEDAL input.
•The
PERCUSSION area is where you control the percus-
sion effect (available to the Tonewheel organ model
only)
•The
VIBRATO/CHORUS area is where you select the cho-
rus and/or vibrato effect depending on the selected
organ model.

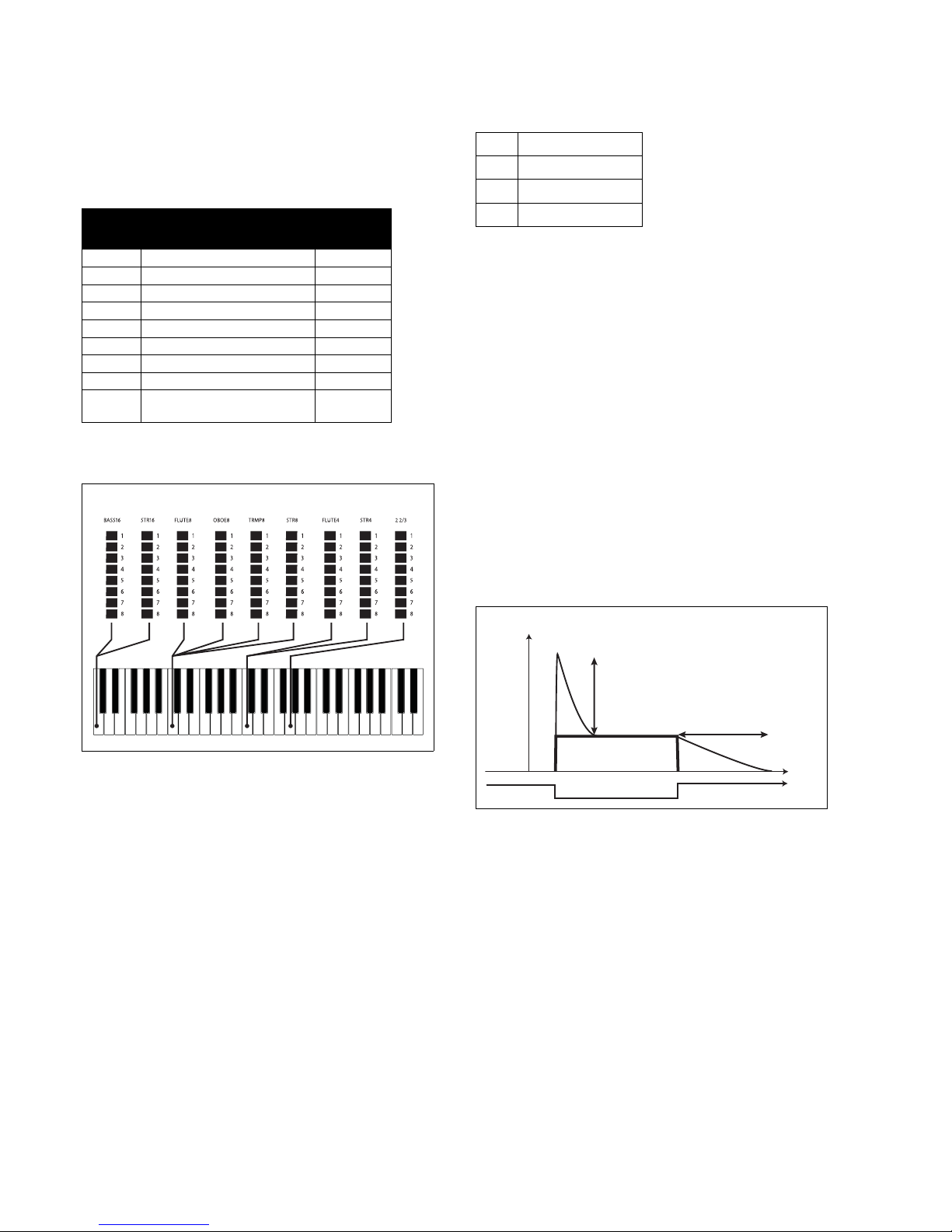

THE DRAWBARS
The drawbars of Nord C1 Combo Organ are
represented by buttons and LED chain
graphs instead of ordinary mechanical
drawbars. This gives you a big advantage:
when you change PRESET or PROGRAM, the
correct drawbar settings are recalled imme-
diately and shown by the LEDs. In other
words, no need for the regular “trial and er-
ror” method. It’s very easy to get the hang of
changing the drawbar settings in a natural
way with the buttons.
The drawbars of Nord C1 Combo Organ be-
have similar to their mechanical counter-
parts, i.e. with the Tonewheel and Electric-V models you
“pull out” and “push in” the drawbars using the DRAWBAR
buttons. The buttons are special in the way that they auto-
increment/decrement the drawbar value when held. I.e. if
you hold a DRAWBAR button the corresponding drawbar
value will continue to increment or decrement (within its
range) until you release the button.
Also, while holding a DRAWBAR button, you can press its
sibling button to momentarily auto-increment/decrement
in the opposite direction.
With the Electric-F model, DRAWBAR buttons functions as
switches, toggling each register between on and off.
PRESET BUTTONS
The PRESET buttons lets you change back and forth be-
tween different drawbar set-ups instantly. Changes are au-
tomatically saved and recalled the next time you activate
the same preset.
•The
UPPER and LOWER drawbars have their own set of
preset buttons. Further to storing the drawbar settings,
the UPPER manuals percussion on/off setting is stored
as well.
•In
PROG mode, PRESET changes will be lost if the pro-
gram is not saved.
THE SPLIT FUNCTION
By activating the LOWER MAN button
you split the lower manual in two sec-
tions at the key of C3. The lower section
is now connected to the BASS drawbars.
The upper section of the lower manual is connected to
LOWER drawbars as usual.
SELECTING ORGAN MODEL
You select which model to play using
the ORGAN MODEL button. Only one
model can be used at a time.
•When the Tonewheel model is acti-
vated, the BASS drawbars control the
tonewheel bass registers.
•When the Electric-V or Electric-F mod-
els is activated, the BASS drawbars con-
trol the synth bass model.
• When the Tonewheel model is activated you can acti-
vate the Synth Bass model by pressing SHIFT + ORGAN
MODEL button.

The Organ Section User Manual
10
THE TONEWHEEL MODEL
This model is based on a digital simulation of the classic
mechanical tone wheel organ. This simulation utilizes in-
novative and advanced methods to capture every nuance
of the original sound, for example:
• An extremely accurate digital model of the original
chorus and vibrato scanner.
• Modeling of the individual random contact bounces for
each harmonic.
• Modeling of the unique frequency characteristics of the
built-in pre-amplifier which forms the “body” of the
sound.
• Simulation of the energy stealth on the tone wheels
that results in the typical “compressed” sound.
• Authentic tuning of the tone wheels according to the
original design.
• Extremely fast keyboard response.
• Full polyphony.
The Drawbars
The harmonic intervals for the Tonewheel organ are print-
ed below the drawbars.
For basic drawbar operation, please refer to “The Draw-
bars” on page 9.
Each drawbar represents a partial with a fixed harmonic in-
terval relating to the played note. The illustration below
shows the pitch interval among the nine drawbars when
the key of C3 is played. Note that the SUB3 drawbar actual-
ly lies a 5th above the fundamental harmonic. However, in
most situations it is perceived as sounding below the basic
harmonic.
Percussion
The Percussion effect adds extra attack to the sound by
having a single envelope generator controlling either the
2nd or 3rd harmonic. The envelope “opens up” for a short
moment in the beginning of the sound when you press the
key(s).
The Percussion is a single-triggered non-legato effect. By
“single-triggered” we mean that the percussion is only
present when you hit the keys when no other note is
sounding. In other words, if you play a note or a chord and
then add on more notes without releasing the previously
pressed keys, there will be no percussion effect in the new
notes. You have to release all keys to be able to play new
notes with the percussion effect.
The percussion effect is available to the UPPER manual, and
is activate and deactivate by pressing the ON button.
The SOFT button toggles between Normal and Soft percus-
sion level.
The FAST button toggles between Slow and Fast decay
times.
The THIRD button toggles between using the 2nd or 3rd
partial as the source for the percussion effect.
The percussion decay time can be fine-tuned for Fast and
Slow mode individually. Please refer to “The Sound Menu”
on page 16 for details.
Note: With the original instrument, you could not use the
percussion effect and 9th drawbar simultaneously. Howev-
er with Nord C1 Combo Organ you can!
Vibrato
The original vibrato and chorus scanner consists of a
tapped delay line in combination with a rotating scanner.
For the Vibrato effect, phase shift is applied to the signal.
For the Chorus effect, the phase modulated signal is added
to the original signal. Three different types of choruses (C1-
C3) and three different types of vibratos (V1-V3) are availa-
ble. Select one of these types by pressing the MODE button.
The effect can be activated/deactivated for both manuals
individually by pressing the VIBRATO/CHORUS button of the
UPPER and LOWER drawbars.
Upper & Lower
Drawbar level
Note On
level
time
Normal level, Slow decay
Normal level, Fast decay
Soft level, Slow decay
Soft level, Fast decay

Nord C1 Combo Organ The Organ Section
OS V1.0X
11
Please note that the VIBRATO/CHORUS button for the LOW-
ER manual also controls the effect for the bass registers.
Key click control
The key click produced by the random contact bounces is
actually an audio artifact. This particular artifact later be-
came a desirable effect amongst musicians. You can adjust
the click level by adjusting the TREBLE control of the EQ sec-
tion.
THE ELECTRIC-V MODEL
The original instrument is probably the most famous of all
the transistor-based combo organs that emerged in the
early 60’s. Transistor technology made it possible to man-
ufacture much more compact and portable organ instru-
ments. Compared to the mighty sound of tonewheel
based organs, transistor organs generally sounded reedier
and weaker, but this one had a distinctive sound character
which together with the portability and cool design (in-
verse keyboard and chrome “Z-frame” stand) made the in-
strument massively popular at the time. The sound is
timeless and recreated faithfully in Nord C1 Combo Organ.
The Drawbars
The labels used for the Electric-V drawbars are printed on
the lower row above the drawbars. Note that only the first
five, and two last drawbars are used for this model.
For basic drawbar operation, please refer to “The Draw-
bars” on page 9.
The five leftmost drawbars control the level of each partial.
Each partial has a fixed harmonic interval relating to the
played note. The illustration below shows the pitch inter-
val of the 5 drawbars when the key of C3 is played. The in-
tervals vary for the UPPER and LOWER manual.
The two rightmost drawbars control the sum of all partials
in the form of a filtered triangle-like signal sounding soft
and dark, and an un-filtered square signal sounding bright
and intense.
If these drawbars are both fully “pushed in”, the organ will
produce no sound.
Vibrato
There is only one type of vibrato available for the Electric-
V, which is activated using the ON button in the Vibrato
section. Note that the Electric-V vibrato is common for
both the upper and lower manual drawbars.
THE ELECTRIC-F MODEL
This typical “buzzy” sound of this vintage instrument is one
of the most distinct and easily recognizable organ sounds
ever created, yet it is actually possible to get quite a wide
range of sounds out of the instrument.
Note that the voices aren’t supposed to replicate the in-
struments they are named after, but rather to describe the
basic tonal characteristic of the voice; FLUTE - soft, OBOE -
reedy, TRUMPET - brassy.
The Register selectors
The labels used for the Electric-F drawbars are printed on
the upper row above the drawbars.
The drawbars act as on/off switches, or “Register selectors”
when the Electric-F model is selected. Instead of drawbars,
the original instrument featured “rocker”-type switches to
Upper
Lower

The Organ Section User Manual
12
select instrument “voices” (actually different filter settings)
in various footage (octave) ranges.
The Drawbar buttons are used to turn voices on and off.
The drawbar LEDs 5-8 are lit up for an activated voice, and
drawbar LEDs 1-4 are lit up for a deactivated voice.
The table below shows the original registor name.
The illustration below shows the pitch interval between
each voice when the key of C3 is played. Though some
voices have the same pitch, they differ in tonal character.
Vibrato
The Electric-F Model has two basic vibrato modes; “Light”
and “Heavy”, with different rates for each mode. The MODE
button of the CHORUS/VIBRATO section is used for selecting
vibrato mode according to the table below.
The VIBRATO/CHORUS buttons are common for both UPPER
and LOWER manual.
THE SYNTH BASS MODEL
The synth bass model is available when the Electric-V or
Electric-F models are activated. For the Tonewheel model
you can alternate between the original tonewheel bass
registers or the synth bass model by pressing SHIFT + OR-
GAN MODEL buttons.
The main feature of the synth bass model is a monophonic
2 partial bass synthesizer with adjustable release time, giv-
ing you more time to move your foot when using a foot
pedal board. But it can also be played from the lower man-
ual, by pressing the LOWER MAN button. Please refer to
“The Split Function” on page 9 for detailed information.
The synth bass model also features a pluck control giving
you an extra attack in some ways similar to the percussion
effect of the Tonewheel model.
Pluck and release time are adjusted with the BASS drawbars
while holding down the SHIFT key.
Register
selector # Voice Panel Name
1 Bass 16 BASS16
2Strings16 STR16
3Flute8 FLUTE8
4Oboe8 OBOE8
5Trumpet8 TRMP8
6Strings8 STR8
7Flute4 FLUTE4
8Strings4 STR4
9 A bright voice, pitched an octave
and a fifth above the fundamental.
2 2/3
Upper & Lower
V1 Light mode, slow.
V2 Light mode, fast.
C1 Heavy mode, slow.
C2 Heavy, fast.
Pluck Level
Release Time
Drawbar level
Note On Note Off
level
time

Nord C1 Combo Organ The Effect Section
OS V1.0X
13
The Effect Section
The effect section consists of 7 models, routed as illustrat-
ed below.
The Overdrive, Amp and Rotary Speaker models are used one at
a time, depending on the SPEAKER button setting.
If present, the ON button activates/deactivates the effect.
Note: all knobs and buttons will always be active and
change state though the effect needs to be activated in or-
der for the change to be audible.
DELAY
A vintage-sounding delay featuring
echoes/repeats with adjustable tempo
and feedback settings.
The TEMPO knob controls the delay
time.
The AMOUNT knob adjusts the balance
between the dry signal and the delayed
repeats.
The FEEDBACK button selects number of
repeats, starting with 1 repeat (no LEDs
lit) to many (both LEDs lit).
By activating the UPPER function (SHIFT +
FEEDBACK), the delay effect is limited to
the upper manual.
The TAP TEMPO button allows you to set the delay time by
tapping the button repeatedly.
DRIVE
The DRIVE knob controls the amount of
gain applied to the Overdrive, Amp or
Rotary Speaker effects respectively, de-
pending on the SPEAKER effect setting.
EQ
A 3-band EQ featuring controls for bass,
midrange and treble, with ± 15dB cut/
boost for each band.
As the TREBLE knob operates in the same
frequency area as the click sound, it also
functions as a click level control.
SPEAKER
There are three different amp simula-
tions available, including rotary speaker
simulation, selectable with the MODE
button. The DRIVE knob controls the
amount of gain applied to the selected
model, or if no model is activated to the overdrive effect.
•ROTARY SPEAKER model of a L-type rotary speaker cabi-
net.
•AMP 1 model of a F-type Twin.
•AMP 2 model of a R-type Jazz Combo.
• When no LED is lit the effect is bypassed.
When using an external cabinet connected via the high
level outputs the ROTARY SPEAKER’s LED will flash repeated-
ly if activated to indicate that the internal rotary speaker
simulation is bypassed. Please note that this is dependant
on the external cabinet circuitry, and if the LED do not flash
but lit constantly you will experience a double rotary
speaker effect.
Tonewheel / Transistor Organ Delay Overdrive EQ Amp Unison Reverb Rotary Speaker

The Effect Section User Manual
14
Controlling the Rotary Speaker
speed
The rotary speaker speed is set with the
buttons of the ROTARY SPEAKER section.
You can also connect an external con-
trol to the ROTARY CONTROL input, such
as a sustain pedal or the Half Moon Switch Accessory.
A sustain pedal can operate by momentarily changing the
speed setting or by toggling between SLOW and FAST.
• When used momentarily the speed is changed
between SLOW and FAST only.
• When used in toggle mode you can switch to STOP by
holding the pedal in the down position for the duration
of 1 second.
Please refer to the “System Functions” on page 15 for fur-
ther information.
UNISON
A chorus pedal simulation. The MODE
button toggles between different pre-
sets:
•UNISON 1 has a stereo setting with
medium intensity.
•UNISON 2 has a stereo setting with heavy intensity.
• When no LED is lit the effect is bypassed.
REVERB
The reverb simulates the natural sound
reflections in various acoustic environ-
ments.
The REVERB knob sets the balance be-
tween the unprocessed and the proc-
essed signal.
By pressing the REVERB button you can
choose between five reverb types, indi-
cated by the three LEDs lit one or two at
a time.
Hall Soft A reverb with the response and character of a
spacious hall, with a long decay and a mellow
character.
Hall A Hall reverb with a slightly brighter character.
Stage Soft A reverb with a medium decay time and mellow
character.
Stage A medium decay reverb, with slightly brighter
character.
Room Room ambience with a rather short decay time.

Nord C1 Combo Organ System Functions
OS V1.0X
15
System Functions
ABOUT SYSTEM SETTINGS
System settings are global; they are not stored within a
program, but applies to all programs all of the time.
The system settings are divided into 3 menus:
• System menu
•MIDImenu
• Sound menu
A list of each menu and it’s functions is printed on the front
panel.
CHANGING SYSTEM SETTINGS
To change a a system function:
1Select the appropriate menu
Press SHIFT + SYSTEM / MIDI / SOUND buttons.
2Select function
The current functions number is shown in the DIS-
PLAY, as well as it’s current setting. Navigate through
the available functions by using the PROG/MENU but-
tons.
3Change setting
Press SHIFT + VALUE buttons to navigate though the
functions possible settings.
Changes are automatically saved.
4Press any of the SYSTEM / MIDI / SOUND buttons to
exit the menu
THE SYSTEM MENU
THE MIDI MENU
1 Memory protect default value: OF
ON Program store is disabled.
OF Program store is enabled.
2 Output Routing default value: ST
SP Split Output: tonewheel organ is directed to HIGH LEVEL
OUT and LEFT OUT.
Electric-V and Electric-F organs are directed to RIGHT
OUT.
ST Stereo Output.
3 Transpose default value: 0
-6 - +6 Sets transpose of both manuals and BASS PEDAL input in
range of -6 semi notes to + 6 semi notes, steps of 1 semi
note.
4 FineTune default value: 40
27 - 53 Sets the tuning from 427 Hz to 453Hz, in steps of 1 Hz.
Default value is 40 (440Hz).
5 Sustain Pedal Polarity default value: CL
CL Pedal Closed: for use with a sustain pedal with closed polar-
ity.
OP Pedal Open: for use with a sustain pedal with open polarity.
6 SustainPedal default value: ON
Controls weather the selected organ model should respond to sustain
pedal messages. When a pedal is connected to the SUSTAIN PEDAL
input, sustain pedal messages are always send via MIDI OUT regard-
less of this setting.
ON Sustain pedal messages enabled.
OFF Sustain pedal messages disabled.
7 RotaryControlType default value: CL
Specifies the type of controller connected to the Rotary Control input.
If the Half Moon Switch option is selected the speed control buttons
on the front panel are disabled.
HA Half Moon Switch: for use with the Half Moon Switch acces-
sory.
OP Pedal Open: For use with a sustain pedal with open polarity.
CL Pedal Closed: For use with a sustain pedal with closed
polarity.
8 RotaryPedalMode default value: HD
TO Toggle: rotary speed is changed between SLOW and FAST
each time the pedal is pressed down. By holding the pedal
pressed downed for the duration of 1 second the speed will
change to STOP.
HD Hold: rotary speed follows the state of the pedal.
9 Swell Pedal Type default value: RO
Here you can match the swell pedal characteristic for various manu-
facturers.
FA Fatar.
ER Ernie Ball.
YA Yamaha.
RO Roland.
10 Factory Reset
Press STORE to recall all system settings. Stored PROGRAM MODE
data is not affected. LIVE 1 and LIVE 2 data will be overwritten.
1 Upper Channel default value: 1
Sets how messages are sent and received from the UPPER manual via
MIDI IN and MIDI OUT.
OFF Messages are not sent.

System Functions User Manual
16
THE SOUND MENU1-16 Note messages are sent on the corresponding MIDI channel
using the fast trigger mode, with fixed velocity data (use
this when recording MIDI events in sequencer for internal
playback). MIDI IN is enabled.
E1 - E9 Note messages are sent on the corresponding MIDI channel
using normal trigger mode, with velocity sensitive data (use
this when controlling other sound sources). MIDI IN is dis-
abled.
2 Lower Channel default value: 2
Same as above, only for lower manual.
3 Bass Channel default value: 3
Same as above, only for controller connected to BASS PEDAL input
and lower section of lower manual when split mode is active.
Note: the BASS PEDAL input is always in OMNI mode.
4LocalControl default value: ON
Determines if the organ should respond to local controls (keyboard,
knobs and buttons).
ON Local control is enabled.
OFF Local Control is disabled.
5 Continuous Controller mode default value: SR
Specifies how the front panel’s knobs and buttons are handled via
MIDI.
SR Messages are sent and received.
RMessages are received only.
SMessages are sent only.
OFF Messages are neither sent nor received.
6 Program Change mode default value: SR
Specifies how Program Change messages are handled via MIDI.
SR Messages are sent and received.
RMessages are received only.
SMessages are sent only.
OFF Messages are neither sent nor received.
7 Send Continuous Controller messages
Press STORE to send the current state of the selected organ model’s
buttons and knobs as Continuous Controller messages via MIDI.
Common parameters (including ROTARY SPEED and SWELL) and
Upper-specific parameters are sent on the Upper Channel. Lower-spe-
cific parameters are sent on the Lower Channel. Bass-specific parame-
ters are sent on the Bass Channel.
Note: Messages are not sent if Channel setting is set to “OF”.
8DumpOne
Press STORE to send the current program as sysex messages via MIDI.
9DumpAll
Press STORE to send all stored program data as sysex messages via
MIDI.
1 Treble Horn Speed default value: NO
Adjusts the speed setting (fast and slow-speed) of the rotary speaker
simulation’s horn.
HI High.
NO Normal.
LO Low.
2 Treble Horn Acceleration default value: NO
Adjusts the acceleration and retardation time of the rotary speaker
simulation’s horn.
HI High.
NO Normal.
LO Low.
3 Bass Rotor Speed default value: NO
Adjusts the speed setting (fast and slow-speed) of the rotary speaker
simulation’s rotor.
HI High.
NO Normal.
LO Low.
4 Bass Rotor Acceleration default value: NO
Adjusts the acceleration and de-acceleration time of the rotary
speaker simulation’s rotor.
HI High.
NO Normal.
LO Low.
5 Tonewheel mode default value: V1
Controls the level of tonewheel crosstalk and cable leakage artefacts
of the Tonewheel organ.
V2 Vintage 2: high level of artefacts.
V1 Vintage 1: medium level of artefacts.
CL Clean: low level of artefacts.
6 Percussion Fast Decay Time default value: NO
Adjusts the fast mode decay time of the Tonewheel percussion effect.
LO Long.
NO Normal.
SH Short.
7 Percussion Slow Decay Time default value: NO
Adjusts the slow mode decay time of the Tonewheel percussion
effects.
LO Long.
NO Normal.
SH Short.

Nord C1 Combo Organ MIDI Implementation
OS V1.0X
17
MIDI Implementation
MIDI IMPLEMENTATION CHART
MIDI CONTINUOUS CONTROLLER LIST
Function Transmit Receive Comment
MIDI channels 1 - 16
E1 - E9
1 - 16 Channel setting1 - 16
transmits MIDI Note mes-
sages on MIDI channels 1 -
16 with fixed velocity
data, using the keyboards
fast trigger response. MIDI
In is enabled.
Channel setting E1 - E9
transmits MIDI Note mes-
sages on MIDI channel 1 -
9 with variable velocity
data, using the keyboards
normal trigger response.
MIDI IN is disabled.
Note: fast trigger response
is always used internally.
Aftertouch No No
Pitchbend No No
Control Change Yes Yes
Program Change Yes Yes 0 - 125, 126 = Live 1, 127 =
Live 2
System Exclusive Yes Yes
Function MIDI CC
Number Comment
Preset Focus 3 Upper and Lower MIDI channel
Swell pedal 4 Upper MIDI channel
Organ Model 9 Upper MIDI channel
Drawbar1 16 Upper, Lower and Bass MIDI channel
Drawbar2 17 Upper, Lower and Bass MIDI channel
Drawbar3 18 Upper and Lower MIDI channel
Drawbar4 19 Upper and Lower MIDI channel
Drawbar5 20 Upper and Lower MIDI channel
Drawbar6 21 Upper and Lower MIDI channel
Drawbar7 22 Upper and Lower MIDI channel
Drawbar8 23 Upper and Lower MIDI channel
Drawbar9 24 Upper and Lower MIDI channel
Bass Pluck 18 Bass MIDI channel
Bass Release 19 Bass MIDI channel
Perc Decay 27 Upper MIDI channel
Perc Level 28 Upper MIDI channel
Delay Upper 75 Upper MIDI channel
Sustain pedal 64 Upper, Lower and Bass MIDI channel
Delay Amount 76 Upper MIDI channel
Delay Tempo 77 Upper MIDI channel
Delay Feedback 78 Upper MIDI channel
Delay On/Off 80 Upper MIDI channel
Speaker Type 81 Upper MIDI channel
Rotary speed 82 Upper MIDI channel
Vibrato Mode 84 Upper MIDI channel
Vibrato On/Off 85 Upper and Lower MIDI channel
PercState On/Off 87 Upper MIDI channel
Perc Harmonic 95 Upper MIDI channel
Reverb Type 96 Upper MIDI channel
Reverb On/Off 97 Upper MIDI channel
Reverb Amount 102 Upper MIDI channel
Unison Mode 109 Upper MIDI channel
Bass Model 110 Upper MIDI channel
Drive Amount 111 Upper MIDI channel
Drive On/Off 112 Upper MIDI channel
Eq Treble 113 Upper MIDI channel
Eq Bass 114 Upper MIDI channel
Eq On/Off 115 Upper MIDI channel
Eq Mid 116 Upper MIDI channel
BassLManual 117 Upper MIDI channel
Function MIDI CC
Number Comment

How-tos User Manual
18
How-tos
This section contains detailed guides on how to quickly
set-up your instrument to match various conditions.
CONNECTING A BASS PEDAL UNIT
Connect a MIDI cable between MIDI OUT of your bass ped-
al unit and BASS PEDAL input.
• All MIDI messages will be received via the BASS PEDAL
input regardless of MIDI channel setting.
• MIDI messages received via the BASS PEDAL input is sent
on the BASS MIDI CHANNEL via MIDI OUT.
• MIDI messages will be received on the BASS MIDI CHAN-
NEL via MIDI IN.
• Local Control settings apply to devices connected via
the BASS PEDAL input.
SETTING UP THE HALF MOON SWITCH
The Half Moon Switch is an accessory item and sold sepa-
rately. When set to Half Moon Switch operation, the ROTA-
RY SPEAKER buttons on the front panel, as well as Rotary
Speed Continuous Controller messages received via MIDI
IN are disabled.
1Mount the Half Moon Switch following the
included instructions.
2Connect the Half Moon Switch to the ROTARY
CONTROL input
3Press SHIFT +SYSTEM to enter the System Menu
4Navigate with the PAGE/MENU buttons to
page 7
5Change setting
Press SHIFT + PAGE/MENU buttons and change setting
to “HA”
6Press SYSTEM / MIDI / SOUND buttons to exit
menu
ADJUSTING THE PEDAL POLARITY
If you encounter the sustain or rotary control pedal operat-
