Claypaky MYTHOS User manual

1
MYTHOS
C61391
INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product!
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PA Y S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PA Y S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
ENGLISH
PRELIMINARY
INDEX
Page Contents
2 Safety information
3 Unpacking and preparation
4 Installation and start-up
5 Control panel
7 Menu setting
16 Maintenance
19 Technical information
19 Cause and solution of problems
20 Channel functions

2
MYTHOS
• Installation
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary
support system fails, the fitting falls as little as possible.
If the safety chain gets used, it needs to be replaced with a genuine spare.
• MINIMUM DISTANCE OF ILLUMINATED OBJECTS
The projector needs to be positioned so that the objects hit by the beam of light are at least 18 metres
(59’1”) from the lens of the projector.
• Minimum distance from flammable materials
The projector must be positioned so that any flammable materials are at least 0.20 metres (8") from every point on
the surface of the fitting.
• Mounting surfaces
It is permissible to mount the fitting on normally flammable surfaces.
• Maximum ambient temperature
Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).
• IP20 protection rating
The fitting is protected against penetration by solid bodies of over 12mm (0.47”) in diameter (first digit 2), but not
against dripping water, rain, splashes or jets of water (second digit 0).
• Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I appliance according to
standard EN 60598-1).
It is, moreover, recommended to protect the supply lines of the projectors from indirect contact and/or shorting to
earth by using appropriately sized residual current devices.
• Connection to mains supply
Connection to the electricity mains must be carried out by a qualified electrical installer.
Check that the mains frequency and voltage correspond to those for which the projector is designed as given on
the electrical data label. This label also gives the input power to which you need to refer to evaluate the maximum
number of fittings to connect to the electricity line, in order to avoid overloading.
• Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting, in a thermally steady state, is
100°C (212°F).
• Maintenance
Before starting any maintenance work or cleaning the projector, cut off power from the mains supply.
After switching off, do not remove any parts of the fitting, to avoid getting burnt for at least 35 minutes.
After this time the likelihood of the lamp exploding is virtually nill.
The fitting is designed to hold in any splinters produced by a lamp exploding. The lenses must be mounted and, if
visibly damaged, they have to be replaced with genuine spares.
• Lamp
The fitting mounts a high-pressure lamp that needs an external igniter. This igniter is fitted onto the apparatus.
- Carefully read the "operating instructions" provided by the lamp manufacturer.
- Immediately replace the lamp if damaged or deformed by heat.
• Photobiological Safety
CAUTION. Do not look directly at the light source.
Do not look at the light beam with optical devices or any other tool that could cause light convergence.
The fixture must be positioned so that the minimum distance between the front lens and human eye is at least 3
metres to prevent personal photobiological risks.
This product is intended for the following areas of application:
studios, stages, theaters, exhibitions, trade fairs, events, theme parks, entertainment venues, architectural lighting
and similar.
Not suitable for household illumination
SAFETY INFORMATION
IP20
18
470W
tc100°C
Risk Group 1
According to
EN 62471

3
MYTHOS
Not for residential use
• Battery
This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To preserve the environment,
please dispose the battery at the end of its life according to the regulation in force.
• Disposing
This product is supplied in compliance with European Directive 2012/19/EU - Waste Electrical and Electronic
Equipment (WEEE). To preserve the environment please dispose/recycle this product at the end of its life according
to the local regulation.
LiFePO4
Pb
The products to which this manual refers comply with the European Directives pursuant to:
• 2006/95/EC - Safety of electrical equipment supplied at low voltage (LVD)
• 2004/108/EC - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

4
MYTHOS
UNPAC ING AND PREPARATION
1
MYTHOS
C61390
INSTRUCTIONMANUAL
CongratulationsonchoosingaClayPakyproduct!
Wethankyouforyourcustom.
Pleasenotethatthisproduct,asalltheothersintherichClay
Pakyrange,hasbeendesignedandmadewithtotalqualityto
ensureexcellentperformanceandbestmeetyourexpectations
andrequirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
ENGLISH
PRELIMINARY
INDEX
PageContents
2 Safety information
3 Unpacking and preparation
4 Installation and start-up
5 Control panel
7 Menu setting
16 Maintenance
19 Technical information
19 Cause and solution of problems
20 Channel functions
IST00L/001
2 x 183102/805
1
UNLOCKED
90°
90°
90°
90°
LOCKED

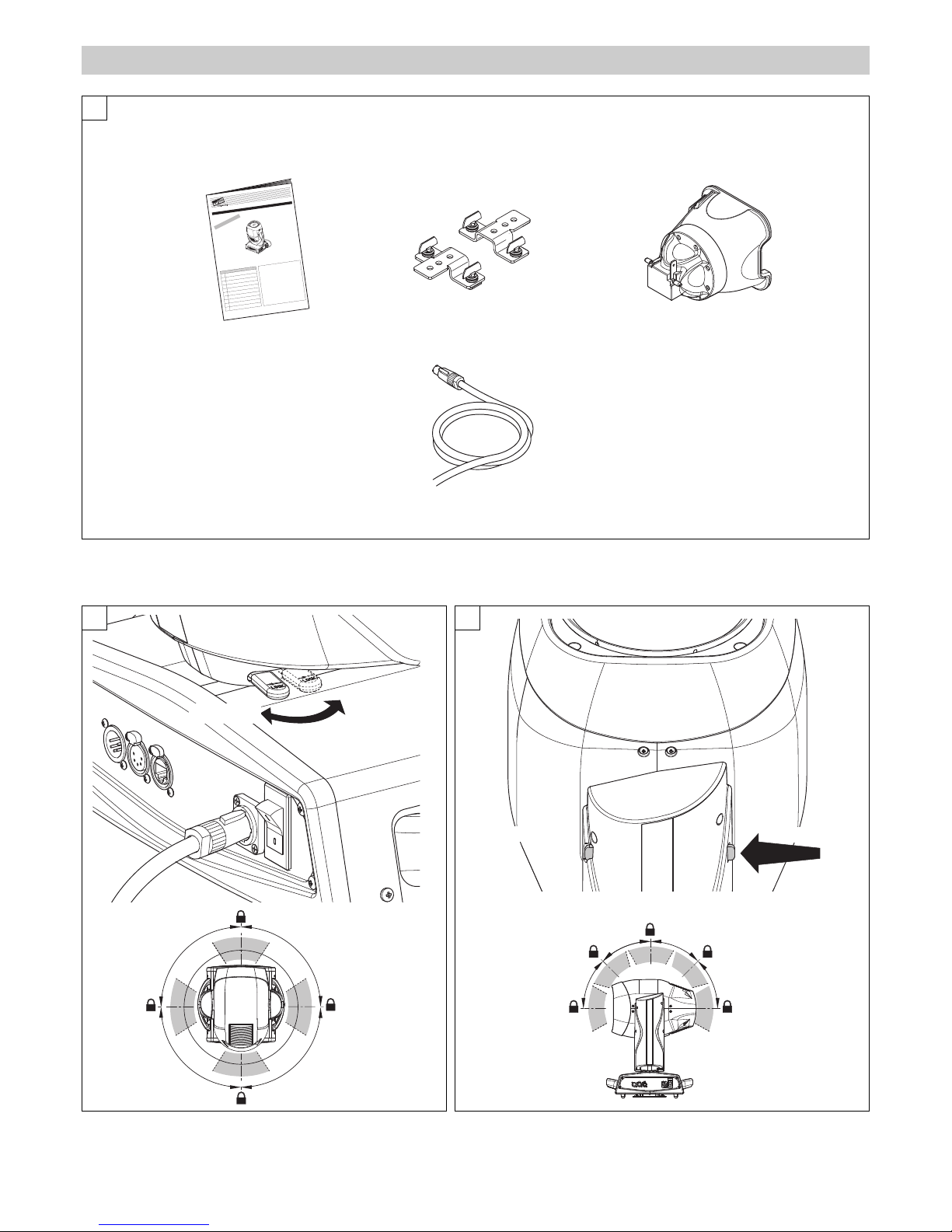

PAN Mechanism Lock and Release (every 90°) - Fig. 2
TILT Mechanism Lock and Release (every 45°) - Fig. 3
2 3
Packing contents - Fig. 1
LOCKED UNLOCKED
45° 45°
45°
45°
45°

5
MYTHOS
4
2
1
1
2
3
5
INSTALLATION AND START-UP
Connecting and disconnecting power cable - Fig. 5
Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING: with the exception o when the projector is positioned on the loor, the sa ety cable must be itted. (Cod. 105041/003 available on request).
This must be securely ixed to the support structure o the projector and then connected to the ixing point at the centre o the base.

6
MYTHOS
Switching on the projector - Fig. 8
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware xxx (Fixture ID) System errors
MYTHOS Version X.X.X Dmx Address xxx E: .........................
Date - Hour W: .........................
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 50% - Tilt 50%). The control panel
(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two
conditions: rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address and the Fixture ID address
(if set).
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
CONTROL PANEL
1
2
Dmx Address
Warning Message
Fixture ID
18m
8
Connecting to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 3 or 5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
Connecting to the mains supply - Fig. 6
Mains
6
7

MYTHOS
7
28
28
Reversal of the display - Fig. 9
To activate this function, press UP
B
and DOWN
C
keys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
Setting the address: see pag. 10.
Setting the projector Fixture ID
On each projector, the Fixture ID address must be set for an easy identification of the fixtures in an installation (ID from 1 to 255).
The Fixture ID address can be set with the projector switched off.
Setting the Fixture ID: see pag. 10.
9
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
F
to momentarily activate the display and thus access the settings. Once the required operations have been carried out,
the display will switch off again after a wait time of 30 seconds.
USING THE MENU:
1) Press
F
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN
C
keys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
To enable the "Advanced" see pag.16.
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN
C
keys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Commute from units, tens, hundreds, in the "Address", "Fixture ID" and "Calibration" menù.
F
C
DOWN
B
UP
D
LEFT
E
RIGHT

8
MYTHOS
MENU SETTING
Main Menu Level 1 Level 2 Level 3 Choices / Values
SET UP
DMX Address 001-512
Channel Mode Standard
Vector
Fixture ID 000-255
Ethernet Interface
Control Protocol
Disabled
Art-net IP 2.x.x.x.
Art-net IP 10.x.x.x.
Repeat on DMX Disabled
Enabled on primary
Universe 000-255
OPTIONS
Lamp DMX On / Off
Safety Black Out On / Off
Pan / Tilt
Invert Pan On / Off
Invert Tilt On / Off
Swap Pan-Tilt On / Off
Encoder Pan-Tilt On / Off
P/T Homing mode Standard
Sequenced
Pan Home Def Pos
0 degree
90 degrees
180 degrees
270 degrees
Tilt Home Def Pos
0 %
12.5 %
25 %
50 %
75 %
87.5 %
100 %
Color CMY Shortcut On / Off
Linear Movement On / Off
Shutter Shutter On Error On / Off
Dimmer on Shutter On / Off
Dimmer Filter Type DMX follower
Position dependent
Macro Effects
Macro group size 02-15
Macro fixture ID Auto by DMX Addr.
Fixed to 1-15
Silent Mode Standard
Quiet
Display On / Off
Safety Beam On / Off
Settings
Default Preset Reset To Default
Go Back
User Preset 1 Load preset 1
Save to preset 1
User Preset 2 Load preset 2
Save to preset 2
User Preset 3 Load preset 3
Save to preset 3

9
MYTHOS
Main Menu Level 1 Level 2 Level 3 Choices / Values
INFORMATION
System Errors Read / Reset
Fixture Hours Total Hours Read
Partial Hours Read / Reset
Lamp Hours Total Hours Read
Partial Hours Read / Reset
Lamp Strikes Total Strikes Read
Partial Strikes Read / Reset
System Version
CPU brd Fw.rev. / Hw.rev.
com.dev Fw.rev.
0:PT-3f Fw.rev. / Hw.rev.
1:8-Ch Fw.rev. / Hw.rev.
2:8-Ch Fw.rev. / Hw.rev.
Board Diagnostic
0:PT-3f Status / Err%
1:8-Ch Status / Err%
2:8-Ch Status / Err%
DMX Monitor Channels Value / Percentage
Fans Monitor
PwrSp Speed (RPM)
PwrSp Speed (RPM)
Lamp Speed (RPM)
Lamp Speed (RPM)
Lamp Speed (RPM)
Head Position
X
Y
Z
Good Pkt
Bad Pkt
Uart Err
Sensor status Channels n.a / On / Off
Rot Gobs Indexing
Network parameters
IP Address
IP Mask
MAC Address
MANUAL
CONTROL
Lamp On
/
Off
Reset Yes
/
No
Channels Value / Percentage
TEST
Pan / Tilt n.a.
Colour n.a.
Beam n.a.
Gobo n.a.
All n.a.
ADVANCED Access Code 1234
Service Mode On
/
Off
Upload Firmware Yes
/
No
Setup Model Yes
/
No
Calibration Channels 000 - 255
Rot. Gobo Indexing Yes
/
No
Continue ➔

10
MYTHOS
SET UP MENU
DMX ADDRESS
PLEASE NOTE: Without the DMX input signal, the displayed address (DMX Address) blinks.
It lets you select the address (DMX Address) for the control signal. A DMX address between 001 and 512 can be
selected.
CHANNEL MODE
This lets you select the projector operating mode, selecting one of the two available modes:
•Standard (30 DMX channels occupied, see Channel Function)
•Vector (34 DMX channels occupied, see Channel Function)
FIXTURE ID
It lets you set the “Fixture ID” to be assigned to the projector. An “ID” between 000 and 255 can be assigned.
ETHERNET INTERFACE
It lets you set Ethernet settings to be assigned to the projector as indicated below:
Control Protocol
It lets you select the “Control Protocol” Art-net to be assigned according to the control unit used; the options available are
the following:
•Disabled:
•Art-net on IP 2
•Art-net on IP 10
Repeat on DMX
It lets you enable/disable the transmission of the Ethernet protocol by DMX signal to all the connected projectors.
•Disabled: DMX transmission disabled.
•Enabled on primary: DMX transmission enabled.
Universe
It lets you set the “DMX Universe” to be assigned to a series of projectors with values between 000 and 255.

11
MYTHOS
OPTIONS MENU
LAMP DMX
It lets you enable (ON) the lamp remote control channel. Select OFF to turn off or disable this option.
SAFETY BLACK OUT
This allows the Dimmer's automatic lock option to be activated (ON) after 3 seconds with no incoming DMX signal. Select
OFF to turn off or disable this option.
PAN / TILT
Invert Pan
It lets you enable (ON) Pan reverse movement. Select OFF to turn off or disable this option.
Invert Tilt
It lets you enable (ON) Tilt reverse movement. Select OFF to turn off or disable this option.
Swap Pan-Tilt
It lets you enable (ON) Pan and Tilt channel inversion (and simultaneously Pan fine and Tilt fine). Select OFF to turn off or
disable this option.
Encoder Pan-Tilt
It lets you enable (ON) or disable (OFF) Pan and Tilt Encoder operations.
You can quickly disable the Pan and Tilt Encoder by simultaneously pressing the UP (Ĺ) and DOWN(Ļ) keys in the
''Main Menu''.
P/T Homing Mode
It lets you set the initial Pan and Tilt Reset mode.
•Standard: Pan & Tilt are simultaneously reset.
•Sequenced: Tilt is reset first followed by Pan.
Pan Home Def Pos
It lets you assign the Pan channel “home” position at the end of Reset (without a DMX input signal), selecting one from
the 4 available positions:
•0 degree
•90 degrees
•180 degrees
•270 degrees (default)
Tilt Home Def Pos
It lets you assign the Tilt channel “home” position at the end of Reset (without a DMX input signal), selecting one from the
7 available positions:
•0%
•12.5%
•25%
•50% (default)
•75%
•87.5%
•100%
Continue ➔

12
MYTHOS
COLOR
CMY short-cut
It lets you optimise (ON) the color change time of the color wheel since the disk rotates in the direction that requires the
shortest and thus quickest movement. Select OFF to turn off or disable this option.
SHUTTER
Shutter on error
It lets you activate (ON) automatic "Stopper/Strobe" closing in the event of Pan/Tilt positioning error. Select OFF to turn
off or disable this option.
Dimmer on Shutter
Select ON to enable automatic Dimmer closing when the Strobe is fully closed. Select OFF to disable this option.
DIMMER FILTER TYPE
It lets you best optimise the "Dimmer curve" according to that set on the control panel. One of the following 2 options can
be selected:
DMX follower
Dimmer movement speed/linearity follows the DMX values set by the panel.
Position dependent
Dimmer movement speed follows the DMX values set by the panel taking into account the physical Dimmer starting
position.
MACRO EFFECTS
It allows you to select one of the 2 following options:
Macro Group size: Lets you select the number of projectors (minimum 2 and maximum 15) to be included in the “Macro
Effects” channel operation.
Macro fixture ID: It lets you attribute an ID address to the projector for the phase displacement for the scene’s starting
time in Macro Effects channel.
•Fixed to 1-15: (to assign to all the projectors to be included in the Macro Effects operation).
•Auto by DMX Address: According to the DMX address, it automatically detects the starting sequence of the scene
in the Macro mode (to assign to all the projectors to be included in the Macro Effects channel operation).
SILENT MODE
Allows you to set the preferred mode of the 2 available:
Standard
Maximum speed and thus maximum noise effects.
Quiet
It handles the speed of some effects (Pan, Tilt, Focus), reducing the noise level.
DISPLAY
It lets you activate (ON) display brightness reduction after about 30 seconds in idle status. Select OFF to turn off or
disable this option.
SAFETY BEAM
It lets you turn ON a light beam temperature reduction when Focus movement is 50% over its stroke, if no CMY colour
wheels are inserted, Soft Filter is automatically inserted on the Cyan wheel.

13
MYTHOS
SETTINGS
Used to save 3 different settings of the items in the option menu and relevant submenus.
•Default preset (*)
•User preset 1
•User preset 2
•User Preset 3
-Load preset 'X’ is used to recall a previously stored configuration.
- Save to preset ‘X’ is used to save the current configuration.
(*) DEFAULT PRESET
It lets you restore default values on all option menu items and relevant submenus.
Press the left and right arrows/keys simultaneously in the "main menu” to quickly restore default values
(DEFAULT PRESET).
Continue ➔

14
MYTHOS
INFORMATION MENU
SYSTEM ERRORS
It displays a list of errors that occurred when the projector was turned on.
To reset the SYSTEM ERRORS list, press OK. A confirmation message appears (Are you sure you want to clear error
list?). Select YES to confirm reset.
From the menu
FIXTURE HOURS
It lets you view projector working hours (total and partial).
Total counter
It counts the number of projector working life hours (from construction to date).
Partial counter
It counts the number of projector partial working life hours from the last reset to date.
Press OK to reset the partial counter. A confirmation message appears on the display (Are you sure ?)
Select YES to confirm reset.
LAMP HOURS
It lets you view lamp working hours (total and partial).
Total counter
It counts the number of projector working hours with the lamp on (from construction to date).
Partial counter
It counts the number of lamp partial working hours from the last reset to date.
Press OK to reset the partial counter. A confirmation message appears on the display (Are you sure ?)
Select YES to confirm reset.
LAMP STRIKES
It lets you view how many times the lamp was turned on (total and partial).
Total counter
It counts the number of times the lamp was turned on (from construction to date).
Partial counter
It counts the number of times the lamp was turned on from the last reset to date.
Press OK to reset the partial counter. A confirmation message appears on the display (Are you sure ?)
Select YES to confirm reset.
SYSTEM VERSION
It lets you view the hardware and software versions for each electronic board in the projector.
•CPU brd (CPU board)
•0: PT-3f (Pan / Tilt board)
•1: 8-Ch (8-channel board)
•2: 8-Ch (8-channel board)
BOARD DIAGNOSTIC
It lets you view the percent errors for each electronic board installed in the projector
•0: PT-3f (Pan / Tilt board)
•1: 8-Ch (8-channel board)
•2: 8-Ch (8-channel board)
DMX MONITOR
It lets you view the level of projector DMX channels in bit (Val) and in percent.

15
MYTHOS
FANS MONITOR
It lets you view the speed of each fan installed in the projector:
•Lamp (lamp cooling fan)
•Pwr.Sup (PSU cooling fan)
HEAD POSITION
It lets you view the projector head position with reference to the X, Y and Z axes. It also provides further information on:
•Good pkt: number of correctly received signal packets
•Bad pkt: number of incorrectly received signal packets
•Uart Err.: UART reception errors
SENSOR STATUS
It lets you check the correct operations of each "sensor” installed in the projector, each channel is associated with one of
the following three parameters:
•n.a.= sensor not available
•ON= sensor working
•OFF= sensor defective
ROT GOBOS INDEXING
It lets you check whether the rotating gobo wheel gobo indexing procedure should be run, if indexed, "Indexing Active"
appears on the display, otherwise "Indexing required!” appears
If necessary, indexing should be activated from the Advanced menu.
NETWORK PARAMS
Lets you view the projector "Network" parameters meaning:
IP address: Internet Protocol address (two projectors must not have the same IP address)
IP mask: 255.0.0.0
Mac address: Media Access Control; the projector’s Ethernet Address.
Continue ➔

16
MYTHOS
MANUAL CONTROL
LAMP
It lets you turn the lamp on (ON) or off (OFF) from the projector control panel.
RESET
It lets you reset the projector from the projector control panel.
CHANNEL
It lets you set the channel DMX levels from the projector control panel (value between 0 and 255 bit or between 0% and
100%).
TEST MENU
It lets you test the correct operations of effects using saved Tests.
Available test sequences:
•Pan - Tilt effects (Pan & Tilt)
•Colour effects (Colour wheels)
•Beam effects (Stopper-Strobe / Dimmer / Prism / Frost)
•Gobo effects (Static gobo)
•All effects
ADVANCED MENU
To open the “Advanced Menu”, enter the code (1234)
SERVICE MODE
It lets you disable (ON) the projector Beam operating mode.
UP LOAD FIRMWARE
It lets you transfer "firmware" from one projector to all other connected projectors. A confirmation message appears on
the display (Are you sure ?) Select YES to confirm or NO to abort this operation.
SETUP MODEL
It lets you change the projector model (operation probably necessary after replacing the CPU during repairs). A
confirmation message (Are you sure ?) appears on the display Select YES to confirm (the list of available and selectable
projectors appears) or NO to abort this operation.
CALIBRATION
It lets you make small mechanical adjustments on some effects to perfectly align projectors from the control panel.
Factory default
It lets you restore default "Calibration” values (128 bit) on all channels.
ROT GOBOS INDEXING
It lets you run the rotating gobo wheel gobo indexing procedure. This operation may be necessary after projector
maintenance/cleaning.

17
MYTHOS
Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPAC ING AND PREPARATION section.
Opening the head covers - Fig. 10.
Closing the head covers - Fig. 11.
2
4
1
1/4 Turn
1
1/4 Turn
3
2
10 11
MAINTENANCE
Continue ➔

Lower Side
Lower Side Lower Side
Upper Side
18
MYTHOS
12

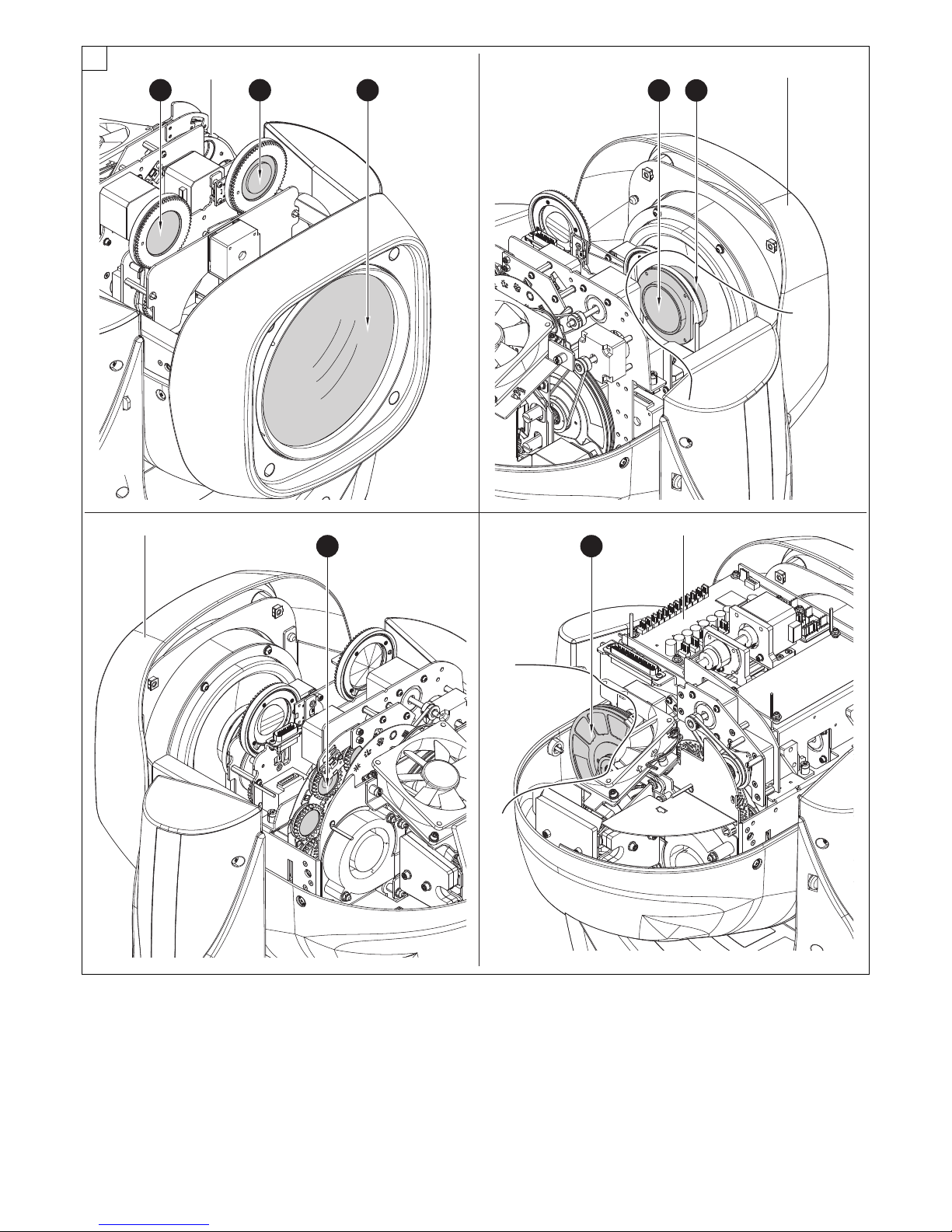

Periodical cleaning - Fig. 12
To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the
working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended
that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:
•General cleaning of internal parts.
•Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky.
•General visual check of the internal components, cabling, mechanical parts, etc.
•Electrical, photometric and functional checks; eventual repairs.

19
MYTHOS
1
4
3
2
13
Cleaning of the filters - Fig. 13.
Continue ➔

20
MYTHOS
14
WARNING:
• Before switch off the fixture, is necessary to keep closed the dimmer channel for at least 5 seconds, this is to ensure a better working
/ reliability of the lamp itself (it is recommended to turn off the lamp when it is dimmed).
• The projector needs to be positioned so that the objects hit by the beam of light are at least 18 metres (59’1”) from the lens of the projector.
A “Soft filter” is available on the Supersharpy (Channel 4 - Colour1 - DMX bit=50) when this ''Soft Filter'' is into the beam, the projector
can be used at a minimum distance of 12 metres from illuminated objects.

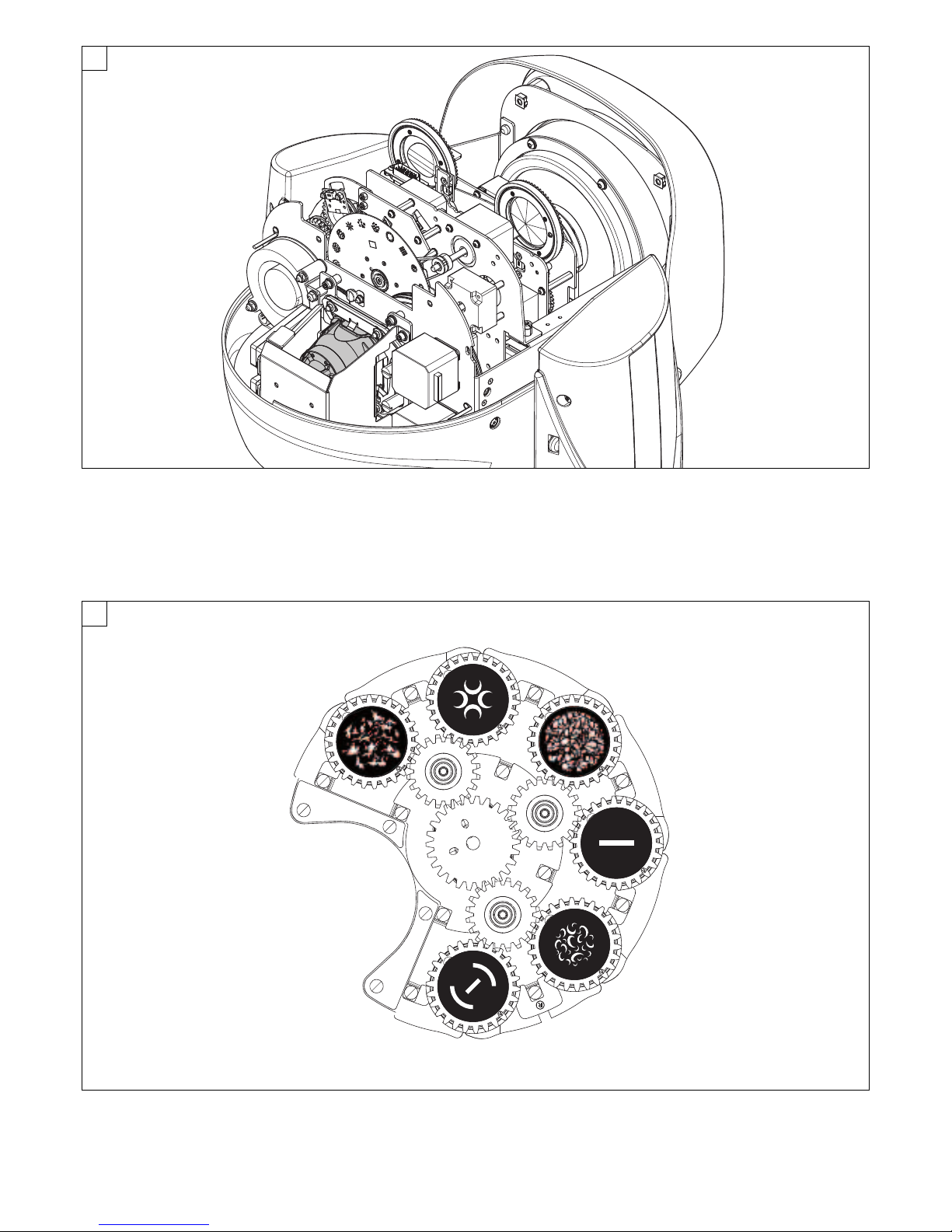

GOD007-004
GOD007-005
GOD007-002
GOD007-001 GOD007-003
GOD007-006
Gobo 5
Gobo 6 Gobo 4
Gobo 3
Gobo 2
Gobo 1
15
ATTENTION:
- Before use custom gobos contact Clay Paky;
- The original gobos have a special coating designed specifically to resist to the high temperatures in the Prima Supersharpy;
- The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);
- For more information contact Clay Paky; - Fig. 15
